Genie Scissors Lift GS-2669RT GS-3369RT GS-4069RT Parts Manual

Description

Genie Scissors Lift GS-2669RT GS-3369RT GS-4069RT Parts Manual – PDF DOWNLOAD

The Genie Scissors Lift GS-2669RT, GS-3369RT, GS-4069RT Parts Manual is a comprehensive PDF guide for maintenance and repair, ensuring optimal performance of these models.

FILE DETAILS:

Genie Scissors Lift GS-2669RT GS-3369RT GS-4069RT Parts Manual – PDF DOWNLOAD

Language : English
Pages : 330
Downloadable : Yes
File Type : PDF

DESCRIPTION

Genie Scissors Lift GS-2669RT GS-3369RT GS-4069RT Parts Manual – PDF DOWNLOAD

How to Order Parts

Please be prepared with the following information when ordering replacement parts for your Terex or Genie product.

• Machine model number
• Machine serial number
• Part number
• Part description and quantity
• Purchase order number
• “Ship to” address
• Desired method of shipment
•  Name and telephone number of the
  authorized distributor in your area
• Use the Service Parts Fax Order Form on the next page and fax your order to our Parts Department.
• If you don’t know the name of your authorized distributor, or if your area is not currently serviced by an authorized distributor, please call Terex or Genie Industries.

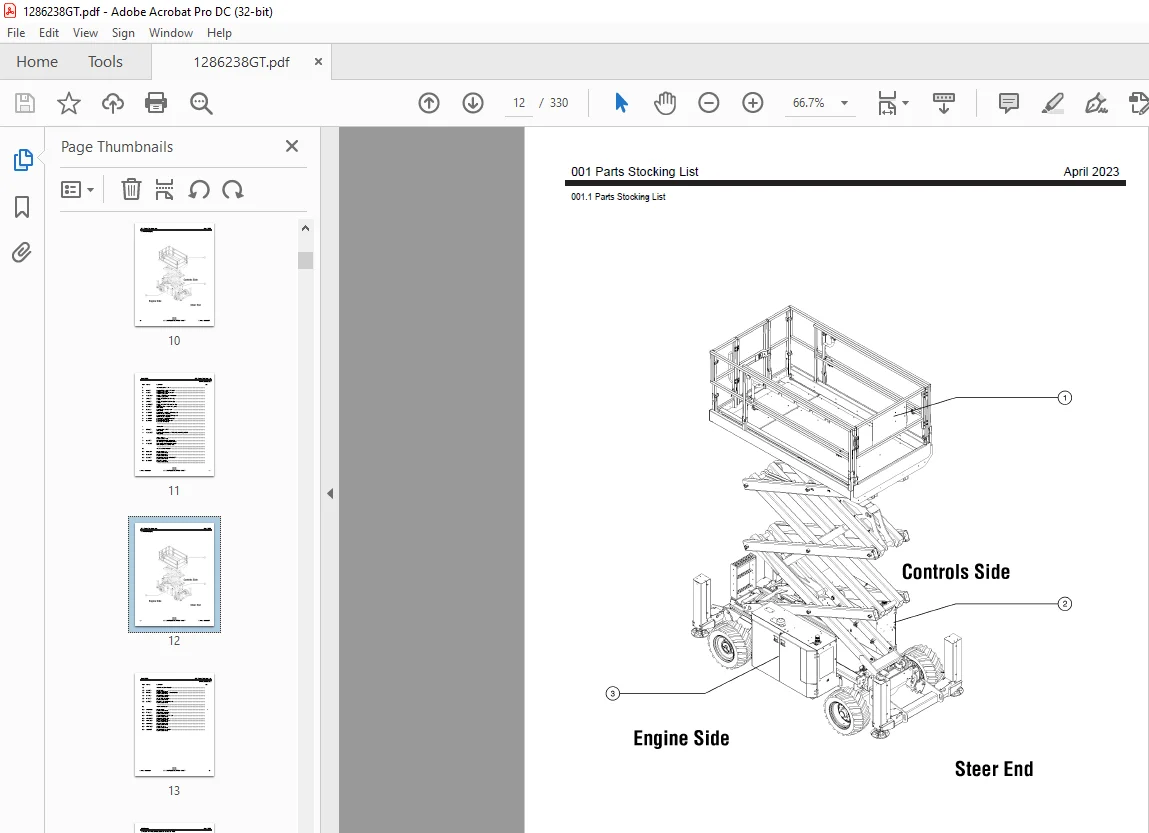

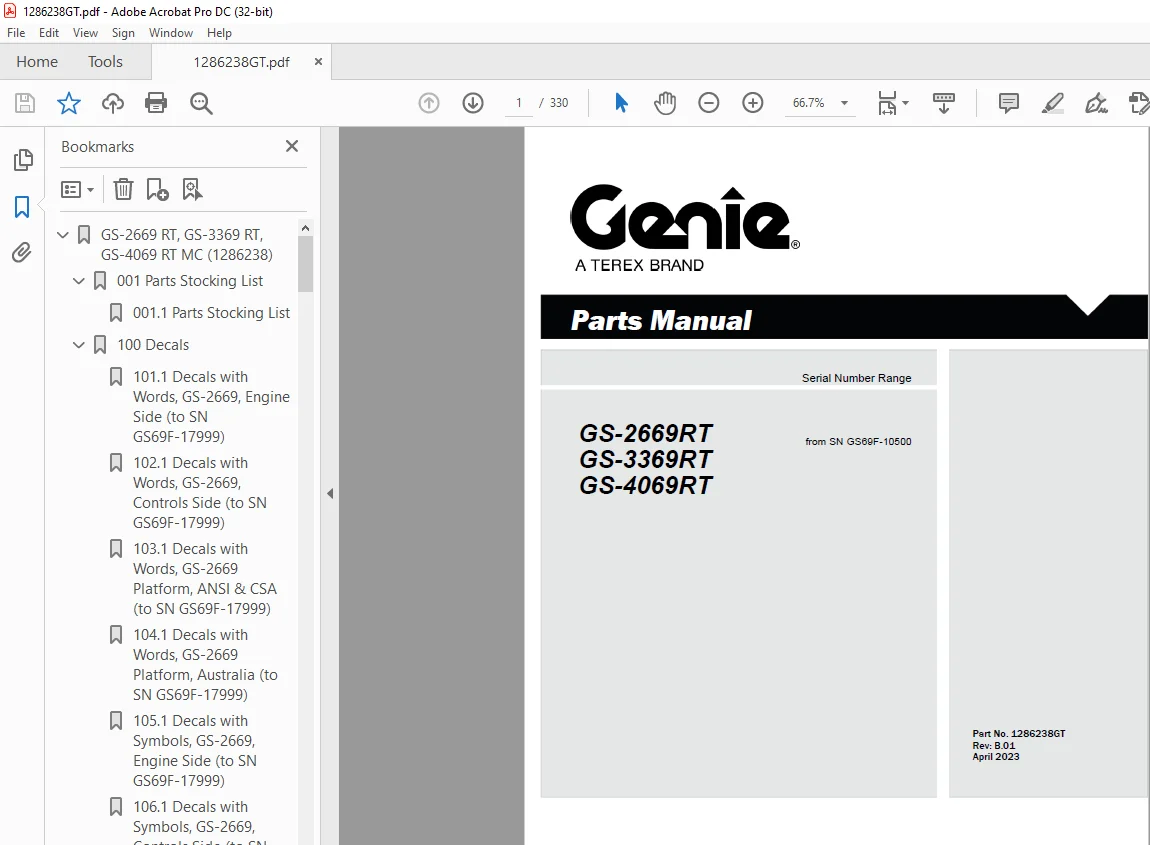

IMAGES PREVIEW OF THE MANUAL:

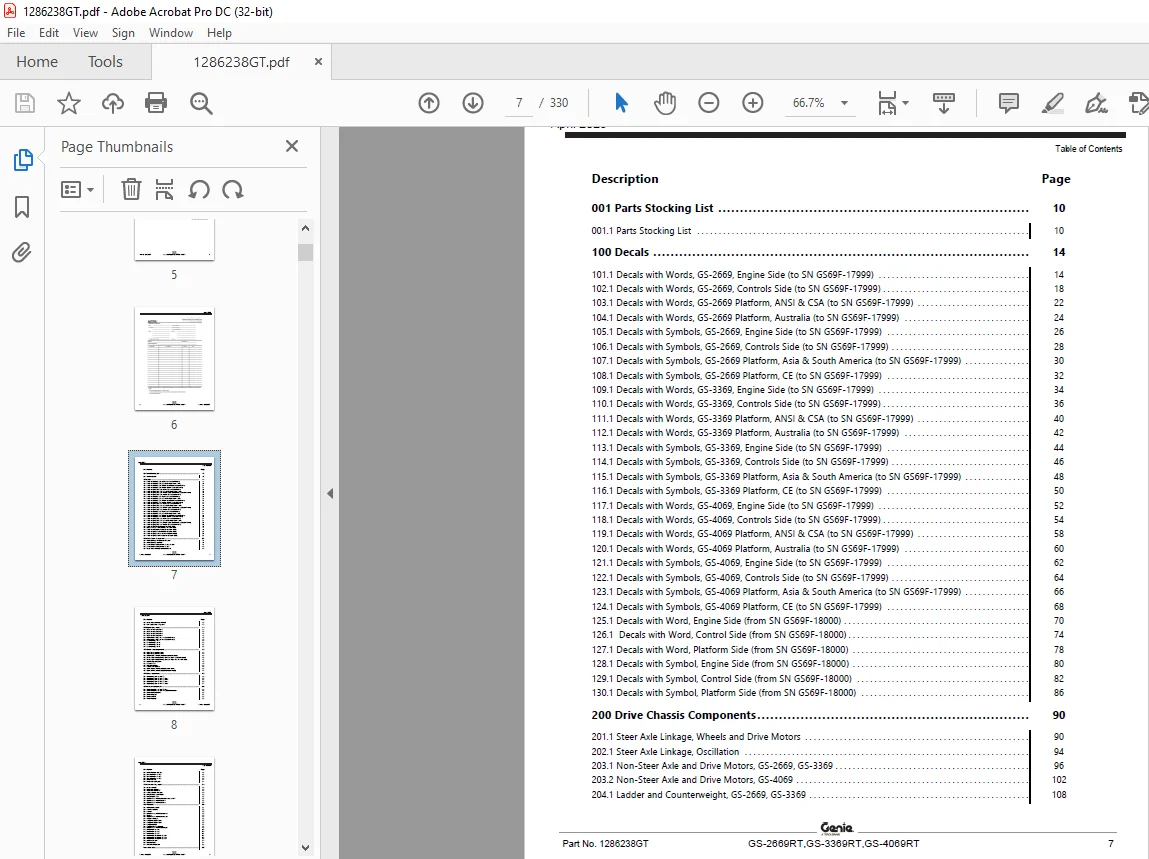

TABLE OF CONTENTS:

Genie Scissors Lift GS-2669RT GS-3369RT GS-4069RT Parts Manual – PDF DOWNLOAD

GS-2669 RT, GS-3369 RT, GS-4069 RT MC (1286238) 0
001 Parts Stocking List 10
0011 Parts Stocking List 10
100 Decals 14
1011 Decals with Words, GS-2669, Engine Side (to SN GS69F-17999) 14
1021 Decals with Words, GS-2669, Controls Side (to SN GS69F-17999) 18
1031 Decals with Words, GS-2669 Platform, ANSI & CSA (to SN GS69F-17999) 22
1041 Decals with Words, GS-2669 Platform, Australia (to SN GS69F-17999) 24
1051 Decals with Symbols, GS-2669, Engine Side (to SN GS69F-17999) 26
1061 Decals with Symbols, GS-2669, Controls Side (to SN GS69F-17999) 28
1071 Decals with Symbols, GS-2669 Platform, Asia & South America (to SN GS69F-17999) 30
1081 Decals with Symbols, GS-2669 Platform, CE (to SN GS69F-17999) 32
1091 Decals with Words, GS-3369, Engine Side (to SN GS69F-17999) 34
1101 Decals with Words, GS-3369, Controls Side (to SN GS69F-17999) 36
1111 Decals with Words, GS-3369 Platform, ANSI & CSA (to SN GS69F-17999) 40
1121 Decals with Words, GS-3369 Platform, Australia (to SN GS69F-17999) 42
1131 Decals with Symbols, GS-3369, Engine Side (to SN GS69F-17999) 44
1141 Decals with Symbols, GS-3369, Controls Side (to SN GS69F-17999) 46
1151 Decals with Symbols, GS-3369 Platform, Asia & South America (to SN GS69F-17999) 48
1161 Decals with Symbols, GS-3369 Platform, CE (to SN GS69F-17999) 50
1171 Decals with Words, GS-4069, Engine Side (to SN GS69F-17999) 52
1181 Decals with Words, GS-4069, Controls Side (to SN GS69F-17999) 54
1191 Decals with Words, GS-4069 Platform, ANSI & CSA (to SN GS69F-17999) 58
1201 Decals with Words, GS-4069 Platform, Australia (to SN GS69F-17999) 60
1211 Decals with Symbols, GS-4069, Engine Side (to SN GS69F-17999) 62
1221 Decals with Symbols, GS-4069, Controls Side (to SN GS69F-17999) 64
1231 Decals with Symbols, GS-4069 Platform, Asia & South America (to SN GS69F-17999) 66
1241 Decals with Symbols, GS-4069 Platform, CE (to SN GS69F-17999) 68
1251 Decals with Word, Engine Side (from SN GS69F-18000) 70
1261 Decals with Word, Control Side (from SN GS69F-18000) 74
1271 Decals with Word, Platform Side (from SN GS69F-18000) 78
1281 Decals with Symbol, Engine Side (from SN GS69F-18000) 80
1291 Decals with Symbol, Control Side (from SN GS69F-18000) 82
1301 Decals with Symbol, Platform Side (from SN GS69F-18000) 86
200 Drive Chassis Components 90
2011 Steer Axle Linkage, Wheels and Drive Motors 90
2021 Steer Axle Linkage, Oscillation 94
2031 Non-Steer Axle and Drive Motors, GS-2669, GS-3369 96
2032 Non-Steer Axle and Drive Motors, GS-4069102
2041 Ladder and Counterweight, GS-2669, GS-3369108
2042 Ladder and Counterweight, GS-4069110
2051 Drive Chassis, Safety Components112
300 Engine Components114
3011 Kubota D-1105 Engine, View 1114
3021 Kubota D-1105 Engine, View 2118
3031 Kubota D-1105 Engine, View 3122
3041 Kubota D-1105 Engine, View 4126
3051 Perkins 403D-11 Engine, View 1 (to SN GS69F-11000)130
3061 Perkins 403D-11 Engine, View 2 (to SN GS69F-11000)136
3071 GM 0998L Engine, View 1140
3081 GM 0998L Engine, View 2142
3091 GM 0998L Engine, View 3146
3101 GM 0998L Engine, View 4148
400 Chassis Tray Components156
4011 Engine Tray Components, View 1156
4021 Engine Tray Components, View 2158
4031 Hydraulic Tank, Fuel Tank, and Ground Controls Installation162
4032 Gasoline Tank, Hoses and Fittings, GM 0998L Engine (to SN GS69F-11863)168
4033 Gasoline Tank, Hoses and Fittings, GM 0998L Engine (from SN GS69F-11864)172
4041 Hydraulic Tray Components176
4051 Ground Controls178
4061 LPG Tank Installation184
4071 Chassis Cover Installation186
4081 Electrical Wiring and Power Cables (to GS69F-17999)188
4082 Electrical Wiring and Power Cables (from GS69F-18000)192
500 Scissor Components196
5011 Scissor Components, GS-2669 RT196
5021 Scissor Components, GS-3369 RT, View 1202
5031 Scissor Components, GS-3369 RT, View 2206
5041 Scissor Components, GS-4069 RT, View 1208
5051 Scissor Components, GS-4069 RT, View 2212
600 Platform Components216
6011 Platform Installation, GS-2669 RT, View 1216
6021 Platform Installation, GS-3369 RT and GS-4069 RT, View 2218
6031 Platform Railing Installation220
6041 Platform Entry Gate224
6051 Platform Side Exit226
6061 Platform Extension228
6071 Platform Extension Deck Lock232
6081 Power to Platform, GS-2669234
6082 Power to Platform, GS-3369238
6083 Power to Platform, GS-4069240
6091 Platform Controls242
6101 Platform Controls Joystick244
700 Hydraulic Components246
7011 Function Manifold246
7021 Traction Manifold, View 1252
7031 Traction Manifold, View 2256
7041 Oscillate Cylinders, All Models258
7051 Lift Cylinders, GS-2669, GS-3369260
7052 Lift Cylinders, GS-4069262
7061 Hydraulic Hoses and Fittings, Lift Cylinder, GS-4069 RT264
7071 Hydraulic Hoses and Fittings, View 1266
7081 Hydraulic Hoses and Fittings, View 2270
800 Accessories274
8011 Flashing Motion Beacon274
8021 Generator Installation276
8031 Generator278
8041 Hydraulic Hoses and Fittings, Generator280
8051 Oil Cooler282
8061 Hydraulic Hoses and Fittings, Oil Cooler284
8071 Cold Start Installation286
8081 Outrigger Installation, View 1288
8091 Outrigger Installation, View 2290
8101 Outrigger Manifold294
8111 Outrigger Cylinders, All Models296
8121 Hydraulic Hoses and Fittings, Outrigger298
8131 Air to Platform, GS-2669300
8132 Air to Platform, GS-3369302
8133 Air to Platform, GS-4069304
8141 Link Guard, CE and Australia, GS-2669306
8142 Link Guard, CE and Australia, GS-3369308
8143 Link Guard, CE and Australia, GS-4069310
8151 Platform Work Light312
8161 Telematics Option314
8171 Lift Tool Material Carrier316
Part Number Index318
