Genie TMZ-34/19 Articulating Boom Lift Service Repair Manual PDF

Description

Genie TMZ-34/19 Articulating Boom Lift Service Repair Manual PDF DOWNLOAD

DESCRIPTION

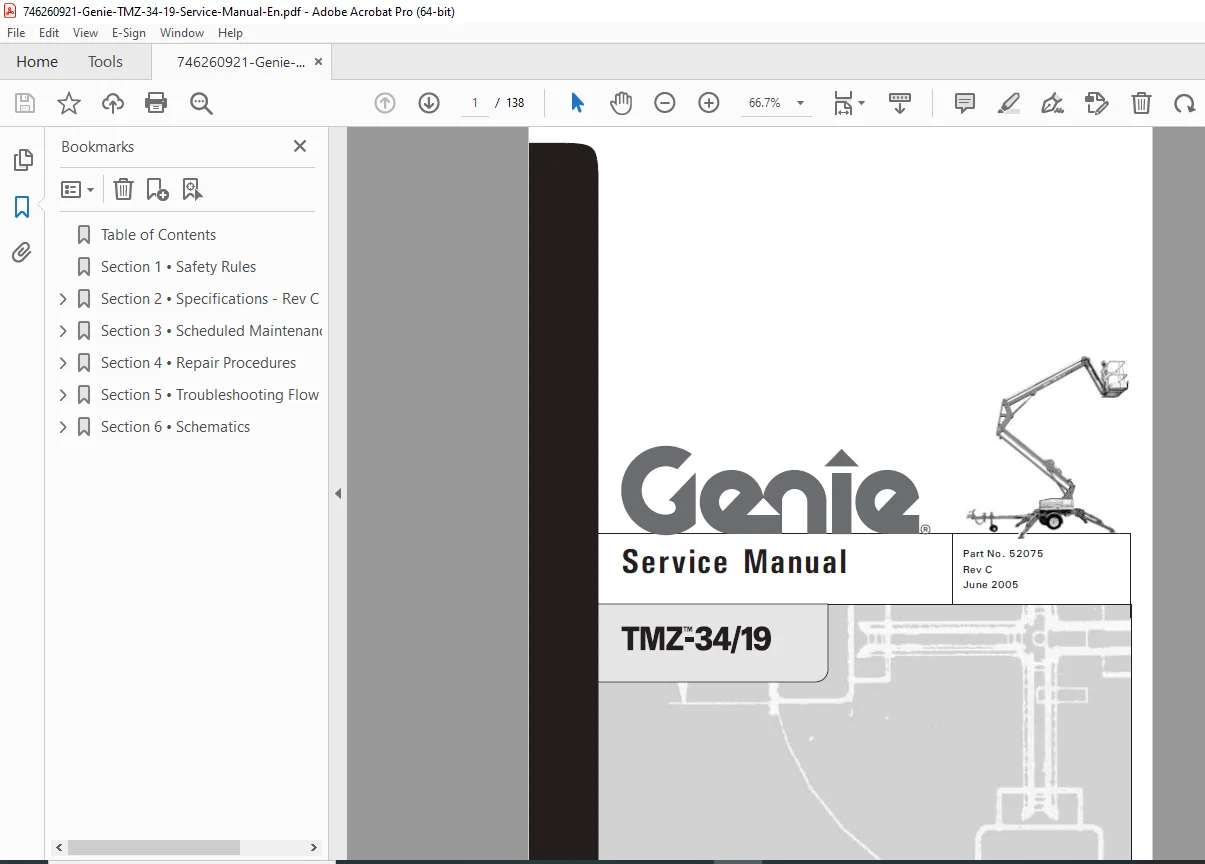

Professional Genie TMZ-34/19 Articulating Boom Lift Service Manual

This is the official comprehensive service manual (Part No. 52075, Revision C, June 2005) for Genie TMZ-34/19 trailer-mounted articulating boom lifts manufactured by Genie Industries. Designed for qualified aerial lift service technicians, equipment rental service departments, and fleet maintenance professionals, this manual provides complete technical documentation for maintenance, repair, troubleshooting, and servicing of Genie articulating boom aerial work platforms.

Machine Model Covered:

• Genie TMZ-34/19 – Trailer-mounted articulating boom lift

Configurations Included:

• Models with Manual Outriggers (ANSI and CE)
• Models with Hydraulic Outriggers (ANSI and CE)
• Serial number ranges: T3498-001 through current production
• ANSI (North American) specifications
• CE (European) specifications
• CSA (Canadian) specifications

Working Height: 34 feet (TMZ-34)
Horizontal Outreach: 19 feet
Platform Type: Articulating boom with jib boom extension
Power Source: 24V DC Battery Electric (4 x 6V batteries)

Complete Manual Contents:

INTRODUCTION:

• Important safety information for service personnel
• Proper use of service manual
• Technical publications copyright and revision information
• Contact information for Genie Industries service support
• Manual purpose and scope

SECTION 1: SAFETY RULES (Critical Safety Information)

Personal Safety Requirements:

• Qualified technician requirements and training
• Manufacturer instruction compliance
• Employer safety rules adherence
• Governmental regulation compliance
• Appropriate tools and lifting equipment requirements
• Workshop facility standards

Safety Symbol Definitions:

• DANGER (Red) – Imminent hazard resulting in death or serious injury
• WARNING (Orange) – Potential hazard that could result in death or serious injury
• CAUTION (Yellow with symbol) – Hazard that may cause minor or moderate injury
• NOTICE (Yellow without symbol) – Potential property damage
• INFORMATION (Green) – Operation or maintenance information

Workplace Safety Procedures:

• Fire and explosion hazard prevention
• Flammable material handling around batteries and fuels
• Fire extinguisher requirements
• Electrical shock prevention
• Crushing hazard awareness (moving parts, sample probe, jaws)
• Proper workshop ventilation and lighting
• Lifting equipment capacity requirements
• Fastener reuse restrictions (cotter pins, self-locking nuts)
• Environmental disposal regulations
• Personal protective equipment (PPE) requirements
• ESD-sensitive component handling

SECTION 2: SPECIFICATIONS (Complete Technical Data)

Machine Specifications:

• Batteries:
  • Type: 6V DC
  • Group: T-105
  • Quantity: 4 batteries
  • Battery capacity: 225AH
  • Reserve capacity @ 25A rate: 447 minutes
• Fluid Capacities:
  • Hydraulic tank capacity: 1.5 gallons (5.7 liters)
  • Hydraulic system total capacity: 2.25 gallons (8.5 liters)
• Tires and Wheels (ANSI/CSA Models):
  • Tire size: ST195/75-D14
  • Wheel lugs: 5 @ 1/2-20 threads
  • Lug nut torque (dry): 90 to 120 ft-lbs (122 to 162 Nm)
  • Tire pressure (cold): 65 psi (4.5 bar)
• Tires and Wheels (CE Models):
  • Tire size: 195/65R15 91T
  • Wheel lugs: 5 @ 1/2-20 threads
  • Lug nut torque (dry): 90 to 120 ft-lbs (122 to 162 Nm)
  • Tire pressure (cold): 44 psi (3 bar)
• Tongue Jack Jockey Wheels:
  • Tire size: 4.00 / 3.50-4 pneumatic
  • Diameter: 10 inches (25.4 cm)
  • Tire pressure maximum (cold): 50 psi (3.4 bar)

Performance Specifications:

• Boom Function Speeds (maximum, no weight in platform):
  • Jib boom up: 10 to 15 seconds
  • Jib boom down: 13 to 18 seconds
  • Primary boom up: 30 to 35 seconds
  • Primary boom down: 21 to 26 seconds
  • Secondary boom up: 15 to 20 seconds
  • Secondary boom down: 13 to 18 seconds
  • Turntable rotate 358°: 55 to 60 seconds
• Airborne Noise Emissions:
  • Maximum sound level: 70 dB (A-weighted)

Hydraulic Specifications:

• Hydraulic Power Unit:
  • Pump type: Gear pump
  • Displacement per revolution: 0.057 cu in (0.93 cc)
  • Flow rate @ 3000 psi / 207 bar: 1.5 gpm (5.7 L/min)
  • System relief valve pressure: 3200 psi (220.6 bar)
• Hydraulic Tank Return Filter:
  • Filtration: 10 micron with 18 psi / 1.2 bar bypass
• Turntable Rotate Manifold:
  • Relief valve pressure: 1200 psi (82.7 bar)

Hydraulic Oil Specifications:

• Serial Numbers T3498-001 to T3402-375:
  • Hydraulic oil type: Shell Donax TG (Dexron III)
• After Serial Number T3402-375:
  • Hydraulic oil type: Chevron Rykon MV equivalent
  • Approximate SAE grade: 5W-20
  • Viscosity index rating: 200
• Optional Fluids:
  • Biodegradable: Petro Canada Premium ECO 46, Statoil Hydra Way Bio Pa 32, BP Biohyd SE-S
  • Fire resistant: UCON Hydrolube HP-5046, Quintolubric 822
  • Mineral based: Shell Tellus T32, Shell Tellus T46, Chevron Aviation A
  • Special temperature fluids with installation requirements

Manifold Component Specifications:

• Plug torque specifications (SAE No. 2 through No. 12)
• Valve coil resistance specifications for all solenoid types
• M12 bolt torque: 60 ft-lbs (81 Nm)

Machine Torque Specifications:

• Complete torque charts for SAE and Metric fasteners
• Hydraulic hose and fitting torque specifications
• Component-specific torque requirements

SECTION 3: SCHEDULED MAINTENANCE PROCEDURES (28 Pages)

Introduction:

• Maintenance schedule overview
• Service interval definitions
• Pre-delivery preparation requirements

Pre-delivery Preparation Report:

• Complete inspection checklist
• Quality control verification
• Documentation requirements

Maintenance Inspection Report:

• Systematic inspection procedures
• Record keeping requirements

Checklist A Procedures (Daily/Before Each Use):

• A-1: Perform Pre-operation Inspection
• A-2: Perform Function Tests
• A-3: Perform Hitch Maintenance (ANSI Models)
• A-4 through A-9: Perform Axle Maintenance (ANSI and CE Models)
• A-10: Perform 30 Day Service
• A-11: Grease Turntable Rotation Bearing and Rotate Gear

Checklist B Procedures (3 Months or 150 Hours):

• B-1: Inspect the Batteries
• B-2: Inspect the Electrical Wiring
• B-3: Test the Emergency Stop
• B-4: Test the Key Switch
• B-5: Test the Manual Lowering Operation
• B-6: Inspect Tires and Wheels (including lug nut/bolt torque)
• B-7: Service the Tongue Jack
• B-8: Inspect the Parking Brake
• B-9: Test the Horn
• B-10: Test the Flashing Beacon (if equipped)
• B-11: Test the Platform Rotation (if equipped)
• B-12: Inspect Hydraulic Tank Cap Venting System
• B-13: Perform Hitch Maintenance (ANSI Models)
• B-14: Perform Hydraulic Oil Analysis

Checklist C Procedures (6 Months or 300 Hours):

• C-1: Replace Hydraulic Tank Breather Cap (Models with Optional Hydraulic Oil)
• C-2: Perform Axle Maintenance (ANSI Models)
• C-3: Perform Hitch Maintenance (CE Models)

Checklist D Procedures (Annually or 1000 Hours):

• D-1: Check Turntable Rotation Bearing Bolts
• D-2: Inspect for Turntable Bearing Wear
• D-3: Replace Hydraulic Tank Return Filter
• D-4: Perform Axle Maintenance (ANSI Models)
• D-5: Perform Hitch Maintenance (ANSI Models)

Checklist E Procedures (2 Years or 2000 Hours):

• E-1: Test or Replace Hydraulic Oil

SECTION 4: REPAIR PROCEDURES (50+ Pages)

Introduction:

• Repair procedure overview
• Required skills and tools
• Safety precautions during repairs

Platform Controls:

• 1-1: Circuit Board Replacement
• 1-2: Membrane Overlay Replacement

Platform Components:

• 2-1: Platform Removal and Installation
• 2-2: Platform Rotator Replacement (if equipped)

Jib Boom Components:

• 3-1: Jib Boom Removal and Installation
• 3-2: Jib Boom Lift Cylinder Replacement

Boom Components:

• 4-1: Boom Removal and Installation (Primary and Secondary)
• 4-2: Lift Cylinders Replacement (Primary and Secondary)

Ground Controls:

• 5-1: Ground Control Keypad Circuit Board Replacement
• 5-2: CPU Circuit Board Replacement
• 5-3: Connector Circuit Board Replacement
• 5-4: Software Configuration Procedures
• 5-5: Membrane Overlay Replacement
• 5-6: Level Sensor Replacement and Calibration
• 5-7: Interacter Battery Charger Service
• 5-8: Lester Battery Charger Service

Hydraulic Power Unit:

• 6-1: Hydraulic Power Unit Components Identification
• 6-2: Valve Adjustments – Hydraulic Power Unit
• 6-3: Hydraulic Pump Replacement

Manifolds:

• 7-1: Turntable Rotation Manifold Components
• 7-2: Valve Adjustments – Turntable Rotation Manifold
• 7-3: Outrigger Manifold Components
• 7-4: Valve Coils Replacement and Testing

Turntable Rotation Components:

• 8-1: Turntable Rotation Motor Replacement

Axle Components:

• 9-1: Axle Removal and Installation
• 9-2: Hub and Bearings Replacement

Trailer Components:

• 10-1: Trailer Brakes Service
• 10-2: Parking Brake Adjustment and Repair

Outriggers:

• 11-1: Outrigger Components Removal and Installation
• 11-2: Outrigger Cylinder Replacement

SECTION 5: TROUBLESHOOTING FLOW CHARTS (24 Pages)

Introduction:

• Systematic troubleshooting approach
• Flowchart usage instructions
• Diagnostic procedures

Fault Code Chart:

• Complete fault code database (after serial number T3402-115)
• Error code definitions
• Troubleshooting procedures for each code

Comprehensive Troubleshooting Charts:

• Chart 1: All Functions Will Not Operate (before serial number T3400-001)
• Chart 2: Pump Motor Will Not Operate
• Chart 3: All Functions Inoperative, Power Unit Starts and Runs
• Chart 4: Ground Controls Inoperative
• Chart 5: Platform Controls Inoperative
• Chart 6: Jib Boom Up Function Inoperative
• Chart 7: Jib Boom Down Function Inoperative
• Chart 8: Primary Boom Up Function Inoperative
• Chart 9: Primary Boom Down Function Inoperative
• Chart 10: Secondary Boom Up Function Inoperative
• Chart 11: Secondary Boom Down Function Inoperative
• Chart 12: Turntable Rotate Left Function Inoperative
• Chart 13: Turntable Rotate Right Function Inoperative
• Chart 14: Parking Brake Function Inoperative

Each flowchart provides:

• Step-by-step diagnostic procedures
• Test point identification
• Expected values and readings
• Component testing procedures
• Repair or replacement recommendations
• Verification procedures

SECTION 6: SCHEMATICS (17 Pages)

Introduction:

• Schematic reading instructions
• Component identification methods
• Wire and hydraulic line tracing

Electrical Component and Wire Color Legends:

• Complete wire color coding
• Connector identification
• Pin assignments

Limit Switch Legend:

• All limit switch locations and functions
• Adjustment procedures

Trailer Lighting Wiring Diagram:

• Complete trailer electrical system
• Towing light connections
• Brake light circuits

Electrical Symbols Legend:

• Standard electrical symbols
• Component representations

Electrical Schematics:

• Models with Manual Outriggers:
  • Serial numbers T3498-001 to T3499-361
  • Serial numbers T3499-362 to T3499-769
  • Serial numbers T3400-001 and after
• Models with Hydraulic Outriggers:
  • Complete electrical schematic
  • All serial number ranges

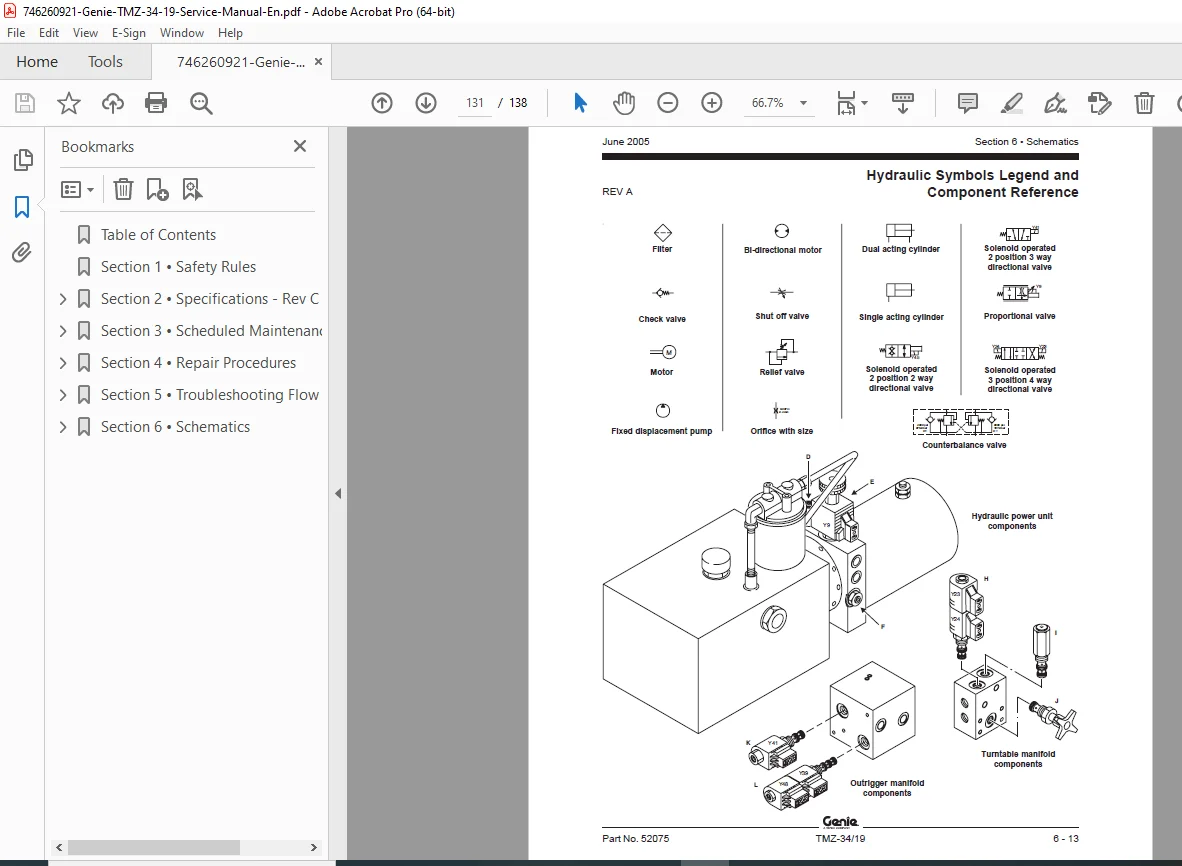

Hydraulic Symbols Legend and Component Reference:

• ISO hydraulic symbols
• Component numbering system
• Flow direction indicators

Hydraulic Schematics:

• Models with Manual Outriggers:
  • Serial numbers T3498-001 to T3499-769
  • Serial numbers T3400-001 to T3400-265
  • After serial number T3400-265
• Models with Hydraulic Outriggers:
  • Before serial number T3400-266
  • After serial number T3400-265

Each schematic includes:

• Complete hydraulic flow paths
• Valve positions and functions
• Cylinder connections
• Manifold details
• Pressure specifications
• Component identification

File Details:

• Manual Title: Service Manual
• Part Number: 52075
• Revision: C (Third Printing)
• Publication Date: June 2005
• Model Covered: TMZ-34/19
• Manufacturer: Genie Industries, Redmond, WA USA
• Equipment Type: Trailer-mounted Articulating Boom Lift (Aerial Work Platform)
• PDF Quality: High-resolution professional service documentation
• Total Pages: 138 pages
• Language: English
• File Format: Searchable PDF with detailed diagrams, schematics, and photographs
• Producer: Acrobat Distiller 5.0.5

Special Features:

Complete Serial Number Coverage: Detailed procedures for multiple serial number ranges with specific schematics and specifications for each production variation, ensuring accurate service for any TMZ-34/19 model.

Dual Configuration Support: Separate procedures and schematics for both manual and hydraulic outrigger models, plus ANSI, CE, and CSA regional specifications with different tire, wheel, and component requirements.

14 Comprehensive Troubleshooting Flowcharts: Systematic diagnostic procedures for every boom function and control system with step-by-step testing, expected values, and component verification.

Complete Hydraulic and Electrical Schematics: Full-size wiring diagrams and hydraulic circuit schematics with component legends, wire color codes, and pressure specifications for all model variations.

Scheduled Maintenance Checklists: Five detailed maintenance checklists (A through E) covering daily, monthly, quarterly, annual, and biennial service procedures with specific inspection and replacement procedures.

Component-Level Repair Instructions: Step-by-step removal and installation procedures for every major assembly from circuit boards to boom cylinders, with torque specifications and adjustment procedures.

Hydraulic Oil Compatibility Guide: Complete fluid specifications including standard, biodegradable, fire-resistant, and extreme-temperature options with proper installation requirements for optional fluids.

Safety-First Documentation: Comprehensive safety procedures integrated throughout with color-coded warning levels (Danger, Warning, Caution, Notice) protecting technicians during high-voltage, hydraulic, and mechanical service.

Battery Charger Service: Detailed procedures for both Interacter and Lester battery charger models with troubleshooting, component replacement, and testing procedures.

Why This Manual is Essential for Aerial Lift Service:

This service manual is the complete authoritative resource for anyone maintaining Genie TMZ-34/19 articulating boom lifts. Whether you’re an equipment rental service technician, a fleet maintenance department, a construction equipment service provider, or an independent aerial lift repair business, this manual provides the manufacturer-approved technical documentation required for professional-quality service, regulatory compliance, and equipment uptime.

Download immediately and gain instant access to 138 pages of factory-authorized service procedures, complete hydraulic and electrical schematics, systematic troubleshooting flowcharts, torque specifications, fault code diagnostics, and component replacement instructions that will reduce downtime, improve service efficiency, ensure operator safety, and extend equipment life. Master the TMZ-34/19’s articulating boom hydraulics, 24V DC control systems, and trailer integration with this comprehensive factory service manual!
