Genie Z30 Z34 Service Manual Articulating Boom Lift Repair Guide  – PDF DOWNLOAD

DESCRIPTION

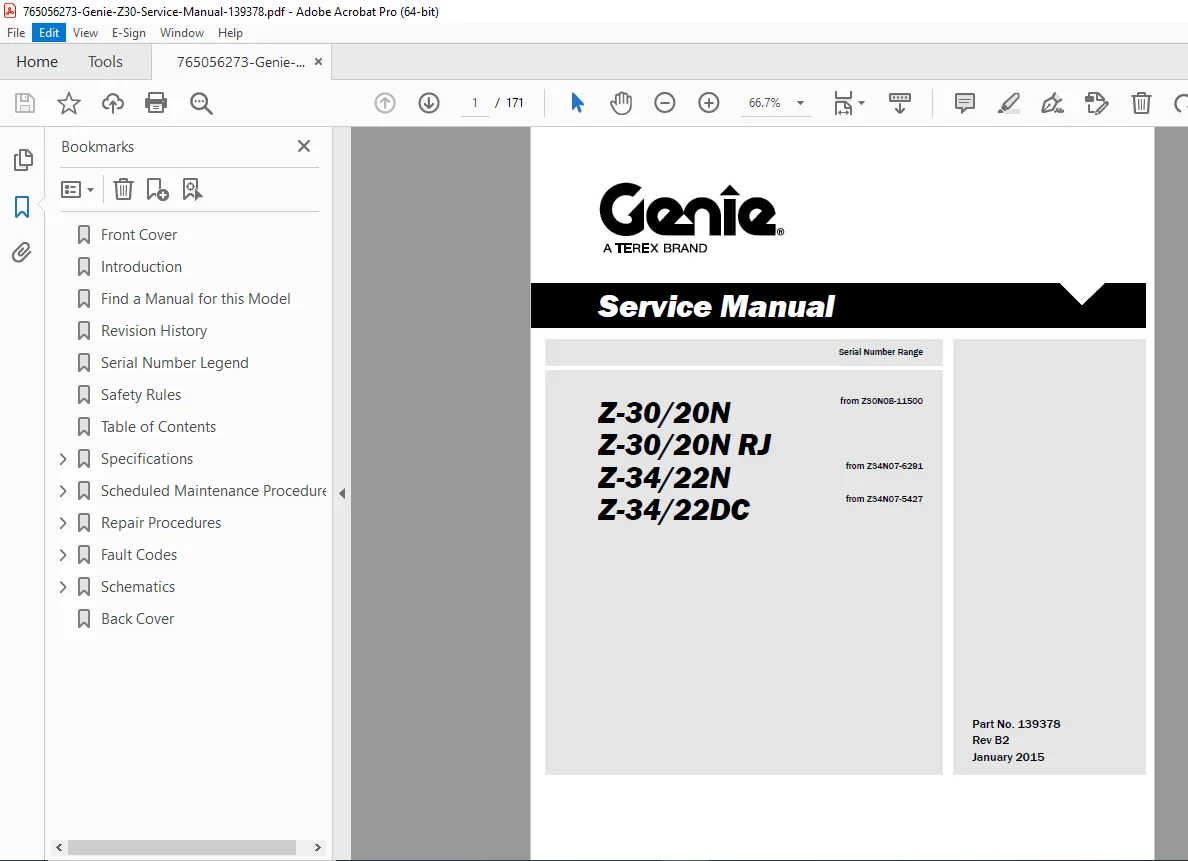

This comprehensive Genie Z-30/Z-34 Series Service Manual (Part Number 139378, Revision B2, January 2015) provides complete technical documentation for servicing and repairing Genie articulating boom aerial work platforms. This professional-grade manual is essential for certified technicians, fleet maintenance professionals, rental company service departments, and authorized Genie dealer service centers working on these popular aerial lifts.

Models Covered

This service manual provides complete technical information for the following Genie articulating boom lift models:

Z-30/20N Series:

• Model: Z-30/20N (standard articulating boom)
• Model: Z-30/20N RJ (rotating jib boom version)
• Serial Number Range: from Z30N08-11500 and above
• Working Height: 30 feet / 9.1 meters
• Horizontal Outreach: 20 feet / 6.1 meters

Z-34/22 Series:

• Model: Z-34/22N (narrow width, electric)
• Model: Z-34/22DC (bi-energy dual fuel)
• Serial Number Range: from Z34N07-6291 and Z34N07-5427
• Working Height: 34 feet / 10.4 meters
• Horizontal Outreach: 22 feet / 6.7 meters

Machine Classification

• Classification: Group B/Type 3 as defined by ISO 16368
• Design Life: Unrestricted with proper operation, inspection, and scheduled maintenance
• Manufacturer: Terex South Dakota, Inc. (Genie Division)
• Copyright: © 2011-2015 Terex Corporation

Document Information

Part Number: 139378
Revision: B2 (Third Edition, Second Printing)
Publication Date: January 2015
Total Pages: 171 pages
Format: Searchable PDF with tagged content
File Size: 8.0 MB

Revision History (Rev B2 Updates):

• Added Emergency Power System test procedure (B-15)
• Updated maintenance procedures
• Enhanced fault code documentation
• Updated hydraulic schematics and legends

Section 1: Safety Rules

Comprehensive Safety Information:

DANGER – Critical Safety Warning:

• Failure to obey instructions and safety rules will result in death or serious injury
• Hazards identified in operator’s manual also apply to maintenance procedures
• Only trained and qualified personnel may perform maintenance

Qualification Requirements:

• Proper training on this specific machine type
• Understanding of manufacturer’s instructions and safety rules
• Compliance with employer safety rules and worksite regulations
• Knowledge of applicable governmental regulations
• Access to appropriate tools, lifting equipment, and suitable workshop

Personal Safety Protocols:

Signal Word Definitions:

• DANGER: Imminently hazardous situation; will result in death or serious injury
• WARNING: Potentially hazardous situation; could result in death or serious injury
• CAUTION: Potentially hazardous situation; may cause minor or moderate injury
• NOTICE: Potentially hazardous situation; may result in property damage

Safety Equipment Requirements:

• Protective eye wear mandatory
• Steel-toed safety shoes required
• Protective clothing as situation warrants
• Awareness of crushing hazards from moving parts

Workplace Safety Requirements:

• Keep sparks, flames, and tobacco away from flammable materials
• Keep approved fire extinguisher within easy reach
• Properly maintained tools and clean work areas
• Adequate workshop ventilation and lighting
• Forklift, crane, or lifting device must support and stabilize weight
• Use only chains or straps in good condition with ample capacity
• One-time use fasteners (cotter pins, self-locking nuts) must not be reused
• Proper disposal of old oil and fluids in approved containers
• Environmental safety compliance

Section 2: Specifications

Machine Specifications:

Tires and Wheels (Z-30/20N, Z-30/20N RJ, Z-34/22N):

• Tire Size: 22 x 7 x 17.5 in (56 x 18 x 44 cm)
• Tire Type: Solid rubber (non-pneumatic)
• Load Range: 7,600 lbs (3,447 kg)
• Overall Tire Diameter: 22 in (56 cm)
• Wheel Diameter: 17.5 in (44 cm)
• Wheel Width: 7 in (18 cm)
• Wheel Lugs – Front: 8 @ 5/8-18 thread
• Wheel Lugs – Rear: 9 @ 5/8-18 thread

Tires and Wheels (Z-34/22DC):

• Tire Size: 9-14.5 LT
• Tire Ply Rating: 12
• Tire Weight (foam-filled minimum): 175 lbs (79 kg)
• Overall Tire Diameter: 28 in (71 cm)
• Wheel Diameter: 14.5 in (37 cm)
• Wheel Width: 7 in (18 cm)

Lug Nut Torque Specifications:

• Dry Threads: 125 ft-lbs (169.5 Nm)
• Lubricated Threads: 95 ft-lbs (129 Nm)

Fluid Capacities:

• Hydraulic Tank: 4 gallons (15.1 liters)
• Total Hydraulic System: 6 gallons (22.7 liters) including tank
• Drive Hubs (48:1 ratio): 24.5 fl oz (0.72 liters) each
• Drive Hubs (57:1 ratio): 24.5 fl oz (0.72 liters) each
• Drive Hub Oil Type: SAE 90 multipurpose hypoid gear oil, API GL5

Performance Specifications:

Drive Speed – Z-30/20N and Z-30/20N RJ:

• Stowed Position Maximum: 4.5 mph (7.2 km/h) – 40 ft in 6.0 seconds
• Boom Raised/Extended: 0.6 mph (1 km/h) – 40 ft in 42 seconds
• Braking Distance (high range, paved): 2 to 4 ft (0.6 to 1.2 m)
• Gradeability: See Operator’s Manual for specific grades

Drive Speed – Z-34/22 and Z-34/22N:

• Stowed Position Maximum: 4.5 mph (7.2 km/h) – 40 ft in 6.0 seconds
• Boom Raised/Extended: 0.6 mph (1 km/h) – 40 ft in 42 seconds
• Braking Distance (high range, paved): 2 to 4 ft (0.6 to 1.2 m)

Boom Function Speeds (with rated load, from platform controls):

Z-30/20N Series:

• Jib boom up: 19-23 seconds
• Jib boom down: 17-21 seconds
• Jib boom rotate 180°: 13-17 seconds
• Primary boom up: 16-22 seconds

Z-34/22 Series:

• Jib boom up: 20-24 seconds
• Jib boom down: 18-22 seconds

Hydraulic Specifications:

• Complete hydraulic system specifications
• Component specifications for all hydraulic parts
• Manifold component specifications
• Pressure settings and flow rates

Torque Specifications:

• Machine-specific torque values
• Hydraulic hose and fitting torque specifications
• Detailed torque procedures
• SAE and metric fastener torque charts

Section 3: Scheduled Maintenance Procedures

Pre-Delivery Preparation Report:

• Complete checklist for new machine setup
• Initial inspection procedures
• Function verification tests

Maintenance Inspection Report:

• Standardized inspection documentation
• Service interval tracking
• Maintenance history recording

Checklist A Procedures (Daily/Before Each Use):

• A-1: Inspect Manuals and Decals
• A-2: Perform Pre-operation Inspection
• A-3: Perform Function Tests
• A-4: Perform 30-Day Service
• A-5: Grease Turntable Rotation Bearing and Worm Drive Gear
• A-6: Replace Drive Hub Oil

Checklist B Procedures (Every 3 Months or 250 Hours):

• B-1: Inspect the Battery
• B-2: Inspect the Electrical Wiring
• B-3: Inspect Tires, Wheels, and Lug Nut Torque
• B-4: Confirm Proper Brake Configuration
• B-5: Check Drive Hub Oil Level and Fastener Torque
• B-6: Test Ground Control Override
• B-7: Test Platform Self-leveling
• B-8: Test Drive Brakes
• B-9: Test Drive Speed – Stowed Position
• B-10: Test Drive Speed – Raised or Extended Position
• B-11: Test Alarm Package (if equipped)
• B-12: Test Turntable Rotation Stop
• B-13: Check Electrical Contactors
• B-14: Perform Hydraulic Oil Analysis
• B-15: Test Emergency Power System

Checklist C Procedures (Every 6 Months or 500 Hours):

• C-1: Grease Platform Overload Mechanism (if equipped)
• C-2: Test Platform Overload System (if equipped)

Checklist D Procedures (Annually or 1000 Hours):

• D-1: Check Boom Wear Pads
• D-2: Check Free-wheel Configuration
• D-3: Check Turntable Rotation Bearing Bolts
• D-4: Replace Drive Hub Oil
• D-5: Replace Hydraulic Tank Return Filter Element
• D-6: Inspect for Turntable Bearing Wear

Checklist E Procedures (Every 2 Years or 2000 Hours):

• E-1: Test or Replace Hydraulic Oil
• E-2: Grease Steer Axle Wheel Bearings

Section 4: Repair Procedures

Platform Controls (Section 1):

• 1-1: Controllers – removal, installation, and testing procedures

Platform Components (Section 2):

• 2-1: Platform Leveling Slave Cylinder
• 2-2: Platform Rotator service and repair
• 2-3: Platform Overload System troubleshooting and adjustment

Jib Boom Components (Section 3):

• 3-1: Platform Overload System for jib boom
• 3-2: Jib Boom Bell Crank (models without rotating jib)
• 3-3: Jib Boom Bell Crank (models with rotating jib boom)
• 3-4: Jib Boom Lift Cylinder service

Primary Boom Components:

• Primary boom cylinder service
• Boom extension mechanisms
• Boom pivot pin replacement
• Wear pad inspection and replacement

Turntable and Rotation System:

• Turntable rotation bearing service
• Worm drive gear maintenance
• Rotation motor replacement
• Rotation stop adjustment

Drive System Components:

• Drive motor removal and installation
• Drive hub service and seal replacement
• Brake system service and adjustment
• Wheel bearing service

Hydraulic System:

• Hydraulic pump service
• Valve block troubleshooting
• Cylinder seal replacement
• Hydraulic line routing and replacement
• Filter element service

Electrical System:

• Controller diagnostics
• Contactor testing and replacement
• Wiring harness repair
• Battery system service
• Alarm system troubleshooting

Structural Components:

• Chassis inspection procedures
• Boom structural inspection
• Weld inspection criteria
• Platform mounting system

Additional Manual Sections

Fault Codes and Troubleshooting:

• Complete diagnostic fault code charts
• Troubleshooting flowcharts
• System-specific diagnostic procedures
• Error code interpretation

Electrical Schematics:

• Complete electrical wiring diagrams
• Circuit layouts and legends

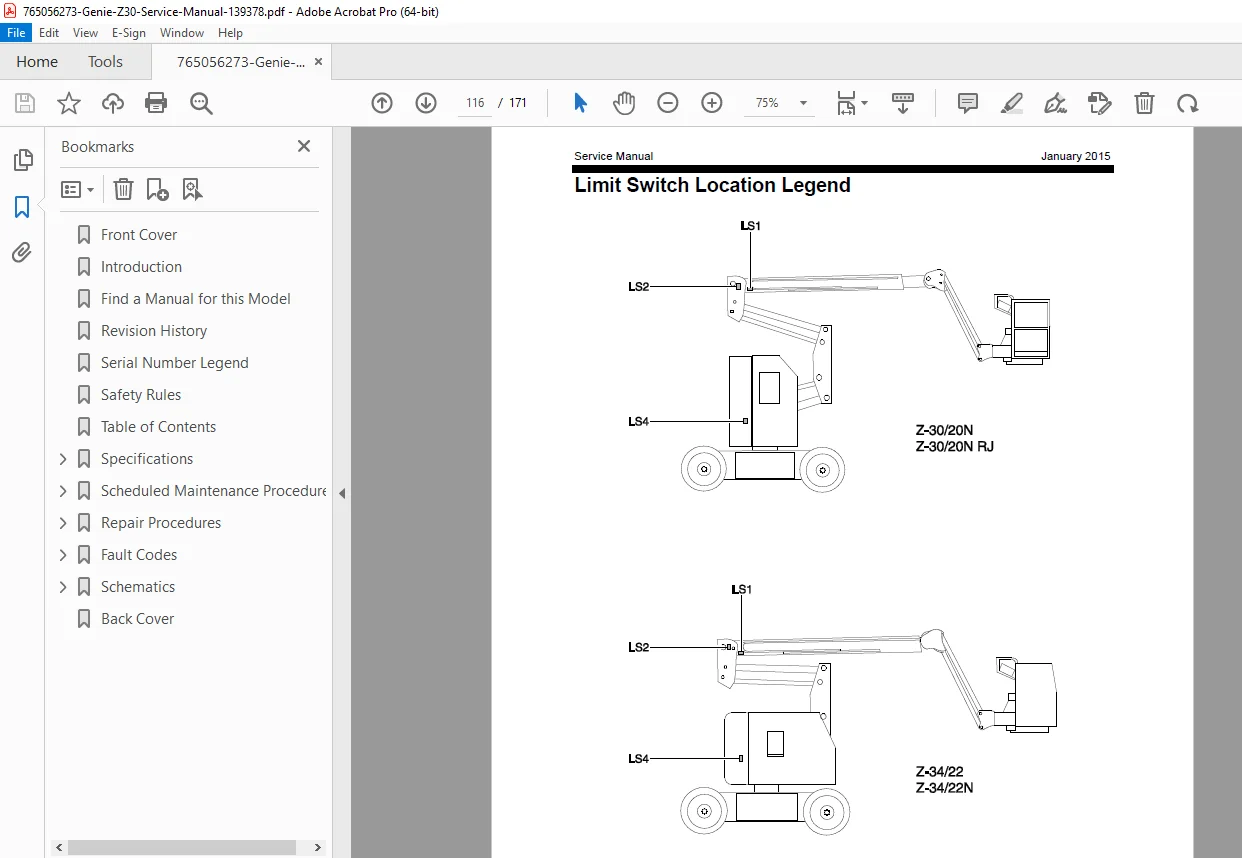

• Component location diagrams
• Connector pin-out identification

Hydraulic Schematics:

• Complete hydraulic circuit diagrams
• Valve symbols and legends
• Flow path identification
• Pressure test port locations

Parts Identification:

• Exploded view diagrams
• Component part numbers
• Assembly relationships
• Hardware specifications

Key Features & Technical Highlights

✓ Four Model Coverage – Z-30/20N, Z-30/20N RJ, Z-34/22N, Z-34/22DC in single manual
✓ Complete Maintenance Schedules – Daily through 2000-hour service intervals
✓ Detailed Repair Procedures – Step-by-step instructions with torque specifications
✓ Hydraulic System Documentation – Complete schematics and specifications
✓ Electrical Diagnostics – Fault codes, wiring diagrams, troubleshooting
✓ Safety-First Approach – Comprehensive safety rules and warnings
✓ Torque Specifications – SAE and metric fastener charts included
✓ Performance Data – Drive speeds, boom function times, gradeability
✓ Fluid Specifications – All hydraulic and drive hub oil requirements
✓ Emergency Procedures – Emergency power system testing and troubleshooting

Professional Service Support

Terex/Genie Contact Information:

• Access to operator’s manuals, parts manuals, and service manuals online

Recommended Service Resources:

• Authorized Genie dealer service centers
• Specialized tools and lifting equipment requirements
• Suitable workshop facilities
• Trained and qualified service professionals

File Details

Manual Name: Genie Z-30/20N, Z-30/20N RJ, Z-34/22N, Z-34/22DC Service Manual
Part Number: 139378
Revision: B2 (Third Edition, Second Printing)
Publication Date: January 2015
Subject: Articulating Boom Aerial Work Platforms
Total Pages: 171 pages
PDF Quality: High-quality factory manual with searchable text and tagged content
File Size: 8.0 MB
Format: Letter size (612 x 792 pts)
Creator: Acrobat PDFMaker 10.1 for Word
Copyright: © 2011-2015 Terex Corporation
