Gradall XL3100V, XL4100V, XL5100V, XL4130V Hydraulic Excavator Service Manual – PDF
$36.95
Gradall XL3100V–XL5100V Hydraulic Excavator Service Manual (80884014) – full factory technical manual covering hydraulic, electrical, and mechanical systems with step-by-step procedures, torque data, lubrication schedules, diagnostic codes, and safety instructions for all V-Series Gradall excavators.
Description
Gradall XL3100V, XL4100V, XL5100V, XL4130V Hydraulic Excavator Service Manual (80884014) – PDF Download
DESCRIPTION:

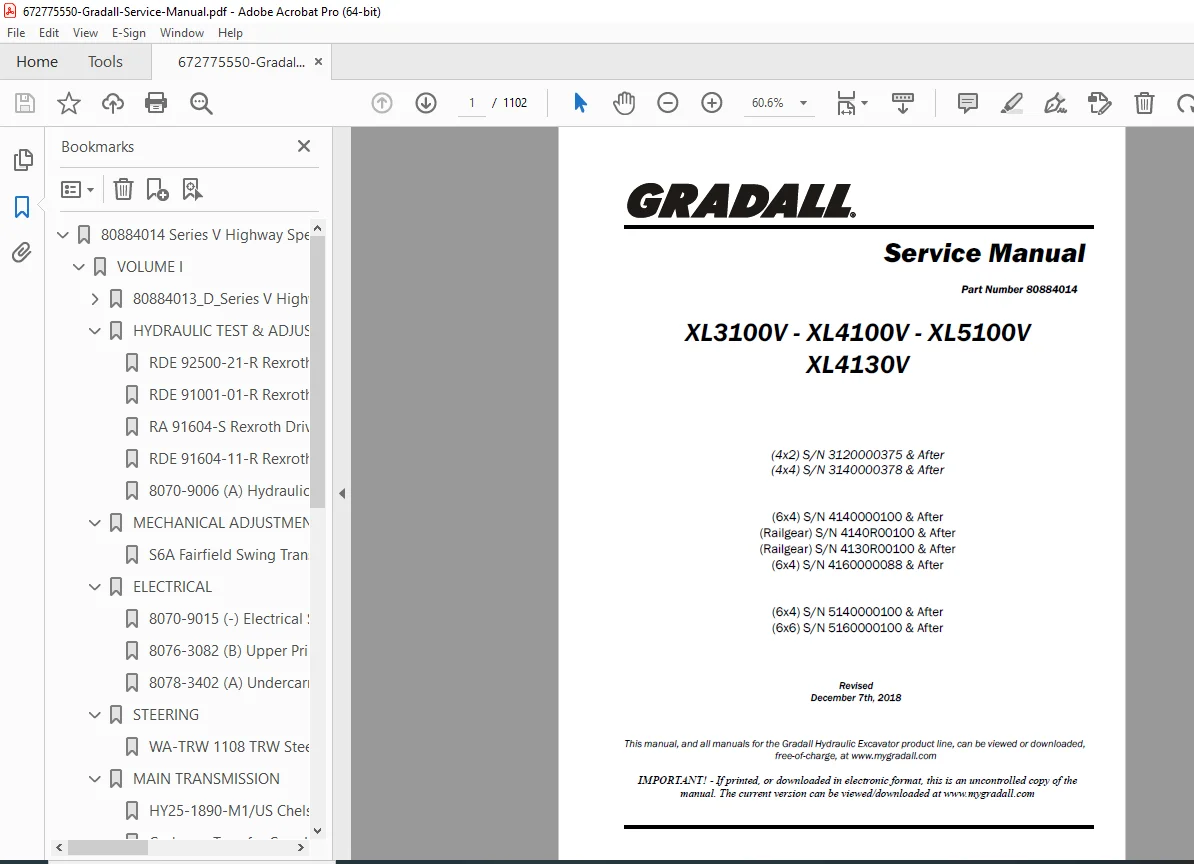

The Gradall XL3100V / XL4100V / XL5100V / XL4130V Hydraulic Excavator Service Manual (Part No. 80884014) provides a complete factory reference for servicing, troubleshooting, and maintaining Gradall’s fifth-generation “V-Series” excavators.
Revised on December 7, 2018, this comprehensive manual covers all models including 4×2, 4×4, 6×4, 6×6, and Railgear variants, starting from the following serial numbers:
3120000375 & after (4×2)
3140000378 & after (4×4)
4140000100 & after (6×4)
4160000088 & after (6×6)
4130R00100 & 4140R00100 (Railgear units)
This service manual is essential for technicians performing hydraulic system diagnostics, transmission calibration, electronic monitoring, maintenance scheduling, and safety compliance checks.
IMAGES:
📘 MAJOR SECTIONS COVERED
1️⃣ General Safety Practices
Hazard classification system and signal words (DANGER, WARNING, CAUTION)
Electrical, chemical, and dust hazard prevention
Operator qualifications and PPE requirements
Modifications and accident reporting procedures
2️⃣ Pre-Operation and Controls
Walk-around inspection checklist with 21 inspection points
Locations of all safety decals and labels
Undercarriage and upperstructure cab layouts
Transmission shift selector (Allison system) with prognostics, oil level, and diagnostic code list
Joystick control patterns (GRADALL / SAE / JOHN DEERE)
Steering, lighting, ignition, and instrumentation functions
3️⃣ Operation
Travel mode and remote operation procedures
Boom and attachment control
Lift capacity and digging cycle operations
Brake systems: service, parking, and emergency
Steering, shifting, and engine shutdown sequences
Storage and transport precautions
4️⃣ Attachments
Approved and unapproved attachment guidelines
Installation instructions for buckets, trenchers, grading blades, and specialized tools
5️⃣ Lubrication & Maintenance
Maintenance intervals from daily to annual (10–1500 hours)
Detailed lubrication schedules for XL3100V, XL4100V, XL5100V
Operator service procedures (oil, coolant, DEF, tire pressure, air filters, etc.)
Hydraulic and powertrain service points
6️⃣ Emergency Procedures
Hydraulic stow procedures in case of power loss
Engine-off towing and recovery instructions
7️⃣ Specifications
Lubrication and fluid capacities
Tires, batteries, weight, and dimensional data
Complete torque chart and fuse box layouts for undercarriage and upperstructure
TECHNICAL HIGHLIGHT
| Parameter | Details |
|---|---|
| Manufacturer | Gradall Industries, Inc. |
| Models Covered | XL3100V, XL4100V, XL5100V, XL4130V (4×2, 4×4, 6×4, 6×6, Railgear) |
| Manual Type | Service Manual |
| Part Number | 80884014 |
| Revision Date | December 7, 2018 |
| Pages | 400+ pages |
| Language | English |
| File Format | Searchable PDF |
| Hydraulic System | Load-sensing, high-pressure system with electronic monitoring |
| Transmission | Allison automatic with diagnostic code capability |
| Control Patterns | GRADALL, SAE, and John Deere |
| Engine Power Range | Approx. 200–250 HP (Tier 4 Final) |
| Safety Compliance | OSHA / AEM Excavator Safety Standards |
| Special Features | Electronic Monitoring Unit (EMU), Prognostic Display, DEF System Monitoring |
FILE DETAILS
| File Name | 672775550-Gradall-Service-Manual.pdf |
|---|---|
| Manual Type | Service Manual |
| Category | Hydraulic Excavator / Construction Equipment |
| Models Covered | XL3100V / XL4100V / XL5100V / XL4130V |
| File Format | |
| File Size | ≈ 38.0 MB |
| Pages | 1000+ |
| Language | English |
| Publisher | Gradall Industries, Inc. |
| Edition | Revised December 2018 |
| Access | Instant Digital Download |
