Great Plains 1510HDF, 2010HDF & 2510HDF 3-Point Drills Parts Manual – PDF

Description

Great Plains 1510HDF, 2010HDF & 2510HDF 3-Point Drills Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Great Plains 1510HDF, 2010HDF & 2510HDF 3-Point Drills Parts Manual – PDF DOWNLOAD

Language : English
Pages : 164
Downloadable : Yes
File Type : PDF

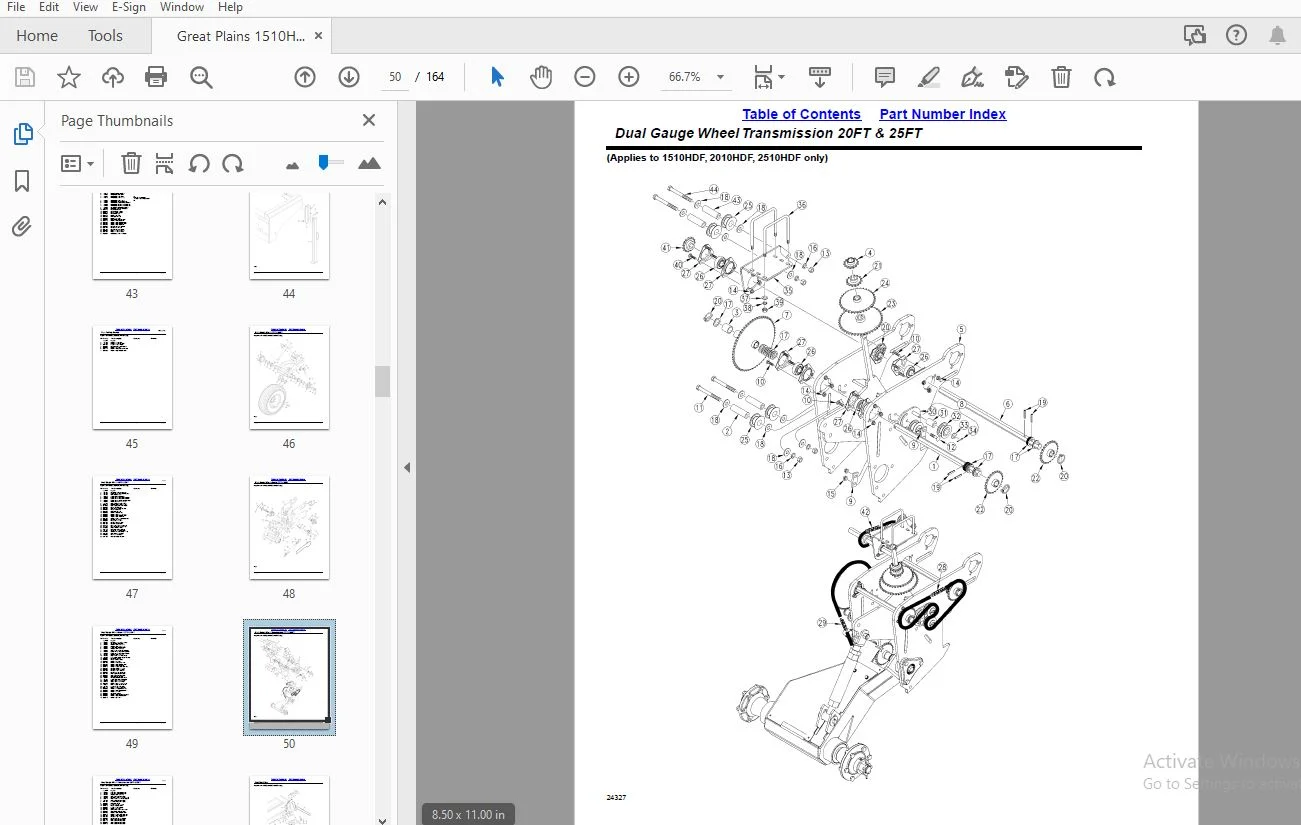

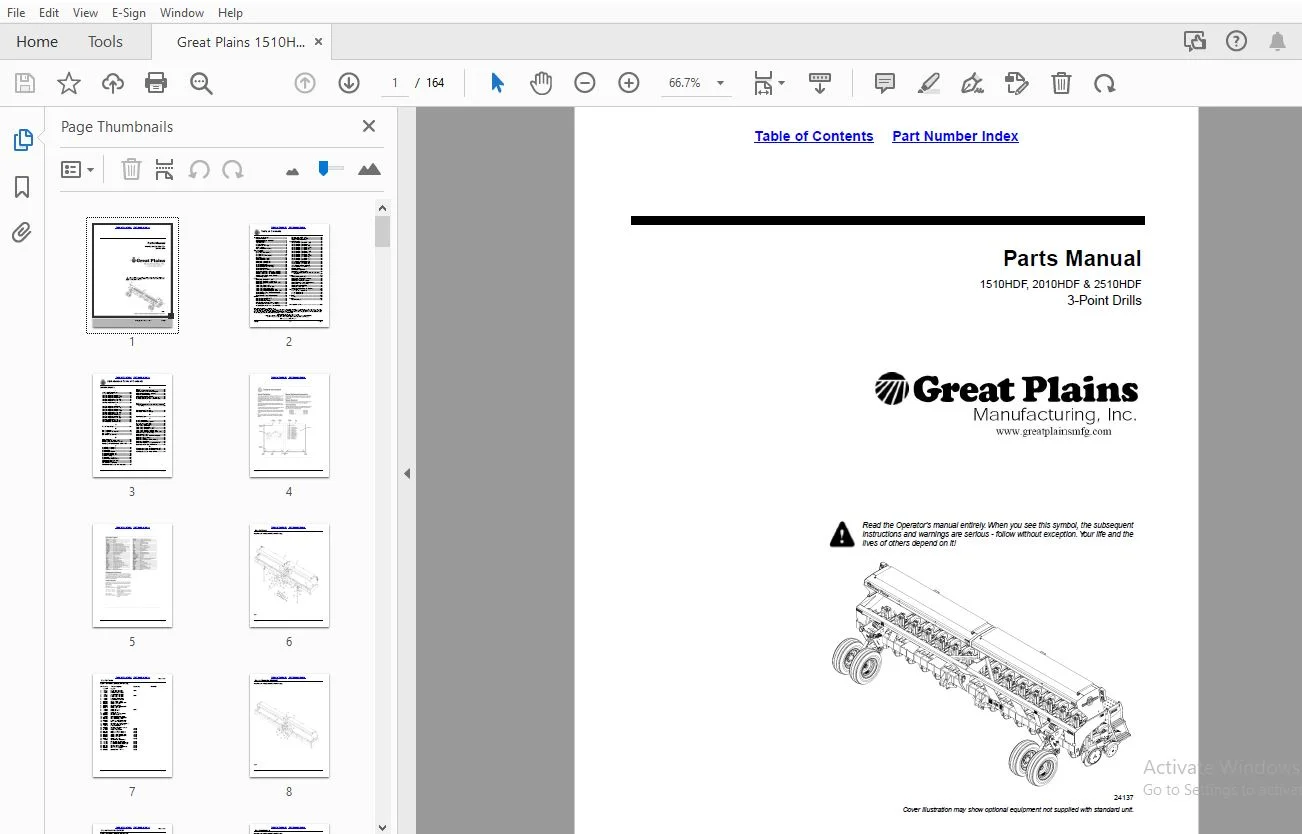

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Great Plains 1510HDF, 2010HDF & 2510HDF 3-Point Drills Parts Manual – PDF DOWNLOAD

Section 1: Introduction 4
Using This Manual 4
Manual Replacement Information 4
Manual Revisions 4
Touch-up Paint 4
Hardware Legend 5
Replacement Hardware 5
Serial Numbers 5
Part Number Service Coding 5
Box Assembly 6
Box To Frame 6
Box to Frame for 2510HDF 8
Box Components 10
Box Components for 2510HDF 12
Lid To Box 14
Fertilizer Box Mount 15 ft 16
Fertilizer Box Mount 20 ft 18
Fertilizer Lid Assembly 15 ft 20
Fertilizer Lid Assembly 20 ft 22
Seed Level Indicator 24
Seed Level Indicator For 2510HDF 26
Small Seeds Box & Lid Assembly 28
Small Seeds Box Drive 32
Small Seeds Box Mounting 34
Small Seeds Walkboard and Ladder 2510HDF 36
Walkboard and Ladder with Fertilizer 1510HDF 38
Walkboard and Ladder with Fertilizer 2010HDF 40
Walkboard And Ladder without Fertilizer 42
Rear Parking Stands 44
Drive 46
Dual Gauge Wheel 20FT & 25FT 46
Dual Gauge Wheel Mount 20FT & 25FT 48
Dual Gauge Wheel Transmission 20FT & 25FT 50
Fertilizer Drive 52
Single Gauge Wheel 15FT 54
Single Gauge Wheel 20FT & 25FT 56
Single Gauge Wheel Mount 15FT 58
Single Gauge Wheel Transmission 15FT 60
Single Gauge Wheel Transmission 20FT & 25FT 62
Small Seeds Box Drive with Fertilizer (Option) 64
Small Seeds Drive 66
Small Seeds Drive and Fertilizer (Option) 68
Marker 70
Flat Fold Marker 15FT & 20FT 70
Flat Fold Marker 25FT 72
Flat Fold Marker Hydraulics 74
Flat Fold Marker Sequence Valve Hydraulics 76
Hydraulic Cylinder 2 X 20 X 1 12 (810-205) 78
Hydraulic Cylinder 2 5 x 20 x 1 20 (810-118C) 80
Marker Carrier 20FT & 25FT 82
Marker Disk and Hub (113-563) 84
Sequence Valve (810-197C) 86
Metering System 88
15 ft Feeder Cup Channel (LH 7 1/2″) 88
15 ft Feeder Cup Channel (LH 8″) 90
15 ft Feeder Cup Channel (LH 10″) 92
15 ft Feeder Cup Channel (RH 7 1/2″) 94
15 ft Feeder Cup Channel (RH 8″) 96
15 ft Feeder Cup Channel (RH 10″) 98
20 ft Feeder Cup Channel (LH 7 1/2″) 100
20 ft Fedder Cup Channel (LH 8″) 102
20 ft Feeder Cup Channel (LH 10″) 104
20 ft Fedder Cup Channel (RH 7 1/2″) 106
20 ft Feeder Cup Channel (RH 8″) 108
20 ft Feeder Cup Channel (RH 10″) 110
25 ft Feeder Cup Channel (LH 7″) 112
25FT Feeder Cup Channel (LH 8″) 114
25 ft Feeder Cup Channel (LH 10″) 116
25 ft Feeder Cup Channel (RH 7″) 118
25FT Feeder Cup Channel (RH 8″) 120
25 ft Feeder Cup Channel (RH 10″) 122
Fertilizer Metering 124
Fertilizer Tray Adjustment 126
Fertilizer Trays, Gates & Shafts 128
Loop Shaft Monitor (2 Channel 116-282A) (3 Channel
116-283A) 130
Openers 132
HD10 Series Opener Body 132
HD10 Series Opener Arms & Mounts 134
Fertilizer Hose Retainer 136
HD10 & 25 Series Inside Scraper 138
HD10 Series Keeton Seed Firmer (Option) 140
HD10 Series Seed-Lok (Option) 142
Side Wheel Scraper (Option) 144
Small Seeds Seed Tube 146
Small Seeds Y-Tube Drop with Fertilizer 148
Press Wheels 150
1 1/4″ x 13 1/2″ Press Wheel 150
1″ x 12″ Press Wheel 152
3″ x 13″ Press Wheel 154
Harrow 156
Harrow 156
Decals 158
Decal Placement 158
Part Number Index 160

S.S 11/24
