Great Plains CTA4000 HD Heavy Duty Air Drill Implement Parts Manual – PDF DOWNLOAD

Description

Great Plains CTA4000 HD Heavy Duty Air Drill Implement Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Great Plains CTA4000 HD Heavy Duty Air Drill Implement Parts Manual – PDF DOWNLOAD

Language : English
Pages : 88
Downloadable : Yes
File Type : PDF

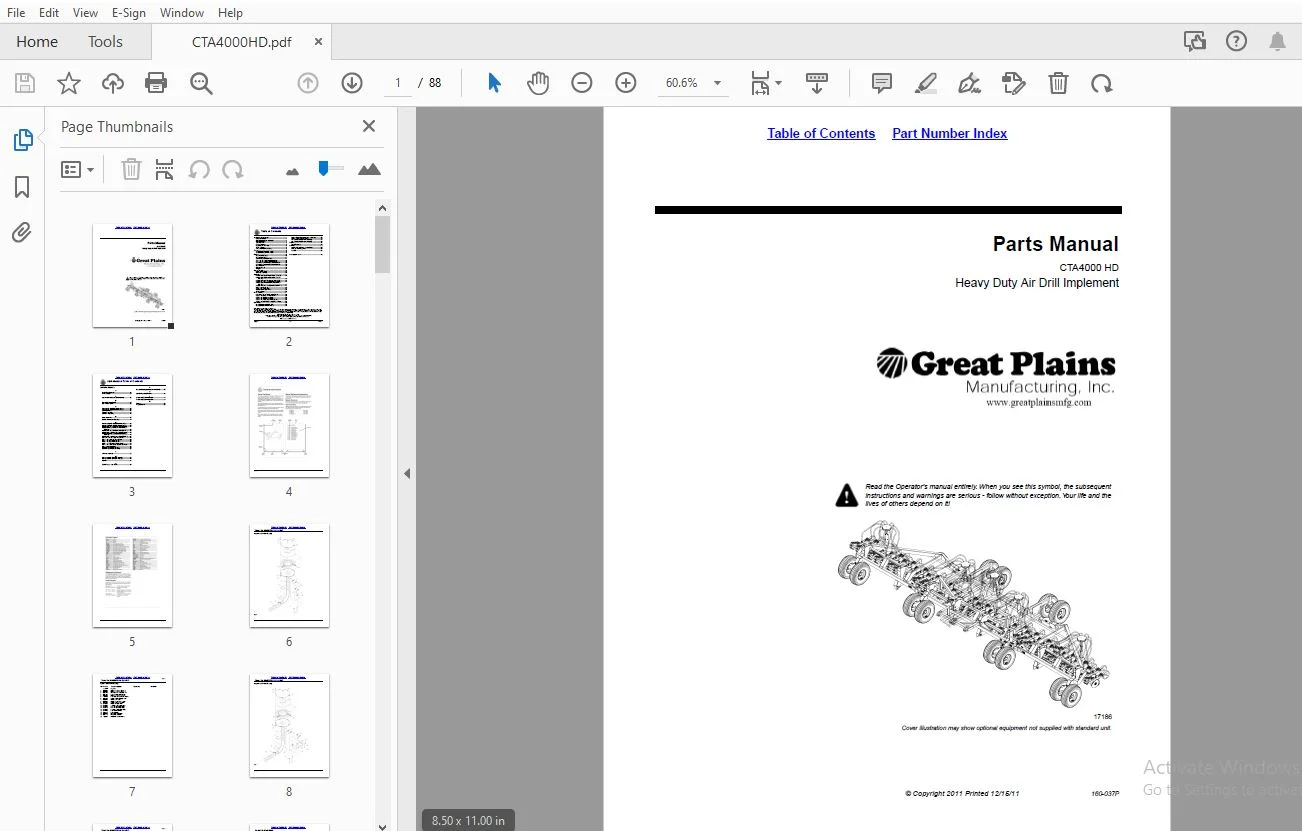

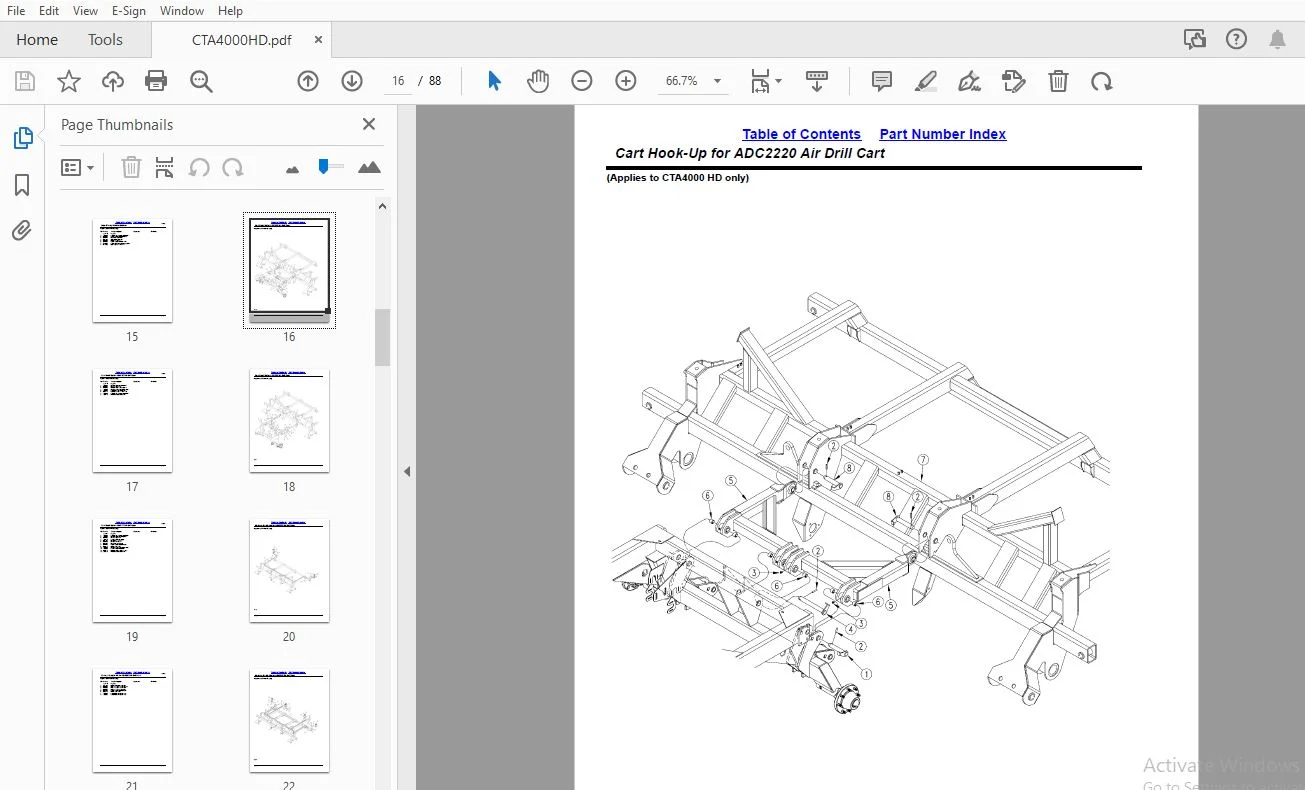

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Great Plains CTA4000 HD Heavy Duty Air Drill Implement Parts Manual – PDF DOWNLOAD

Section 1: Introduction 4
Using This Manual 4
Manual Replacement Information 4
Manual Revisions 4
Touch-up Paint 4
Hardware Legend 5
Replacement Hardware 5
Serial Numbers 5
Part Number Service Coding 5
Towers 6
Tower for ADC2220 Air Cart Drill 6
Tower for ADC2350 Air Cart Drill 8
Frames 10
Center To Right Wing 10
Center To Left Wing 12
Slow Moving Vehicle Emblem 14
Cart Hook-Up for ADC2220 Air Drill Cart 16
Cart Hook-Up for ADC2350 Air Drill Cart 18
Harness & Light Kit for ADC2220 Air Drill Cart 20
Harness & Light Kit for ADC2350 Air Drill Cart 22
Center Subframe 24
Wing Subframes 26
Weights 28
Gauge Wheels 30
Bolt In Hub & Wheel 30
Lift Assist Assembly 32
Openers 34
HD 00 Series Long Arm Opener (S/N EE1162-) 34
HD 00 Series Long Arm Opener (S/N EE1163 –
EE1176) 36
HD 00 Series Long Arm Opener (S/N EE1177+) 38
HD 00 Series Short Arm Opener (S/N EE1162-) 40
HD 00 Series Short Arm Opener (S/N EE1163 –
EE1176) 42
HD 00 Series Short Arm Opener (S/N EE1177+) 44
00 HD Knock Down Kit 46
HD 6″ Seed-Lok (Option) 48
OO HD Keeton Seed Firmer 50
00 HD Scraper 52
Press Wheels 54
HD 1 1/4″ X 13 1/4″ Double Press Wheel 54
HD 1″ x 12″ Double “V” Press Wheel 56
HD 2″ x 13″ Single Press Wheel 58
HD 3″ x 13″ Single Press Wheel 60
HD 3″ x 14″ Peaked Single Press Wheel 62
HD 4″ x 12″ Double Ribbed Single Press Wheel 64
Hydraulics 66
Hydraulic System (S/N EE1130-) 66
Hydraulic System (S/N EE1131+) 68
Pressure Reducing-Selector Valve (810-381C) 70
Double Selector Valve Mounting 72
Midway Hydraulic Cylinder (810-361C) 74
Midway Hydraulic Cylinder (810-368C) 76
Decals 78
Decal Placement 78
Monitor 80
Agtron AGS25 Blockage Sensor (Option) 80
Blockage Monitor (Option) 82
Monitor 84
Part Number Index 86
