Great Wall Proteus Service Repair Manual Light Bus Workshop Guide PDF

Description

Great Wall Proteus Service Repair Manual Light Bus Workshop Guide PDF DOWNLOAD

DESCRIPTION

This is the complete official Great Wall Proteus Service Manual for the Proteus light bus/minibus manufactured by Great Wall Motor Co., Ltd. (China). This comprehensive factory workshop manual provides professional-grade maintenance, repair, and troubleshooting information for technicians servicing these popular Chinese light commercial vehicles.

Vehicle Covered by This Service Manual

Great Wall Proteus Light Bus/Minibus:

• Light passenger vehicle (11-seat configuration)
• Chinese-manufactured commercial vehicle
• Great Wall Motor Co., Ltd. production
• Multi-purpose transport vehicle
• Popular in Asian and emerging markets

Vehicle Type:

• Light bus/minibus
• Commercial passenger transport
• 11-passenger seating capacity
• Pickup truck and SUV related platform
• Versatile commercial vehicle

Complete Manual Contents (160 Pages)

This Great Wall Proteus service manual PDF is organized into comprehensive parts covering all vehicle systems:

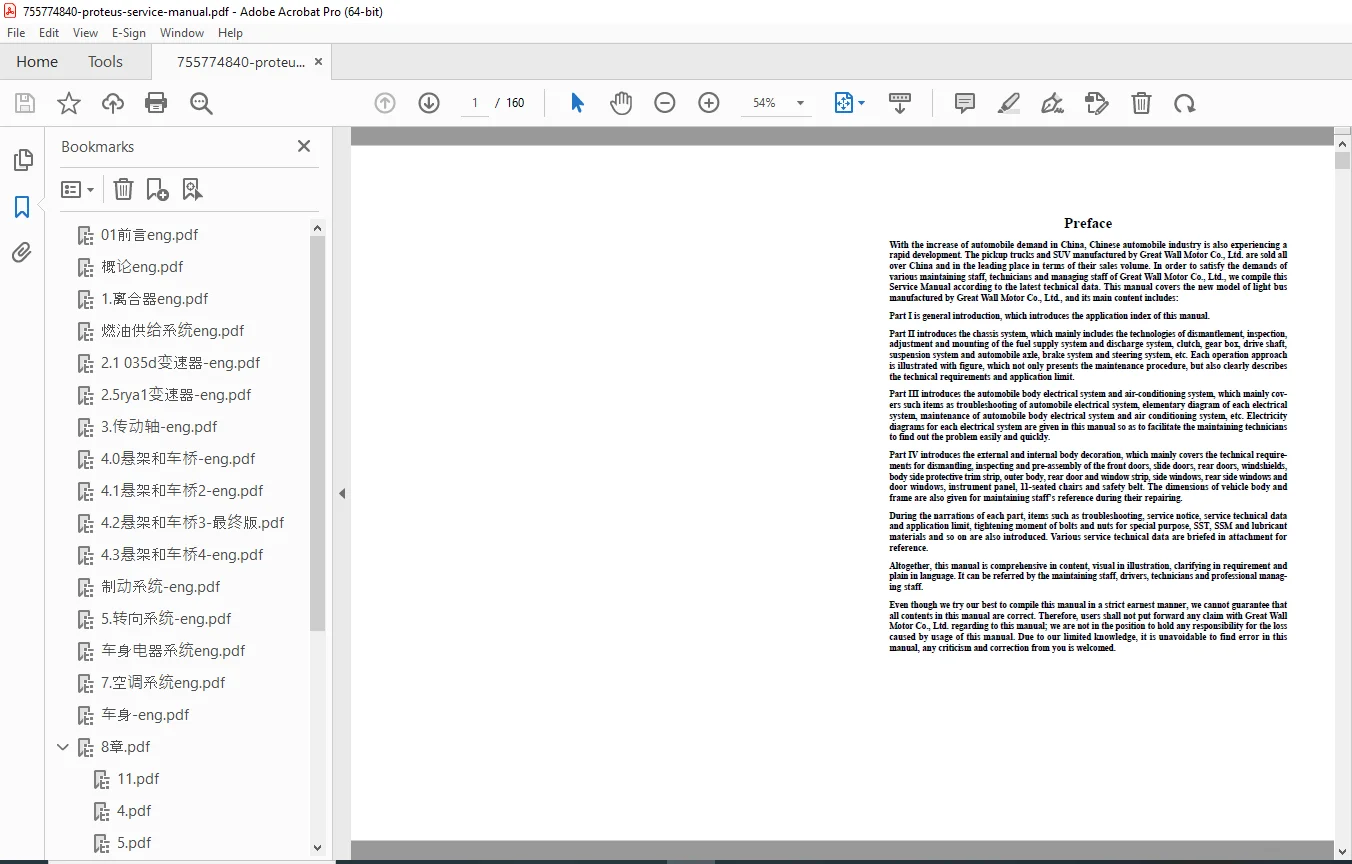

PREFACE

Manual Overview: Great Wall Motor Co., Ltd. has compiled this comprehensive service manual to satisfy the demands of:

• Maintenance staff
• Technicians
• Managing staff
• Professional service centers

Manual Purpose:

• Support China’s growing automobile industry
• Provide technical data for Great Wall vehicles
• Facilitate professional service and repair
• Enable quick and accurate troubleshooting
• Comprehensive maintenance procedures

Target Audience:

• Maintaining staff and technicians
• Professional drivers
• Technical specialists
• Professional managing staff
• Service center personnel

Manual Characteristics:

• Comprehensive in content
• Visual illustrations throughout
• Clear technical requirements
• Plain, accessible language
• Step-by-step procedures

MANUAL STRUCTURE

PART I: GENERAL INTRODUCTION

How to Use This Manual (Pages 1-3)

• Manual organization explanation
• Reading instructions
• Maintenance procedure format
• Symbol and notation guide
• Chapter navigation

Acronyms Used:

• SST: Special Service Tool
• SSM: Special Service Material
• ECU: Electronic Controller Unit
• A/C: Air-conditioner

Maintenance Procedures Presentation:

• Step-by-step descriptions
• Chapter and title headers on every page
• Indexes at beginning of each chapter
• Titles indicating operation tasks
• Illustrations showing positions and procedures
• Detailed instructions with notices

Specifications Display:

• Boldface specification callouts
• Integrated with repair procedures
• Quick reference while working

Warnings and Notices:

• Warning (boldface): Risk of injury to self or others
• Notice (boldface): Risk of parts damage

Troubleshooting Tables:

• System-by-system diagnostics
• Malfunction causes identification
• Correction approaches in “How to Repair” column
• Quick problem identification

Instruction for Overall Repairing (Pages 4)

General Service Guidelines:

1. Vehicle Protection:
   • Keep vehicle clean during service
   • Use guard plates and covering cloths
   • Protect seats and floor
2. Parts Management:
   • Place dismantled parts in order
   • Facilitate re-assembly
   • Prevent loss or damage
3. Electrical Work Precautions:
   • Disconnect battery cathode before electrical work
   • Disconnect from cathode terminal when checking battery
   • Loosen bolts before removing cables
   • Pull cables vertically, never twist or pry
   • Clean terminal posts with cloth (not file)
   • Mount terminals properly, never tap with hammer
   • Verify positive terminal cover placement
4. Connection Verification:
   • Check all hoses solidly connected
   • Verify wire plugs correctly installed
5. Non-Reusable Parts:
   • Split pins
   • Sealing washers
   • O-rings
   • Oil seals
6. Pre-Coated Parts:
   • Bolts and nuts with factory locking sealant
   • Coating Procedure:
     • Clear old sealant from threads
     • Dry parts with compressed air
     • Apply specified locking sealant to threads
7. Leak Prevention:
   • Use encapsulant where necessary
   • Install sealing rings properly
8. Torque Specifications:
   • Follow specifications strictly
   • Use torque wrenches
9. Special Tools and Materials:
   • Determine SST/SSM necessity
   • Use proper tools and procedures
   • Refer to SST list in manual
10. Fuse Replacement:
    • Verify correct rated current
    • Never exceed fitting current rating
    • Never use smaller rated fuse
11. Vehicle Lifting and Support:
    • Use suitable support positions
    • Fix wheels when propping front or rear
    • Support with brackets, never single jack
    • Safety-first approach
12. Parts Damage Prevention:
    • Don’t open ECU covers unnecessarily
    • Avoid touching IC terminals (static damage)
    • Pull vacuum hoses at ends, not center
    • Pull wire joints, not wires
    • Avoid dropping electrical parts

Body Lifting Height and Support Position (Page 5)

• Proper jacking points
• Safe lifting procedures
• Support bracket locations
• Height specifications

PART II: CHASSIS SYSTEM

Fuel Supply System and Exhaust System

Coverage:

• Fuel tank and lines
• Fuel pump
• Fuel filter
• Fuel injectors/carburetor
• Throttle system
• Air intake system
• Exhaust manifold
• Catalytic converter
• Muffler and exhaust pipes

Procedures:

• Dismantlement procedures
• Inspection techniques
• Adjustment procedures
• Mounting/installation
• Technical requirements
• Application limits

Clutch

System Components:

• Clutch disc
• Pressure plate
• Release bearing
• Clutch pedal
• Hydraulic system (if equipped)
• Cable system (if equipped)

Service Procedures:

• Clutch removal and installation
• Adjustment procedures
• Hydraulic system bleeding
• Wear inspection
• Replacement criteria

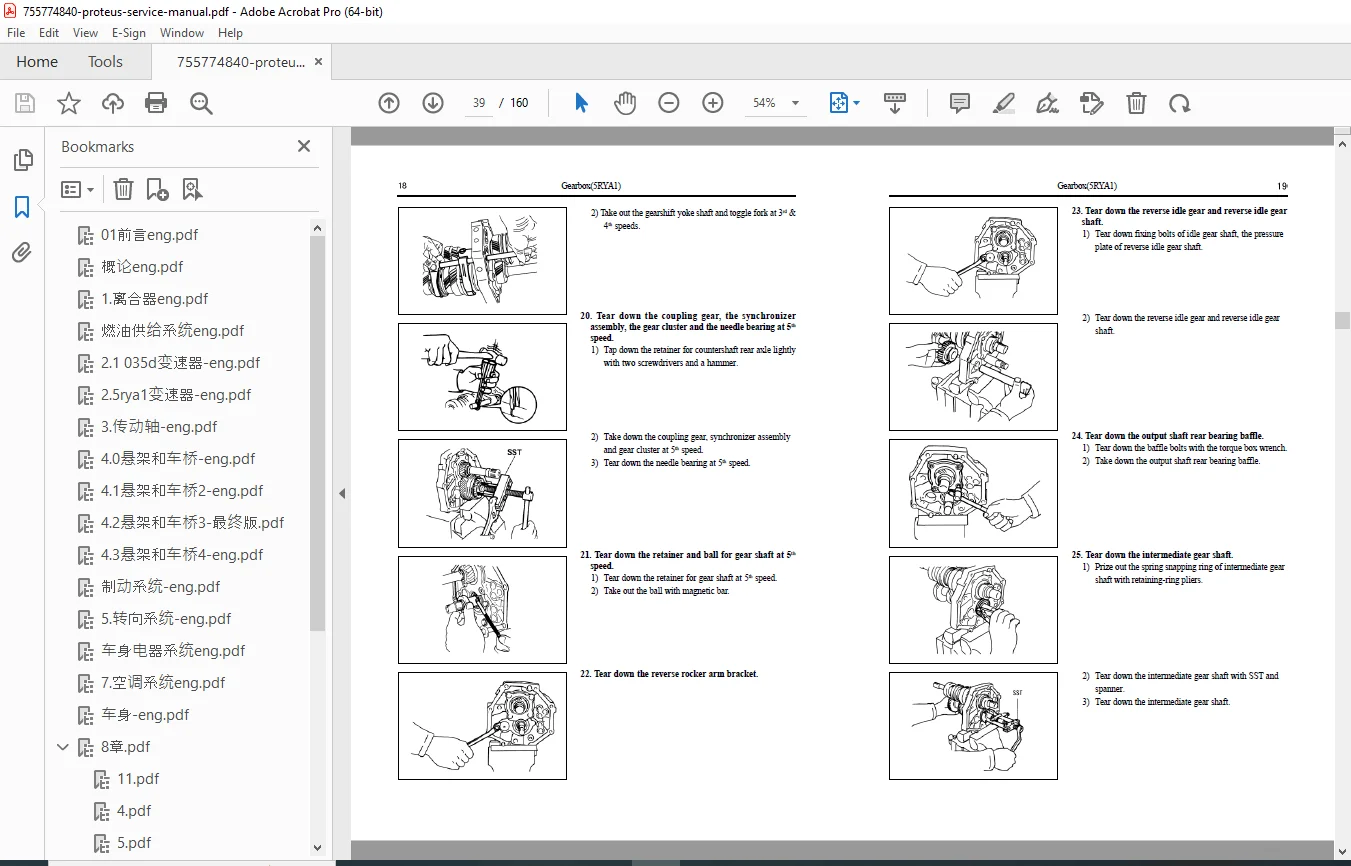

Gear Box (Transmission)

Coverage:

• Manual transmission
• Gear sets
• Synchronizers
• Shift mechanism
• Bearings and seals
• Transmission case

Procedures:

• Complete disassembly
• Component inspection
• Clearance measurements
• Reassembly procedures
• Torque specifications
• Gear oil specifications

Propeller Shaft (Drive Shaft)

Components:

• Drive shaft assembly
• Universal joints
• Center bearing (if equipped)
• Flange connections

Service Operations:

• Removal and installation
• U-joint replacement
• Balance verification
• Run-out inspection
• Example: Flange run-out tolerance: 0.10 mm

Suspension System and Vehicle Axle

Front Suspension:

• Control arms
• Ball joints
• Shock absorbers
• Coil springs
• Stabilizer bar
• Bushings

Rear Suspension:

• Leaf springs or coil springs
• Shock absorbers
• U-bolts
• Shackles

Axle Service:

• Front axle service
• Rear axle differential
• Wheel bearings
• Axle shaft seals

Brake System

System Components:

• Master cylinder
• Brake booster
• Front disc brakes
• Rear drum brakes (typical)
• Brake lines and hoses
• Parking brake
• ABS components (if equipped)

Service Procedures:

• Brake pad replacement
• Drum brake service
• Hydraulic system bleeding
• Brake adjustment
• Master cylinder service
• Performance testing

Steering System

Components:

• Steering wheel
• Steering column
• Steering gearbox
• Pitman arm
• Drag link
• Tie rods
• Power steering pump (if equipped)

Procedures:

• Alignment procedures
• Component replacement
• Adjustment specifications
• Power steering service
• Leak diagnosis

PART III: VEHICLE BODY ELECTRICAL SYSTEM AND AIR CONDITIONING

Vehicle Body Electric System

Electrical System Coverage:

• Battery and charging system
• Starting system
• Lighting system
• Instrument cluster
• Wiper and washer system
• Horn system
• Power windows (if equipped)
• Central locking (if equipped)
• Safety systems

Troubleshooting:

• Systematic electrical diagnostics
• Circuit testing procedures
• Component testing
• Wiring continuity checks

Elementary Diagrams:

• Complete wiring diagrams for each system
• Color-coded wire identification
• Connector locations
• Fuse box layouts
• Relay locations
• Ground point identification

Maintenance Procedures:

• Component replacement
• Wire repair techniques
• Connector service
• Fuse replacement
• Relay testing

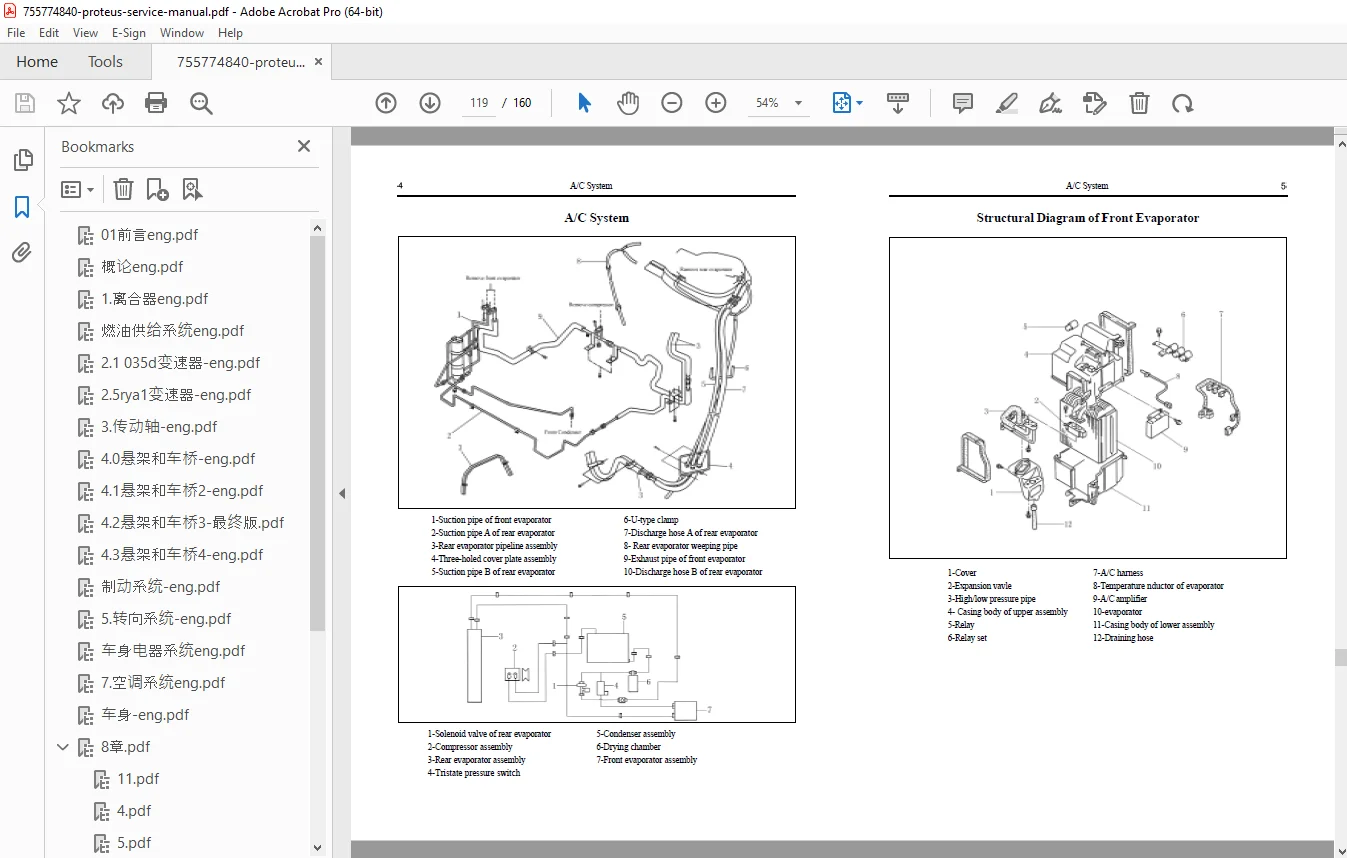

Air Conditioning System

A/C System Components:

• Compressor
• Condenser
• Evaporator
• Expansion valve
• Receiver-drier
• Hoses and lines
• Control panel

Service Procedures:

• Refrigerant recovery
• System evacuation
• Charging procedures
• Leak detection
• Component replacement
• Performance testing
• Control system diagnosis

PART IV: EXTERNAL AND INTERNAL BODY DECORATION

Body Components:

Doors:

• Front doors (dismantling, inspection, assembly)
• Slide doors (11-seat bus configuration)
• Rear doors
• Door locks and latches
• Window regulators
• Door handles
• Hinges and check straps

Glass and Windows:

• Windshields (front and rear)
• Side windows
• Rear side windows
• Door windows
• Installation procedures
• Sealing techniques

Exterior Trim:

• Body side protective trim strip
• Outer body panels
• Rear door trim
• Window strips
• Moldings and emblems

Interior Components:

• Instrument panel (dashboard)
• 11-seated chairs (seat configuration)
• Safety belts (installation and inspection)
• Headliner
• Floor coverings
• Interior trim panels

Body Dimensions:

• Vehicle body measurements
• Frame dimensions
• Reference points for repair
• Alignment specifications

ADDITIONAL SECTIONS

Maintenance Specification of Chassis and Vehicle Body

Specifications Include:

• Torque specifications
• Clearance specifications
• Fluid capacities
• Adjustment values
• Wear limits
• Replacement criteria
• Tightening torque for bolts and nuts
• Application limits

Service Special Tools (SST)

Special Tool List:

• Tool descriptions
• Part numbers
• Applications
• Usage procedures
• Tool illustrations

Special Service Materials (SSM)

Materials Include:

• Locking sealants
• Gasket materials
• Lubricants
• Adhesives
• Cleaning agents
• Specifications for each

Lubricant Materials:

• Engine oil specifications
• Transmission oil
• Differential oil
• Grease types
• Brake fluid
• Coolant specifications
• Application points

Attachments:

• Various service technical data
• Reference tables
• Conversion charts
• Torque conversion
• Measurement standards

Key Features

Comprehensive Coverage:

• All major vehicle systems
• Complete chassis coverage
• Electrical system diagrams
• Body component service
• A/C system procedures

Visual Learning:

• Illustrations for every procedure
• Component identification diagrams
• Assembly sequence illustrations
• Exploded view drawings
• Wiring diagram schematics

Practical Organization:

• Step-by-step procedures
• Integrated specifications
• Boldface warnings and notices
• Troubleshooting at system level
• Quick-reference format

Professional Quality:

• Factory-level information
• Proper repair procedures
• Safety awareness
• Quality standards
• Technical accuracy

Professional Service Features

Factory Documentation:

• Published by Great Wall Motor Co., Ltd.
• Leading Chinese automobile manufacturer
• Pickup and SUV expertise
• Commercial vehicle specialists

Quality Standards:

• Strict compilation standards
• Technical accuracy focus
• Comprehensive content
• Professional illustrations
• Clear requirements

User-Friendly Design:

• Plain language explanations
• Visual step-by-step guides
• Integrated specifications
• Quick troubleshooting
• Accessible technical data

Who Should Use This Manual?

This Chinese light bus repair guide is essential for:

• Professional automotive technicians
• Great Wall authorized service centers
• Independent repair shops
• Fleet maintenance departments
• Technical training institutions
• Commercial vehicle mechanics
• Minibus operators and fleet managers

Required Knowledge:

• Automotive mechanical principles
• Electrical system understanding
• Diagnostic procedures
• Safe service practices
• Tool usage proficiency

Important Service Notes

Disclaimer: While compiled with strict earnest manner, Great Wall Motor Co., Ltd.:

• Cannot guarantee all contents are completely correct
• Users shall not make claims based on manual content
• No responsibility held for loss caused by manual usage
• Errors may exist due to limited knowledge
• Criticism and corrections welcomed

Safety Critical: This is a commercial passenger vehicle requiring:

• Proper safety procedures
• Quality repair standards
• Correct specifications
• Genuine or equivalent parts
• Professional competence

Electrical System Safety:

• Always disconnect battery before electrical work
• Protect ECU and computer components
• Avoid static discharge to ICs
• Proper wire and connector handling
• Correct fuse ratings

Quality Maintenance:

• Follow torque specifications
• Use special tools where required
• Replace non-reusable parts
• Apply sealants properly
• Verify all connections

Vehicle Support Safety:

• Use proper lifting points
• Support with brackets, never jack alone
• Fix wheels when partially lifted
• Safety-first approach always

FILE DETAILS
