Grove Crane GMK 4100-L Spare Parts Manual 3172262 – PDF DOWNLOAD
FILE DETAILS:
Grove Crane GMK 4100-L Spare Parts Manual 3172262 – PDF DOWNLOAD
Language : English
Pages : 1792
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Grove Crane GMK 4100-L Spare Parts Manual 3172262 – PDF DOWNLOAD
FOREWORD:
- This list of spare parts is intended to help you care for, maintain, and repair your mobile crane.
- With this list of products you will be able to see how your crane is put together, identify the different parts, and order spare parts with the help of the spare parts lists accompanying each illustration.
- This also applies to accessories and tools.
– Make sure that your list of spare parts is always up-to-date and complete, and keep it carefully so that it does not become illegible.
– If you make notes in the list, make sure that you can still read the original information.
– Never lend pages to other people – photocopy them instead.
– Never lend pages to other people – photocopy them instead.
- In this way you can avoid sending out incorrect orders and having to check points with us – both of
which cost time and money. Above all, you will avoid stoppages and damage to your crane caused by
fitting the wrong parts. - This list of spare parts applies exclusively to mobile cranes GMK 4100-L with
serial number from 5216.
How to use this list:

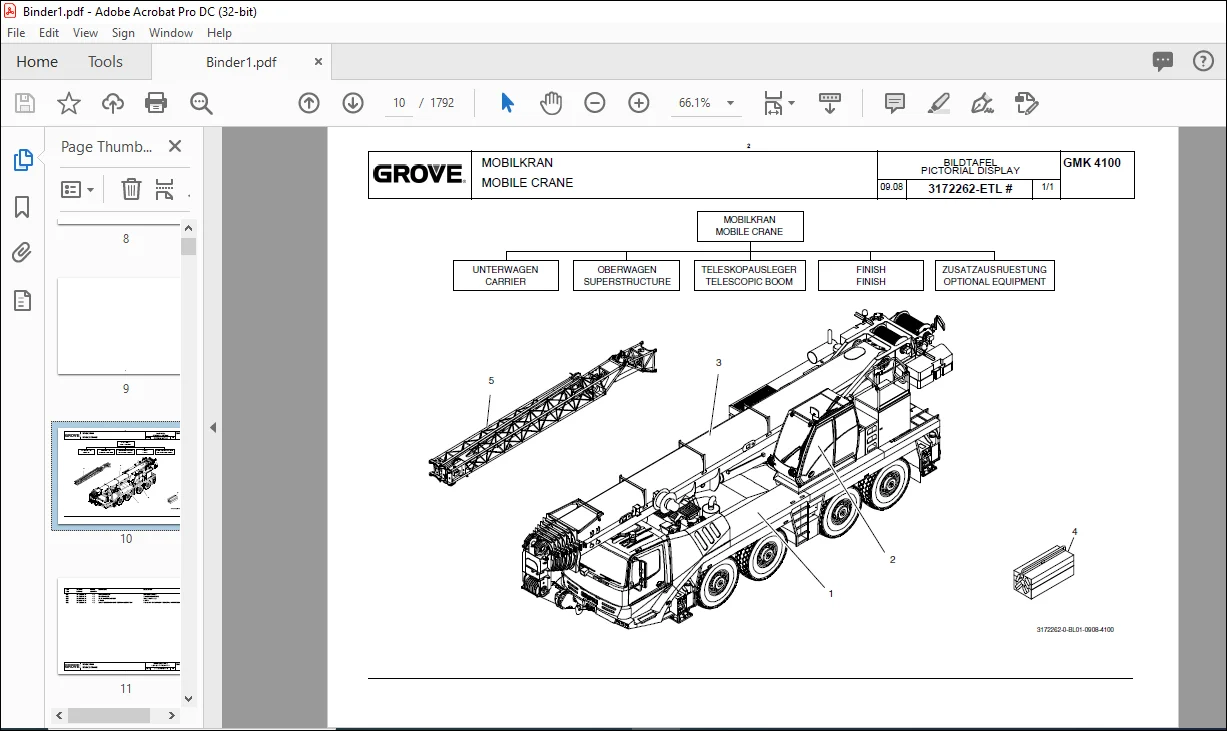

- This list contains illustrations with accompanying lists of spare parts (called ‘ETL’).
- The illustrations show the assembly groups or functional groups of the truck crane.
- In the illustrations there are reference numbers pointing to parts which can be replaced,
connection pieces and fixing hardware. - In some illustrations where there are no such numbers you will be referred to another illustration.
Please note:
– individual parts are not always drawn to the same scale.
– the parts will not always look exactly like the illustrations.
– pipes, hoses and cables will not always run as shown in the illustrations.
– pipes, hoses and cables will not always run as shown in the illustrations.
In the list of spare parts the mobile crane is divided into the following product groups:
– Carrier
– superstructure
– telescoping boom
– finish
– optional equipment
– optional equipment

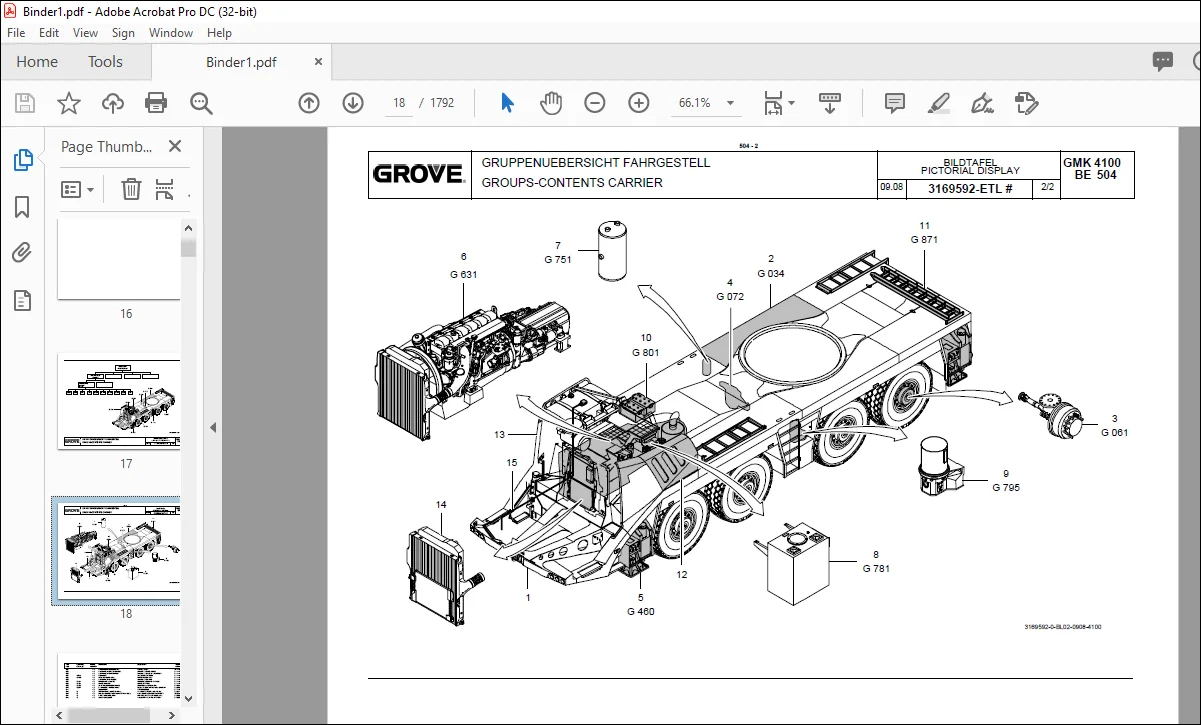

- These product groups are subdivided into assembly groups; the assembly groups (BE) themselves are
subdivided into groups (G). The numbers of the subassembly groups and subgroups are three-figure
numbers. - The number of the assembly group (BE) and groups (G) is at the bottom of the spare parts list on
the right-hand side and is written in bold type. Two columns to the left of this number you will
find the seven-figure spare parts list number with the suffix ‘ETL’ and possibly also an additional
letter indicating that this list has been updated (e.g. ‘A’). - The number between these two numbers is the page number of the spare parts list.
In each spare parts list on the right of the reference number (Pos.) you will also find the part
No. (Teile-Nr.) of the particular part or group. This part No. identifies the individual part or
group unambiguously. - If the part No. is followed by the suffix ‘ETL’ this means that there is a separate illustration
with its own spare parts list in the list for that particular group. - If the reference number contains a full stop followed by further numbers this means that the part
belongs to the assembly group referred to by the number in front of the full stop (e.g. reference
number ‘017.03’ designates a part ’03’ belonging to assembly group ‘017’). - We have usually only shown individual parts of assembly groups if they can be repaired without
special tools or specialist knowledge. It is still worth considering replacing the whole assembly
group, however, and letting us repair the one which is causing problems.
