Grove Crane GMK 5100 Hydraulic Schematic Manual – PDF DOWNLOAD

$17.95

Grove Crane GMK 5100 Hydraulic Schematic Manual – PDF DOWNLOAD

Buy now
Category: Tags: Vendor: Fault Code Docs
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

Grove Crane GMK 5100 Hydraulic Schematic Manual – PDF DOWNLOAD

FILE DETAILS:

Grove Crane GMK 5100 Hydraulic Schematic Manual – PDF DOWNLOAD

Language : English
Pages : 45
Downloadable : Yes
File Type : PDF

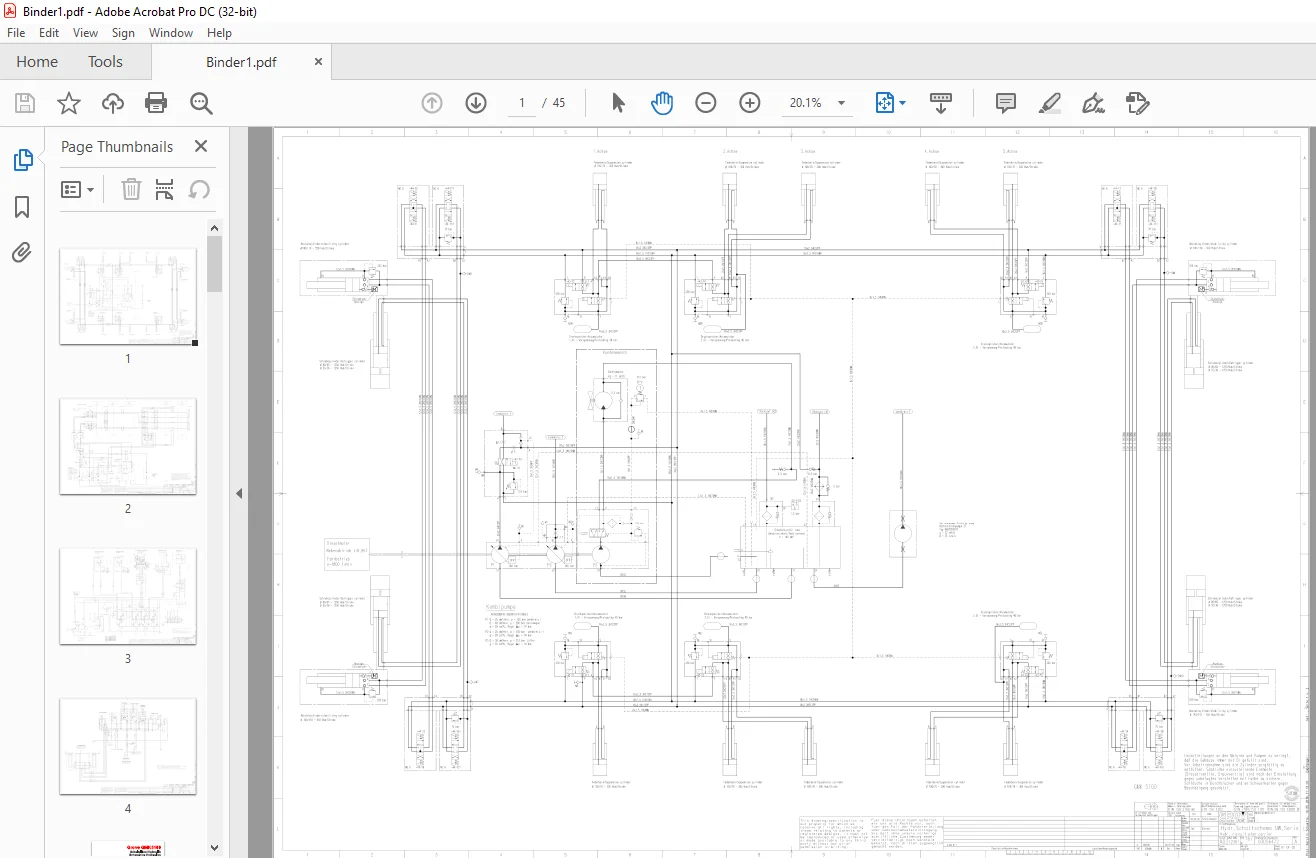

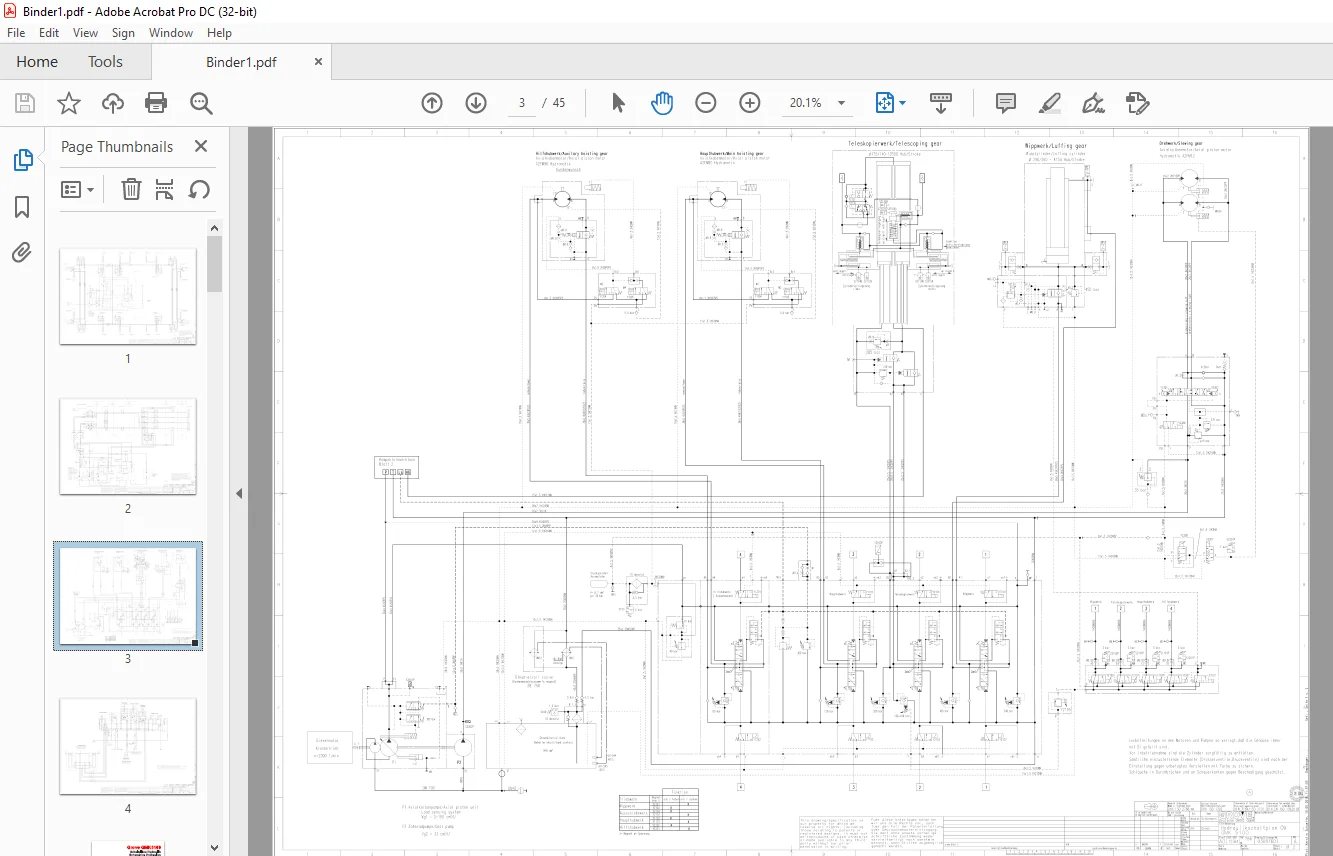

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Grove Crane GMK 5100 Hydraulic Schematic Manual – PDF DOWNLOAD

Info03056472-1-A.................................................................... 1
Info03056472-2-A.................................................................... 2
Info03087601-1-A.................................................................... 3
Info03087601-2-A.................................................................... 4
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03053216................... 6
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03053219.... 8
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................10
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03063107....12
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................14
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03063107....16
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................18
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03063107....20
Nachlรคuferbetrieb ohne Vorspan - Trailer operation without prestress - 03055439.....22
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................23
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03063107....25
Nachlรคuferbetrieb ohne Vorspan - Trailer operation without prestress - 03055439.....27
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................28
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03064076....30
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................33
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03064076....35
Schaltschema Hydr.-Anlage      - Hydr. circuit diagram - 03056472...................38
Hydr.-Anlage Kabine kippen     - Hydr. plant tip cabin - 03064088...................40
Hydr.-Anlage Vorbauspitze      - Hydr.-plant mounting jib - 03064089................41
Nachlรคuferbetrieb ohne Vorspan - Trailer operation without prestress - 03078151.....43
Schaltschema Hydr.-Anlage Ober - Hydr. circuit diagram superstructure - 03087601....44
