DESCRIPTION:

Grove Crane GMK 5200 Carrier Operating Instructions Manual 2084623 – PDF DOWNLOAD

Overview:
1.1 Vehicle identification:

These operating instructions are intended only for the truck crane whose serial number is specified on the front cover.

The following plates and numbers have been fitted to the truck crane for identification:
1 the chassis number on the front right-hand side behind the first axle line,
2 the model plate on the passenger seat console containing the chassis number and designation of the crane model,
3 the name plate at the front of the crane operator’s cab containing serial number and designation of the crane model,
4 the CE mark on the name plate.
The location of ID numbers for removable rigging parts (e.g. counterweights, lattice extension, auxiliary hoist) is specified in the corresponding chapters.

Overview and contents of truck crane user information:
1.3.1 Operating Instructions:

These instructions contain information required to operate the truck cra- ne. In order to make
these operating instructions easier to use, we have di- vided them into two parts:
– Part 1 – Carrier
– Part 2 – Superstructure
In chapter 2 you will find Basic safety instructions. Please read and observe these instructions,
even if you are familiar with the safety manual. These Basic safety instructions are in this
chapter only; special safety instructions which indicate concrete dangers are contained in the
text. There the action related to the danger is described.

Chapter 3 contains Information for applications engineering. It is intended pri- marily for the
truck crane operator and those responsible for applications engineering.
This chapter contains
– the required qualifications of those involved in applications engineering,
– special safety instructions,
– information that is relevant to applications engineering.

• Chapters 4 to 6 contain information required for driving the truck crane: a description of all
  structural and operational components, clearly defined check lists for rigging modes and work, and
  the operating instructions for on-road and off-road driving and the removal and installation of the
  auxili- ary hoist.
• Chapter 7 contains information required to rig the truck crane for on-road driving (only with
  additional equipment).
• Chapter 8 contains information on Troubleshooting for the carrier of the truck crane.
• Chapter 9 contains the Technical description of the individual parts and func- tional elements of
  the carrier as well as its Technical data.
• The Alphabetical index in Chapter 10 helps you to find particular proce- dures and terms in the
  operating instructions. The Alphabetical index refers
  to both parts of the instructions.

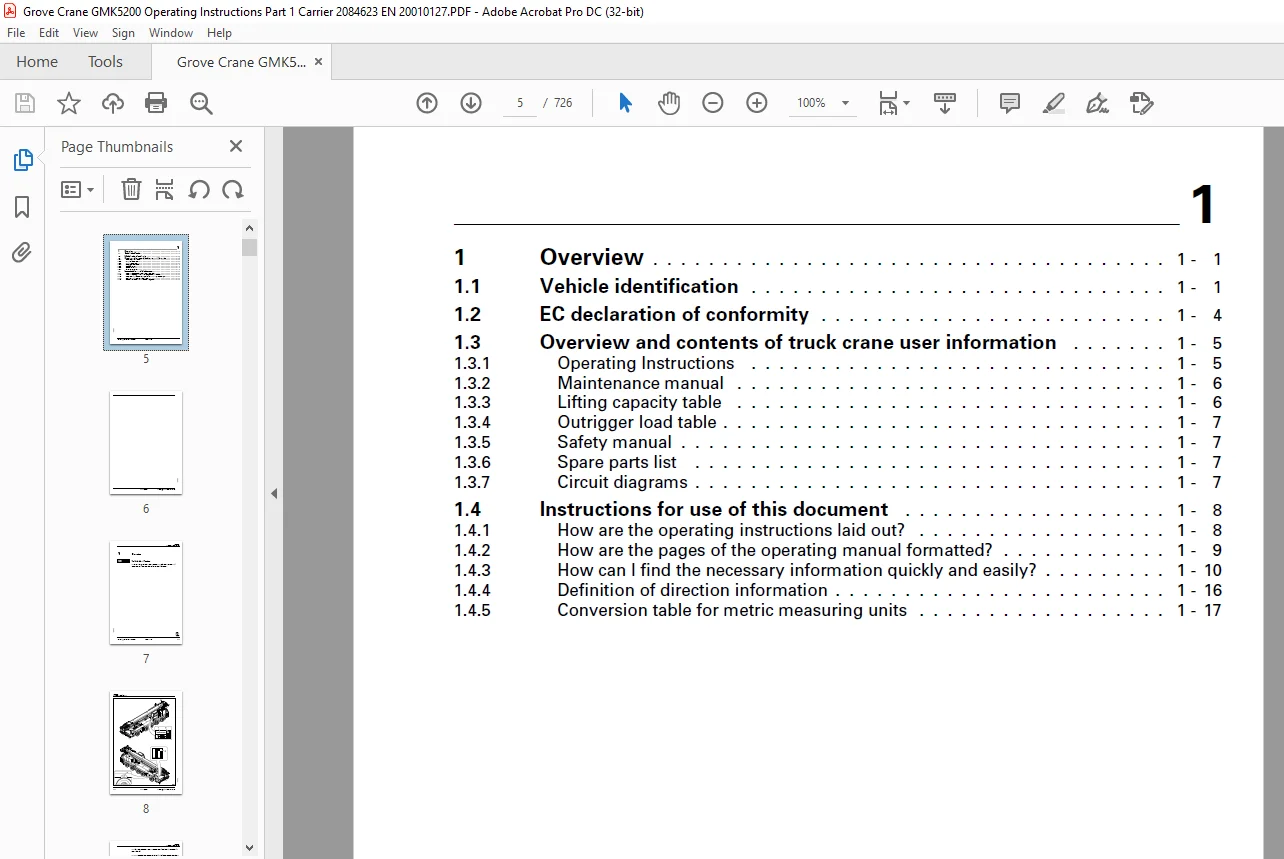

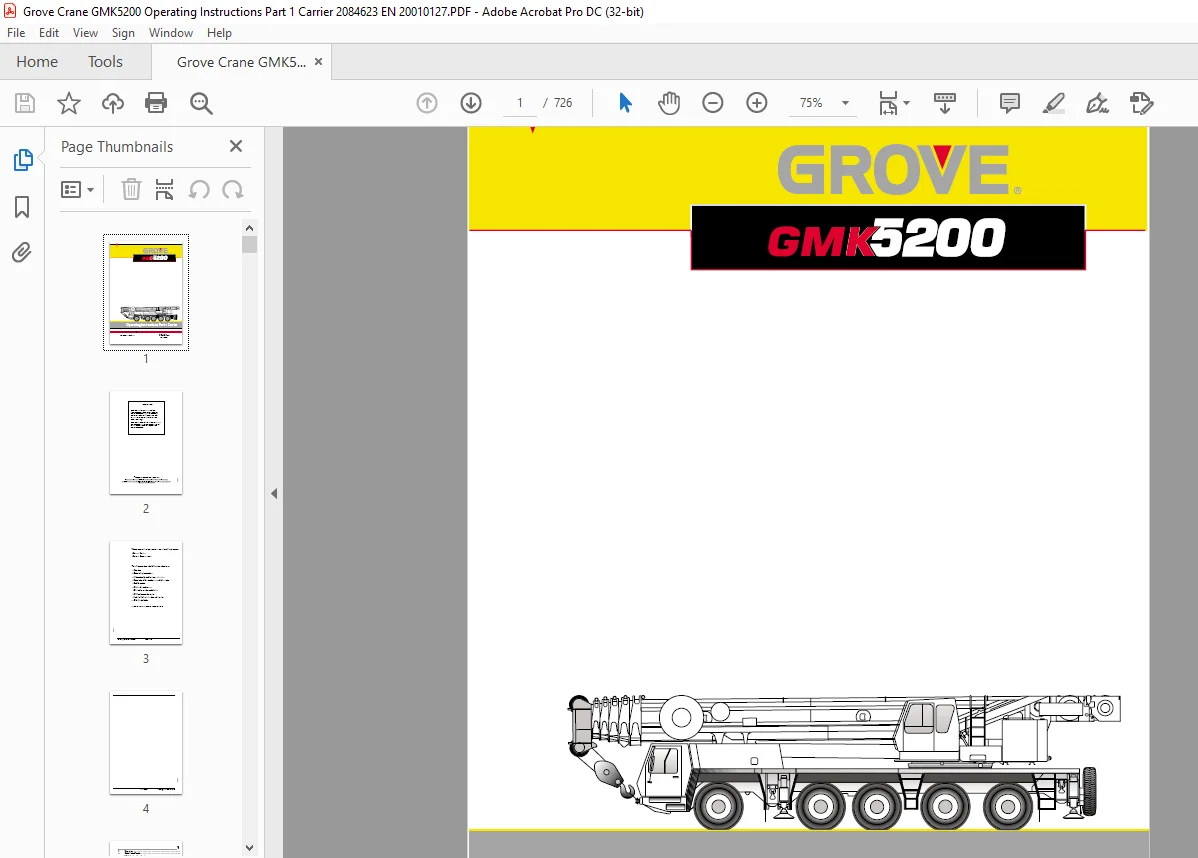

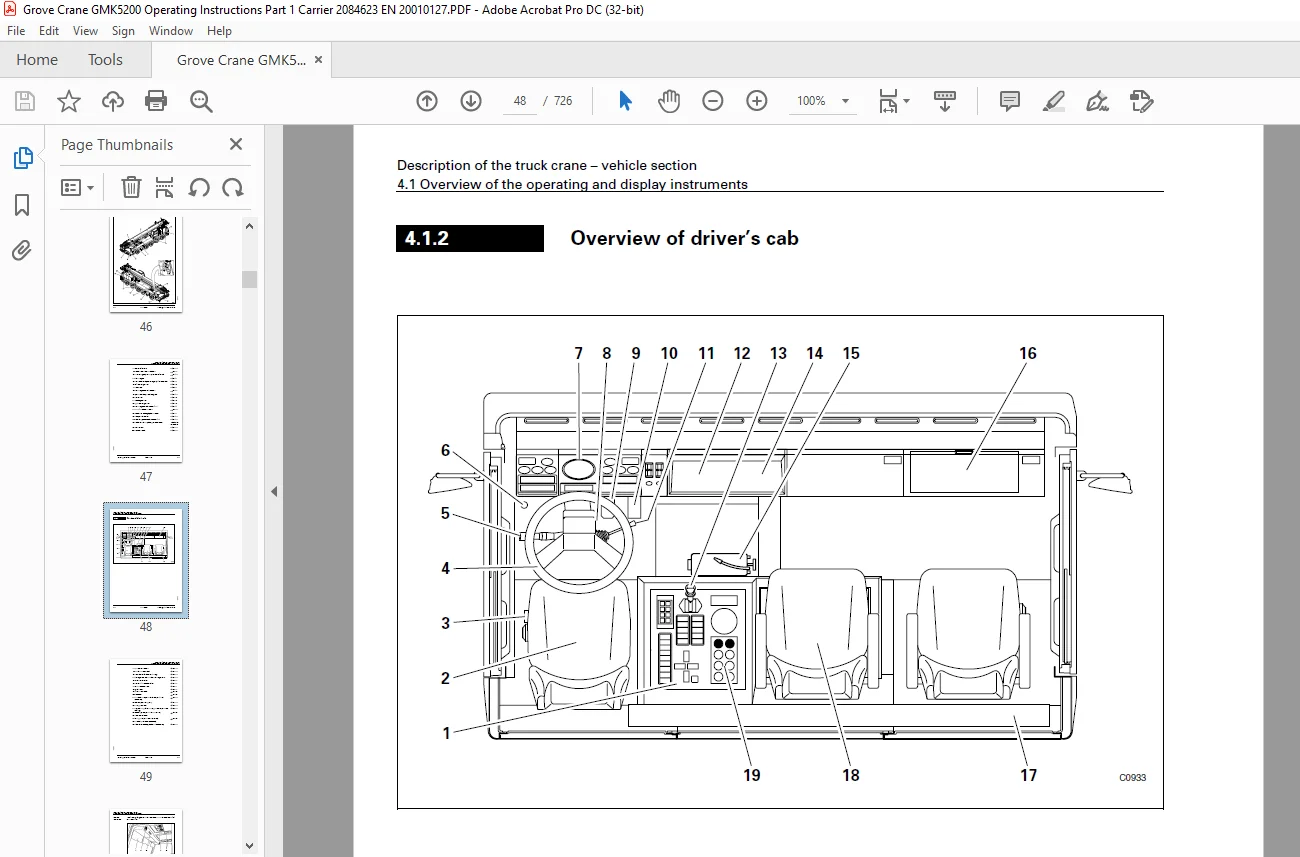

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Grove Crane GMK 5200 Carrier Operating Instructions Manual 2084623 – PDF DOWNLOAD

These operating instructions consist of two parts:
– Part 1 – Carrier
– Part 2 – Superstructure
Part 1 comprises the following chapters:
1 Overview
2 Basic safety instructions
3 Information for applications engineering
4 Description of the truck crane – vehicle section
5 Vehicle engine
6 Driving the truck crane
7 Rigging for on-the-road driving
8 Malfunctions on the carrier
9 Technical information about the carrier
10 Alphabetical index
Chapters 11 to 17 are in part 2 – Superstructure
