Grove Crane RT635C Spare Parts Catalog Manual SN 220001 – PDF DOWNLOAD

Description

Grove Crane RT635C Spare Parts Catalog Manual SN 220001 – PDF DOWNLOAD

FILE DETAILS:

Grove Crane RT635C Spare Parts Catalog Manual SN 220001 – PDF DOWNLOAD

Language : English
Pages : 632
Downloadable : Yes
File Type : PDF

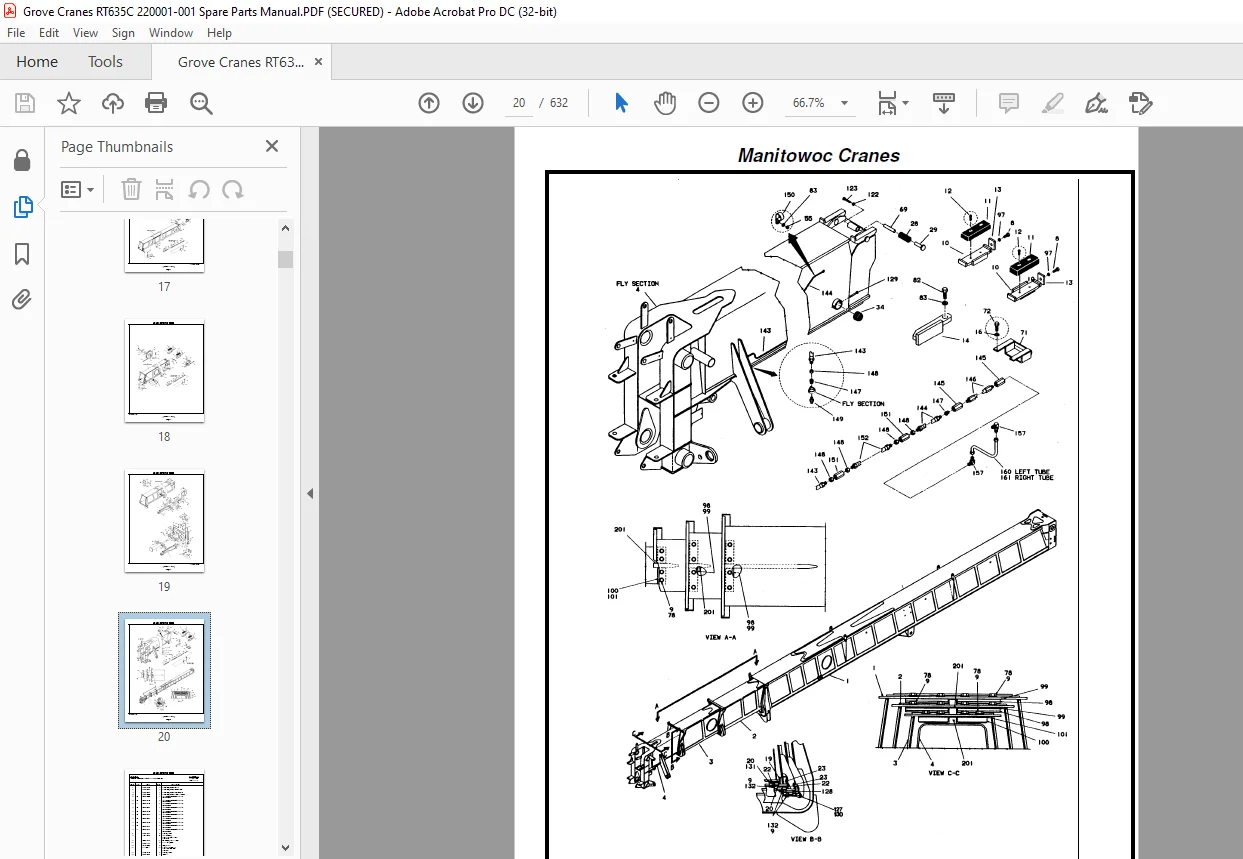

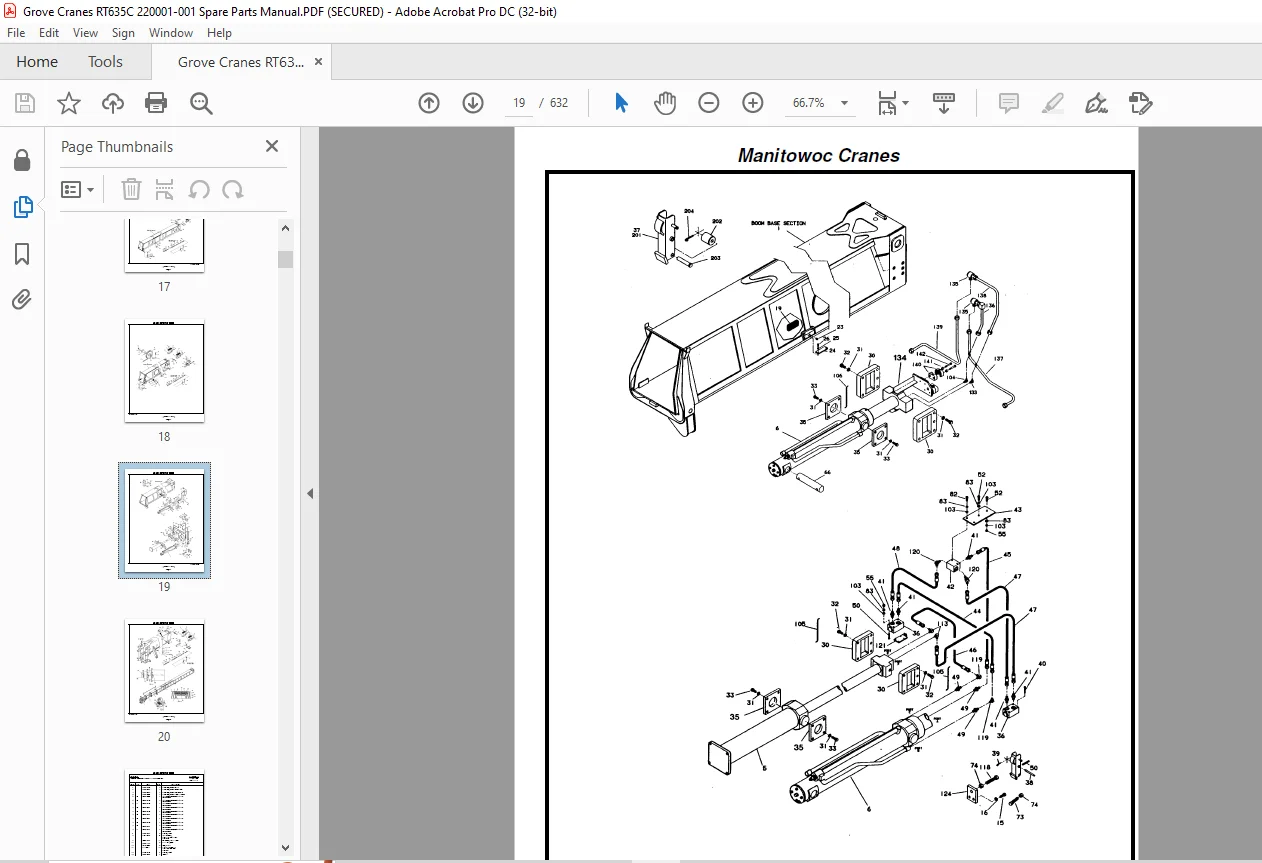

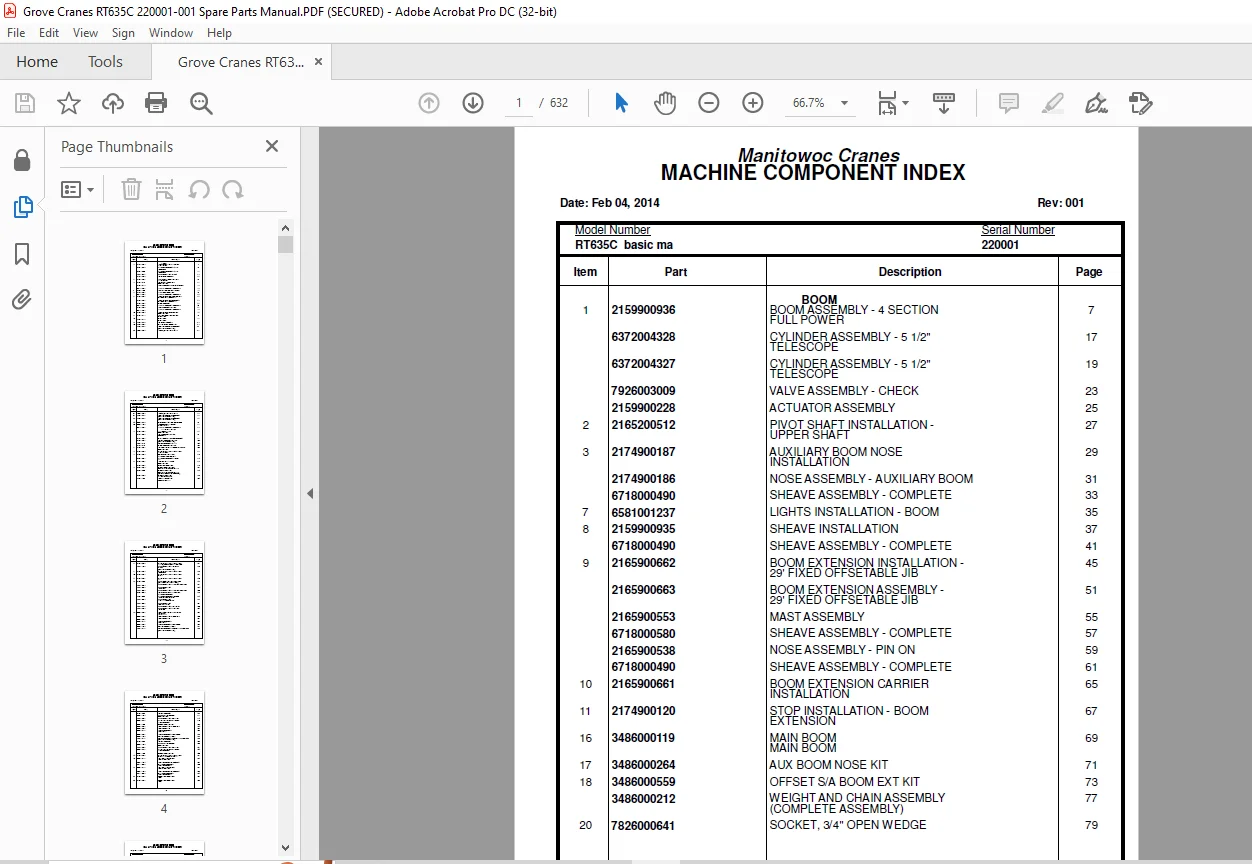

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Grove Crane RT635C Spare Parts Catalog Manual SN 220001 – PDF DOWNLOAD

1 2159900936 BOOM ASSEMBLY – 4 SECTION 7
FULL POWER
6372004328 CYLINDER ASSEMBLY – 5 1/2″ 17
TELESCOPE
6372004327 CYLINDER ASSEMBLY – 5 1/2″ 19
TELESCOPE
7926003009 VALVE ASSEMBLY – CHECK 23
2159900228 ACTUATOR ASSEMBLY 25
2 2165200512 PIVOT SHAFT INSTALLATION – 27
UPPER SHAFT
3 2174900187 AUXILIARY BOOM NOSE 29
INSTALLATION
2174900186 NOSE ASSEMBLY – AUXILIARY BOOM 31
6718000490 SHEAVE ASSEMBLY – COMPLETE 33
7 6581001237 LIGHTS INSTALLATION – BOOM 35
8 2159900935 SHEAVE INSTALLATION 37
6718000490 SHEAVE ASSEMBLY – COMPLETE 41
9 2165900662 BOOM EXTENSION INSTALLATION – 45
29′ FIXED OFFSETABLE JIB
2165900663 BOOM EXTENSION ASSEMBLY – 51
29′ FIXED OFFSETABLE JIB
2165900553 MAST ASSEMBLY 55
6718000580 SHEAVE ASSEMBLY – COMPLETE 57
2165900538 NOSE ASSEMBLY – PIN ON 59
6718000490 SHEAVE ASSEMBLY – COMPLETE 61
10 2165900661 BOOM EXTENSION CARRIER 65
INSTALLATION
11 2174900120 STOP INSTALLATION – BOOM 67
EXTENSION
16 3486000119 MAIN BOOM 69
MAIN BOOM
17 3486000264 AUX BOOM NOSE KIT 71
18 3486000559 OFFSET S/A BOOM EXT KIT 73
3486000212 WEIGHT AND CHAIN ASSEMBLY 77
(COMPLETE ASSEMBLY)
20 7826000641 SOCKET, 3/4” OPEN WEDGE 79
21 7826000641 SOCKET, 3/4” OPEN WEDGE 81
21 3486000212 WEIGHT AND CHAIN ASSEMBLY 83
(COMPLETE ASSEMBLY)
22 3486000212 WEIGHT AND CHAIN ASSEMBLY 85
(COMPLETE ASSEMBLY)
25 6053000018 BALL ASSEMBLY – 300# HEADACHE 87
26 6086001928 HOOK BLOCK ASSEMBLY – 89
35 METRIC TON
6718000490 SHEAVE ASSEMBLY – COMPLETE 93
SUPERSTRUCTURE
1 2165200593 TURNTABLE DRIVE 95
INSTALLATION
6176003481 BOX ASSEMBLY – SWING 97
COMPLETE
6176003482 SWING BOX AND BRAKE ASSEMBLY 99
6188000693 BRAKE ASSEMBLY – SWING 103
(COMPLETE ASSEMBLY)
7632000137 MOTOR ASSEMBLY – ORBIT 105
2170200137 LOCK ASSEMBLY – SWING 107
2 2165200590 PIN INSTALLATION – TURNTABLE LOCK 109
INSTALLATION
3 2165600616 HYDRAULIC LINES INSTALLATION – 111
FRONT STEER
3 2165200596 LOWER SHAFT AND LIFT 113
CYLINDER INSTALLATION
6372005320 CYLINDER ASSEMBLY – 10.00” 115
LIFT
4 2165200532 POSITIVE SWING LOCK 117
INSTALLATION
2165200559 LEVER INSTALLATION 119
6 6364002956 SWIVEL INSTALLATION – 121
ELECTRICAL AND HYDRAULIC
6364002957 SWIVEL ASSEMBLY – 125
ELECTRICAL AND HYDRAULIC
(NOT AVAILABLE AS ASSEMBLY)
6364002546 SWIVEL ASSEMBLY – 129
15 PORT HYDRAULIC
7753001627 RING ASSEMBLY – 44 135
CONDUCTOR SLIP
8 2165600528 HYDRAULIC LINES INSTALLATION – 141
SUPPLY, PRESSURE AND RETURN
7926001894 VALVE ASSEMBLY – RESIDUAL 147
CHECK
(COMPLETE ASSEMBLY)
9 2165600521 HYDRAULIC LINES INSTALLATION – 149
TELESCOPE
10 2165600520 HYDRAULIC LINES INSTALLATION – 151
SWING
11 2165600522 HYDRAULIC LINES INSTALLATION – 153
LIFT
12 2165200607 VALVE INSTALLATION – CONTROL 157
(MAIN AND AUXILIARY HOIST)
7926003396 VALVE ASSEMBLY – 2 SECTION CONTROL 161
7926003084 VALVE ASSEMBLY – 165
2 SECTION
7926003074 VALVE ASSEMBLY – 1 SECTION CONTROL 169
6372005656 BRAKE BOOSTER AND MASTER 173
CYLINDER ASSEMBLY
7372005657 CYLINDER ASSEMBLY – BRAKE 175
BOOSTER AND MASTER
7926003658 VALVE ASSEMBLY – 177
PRESSURE REDUCING
7926003052 VALVE ASSEMBLY – 181
FLOW CONTROL
7926002009 VALVE ASSEMBLY – SEQUENCE 183
7926002071 VALVE ASSEMBLY – 5 STATION 185
SOLENOID
14 6974002245 HOIST INSTALLATION – MAIN AND 187
AUXILIARY
HO30G – 16G
6974002382 HOIST ASSEMBLY – COMPLETE 189
6974002385 HOIST ASSEMBLY 191
6974002135 GROUP ASSEMBLY – 193
RIGHT HAND
6974002243 GROUP ASSEMBLY – LEFT HAND 197
6974001838 CENTER GROUP – HOIST 201
7632000135 MOTOR ASSEMBLY – HYDRAULIC VANE TYPE 203
(COMPLETE ASSEMBLY)
6188000737 BRAKE ASSEMBLY 207
6974001848 VALVES AND PLUMBING 211
INSTALLATION
7926003313 VALVE ASSEMBLY – CONTROL 215
6974002063 CABLE FOLLOWER AND IDLER 219
DRUM ASSEMBLY
6059001027 KICKER INSTALLATION 223
6974002382 HOIST ASSEMBLY – COMPLETE 225
6974002385 HOIST ASSEMBLY 227
6974002135 GROUP ASSEMBLY – 229
RIGHT HAND
6974002243 GROUP ASSEMBLY – LEFT HAND 233
6974001838 CENTER GROUP – HOIST 237
7632000135 MOTOR ASSEMBLY – HYDRAULIC VANE TYPE 239
(COMPLETE ASSEMBLY)
6188000737 BRAKE ASSEMBLY 243
6974001848 VALVES AND PLUMBING 247
INSTALLATION
7926003313 VALVE ASSEMBLY – CONTROL 251
6974002063 CABLE FOLLOWER AND IDLER 255
DRUM ASSEMBLY
6059001027 KICKER INSTALLATION 259
15 2165600525 HYDRAULIC LINES INSTALLATION – 261
MAIN AND AUXILIARY HOIST
16 6974002142 SENSOR INSTALLATION – 265
HOIST ROTATION
6872001546 ROTATION SENSOR ASSEMBLY 267
6512003024 HARNESS ASSEMBLY – 269
ROTATION SENSOR
17 6974002142 SENSOR INSTALLATION – 271
HOIST ROTATION
6872001546 ROTATION SENSOR ASSEMBLY 273
6512003024 HARNESS ASSEMBLY – 275
ROTATION SENSOR
22 2174200072 MIRROR INSTALLATION – 277
HOIST
23 2174200072 MIRROR INSTALLATION – 279
HOIST
26 2165600527 HYDRAULIC LINES INSTALLATION – 281
PRESURE CHECK PANEL
28 2165100602 SENSOR INSTALLATION – 283
SWING LOCK PIN POSITION
6246003226 SWITCH ASSEMBLY 285
32 2165600526 HYDRAULIC LINES INSTALLATION – 287
HYDRAULIC HEATER
34 2165600529 HYDRAULIC LINES INSTALLATION – 289
BRAKE
35 2165200589 LUBE INSTALLATION – 293
TURNTABLE AUTO BEARING
7722000902 PUMP ASSEMBLY – GREASE 297
7926003855 VALVE ASSEMBLY – PARK BRAKE 301
(COMPLETE ASSEMBLY)
7926003124 VALVE ASSEMBLY – DIVIDE 303
37 2174200040 BEARING BOLT INSTALLATION 305
37 3486000621 LMI SYSTEM KIT (1319) 307
9333103278 CONSOLE ASSEMBLY – 311
VERTICAL, GRAPHIC
9333103280 CENTRAL UNIT ASSEMBLY – 313
DS350 MODULAR
(COMPLETE ASSEMBLY)
9333103355 CABLE, 16′ 3-PIN 315
PRESSURE TRANS. CABLE
52 6511001217 HANDLE INSTALLATION – CONTROL 317
67 2165600584 HYDRAULIC LINES INSTALLATION – 319
SUPPLY, PRESSURE AND RETURN
68 2165600510 HYDRAULIC LINES INSTALLATION – 321
TELESCOPE
69 2165600513 HYDRAULIC LINES INSTALLATION – 323
SWING AND SWING BRAKE
70 2165600516 HYDRAULIC LINES INSTALLATION – 325
MAIN AND AUXLIARY HOIST
71 2165600512 HYDRAULIC LINES INSTALLATION – 327
LIFT
74 6872001352 SWITCH INSTALLATION – 329
AXLE OSCILLATION OVERRIDE
79 2165600518 HYDRAULIC LINES INSTALLATION – 331
HEATER
SUPERSTRUCTURE CAB
7 6978004439 ELECTRICAL SYSTEM INSTALLATION 333
– SUPERSTRUCTURE
6512002909 HARNESS ASSEMBLY – 339
SUPERSTRUCTURE
33 2165200527 VALVE INSTALLATION – 343
HYDRAULIC HEATER
7926001763 VALVE ASSEMBLY – SOLENOID 345
7926003035 VALVE ASSEMBLY – RELIEF 347
2500 PSI
46 2165100548 HEATER VALVE INSTALLATION 349
7926002087 VALVE ASSEMBLY – SOLENOID 351
3 WAY 2 POSITION
50 6245001744 CAB INSTALLATION 353
6245001746 CAB ASSEMBLY 359
6245001742 CAB SECTION 369
7683000067 VALVE ASSEMBLY – TREADLE 371
7246001262 CABLE ASSEMBLY – CONTROL 373
7576001063 MOTOR ASSEMBLY – WIPER 375
(COMPLETE ASSEMBLY)
6392000664 DOOR ASSEMBLY 377
7498000917 SKYLIGHT ASSEMBLY – 381
SLIDING
7326000536 COLUMN ASSEMBLY – STEERING 385
(COMPLETE ASSEMBLY)
7926003341 VALVE ASSEMBLY – ORBITAL 389
(W/O RETURN TO CENTER STEERING)
51 6245001538 CONSOLE INSTALLATION – 391
FRONT
6245001539 CONSOLE ASSEMBLY – FRONT 395
7352000833 CONTROL ASSEMBLY – SHIFT 399
7486002802 GAUGE CLUSTER – 12V 401
6978004334 HARNESS INSTALLATION 403
6512002771 HARNESS ASSY, OUTRIGGER CAB TO BOARD 411
6246003252 CABLE ASSEMBLY – WIPER MOTOR 413
53 6798000880 SEAT INSTALLATION – CONTROL 415
SINGLE AXIS WITH AUXILIARY
OR FUTURE AUXILIARY
6798000835 CONTROL SEAT ASSEMBLY – 419
SINGLE AXIS
W/AUX OR FUTURE AUX
7798000827 SEAT ASSEMBLY 423
6705015361 PLATE ASSEMBLY 425
7926003043 CONTROLLER ASSEMBLY – 427
SINGLE AXIS
6512001796 HARNESS ASSEMBLY – SEAT 431
ARM
6512001706 HARNESS ASSEMBLY – SEAT 433
7798000808 SUSPENSION ASSEMBLY – SEAT 437
54 6245001337 COVERS INSTALLATION – 439
BOTTOM
57 6683000590 PEDAL INSTALLATION – SWING 441
BRAKE
58 6942000531 SCREEN INSTALLATION – SUN 443
OPEN MESH
59 6515000765 HEATER INSTALLATION – 445
HYDRAULIC
7515000724 HEATER ASSEMBLY 449
6978003545 HEATER PANEL INSTALLATION 451
6512001978 HARNESS ASSEMBLY – 455
HEATER PANEL
60 6581001236 WORK LIGHT INSTALLATION 457
61 6348000682 EXTINGUISHER INSTALLATION – FIRE 459
62 6978004441 ELECTRICAL SYSTEM INSTALLATION 463
– CAB
6512002911 HARNESS ASSEMBLY – CAB 475
6246003333 CABLE ASSEMBLY – SKYLIGHT 479
WIPER MOTOR
6679003135 PANEL ASSEMBLY 481
6512002912 HARNESS ASSEMBLY – 485
PANEL ASSEMBLY
63 6001002015 MAT INSTALLATION – FLOOR 489
64 6001002013 ACOUSTICAL INSTALLATION 493
65 6975000528 WIPER/WASHER INSTALLATION – 497
SKYLIGHT
66 6632000865 WASHER INSTALLATION – WINDSHIELD
73 6683000589 PEDAL INSTALLATION – BOOM TELESCOPE
7352990194 ROCKER PEDAL – SINGLE FUNCTION
75 6425000646 FAN INSTALLATION –
CAB CIRCULATING
7425000659 FAN ASSEMBLY – 12 VOLT CAB
(COMPLETE ASSEMBLY)
81 3486000294 LIGHTBAR INSTALLATION
LMI
(COMPLETE ASSEMBLY)
LOWERWORKS/CARRIER
1 2165100647 FRAME SECTION
2163100650 STUD INSTALLATION
2 6049001793 AXLE INSTALLATION – NO
SPIN FRONT
6049001794 AXLE ASSEMBLY – NO-SPIN
FRONT
7049001803 DRIVE/STEER AXLE
7049001803 DRIVE/STEER AXLE
DIFFERENTIAL CARRIER ASSEMBLY
7049001803 DRIVE/STEER AXLE
HOUSING ASSEMBLY
7049001803 DRIVE/STEER AXLE
WHEEL END ASSEMBLY
7049001803 DRIVE/STEER AXLE
CALIPER ASSEMBLY
6372002594 CYLINDER ASSEMBLY – 3″
STEER
7009000018 CHAMBER ASSEMBLY – BRAKE
7049001803 DRIVE/STEER AXLE
7049001803 DRIVE/STEER AXLE
DIFFERENTIAL CARRIER ASSEMBLY
7049001803 DRIVE/STEER AXLE
HOUSING ASSEMBLY
7049001803 DRIVE/STEER AXLE
WHEEL END ASSEMBLY
7049001803 DRIVE/STEER AXLE
CALIPER ASSEMBLY
6372002594 CYLINDER ASSEMBLY – 3″
STEER
4 6049001811 AXLE INSTALLATION – REAR
6049001813 AXLE ASSEMBLY – REAR
7049001814 AXLE ASSEMBLY – DRIVE/STEER
7049001814 AXLE ASSEMBLY – DRIVE/STEER
CARRIER ASSEMBLY
7049001814 AXLE ASSEMBLY – DRIVE/STEER
HOUSING ASSEMBLY
7049001814 AXLE ASSEMBLY – DRIVE/STEER
WHEEL END PARTS
7049001814 AXLE ASSEMBLY – DRIVE/STEER
CALIPER ASSEMBLY
6372002594 CYLINDER ASSEMBLY – 3″
STEER
6372003064 CYLINDER ASSEMBLY – 5″
LOCKOUT
7049001814 AXLE ASSEMBLY – DRIVE/STEER
7049001814 AXLE ASSEMBLY – DRIVE/STEER
CARRIER ASSEMBLY
7049001814 AXLE ASSEMBLY – DRIVE/STEER
HOUSING ASSEMBLY
7049001814 AXLE ASSEMBLY – DRIVE/STEER
WHEEL END PARTS
7049001814 AXLE ASSEMBLY – DRIVE/STEER
CALIPER ASSEMBLY
6372002594 CYLINDER ASSEMBLY – 3″
STEER
5 2174100085 HYDRAULIC LINES INSTALLATION –
BRAKE
6 2165600536 HYDRAULIC LINES INSTALLATION –
REAR AXLE LOCKOUT
7 2165600534 HYDRAULIC LINES INSTALLATION –
REAR STEER
8 2165100649 OUTRIGGER BEAM INSTALLATION
2165100650 BEAM ASSEMBLY – OUTRIGGER
6372005760 CYLINDER ASSEMBLY-4 1/2″ OUTRIGGER JACK
(COMPLETE ASSEMBLY)
6372004886 CYLINDER ASSEMBLY – 2 1/2″
OUTRIGGER EXTENSION
9 2165600563 HYDRAULIC LINES INSTALLATION –
10 2174100045 OUTRIGGER FLOAT STOWAGE
INSTALLATION
6458000048 FLOAT ASSEMBLY – OUTRIGGER
11 6978004333 ELECTRICAL SYSTEM INSTALLATION
– CARRIER
6512002774 HARNESS ASSEMBLY – CARRIER
6176003182 BOX ASSEMBLY – RELAY
6512002773 HARNESS ASSEMBLY – RELAY
BOX
12 2165600537 HYDRAULIC LINES INSTALLATION –
SUPPLY, PRESSURE AND RETURN
13 6581001238 EXTERIOR LIGHTS
INSTALLATION – CARRIER
14 2140100095 MIRROR INSTALLATION –
FRAME
15 2165100640 FENDER INSTALLATION
16 2165100511 HYDRAULIC RESERVOIR
INSTALLATION
2165100572 RESERVOIR ASSEMBLY –
HYDRAULIC
7258001405 COVER ASSEMBLY – 16 1/4″ INSPECTION
INSPECTION
7437000194 FILTER ASSEMBLY – RETURN
7437000194 FILTER ASSEMBLY – RETURN
17 2165100543 FLEX STEP INSTALLATION
19 2174100661 FUEL TANK AND STEP
INSTALLATION
7880000948 TANK ASSEMBLY – 60 GALLON FUEL
20 6970002391 TIRE AND WHEEL ASSEMBLY
23 2165100551 TIE DOWN INSTALLATION –
HOOK BLOCK
27 2165800632 ENGINE INSTALLATION –
(FOR REFERENCE ONLY)
CUMMINS 6BT5.9
2165800633 ENGINE ASSEMBLY –
CUMMINS 6BT5.9
WITH PUMPS
(NOT AVAILABLE AS ASSEMBLY)
6904000758 TRANSMISSION INSTALLATION
– CUMMINS/CLARK
(NOT AVAILABLE AS ASSEMBLY)
6904000754 TRANSMISSION ASSEMBLY –
COMPLETE
7904000753 TRANSMISSION ASSEMBLY
7904000753 TRANSMISSION ASSEMBLY
CONVERTER HOUSING GROUP
7904000753 TRANSMISSION ASSEMBLY
TRANSMISSION CASE AND
REAR COVER
7904000753 TRANSMISSION ASSEMBLY
TURBINE SHAFT STATOR SUPPORT
7904000753 TRANSMISSION ASSEMBLY
TORQUE CONVERTER ASSEMBLY
WITH FREE WHEEL
7904000753 TRANSMISSION ASSEMBLY
AUXILIARY PUMP DRIVE PARTS
7904000753 TRANSMISSION ASSEMBLY
CHARGING PUMP DRIVE GROUP
7904000753 TRANSMISSION ASSEMBLY
FORWARD SHAFT GROUP
7904000753 TRANSMISSION ASSEMBLY
REVERSE IDLER GROUP
7904000753 TRANSMISSION ASSEMBLY
REVERSE AND SECOND SHAFT
7904000753 TRANSMISSION ASSEMBLY
LOW SPEED SHAFT GROUP
7904000753 TRANSMISSION ASSEMBLY
FORWARD AND HI 3RD AND 4TH
CLUTCH GROUP
7904000753 TRANSMISSION ASSEMBLY
IDLER SHAFT GROUP
7904000753 TRANSMISSION ASSEMBLY
OUTPUT SHAFT GROUP
WITH REAR DISCONNECT
7904000753 TRANSMISSION ASSEMBLY
DRIVE PLATE GROUP
7904000753 TRANSMISSION ASSEMBLY
CONTROL VALVE GROUP
7904000753 TRANSMISSION ASSEMBLY
CONTROL VALVE ASSEMBLY
7904000753 TRANSMISSION ASSEMBLY
DISCONNECT ASSEMBLY – PUMP
7904000753 TRANSMISSION ASSEMBLY
CHARGING PUMP AND FILTER
7722001080 PUMP ASSEMBLY –
TWO SECTION GEAR
7722000311 PUMP ASSEMBLY
7372002534 CYLINDER ASSEMBLY – THROTTLE
(COMPLETE ASSEMBLY)
6978004369 ELECTRICAL SYSTEMS
INSTALLATION
6512002832 HARNESS ASSEMBLY –
ENGINE
7364001594 DISCONNECT ASSEMBLY – PUMP
6512002646 HARNESS ASSY, OUTRIGGER CAB TO BOARD
7722000953 PUMP ASSEMBLY
2165800603 ENGINE COMPONENTS ASSEMBLY
2174800066 QUICK START INSTALLATION
7926001253 VALVE ASSEMBLY – SOLENOID
29 2165800599 CLEANER INSTALLATION – AIR
7304800001 CLEANER ASSEMBLY – AIR
(COMPLETE ASSEMBLY)
30 2165800600 EXHAUST SYSTEM INSTALLATION
31 2165800634 RADIATOR INSTALLATION
2165800635 RADIATOR ASSEMBLY
32 2165800624 HOOD INSTALLATION – ENGINE
CUMMINS
2165800625 ENGINE HOOD WELD AND
ASSEMBLY – CUMMINS
33 2174800650 WEATHERSTRIP INSTALLATION
– ENGINE HOOD
34 2174100098 COOLER INSTALLATION – OIL
7425000081 FAN ASSEMBLY
35 2165800542 BATTERY INSTALLATION
36 2165800585 DRIVE LINE INSTALLATION
7364001402 DRIVE LINE ASSEMBLY
7364002583 SHAFT ASSEMBLY – DRIVE
7364002633 DRIVE LINE ASSEMBLY
39 2165100535 TOOL BOX INSTALLATION
43 2165800514 COVER INSTALLATION –
BATTERY
44 2174700504 REAR STEER INDICATOR
INSTALLATION
45 2165100638 DECKING INSTALLATION
47 2165600576 HYDRAULIC HEATER LINES
49 2165800638 FILTER INSTALLATION – FUEL/
WATER SEPARATOR
50 2174100109 RELIEF VALVE AND PARKING
BRAKE INSTALLATION
7926001877 VALVE ASSEMBLY – RELIEF
7926003855 VALVE ASSEMBLY – PARK BRAKE
(COMPLETE ASSEMBLY)
51 2174100635 OUTRIGGER CONTROL VALVE
INSTALLATION
7926000219 VALVE ASSEMBLY – 4 STACK
OUTRIGGER SOLENOID
7926003300 VALVE ASSEMBLY
7926002030 VALVE ASSEMBLY – CHECK
52 2174500004 VALVE INSTALLATION – REAR
AXLE LOCKOUT
7926001859 VALVE ASSEMBLY – SOLENOID
53 2174100664 DIVIDER INSTALLATION – FLOW
7926003900 DIVIDER ASSEMBLY – FLOW
54 6025000788 BACK-UP ALARM INSTALLATION
72 2165600517 HYDRAULIC LINES INSTALLATION –
STEER
LOOSE SHIP ITEMS
14 6780000010 ROPE, MANILA
SPECS/SCHEMATICS
1 6294013564 ELECTRIC SCHEMATIC
2 6294009370 HYDRAULIC SCHEMATIC
8 6294012032 HYDRAULIC PRESSURE CHART
DECALS
0 RT635C DECA001 MISCELLANEOUS DECALS
1 6376011916 DECAL INSTALLATION – RT635C
83 3486000226 DECAL INSTALLATION – ENGLISH
LMI

Customer Support: [email protected]

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
