Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
$20.95
Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
Description
Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
FILE DETAILS:
Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
Language : English
Pages : 20
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
GENERAL:
1. Rated loads as shown on lift chart pertain to this machine as originally manufactured and equipped. Modifications to the machine or use
of optional equipment other than that specified can result in a reduction of capacity.
2. Construction equipment can be hazardous if improperly operated or maintained. Operation and maintenance of this machine shall be in
compliance with the information in the Operatorβs and Safety Handbook, Service Manual, and Parts Manual supplied with this machine.
If these manuals are missing, order replacements from the manufacturer through the distributor.
3. The operator and other personnel associated with machine shall fully acquaint themselves with the latest American National Safety Standards (ASME/ANSI) for cranes.
SETUP:
1. The machine shall be level and on a firm supporting surface. Depending on the nature of the supporting surface, it may be necessary to have structural supports under the outrigger floats or tires to spread the load to a larger bearing surface.
2. For outrigger operation, all outriggers shall be properly extended with tires raised free of crane weight before operating the boom or lifting loads.
3. When machine is equipped with center front stabilizer, the front stabilizer shall be set in accordance with instructions in Operator’s & Safety Handbook.
4. When equipped with removable and/or extendible counterweight, the proper counterweight shall be installed and fully extended before and during operation.
5. Tires shall be inflated to the recommended pressure before lifting on rubber.
6. With certain boom and hoist tackle combinations, maximum capacities may not be obtainable with standard cable lengths.
7. Unless approved by the crane manufacturer, do not travel with boom extension or jib erected. Refer to Operator’s and Safety Handbook for job-site travel information.
OPERATION:
1. Rated loads at rated radius shall not be exceeded. Do not attempt to tip the machine to determine allowable loads. For clamshell, grapple, magnet or concrete bucket operation, weight of component and load must not exceed 80% of rated lifting capacities.
2. All rated loads have been tested to and meet the requirements of SAE J1063 – Cantilevered Boom Crane Structures – Method of Test, and do not exceed 85% of the tipping load on outriggers fully extended. Capacities on outriggers 50% extended and 0% extended (fully retracted) correspond to SAE J1289 (Test Load = 1.25P + 0.1A). 0.1A represents one-tenth (0.10) of the total boom weight reduced to the boom point. Loads are also determined by SAE J765 Crane Stability Test Code.
3. Rated loads include the weight of hookblock, slings and auxiliary lifting devices and their weights shall be subtracted from the listed rating to obtain the net load to be lifted. When more than the minimum required parts of line needed to pick the load are used, the additional rope weight as measured from the lower sheaves of the the main boom nose shall be considered part of the load to be lifted.
When both the hook block and headache ball are reeved, the lifting device that is NOT in use, including the line as measured from the lower sheave(s) of the nose supporting the unused device shall be considered part of the load.
4. Load ratings are based on freely suspended loads. No attempt shall be made to move a load horizontally on the ground in any direction.
5. The maximum in-service wind speed is 20 m.p.h. It is recommended when wind velocity is above 20 m.p.h., rated loads and boom lengths shall be appropriately reduced. For machines not in-service, the main boom should be retracted and lowered with swing brake set in wind velocities over 30 m.p.h.
6. Rated loads are for lift crane service only.
7. Do not operate at a radius or boom length where capacities are not listed. At these positions, the machine may overturn without any load on the hook.
8. The maximum load which can be telescoped is not definable because of variations in loadings and crane maintenance, but it is safe to attempt retraction and extension of the boom within the limits of the capacity chart.
9. When the boom length or lift radius or both are between values listed, the smallest load shown at either the next larger radius or next longer or shorter boom length shall be used.
10. For safe operation, the user shall make due allowances for his particular job conditions, such as: soft or uneven ground, out of level conditions, high winds, side loads, pendulum action, jerking or sudden stopping of loads, experience of personnel, two machine (tandem) lifts, traveling with loads, electric wires, obstacles, hazardous conditions, etc. Side pull on boom or jib is extremely dangerous.
11. Regardless of counterweight and outrigger spread configuration, no deduct is required from the main boom charts for a stowed boom extension.
12. Never handle personnel with this machine unless the requirements of the applicable national, state, and local regulations and safety codes are met.
13. Keep load handling devices a minimum of 42 inches below boom head at all times.
14. The boom angle before loading should be greater than the loaded boom angle to account for deflection.
15. Capacities appearing above the bold line are based on structural strength and tipping should not be relied upon as a capacity limitation.
TABLE OF CONTENTS:
Grove Crane RT890E Load Chart Manual – PDF DOWNLOAD
GENERAL NOTES 4
WEIGHT REDUCTIONS / LINE PULLS & REEVING INFO / RIGGING CHART FOR
INSTL /REMOVAL OF CWT 5
LIFTING AREA DIAGRAMS 6
RANGE DIAGRAM 7
BOOM SECTION EXTENSION PERCENTAGES FOR MODE A & B 8
MODE A
ON OUTRIGGERS 100% EXTENDED 9
ON OUTRIGGERS 50% EXTENDED 10
ON OUTRIGGERS 0% EXTENDED (fully retracted) 11
ON RUBBER 12-13
MODE B
ON OUTRIGGERS 100% EXTENDED
MAIN BOOM 15
EXTENSION 16
ON OUTRIGGERS 50% EXTENDED
MAIN BOOM 17
EXTENSION 18
ON OUTRIGGERS 0% EXTENDED
MAIN BOOM 19
TIRE INFLATION 20

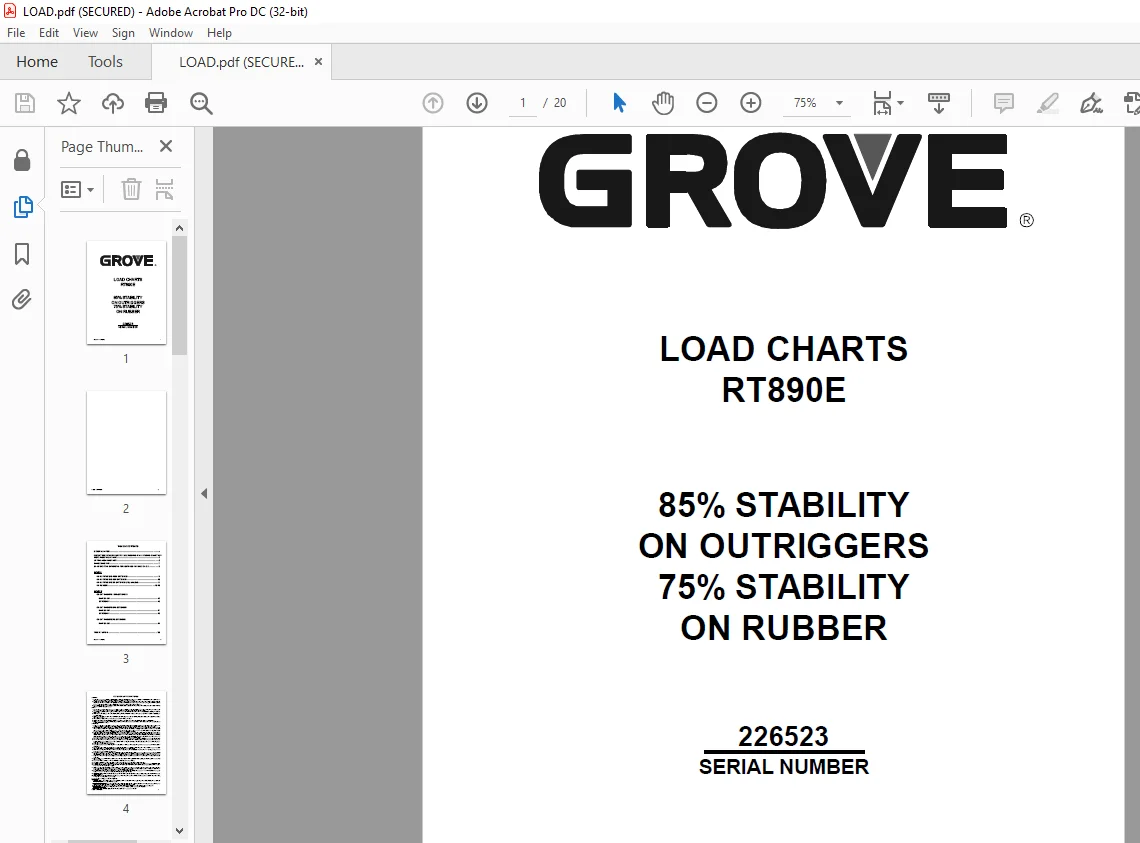

IMAGES PREVIEW OF THE MANUAL:
