Grove Crane RT890E3 Parts Manual SN 226523 – PDF DOWNLOAD

Description

Grove Crane RT890E3 Parts Manual SN 226523 – PDF DOWNLOAD

FILE DETAILS:

Grove Crane RT890E3 Parts Manual SN 226523 – PDF DOWNLOAD

Language : English
Pages : 999
Downloadable : Yes
File Type : PDF

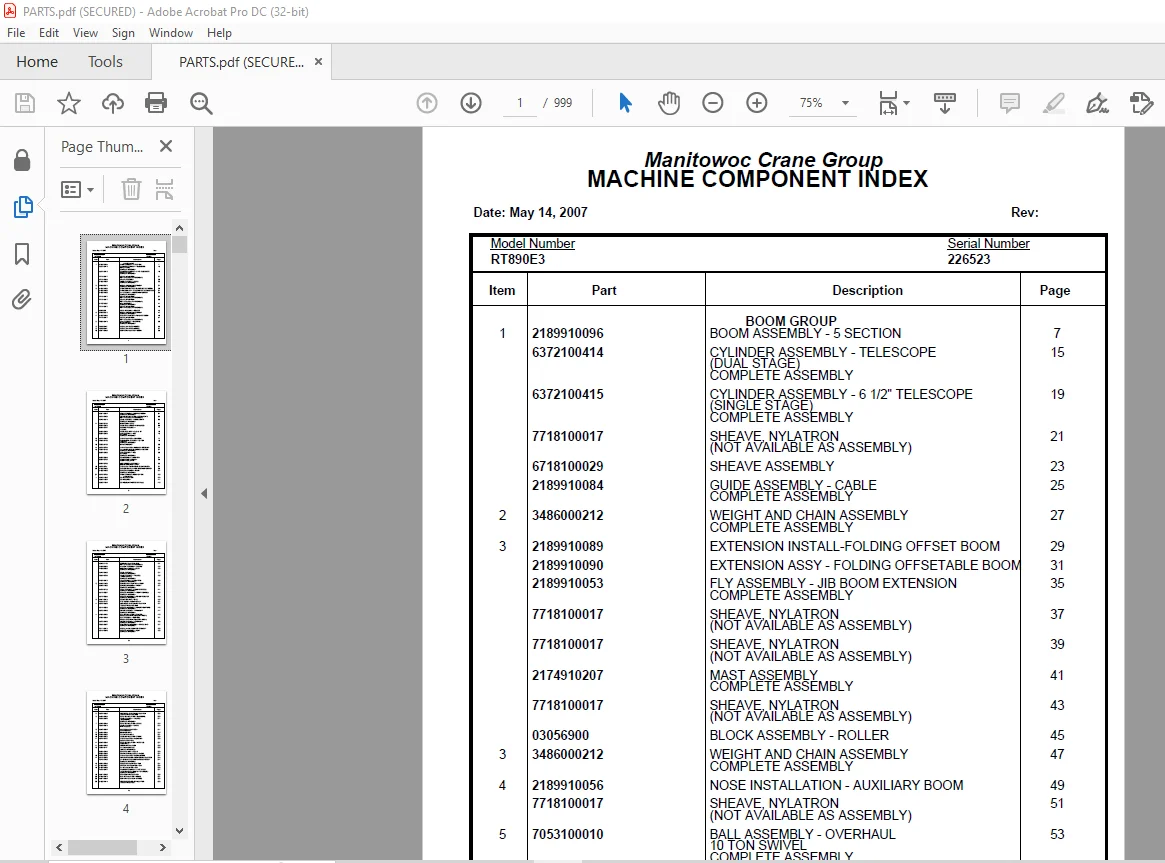

TABLE OF CONTENTS:

Grove Crane RT890E3 Parts Manual SN 226523 – PDF DOWNLOAD

1 2189910096 BOOM ASSEMBLY – 5 SECTION 7
6372100414 CYLINDER ASSEMBLY – TELESCOPE 15
(DUAL STAGE)
COMPLETE ASSEMBLY
6372100415 CYLINDER ASSEMBLY – 6 1/2″ TELESCOPE 19
(SINGLE STAGE)
COMPLETE ASSEMBLY
7718100017 SHEAVE, NYLATRON 21
(NOT AVAILABLE AS ASSEMBLY)
6718100029 SHEAVE ASSEMBLY 23
2189910084 GUIDE ASSEMBLY – CABLE 25
COMPLETE ASSEMBLY
2 3486000212 WEIGHT AND CHAIN ASSEMBLY 27
COMPLETE ASSEMBLY
3 2189910089 EXTENSION INSTALL-FOLDING OFFSET BOOM 29
2189910090 EXTENSION ASSY – FOLDING OFFSETABLE BOOM 31
2189910053 FLY ASSEMBLY – JIB BOOM EXTENSION 35
COMPLETE ASSEMBLY
7718100017 SHEAVE, NYLATRON 37
(NOT AVAILABLE AS ASSEMBLY)
7718100017 SHEAVE, NYLATRON 39
(NOT AVAILABLE AS ASSEMBLY)
2174910207 MAST ASSEMBLY 41
COMPLETE ASSEMBLY
7718100017 SHEAVE, NYLATRON 43
(NOT AVAILABLE AS ASSEMBLY)
03056900 BLOCK ASSEMBLY – ROLLER 45
3 3486000212 WEIGHT AND CHAIN ASSEMBLY 47
COMPLETE ASSEMBLY
4 2189910056 NOSE INSTALLATION – AUXILIARY BOOM 49
7718100017 SHEAVE, NYLATRON 51
(NOT AVAILABLE AS ASSEMBLY)
5 7053100010 BALL ASSEMBLY – OVERHAUL 53
10 TON SWIVEL
COMPLETE ASSEMBLY
8 7826000641 SOCKET, 3/4’’ OPEN WEDGE 55
9 7826000641 SOCKET, 3/4’’ OPEN WEDGE 57
10 6581100065 LIGHTS INSTALLATION – BOOM 59
I
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
6581100024 LIGHT ASSEMBLY – MODIFIED BOOM 61
COMPLETE ASSEMBLY
6872100058 SWITCH INSTALLATION – BOOM LIGHTS 63
(NOT AVAILABLE AS ASSEMBLY)
6246100216 CABLE ASSEMBLY – BOOM LIGHTS 65
COMPLETE ASSEMBLY
11 7598100106 LMI BOOM KIT (BCS) 67
9333103973 CABLE REEL LWG521-iFLEX5 (BCS) 69
9333102737 SLIPRING ASSEMBLY – 71
11 COND.
9333103963 CABLE REEL ASSY. iFLEX 5 87’ 73
9333102633 FLAG ASSEMBLY – A2B 75
RETAINER
COMPLETE ASSEMBLY
12 6978100698 KIT INSTALLATION – LMI BOOM 77
12 7086100108 HOOK BLOCK ASSEMBLY – 90 TON 79
5 SHEAVE
COMPLETE ASSEMBLY
13 7598100108 LMI AUX NOSE KIT 83
14 6978100700 KIT INSTALLATION – AUXILIARY NOSE LMI 85
15 7598100109 KIT – LMI BI-FOLD JIB BOOM EXTENSION 87
COMPLETE ASSEMBLY
9333102633 FLAG ASSEMBLY – A2B 89
RETAINER
COMPLETE ASSEMBLY
9333102996 BOX ASSEMBLY – JUNCTION 91
9333102765 CONNECTOR ASSEMBLY 93
DUMMY PLUG, 2-PIN
9333102768 JUNCTION BOX ASSEMBLY – 95
80MM X 75MM, PG9 + 2-PIN
16 6978100701 KIT INSTALL – LMI BI-FOLD JIB EXTENSION 97
20 2188910053 CARRIER INSTALLATION – BOOM EXTENSION 99
2188910085 HANGER ASSEMBLY – REAR 101
COMPLETE ASSEMBLY
27 6576100709 BOOM ASSEMBLY MODIFICATION 103
CAB GROUP
1 6245101095 CAB INSTALLATION 105
6245101094 CAB ASSEMBLY 111
6245101084 CAB WELD (WITH DOOR INSTALL) 119
II
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
6245101160 DOOR INSTALLATION – CAB 121
(NOT AVAILABLE AS ASSEMBLY)
7498000954 SKYLIGHT ASSEMBLY – SLIDING 123
7498000885 WINDOW ASSEMBLY – REAR 125
COMPLETE ASSEMBLY
6246100045 CABLE ASSEMBLY 127
COMPLETE ASSEMBLY
7926100786 VALVE ASSEMBLY – TREADLE 129
( SWING BRAKE )
COMPLETE ASSEMBLY
7425100015 FAN ASSEMBLY – 12 VOLT CAB 133
COMPLETE ASSEMBLY
2 6245101049 CONSOLE INSTALLATION – FRONT 135
6245101052 CONSOLE ASSEMBLY – FRONT 137
COMPLETE ASSEMBLY
6679100175 PANEL ASSEMBLY – FRONT CONSOLE 141
COMPLETE ASSEMBLY
6512100827 HARNESS ASSEMBLY – FRONT CONSOLE 149
COMPLETE ASSEMBLY
6512100386 HARNESS ASSEMBLY – POTENTIOMETER 155
COMPLETE ASSEMBLY
3 6001100018 ACOUSTICS INSTL – RT”E” 159
7576134127 RT”E” SERIES ACOUSTICS KIT 161
4 6978100848 ELECTRICAL SYSTEM INSTALLATION 167
– SUPERSTRUCTURE CAB
6512100826 HARNESS ASSEMBLY – SUPERSTRUCTURE 173
COMPLETE ASSEMBLY
6872100045 SWITCH ASSEMBLY – PROXIMITY 177
COMPLETE ASSEMBLY
4 6798100092 SEAT INSTALLATION – CONTROL 179
(SINGLE AXIS WITH AUXILIARY HOIST)
6798100094 SEAT ASSEMBLY – CONTROL 181
(SINGLE AXIS WITH AUXILIARY HOIST)
6872100045 SWITCH ASSEMBLY – PROXIMITY 185
COMPLETE ASSEMBLY
7926100847 CONTROLLER ASSEMBLY – SINGLE AXIS 187
COMPLETE ASSEMBLY
7511100012 HANDLE, WITH SOLENOID ASSEMBLY 189
6512100540 HARNESS ASSEMBLY – SEAT 199
COMPLETE ASSEMBLY
III
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
5 6978100835 ELECTRICAL SYSTEM INSTALLATION 205
– SUPERSTRUCTURE CAB
6 6683100025 PEDAL INSTALLATION – TELESCOPE 209
7926100849 VALVE ASSEMBLY – TREADLE 211
( TELESCOPE )
COMPLETE ASSEMBLY
7 6245100096 PEDAL INSTALLATION – BRAKE 213
7926100619 VALVE ASSEMBLY – BRAKE 215
WITH TREADLE
8 6245100094 SHIFTER INSTALLATION – 217
TRANSMISSION
9 6593100006 360 LEVER INSTL 219
10 7598100092 KIT, LMI S/S IFLEX 5 221
10 6245100472 VALVE INSTALLATION – STEER 223
11 6978100727 KIT INSTALLATION – iFLEX 5 LMI 225
SUPERSTRUCTURE
11 6245100334 PEDAL INSTALLATION – THROTTLE 227
( ELECTRIC )
11 6258100005 BINDER INSTALLATION 229
12 7598100141 KIT – LMI iFLEX 5 CAB 233
(FOR BCS MACHINES)
9333103866 CENTERAL UNIT – IFLEX 5 235
9333103868 GRAPH. CONSOLE (VER.) – IFLEX5 237
13 6978100739 KIT INSTALLATION – iFLEX5 LMI CAB 241
14 6515100032 AIR CONDITIONING & HEATER INSTALLATION 245
7576134405 KIT – CAB HEATER AND AIR CONDITIONER 247
COMPLETE ASSEMBLY
15 6942100005 SCREEN INSTALLATION – SUN 251
17 2189210027 SUPPORT INSTALLATION – CAB 253
18 2189410000 TILT INSTALLATION – CAB 255
7372100077 CYLINDER ASSEMBLY – 2 1/2″ STEER 257
( ALSO USED AS A CAB TILT CYLINDER )
COMPLETE ASSEMBLY
19 6581100005 SPOTLIGHT INSTALLATION 259
20 2189210010 LOCK INSTALLATION – HOUSE 261
20 6581100004 LIGHT INSTALLATION – STROBE 263
23 2189310016 AIR CONDITIONING INSTALLATION 265
– SUPERSTRUCTURE
IV
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
7576134497 KIT – AIR CONDITIONER CONDENSER
COMPLETE ASSEMBLY
24 7598100096 LMI INTERNAL LIGHTBAR KIT 267
25 6245100355 COVER INSTALLATION – CAB REAR 269
26 6872100047 MAIN & AUX HST SPEED SW INSTL 271
27 6872100056 SWITCH INSTALL – AXLE DIFF LOCK 273
(NOT AVAILABLE AS ASSEMBLY)
28 6872100057 SWITCH INSTALLATION – 275
AIR CONDITIONER
(NOT AVAILABLE AS ASSEMBLY)
29 6872100058 SWITCH INSTALLATION – BOOM LIGHTS 277
(NOT AVAILABLE AS ASSEMBLY)
30 6543100133 LINES INSTALLATION – AIR CONDITIONING 279
(CAB)
(FOR REFERENCE ONLY)
7576134413 KIT – AIR CONDITIONER HOSE 281
COMPLETE ASSEMBLY
36 6245101195 POLE INSTALLATION-JIB RELEASE 283
CONTROL VALVE GROUP – UPPER
5 2189610061 VALVE INSTALLATION – CONTROL 285
(SUPERSTRUCTURE)
7926100801 VALVE ASSEMBLY – TELE ROD DRAIN 289
COMPLETE ASSEMBLY
7926100793 VALVE ASSEMBLY – 5 SECTION DIRECTIONAL 293
COMPLETE ASSEMBLY
7926100919 VALVE ASSEMBLY – SWING/STEER/BRAKE 305
COMPLETE ASSEMBLY
7926100869 VALVE ASSEMBLY – BRAKE CHARGE 311
COMPLETE ASSEMBLY
7926100794 VALVE ASSEMBLY – 2 SECTION CONTROL 315
LUFFING JIB AND CAB TILT
COMPLETE ASSEMBLY
7926100804 BANK ASSEMBLY – 3 SECTION CONTROL VALVE 319
COMPLETE ASSEMBLY
7926100820 VALVE ASSEMBLY – 2 SPEED SWING 323
COMPLETE ASSEMBLY
7 2189210017 CONTROL LEVER INSTALLATION – 325
COUNTERWEIGHT
24 2189610026 HYDRAULIC LINES INSTALLATION – 331
MAIN AND AUXILIARY HOIST
(SUPERSTRUCTURE)
V
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
6872100049 SWITCH ASSEMBLY – PRESSURE 339
(MODIFIED)
COMPLETE ASSEMBLY
32 2189610030 HYDRAULIC LINES INSTALLATION – 343
MAIN AND AUXILIARY HOIST
(CAB)
HOIST GROUP
6 2189210068 HOIST INSTALLATION – MAIN 347
7974100013 HOIST ASSEMBLY 355
COMPLETE ASSEMBLY
6246100245 CABLE ASSEMBLY- AUXILIARY HOIST HI SPEED 361
COMPLETE ASSEMBLY
6 7781050602 3/4″ DIA WIRE ROPE 6X37 600 FT 363
7 7782191852 WIRE ROPE-19MM 35X7-185M 365
8 2197210021 MIRROR INSTALLATION – HOIST 367
14 6974100098 INDICATOR INSTALLATION – HOIST ROTATION 369
7352100034 CONTROL ASSY – HOIST ROTATION INDICATOR 371
COMPLETE ASSEMBLY
15 6974100098 INDICATOR INSTALLATION – HOIST ROTATION 373
7352100034 CONTROL ASSY – HOIST ROTATION INDICATOR 375
COMPLETE ASSEMBLY
19 2189210079 22000 LB COUNTERWEIGHT INSTALLATION – 377
AND AUXILIARY HOIST
2189210081 22000 LB COUNTERWEIGHT ASSEMBLY – 379
AND AUXILIARY HOIST
2189210012 CYLINDER ASSEMBLY-COUNTERWEIGHT REMOVAL 383
COMPLETE ASSEMBLY
7372100128 CYLINDER ASSEMBLY – 3 1/2″ CWT REMOVAL 385
COMPLETE ASSEMBLY
7974100013 HOIST ASSEMBLY 393
COMPLETE ASSEMBLY
6246100245 CABLE ASSEMBLY- AUXILIARY HOIST HI SPEED 399
COMPLETE ASSEMBLY
2188210061 MIRROR INSTALLATION – AUXILIARY HOIST 401
(NOT AVAILABLE AS ASSEMBLY)
TURNTABLE GROUP
1 2189210041 DRIVE INSTALLATION – TURNTABLE AND 403
2189210040 TURNTABLE SECTION 405
7576134157 BOX ASSEMBLY – SWING 411
COMPLETE ASSEMBLY
VI
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
2 6364101711 SWIVEL INSTALLATION – ELECTRIC 417
HYDRAULIC, WATER AND AIR CONDITIONING
6364101726 SWIVEL ASSEMBLY – ELECTRIC, 419
HYDRAULIC, WATER AND AIR CONDITIONING
7364100165 SWIVEL ASSEMBLY – 14 PORT 421
HYDRAULIC, WATER AND AIR CONDITIONING
COMPLETE ASSEMBLY
7753100037 RING ASSEMBLY – SLIP 427
15 CONDUCTOR
COMPLETE ASSEMBLY
2 2189210083 CYLINDER INSTALLATION – LOWER PIN & LIFT 431
6372100449 CYLINDER ASSEMBLY – 12″ LIFT 433
COMPLETE ASSEMBLY
7926003679 VALVE ASSEMBLY – HOLDING 437
COMPLETE ASSEMBLY
3 2189210006 REEL INSTALLATION – HOSE 439
2189210028 REEL ASSEMBLY – HOSE 441
7188000725 BRAKE ASSEMBLY 445
7632100162 MOTOR ASSEMBLY – HYDRAULIC 447
COMPLETE ASSEMBLY
6 2189110023 BOLT INSTALLATION – BEARING 449
13 2189210043 CYLINDER INSTALLATION – 451
COUNTERWEIGHT PINNING
7372100125 CYLINDER ASSEMBLY – 3″ 453
HOIST PIN REMOVAL
COMPLETE ASSEMBLY
17 2189210023 LOCK INSTALLATION – SWING 455
2179210035 SWING LOCK ASSEMBLY 457
19 2189310011 COVER INSTALLATION – VALVE 459
ENGINE GROUP
3 2189810083 ENGINE HOOD ASSEMBLY AND 461
REAR COVER INSTALLATION
2189810082 HOOD ASSEMBLY – ENGINE 463
COMPLETE ASSEMBLY
16 2189810091 ENGINE INSTALLATION – CUMMINS QSB-275 467
TIER 3
2189810090 ENGINE ASSEMBLY – CUMMINS QSB-275 TIER 3 473
(NOT AVAILABLE AS ASSEMBLY)
7904100047 TRANSMISSION ASSEMBLY – 6 SPEED 481
COMPLETE ASSEMBLY
VII
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
9904110163 CONVERTER HOUSING GROUP 483
9904110140 CASE,TRANSMISSION GROUP 487
9904110072 REAR COVER GROUP 489
9904110141 DRIVE PLATE GROUP 491
9904110164 TURBINE SHAFT/OIL BAFFLE GROUP 493
9904110143 TURBINE/IMPELLER GROUP 495
9904110165 PUMP DRIVE GROUP 497
9904110430 REVERSE & HIGH SHAFT GROUP 499
9904110431 FWD. & 2ND. SHAFT GROUP 503
9904110432 LOW SHAFT GROUP 507
9904110125 IDLER SHAFT GROUP 511
9904110145 OUTPUT SHAFT GROUP 513
9904110169 PRESSURE REGULATOR/VALVE GROUP 517
9904110170 CHARGE PUMP & COVER GROUP 519
9904110147 ELECT.CONTROL VALVE GROUP 521
9904110078 HI & LOW SHIFT CONTROL GROUP 523
9904110171 PUMP ADAPTOR GROUP 525
7722100062 PUMP ASSEMBLY – PISTON 529
COMPLETE ASSEMBLY
7722100061 PUMP ASSEMBLY – 1 SECTION GEAR 533
COMPLETE ASSEMBLY
6978100839 ELECTRICAL SYSTEM INSTALLATION – ENGINE 537
(NOT AVAILABLE AS ASSEMBLY)
6512100806 HARNESS ASSEMBLY – ENGINE 541
COMPLETE ASSEMBLY
7246100378 KIT – CABLE (ENGINE) 547
COMPLETE ASSEMBLY
17 2189810086 RADIATOR INSTALLATION – 551
CHARGE AIR COOLER
2189810087 RADIATOR ASSEMBLY – 555
CHARGE AIR COOLER
(NOT AVAILABLE AS ASSEMBLY)
7726100017 COOLER ASSEMBLY – RADIATOR/CHARGE AIR 557
COMPLETE ASSEMBLY
2189810055 TANK ASSEMBLY – SURGE 561
(NOT AVAILABLE AS ASSEMBLY)
18 2189810059 EXHAUST INSTALLATION 563
VIII
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
19 2189810058 INTAKE INSTALLATION – AIR 565
7304100008 CLEANER ASSEMBLY – AIR 567
COMPLETE ASSEMBLY
28 2189810073 COMPRESSOR INSTALLATION- AIR CONDITIONER 569
7576134445 KIT – CUMMINS AIR CONDITIONER COMPRESSOR 571
12 VOLT
COMPLETE ASSEMBLY
DRIVE TRAIN GROUP
14 2189810006 DRIVE LINE INSTALLATION 573
7364100105 DRIVE LINE ASSEMBLY 575
WITH CENTER BEARING
COMPLETE ASSEMBLY
7364100118 DRIVE LINE ASSEMBLY – REAR SLIP 577
COMPLETE ASSEMBLY
7364100132 DRIVE LINE ASSEMBLY 579
COMPLETE ASSEMBLY
26 2189810075 FILTER INSTALLATION – TRANSMISSION 581
7437100235 FILTER ASSEMBLY 583
COMPLETE ASSEMBLY
AXLE GROUP
12 2189710007 AXLE INSTALLATION – REAR 585
WITH DIFFERENTIAL LOCK
7049101496 AXLE ASSEMBLY – REAR DRIVE STEER 589
WITH DIFFERENTIAL LOCK
COMPLETE ASSEMBLY
9049112826 DIFF. CARRIER GROUP 591
9049112791 HOUSING, AXLE GROUP 595
9049112827 HUB & SHAFT GROUP 599
9049112539 BRAKE GROUP 603
9049112541 BRAKE ASSEMBLY GROUP 605
7372100254 CYLINDER ASSEMBLY – 3 1/2″ STEER 607
COMPLETE ASSEMBLY
7372100255 CYLINDER ASSEMBLY – 5″ LOCKOUT 609
COMPLETE ASSEMBLY
6872100045 SWITCH ASSEMBLY – PROXIMITY 611
COMPLETE ASSEMBLY
6872100001 SWITCH INSTALLATION – 613
AXLE DIFFERENTIAL LOCK
(NOT AVAILABLE AS ASSEMBLY)
13 2189510005 AXLE INSTALLATION – FRONT 615
WITH DIFFERENTIAL LOCK
IX
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
7049101495 AXLE ASSEMBLY – FRONT DRIVE STEER 617
WITH DIFFERENTIAL LOCK
COMPLETE ASSEMBLY
9049112824 DIFF. CARRIER GROUP 619
9049112791 HOUSING, AXLE GROUP 623
9049112792 HUB & SHAFT GROUP 627
9049112554 BRAKE GROUP 631
9049112541 BRAKE ASSEMBLY GROUP 633
7372100254 CYLINDER ASSEMBLY – 3 1/2″ STEER 635
COMPLETE ASSEMBLY
7188100101 BRAKE ASSEMBLY – PARKING 637
COMPLETE ASSEMBLY
6872100001 SWITCH INSTALLATION – 641
AXLE DIFFERENTIAL LOCK
(NOT AVAILABLE AS ASSEMBLY)
15 6970100213 TIRE AND WHEEL INSTALLATION – 643
29.5 X 25 GENERAL
6970100214 TIRE AND WHEEL ASSEMBLY – 645
29.5 X 25 GENERAL
COMPLETE ASSEMBLY
7970100070 WHEEL ASSEMBLY – 25 X 25.00 647
COMPLETE ASSEMBLY
OUTRIGGER GROUP
4 2189110018 FLOAT INSTALLATION – OUTRIGGER 649
6458000573 FLOAT ASSEMBLY – OUTRIGGER 651
5 2174110093 TIE DOWN INSTALLATION – HOOK BLOCK 653
30 2189110033 COVER INSTALLATION – OUTRIGGER GRILL AND 655
FRAME GROUP
1 2189110080 FRAME ASSEMBLY 657
(FOR REFERENCE ONLY)
2189110061 FRAME ASSEMBLY 659
2189110079 BEAM INSTALL – OUTRIGGER 661
(NOT AVAILABLE AS ASSEMBLY)
2189110078 BEAM ASSEMBLY – OUTRIGGER 663
COMPLETE ASSEMBLY
7372100240 CYLINDER ASSEMBLY-5 1/2″ OUTRIGGER JACK 665
COMPLETE ASSEMBLY
6372100452 CYLINDER ASSEMBLY – OUTRIGGER EXTENSION 667
COMPLETE ASSEMBLY
X
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
7372100235 CYLINDER ASSEMBLY – 2 1/2″ O/R EXTENSION 669
COMPLETE ASSEMBLY
2 2189110057 DECKING INSTALLATION – FENDER AND 671
2189110040 DOOR ASSEMBLY – FUEL TANK COVER AND 675
COMPLETE ASSEMBLY
2189110032 COVER INSTALL – HYDRAULIC TANK 677
7 2174110022 MIRROR INSTALLATION – 679
REAR VIEW
8 2189110028 STEP INSTALLATION 681
9 6978100838 ELECTRICAL SYSTEM INSTALLATION 689
– CARRIER
6512100805 HARNESS ASSEMBLY – CARRIER 699
COMPLETE ASSEMBLY
6679100155 PANEL ASSEMBLY – ENGINE RELAYS 705
COMPLETE ASSEMBLY
6512100807 HARNESS ASSEMBLY – ENGINE RELAY PANEL 707
COMPLETE ASSEMBLY
7246100249 KIT – CABLE (BATTERY) 711
COMPLETE ASSEMBLY
10 2189110073 RESERVOIR INSTALLATION – HYDRAULIC 713
7880100109 RESERVOIR ASSEMBLY – HYDRAULIC 717
COMPLETE ASSEMBLY
9437100863 FILTER ASSEMBLY, RETURN HYD. 721
11 2189610002 VALVE INSTALLATION – 723
WITH DIFFERENTIAL LOCK
7926100817 VALVE ASSEMBLY – REAR STEER,AXLE LOCKOUT 727
AND FAN DRIVE
COMPLETE ASSEMBLY
7926100789 VALVE ASSEMBLY – PARK BRAKE/RANGE SHIFT 731
COMPLETE ASSEMBLY
7926100796 VALVE ASSEMBLY – OUTRIGGER/STABLIZER 735
COMPLETE ASSEMBLY
7926100802 VALVE ASSEMBLY – SOLENOID 739
COMPLETE ASSEMBLY
7926100813 VALVE ASSEMBLY – SELECTABLE PSI REDUCING 741
COMPLETE ASSEMBLY
12 6376100254 HARDWARE KIT – DECAL 743
20 2189110077 COOLER INSTALLATION – 745
HYDRAULIC AND TRANSMISSION OIL
XI
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 14, 2007 Rev:
Model Number
RT890E3
Serial Number
226523
Item Part Description Page
7726191192 COOLER ASSEMBLY – 747
HYDRAULIC AND TRANSMISSION OIL
COMPLETE ASSEMBLY
22 2189110015 TRAY INSTALLATION – STORAGE 749
( WITH MAT )
23 2174110008 HOOK INSTALLATION – PINTLE 751
7539000636 HOOK ASSEMBLY – PINTLE 753
27 6543100113 LINES INSTALLATION – AIR CONDITIONING 755
(CARRIER)
7576134182 KIT – AIR CONDITIONER HOSE 757
COMPLETE ASSEMBLY
29 2189610041 HYDRAULIC LINES INSTALLATION – CARRIER 763
SUPPLY, PRESSURE AND RETURN
( WITH DIFFERENTIAL LOCK )
6872100000 SWITCH ASSEMBLY – PRESSURE 771
( NORMALLY CLOSED )
COMPLETE ASSEMBLY
35 2189610060 HYDRAULIC LINES INSTALLATION – 773
CARRIER MODIFICATION
36 2189310012 TANK INSTALLATION – FUEL 775
7880100065 TANK ASSEMBLY – FUEL 777
COMPLETE ASSEMBLY
7576001743 MOUNTING KIT – OIL COOLER 779
38 6576100686 KIT – ENGINE/REAR AXLE REWORK 781

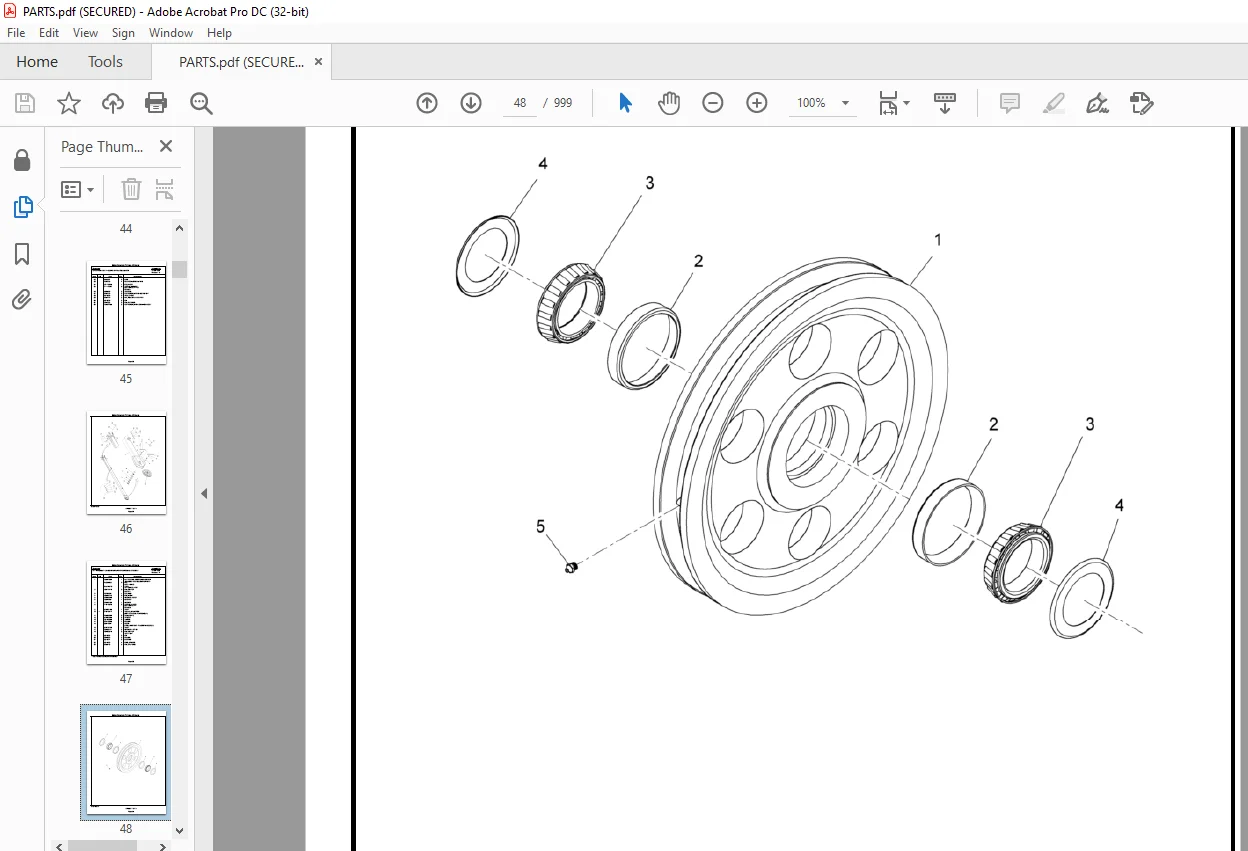

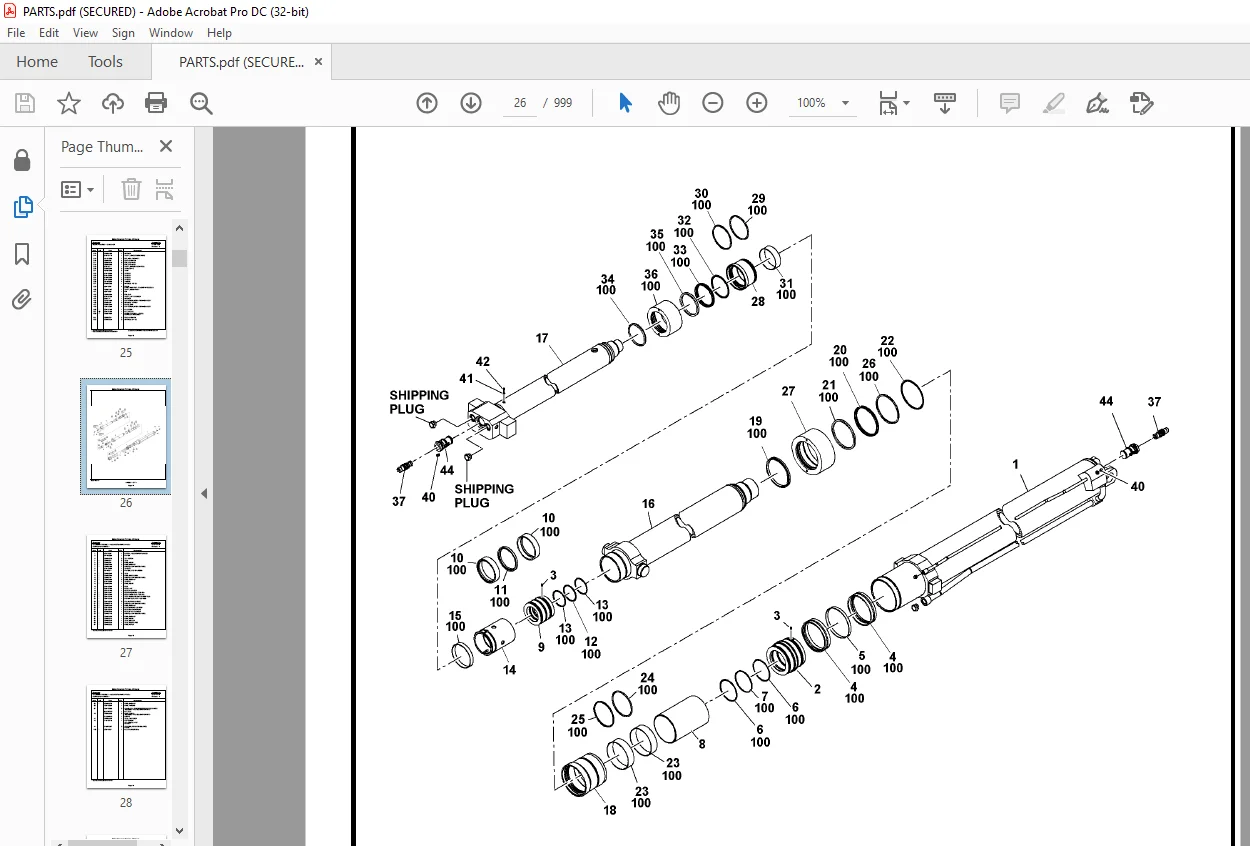

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

https://vimeo.com/864770411?share=copy

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
