Grove Crane RT9130E Load Charts Manual SN 227121 – PDF DOWNLOAD

Description

Grove Crane RT9130E Load Charts Manual SN 227121 – PDF DOWNLOAD

FILE DETAILS:

Grove Crane RT9130E Load Charts Manual SN 227121 – PDF DOWNLOAD

Language : English
Pages : 34
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Grove Crane RT9130E Load Charts Manual SN 227121 – PDF DOWNLOAD

GENERAL:
1. Rated loads as shown on lift chart pertain to this machine as originally manufactured and equipped. Modifications to the machine or
use of optional equipment other than that specified can result in a reduction of capacity.
2. Construction equipment can be hazardous if improperly operated or maintained. Operation and maintenance of this machine shall be in compliance with the information in the Operator’s and Safety Handbook, Service Manual, and Parts Manual supplied with this machine. If these manuals are missing, order replacements from the manufacturer through the distributor.
3. The operator and other personnel associated with machine shall fully acquaint themselves with the latest American National Safety Standards (ASME/ANSI) for cranes.
SETUP:
1. The machine shall be level and on a firm supporting surface. Depending on the nature of the supporting surface, it may be necessary
to have structural supports under the outrigger floats or tires to spread the load to a larger bearing surface.
2. For outrigger operation, all outriggers shall be properly extended with tires raised free of crane weight before operating the boom or
lifting loads.
3. When machine is equipped with center front stabilizer, the front stabilizer shall be set in accordance with instructions in Operator’s & Safety Handbook.
4. When equipped with removable and/or extendible counterweight, the proper counterweight shall be installed and fully extended before
and during operation.
5. Tires shall be inflated to the recommended pressure before lifting on rubber.
6. With certain boom and hoist tackle combinations, maximum capacities may not be obtainable with standard cable lengths.
7. Unless approved by the crane manufacturer, do not travel with boom extension or jib erected. Refer to Operator’s and Safety
Handbook for job-site travel information.
OPERATION:
1. Rated loads at rated radius shall not be exceeded. Do not attempt to tip the machine to determine allowable loads. For clamshell,
grapple, magnet or concrete bucket operation, weight of component and load must not exceed 80% of rated lifting capacities.
2. All rated loads have been tested to and meet the requirements of SAE J1063 – Cantilevered Boom Crane Structures – Method of Test,
and do not exceed 85% of the tipping load on outriggers fully extended. Capacities on outriggers 50% extended and 0% extended
(fully retracted) correspond to SAE J1289 (Test Load = 1.25P + 0.1A). 0.1A represents one-tenth (0.10) of the total boom weight
reduced to the boom point. Loads are also determined by SAE J765 Crane Stability Test Code.
3. Rated loads include the weight of hookblock, slings and auxiliary lifting devices and their weights shall be subtracted from the listed
rating to obtain the net load to be lifted. When more than the minimum required parts of line needed to pick the load are used, the
additional rope weight as measured from the lower sheaves of the the main boom nose shall be considered part of the load to be lifted.When both the hook block and headache ball are reeved, the lifting device that is NOT in use, including the line as measured from the lower sheave(s) of the nose supporting the unused device shall be considered part of the load.
4. Load ratings are based on freely suspended loads. No attempt shall be made to move a load horizontally on the ground in any direction.

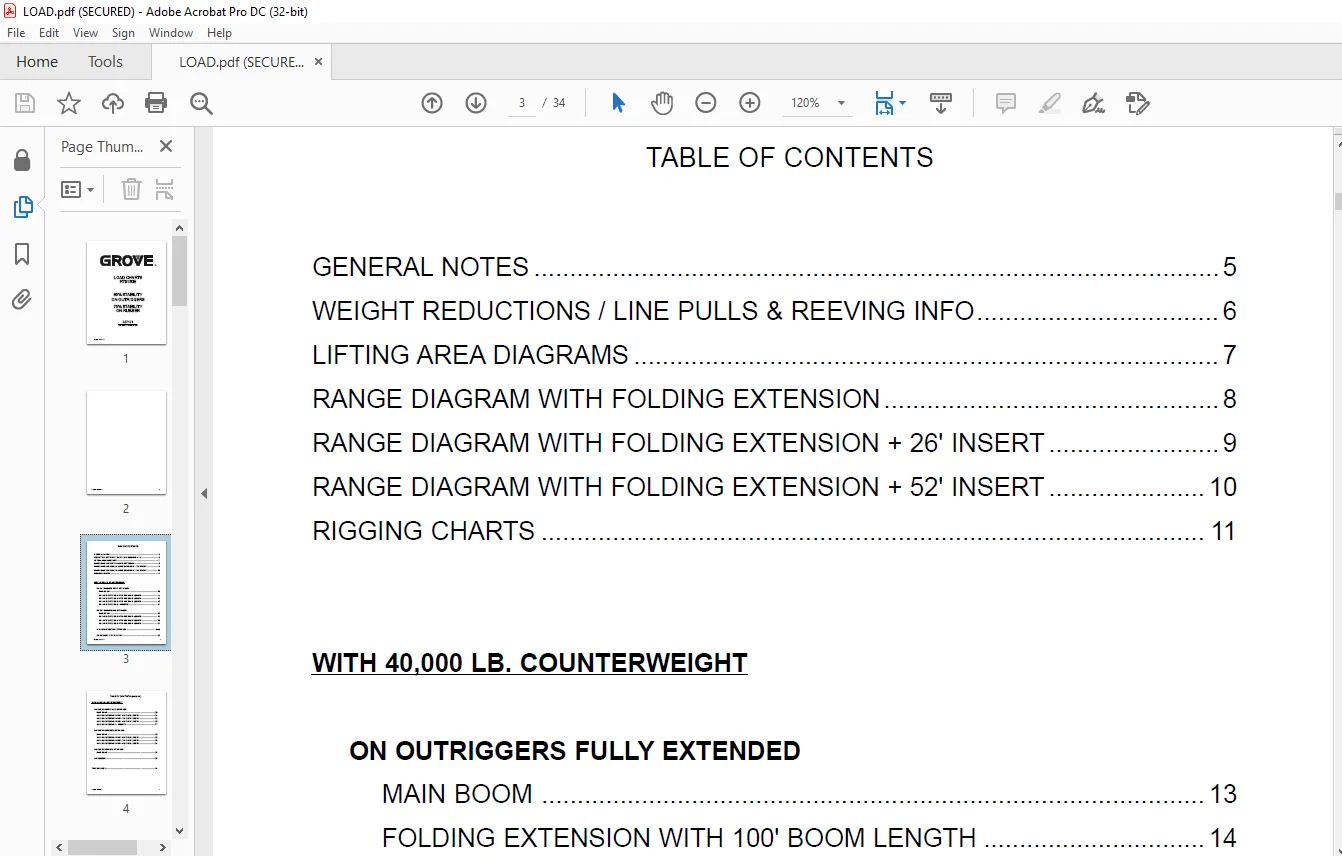

TABLE OF CONTENTS:

Grove Crane RT9130E Load Charts Manual SN 227121 – PDF DOWNLOAD

GENERAL NOTES 5
WEIGHT REDUCTIONS / LINE PULLS & REEVING INFO 6
LIFTING AREA DIAGRAMS 7
RANGE DIAGRAM WITH FOLDING EXTENSION 8
RANGE DIAGRAM WITH FOLDING EXTENSION + 26′ INSERT 9
RANGE DIAGRAM WITH FOLDING EXTENSION + 52′ INSERT 10
RIGGING CHARTS 11
WITH 40,000 LB COUNTERWEIGHT
ON OUTRIGGERS FULLY EXTENDED
MAIN BOOM 13
FOLDING EXTENSION WITH 100′ BOOM LENGTH 14
FOLDING EXTENSION WITH 130′ BOOM LENGTH 15
FOLDING EXTENSION WITH 160′ BOOM LENGTH 16
FOLDING EXTENSION + INSERTS 17
ON OUTRIGGERS 50% EXTENDED
MAIN BOOM 18
FOLDING EXTENSION WITH 100′ BOOM LENGTH 19
FOLDING EXTENSION WITH 130′ BOOM LENGTH 20
FOLDING EXTENSION WITH 160′ BOOM LENGTH 21
(ON OUTRIGGERS 0% EXTENDED N/A)
ON RUBBER – PICK & CARRY 22
RT9130E – S/N 227121 4
WITH 24,000 LB COUNTERWEIGHT
ON OUTRIGGERS FULLY EXTENDED
MAIN BOOM 23
FOLDING EXTENSION WITH 100′ BOOM LENGTH 24
FOLDING EXTENSION WITH 130′ BOOM LENGTH 25
FOLDING EXTENSION WITH 160′ BOOM LENGTH 26
FOLDING EXTENSION + INSERTS 27
ON OUTRIGGERS 50% EXTENDED
MAIN BOOM 28
FOLDING EXTENSION WITH 100′ BOOM LENGTH 29
FOLDING EXTENSION WITH 130′ BOOM LENGTH 30
FOLDING EXTENSION WITH 160′ BOOM LENGTH 31
ON OUTRIGGERS 0% EXTENDED
MAIN BOOM 32
ON RUBBER 33
TIRE INFLATION 34

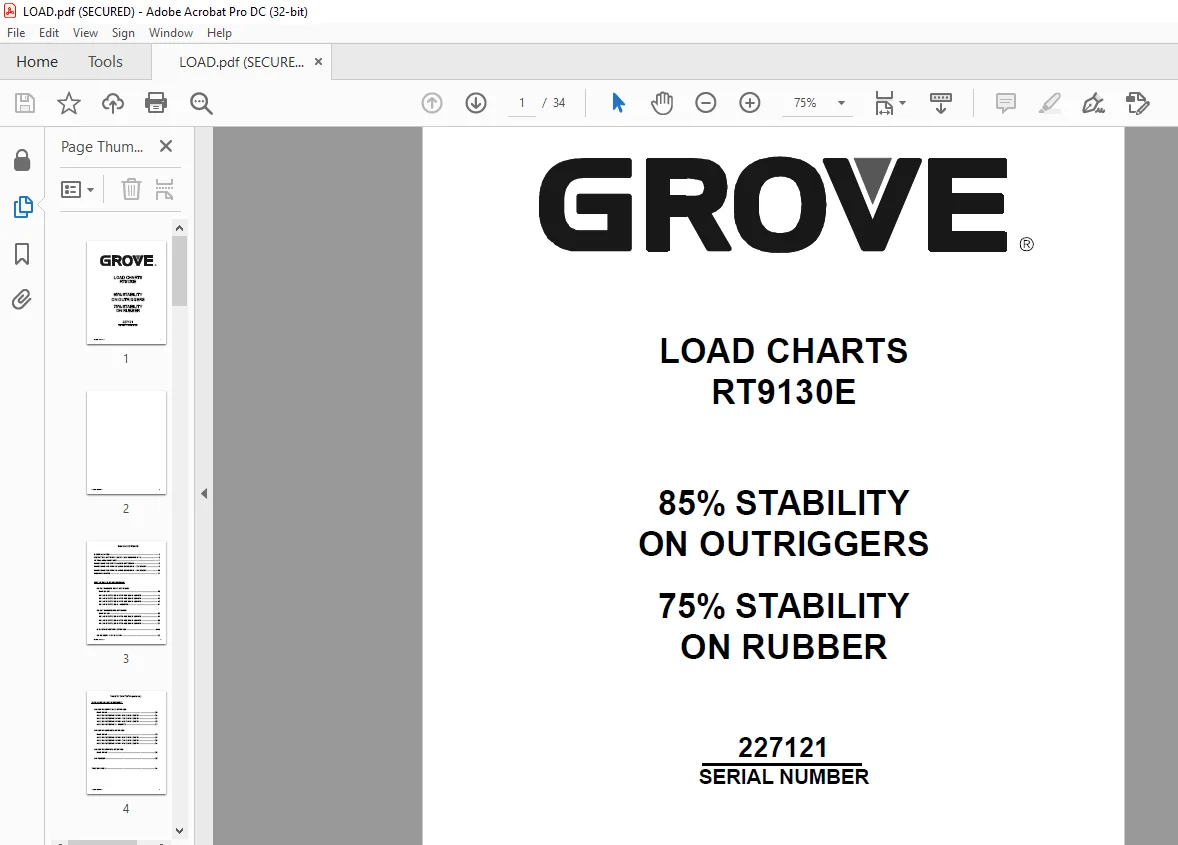

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
