Grove Crane TMS 9000E Carrier Operator’s Manual 190-03 – PDF DOWNLOAD

INTRODUCTION:
1.1 General:

This handbook provides information for the operator of the TMS9000E Grove Crane.

• The mobile crane carrier incorporates an all welded steel frame. The 8 x 4 x 4 carrier utilizes two
  drive axles and two steer axles. Axle steering is provided by a power steer- ing pump, and power
  steering gear. The engine is mounted in the front of the carrier and provides power through an 11
  speed forward and 3 speed reverse manual trans- mission.
• Hydraulic, two-stage double box telescopic beam with inverted stabilizer (jack) cylinder outriggers
  are integral with the carrier frame. The outriggers are utilized in three posi- tions; fully
  extended, intermediate (50%) extended, and fully retracted. The carrier is also equipped with a
  center front stabilizer with a permanently stowed pad.
• The superstructure is capable of 360° rotation in either direction. All crane functions are
  controlled from the fully enclosed cab. The crane is equipped with a 36.7 to 141.7 ft (11.2 m to
  43.2 m) five section boom.
• Lifting is provided by a main and auxiliary hoist. Swingaway hydraulically offsettable
  and manually offsettable boom extensions are available.

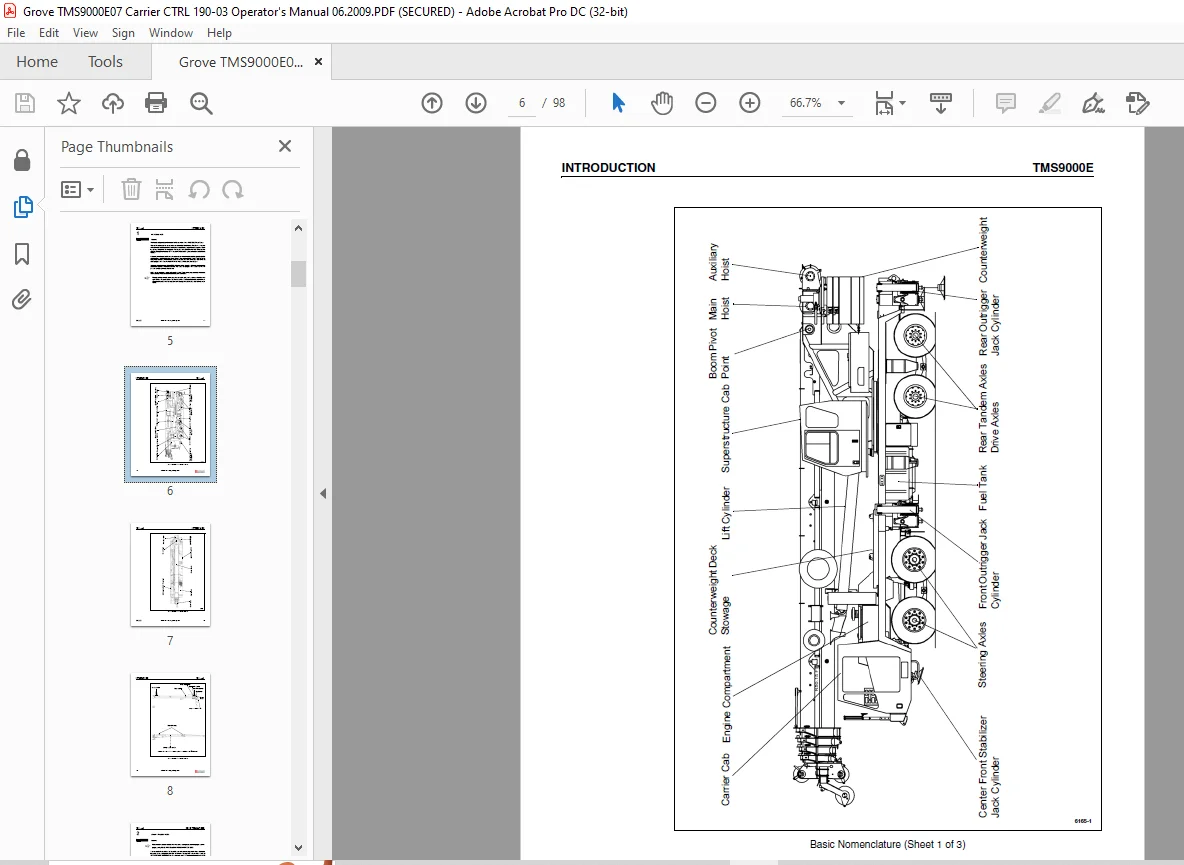

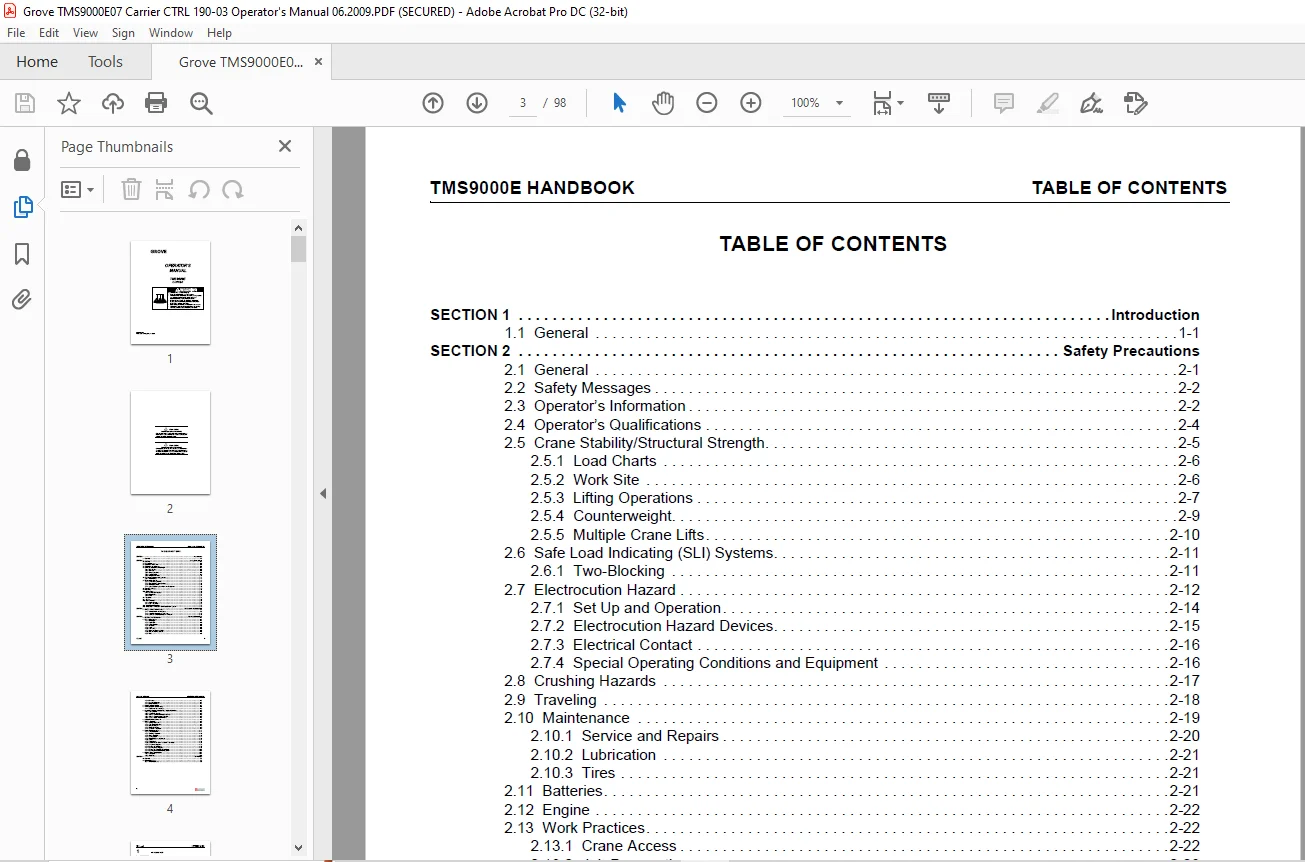

TABLE OF CONTENTS:

Grove Crane TMS 9000E Carrier Operator’s Manual 190-03 – PDF DOWNLOAD

TMS9000E........................................................ 1
Table of Contents............................................... 3
1 Introduction.................................................. 5
	1.1 General................................................. 5
2 Safety Precautions............................................ 9
	2.1 General................................................. 9
	2.2 Safety Messages.........................................10
	2.3 Operator’s Information..................................10
	2.4 Operator’s Qualifications...............................12
	2.5 Crane Stability/Structural Strength.....................13
		2.5.1 Load Charts.......................................14
		2.5.2 Work Site.........................................14
		2.5.3 Lifting Operations................................15
		2.5.4 Counterweight.....................................17
		2.5.5 Multiple Crane Lifts..............................18
	2.6 Safe Load Indicating (SLI) Systems......................19
		2.6.1 Two-Blocking......................................19
	2.7 Electrocution Hazard....................................20
		2.7.1 Set Up and Operation..............................22
		2.7.2 Electrocution Hazard Devices......................23
		2.7.3 Electrical Contact................................24
		2.7.4 Special Operating Conditions and Equipment........24
	2.8 Crushing Hazards........................................25
	2.9 Traveling...............................................26
	2.10 Maintenance............................................27
		2.10.1 Service and Repairs..............................28
		2.10.2 Lubrication......................................29
		2.10.3 Tires............................................29
	2.11 Batteries..............................................29
	2.12 Engine.................................................30
	2.13 Work Practices.........................................30
		2.13.1 Crane Access.....................................30
		2.13.2 Job Preparation..................................31
	2.14 Cold Weather Operation.................................31
	2.15 TMS9000E - Instructions for Air Suspension System......33
3 Cab Controls And Indicators...................................35
	3.1 Engine Controls and Indicators..........................35
		3.1.1 Travel Controls and Indicators....................40
		3.1.2 Accessory Controls and Indicators.................44
		3.1.3 Additional Carrier Controls and Indicators........47
4 Operating Procedures..........................................51
	4.1 Breaking-in A New Carrier...............................51
	4.2 Pre-Starting Checks.....................................51
		4.2.1 Fuel Supply.......................................51
		4.2.2 Engine Oil........................................52
		4.2.3 Engine Coolant....................................52
		4.2.4 Batteries.........................................52
		4.2.5 Seats.............................................52
		4.2.6 Seat Belts........................................52
		4.2.7 Signal and Running Lights.........................52
		4.2.8 Foot and Parking Brakes...........................52
		4.2.9 Tires.............................................52
		4.2.10 Wheels...........................................53
		4.2.11 Safety Equipment.................................53
		4.2.12 Daily Lubrication................................53
	4.3 Cold Weather Operation..................................53
	4.4 Anti-Lock Brake System (ABS)............................54
		4.4.1 ABS Power-Up Sequence.............................55
	4.5 Automatic Traction Control (ATC) Functional Overview....56
		4.5.1 ATC Operation.....................................56
		4.5.2 Component Function................................56
		4.5.3 Traction Control Power-Up Sequence................56
		4.5.4 Traction Control Switch Operation.................57
		4.5.5 Thermal (Brake Heat) Protection...................57
	4.6 ABS/ATC Partial Shutdown................................57
	4.7 Engine Operation........................................57
		4.7.1 Starting Procedure................................57
		4.7.2 Cold Weather Starting.............................58
		4.7.3 Idling the Engine.................................59
		4.7.4 Racing the Engine.................................59
		4.7.5 Shutdown Procedure................................59
	4.8 Crane Travel Operation..................................64
		4.8.1 Active Restraints.................................64
		4.8.2 Traveling - General...............................65
		4.8.3 Clutch Operation..................................66
		4.8.4 Shifting Gears....................................67
		4.8.5 Differential Control Switches.....................72
		4.8.6 Brakes............................................73
		4.8.7 Engine Brake......................................74
		4.8.8 Recommended Crane Shutdown Procedures.............74
		4.8.9 Using the Outriggers..............................75
		4.8.10 Setting the Outriggers...........................76
		4.8.11 Stowing the Outriggers...........................78
		4.8.12 Setting the Center Front Stabilizer..............80
		4.8.13 Stowing the Center Front Stabilizer..............80
	4.9 Trailing Boom Carrier Option............................81
		4.9.1 Description.......................................81
		4.9.2 Operation.........................................82
5 Lubrication...................................................87
	5.1 General.................................................87
	5.2 Lubrication Points......................................91
		5.2.1 Carrier Lubrication...............................92
