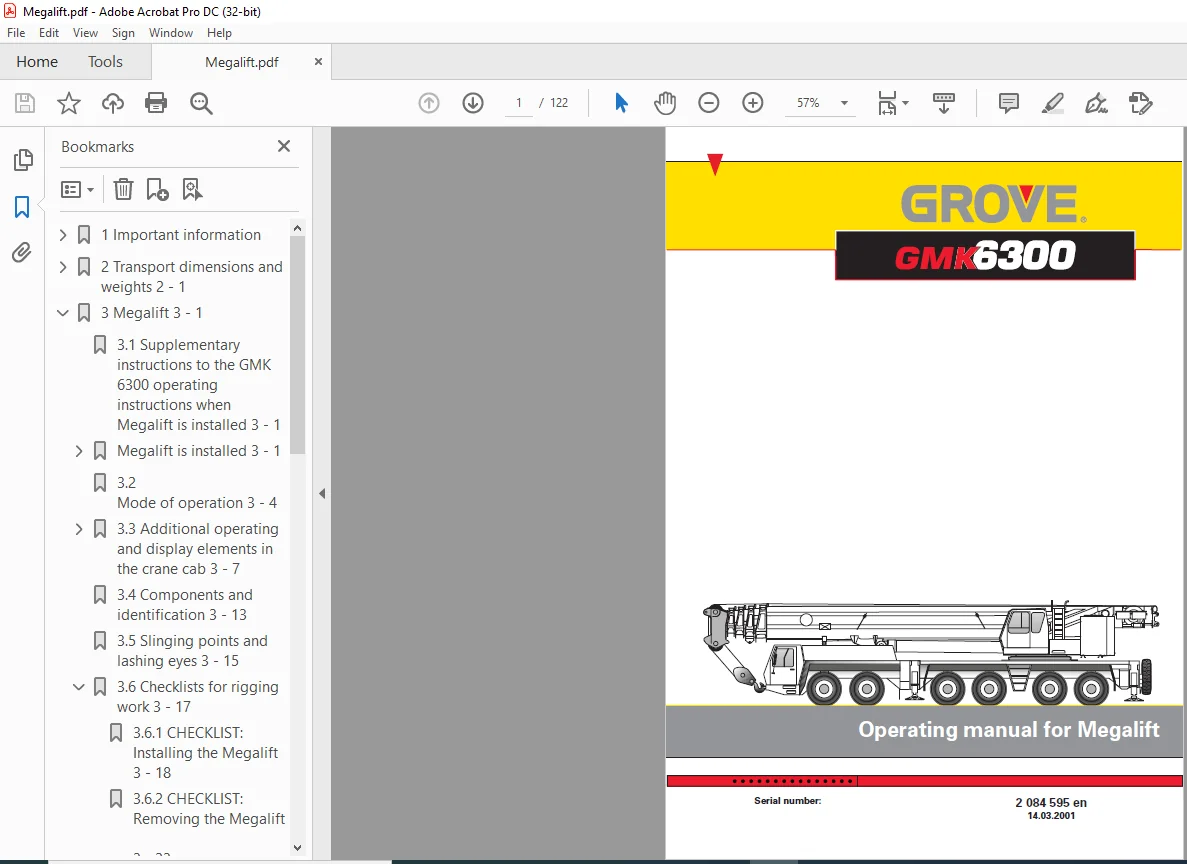

S/N : 2 084 595 en

Proper use:

• The truck crane GMK 6300 was constructed in accordance with state of the art technology and the recognized safety regulations. Nevertheless, personal injury to the operator or a third party as well as damage to the crane and other property may occur during use.
• The truck crane may only be modified with the consent of the manufacturer.
• The GMK 6300 truck crane must be in proper working condition and may only be used for its intended purpose, while taking into account safe operation and any possible hazards. Malfunctions that may affect the safe operation of the unit are to be corrected immediately.
• The GMK 6300 truck crane may only be operated at temperatures of between –25 and +40 °C if it is not equipped with the relevant special equipment.
• The GMK 6300 truck crane is to be used exclusivly for vertical lifting of loads whose weight and centre of distribution are known. A hook block must be reeved on the hoist rope and such lifting must be done only in the permitted rigging modes. Any other use of the crane is not considered to represent proper usage.
• The manufacturer is not liable for damage resulting from improper or unauthorized use of the GMK 6300 truck crane. The user shall take on full responsibility for any such use.

Proper use also entails
– observing all crane documentation consisting of the operating instructions,
the lifting capacity table, the outrigger pressure table and the safety
manual
– following the inspection and maintenance requirements specified in the
maintenance manual.

Improper use includes:
– transporting loads on the carrier
– pushing, pulling or lifting loads with the level adjustment system, the
beams or the outrigger cylinders
– pushing, pulling or lifting loads off the ground using the slewing gear,
the derricking gear or the telescoping gear
– pulling off fixed objects using the crane
– two-hook operation with the boom extension and two-hook operation
on the main boom head without additional equipment
– operation when crane is not on outriggers (free on wheels)
– defining SLI codes that do not correspond to the actual rigging mode
– working with an overridden SLI or overridden lifting limit switch
– after SLI deactivation, increasing the radius by pulling the raised load at
an angle (e.g. with a chain hoist)
– misuse of the outrigger pressure display as a safety function to prevent
overturning after an SLI shutdown (outrigger pressure greater than 0 t)
– road driving in an unauthorized driving mode (axle load, dimension)
– moving the rigged crane in an unauthorized driving mode
– the transportation of raised loads by moving the truck crane
– use of equipment that is not authorized for use with the crane
– transporting people in any way with the lifting tackle, upon the load, or
in the crane cab while driving

TABLE OF CONTENTS:

Grove GMK 6300 Operator Manual for Megalift – PDF DOWNLOAD

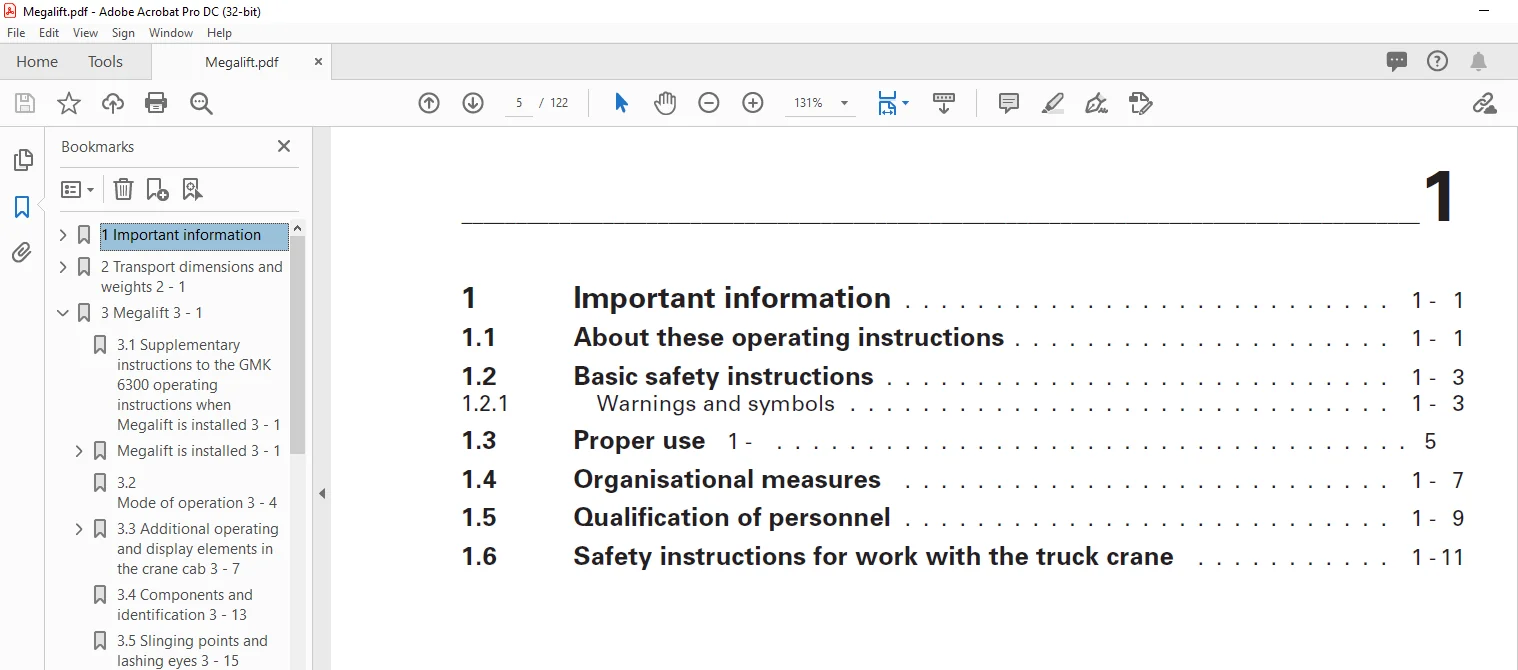

1 Important information................................................................................................ 15
	1.1 About these operating instructions............................................................................. 15
		About these operating instructions............................................................................. 15
	1.2 Basic safety instructions...................................................................................... 17
		Warnings and symbols........................................................................................... 17
	1.3 Proper use..................................................................................................... 19
	1.4 Organisational measures........................................................................................ 21
	1.5 Qualification of personnel..................................................................................... 23
	1.6 Safety instructions for work with the truck crane.............................................................. 25
2 Transport dimensions and weights 2 - 1............................................................................... 27
	2.1 Transport dimensions and weights
in metric units 2 - 1........................................................ 27
		2.1.1 Megalift 2 - 1........................................................................................... 27
	2.2 Transport
dimensions and weights in US units 2 - 1............................................................ 27
		2.2.1 Megalift 2 - 1........................................................................................... 27
3 Megalift 3 - 1....................................................................................................... 29
	3.1 Supplementary instructions to the GMK 6300 operating
instructions when Megalift is installed 3 - 1............ 29
	Megalift is installed 3 - 1........................................................................................ 29
		3.1.1 Rope grab 3 - 1.......................................................................................... 29
		3.1.2 Crane control 3 - 3...................................................................................... 31
	3.2
Mode of operation 3 - 4....................................................................................... 32
	3.3 Additional operating and display elements in the crane cab 3 - 7............................................... 35

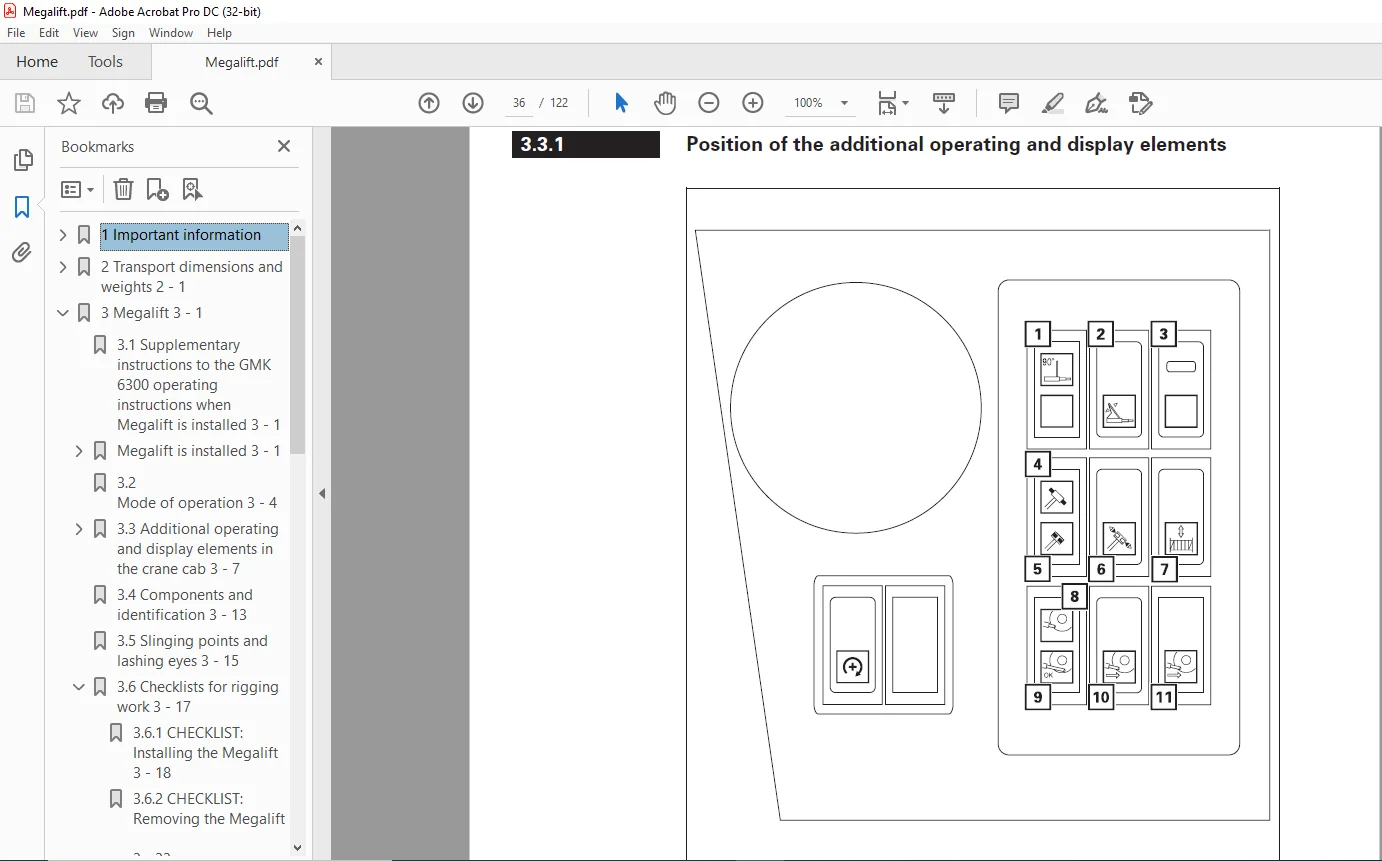

		3.3.1 Position of the additional operating and display elements 3 - 8.......................................... 36
