Grove Manitowoc Crane RT9000E Parts Catalog Manual SN 223406 – PDF DOWNLOAD

Description

Grove Manitowoc Crane RT9000E Parts Catalog Manual SN 223406 – PDF DOWNLOAD

FILE DETAILS:

Grove Manitowoc Crane RT9000E Parts Catalog Manual SN 223406 – PDF DOWNLOAD

Language : English
Pages : 1039
Downloadable : Yes
File Type : PDF

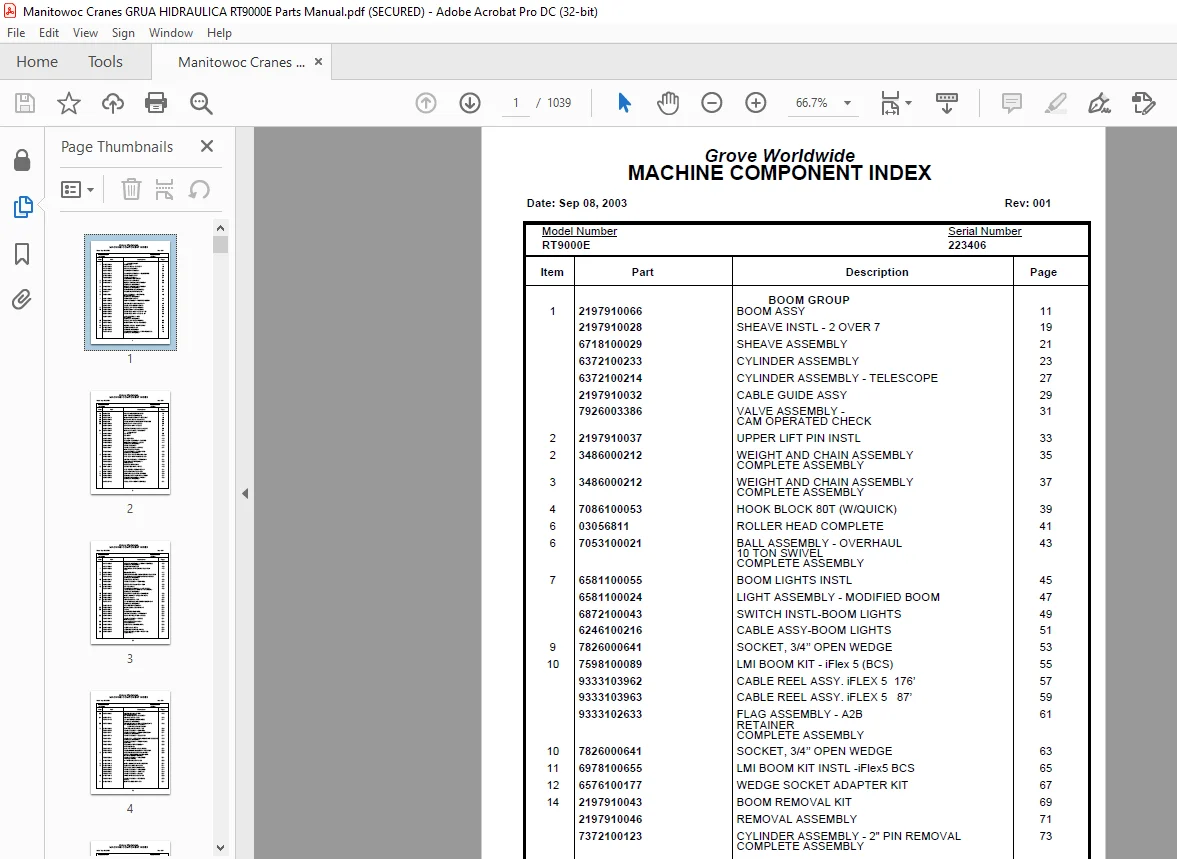

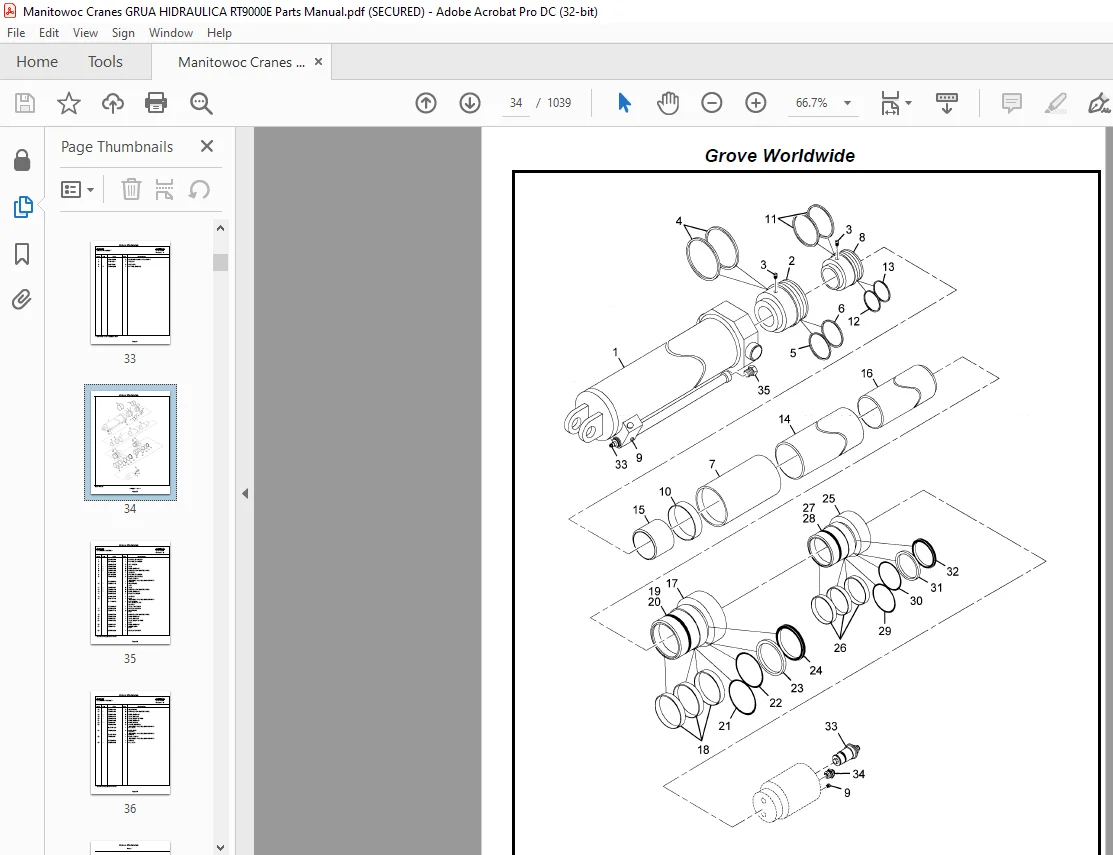

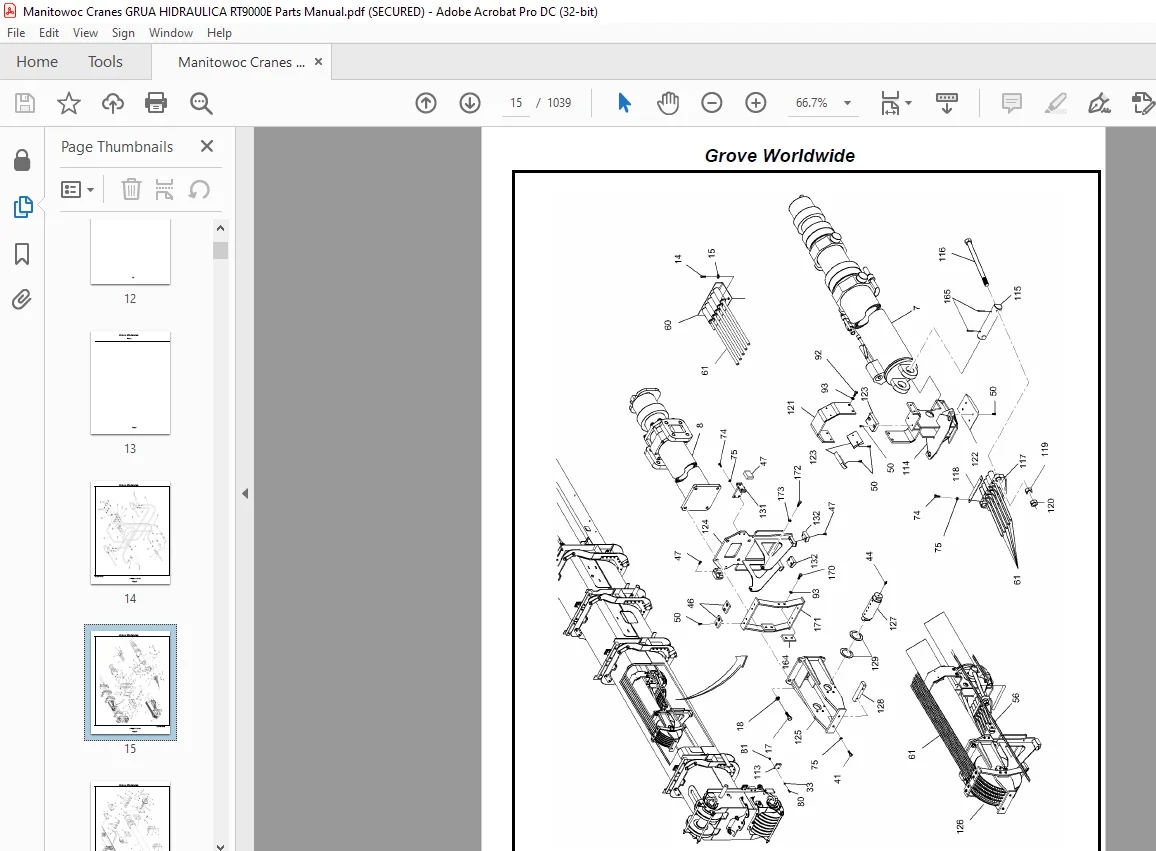

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Grove Manitowoc Crane RT9000E Parts Catalog Manual SN 223406 – PDF DOWNLOAD

1 2197910066 BOOM ASSY 11
2197910028 SHEAVE INSTL – 2 OVER 7 19
6718100029 SHEAVE ASSEMBLY 21
6372100233 CYLINDER ASSEMBLY 23
6372100214 CYLINDER ASSEMBLY – TELESCOPE 27
2197910032 CABLE GUIDE ASSY 29
7926003386 VALVE ASSEMBLY – 31
CAM OPERATED CHECK
2 2197910037 UPPER LIFT PIN INSTL 33
2 3486000212 WEIGHT AND CHAIN ASSEMBLY 35
COMPLETE ASSEMBLY
3 3486000212 WEIGHT AND CHAIN ASSEMBLY 37
COMPLETE ASSEMBLY
4 7086100053 HOOK BLOCK 80T (W/QUICK) 39
6 03056811 ROLLER HEAD COMPLETE 41
6 7053100021 BALL ASSEMBLY – OVERHAUL 43
10 TON SWIVEL
COMPLETE ASSEMBLY
7 6581100055 BOOM LIGHTS INSTL 45
6581100024 LIGHT ASSEMBLY – MODIFIED BOOM 47
6872100043 SWITCH INSTL-BOOM LIGHTS 49
6246100216 CABLE ASSY-BOOM LIGHTS 51
9 7826000641 SOCKET, 3/4’’ OPEN WEDGE 53
10 7598100089 LMI BOOM KIT – iFlex 5 (BCS) 55
9333103962 CABLE REEL ASSY. iFLEX 5 176’ 57
9333103963 CABLE REEL ASSY. iFLEX 5 87’ 59
9333102633 FLAG ASSEMBLY – A2B 61
RETAINER
COMPLETE ASSEMBLY
10 7826000641 SOCKET, 3/4’’ OPEN WEDGE 63
11 6978100655 LMI BOOM KIT INSTL -iFlex5 BCS 65
12 6576100177 WEDGE SOCKET ADAPTER KIT 67
14 2197910043 BOOM REMOVAL KIT 69
2197910046 REMOVAL ASSEMBLY 71
7372100123 CYLINDER ASSEMBLY – 2″ PIN REMOVAL 73
COMPLETE ASSEMBLY
15 03006752 SHEAVE HOLDER GMK 5100 75
16 03056845 LIMIT SWITCH COMPLETE 77
18 6978100619 LMI BI-FOLD BOOM EXT INSTL KIT 79
20 6978100653 LMI S/S KIT INSTL – iFlex5 BCS 83
20 03053056 CABLE HARNESS BOOM EXT GMK5100 85
23 7598100088 LMI CAB KIT – iFlex 5 (BCS) 89
9333103866 CENTERAL UNIT – iFLEX 5 91
9333103868 GRAPH. CONSOLE (VER.) – iFLEX5 93
24 6978100654 LMI CAB KIT INSTL – iFlex5 BCS 97
CAB GROUP
1 6245100330 CAB INSTL 99
6245100331 CAB ASSY 105
6245100068 CAB SECTION 113
7498000954 SKYLIGHT ASSEMBLY – SLIDING 115
7498000885 WINDOW ASSEMBLY – REAR 117
COMPLETE ASSEMBLY
6246100045 CABLE ASSEMBLY 119
7926100661 VALVE ASSEMBLY – BRAKE 121
WITH TREADLE PEDAL
7425000659 FAN ASSEMBLY – 12 VOLT CAB 123
COMPLETE ASSEMBLY
2 6798100071 CTRL SEAT INSTL W/MAIN & AUX 125
6798100072 CTRL SEAT ASSY W/MAIN & AUX 127
6872100045 SWITCH ASSEMBLY – PROXIMITY 131
7926003235 CONTROLLER ASSEMBLY – 133
SINGLE AXIS
6512100540 HARNESS ASSY-SEAT 145
3 6001100018 ACOUSTICS INSTL – RT”E” 149
7576134127 RT”E” SERIES ACOUSTICS KIT 151
4 6581100005 SPOTLIGHT INSTALLATION 153
5 6581100004 LIGHT INSTALLATION – STROBE 155
6 6245100438 CONSOLE INSTALLATION – FRONT 157
6245100435 CONSOLE ASSEMBLY – FRONT 159
COMPLETE ASSEMBLY
6679100106 PANEL ASSY-FRONT CONSOLE 161
6512100595 HARNESS ASSEMBLY – FRONT CONSOLE 163
COMPLETE ASSEMBLY
6512100386 HA-POTENTIOMETER 169
7 6978100520 ELECTRICAL SYSTEM INSTALLATION 173
– CAB
8 6593100006 360 LEVER INSTL 177
9 6515100032 AIR CONDITIONING & HEATER INSTALLATION 179
7576134150 KIT – CAB HEATER AND AIR CONDITIONER 181
COMPLETE ASSEMBLY
10 6683100019 TELE PEDAL INSTALL. 185
7926003051 VALVE ASSEMBLY – CONTROL 187
11 6942100001 SCREEN INSTALLATION – SUN 189
12 2197410004 CAB TILT INSTL 191
7372100077 CYLINDER ASSEMBLY – 2 1/2″ STEER 193
( ALSO USED AS A CAB TILT CYLINDER )
COMPLETE ASSEMBLY
13 6245100355 COVER INSTALLATION – CAB REAR 195
14 6872100047 MAIN & AUX HST SPEED SW INSTL 197
19 7598100092 LMI S/S – iFlex 5 199
21 2197310028 AIR COND INSTL – S/S 201
7576134151 KIT – HYDRAULIC AIR CONDITIONER UNIT 203
COMPLETE ASSEMBLY
7632100158 HYD. MOTOR ASSEMBLY 207
22 7598100096 LMI INTERNAL LIGHTBAR KIT 209
23 6978100518 ESI-S/S 211
6512100372 HA-SUPERSTRUCTURE 223
6872100045 SWITCH ASSEMBLY – PROXIMITY 227
25 6245100096 PEDAL INSTALLATION – BRAKE 229
7926100619 VALVE ASSEMBLY – BRAKE 231
WITH TREADLE
26 6245100095 SHIFTER INSTALLATION – 233
TRANSMISSION
28 6683100020 TELE PEDAL LINKAGE INSTL 235
28 6245100332 STEER VALVE INSTL 237
7926100705 STEERING CONTROL VALVE 239
29 6245100334 PEDAL INSTALLATION – THROTTLE 241
( ELECTRIC )
33 6872100057 SWITCH INSTALLATION – 243
AIR CONDITIONER
NOT AVAILABLE AS ASSEMBLY
34 6543100101 A/C LINES INSTL – CAB 245
7576134145 KIT – AIR CONDITIONER HOSE 247
COMPLETE ASSEMBLY
38 6872100058 SWITCH INSTALLATION – BOOM LIGHTS 249
NOT AVAILABLE AS ASSEMBLY
CONTROL VALVE GROUP
5 2197610062 CONTROL VALVE INSTL – S/S 253
7926100709 VALVE ASSEMBLY – CONTROL 265
7926100761 VALVE ASSEMBLY – COUNTERWEIGHT 271
COMPLETE ASSEMBLY
7926100713 VALVE ASSEMBLY – SELECTOR 277
7926100781 VALVE ASSY – PRESSURE REDUCING SEQUENCE 279
COMPLETE ASSEMBLY
7926100701 VALVE ASSEMBLY – DIRECTIONAL 285
CONTROL
7005100005 ACCUMULATOR ASSEMBLY – 289
HYDRAULIC OIL
7926100719 DUAL P.O. CHECK VALVE INLINE 291
7926100722 VALVE-MANUAL BLEED OFF PRESSUR 293
6 2197610060 HYDRAULIC LINES INSTALLATION – 295
SUPPLY, PRESSURE AND RETURN
(WITH AIR CONDITIONING)
7926003905 VALVE ASSEMBLY – SOLENOID 301
(4 WHEEL DRIVE)
7 2197610015 LIFT HYD LINES INSTL-S/S 303
8 2197610016 MAIN & AUX HOIST HYD LINES INS 307
9 2197610013 TELE HYD LINES INSTL-S/S 311
6872100049 PRESSURE SWITCH REWORK 315
7926003860 VALVE ASSEMBLY – SOLENOID 317
7926000627 VALVE ASSEMBLY – SHUTTLE 319
7926001757 VALVE ASSEMBLY – RELIEF 321
10 2197610014 SWING HYD LINES INSTL-S/S 325
7926001894 VALVE ASSEMBLY – RESIDUAL 329
CHECK
11 2197610018 LMI HYD LINES INSTL-S/S 331
12 2197610049 CWGT REMOVAL HYD LINES-S/S W/ 333
15 2197610031 S, P & R HYD LINES INSTL-CAB 337
16 2197610024 TELE HYD LINES INSTL- CAB 339
17 2197610025 SWING & SW. BRAKE HYD LINES IN 341
18 2197610027 M. & AUX HOIST HYD LINES INSTL 343
19 2197610026 LIFT HYD LINES INSTL-CAB 345
20 2197610028 STEER HYD LINES INSTL-CAB 347
21 2197610029 BRAKE HYD LINES INSTL-CAB 349
HOIST GROUP
13 6974100096 HOIST INSTALLATION – MAIN AND 351
AUXILIARY
7974100010 HOIST ASSEMBLY – HP35 – 26G 359
7372100125 CYLINDER ASSEMBLY – 3″ 365
HOIST PIN REMOVAL
COMPLETE ASSEMBLY
15 6974100098 INDICATOR INSTALLATION – HOIST ROTATION 367
7352100034 CONTROL ASSY – HOIST ROTATION INDICATOR 369
COMPLETE ASSEMBLY
16 6974100098 INDICATOR INSTALLATION – HOIST ROTATION 371
7352100034 CONTROL ASSY – HOIST ROTATION INDICATOR 373
COMPLETE ASSEMBLY
17 2197210021 MIRROR INSTALLATION – HOIST 375
18 2197210021 MIRROR INSTALLATION – HOIST 377
TURNTABLE GROUP
1 2197210070 DRIVE INSTALLATION – TURNTABLE WELD AND 379
2197210069 TURNTABLE WELDMENT 381
7576134148 DRIVE ASSEMBLY – SWING 387
COMPLETE ASSEMBLY
2197210038 SWING LOCK ASSY 393
2 2197210067 HOSE REEL INSTL. 395
2197210029 REEL ASSEMBLY – HOSE 397
7188000725 BRAKE ASSEMBLY 401
7632000828 MOTOR ASSEMBLY – ORBIT 403
3 6364101696 ELEC, WATER & HYD SWIVEL INSTL 405
6364101690 ELEC, WATER & HYD SWIVEL ASSY 407
7364100143 SWIVEL ASSY- 11 PORT HYDRAULIC 411
COMPLETE ASSEMBLY
7364100142 SWIVEL ASSY-2 PORT WATER 413
COMPLETE ASSEMBLY
7753100018 RING ASSEMBLY – SLIP 419
15 CONDUCTOR
COMPLETE ASSEMBLY
4 2197210065 LEVER INSTL.-CTWT REMOVAL 423
8 2197210019 CYLINDER INSTALLATION – LIFT 425
6372100202 CYLINDER ASSEMBLY – LIFT 427
9 2197110014 BOLT INSTALLATION – BEARING 431
12 2197210039 24000 LB COUNTERWEIGHT INSTL 433
7372100103 CYLINDER ASSEMBLY – 4″ CWT REMOVAL 435
COMPLETE ASSEMBLY
13 2197210054 HEAVY COUNTERWEIGHT INSTL 437
6689100048 PIN ASSEMBLY 439
22 6258100019 VALVE COVER INSTL 441
25 2197210035 T/T LOCK PIN INSTL 443
32 2197310031 HOSE RETAINER INSTL 445
ENGINE GROUP
4 2197110088 ENGINE HOOD INST 447
2197110080 HOOD FRONT SUBASSY 451
28 2197810096 ENGINE INSTALLATION 453
CUMMINS QSC8.3-300
(WITH AIR CONDITIONING)
2197810097 ENGINE ASSEMBLY 455
CUMMINS QSC8.3-300
(WITH AIR CONDITIONING)
7356100008 CONVERTER ASSEMBLY – TORQUE 461
9356100758 TORQUE CONVERTOR GROUP 463
9356100759 CHARGE PUMP AND REGULATING 467
VALVE GROUP
9904108054 PUMP ASSEMBLY 471
9356100760 DUAL PUMP DISCONNECT GROUP 473
7722100035 PUMP ASSEMBLY – 2 SECTION GEAR 477
7722100036 PUMP ASSEMBLY – 2 SECTION GEAR 481
7722100037 GEAR PUMP W/FLOW CONTROL 485
7722100038 GEAR PUMP W/FLOW CONTROL 487
2197610011 HYDRAULIC LINES INSTALLATION – 489
ENGINE
6978100494 ELECTRICAL SYSTEM INSTALLATION 491
– ENGINE
7246100174 CABLE KIT-RT9000E ENGINE 493
2197810024 HEATER INSTALLATION – BLOCK 495
NOT AVAILABLE AS ASSEMBLY
31 2197810039 RADIATOR INST 497
2197810040 RADIATOR ASSY 501
7726100003 RAD/CAC ASSY 505
2197810030 SURGE TANK ASSY 507
34 2197810095 EXHAUST SYSTEM INSTALLATION 509
35 2197810019 CLEANER INSTALLATION – AIR 511
7304100005 CLEANER ASSEMBLY – AIR 513
COMPLETE ASSEMBLY
36 2197810025 STRAINER INSTALLATION – 515
COOLANT
38 2197810031 PUMP DISCONNECT INST 517
39 6978100494 ELECTRICAL SYSTEM INSTALLATION 519
– ENGINE
7246100174 CABLE KIT-RT9000E ENGINE 521
DRIVE TRAIN GROUP
26 2197810092 DRIVELINE INSTL 523
7364100105 DRIVE LINE ASSEMBLY 525
COMPLETE ASSEMBLY
7364100139 DRIVE LINE ASSEMBLY 527
COMPLETE ASSEMBLY
7364100135 DRIVE LINE ASSEMBLY 529
COMPLETE ASSEMBLY
29 2197810018 TRANSMISSION INSTALLATION 531
7904100022 TRANSMISSION ASSEMBLY 535
9904109842 INPUT SHAFT AND COVER GROUP 537
9904109843 CASE AND REAR COVER GROUP 541
9904109844 DRIVE GROUP – LOW SPEED 545
9904109845 FORWARD CLUTCH AND 547
SHAFT GROUP
9904109846 SHAFT GROUP – REVERSE AND 549
SECOND
9904109847 SHAFT GROUP – FIRST CLUTCH 553
9904109848 IDLER GROUP – FORWARD HIGH 557
9904109849 SHAFT GROUP – FORWARD HIGH 559
AND THIRD
9904109850 IDLER SHAFT GROUP 563
9904109851 SHAFT GROUP – OUTPUT 565
9904109804 CONTROL VALVE MOUNTING 569
GROUP
9904109696 VALVE ASSEMBLY – CONTROL 571
9904109862 FLANGE GROUP 575
30 2197610045 TRANS FLTR/LINES INST 577
7437000199 FILTER ASSEMBLY 579
COMPLETE ASSEMBLY
AXLE GROUP
19 2197610006 REAR AXLE L/O HYD LINES INSTL 581
22 2197610004 FRT STEER HYD LINES INSTL-CARR 583
24 2197710003 REAR AXLE INSTL. W/STD DIFF. 585
7049101409 DRIVE/STEER AXLE REAR wo/DIFF 587
9049112423 DIFF.CARR.GROUP 589
9049112399 HOUSING GROUP 593
9049112406 HUB & SHAFT GROUP 597
9049112401 BRAKE GROUP 601
9049112402 BRAKE ASSY.GROUP 603
7372100090 CYLINDER ASSEMBLY – 3 1/2″ STEER 605
COMPLETE ASSEMBLY
7372100091 CYLINDER ASSEMBLY – 7″ LOCKOUT 607
COMPLETE ASSEMBLY
6872100045 SWITCH ASSEMBLY – PROXIMITY 609
25 2197510000 FRONT AXLE INSTL. W/STD DIFF 611
7049101408 DRIVE/STEER AXLE FRT wo/DIFF 613
9049112419 DIFF.CARR.GROUP 615
9049112399 HOUSING GROUP 619
9049112400 HUB & SHAFT GROUP 623
9049112401 BRAKE GROUP 627
9049112402 BRAKE ASSY.GROUP 629
7372100090 CYLINDER ASSEMBLY – 3 1/2″ STEER 631
COMPLETE ASSEMBLY
7188100101 BRAKE ASSEMBLY – PARKING 633
COMPLETE ASSEMBLY
27 6970100088 TIRE AND WHEEL INSTALLATION 637
6970100087 TIRE AND WHEEL ASSEMBLY 639
7970140702 WHEEL ASSEMBLY 641
41 2197610005 REAR STEER HYD LINES INSTL-CAR 643
OUTRIGGER GROUP
2 2197110015 BEAM INSTALLATION – OUTRIGGER 645
2197110119 OUTRIGGER BEAM ASSY 649
6372100231 CYLINDER ASSEMBLY – 6 1/2″ JACK 651
COMPLETE ASSEMBLY
6372100286 CYLINDER ASSEMBLY – O/R EXTENSION 653
COMPLETE ASSEMBLY
7372100119 CYLINDER ASSEMBLY – 2 1/2″ O/R EXTENSION 655
COMPLETE ASSEMBLY
2197110020 O/R BOX WELDMENT 657
7926100744 OUTRIGGER CONTROL MANIFOLD 659
7372100101 CYLINDER ASSEMBLY – 4″ POWER PIN 661
COMPLETE ASSEMBLY
6512100402 HARNESS ASSEMBLY – OUTRIGGER 665
BOX
COMPLETE ASSEMBLY
5 2197110033 FLOAT INSTALLATION – OUTRIGGER 667
6458000040 FLOAT ASSEMBLY – 669
OUTRIGGER
17 2197610003 O/R HYD LINES-CARR 675
FRAME GROUP
1 2197110092 FRAME ASSEMBLY COMPLETE 679
1 6376203102 DECAL INSTALLATION – RT9000E 681
6376203123 DECAL INSTALLATION – RT9000E 683
(STANDARD)
2 6376203230 DECAL INSTALL RT9130E-NOMENCLT 685
3 2197110075 FENDER INSTL 687
6576100163 KIT, HARDWARE 689
FENDER INSTALLATION
NOT AVAILABLE AS ASSEMBLY
6 2197110010 EXTERIOR LTS & ALARM INSTL 691
7 2197110057 HOOKBLOCK TIE-DOWN INSTL 693
7 RT9000E DEC001 RT9000E DECAL INSTL. 695
8 2197810015 COVER INSTL-BATTERY BOX 697
10 2197110030 MIRROR INSTALLATION – 699
REAR VIEW
11 2197110071 CWT STAND INSTALLATION 701
12 2197110032 HYD/TRANS OIL COOLER INSTL 703
7726100002 COOLER ASSEMBLY – OIL 705
COMPLETE ASSEMBLY
12 6376100254 HARDWARE KIT – DECAL 707
14 6978100493 ELECTRICAL SYSTEM INSTALLATION 709
– CARRIER
6512100448 HARNESS ASSY-CARRIER 727
6512100371 HA-ENG COOLANT LEVEL SENSOR 733
6679100075 PANEL ASSEMBLY – ENGINE RELAYS 735
COMPLETE ASSEMBLY
6512100428 HARNESS ASSEMBLY – ENGINE RELAY PANEL 739
COMPLETE ASSEMBLY
6176100249 BOX ASSY-O/R PIN CONTROLS 741
6246100222 CABLE ASSY – LH REMOTE O/R REM 743
14 2197310021 LIFT CYL TRAVEL SUPPORT INSTL 745
2197310022 LIFT CYL TRAVEL SUPPORT ASS’Y 747
6372100052 BOTTLE JACK REWORK 749
7372100009 CYLINDER ASSEMBLY – 751
BOTTLE JACK
15 2197110065 HYDRAULIC RESERVOIR INSTL 755
2197110064 HYDRAULIC RESERVOIR ASSEMBLY 757
7880100043 HYDRAULIC RESERVOIR 761
7437100230 FILTER ASSEMBLY 763
16 2197610033 HYD VALVE INSTL W/O DIF-CARRIE 765
7926100743 INTEGRATED O/R-REAR STEER VAL 767
2197610032 VALVE ASSY-AXLE DIS & PARK BRA 771
7926003905 VALVE ASSEMBLY – SOLENOID 773
(4 WHEEL DRIVE)
6872100000 SWITCH ASSEMBLY – PRESSURE 775
( NORMALLY CLOSED )
COMPLETE ASSEMBLY
7926100722 VALVE-MANUAL BLEED OFF PRESSUR 777
7926003922 VALVE ASSEMBLY – 779
DOUBLE SOLENOID
16 6780100002 SLING ASSEMBLY 781
18 2197610012 S,P,& R HYD LINES INSTL W/AC 785
7926003860 VALVE ASSEMBLY – SOLENOID 791
7926100742 SOLENOID VALVE 2 WAY N.O. 793
20 2197610008 SERV BRAKE HYD LINES-DISC 797
21 2197610010 AXLE DISC & PARK BRAKE LINES 799
32 2197810094 FUEL TANK INSTL 803
2197810047 FUEL TANK ASSY 805
7880100036 TANK ASSEMBLY 807
7576001743 MOUNTING KIT – OIL COOLER 809
33 2197810014 BATTERY INSTL W/DISC SWITCH 811
7246100175 CABLE KIT-RT9000E BATTERIES 815
SCHEMATIC
1 6294101305 ELECTRICAL SCHEMATIC RT9000E SCHEMATIC
2 6294100722 RT9000E HYD SYSTEM SCHEMATIC SCHEMATIC

Contact us: [email protected]

https://vimeo.com/874308155?share=copy

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
