Hangcha Forklift 5-10t R series Parts Manual – PDF DOWNLOAD

Description

Hangcha Forklift 5-10t R series Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Hangcha Forklift 5-10t R series Parts Manual – PDF DOWNLOAD

Language : English_Chinese
Pages : 257
Downloadable : Yes
File Type : PDF

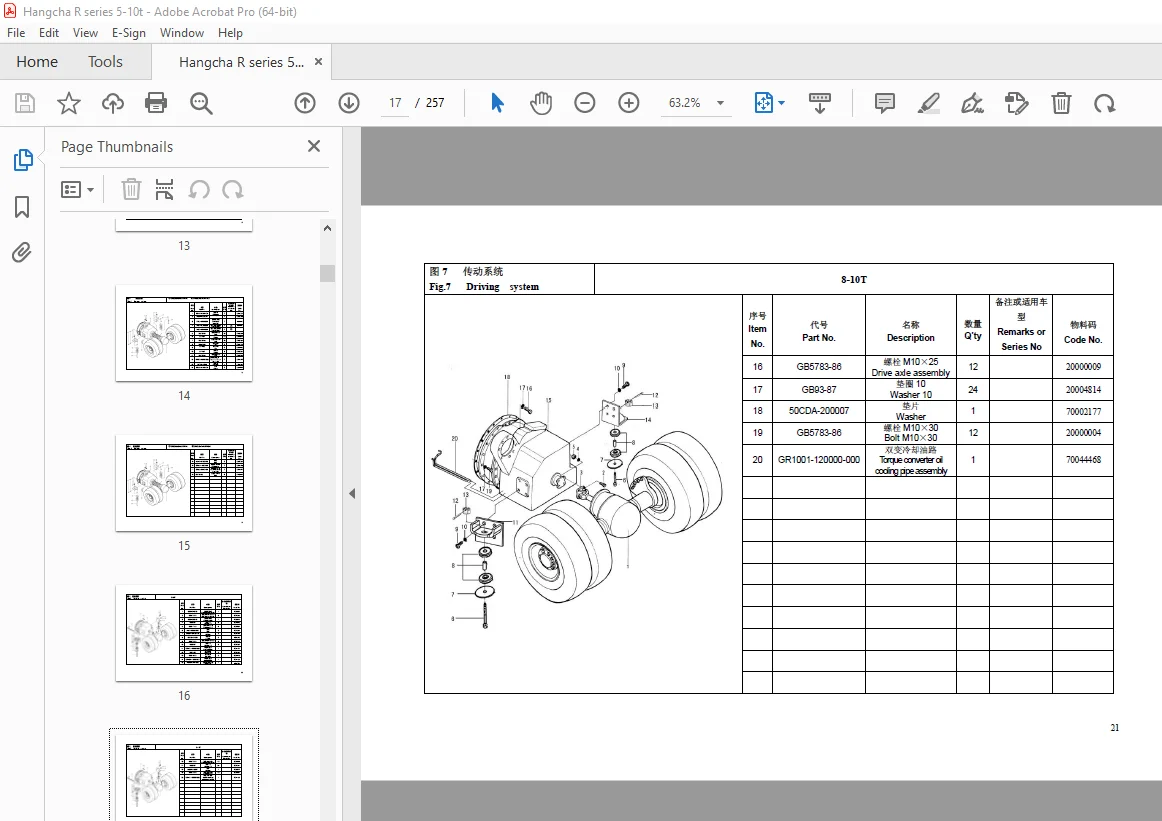

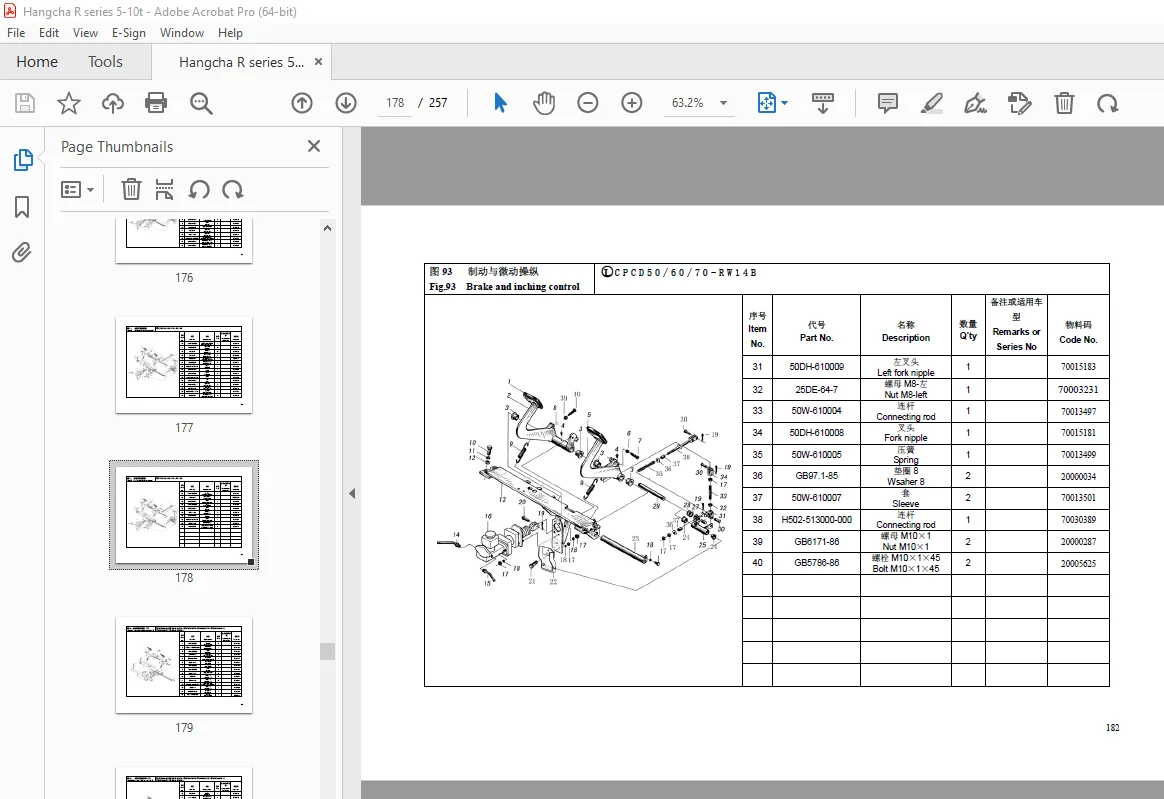

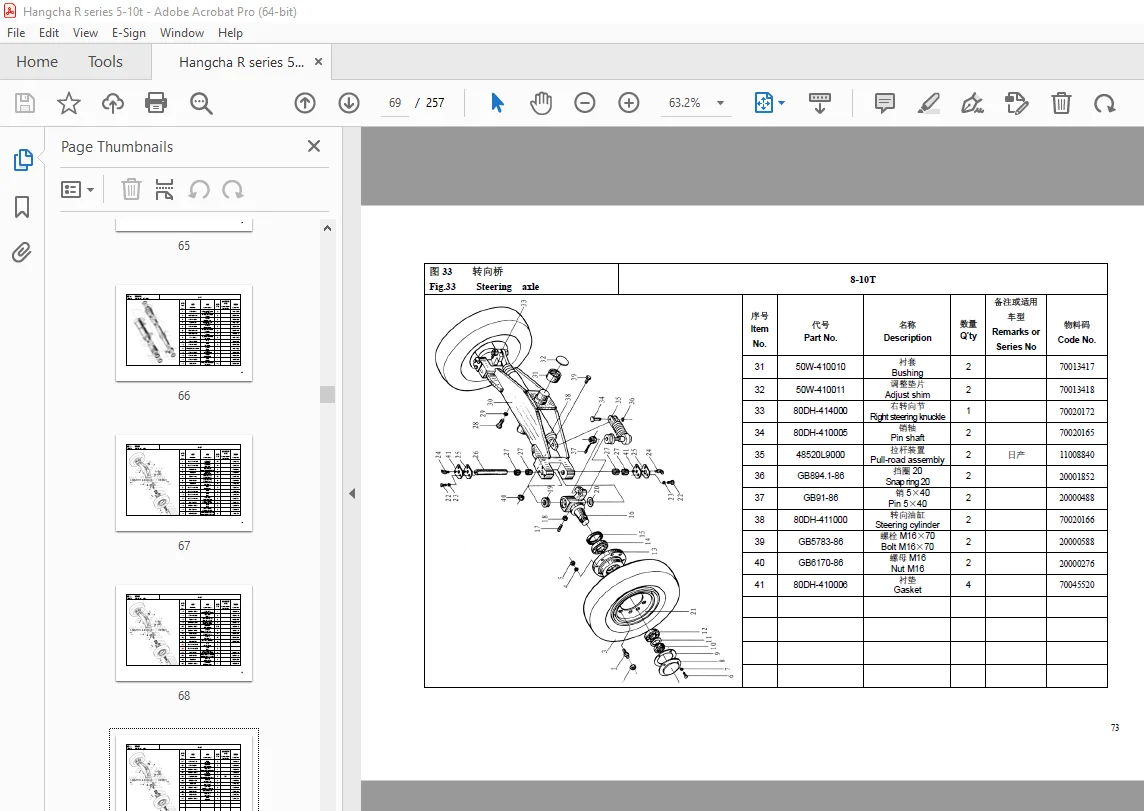

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hangcha Forklift 5-10t R series Parts Manual – PDF DOWNLOAD

GR501-120000-000 驱动桥
Drive axle
GR501-103000-000 法兰
Flange
50CDA-200001 螺栓M14 Bolt M14
GB93-87 垫圈 14
Washer 14
GB6170-86 螺母M14 Nut M14
CPCD50H-2201-010A 传动轴总成
Shaft assembly
GB5786-86 螺栓 M14×1.5×45 Bolt M14×1.5×45
GB6171-86 螺母 M14×1.5
Nut M14×1.5
H510-100002-000 螺栓
Bolt
GR501-104000-000 垫片
Washer
CB2204-3-G00 减震垫
Washer
GB5786-86 螺栓 M16×1.5×30
Bolt M16×1.5×30
GB93-87 垫圈 16 Washer16
GR501-102000-000 双变右支架
Bracket(right)
GB91-86 销 5×45
Pin 5×45
GB6178-86 螺母M24 Nut M24
GR501-101000-000 双变左支架
Bracket(left)
YQXD100H1-G00 液力传动变速箱
Gear-box
GB5783-86 螺栓 M10×30
Bolt M10×30
GB93-87 垫圈 10
Washer 10
GB5783-86 螺栓 M10×25
Bolt M10×25
50CDA-200007 垫片
Washer
GR501-110000-000 双变冷却油路
Torque converteroil
coolingpipeassembly
80DH-210000 驱动桥总成
Drive axle assembly
GB5786-86 螺栓 M14×1.5×45
Bolt M14×1.5×45
80DH-220000 传动轴总成
Connect shaft
GB93-87 垫圈 14
Washer 14
GB6171-86 螺母M14×1.5 Nut M14×1.5
H510-100002-000 螺栓
Bolt
GR501-104000-000 垫片
Washer
CB2204-3-G00 减震垫
washer
GB5786-86 螺栓 M16×1.5×30 Bolt M16×1.5×30
GB93-87 垫圈 16
Washer 16
GR1001-130000-000 双变右支架
Bracket(right)
GB91-86 销 5×45
Pin 5×45
GB6178-86 螺母 M24 Nut M24
GR1001-110000-000 双变左支架
Bracket(left)
YQXD100H1-G00 液力传动变速箱
Gear-box
GB5783-86 螺栓 M10×25
Drive axle assembly
GB93-87 垫圈 10
Washer 10
50CDA-200007 垫片
Washer
GB5783-86 螺栓 M10×30
Bolt M10×30
GR1001-120000-000 双变冷却油路
Torque converteroil
coolingpipeassembly
06E0000-G00 驱动桥
Drive axle
GB27-88 螺栓 M24×85 Bolt M24×85
GB7244-87 垫圈 24
Washer 24
GB6170-86 螺母 M24 Nut M24
053000G 轮边总成
Hub drive axle assembly
50CDA-214000 制动器总成（右）
Right brake
051000A 主减总成
Final drive assembly
50CDA-215000 制动器总成（左）
Left brake
Q/8B220-77 六角螺塞M14×1.5 Plug M14×1.5
JB1002-77 垫圈14 Washer14
Q61401 螺塞Z1/8”-27 Plug Z1/8”-27
53017 盖 Caver
GB5783-86 螺栓M10×20 Bolt M10×20
GB859-87 弹簧垫圈10 Spring washer10
53019 垫片 Washer
GB5783-86 螺栓M12×35 Bolt M12×35
GB93-87 弹簧垫圈12 Spring washer12
53015 行星架
Carrier-pinion gear
53022 轴 Shaft
GB308-77 钢球1/4〃
Ball1/4〃
53016 O型圈 O-ring
53023 垫 Spacer
53020 套 Sleeve
53021 行星齿轮 Gear-pinion
53018 隔套 Spacer
053006B 护圈 Ring
GB1235-76 O型圈105×3.1
O-ring105×3.1
53002 螺栓 Bolt
53005 挡油盘
Washer-ring gear
HG4-692-67 骨架油封SG120×150×14
Oil seal SG120×150×14
53003 刹车毂 Drum-brake
GB297-84 轴承7520 Bearing 7520
053011B 轮毂 Hub
53007 螺母 Nut
53008 双头螺栓
Stud
53009 螺母 Nut
53010 螺母 Nut
GB297-84 轴承7521 Bearing7521
53013 齿圈 Gear ring
53014 螺母 Nut
53004 板 Plate
GB93-87 弹簧垫圈8 Spring washer
GB5783-86 螺栓M8×25
Bolt M8×25
3-11-12-03 螺栓
Bolt
GB93-87 垫圈 12 Washer12
3-11-12-07 差速器左壳
Left sode differential
3-11-12-10 半轴齿轮止推垫圈
Thrust washer differential
side gear
3-11-12-02 半轴齿轮
Side gear
3-11-12-08 行星齿轮止推垫圈
Thrust washer differential planetary pinion
3-11-12-09 差速器行星齿轮
Spider differential
3-11-12-04 差速器十字轴
Planetary pinion differential
3-11-12-06 铆钉
Rivet
3-11-12-05 圆锥被动齿轮
Final drive benel gear
3-11-12-01 差速器右壳
Ringt side differential
GB119-76 圆柱销 5×10 Pin5×10
51010 差速器左壳
Left case differential
GB21-76 螺栓M10×18-Q Bolt M10×18-Q
51002 锁垫
Lock plate
51003 止退垫 Finger-lock
51013 轴承盖 Bearing cover
51004 垫 Shim
51005 半轴齿轮 Side gear
51025 十字轴
Shaft-pinion mate
51008 大螺旋伞齿轮
Driuen gear final drive
51007 差速器右壳 Rinhtcasedifferential
51012 锁垫
Lock plate
51011 螺栓M16×94
Bolt M16×94
51006 螺栓M14×1.5-69 Bolt M14×1.5-69
GB93-76 垫圈14 Washer14
51001 螺母 Nut
GB297-64 单列圆锥滚子轴承7514
51027 差速齿轮
51026 垫
GB894-76 挡圈25
GB283-64 轴承102605
051015B 主动螺旋伞齿轮
GB297-64 单列圆锥滚子轴承7310
51028 减速器壳
051022
051023
051024 调整垫片 Adjust shim
051014A 轴承座
GB297-64 单列圆锥滚子轴承7309
HG4-692-67 骨架密封SG60×90×12
GB93-76 垫圈12
GB30-76 螺栓M12×55
051030B 手制动支架
GB1235-76 O型密封圈45×3.1
051031B 隔套
GB810-88 圆螺母M24×1.5
051019
051020
051021 调整垫片 Adjust shim
51018 垫
51009 螺栓M12×80
50CDA-212100 轮辋
Wheel hub
GB2982-91 轮胎总成 8.25-15-14PR
Tyre 8.25-15-14PR
50CDA-212001 挡圈
Snap ring
50CDA-210001 气门接长管
Pipe
GR501-110001-W00 低压胶管
Oil delivery hose
Q672-30-G00 双钢丝环箍 30
Clamp 30
GR501-110002-W00 低压胶管
Oil delivery hose
GR501-110003-000 管夹
Clamp
PKD-180-G00 捆线带
Wire
80DH-740004 铰接螺栓
Bolt
JB982-77 垫圈 20
Washer 20
80DH-740005 接头体
Connector
GB2981-91 轮胎 9.00-20
Tyre 9.00-20
PR60.23A 驱动桥
Drive axle
GB6170-86 螺母 M24 Nut M24
GB93-87 垫圈 24
Washer 24
GB27-88 螺栓 M24×85 Bolt M24×85
80DH-210100 7.00T-20 前轮轮辋总成
7.00T-20 Wheel Hub
assembly
50CDA-210001 气门接长管
Pipe
GB93-87 垫圈 10
Washer 10
GB70-85 内六角螺钉M10×18
Inner hexagon screw
M10×18
PR75·23A-17 圆螺母
Nut
PR60·23-1 半轴
semi axis
PR60·23-3 太阳齿轮
Sun gear
GB894.1-86 轴用挡圈 52
Snap ring 52
JB982-77 组合垫圈 24 Washer
ZL30·06-2 油孔螺塞 M24×1.5
Plug M24×1.5
GB308-84 钢球 φ11/16” Steelballφ11/16”
PR60·23-2 端盖
Cover
PR60·23-4 行星轴
Planetary shaft
GB308-84 钢球φ3/8”
Steelballφ3/8”
ZL30·06-25 垫片
Spacer
GB1235-76 O 型密封圈
O-ring
GB5783-86 六角螺栓 M10×25 Hex head bolt M10× 25
GB93-87 垫圈 10
Washer 10
GB309-84 滚针φ5×50
Needle roller
PR60·23-5 行星轮架
Carrier-pinion gear
PR60·23-7 行星轮
Gear-pinion
PR60·23-6 内齿轮
Inner gear
GB297-84 轴承 7521E
Bearing 7521E
PR35·21·2-6 轮辋大螺母 M30×1.5 Rim nut M30×1.5
PR35·21·2-5 轮辋螺套
Rim nut
PR60·23-7 轮辋螺栓 M22×1.5 Rim bolt M22×1.5
GQQ1512-12 O 型密封圈 306×3.5
O-ring 306×3.5
PR60·23-9 轮毂
Hub
GB6176-86 螺母 M22×1.5
Nut M22×1.5
GB93-87 垫圈 22
Washer 22
GB297-86 轴承 2007124
Bearing 2007124
PR75·23B-6 轴套
Bush
GB3452.1-82 O 型圈 180×2.65
O-ring 180×2.65
HG4-692-67 油封 SG140×170×16
Oil seal SG140×170
×16
PR60·23-10 制动盘
Brake disc
GB5786-86 六角螺栓 M12×1.5
×50
Hex head bolt M12
×1.5×50
GB93-87 垫圈 12
Washer 12
PR60·23-3 盘式制动器
Disc brake
GB119-86 定位销 12×32
Pin 12×32
PR60·23·1 桥壳总成
Axle assy.
BJ130-2401070 透气塞
Vent plug
PR60·23·2 主减速器总成
Final drive assembly
EQ140-24D-01061 衬垫
Pad
GB93-87 垫圈 12
Washer 12
GB5783-86 螺栓 M12×40
Bolt M12×40
2402D-115 减速器壳
Case differential
2402D-049 隔套
Spacer
27311K 前轴承总成 55×120×32 Frontbearingassembly 55×120×32
2402D-052 止推垫圈 49
Thrust washer 49
PR90·20.4·1·1-2 防尘盖
Dust cover
PR60·23·2 法兰
Flange
2402D-071 垫圈
Washer
Q38727 槽形螺母 M27×1.5
Capstan nut M27×1.5
Q5005045 开口销
Pin
2402D-025 主动锥齿轮
Driving bevel gear
2402D-063 外油封
Outer oil seal
2402D-060 内油封
Inner oil seal
2402D-056 油封座
Oil seal seat
Q1601245 螺栓 M12×38 Bolt M12×38
Q40312 垫圈 12
Washer 12
2402D-041 调整垫片
Adjust shim
2402D-036 轴承座
Bearing seat
2402D-053 衬垫
Pad
Q61410 方头锥形螺塞
Plug
2402D-128 锁片
Lock piece
2402D-127 支承螺柱
Stud
2402D-126 支承套
Support bush
2402D-129 螺母 M30×1.5 Nut M30×1.5
42307EK 后轴承总成
35×80×21
Rear bearing assembly 35×80×21
2402D-346 支承垫圈
Supporting washer
2402D-345 行星齿轮
Gear-pinion
2402D-336 支承垫圈
Supporting washer
2402D-335 半轴齿轮
Side gear
2402D-317 左壳
Shell(left)
2402D-381 调整螺母
Adjust nut
7516 差速器轴承总成 80×
140×35.25
Differential bearing assembly
80×140×35.25
2402D-383 止动片
Stopper
2402C-384 锁片
Lock piece
1600814 小六角头螺栓 M8 Bolt M8
Q34114 六角螺母 M14×1.5 Nut M14×1.5
2402D-367 锁片 Lock piece
2402D-368 锁片 Lock piece
Q34112 六角螺母 M12X1.25 Nut M12X1.25
2402D-357 锁片
Lock piece
2402D-026 从动锥齿轮
Bevel gear,driven
2402D-356 螺栓 M12×1.25
Bolt M12×1.25
2402D-331 十字轴
Shaft-pinion mate
2402D-366 螺栓 M14×1.5
Bolt M14×1.5
2402D-318 右壳
Shell(right)
2402D-121 锁片
Lock piece
2402D-119 螺栓 M18 Bolt M18
PR60·23·3-1 夹钳
Clamp
GB85-88 螺栓 M10×1×30
Bolt M10×1×30
GB6171-86 螺母 M10×1 Nut M10×1
ZL15·2·4-2 销轴
Pin
PR60·23·3-2 防尘罩
Dust cover
GBl235-76 O 型密封圈 75×5.7
O-ring 75×5.7
PR60·23·3-5 分泵活塞
Piston
PR60·23·3·1 摩擦垫块总成
Friction padding
block assy.
ZL15·2·4-6A 圆柱销
Parallel pin
ZL15·2·4-8 放气螺钉
Air bleed screw
JB982-77 组合垫圈 10
Washer
JB999-77 管接头铰接螺栓
M10×1
Bolt M10×1
JB998-77 管接头体 10
Pipe connector
PR60·23·3-4 下油缸盖
Oil cylinder cover
GBl235-76 O 型圈 65×3.1
O-ring 65×3.1
PR60·23·3-3 上油缸盖
Oil cylinder cover
GB93-87 垫圈 16
Washer 16
GB5786-86 螺栓 M16×1.5×55 Bolt M16×1.5×55
GB93-87 垫圈 12
Washer
GB5781-86 螺栓 M12×1.5×30 Bolt M12×1.5×30
PR60·23-10 制动盘
Brake disc
YQX100-0042 盖板
Plate
GB5783-85 螺栓 M8×12
Bolt M8×12
GB825-88 吊环螺钉 M10 Screw M10
YQX100-0039 加油管
Oil fill pipe
YQX100-0400 加油口盖
Oil fill pipe
YQX100-4000 阀总成
Assy,Valve
GB93-87 弹簧垫圈 8 Spring lock washer 8
GB5782-86 螺栓 M8×55
Bolt M8×55
GB5785-86 螺栓 M10×1.25×50 Bolt M10×1.25×50
GB93-87 弹簧垫圈 10
Spring lock washer 10
GB5785-86 螺栓 M10×1.25×80 Bolt M10×1.25×80
YQX100-0017 O 形密封圈 35×3.1
O-ring 35×3.1
YQX100-0016 滤清器盖
Filter cover
YQX100-0015 密封垫
Seal washer
GB5785-86 螺栓 M10×1.25×70 Bolt M10×1.25×70
YQX100-0500 吸油管总成
Pipe
GB5786-86 螺栓 M10×1.25×30
Bolt M10×1.25×30
GB5785-86 螺栓 M10×1.25×65 Bolt M10×1.25×65
YQX l 00-0010 变矩器壳
Case,tor-con
YQX l00S1-0010
YQX l00S1-0010
YJH315H-1 液力变矩器
Torque-converter
YJH315
YJH315S1
YQX100-0001 调整垫
Adjusting washer
AS456501
GB4605-84 推力垫圈
Thrust washer
889109 GB4605-84 推力滚针轴承
Thrust needle roller
bearing
YQX100-0006 惰轮
Idler
K455325 GB5846-86 滚针轴承
Needle roller bearing
YQX100-0008 惰轮支架
Idler bracke
