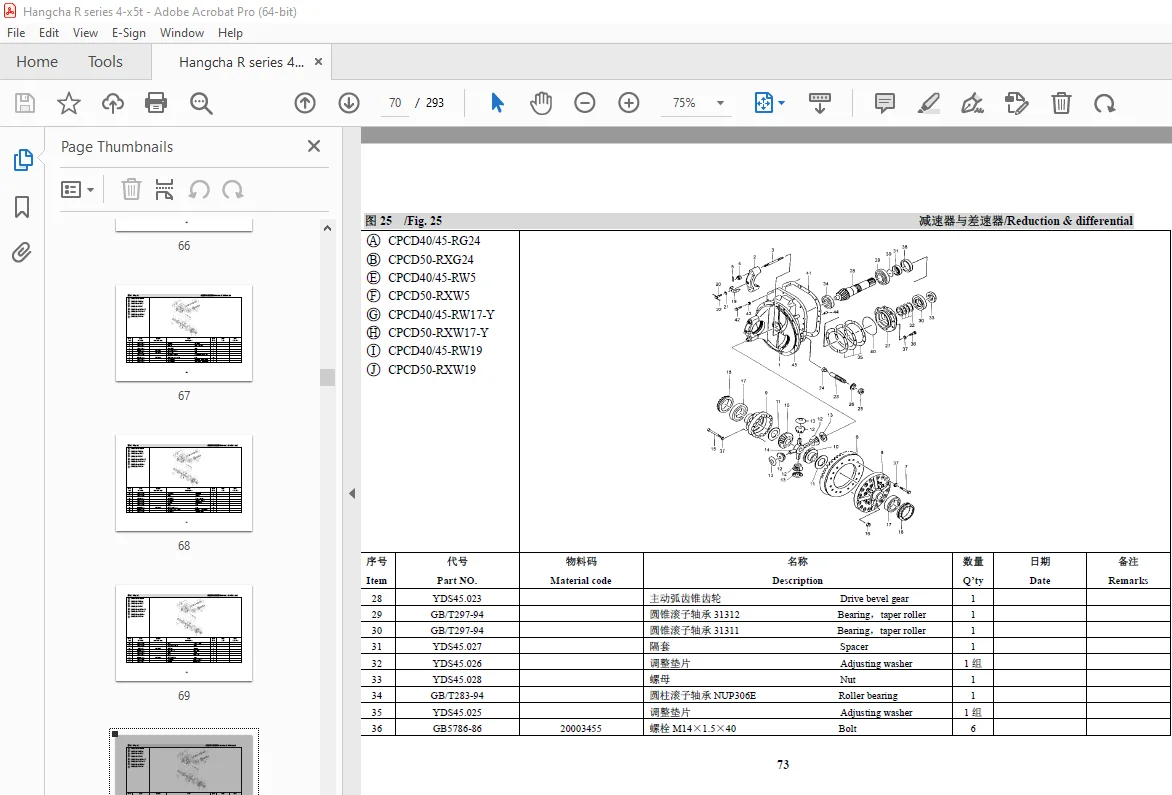

1 R420-010001-000 70045983 平衡重 Counter balance 1 4t
R450-010001-000 70041278 平衡重 Counter balance 1 4.5t
R480-010001-000 70043256 平衡重 Counter balance 1 5t
2 N163-010002-000 70021786 塞子 Plug 2 2008.12.04
3 R450-011000-000 70041282 牵引销 Towing pin 1
4 R450-010002-000 70041279 垫圈 Washer 2
5 GB7244-87 70044669 弹簧垫圈36 Spring washer 2
6 GB5782-86 20002054 螺栓M36×180 Bolt 2
7 N163-010007-000 70034002 调整垫片 Adjust shim 4 2008.12.04
8 GB97.5-85 20000686 垫圈10 Washer 4

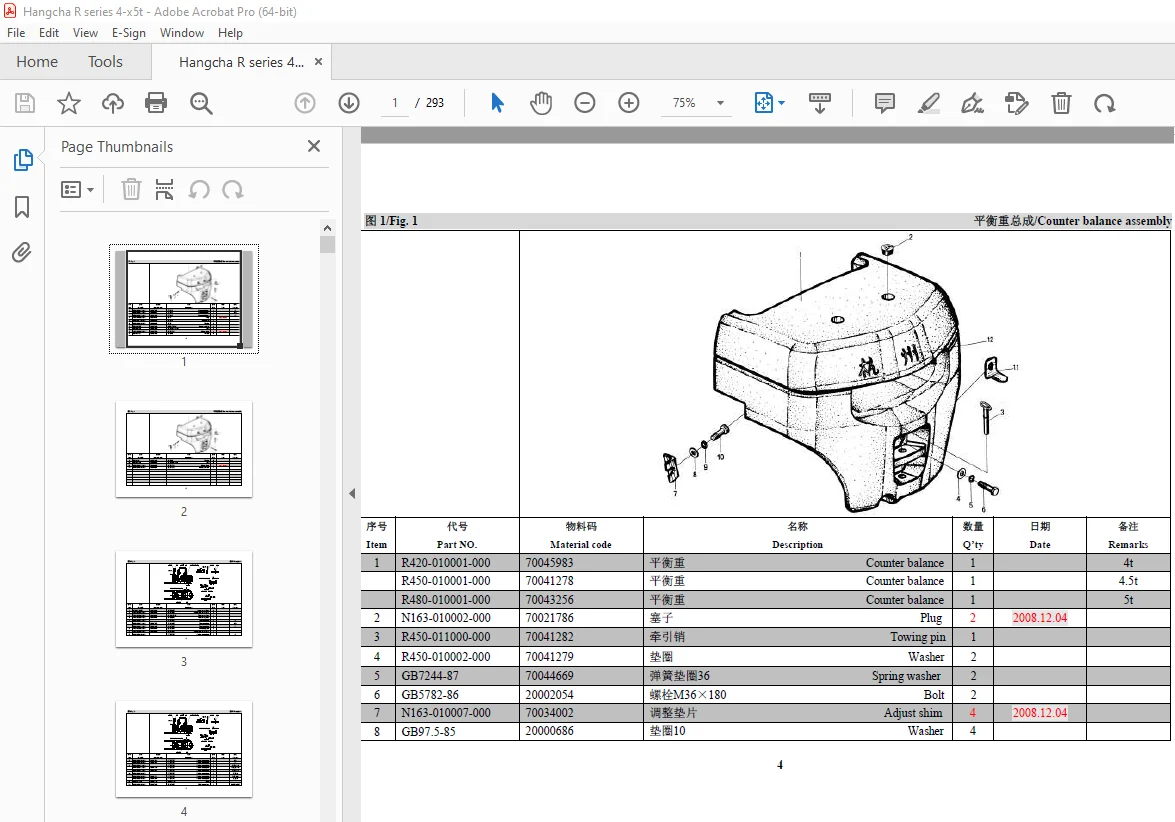

图1/Fig. 1 平衡重总成/Counter balance assembly
9 GB93-87 20000003 垫圈10 Washer 4
10 GB5783-86 20000322 螺栓M10×20 Bolt 4
11 R450-010003-000 70041280 调整垫片 Adjust shim 2 2008.12.04
12 R450-010004-000 70041281 铸造字母 Foundry letter 1
1 50DH-010008 70031295 字样标签 Script nameplate 2
2 N163-020002-000 70021793 危险标签 Dangerous nameplate 2
3 N163-020004-000 70021795 保险丝标签 Fuse nameplate 1
4 N163-020005-000 70021796 燃油标签 Fuse nameplate 1
5 R420-020001-000 吨位标签 Ton nameplate 2 4t
R450-020001-000 70041118 吨位标签 Ton nameplate 2 4.5t
R480-020001-000 70043276 吨位标签 Ton nameplate 2 5t
6 N163-020008-000 70021799 起吊标签 Lift nameplate 2
7 N163-020009-000 70021800 危险标签 Dangerous nameplate 1
8 R420-020002-000 产品铭牌 Product nameplate 1 4t
8 R450-020002-000 70041119 产品铭牌 Product nameplate 1 4.5t
R480-020002-000 70043277 产品铭牌 Product nameplate 1 5t
9 R420-020003-000 产品铭牌 Product nameplate 1 全英文4t
R450-020003-000 70041120 产品铭牌 Product nameplate 1 全英文4.5t
R480-020003-000 70043278 产品铭牌 Product nameplate 1 全英文5t
10 R420-020004-000 产品铭牌 Product nameplate 1 中性4t
R450-020004-000 70041121 产品铭牌 Product nameplate 1 中性4.5t
R480-020004-000 70043279 产品铭牌 Product nameplate 1 中性5t
11 GB12618-90 70045232 铆钉4×10 Rivet 8
12 R450-020005-000 70045962 档位标签 Shift nameplate 1 根据叉车选用
13 N163-020014-000 70021805 操纵标签1 Operation nameplate 1 仅液力车
14 R420-020005-000 载荷曲线标牌 Load nameplate 1 4t
R450-020006-000 载荷曲线标牌 Load Nameplate 1 4.5t
R480-020005-000 载荷曲线标牌 Load nameplate 1 5t
15 N163-020016-000 70021807 警告标签 Warm nameplate 1
16 R960-020002-000 70033873 配色图 Color nameplate 1
17 N163-020018-000 70025010 操纵标签2 Operation nameplate 1 仅机械车
18 N163-020019-000 70025011 风扇切手标签 Fan nameplate 1
19 N163-020020-000 70025012 皮带夹手标签 Fuse nameplate 1
20 50DH-010012 70045546 字样标签 Characters nameplate 2 全英文
21 R960-020004-000 70035763 保险丝标签 Fuse nameplate 1 全英文
22 R960-020005-000 70035764 柴油标签 Diesel nameplate 1 全英文
23 R960-020019-000 70045868 起吊标签 Lift nameplate 2 全英文
24 R960-020007-000 70035766 操纵标签1 Operation nameplate 1 全英文液力叉车用
25 R960-020008-000 70035767 操纵标签2 Operation nameplate 1 全英文机械叉车用
26 R420-020006-000 载荷曲线标牌 Load nameplate 1 4t
R450-020007-000 载荷曲线标牌 Load nameplate 1 4.5t
R480-020006-000 载荷曲线标牌 Load nameplate 1 5t
27 R420-020007-000 载荷曲线标牌 Load nameplate 1 全英文4t
R420-020008-000 载荷曲线标牌 Load nameplate 1 2008.12.04 全英文4.5t
27 R480-020007-000 载荷曲线标牌 Load nameplate 1 全英文5t
28 R420-020008-000 载荷曲线标牌 Load nameplate 1 全英文4t
R450-020009-000 载荷曲线标牌 Load nameplate 1 全英文4.5t
R480-020008-000 载荷曲线标牌 Load nameplate 1 全英文5t
29 R960-020009-000 70035773 警告标签 Warm nameplate 1 全英文
30 R960-020010-000 70039450 噪音标签 Noise nameplate 1
31 R960-020011-000 70045543 液压油标签 Hydraulic oil nameplate 1
32 R960-020015-000 40001665 危险标签 Dangerous nameplate 1
33 R960-020012-000 40001668 CE标签 CE nameplate 2
34 R960-020013-000 70045883 严禁冲水标签 No swash nameplate 1
35 R960-020014-000 40001666 严禁冲水标签 No swashing nameplate 1 全英文
36 R960-020016-000 70045544 防冻液标签 Antifreeze nameplate 1
37 R960-020017-000 70045545 防冻液标签 Antifreeze nameplate 1 全英文
38 R960-020020-000 70045537 润滑系统标签 Lubrication system nameplate 1
39 R960-020021-000 70045538 润滑系统标签 Lubrication system nameplate
