HANOMAG TEREX L600D Loader Dozer Parts Manual – Illustrated PDF Parts Catalog

📝 Exhaustive Technical Description

The HANOMAG TEREX L600D Loader Dozer Parts Manual (PDF Download) is the official factory parts catalog for the L600D series. This professionally scanned, high-quality manual is used by dealers, mechanics, engineers, and equipment owners worldwide to accurately identify, source, and order genuine replacement parts for their machines.

🔧 What This Manual Contains

This catalog provides complete exploded diagrams, detailed parts breakdowns, and official TEREX part numbers for every component of the L600D Loader Dozer.

Sections include:

• General Information

  • Instructions on how to use the catalog.

  • How to order genuine TEREX parts (with serial number references).

  • Symbols & notes for alternate usage and country-specific parts.

  • Pictorial Group Index for quick visual navigation.

  • Numerical Part Number Index for rapid cross-referencing.

• Engine & Accessories

  • Alternator, starter, fuel lines, cooling system components.

  • Mounting hardware, seals, brackets, belts, and pulleys.

• Electrical Components

  • Complete wiring harness assemblies and clamps.

  • Instrument panel, switches, fuses, relays, lamps, hour meter.

  • Backup alarm kits, windshield wipers, connectors, grommets.

  • Optional Air Conditioner wiring harness and electrical add-ons.

• Hydraulic & Steering Systems

  • Steering units, hydraulic pumps, filters, lines, and valves.

  • Brake controls, pedals, pipes, seals, and hydraulic cylinders.

• Chassis & Cab Assemblies

  • Main frame, ROPS (Roll-Over Protective Structure), cab housing.

  • Driver’s station, seat assemblies, safety belt kits.

  • Heater and air-conditioner kits (evaporator, condenser, filter, console, plenum, recirculation).

  • Tools and accessories supplied with the machine.

• Decals & Safety Labels

  • Multilingual safety decals (English, German, French, Italian, Spanish).

  • Instruction labels for fuel, hydraulics, and cab operations.

  • Nameplates, caution plates, and placement diagrams.

⚠️ Important Notes

• This is a Parts Catalog only — it does not contain service, repair, or troubleshooting procedures.

• Electrical schematic wiring diagrams are not included; instead, the catalog lists harnesses, switches, relays, and connectors with part numbers for ordering.

• For complete electrical troubleshooting, the Service/Workshop Manual is require

FILE DETAILS:

HANOMAG TEREX L600D LOADER DOZER PARTS MANUAL – PDF DOWNLOAD

Language : English
Pages : 469
Downloadable : Yes
File Type : PDF

File Type : PDF

• Format: PDF Download (searchable & printable)

• Pages: Fully indexed with diagrams & parts listings

• Language: English (with multilingual parts references)

• Applies to: HANOMAG TEREX L600D Loader Dozer

• Use for: Identifying, ordering, and replacing genuine TEREX parts

• Includes: Electrical components, hydraulics, steering, cab, decals, A/C option

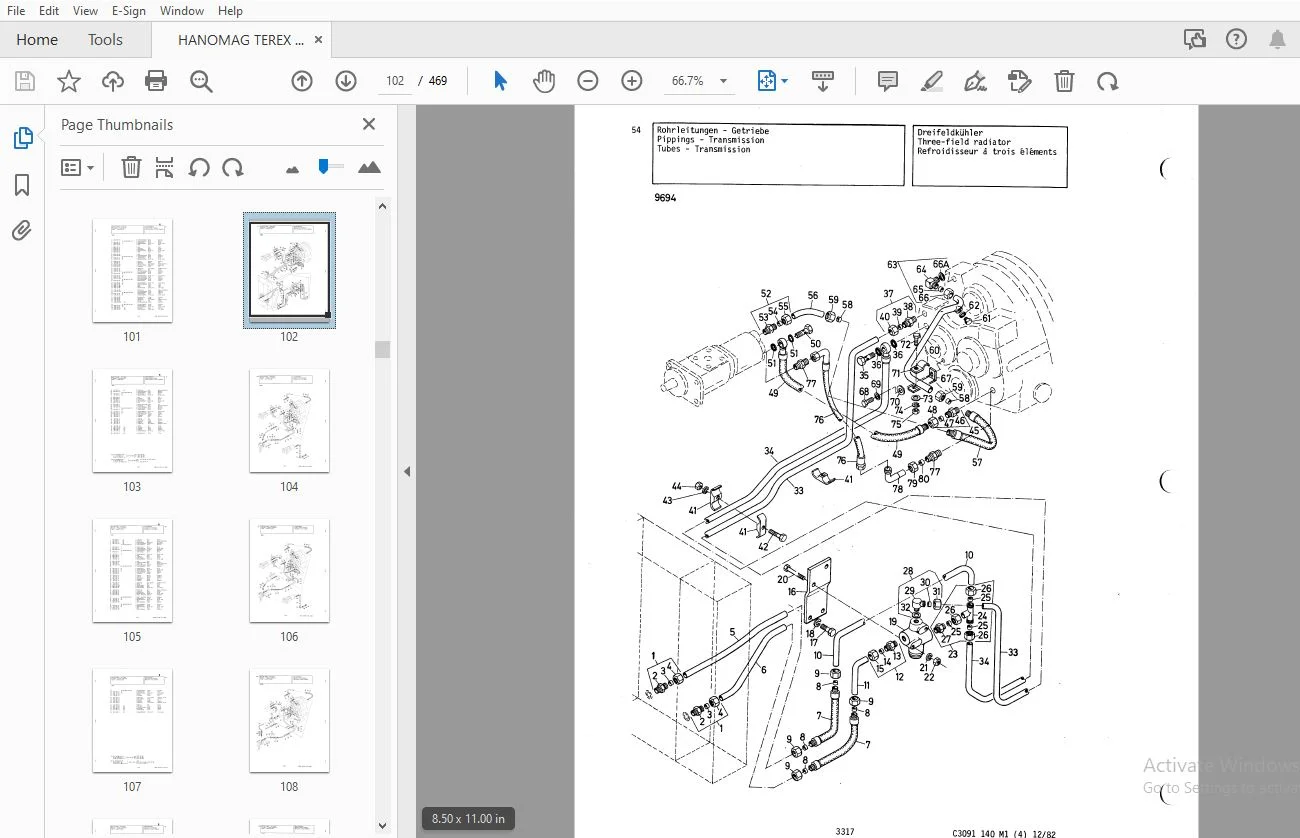

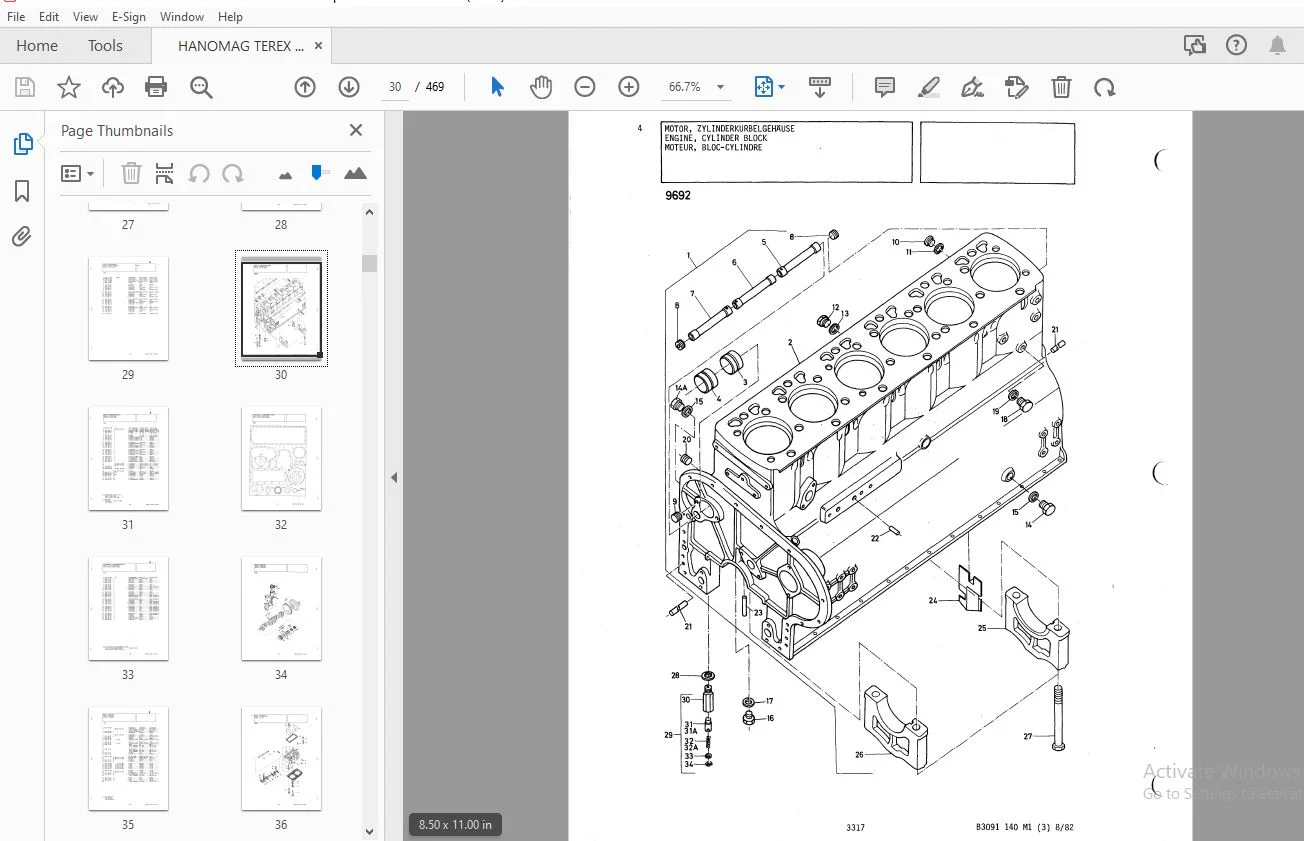

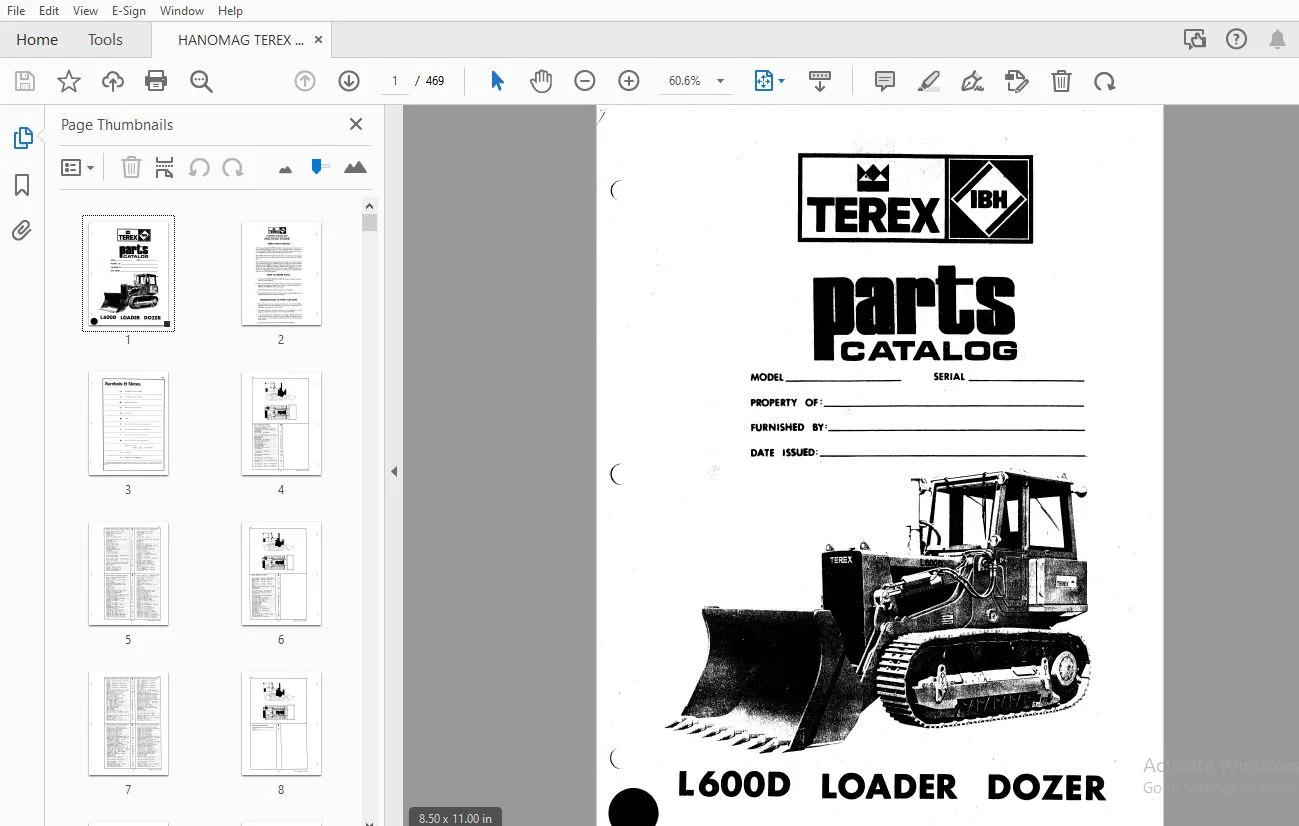

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

HANOMAG TEREX L600D LOADER DOZER PARTS MANUAL – PDF DOWNLOAD

Engine, engine suspension 0962K
Cylinder block
Gasket set, cylinder block
Crankshaft
Cylinder head
Gasket set, cylinder head
Timing, wheel housing and oil sump
Timing gear
Engine lubrication
Water pump
Seal kit, water pump
Fan and belt tensioner
Cooling system
Injection system
Injection pump drive
Low pressure fuel system
Fuel filter
Alternator and starter
Three field radiator
Single field radiator – attaching parts
Single field radiator
Double field radiator – attaching parts
Double field radiator
Engine oil cooling, three-field radiator Engine oil cooling, single and double field radiator
Dil cooler
Pipings ~ torque converter three-field radiator
Pipings – torque converter
single-field radiator
Pipings – torque converter, double-field radiator
Pipings – transmission, three-field radiator
Pipings – transmission, single-field radiator
Pipings – transmission, double-field radiator
Converter and transmission oil cooling, single and double-field radiator
Heat exchanger
Hydraulic oil cooling system, three—field radiator
Piping for hydraulic oil radiator, single—field radiator
Hydraulic oil cooling system, double-field radiator
Air intake system
Air cleaner system – Execution I
Air cleaner system – Execution II
Air cleaner, Donaldson
Air cleaner, Mann & Hummel
Ether starting system
Flame starter system
Exhaust system
Cable harnesses and clamps
Headligth for vehicle without driver’s cab
Headligth for vehicle with driver’s cab
Instrument panel
Hydraulic piping for gauges
Back up alarm
Windshield wiper for driver’s cab
Windshield wiper for safety cabin Battery Converter transmission
Converter transmission with attaching
parts
Powershift transmission
Pressure – regulating valve
Control valve
Transmission and attaching parts
Supplementary gearset
Drive end shaft for powershift transmission
Gear box controls l
Final drive
Bevel gear
Final drive
Running gear
Idler wheel
Spring arrangement
Track and suspension
Support roller
Track roller
Track
Chain, sealed and lubricated
Track without shoe
Chain strand, sealed and lubricated

S.S 11/24
