Hardi Mega 230/350 Gallon Diaphragm Pump Eagle 48′, 60′ Parts Manual – PDF

Description

Hardi Mega 230/350 Gallon Diaphragm Pump Eagle 48′, 60′ Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Hardi Mega 230/350 Gallon Diaphragm Pump Eagle 48′, 60′ Parts Manual – PDF DOWNLOAD

Language : English
Pages : 232
Downloadable : Yes
File Type : PDF

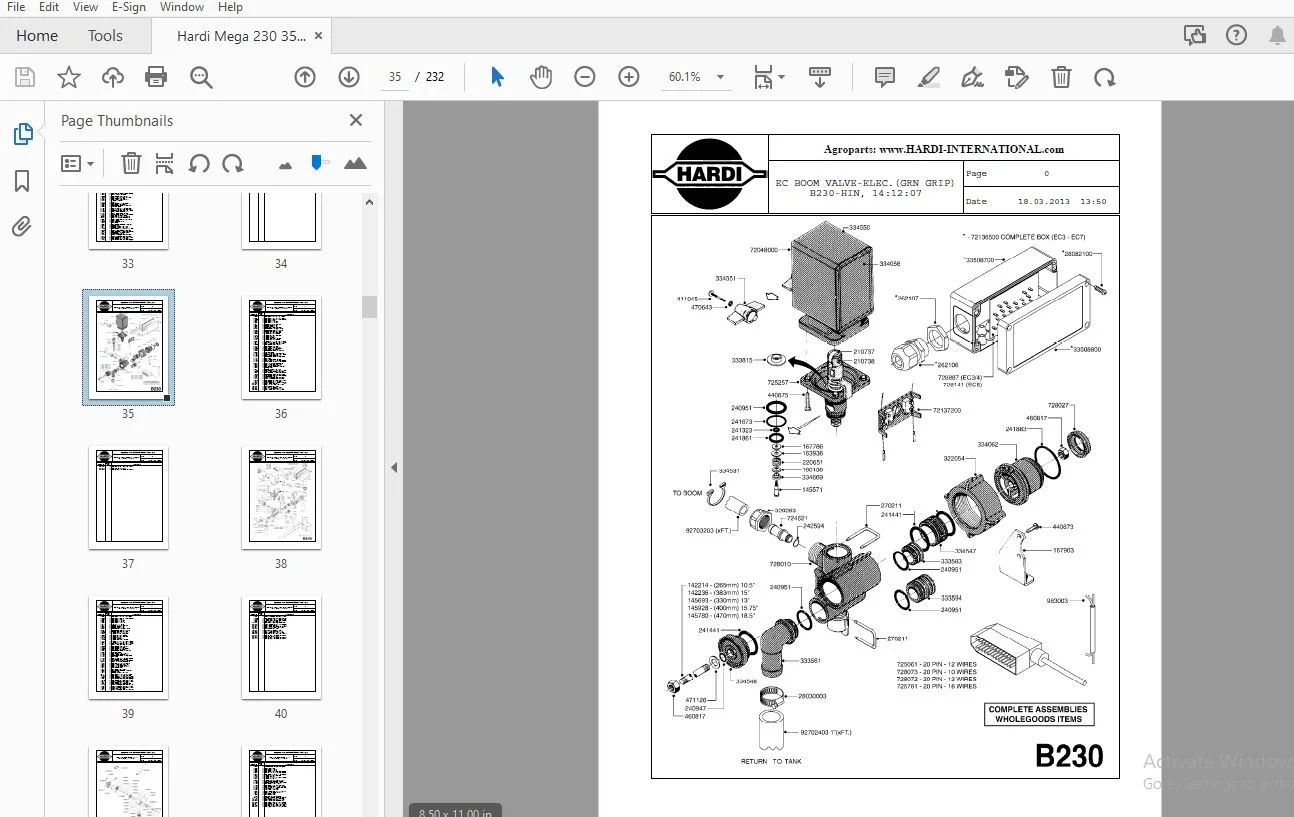

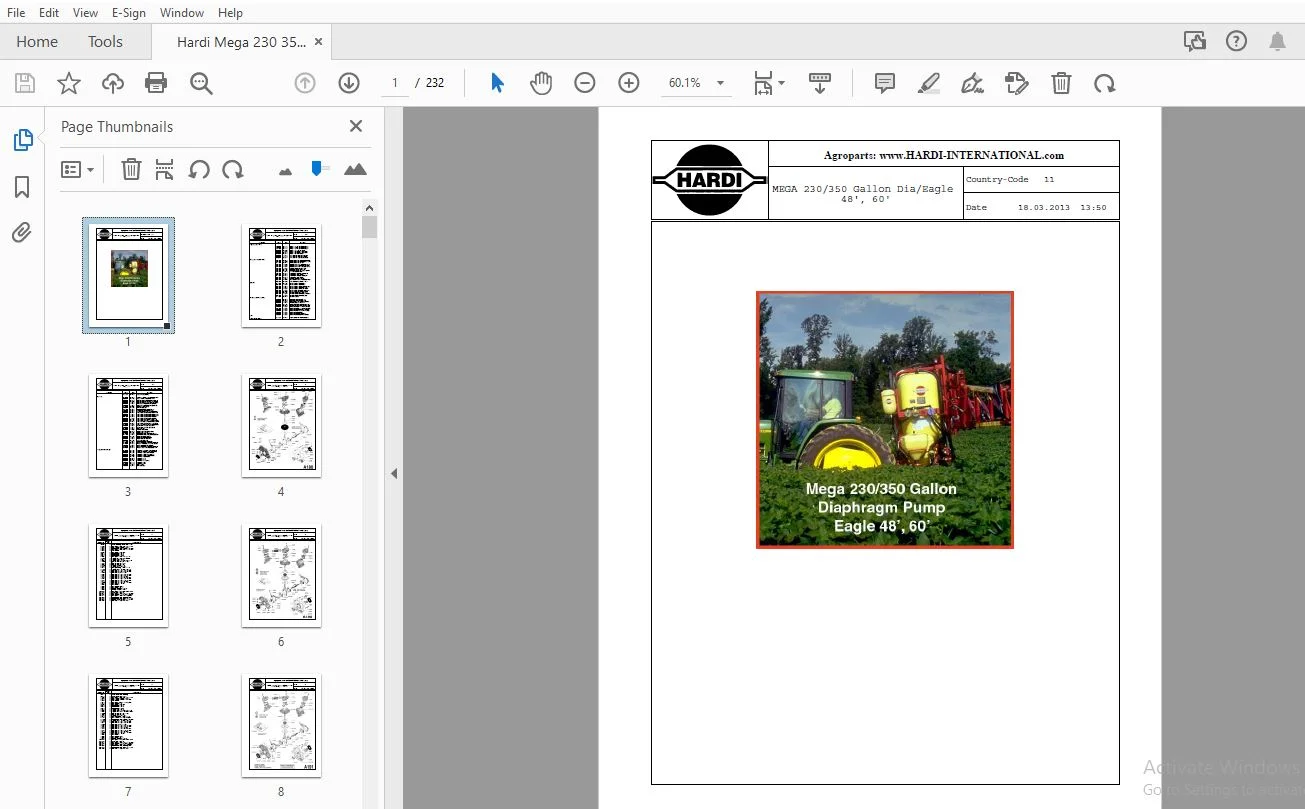

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hardi Mega 230/350 Gallon Diaphragm Pump Eagle 48′, 60′ Parts Manual – PDF DOWNLOAD

SECTION A: PUMPS, PTO's, GEAR BOXES.............  2
	A180-HIN: PUMP - 1301 W/ MOUNTING BASE......  4
	A190-HIN: PUMP - 1302 W/ MOUNTING BASE......  6
	A191-HIN: PUMP - 1303 W/ MOUNTING BASE......  8
	A220-HIN: PUMP - 1301/1302 FITTINGS......... 10
	A230-HIN: PUMP - 361 W/MOUNTING BASE........ 12
	A240-HIN: PUMP - 363 W/MOUNTING BASE........ 14
	A270-HIN: PUMP - 361/363FITTINGS............ 16
	A480-HIN: PTO SHAFTS - BONDIOLI DIAPH....... 18
	A485-HIN: PTO SHAFTS - BONDIOLI CENT........ 20
	A560-HIN: PTO SHAFTS - AMA DIAPHRAGM........ 22
SECTION B: CONTROLS, SUCTION & S.C. FILTERS.....  2
	B190-HIN: EC MASTER VALVE-ELEC.(RED GRP).... 24
	B200-HIN: EC MASTER VALVE-ELEC.(GRN GRP).... 27
	B210-HIN: EC MASTER VALVE - CM.............. 30
	B220-HIN: EC BOOM VALVE - ELEC.(RED GRP).... 32
	B230-HIN: EC BOOM VALVE-ELEC.(GRN GRIP)..... 35
	B240-HIN: EC BOOM VALVES CM GREEN GRIPS..... 38
	B251-HIN: PRESSURE REGULATOR - S93.......... 41
	B260-HIN: CONTROL BOX F/EC+EC-SC............ 43
	B270-HIN: CONTROL BOX F/EC + ECSC POST96.... 45
	B280-HIN: 12 VOLT OUTLET BOX................ 47
	B290-HIN: MANIFOLD SYSTEM - PRESSURE........ 49
	B300-HIN: MANIFOLD - S67 VALVE.............. 51
	B310-HIN: MANIFOLD SYSTEM - SUCTION......... 53
	B320-HIN: MANIFOLD - S93 VALVE.............. 55
	B341-HIN: PRESSURE RELIEF VALVE............. 57
	B360-HIN: SELF CLEANING FILTER-SCREW TOP.... 59
	B380-HIN: TOP SUCTION ASSEMBLY-S93 2"....... 62
SECTION C: HYDRAULICS...........................  2
	C010-HIN: HYDRAULICS - CYLINDERS............ 64
	C020-HIN: HYDRAULICS - CYLINDERS............ 67
	C025-HIN: HYDRAULICS - FAROIL CYLINDERS..... 71
	C026-HIN: HYDRAULICS - CYLINDERS (07)....... 74
	C160-HIN: HYDRAULICS - EAGLE HY 45'-66'..... 77
	C180-HIN: HYDRAULCS EAG HZ 45-66'POST 95.... 79
	C231-HIN: HYDRAULICS EAGLE/FORCE DH......... 81
	C240-HIN: HYD EAGLE HZ CONTROL BOX.......... 83
	C250-HIN: HYD EAGLE HZ JOYSTICK CONTROL..... 85
	C252-HIN: HYD EAGLE HZ JOYSTICK 2005........ 87
	C511-HIN: CETOP VALVES...................... 89
SECTION D: BOOMS, NOZZLE BODIES & TUBES.........  2
	D290-HIN: BOOM EAGLE WINGS 45' 50'.......... 91
	D340-HIN: BOOM EAGLE WINGS 3PT 60'.......... 94
	D370-HIN: BOOM MEGA H-FRAME & CENTER........ 97
	D620-HIN: NOZZLE BODIES-SNAP FIT............100
	D625-HIN: DOUBLE NOZZLE HOLDER-SNAP FIT.....102
	D630-HIN: NOZZLE TUBES & HOLDER-PLASTIC.....104
	D700-HIN: BOOM-NOZZLES 110° FLAT FAN ISO....106
	D701-HIN: BOOM-NOZZLES 110° LOWDRIFT ISO....108
	D702-HIN: BOOM-NOZZLES 80° FLAT FAN ISO.....110
	D703-HIN: BOOM-NOZZLE CAPS AND FILTERS......112
	D704-HIN: BOOM-NOZZLES INJET................114
	D705-HIN: BOOM-NOZZLES MINIDRIFT............116
	D706-HIN: BOOM-NOZZLES QUINTASTREAM.........118
SECTION E: TANKS................................  2
	E210-HIN: TANK MEGA 230/350 DIAPHRAGM.......120
SECTION F: FRAMES, HIB ASSEMBLIES...............  2
	F110-HIN: FRAME MEGA 230/350................122
SECTION G: ACCESSORIES..........................  2
	G010-HIN: AGITATN BYPAS VALV-MANIFLD SYS....124
	G020-HIN: BALL VALVE-ELECTRIC 2-WAY.........126
	G050-HIN: CHEM.FILLER-MOUNTING BRACKETS.....128
	G060-HIN: CHEM.FILLER-PLUMBING-MANIFOLD.....130
	G080-HIN: CHEM.FILLER-STANDARD-PLUMBING.....132
	G090-HIN: CHEMICAL FILLER-HOPPER(PRE95).....134
	G100-HIN: CHEMICAL FILLER-HOPPER(POST95)....136
	G110-HIN: CLEAN WATER TANK..................138
	G190-HIN: END NOZZLE KIT....................140
	G191-HIN: ELECTRIC END NOZZLE KIT '09.......142
	G220-HIN: FILTER ASSEMBLIES-IN LINE.........144
	G280-HIN: FLUSH SYSTEM-TANKMOUNT-MEGA.......146
	G320-HIN: FOAM MARKER COMPRESSOR PRE 92.....148
	G330-HIN: FOAM MARKER COMPRESSOR POST 92....150
	G340-HIN: FOAM MARKER COMPRESSOR POST 94....153
	G341-HIN: FOAM MARKER COMPRESSOR 2002.......156
	G342-HIN: FOAM MARKER COMPRESSOR 2007.......158
	G370-HIN: FOAM MARKER MOUNT BRACKETS........160
	G380-HIN: FOAM MARKER TANK/DROPPER PRE92....162
	G390-HIN: FOAMMARKER TANK/DROPPER POST93....164
	G400-HIN: FOAM MARKER DROPPER UPDATE 98.....166
	G410-HIN: FOAMMARKER DROPPER UPDATE 2000....168
	G440-HIN: HANDGUN TYPE 60S/60L PRE 95.......170
	G450-HIN: HANDGUN TYPE 60S/60L POST 95......172
	G510-HIN: HOSE WRAPS........................174
	G520-HIN: PRESSURE GAUGES...................176
	G530-HIN: QUICK FILL PLUMBING MEGA..........178
	G560-HIN: QUICKFILL-VALVES-2"...............180
	G610-HIN: REMOTE GAUGE-ESC SPRAYERS-4"......182
	G611-HIN: REMOTE GAUGE-MAGNETIC BASE KIT....184
	G630-HIN: RINSE SYSTEM NOZZLES..............186
	G640-HIN: RINSE SYSTEM PLUMBING.............188
	G650-HIN: SIGHT GAUGE - REMOTE..............190
	G680-HIN: TRAFFIC LIGHT KIT.................193
	G711-HIN: ELECTRIC END NOZZLE KIT...........195
	G712-HIN: NORAC UC4 BOOM HEIGHT CONTROL.....197
	G713-HIN: NORAC VARIABLE RATE VALVE UC4.....199
	G720-HIN: NORAC SEVERE TERRAIN KIT..........201
	G722-HIN: NORAC UC5 BOOM HEIGHT CONTROL.....203
	G723-HIN: NORAC VARIABLE RATE VALVE UC5.....205
SECTION H: FITTINGS, BULK HOSE & CLAMPS.........  3
	H010-HIN: FITTINGS-CAP NUTS & HOSE BARBS....207
	H020-HIN: FITTNGS-T-PIECES,CAPS & ELBOWS....209
	H030-HIN: FITTINGS - HEXAGON NIPPLES........211
	H040-HIN: FITTINGS - NIPPLES & ELBOWS.......213
	H050-HIN: FITTINGS - HOSE CONNECTORS........215
	H060-HIN: FITTINGS - BULKHEAD...............217
	H070-HIN: FITTINGS - S-40...................219
	H080-HIN: FITTINGS - S-53...................221
	H090-HIN: FITTINGS - S-56 & S-61............223
	H100-HIN:FITTINGS - S-67....................225
	H110-HIN: FITTINGS - S-93...................227
	H120-HIN: BULK HOSE.........................229
	H130-HIN: HOSE CLAMPS.......................231
