Hardi Mercury 600/925 Gallon 36 Fan Parts Manual – PDF DOWNLOAD

Description

Hardi Mercury 600/925 Gallon 36 Fan Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Hardi Mercury 600/925 Gallon 36 Fan Parts Manual – PDF DOWNLOAD

Language : English
Pages : 70
Downloadable : Yes
File Type : PDF

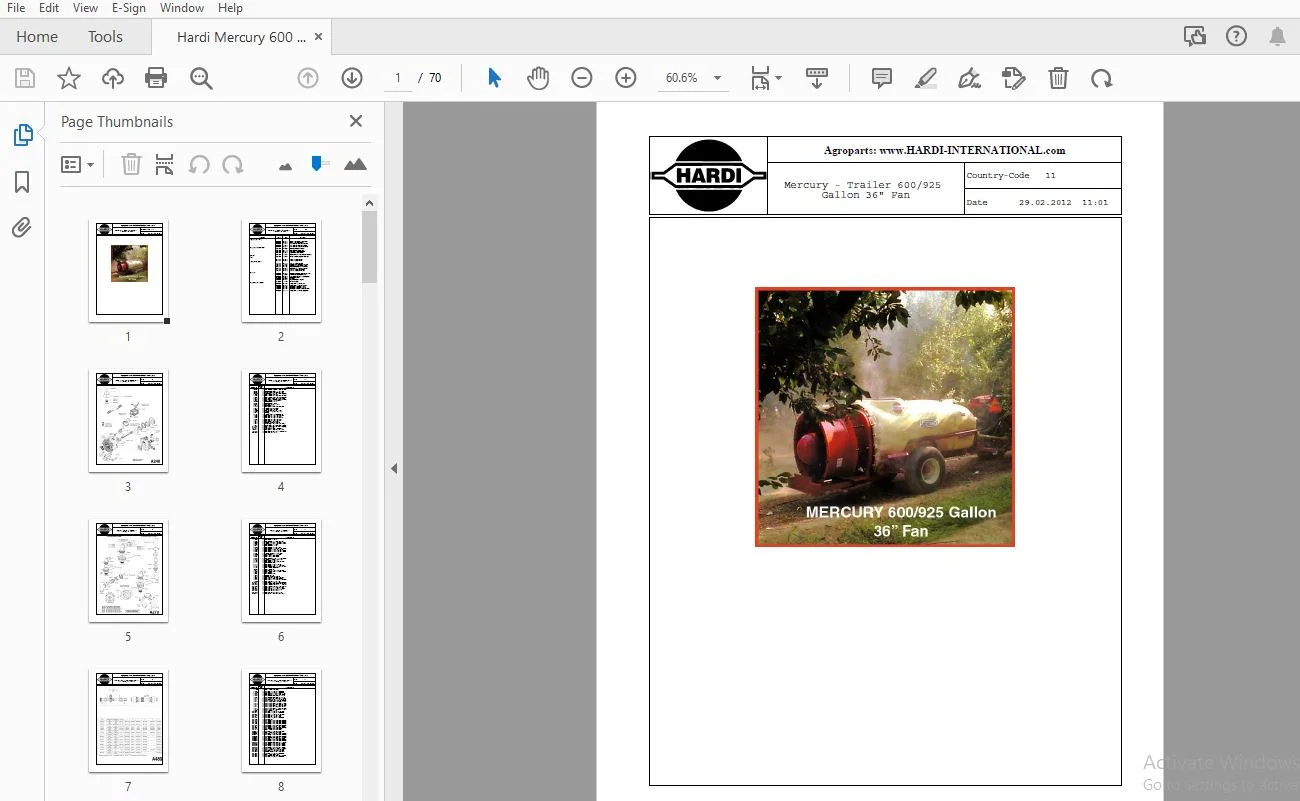

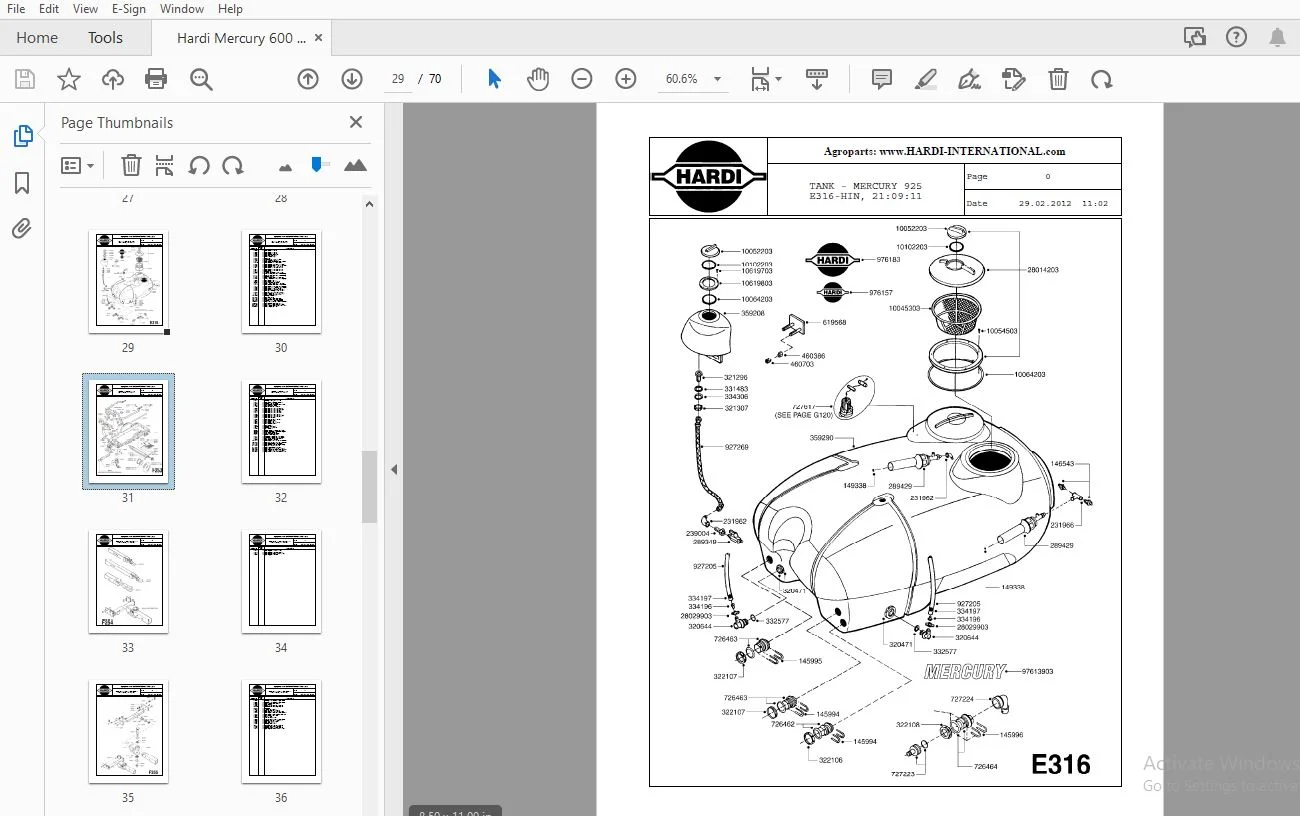

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hardi Mercury 600/925 Gallon 36 Fan Parts Manual – PDF DOWNLOAD

SECTION A: PUMPS, PTO's, GEAR BOXES............. 2
	A240-HIN: PUMP - 363 W/MOUNTING BASE........ 3
	A270-HIN: PUMP - 361/363FITTINGS............ 5
	A480-HIN: PTO SHAFTS - BONDIOLI DIAPH....... 7
	A485-HIN: PTO SHAFTS - BONDIOLI CENT........ 9
	A560-HIN: PTO SHAFTS - AMA DIAPHRAGM........11
SECTION B: CONTROLS, SUCTION & S.C. FILTERS..... 2
	B121-HIN: HC/2 MANIFOLD SYSTEM..............13
	B123-HIN: EC/2 MANIFOLD SYSTEM..............15
	B252-HIN: EVC, ECP, ECPC CONTROLS...........17
	B300-HIN: MANIFOLD - S67 VALVE..............20
	B430-HIN: SUCTION FILT.-VINEYARD&ORCHARD....22
SECTION C: HYDRAULICS........................... 2
	C470-HIN: HYD - REMOTE SECTION VALVES.......24
SECTION E: TANKS................................ 2
	E312-HIN: TANK - MERCURY 600................26
	E316-HIN: TANK - MERCURY 925................29
SECTION F: FRAMES, HUB ASSEMBLIES............... 2
	F253-HIN: FRAME - MERCURY 600...............31
	F254-HIN: DRAWBARS - MERCURY/ARROW..........33
	F255-HIN: DRAWBAR - TURNABLE HITCH..........35
	F420-HIN: HUB ASSEMBLY F.2 1/8" SPINDLE.....37
	F440-HIN: HUB ASSY F. 3" SPINDLE CM750......39
	F610-HIN: FRAME - MERCURY 600 '05...........41
	F620-HIN: FRAME - MERCURY 925 '05...........43
SECTION G: ACCESSORIES.......................... 2
	G120-HIN: DRAIN ASSEMBLY-PULL CORD TYPE.....45
	G220-HIN: FILTER ASSEMBLIES-IN LINE.........47
	G490-HIN: TRANSDUCERS AND ACCESSORIES.......49
	G505-HIN: POWDER MIXER......................51
	G704-HIN: CABLES............................53
	G705-HIN: JUNCTION BOX - LIQUID.............55
	G710-HIN: 39 PIN CABLES.....................57
SECTION K: VINEYARD & ORCHARD SPRAYERS.......... 2
	K275-HIN: MERCURY - 36" AXIAL FAN...........59
	K276-HIN: MERCURY - 36" AXIAL FAN '05.......61
	K320-HIN: NOZZLES - AXIAL JET 1/4 X 1.......63
	K330-HIN: NOZZLES - AXIAL JET 1/4 X 2.......65
	K340-HIN: NOZZLES - SINGLE & DOUBLE JETS....67
	K490-HIN: MERCURY - 36" AXIAL GEARBOX.......69
