Hardi N-155 (155 Gallon) MB 20′,26′,33′,40′ Parts Manual – PDF

Description

Hardi N-155 (155 Gallon) MB 20′,26′,33′,40′ Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Hardi N-155 (155 Gallon) MB 20′,26′,33′,40′ Parts Manual – PDF DOWNLOAD

Language : English
Pages : 127
Downloadable : Yes
File Type : PDF

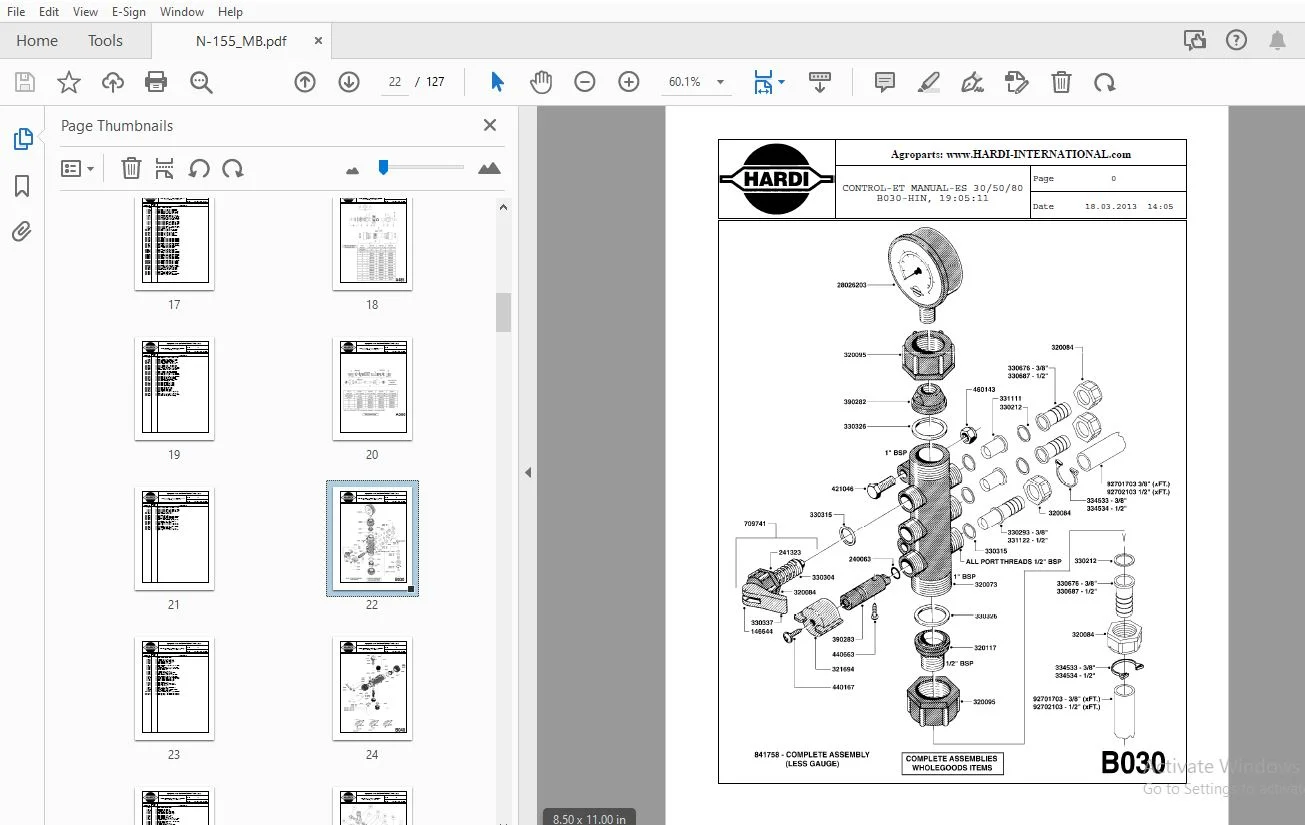

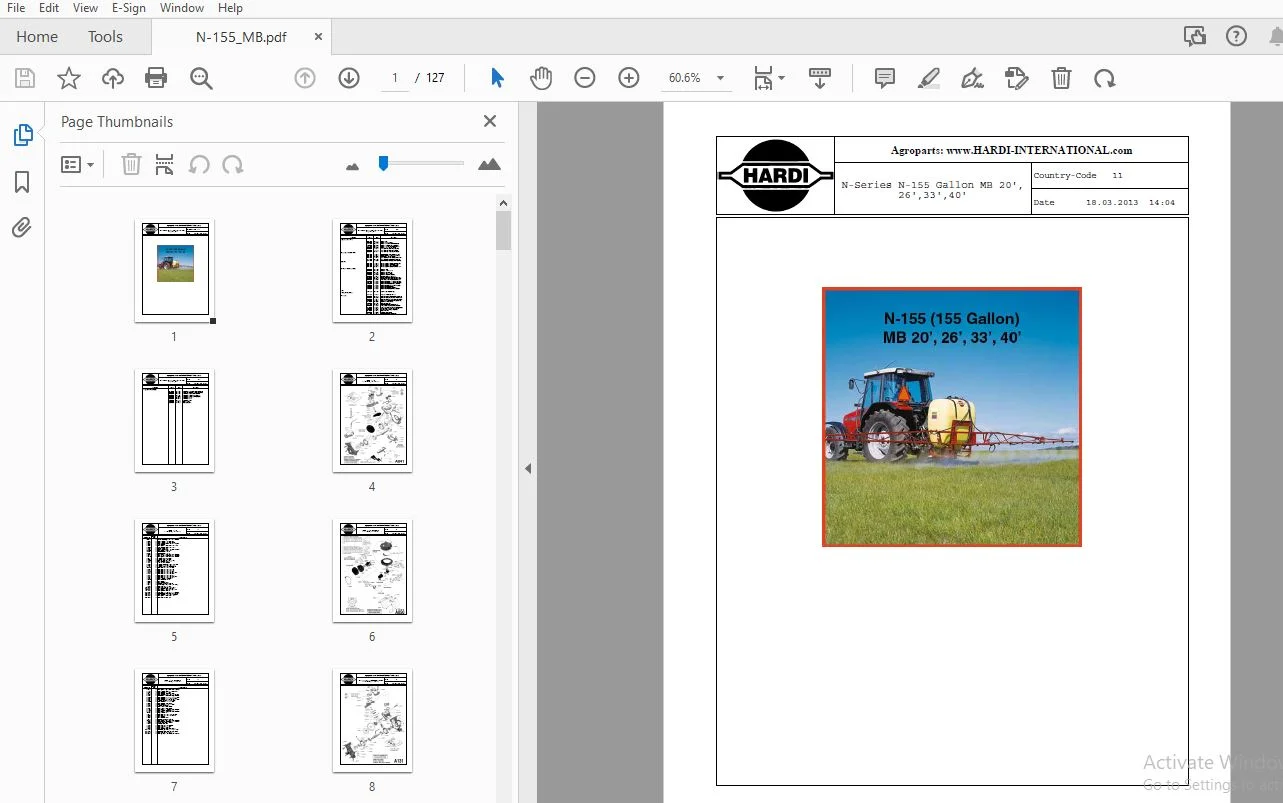

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Hardi N-155 (155 Gallon) MB 20′,26′,33′,40′ Parts Manual – PDF DOWNLOAD

SECTION A: PUMPS, PTO's, GEAR BOXES.............  2
	A041-HIN: PUMP - 603........................  4
	A050-HIN: PUMP - 600 FITTINGS...............  6
	A131-HIN: PUMP - 1203 W/MOUNTING BASE.......  8
	A170-HIN: PUMP - 1200/1202/1203 FITTINGS.... 10
	A191-HIN: PUMP - 1303 W/ MOUNTING BASE...... 12
	A220-HIN: PUMP - 1301/1302 FITTINGS......... 14
	A480-HIN: PTO SHAFTS - BONDIOLI DIAPH....... 16
	A485-HIN: PTO SHAFTS - BONDIOLI CENT........ 18
	A560-HIN: PTO SHAFTS - AMA DIAPHRAGM........ 20
SECTION B: CONTROLS, SUCTION & S.C. FILTERS.....  2
	B030-HIN: CONTROL-ET MANUAL-ES 30/50/80..... 22
	B040-HIN: DISTRIBUTION VALVE - MANUAL....... 24
	B045-HIN: CONTROL - ATV/N-SERIES............ 26
	B090-HIN: BK-180 BOOM VALVES-MAN.POST 00.... 28
	B110-HIN: BK-180 REMOTE CONTROL CABLE....... 30
	B155-HIN: ELECTRIC SOLENOID ATV/N-SERIES.... 32
SECTION C: HYDRAULICS...........................  2
	C025-HIN: HYDRAULICS - FAROIL CYLINDERS..... 34
	C026-HIN: HYDRAULICS - CYLINDERS (07)....... 37
	C030-HIN: HYDRAULICS - SB WING FOLD......... 40
	C050-HIN: HYDRAULICS-MB BOOM WING TILT...... 42
SECTION D: BOOMS, NOZZLE BODIES & TUBES.........  2
	D042-HIN: BOOM - V-II....................... 44
	D044-HIN: BOOM - VS-8 & VS-10............... 46
	D050-HIN: BOOM - SB 20' 26' 33'............. 48
	D080-HIN: BOOM - MB 35' 40' 42'............. 50
	D130-HIN: BOOM - MB H-FRAME HL.............. 52
	D620-HIN: NOZZLE BODIES-SNAP FIT............ 54
	D625-HIN: DOUBLE NOZZLE HOLDER-SNAP FIT..... 56
	D630-HIN: NOZZLE TUBES & HOLDER-PLASTIC..... 58
	D645-HIN: PASTURE BOOM NOZZLE BRACKET....... 60
	D700-HIN: BOOM-NOZZLES 110° FLAT FAN ISO.... 62
	D701-HIN: BOOM-NOZZLES 110° LOWDRIFT ISO.... 64
	D702-HIN: BOOM-NOZZLES 80° FLAT FAN ISO..... 66
	D703-HIN: BOOM-NOZZLE CAPS AND FILTERS...... 68
	D704-HIN: BOOM-NOZZLES INJET................ 70
	D705-HIN: BOOM-NOZZLES MINIDRIFT............ 72
	D706-HIN: BOOM-NOZZLES QUINTASTREAM......... 74
SECTION E: TANKS................................  2
	E070-HIN: TANK - NL 155 (POST 92)........... 76
SECTION F: FRAMES, HUB ASSEMBLIES...............  2
	F040-HIN: FRAME - NL 155/210................ 78
SECTION G: ACCESSORIES..........................  2
	G050-HIN: CHEM.FILLER-MOUNTING BRACKETS..... 80
	G070-HIN: CHEM.FILLER-PLUMBING-STANDARD..... 82
	G080-HIN: CHEM.FILLER-STANDARD-PLUMBING..... 84
	G100-HIN: CHEMICAL FILLER-HOPPER(POST95).... 86
	G110-HIN: CLEAN WATER TANK.................. 88
	G190-HIN: END NOZZLE KIT.................... 90
	G191-HIN: ELECTRIC END NOZZLE KIT '09....... 92
	G342-HIN: FOAM MARKER COMPRESSOR 2007....... 94
	G410-HIN: FOAMMARKER DROPPER UPDATE 2000.... 96
	G450-HIN: HANDGUN TYPE 60S/60L POST 95...... 98
	G475-HIN: SPRAY MATE II CONTROLLER..........100
	G510-HIN: HOSE WRAPS........................102
	G520-HIN: PRESSURE GAUGES...................104
	G711-HIN: ELECTRIC END NOZZLE KIT...........106
SECTION H: FITTINGS, BULK HOSE & CLAMPS.........  2
	H010-HIN: FITTINGS-CAP NUTS & HOSE BARBS....108
	H020-HIN: FITTNGS-T-PIECES,CAPS & ELBOWS....110
	H030-HIN: FITTINGS - HEXAGON NIPPLES........112
	H040-HIN: FITTINGS - NIPPLES & ELBOWS.......114
	H050-HIN: FITTINGS - HOSE CONNECTORS........116
	H070-HIN: FITTINGS - S-40...................118
	H080-HIN: FITTINGS - S-53...................120
	H100-HIN: FITTINGS - S-67...................122
	H120-HIN: BULK HOSE.........................124
	H130-HIN: HOSE CLAMPS.......................126

S.S 09/24
