Harman Kardon AVR 1610 AV Receiver Service Manual (Rev0 2013) PDF
Original price was: $100.00.$16.95Current price is: $16.95.
Official harman/kardon AVR 1610 Audio/Video Receiver Service Manual (Rev0 – 7/2013) in PDF. Includes basic specs, front/rear panel layouts, remote functions, installation & connections, operation, processor reset, troubleshooting, amplifier bias adjustment, disassembly, exploded view, block diagram, PCB drawings, electrical parts list, transistor pinouts, schematics, and wiring diagram. Instant downl
Description
Harman Kardon AVR 1610 AV Receiver Service Manual (Rev0 2013) PDF DOWNLOAD
Harman Kardon AVR 1610 – Service Manual PDF (Technician Guide)
If you’re repairing an AVR 1610 (no audio, protection mode, HDMI issues, distorted sound, dead unit, etc.), this is the factory service manual you want. It provides the complete service flow: diagnostics → adjustments → teardown → board-level documentation → schematics so you can fix it properly (not guess-and-swap parts).

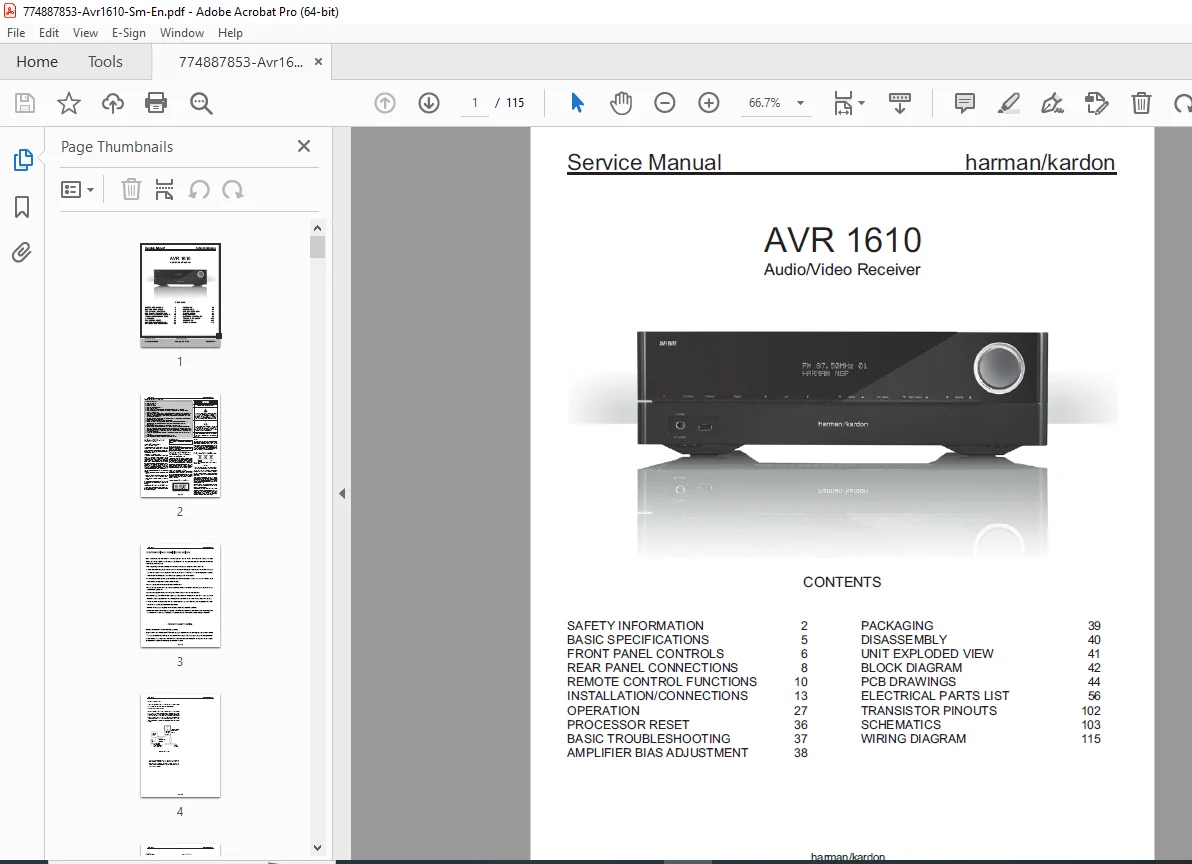

📑 Table of Contents
Safety Information
Basic Specifications
Front Panel Controls
Rear Panel Connections
Remote Control Functions
Installation / Connections
Operation
Processor Reset
Basic Troubleshooting
Amplifier Bias Adjustment
Packaging

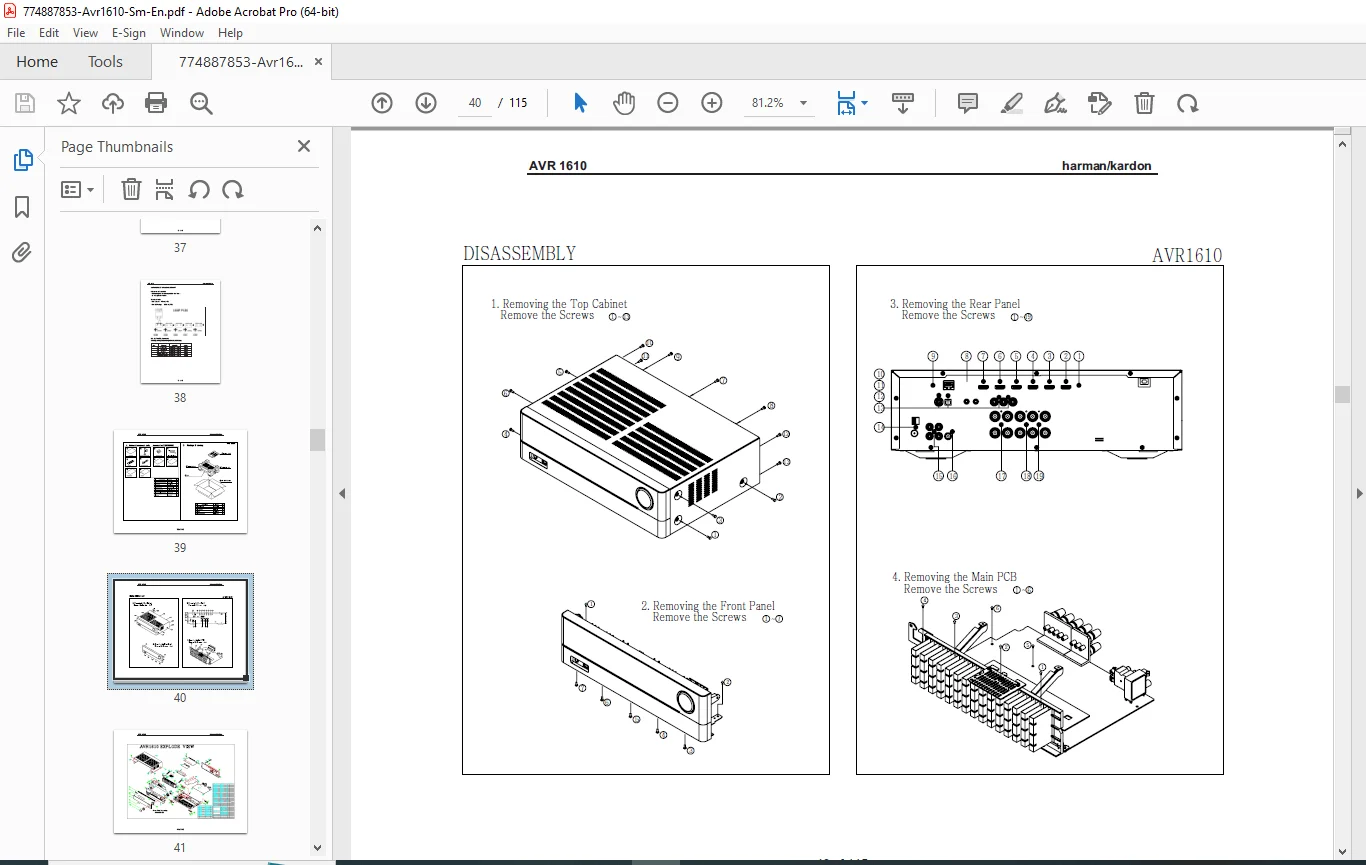

Disassembly
Unit Exploded View
Block Diagram
PCB Drawings
Electrical Parts List
Transistor Pinouts
Schematics
Wiring Diagram
🔥 Quick Highlights (What this manual helps you do)
Identify controls, connectors, and signal routing fast (front/rear panel maps)
Follow correct reset + troubleshooting steps before deep repair
Perform amplifier bias adjustment (critical after amp-stage repairs)
Use disassembly + exploded view to avoid breaking clips/boards
Do board-level repair using PCB drawings, parts list, transistor pinouts, schematics & wiring
📌 File Details
| Item | Details |
|---|---|
| Manual Name | harman/kardon AVR 1610 Audio/Video Receiver – Service Manual |
| Models Covered | AVR 1610 (shared platform references may appear in sections) |
| Year | 2013 (Rev0 – 7/2013) |
| Manual PDF Quality | Clear, text-searchable service manual layout with diagrams |
| Pages | 115 pages |
Skip trial-and-error—get the official AVR 1610 service manual with the schematics, PCB drawings, and repair procedures techs rely on. Buy now and download instantly to diagnose and fix your receiver today.
