Heidenhain TNC 430 Service Manual β PDF Download
$28.95
Heidenhain TNC 430 and TNC 426 full service manual for field technicians and maintenance engineers.
Includes integrated monitoring, encoder diagnostics, PLC interface tests, servo amplifier interface, error messages, wiring, and logic unit schematics.
Description

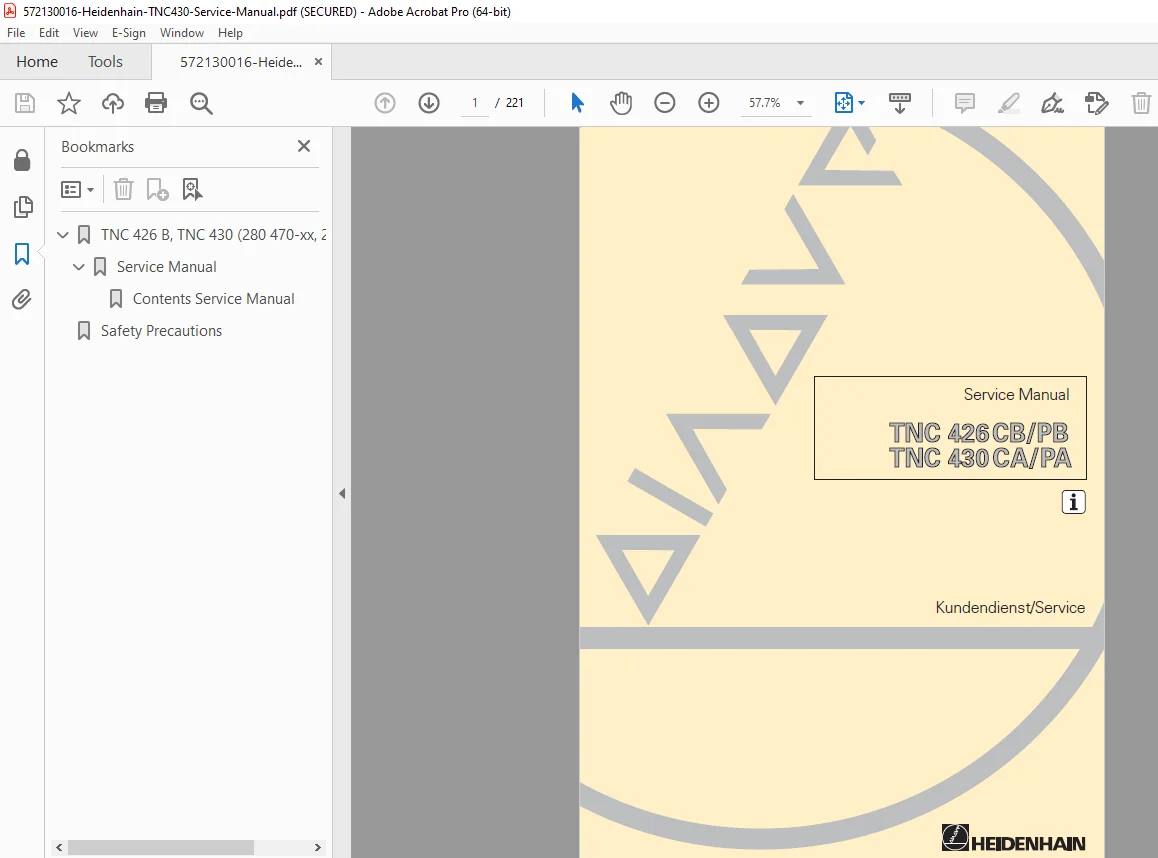

Heidenhain TNC 430 Service Manual β PDF Download (TNC 426 CB/PB & TNC 430 CA/PA Controls)
DESCRIPTION
The Heidenhain TNC 430 Service Manual (with TNC 426) is an extensive technical reference for diagnosing, repairing, and maintaining Heidenhain CNC control systems. Covering models TNC 426 CB/PB and TNC 430 CA/PA, this document provides full internal circuit, error, and diagnostic data for control logic, PLC boards, servo interfaces, and encoder feedback systems.
IMAGES:
Key Coverage Areas
π§ Integrated Monitoring System
Explains how the TNC continuously supervises all machine and control parameters β encoder amplitude, servo lag, voltage levels, buffer battery, motor temperature, PLC runtime, and EPROM/RAM CRC validation β to detect mechanical or electrical anomalies
572130016-Heidenhain-TNC430-Serβ¦
βοΈ Error Messages & Diagnostics
Details hundreds of minor and blinking error codes (e.g., [38], [2197], [1122]) with root-cause and step-by-step corrective procedures:
Excessive servo lag or movement monitoring error.
File system error (cluster corruption, FAT failure).
Power fail & voltage undervoltage alerts.
DSP runtime and checksum failures.
Each section provides the errorβs register state, hardware cause, and test connector references572130016-Heidenhain-TNC430-Serβ¦
572130016-Heidenhain-TNC430-Serβ¦
𧩠Logic & PLC Sections

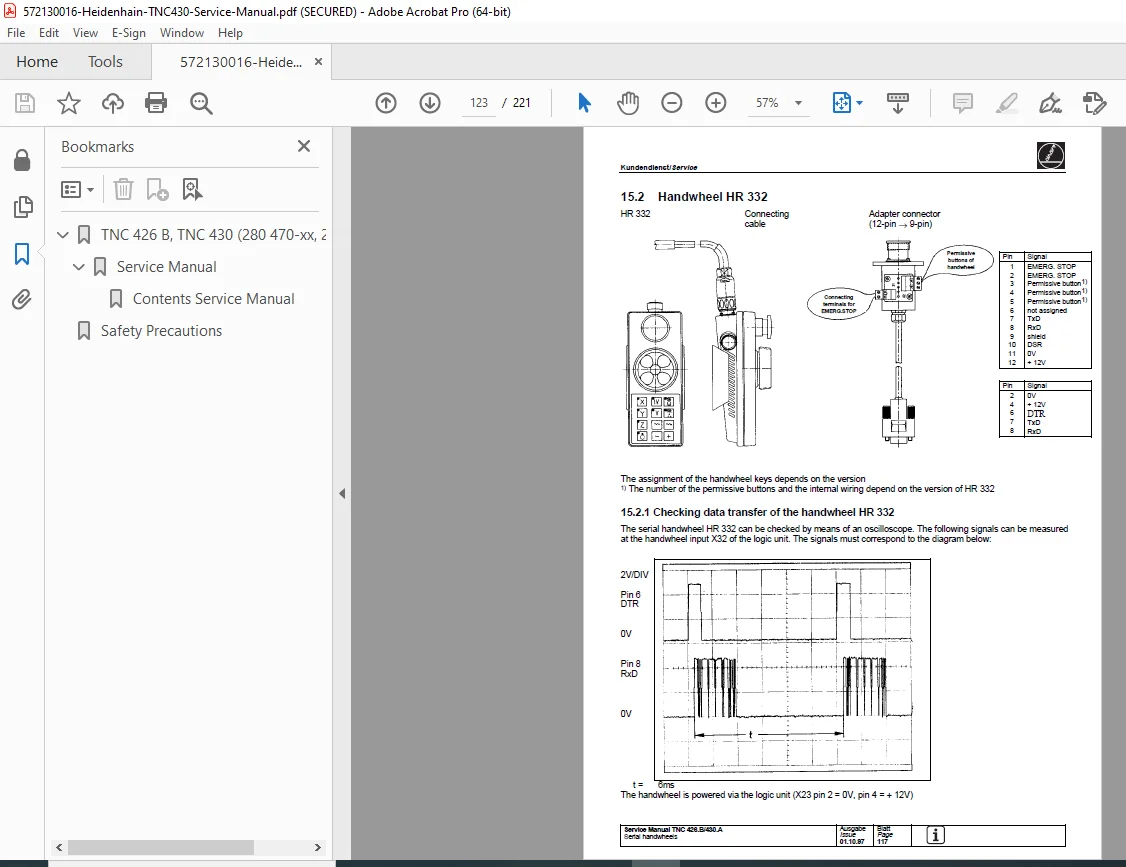

Includes block diagrams and connector maps for LE 426/430 logic units, showing signal paths between the CPU, PLC I/O boards, and drive modules. Also includes PLC program compilation, error table (.PET) setup, and real-time debugging with markers M2815βM3023
572130016-Heidenhain-TNC430-Serβ¦
πͺ Encoder & Drive Interface
Covers both position and speed encoders, including amplitude thresholds, frequency range, and error isolation via connector X15βX20. Explains analogue and digital interfaces to Simodrive 611D servo amplifiers, feed rate calibration, offset adjustment, and integrated oscilloscope diagnostics.
π Power Supply & Grounding
DC-link voltage test procedures, external PSU requirements, and buffer battery monitoring. Grounding diagrams are included for eliminating noise and voltage reference drift.
π₯οΈ Peripherals & Interface
Documentation for visual display units (BC 110B/BC 120/BF 120) and keyboard units TE 401B/TE 420. Includes wiring for RS-232 (V.24), RS-422 (V.11), and Ethernet data interfaces for PLC and file management.
πΎ File & Software Management
Explains partition structure (TNC:, PLC:, SYS:), log extraction via TNCremo, software exchange procedure, and backup/restore instructions. Also includes NC software upgrade notes for versions 280 470β473.
TECHNICAL HIGHLIGHTS
| Category | Details |
|---|---|
| Model Covered | Heidenhain TNC 426 CB/PB, TNC 430 CA/PA Numerical Controls |
| Manual Type | Official OEM Service Manual |
| Software Versions | NC Software 280 470β473 (Standard & Export) |
| Document Issue | 01/2001 |
| Applicable Units | LE 426CB/PB, LE 430CA/PA Logic Units |
| Primary Topics | Integrated monitoring, error diagnosis, wiring, power, PLC tests, drive interfaces |
| Monitoring System | Real-time encoder, voltage, temperature, servo lag, CRC, and PLC watchdog monitoring |
| Error Categories | Minor (non-blinking) and Blinking (gross) faults with register diagnostics |
| Encoder Interfaces | Position and speed encoder signal amplitude/frequency checks (Β΅A, 1Vpp, TTL) |
| Drive Interface | Analogue & digital servo amplifier connections (connectors X51βX56/X61) |
| PLC Interface | I/O testing, non-volatile marker resets, and control-ready relay checks |
| Hardware Sections | Logic Units, Power Supply, Keyboard TE401/420, Displays BC110/120, Encoder Inputs |
| Connectors | Detailed pinouts (X1βX61) for encoders, PLC I/O, CRT, data interfaces, handwheels |
| Diagnostic Tools | Integrated oscilloscope, encoder test unit, drive control generator, log function (TNCremo) |
| Error Log System | Up to 50,000 FIFO entries of resets, faults, power failures, and register states |
| Voltage Supply | DC-Link power, PLC 24 V logic, buffer battery monitoring |
| Touch Probe Interfaces | DCC, tool and workpiece trigger circuits with diagnostics |
| Display & Keyboard Units | BC110B, BC120, BF120 displays; TE401B/TE420 keyboard compatibility |
| File Management | Partition structures (TNC, PLC, SYS), backup & exchange procedures |
| Diagnostics Supported | LOGBOOK code access, CRC/EPROM checks, I2t and PWM monitoring |
| File Type | Searchable PDF |
| Language | English |
| Pages | ~221 |
| Publisher | DR. JOHANNES HEIDENHAIN GmbH, Traunreut, Germany |
FILE DETAILS
| File Name | 572130016-Heidenhain-TNC430-Service-Manual.pdf |
|---|---|
| File Type | Searchable PDF |
| Pages | ~210 Pages |
| Language | English |
| Version | Issue 01/2001 |
| File Size | ~3.12 MB |
| Digital Format | Instant Download |
| Publisher | DR. JOHANNES HEIDENHAIN GmbH |
| Audience | Authorized service engineers & CNC maintenance technicians |
