Heli Forklift CBD 35-510 520 530 Electric Pallet Trucks Parts Manual
$16.95
Heli Forklift CBD 35-510 520 530 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Description
Heli Forklift CBD 35-510 520 530 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli Forklift CBD 35-510 520 530 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :23
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli Forklift CBD 35-510 520 530 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Fig 1 Steering control system
Fig2 Handle assembly
Fig3 Switch box assembly
Fig4 Stepped switch assembly
Fig5 Driving system
Fig6 Gear box assembly
Fig7 Driving motor
Fig8 Hydraulic system
Fig9 Cylinder assembly
Fig10 Frame
Fig11 Frame(walkie)
Fig 1 2 Button assembly
Fig13 Balance wheel assembly
Fig14 Electric panel assembly
Fig15 Forked frame Fig16 Forked frame
Fig17 Front double wheel assembly
Fig18 Front single wheel assembly
Fig19 Compartment

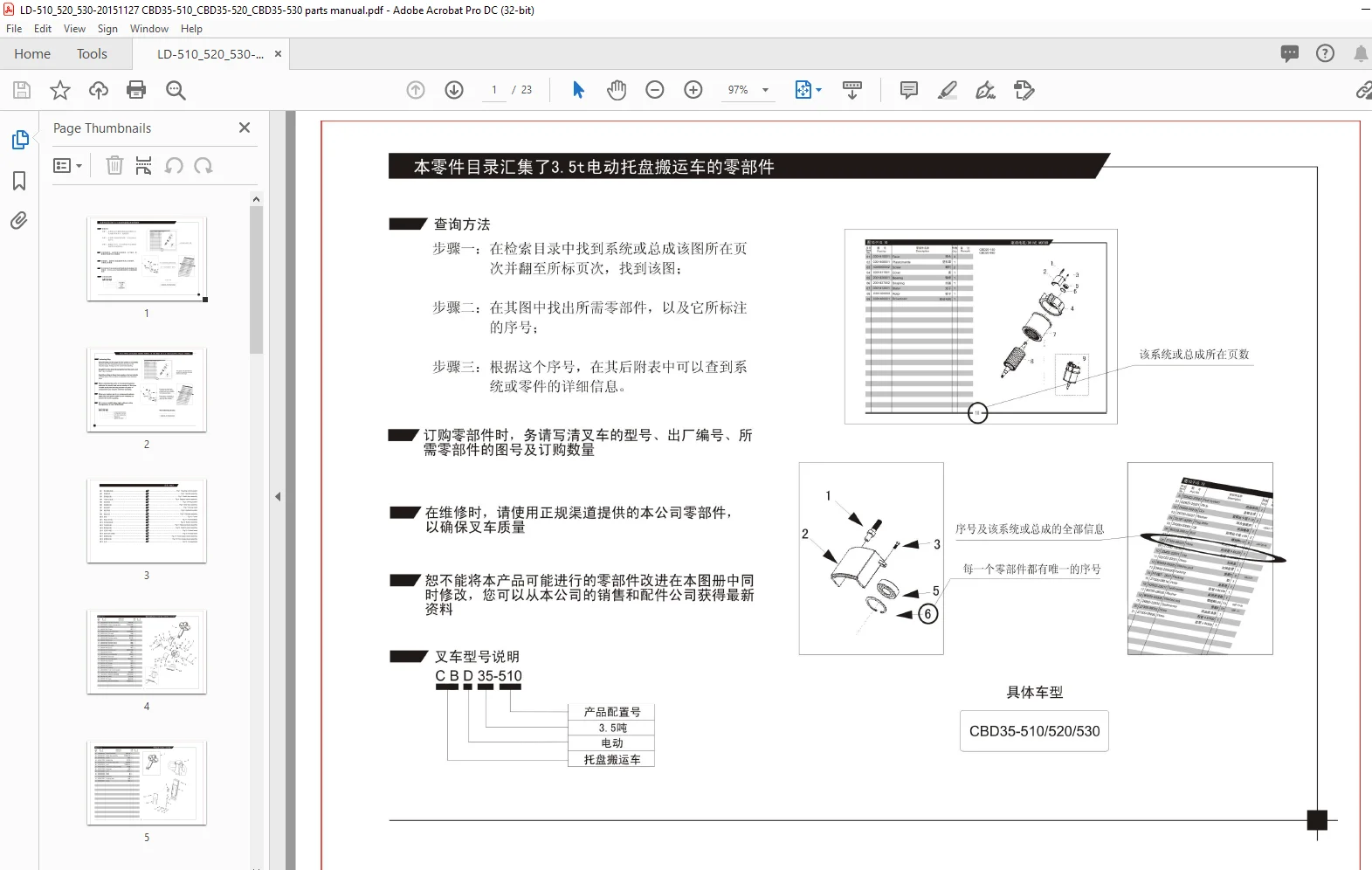

IMAGES PREVIEW OF THE MANUAL:
