Heli Forklift CDD14-920 Electric Pallet Trucks Parts Manual PDF
$14.95
Heli Forklift CDD14-920 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Description
Heli Forklift CDD14-920 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli Forklift CDD14-920 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :39
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli Forklift CDD14-920 Electric Pallet Trucks Parts Manual – PDF DOWNLOAD
Fig1 Steering control system
Fig2 Handle assembly
3 Switch box assembly
Fig4 Handle assembly
Fig5 Switch box assembly
Fig6 Stepped switch assembly
Fig? Driving system
Fig8 Gear box assembly(old)
Fig9 Gear box assembly(new)
Fig 10 Driving motor
Fig11 Hydraulic system
Fig12 Hydraulic system
Fig13 Power system(old)
Fig14 Power system(new)
Fig15 Hydraulic power unit{old)
Fig16 Hydraulic power unit(new)
Fig17 Valve assembly(new)
Fig18 Frame(old)
Fig19 Frame(new)
Front wheel assembly
Fig21 Balance wheel assembly(NEW)
Fig22 Electric panel assembly{old)
Fig23 Electric panel assembly(new)
Fig24 Footboard assembly
Fig26 Cylinder assembly(old)
Fig27 Mast assy-outer(new)
Fig28 Cylinder assembly(new)
-Fig29 Mast assy-inner
Fig30 Fork & Carriage & Backrest
Fig31 Compartment(for footboard)
Fig32 Battery assembly

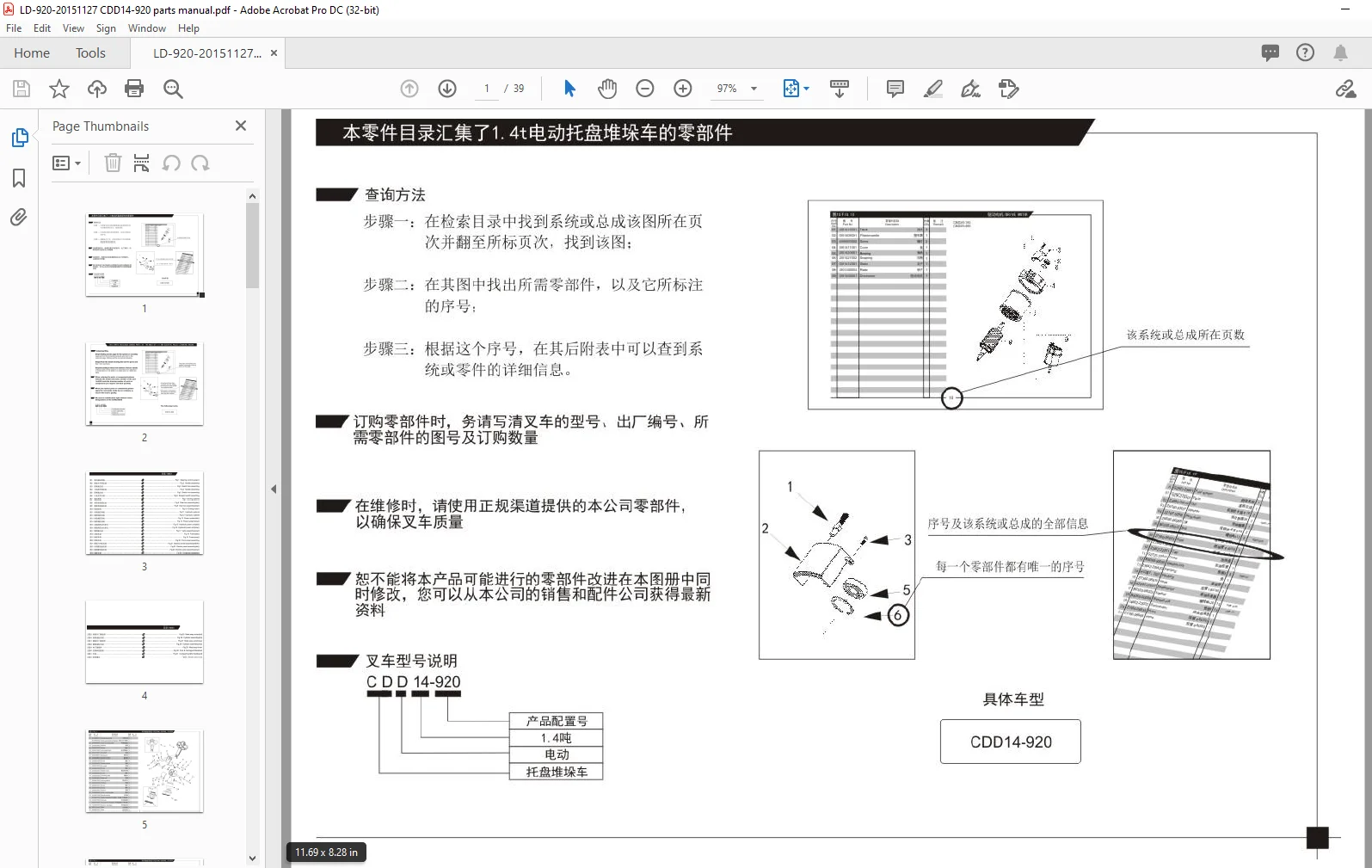

IMAGES PREVIEW OF THE MANUAL:
