Heli Forklift CDD16-350 Electric Pallet Stacking Trucks Parts Manual
$19.95
Heli Forklift CDD16-350 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Heli Forklift CDD16-350 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli Forklift CDD16-350 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :41
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli Forklift CDD16-350 Electric Pallet Stacking Trucks Parts Manual – PDF DOWNLOAD
I NDEX
Fig1 Steering control system
Fig2 Handle assembly
Fig3 Switch box assembly
Fig4 Handle assembly
Fig5 Switch box assembly
Fig6 Stepped switch assembly
Fig? Driving system
Fig8 Gear box assembly(old)
Fig9 Gear box assembly(new)
Fig10 Driving motor
Fig11 Hydraulic system
Fig12 Hydraulic system
Fig13 Power system(old)
Fig14 Power system(new)
Fig15 Hydraulic power unit(old)
Fig16 Hydraulic power unit(new)
Fig17 Valve assembly(new)
Fig18 Frame(old)
Fig19 Frame(new)
Fig20 Front wheel assembly
Fig21 Balance wheel assembly
Fig22 Electric panel assembly(old)
Fig23 Electric panel assembly(new)
Fig24 Footboard assembly
Fig25 Mast assy-outer
Fig26 Cylinder assembly(new)
Fig27 Mast assy-middle
Fig28 Mast assy-inner
Fig29 Middle Cylinder assembly
Fig30 Fork & Carriage & Backrest(old)
Fig31 Fork(new)
Fig32 Compartment(for footboard)
Fig33 Battery assembly
Fig2 Handle assembly
Fig3 Switch box assembly
Fig4 Handle assembly
Fig5 Switch box assembly
Fig6 Stepped switch assembly
Fig? Driving system
Fig8 Gear box assembly(old)
Fig9 Gear box assembly(new)
Fig10 Driving motor
Fig11 Hydraulic system
Fig12 Hydraulic system
Fig13 Power system(old)
Fig14 Power system(new)
Fig15 Hydraulic power unit(old)
Fig16 Hydraulic power unit(new)
Fig17 Valve assembly(new)
Fig18 Frame(old)
Fig19 Frame(new)
Fig20 Front wheel assembly
Fig21 Balance wheel assembly
Fig22 Electric panel assembly(old)
Fig23 Electric panel assembly(new)
Fig24 Footboard assembly
Fig25 Mast assy-outer
Fig26 Cylinder assembly(new)
Fig27 Mast assy-middle
Fig28 Mast assy-inner
Fig29 Middle Cylinder assembly
Fig30 Fork & Carriage & Backrest(old)
Fig31 Fork(new)
Fig32 Compartment(for footboard)
Fig33 Battery assembly

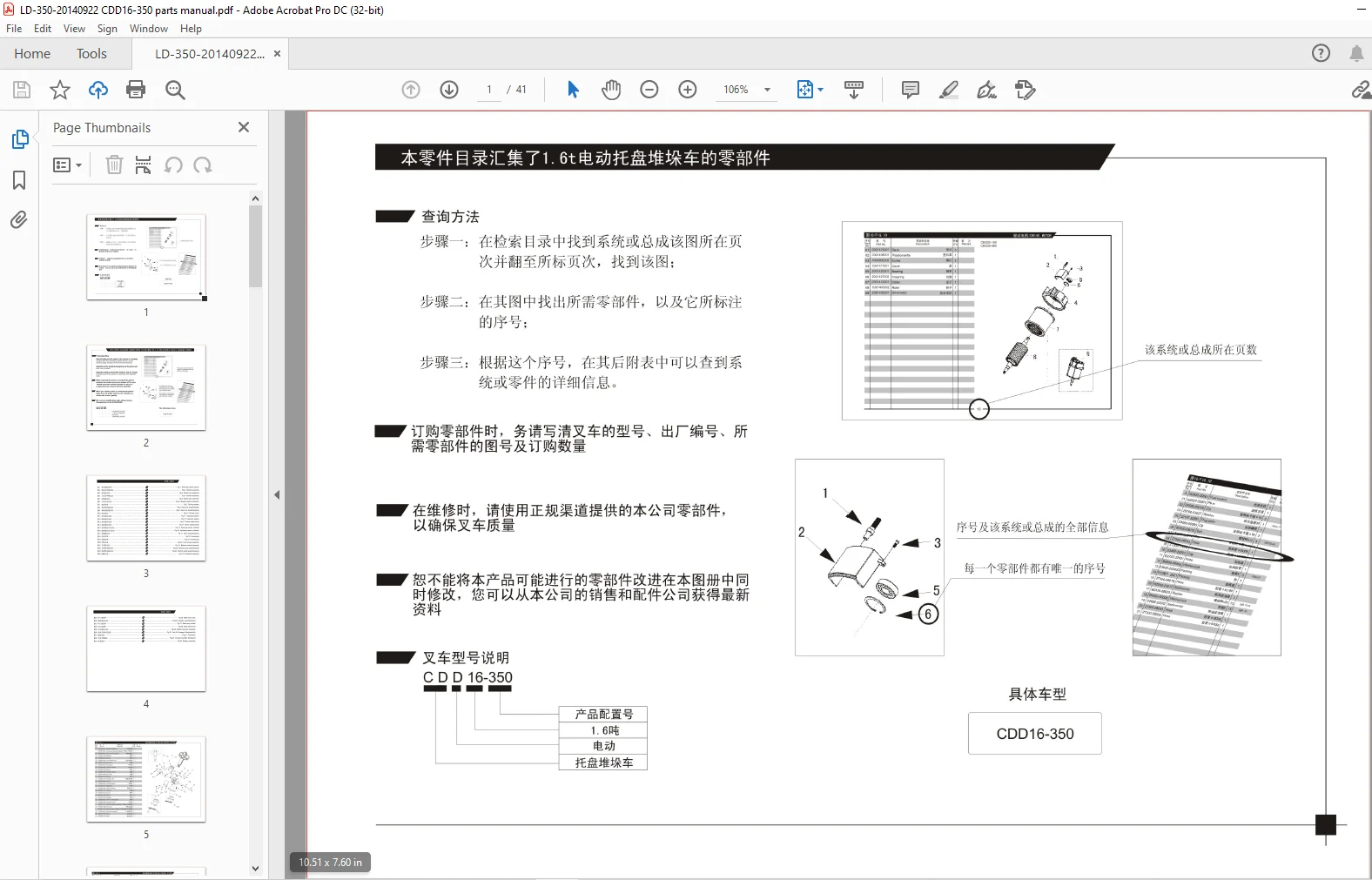

IMAGES PREVIEW OF THE MANUAL:
