Heli Forklift CQD14-850 Electric Front Reach Trucks Parts Manual
$17.95
Heli Forklift CQD14-850 Electric Front Reach Trucks Parts Manual – PDF DOWNLOAD
Description
Heli Forklift CQD14-850 Electric Front Reach Trucks Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli Forklift CQD14-850 Electric Front Reach Trucks Parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :38
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli Forklift CQD14-850 Electric Front Reach Trucks Parts Manual – PDF DOWNLOAD
Fig1 Steering control system
Fig2 Handle assembly
Fig3 Switch box assembly
Fig4 Stepped switch assembly
Fig5 Steering control system
, Fig6 Handle assembly
Fig7 Stepped switch assembly
Fig 8 Potentiometerassembly
Fig9 Driving system
Fig10 Gear box assembly
Fig11 Driving motor
Fig12 Hydraulic system
, Fig13 Hydraulic power unit
Fig14 Frame
Fig15 Frame
Fig16 Electric panel assembly
Fig17 Mast assy-outer
Fig18 Mast assy-middle
Fig19 Cylinder assembly
Fig20 Mast assy-inner
Fig21 Middle Cylinder assembly Fig22 Mast assy assembly
Fig23 Shear fork assembly
Fig24 Fork & Carriage & Backrest
Fig25 Fork & Carriage & Backrest
Fig26 Fork & Carriage & Backrest
Fig27 Incline cylinder assembly
Fig28 Incline cylinder
assembly Fig29 Incline cylinder assembly
Fig30 Battery assembly

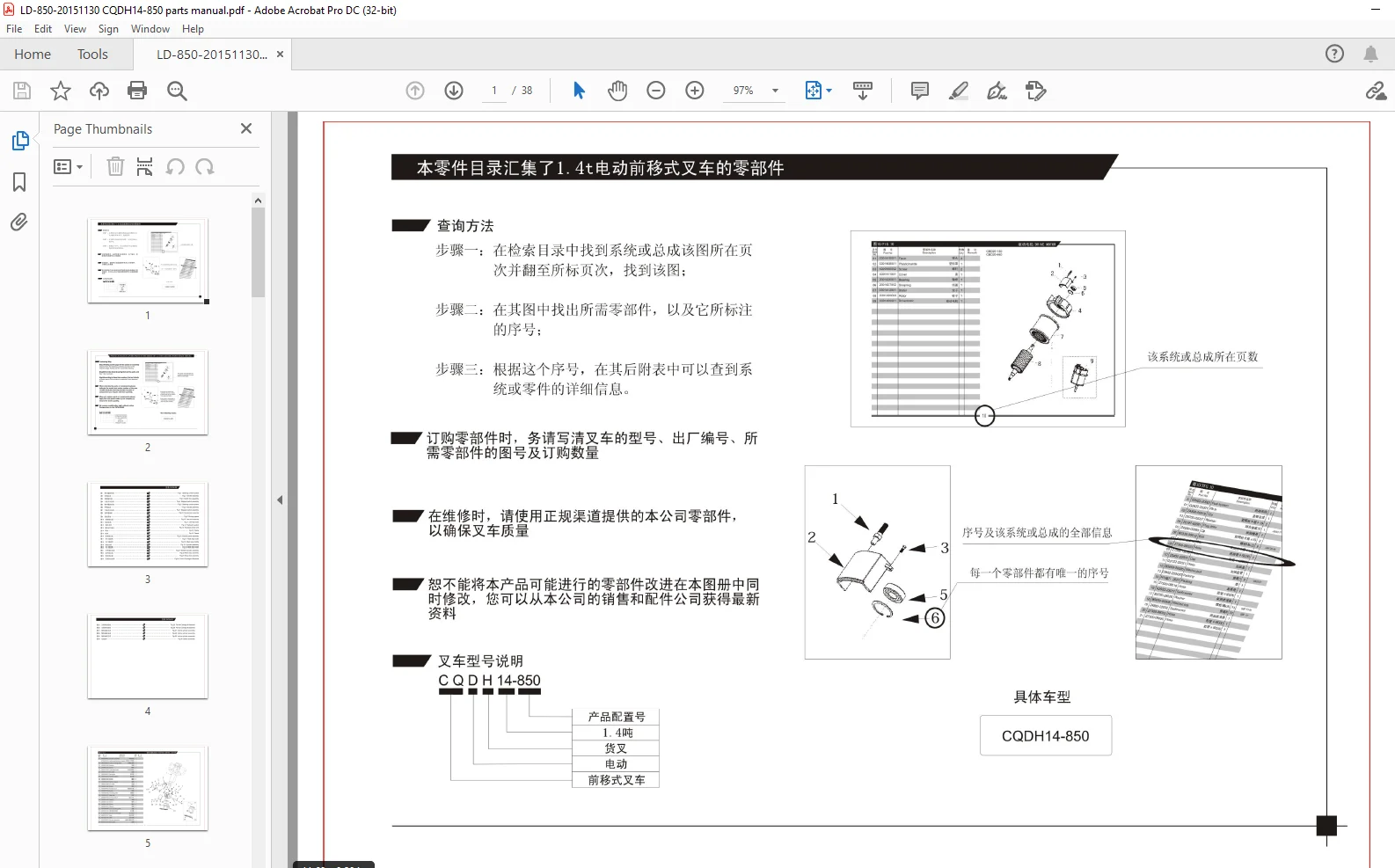

IMAGES PREVIEW OF THE MANUAL:
