Heli H Series 4-5t Balanceweight Forklift Engine Parts Manual – PDF DOWNLOAD
$17.95
Heli H Series 4-5t Balanceweight Forklift Engine Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Heli H Series 4-5t Balanceweight Forklift Engine Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli H Series 4-5t Balanceweight Forklift Engine Parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :130
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli H Series 4-5t Balanceweight Forklift Engine Parts Manual – PDF DOWNLOAD
Fig.1 Engine(CA4110)
Fig.2 Engine(S6S)
Fig.3 Engine(4RMG25-1)
Fig.2 Engine(S6S)
Fig.3 Engine(4RMG25-1)
Fig.4 Engine(GM4.3L)
Fig.5 Air Cleaner(GM4.3L)
Fig.6 Air Cleaner(CA4110/4RGM25-1)
Fig.7 Air Cleaner(S6S)
Fig.8 Cooling System(CA4110/4RGM25-1)
Fig.7 Air Cleaner(S6S)
Fig.8 Cooling System(CA4110/4RGM25-1)
Fig.9 Cooling System(S6S)
Fig.10 Coolng System(GM4.3L)
Fig.11 Exhaust System(CA4110/4RGM25-1)
Fig.12 Exhaust System(GM4.3L)
Fig.13 Exhaust System(S6S)
Fig.13 Exhaust System(S6S)
Fig.14 Fuel System(CA4110/4RGM25-1/S6S/4D35)
Fig.15 Fuel System(GM4.3L)
Fig.15 Fuel System(GM4.3L)
Fig.16 Torque Converter Oil Cooling System
Fig.17 Electric System(CA4110/4RGM25-1/S6S)
Fig.18 Electric System(GM4.3L)
Fig.19 Drive Unit
Fig.19 Drive Unit
Fig.20 Drive Axle
Fig.22 Drive Axle(Double Tire)
Fig.23 Drive Wheel(Double Tire)
Fig.24 Wheel Brake
Fig.25 Steering System
Fig.26 Steering Axle
Fig.27 Steering Cylinder
Fig.28 Steering Wheel
Fig.29 Accelerator Pedal(CA4110/4RGM25-1/S6S)
Fig.28 Steering Wheel
Fig.29 Accelerator Pedal(CA4110/4RGM25-1/S6S)
Fig.30 Accelerator Pedal(GM4.3L)
Fig.31 Brake & Clutch Control
Fig.32 Brake Lever
Fig.33 Frame & Counter Weight
Fig.34 HoodใFloor Board & Seat
Fig.35 Hydraulic Oil Tank
Fig.34 HoodใFloor Board & Seat
Fig.35 Hydraulic Oil Tank
Fig.36 Valve Control Linkage(TWO-THROW)
Fig.37 Valve Control Linkage(THREE-THROW)
Fig.38 Valve Control Linkage(FOUR-THROW)
Fig.39 Valve Control Linkage(FIVE-THROW)
Fig.37 Valve Control Linkage(THREE-THROW)
Fig.38 Valve Control Linkage(FOUR-THROW)
Fig.39 Valve Control Linkage(FIVE-THROW)
Fig.40 Hydraulic System
Fig.41 Hydraulic System Mast
Fig.42 Mast
Fig.43 Fork & Lift Bracket
Fig.44 Lift Cylinder
Fig.43 Fork & Lift Bracket
Fig.44 Lift Cylinder
Fig.45 Tilt Cylinder
Fig.46 Overhead Guard
Fig.46 Overhead Guard
Fig.47 Decal
Fig.48 Engine(CA4110)
Fig.48 Engine(CA4110)
Fig.49 Engine(4D35G)
Fig.50 Air Cleaner(4D35G)
Fig.51 Air Cleaner(CA4110)
Fig.52 Cooling System(4D35G)
Fig.51 Air Cleaner(CA4110)
Fig.52 Cooling System(4D35G)
Fig.53 Cooling System(CA4110)
Fig.54 Exhaust System(4D35G/CA4110)
Fig.55 Drive Axle(4D35G/CA4110)
Fig.56 Reduction & Differential(4D35G/CA4110)
Fig.57 Wheel Brake(4D35G/CA4110)
Fig.58 Electric System(4D35G)
Fig.59 Electric System(CA4110)
Fig.57 Wheel Brake(4D35G/CA4110)
Fig.58 Electric System(4D35G)
Fig.59 Electric System(CA4110)
Fig.60 Drive Unit(4D35G/CA4110)
Fig.61 Accelerator Pedal(CA4110)
Fig.62 Accelerator Pedal(4D35G)
Fig.63 Frame & Counter Weight(4D35G/CA4110)
Fig.64 Brake & Clutch Control(4D35G/CA4110)
Fig.65 HoodใFloor Board & Seat(4D35G/CA4110)
Fig.66 Insulator & Mat(4D35G/CA4110)
Fig.67 Hydraulic oil Tank(4D35G/CA4110)
Fig.68 Hydraulic System(4D35G/CA4110)
Fig.69 Fork & Lift Bracket(Full Free 2-stage Mast)
Fig.69 Fork & Lift Bracket(Full Free 2-stage Mast)
Fig.70 Back Lift Cylinder(Full Free 2-stage Mast)
Fig.71 Mast(Full Free 2-stage Mast)
Fig.72 Front Lift Cylinder(Full Free 2-stage Mast)
Fig.72 Front Lift Cylinder(Full Free 2-stage Mast)
Fig.73 Hydraulic System Mast(Full Free 2-stage Mast)
Fig.74 Hydraulic System Mast(Full Free 3-stage Mast)
Fig.75 Mast(Full Free 3-stage Mast)
Fig.76 Fork & Lift Bracket(Full Free 3-stage Mast)
Fig.77 Front Lift Cylinder(Full Free 3-stage Mast)
Fig.77 Front Lift Cylinder(Full Free 3-stage Mast)
Fig.78 Back Lift Cylinder(Full Free 3-stage Mast)
Fig.79 Hydraulic System(For Attachment)
Fig.80 Hydraulic System(For Attachment
Fig.81 Hydraulic System(For Attachment)
Fig.82 Hydraulic System(For Attachment)
Fig.83 Hydraulic System(For Attachment)
Fig.84 Hydraulic System(For Attachment)
Fig.85 Hydraulic System(For Attachment)
Fig.86 Hydraulic System(For Attachment)
Fig.85 Hydraulic System(For Attachment)
Fig.86 Hydraulic System(For Attachment)

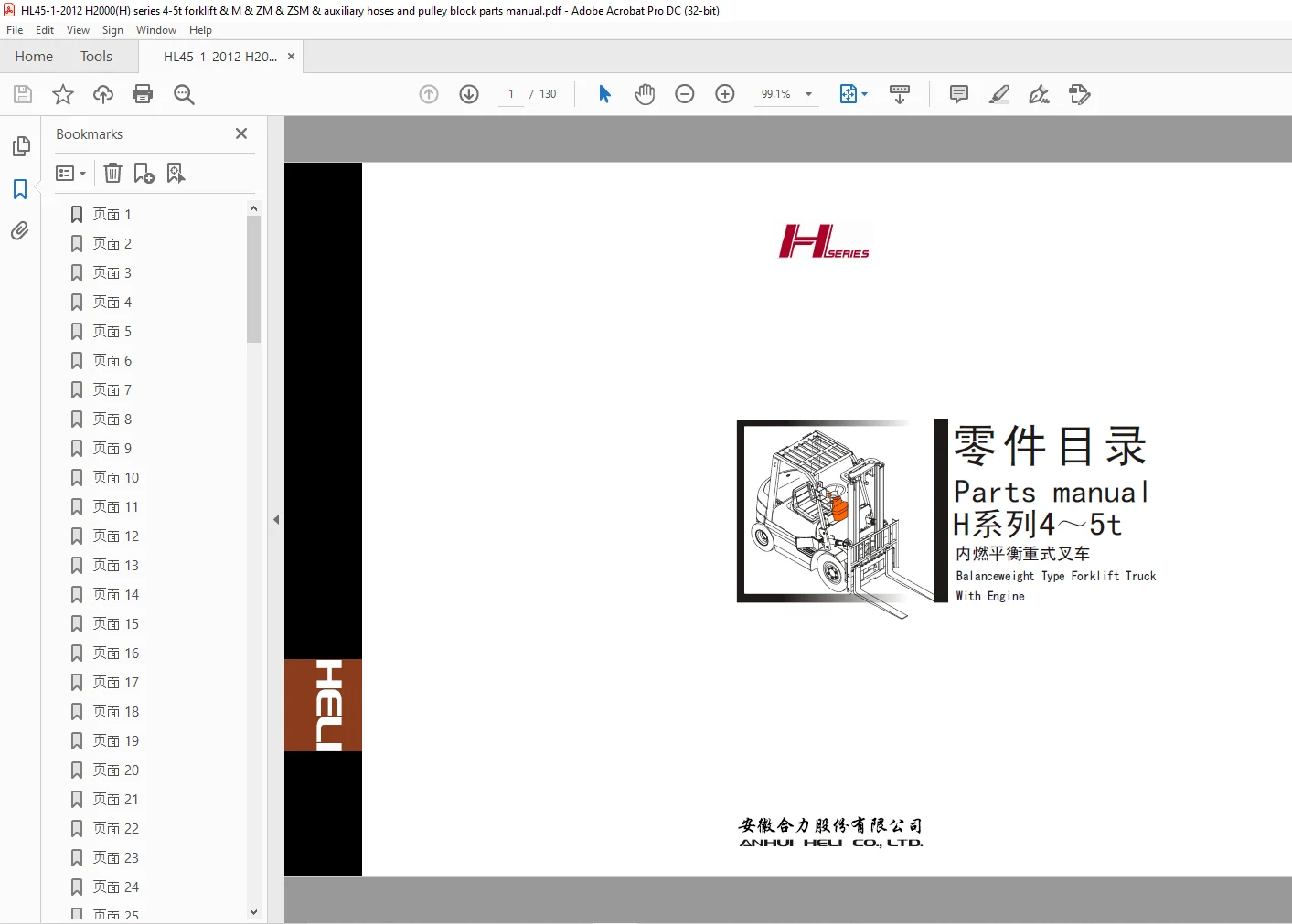

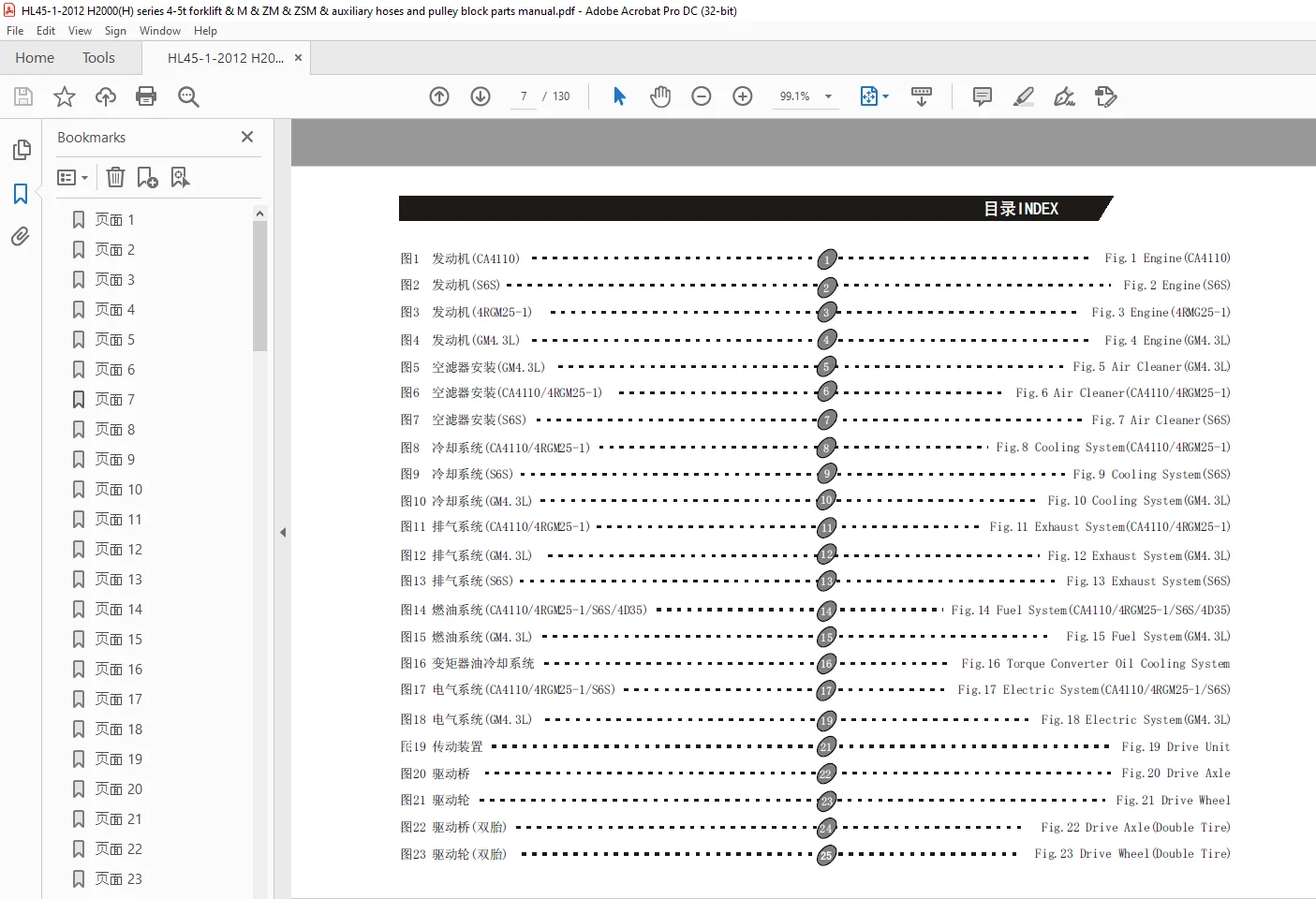

IMAGES PREVIEW OF THE MANUAL:
