Heli H Series 4-5t Counterbalanced Type Forklift Truck With Engine parts manual
$24.95
Heli H Series 4-5t Counterbalanced Type Forklift Truck With Engine parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Heli H Series 4-5t Counterbalanced Type Forklift Truck With Engine parts Manual – PDF DOWNLOAD
FILE DETAILS:
Heli H Series 4-5t Counterbalanced Type Forklift Truck With Engine parts Manual – PDF DOWNLOAD
Language : English,Chinese
Pages :12
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Heli H Series 4-5t Counterbalanced Type Forklift Truck With Engine parts Manual – PDF DOWNLOAD
Fig.1 Engine(CA4110)
Fig.2 Engine(S6S)
Fig.3 Engine(4RMG25-1)
.4 Engine(GM4.3L)
Fig.5 Engine(GM4.3L)
Fig.6 Engine(VM )
Fig.7 Air Cleaner(GM4.3L)
Fig.8 Air Cleaner(CA4110/4RGM25-1/S6S)
Fig.9 Air Cleaner(VM)
Fig.10 Cooling System(CA4110/4RGM25-1/S6S)
Fig.11 Cooling System(VM)
Fig.12 Cooling System(GM4.3L)
Fig.13 Exhaust System(CA4110/4RGM25-1/S6S)
Fig.14 Exhaust System(GM4.3L)
Fig.15 Exhaust System(VM)
Fig.16 Exhaust System(GM4.3L)
Fig.16 Exhaust System(GM4.3L)
Fig.17 Fuel System(CA4110/4RGM25-1/S6S/4D35/4C6-M)Fig.18 Fuel System(GM4.3L)
Fig.19 Inter-cooled System(VM)
Fig.20 Torque Converter Oil Cooling System
Fig.20 Torque Converter Oil Cooling System
Fig.21 Electric System(CA4110/4RGM25-1/S6S)
Fig.22 Electric System(GM4.3L
Fig.23 Electric System(VM)
Fig.24 Drive Unit
Fig.24 Drive Unit
Fig.25 Drive Axle
Fig.26 Wheel Brake
Fig.27 Drive Wheel
Fig.28 Drive Axle
Fig.29 Steering System
Fig.30 Steering Axle
Fig.31 Steering Cylinder
Fig.32 Steering Wheel
Fig.33 Accelerator Pedal(CA4110/4RGM25-1/S6S)
Fig.34 Accelerator Pedal(GM4.3L/VM)
Fig.35 Brake & Clutch Control
Fig.35 Brake & Clutch Control
Fig.36 Brake Lever
Fig.37 Frame & Counter Weight
Fig.38 Hood、Floor Board & Seat
Fig.39 Hydraulic Oil Tank
Fig.40 Valve Control Linkage(TWO-THROW)
Fig.41 Valve Control Linkage(THREE-THROW)
Fig.42 Valve Control Linkage(FOUR-THROW)
Fig.43 Valve Control Linkage(FIVE-THROW)
Fig.44 Hydraulic System
Fig.44 Hydraulic System
Fig.45 Hydraulic System Mast
Fig.46 Mast
Fig.47 Fork & Lift Bracker
Fig.48 Lift Cylinder
Fig.49 Overhead Guard
Fig.49 Overhead Guard
Fig.50 Tilt Cylinder
Fig.51 Engine(CA4110/4D35/4C6-M)
Fig.52 Decal
Fig.52 Decal
Fig.53 Air Cleaner(4D35G/4C6-M)
Fig. 54 Air Cleaner( CA 4110 )
Fig.55 Cooling System(4D35G/4C6-M)
Fig. 56 Cooling System( CA 4110 )
Fig.57 Exhaust System(4D35G/4C6-M/CA4110)
Fig.58 Drive Axle(4D35G/4C6-M/CA4110)
Fig.59 Reduction & Differential(4D35G/4C6-M/CA4110)
.59 Wheel Brake(4D35G/4C6-M/CA4110)
Fig.61 Electric System(4D35G/4C6-M)
Fig.62 Electric System(CA4110)
Fig.63 Drive Unit(4D35G/4C6-M/CA4110)
Fig.63 Drive Unit(4D35G/4C6-M/CA4110)
Fig.64 Accelerator Pedal(CA4110)
Fig.65 Accelerator Pedal(4C6-M/4D35G)
Fig.66 Frame & Counter Weight(4D35G/4C6-M/CA4110)
Fig.67 Brake & Clutch Control(4D35G/4C6-M/CA4110)
Fig.68 Hood、Floor Board & Seat(4D35G/4C6-M/CA4110)
Fig.69 Insulator & Mat
Fig.69 Insulator & Mat
Fig.70 Hydraulic oil Tank(4D35G/4C6-M/CA4110)
Fig.71 Hydraulic System(4D35G/4C6-M/CA4110)
Fig.72 Fork & Lift Bracket(Full Free 2-stage Mast)
Fig.73 Back Lift Cylinder(Full Free 2-stage Mast)
Fig.74 Mast(Full Free 2-stage Mast)
Fig.75 Front Lift Cylinder(Full Free 2-stage Mast)
Fig.75 Front Lift Cylinder(Full Free 2-stage Mast)
Fig.76 Hydraulic System Mast(Full Free 2-stage Mast)
Fig.77 Hydraulic System Mast(Full Free 3-stage Mast)
Fig.78 Mast(Full Free 3-stage Mast)
Fig.78 Mast(Full Free 3-stage Mast)
Fig.79 Fork & Lift Bracket(Full Free 3-stage Mast)
Fig.80 Front Lift Cylinder(Full Free 3-stage Mast)
Fig.81 Back Lift Cylinder(Full Free 3-stage Mast)
Fig.82 Hydraulic System(For Attachment)
Fig.83 Hydraulic System(For Attachment)
Fig.84 Hydraulic System(For Attachment)
Fig.84 Hydraulic System(For Attachment)
Fig.85 Hydraulic System(For Attachment)
Fig.86 Hydraulic System(For Attachment)

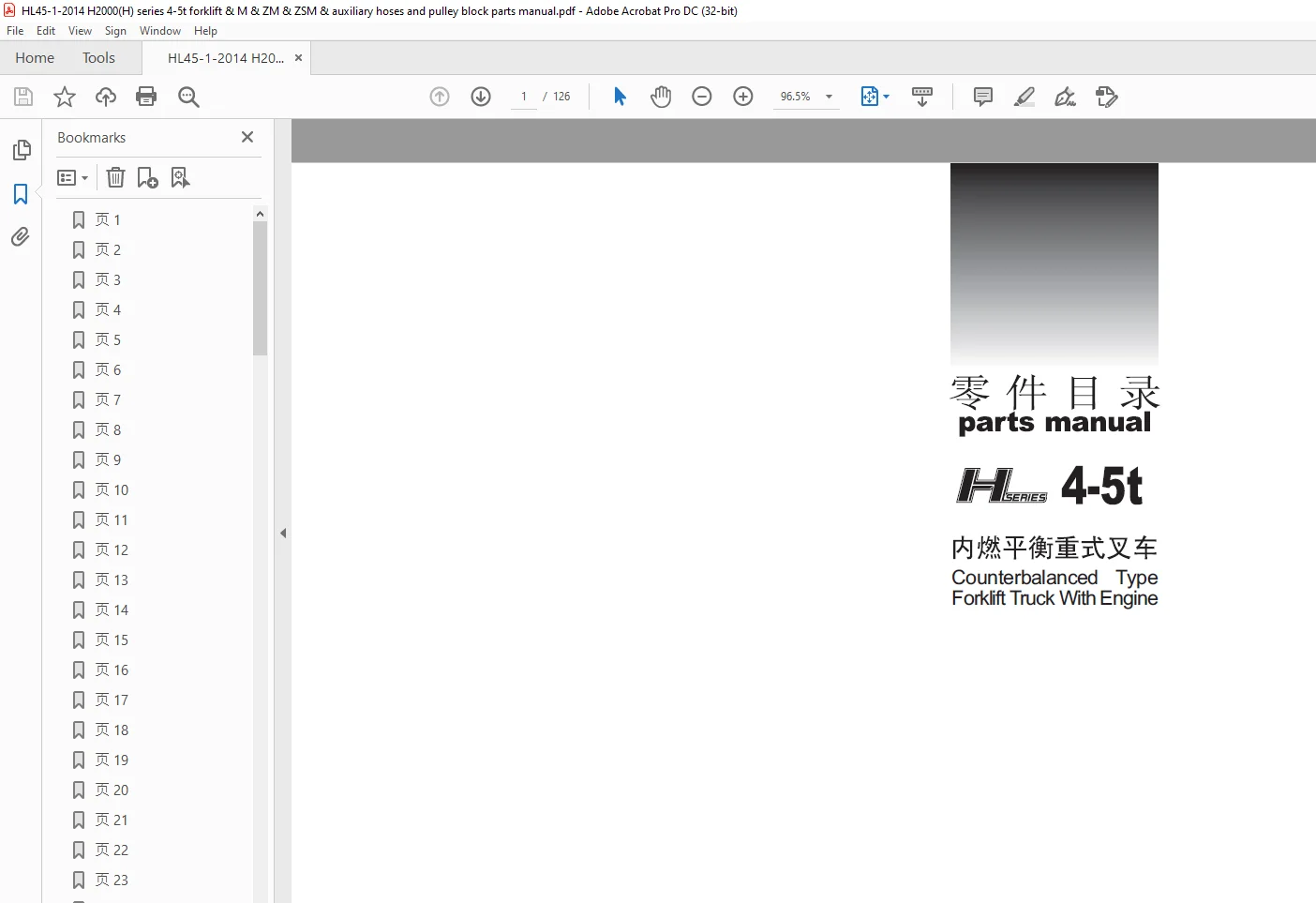

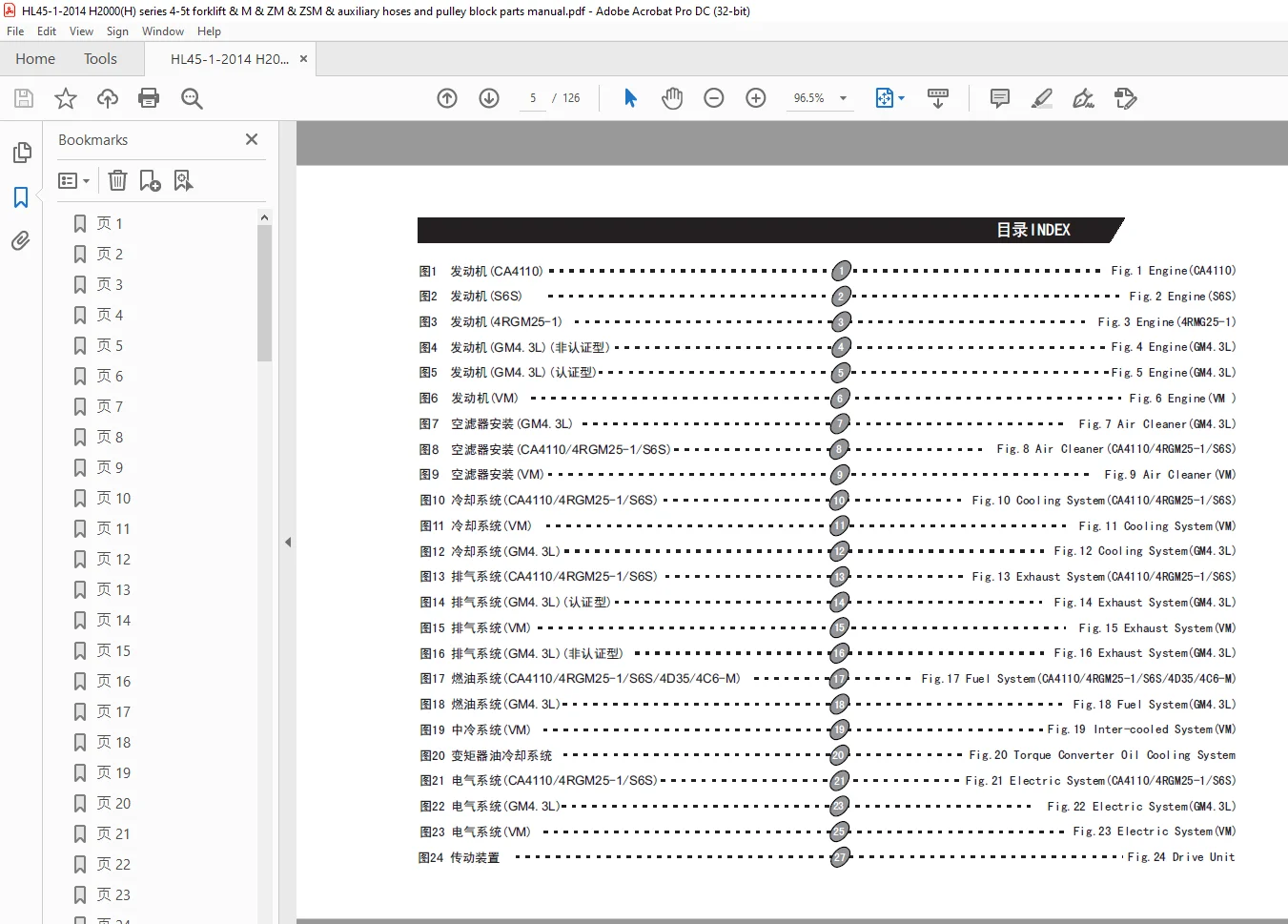

IMAGES PREVIEW OF THE MANUAL:
