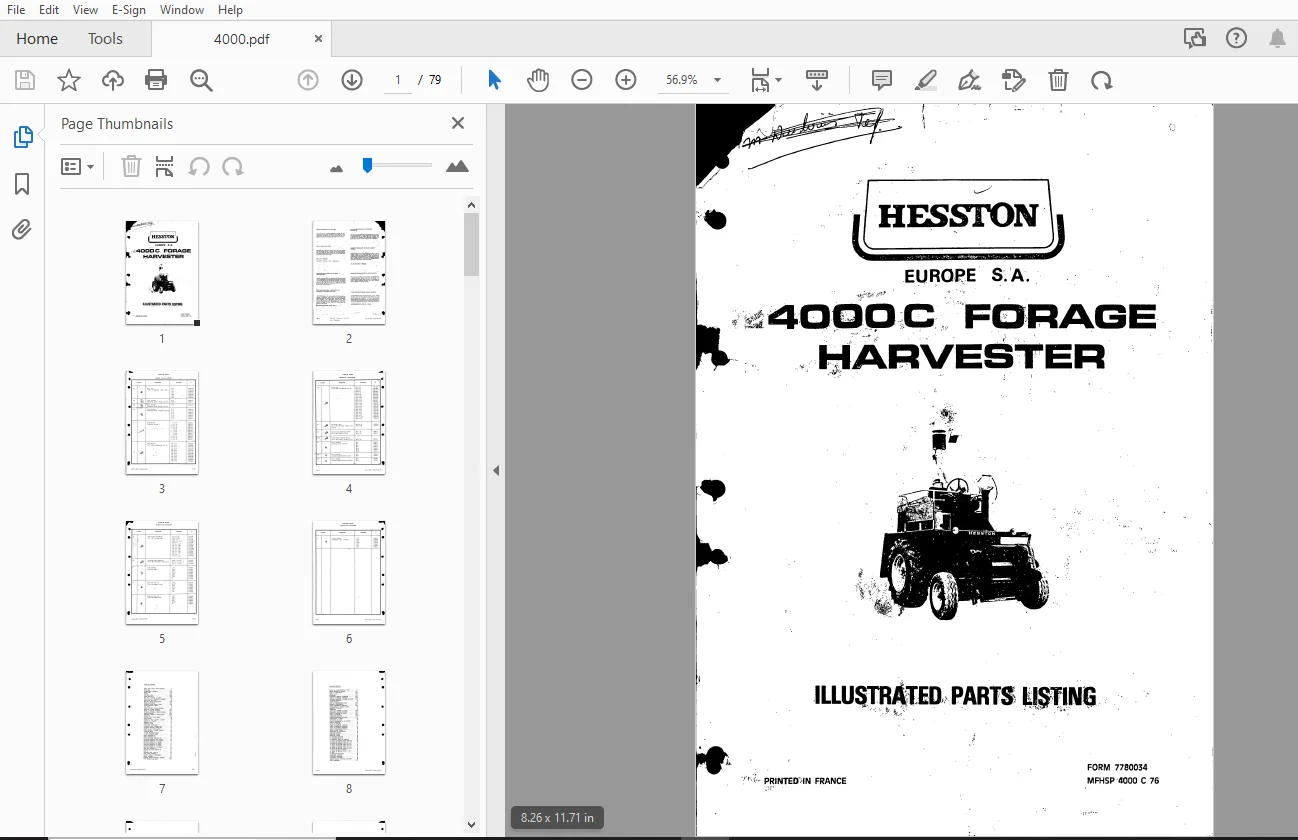

Hesston 4000C Forage Harvester Parts Manual – PDF

WHEEL GEAR CASE & BRAKE ASSEMBLY
REAR AXLE
TRANSMISSION ASSEMBLY
BLOWER
FEED ROLL DRIVE
UPPER FEED ROLLS
FEED ROLL HOUSING & CUTTER
KNIFE BOX LID & SHARPENER ASSEMBLY
MAIN DRIVE GEAR BOX
FEED ROLL DRIVE TRANSMISSION
ENGINE ACCESSORIES
HYDRAULIC PUMP DRIVE & LINES
U-JOINT ASSEMBLY (1000 RPM)
FUEL TANK
POWER TAKE-OFF CLUTCH ASSEMBLY
RADIATOR & HOOD SUPPORT
BRAKE & THROTTLE CONTROLS
PLATFORM, CONSOLE & HOOD ASSEMBLY
WIRING ASSEMBLY
CONTROLS, LINKAGE & MISCELLANEOUS
HYDRAULICS
CONTROL VALVE (TWO SPOOL)
FLOW DIVIDER
STEERING & SPOUT CONTROL CYLINDER
HEADER LIFT CYLINDER
STEERING VALVE
HYDRAULIC PUMP
MAIN DRIVE HYDRAULICS
HYDRAULIC PUMP & REPAIR KITS
HYDRAULIC MOTOR & REPAIR KITS
HYDRAULIC OIL FILTER (GUIDE)
SPOUT CONTROL & HEADER LINKAGE
STANDARD SPOUT
13 FOOT FOLD-DOWN SPOUT
15 FOOT FOLD-DOWN SPOUT
SPOUT EXTENSION KIT
STOUT EXTENSION KIT
RE-CUTTER SCREEN MOUNTING KIT
RECUTTER SCREEN KIT (3/4″ HOLES)
RECUTTER SCREEN KIT (1-1/2″ HOLES)
RECUTTER SCREEN KIT (1″ HOLES)
RECUTTER SCREEN KIT (2″ HOLES)
RECUTTER SCREEN KIT (3″ HOLES)
RECUTTER SCREEN KIT (4″ HOLES)
RE-CUTTER SCREEN KIT (1/2″ HOLES)
FEED ROLL GRIPPER KIT
HAYLAGE RE-CUTTER SCREEN KIT
RASP KIT
AUXILIARY FUEL TANK KIT
KNIFE INDEX ASSEMBLY
ELECTRIC MOTOR & ACCESSORIES
CRANK ASSEMBLY
ELECTRIC MOTOR MOUNTING ASSEMBLY
PART NUMBER PAGE INDEX
