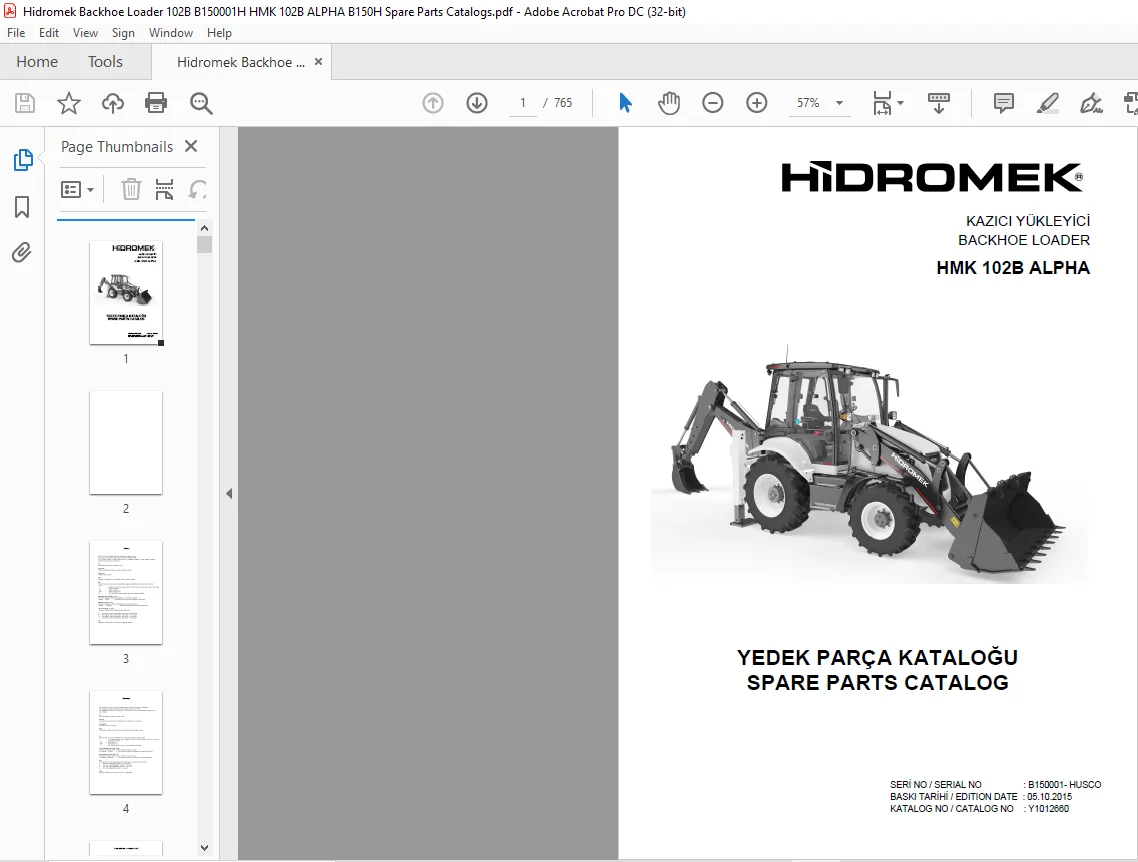

Hidromek Backhoe Loader HMK 102B ALPHA Parts Catalog Manual EN_TR SN B150001- HUSCO – PDF DOWNLOAD

Description

Hidromek Backhoe Loader HMK 102B ALPHA Parts Catalog Manual EN_TR SN B150001- HUSCO – PDF DOWNLOAD

FILE DETAILS:

Hidromek Backhoe Loader HMK 102B ALPHA Parts Catalog Manual EN_TR SN B150001- HUSCO – PDF DOWNLOAD

Language : Turkish & English
Pages : 765
Downloadable : Yes
File Type : PDF
Size: 50.7 MB

TABLE OF CONTENTS: (English & Turkish – Both languages present)

Hidromek Backhoe Loader HMK 102B ALPHA Parts Catalog Manual EN_TR SN B150001- HUSCO – PDF DOWNLOAD

A MOTOR SİSTEMİ ENGINE SYSTEM

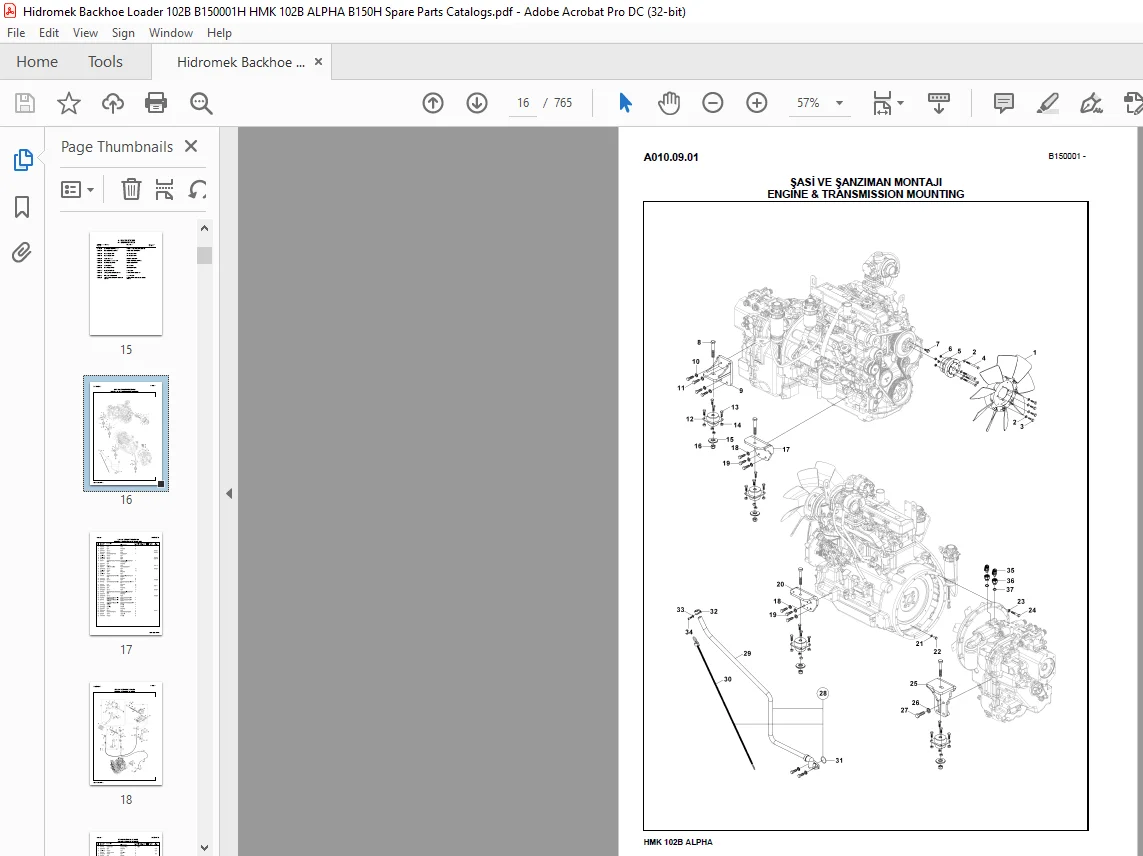

A010.09.01 ŞASİ VE ŞANZIMAN MONTAJI ENGINE & TRANSMISSION MOUNTING
A020.06.01 MOTOR KONTROL SİSTEMİ ENGINE CONTROL SYSTEM
A030.00.01 HAVA EMİŞ SİSTEMİ AIR INTAKE SYSTEM
A030.01.01 HAVA EMİŞ SİSTEMİ AIR INTAKE SYSTEM
A040.00.01 EGZOZ MONTAJI EXHAUST ASSEMBLY

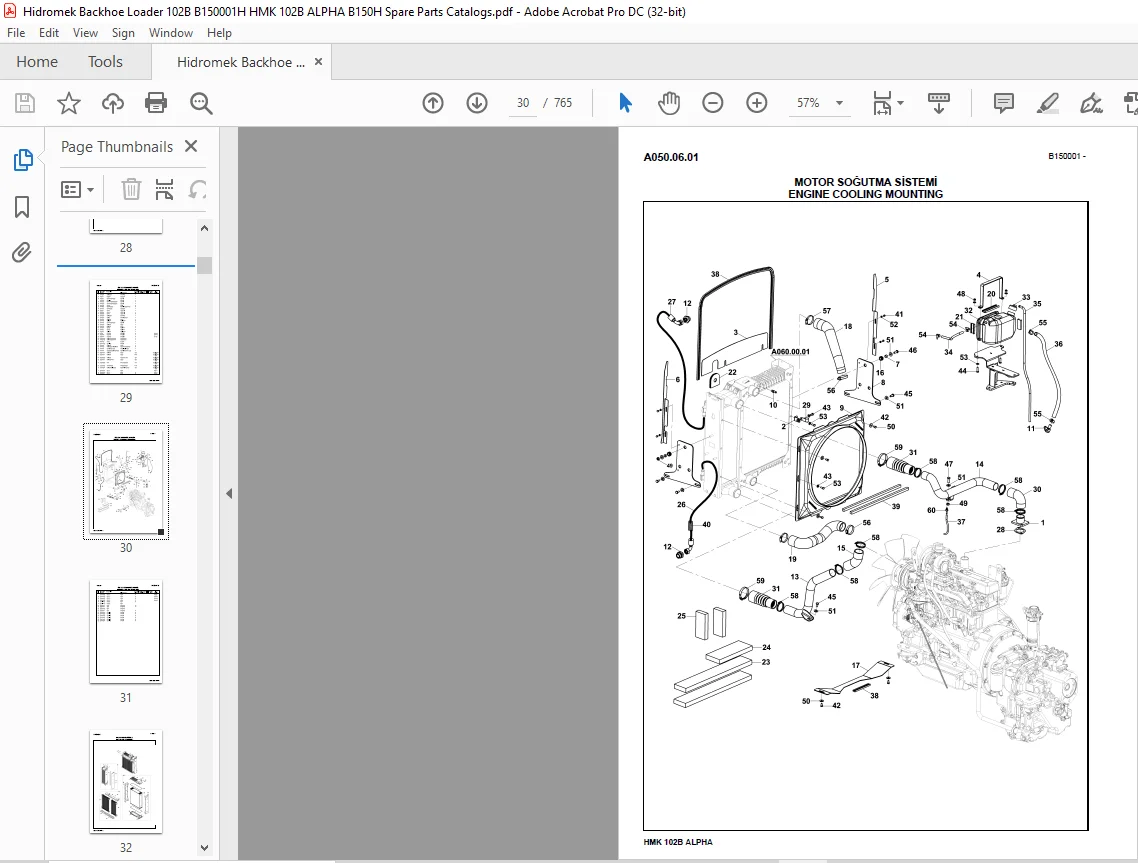

A050.06.01 MOTOR SOĞUTMA SİSTEMİ ENGINE COOLING MOUNTING
A060.00.01 RADYATÖR KOMPLESİ RADIATOR ASSEMBLY
A070.06.01 YAKIT SİSTEMİ FUEL SYSTEM
A080.02.01 KABİN İÇİ KOMPLESİ INSIDE CABIN ASS’Y.
A080.02.02 KALORİFER ÜNİTESİ HEATER UNIT
A080.04.01 ISITMA, HAVALANDIRMA SİSTEMİ HEATING VENTING SYSTEM
A090.02.02 KLİMA ÜNİTESİ KOMPLESİ A/C UNIT ASS’Y
A090.03.01 ISITMA, HAVALANDIRMA VE SOĞUTMA SİSTEMİ HEATING VENTING AIR CONDITIONING SYSTEM
B ŞASİ VE KAPORTA FRAME & COWLING
B010.13.01 ŞASİ MAIN FRAME
B020.00.01 AYAK, KIZAK STABILIZER, SIDESHIFT
B040.00.01 KIZAK PAPUCU STABILIZER PADS
B050.00.01 DÖNÜŞ TABLASI KINGPOST CARRIAGE
B060.00.01 DÖNÜŞ KUTUSU KINGPOST
B070.01.01 BOM KİLİDİ VE MEKANİZMASI BOOM LOCK AND MECHANISM
B080.01.01 KAPUT – PANEL – PANJUR – YAN KAPAK
MONTAJI
BONNET – PANEL – FRONT GRILL – SIDE COVER
MOUNTING
B090.03.01 ÖN TEKER VE ÇAMURLUK FRONT WHELL AND FENDER
B090.04.01 ÇAMURLUK, ÖN FENDER , FRONT
B100.03.01 ÇAMURLUK, ARKA FENDER, REAR
C KABİN OPERATOR CAB
C010.02.01 KABİN VE BAĞLANTI TAKOZLARI CAB & CAB MOUNTING
C020.01.01 KABİN CABIN
C030.01.01 KAPI VE CAMLAR, SOL DOOR AND WINDOW, LH
C040.00.01 KABİN CABIN
C050.02.01 KABİN DONANIMI CAB ACCESSORIES
C060.01.01 KABİN AKSESUAR KOMPLESİ CABIN ACCESSORIES ASSEMBLY
C060.03.01 KABİN (JOYSTİK MEKANİZMALI) (OP) CAB (JOYSTICK MECHANISM) (OP)
A080.02.01 KABİN İÇİ KOMPLESİ INSIDE CABIN ASS’Y.
C080.01.01 KABİN İÇİ KOMPLE INSIDE CABIN ASS’Y.
C090.01.01 KABİN İÇİ KOMPLE INSIDE CABIN ASS’Y.
C110.01.01 JOYSTİCK MEKANİZMASI, SAĞ JOYSTICK MECHANISM, RH
C120.01.01 JOYSTİCK MEKANİZMASI, SOL JOYSTICK MECHANISM, LH
C130.01.01 DİREKSİYON KOMPLESİ STEERING ASSEMBLY
C140.00.02 KOLTUK KOMPLESİ SEAT ASSEMBLY
C140.01.02 KOLTUK KOMPLESİ SAET ASSEMBLY
C140.02.01 KOLTUK MONTAJI SEAT MOUNTING
C140.03.01 KOLTUK MONTAJI, HAVA SÜSPANSİYONLU SEAT MOUNTIMG, WITH AIR SUSPANSION
D ATAÇMAN ATTACHMENT
D010.00.01 YÜKLEYİCİ KOL MONTAJI (1) LOADER ARM MOUNTING (1)
D010.00.02 YÜKLEYİCİ KOL MONTAJI (2) LOADER ARM MOUNTING (2)
İÇİNDEKİLER / CONTENTS
D010.00.03 YÜKLEYİCİ KOL MONTAJI (3) LOADER ARM MOUNTING (3)
D020.00.01 AÇILIR KEPÇE (1.1 m3) MULTIPORPUSE BUCKET, LOADER (1.1 m3)
D020.01.01 AÇILIR KEPÇE (1.3 m3) (OP) MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP)
D020.02.01 AÇILIR KEPÇE (ÇABUK SÖK TAKLI) (OP) MULTIPURPOSE BUCKET, LOADER(WITH QUICK
COUPLER)(OP)
D020.03.01 AÇILIR KEPÇE (1 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1 m3) (OP)
D020.04.01 AÇILIR KEPÇE (1,2 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP)
D030.00.01 SABİT KEPÇE (1.2 m3) (OP) SHOVEL (1.2 m3) (OP)
D030.01.01 SABİT KEPÇE (1.5 m3) (OP) SHOVEL (1.5 m3) (OP)
D030.02.01 BAĞLANTI MONTAJ KİTİ, YÜKLEYİCİ (KEPÇESİZ)
(OP)
CONNECTION MOUNTING, LOADER (NO BUCKET) (OP)
D040.00.01 TESVİYE KÜREĞİ (716×2800) (OP) LEVELLING BLADE (716×2800) (OP)
D040.01.01 TESVİYE KÜREĞİ (900×2800) (OP) LEVELLING BLADE (900×2800) (OP)
D040.02.01 TESVİYE KÜREĞİ (ÇABUK SÖK TAKLI, 716x 2800)
(OP)
LEVELLING BLADE WITH QUICK COUPLER
(716×2800)(OP)
D040.03.01 TESVİYE KÜREĞİ (ÇABUK SÖK TAKLI, 900x 2800)
(OP)
LEVELLING BLADE WITH QUICK COUPLER(900x
2800)(OP)
D040.04.01 TESVİYE KÜREĞİ (ÇİFT EKSENLİ) (OP) LEVELLING BLADE (DOUBLE AXIS) (OP)
D050.00.01 TOMRUK YÜKLEYİCİ (2+1 TIRNAKLI) (OP) LOG GRAPPLE (2+1 CLAMP) (OP)
D050.01.01 TOMRUK YÜKLEYİCİ, (HAREKETLİ, Ø200mm)
(OP)
LOG GRAPPLE, (WITH VERTICAL MOVEMENT Ø200mm)
(OP)
D050.02.01 TOMRUK YÜKLEYİCİ, (HAREKETLİ, Ø500mm) LOG GRAPPLE, (WITH VERTICAL MOVEMENT Ø500mm)
D050.03.01 TOMRUK YÜKLEYİCİ (3+2 TIRNAKLI) LOG GRAPPLE (3+2 CLAMP)
D060.00.01 FORKLİFT APARATI (AÇILIR KEPÇE) (OP) FORKLIFT (MULTIPURPOSE BUCKET) (OP)
D060.01.01 FORKLİFT APARATI (SABİT KEPÇE 1.2 m3) (OP) FORKLIFT (SHOVEL 1.2 m3) (OP)
D060.02.01 FORKLİFT APARATI (SABİT KEPÇE 1.5 m3) (OP) FORKLIFT (SHOVEL 1.5 m3) (OP)
D070.00.01 ÇABUK SÖK TAK (YÜKLEYİCİ KEPÇE) (OP) QUICK COUPLER (LOADER) (OP)
D080.00.01 BOM MONTAJI BOOM MOUNTING
D090.00.01 ARM MONTAJI ARM MOUNTING
D090.02.01 TELESKOPİK ARM MONTAJI (OP) TELESCOPIC ARM MOUNTING (OP)
D100.00.01 KEPÇE BAĞLANTISI BUCKET LINKAGE
D110.00.01 KEPÇE, KAZICI (300 mm) BUCKET, BACKHOE (300 mm)
D110.01.01 KEPÇE, KAZICI (350 mm) BUCKET, BACKHOE (350 mm)
D110.02.01 KEPÇE, KAZICI (400 mm) BUCKET, BACKHOE (400 mm)
D110.03.01 KEPÇE, KAZICI (500 mm) BUCKET, BACKHOE (500 mm)
D110.04.01 KEPÇE, KAZICI (600 mm) BUCKET, BACKHOE (600 mm)
D110.05.01 KEPÇE, KAZICI (700 mm) BUCKET, BACKHOE (700 mm)
D110.06.01 KEPÇE, KAZICI (800 mm) BUCKET, BACKHOE (800 mm)
D110.07.01 KEPÇE, KAZICI (900 mm) BUCKET, BACKHOE (900 mm)
D110.09.01 BAĞLANTI MONTAJ KİTİ, KAZICI (KEPÇESİZ) (OP) CONNECTION MOUNTING, BACKHOE (NO BUCKET) (OP)
D120.00.01 DÖNERLİ KANAL KEPÇESİ (OP) TILTING BUCKET (OP)
D130.00.01 KEPÇE, KAZICI (TRAPEZ) BUCKET, BACKHOE (TRAPEZE)
D140.00.01 ÇABUK SÖK TAK, KAZICI (OP) QUICK COUPLER, BACKHOE (OP)
D150.00.01 KIRICI MONTAJI (MONTABERT- SC 36) (OP) BREAKER MOUNTING (MONTABERT- SC 36) (OP)
D150.00.02 KIRICI KOMPLESİ (MONTABERT- SC 36) (OP) BREAKER ASSEMBLY (MONTABERT- SC 36) (OP)
D150.01.01 KIRICI MONTAJI (MONTABERT- SC 28) (OP) BREAKER MOUNTING (MONTABERT- SC 28) (OP)
D150.01.02 KIRICI KOMPLESİ (MONTABERT- SC 28) (OP) BREAKER ASSEMBLY (MONTABERT- SC 28) (OP)
D150.04.01 KIRICI MONTAJI (DEMO DMB50) (OP) BREAKER MOUNTING (DEMO DMB50) (OP)
D150.04.02 KIRICI KOMPLESİ (DEMO DMB50) (OP) BREAKER ASSEMBLY (DEMO DMB50) (OP)
D150.05.01 KIRICI MONTAJI (DEMO DMB70) (OP) BREAKER MOUNTING (DEMO DMB70) (OP)
İÇİNDEKİLER / CONTENTS
D150.05.02 KIRICI KOMPLESİ (DEMO DMB70) (OP) BREAKER ASSEMBLY (DEMO DMB70) (OP)
D150.06.01 KIRICI MONTAJI (LIFTON LH 360) (OP) BREAKER MOUNTING (LIFTON LH 360) (OP)
D150.06.02 KIRICI KOMPLESİ (LIFTON LH 360) (OP) BREAKER ASSEMBLY (LIFTON LH 360) (OP)
D150.07.01 KIRICI MONTAJI (TOKU) (OP) BREAKER MOUNTING (TOKU) (OP)
D150.07.02 KIRICI KOMPLESİ (TOKU) (OP) BREAKER ASSEMBLY (TOKU) (OP)
D150.08.01 KIRICI MONTAJI (MONTABERT- HKR 140) (OP) BREAKER MOUNTING (MONTABERT-HKR 140) (OP)
D150.08.02 KIRICI KOMPLESİ (MONTABERT- HKR 140) (OP) BREAKER ASSEMBLY (MONTABERT- HKR 140) (OP)
D150.09.01 KIRICI MONTAJI (MONTABERT- 95) (OP) BREAKER MOUNTING (MONTABERT- 95) (OP)
D150.09.02 KIRICI KOMPLESİ (MONTABERT- 95) (OP) BREAKER ASSEMBLY (MONTABERT- 95) (OP)
D150.10.01 KIRICI MONTAJI (DEMO S700V) (OP) BREAKER MOUNTING (DEMO S700V) (OP)
D150.10.02 KIRICI KOMPLESİ (DEMO S700V) (OP) BREAKER ASSEMBLY (DEMO S700V) (OP)
D160.00.01 BURGU (Ø350×1000) (OP) AUGER (Ø350×1000) (OP)
D160.01.01 BURGU (Ø500×1300) (OP) AUGER (Ø500×1300) (OP)
D160.02.01 BURGU (Ø610×1600) (OP) AUGER (Ø610×1600) (OP)
D170.00.01 RİPER (OP) RIPPER (OP)
E GÜÇ AKTARMA SİSTEMİ POWER TRAIN SYSTEM
E010.06.01 GÜÇ AKTARMA MONTAJI POWER TRAIN MOUNTING
E020.00.01 TEKER VE LASTİK GRUBU, ÖN WHELL & TIRE GROUP, FRONT
E020.01.01 TEKER VE LASTİK GRUBU, ÖN WHELL & TIRE GROUP, FRONT
E030.01.01 TEKER VE LASTİK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E030.02.01 TEKER VE LASTİK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E030.03.01 TEKER VE LASTİK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E040.04.01 ÖN AKS FRONT AXLE
E040.04.02 ÖN AKS, AYNA MAHRUTİ FRONT AXLE, BEVER GEAR SET
E040.04.03 ÖN AKS, ŞAFT BAĞLANTISI FRONT AXLE, INPUT FLANGE
E040.04.04 ÖN AKS, ŞAFT DİFERANSİYEL FRONT AXLE, DIFFERENTIAL
E040.04.05 ÖN AKS, KOVAN PARÇALARI FRONT AXLE, AXLE CASING PARTS
E040.04.06 ÖN AKS, POYRA FRONT AXLE, HUB
E040.04.07 ÖN AKS, PLANET DİŞLİ GRUBU FRONT AXLE, PLANETARY DRIVE
E040.04.08 ÖN AKS, DİREKSİYON SİLİNDİRİ FRONT AXLE, STEERING CYLINDER
E040.04.09 ÖN AKS, AKS KOVANLARI FRONT AXLE, AXLE CASING
E040.04.10 ÖN AKS, AKS BAŞI MONTAJI FRONT AXLE, JOINT HOUSING MOUNTING
E050.03.01 ARKA AKS REAR AKS
E050.03.02 ARKA AKS, AYNA MAHRUTİ REAR AXLE, BEVEL GEAR SET
E050.03.03 ARKA AKS, ŞAFT BAĞLANTISI REAR AXLE, INPUT FLANGE
E050.03.04 ARKA AKS, DİFERANSİYEL REAR AXLE, DIFFERENTIAL
E050.03.05 ARKA AKS, ÇOKLU DİSK FRENİ REAR AXLE, M- DISC BRAKE
E050.03.06 ARKA AKS, AKS KOVANLARI REAR AXLE, AXLE CASING PARTS
E050.03.07 ARKA AKS, POYRA VE PLANET DİŞLİ GRUBU REAR AXLE, HUB AND PLANETARY DRIVE
E050.03.08 ARKA AKS, PARK FRENİ REAR AXLE, PARK BRAKE
E050.03.09 ARKA AKS, AKS KOVAN PARÇALARI REAR AXLE, AXLE CASING PARTS
E060.01.01 ŞANZIMAN TRANSMISSION
E060.01.02 ŞANZIMAN, TORK KONVERTÖR (STANDART) TRANSMISSION, TORGUE CONVERTER ARRANGMENT
(STANDARD)
E060.01.03 ŞANZIMAN, POMPA GRUBU TRANSMISSION, PUMP GROUP
E060.01.04 ŞANZIMAN, TRANSMİSYON GÖVDESİ, ÖN
(STANDART)
TRANSMISSION, FRONT CASING AND ANCILLIARIES
(STANDARD)
E060.01.05 ŞANZIMAN, VALF GRUBU TRANSMISSION, VALVE GROUP
İÇİNDEKİLER / CONTENTS
E060.01.06 ŞANZIMAN, TRANSMİSYON GÖVDESİ, ARKA
(STANDART)
TRANSMISSION, REAR CASING AND ANCILLIARIES
(STANDARD)
E060.01.07 ŞANZIMAN, KAVRAMA DİSK GRUBU TRANSMISSION, CLUTCH GROUP
E060.01.08 ŞANZIMAN, KAVRAMA GRUBU, ANA (STANDART) TRANSMISSION, SHAFT GROUP – MAIN (STANDARD)
E060.01.09 ŞANZIMAN, KAVRAMA GRUBU, AVARE DİŞLİ TRANSMISSION, SHAFT GROUP IDLER
E060.01.10 ŞANZIMAN, KAVRAMA GRUBU, GİRİŞ
(STANDART)
TRANSMISSION, SHAFT GROUP INPUT (STANDARD)
E060.01.11 ŞANZIMAN, ŞAFT GRUBU, PTO (STANDART) TRANSMISSION, SHAFT GROUP PTO (STANDARD)
E060.01.12 ŞANZIMAN, KAVRAMA GRUBU, GERİ
(STANDART)
TRANSMISSION, SHAFT GROUP COUNTER (STANDARD)
E060.02.01 ŞANZIMAN (LUCK-UP) TRANSMISSION (LUCK-UP)
E060.02.02 ŞANZIMAN, TORK KONVERTÖR (LUCK-UP) TRANSMISSION, TORGUE CONVERTER ARRANGMENT
(LUCK-UP)
E060.02.03 ŞANZIMAN, POMPA GRUBU TRANSMISSION, PUMP GROUP
E060.02.04 ŞANZIMAN, TRANSMİSYON GÖVDESİ, ÖN
(LUCK-UP)
TRANSMISSION, FRONT CASING AND ANCILLIARIES
(LUCK-UP)
E060.02.05 ŞANZIMAN, VALF GRUBU TRANSMISSION, VALVE GROUP
E060.02.06 ŞANZIMAN, TRANSMİSYON GÖVDESİ, ARKA
(LUCK-UP)
TRANSMISSION, REAR CASING AND ANCILLIARIES
(LUCK-UP)
E060.02.07 ŞANZIMAN, KAVRAMA DİSK GRUBU TRANSMISSION, CLUTCH GROUP
E060.02.08 ŞANZIMAN, KAVRAMA GRUBU, ANA (LUCK-UP) TRANSMISSION, SHAFT GROUP – MAIN (LUCK-UP)
E060.02.09 ŞANZIMAN, KAVRAMA GRUBU, AVARE DİŞLİ TRANSMISSION, SHAFT GROUP IDLER
E060.02.10 ŞANZIMAN, KAVRAMA GRUBU, GİRİŞ (LUCK-UP) TRANSMISSION, SHAFT GROUP INPUT (LUCK-UP)
E060.02.11 ŞANZIMAN, ŞAFT GRUBU, PTO (LUCK-UP) TRANSMISSION, SHAFT GROUP PTO (LUCK-UP)
E060.02.12 ŞANZIMAN, KAVRAMA GRUBU, GERİ (LUCK-UP) TRANSMISSION, SHAFT GROUP COUNTER (LUCK-UP)
E070.00.01 PARK FRENİ PARKING BRAKE
F HİDROLİK SİSTEM HYDRAULIC SYSTEM
F010.02.01 HİDROLİK TANK MONTAJI HYDRAULIC TANK MOUNTING
F020.00.01 YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR
KEPÇE & LEVYE KONTROLLU) (TİP A)
LOADER CONTROL MECHANISM (MULTIPURPOSE
BUCKET & LEVERS) (TYPE A)
F020.01.01 YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR
KEPÇE&LEVYE&TİP A)
LOADER CONTROL&MECHANISM(MULTIPURPOSE
BUCKET&LEVERS&TYPE A)
F020.03.01 YÜKLEYİCİ KUMANDA MEKANİZMASI (SABİT
KEPÇE & LEVYE & TİP A)
LOADER CONTROL&MECHANISM(SHOVEL & LEVERS &
TYPE A)
F020.04.01 YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR
KEPÇE & JOYSTİK KONTROLLU) (TİP A)
LOADER CONTROL MECHANISM ( MULTIPURPOSE
BUCKET & JOYSTICK) (TYPE A)
F020.05.01 YÜKLEYİCİ KUMANDA MEKANİZMASI (SABİT
KEPÇE & JOYSTİK KONTROLLU) (TİP A)
LOADER CONTROL MECHANISM (SHOVEL & JOYSTICK )
(TYPE A)
F030.01.01 KAZICI KUMANDA VE MEKANİZMASI (TİP A) BACKHOE CONTROL & MECHANISM (TYPE A)
F030.03.01 KAZICI KUMANDA VE MEKANİZMASI (ÇAPRAZ
KUMANDA (TİP A)
BACKHOE CONTROL & MECHANISM (X- DIAGONAL)
(TYPE A)
F040.00.01 PEDAL MONTAJI, İLAVE ATAŞMAN (TİP A) ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A)
F040.01.01 PEDAL MONTAJI, İLAVE ATAŞMAN (TİP A) ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A)
F040.05.01 PEDAL MONTAJI, İLAVE ATAŞMAN (TİP A) ADDITONAL ATTACHMENT PEDAL MOUNTING (TYPE A)
F050.35.01 HİDROLİK TESİSAT, ANA DAĞITIM (STD. ARM &
SABİT KEPÇE & TURNER) (TİP A)
HYDRAULIC PIPING, MAIN (STD. ARM & SHOVEL &
TURNER) (TYPE A)
F050.36.01 HİDROLİK TESİSAT, ANA DAĞITIM (TELESKOPİK
ARM&SABİT KEPÇE&TURNER) (TİP A)
HYD. PIPING MAIN (TELESCOPIC
ARM&SHOVEL&TURNER) (TYPE A)
F050.37.01 HİDROLİK TESİSAT, ANA DAĞITIM (STD. ARM &
AÇILIR KEPÇE & TURNER) (TİP A)
HYDRAULIC PIPING, MAIN (STD. ARM &
MULRIPURPOSE BUCKET & TURNER) (TYPE A)
F050.38.01 HİDROLİK TESİSAT, ANA DAĞITIM (TELESKOPİK
ARM&AÇILIR KEPÇE&TURNER)(TİP A)
HYD. PIPING MAIN (TELESCOPIC ARM&MULRIPURPOSE
BUCKET&TURNER)(TYPE A)
F060.01.01 HİDROLİK TESİSAT, PİLOT (TİP A) HYDRAULIC PIPING, PILOT (TYPE A)
F060.02.01 HİDROLİK TESİSAT, PİLOT (SOL EL) (TİP A) HYDRAULIC PIPING, PILOT (LEFT HAND) (TYPE A)
İÇİNDEKİLER / CONTENTS
F065.00.01 KUMANDA DEĞİŞTİRİCİ (TİP A) PATTERN SHIFTER (TYPE A)
F070.01.01 YÜKLEYİCİ HİDROLİK TESİSATI, KALDIRICI &
KEPÇE SİLİNDİRİ, SABİT KEPÇE (OP)
LOADER HYD. PIPING, LIFT & SHOVEL CYLINDER (OP)
F070.03.01 YÜKLEYİCİ HİDROLİK TESİSATI & AÇILIR
KEPÇELİ (TİP A)
LOADER HYDRAULIC PIPING & MULTIPURPOSE
BUCKET (TYPE A)
F070.08.01 YÜKLEYİCİ HİDROLİK TESİSATI, KALDIRICI
SİLİNDİR, EMNİYET VALFİ
LOADER HYDRAULIC PIPING, LIFT CYLINDER, WITH
PROTECTION VALVE
F070.09.01 YÜKLEYİCİ HİDROLİK TESİSATI, KEPÇE
SİLİNDİRİ (EMNİYET VALFLİ)
LOADER HYD. PIPING, BUCKET CYLINDER
F070.10.01 YÜKLEYİCİ HİDROLİK TESİSATI, MSS (TİP A & TİP
B)
LOADER HYDRAULIC PIPING, MSS (TYPE A & TYPE B)
F080.00.01 HORTUM TUTUCU SETİ (STD. ARM) HOSE HOLDER SET (STD. ARM)
F080.01.01 HORTUM TUTUCU SETİ (TELESKOPİK) (OP) HOSE HOLDER SET (TELESCOPIC ARM) (OP)
F090.00.01 HİDROLİK TESİSAT, AYAK SİLİNDİRİ HYD. PIPING, STABILIZER CYLINDER
F090.01.01 HİDROLİK TESİSAT, AYAK SİLİNDİRİ (KİLİT
VALFLİ) (OP)
HYD. PIPING, STABILIZER CYLINDER (WITH SAFETY
LOCKING VALVE) (OP)
F100.00.01 HİDROLİK TESİSAT, SIKMA PİSTONU (TİP A) HYD. PIPING, HYDROCLAMP (TYPE A)
F110.00.01 HİDROLİK TESİSAT, DÖNÜŞ SİLİNDİRİ (TİP A) HYD. PIPING, SWING CYLINDER (TYPE A)
F120.00.01 KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ BACKHOE HYDRAULIC PIPING, BOOM CYLINDER
F120.01.01 KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ
(EMNİYET VALFLİ) (OP)
BACKHOE HYD. PIPING, BOOM CYLINDER (WITH
SAFETY LOCK VALVE) (OP)
F130.00.01 KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ BACKHOE HYDRAULIC PIPING, ARM CYLINDER
F130.01.01 KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ
(EMNİYET VALFLİ) (OP)
BACKHOE HYD. PIPING, ARM CYLINDER (WITH SAFETY
LOCK VALVE) (OP)
F140.00.01 KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ
(TİP A)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER
(TYPE A)
F140.01.01 KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ
(TELESKOPİK BOM) (TİP A) (OP)
BACKHOE HYD. PIPING, BUCKET CYLINDER
(TELESCOPIC BOOM) (TYPE A) (OP)
F150.00.01 TEK ETKİLİ HİDROLİK TESİSATI (KIRICI & STD.
ARM) (TİP A)
SINGLE ACTING HYDRAULIC PIPING (BREAKER & STD.
ARM) (TYPE A)
F150.02.01 TEK ETKİLİ HİDROLİK TESİSATI (KIRICI &
TELESKOPİK)(TİP A)
SINGLE ACTING HYDRAULIC PIPING (BREAKER &
TELESCOPIC)(TYPE A)
F160.00.01 ÇİFT ETKİLİ HİDR.TESİSATI, BURGU/DÖNER
KEPÇE&KIRICI(STD.ARM&LV&TİP A)OP
DOUBLE ACTING HYD.PIPING,AUGER/TILTING
BUCKET&BREAKER(STD.ARM&LEVERS&TYPE A)OP
F160.01.01 ÇİFT ETKİLİ HİDR.TESİSATI, BURGU/DÖNER
KEPÇE&KIRICI(TEL.ARM&LV&TİP A)OP
DOUBLE ACTING HYD.PIPING,AUGER/TILTING
BUCKET&BREAKER(TELESCOP.ARM&LV&TYPE A)OP
F160.03.01 ÇİFT ETKİLİ HİDR.TESİSATI, BURGU/DÖNER
KEPÇE&KIRICI(TEL.ARM&JY&TİP A)OP
DOUBLE ACTING HYD.PIPING,AUGER/TILTING
BUCKET&BREAKER(TELESCOP.ARM&JY&TYPE A)OP
F180.00.01 HİDROLİK, EL KIRICISI (OP) HYDRAULIC, HAND BREAKER (OP)
F190.02.01 HİDROLİK TESİSAT, DİFERANSİYEL KİLİDİ HYDRAULIC PIPING, DIFFERENTIAL LOCK
F210.01.01 TABLA KAYDIRMA HİDROLİĞİ (OP) POWER SLIDER HYDRAULIC (OP)
G HİDROLİK KOMPONENTLER HYDRAULIC COMPONENTS
G010.01.01 DİŞLİ POMPA GEAR PUMP
G030.04.01 YÜKLEYİCİ KUMANDA VALFİ, AÇILIR KEPÇE
(ORANSAL) (TİP A)
LOADER CONTROL VALVE, MULTIPURPOSE BUCKET
(PROPORTIONAL) (TYPE A)
G030.06.01 YÜKLEYİCİ KUMANDA VALFİ, SABİT KEPÇE (TİP
A)
LOADER CONTROL VALVE, GP BUCKET (TYPE A)
G040.01.01 KAZICI KUMANDA VALFİ, LEVYELİ (TİP A) BACKHOE CONTROL VALVE, MECHANIC (TYPE A)
G040.04.01 KAZICI KUMANDA VALFİ, LEVYELİ, ÇAPRAZ
KUMANDA (TİP A)
BACKHOE CONTROL VALVE, MECHANIC, X- DIAGONAL
(TYPE A)
G040.05.01 KAZICI KUMANDA VALFİ, JOYSTICK (TİP A) BACKHOE CONTROL VALVE, JOYSTICK (TYPE A)
G050.00.01 İLAVE ATAŞMAN KUMANDA VALFİ ADDITIONAL ATTACHMENT CONTROL VALVE
G060.00.01 JOYSTİCK KUMANDA, SAĞ (OP) REMOTE CONTROL VALVE, RIGHT (OP)
G070.00.01 JOYSTİCK KUMANDA, SOL (OP) REMOTE CONTROL VALVE, LEFT (OP)
G080.00.01 KALDIRICI SİLİNDİR, YÜKLEYİCİ, SAĞ LIFT CYLINDER, LOADER, RH
İÇİNDEKİLER / CONTENTS
G100.00.01 KEPÇE SİLİNDİRİ, YÜKLEYİCİ, SAĞ BUCKET CYLINDER, LOADER, RH
G110.00.01 KEPÇE SİLİNDİRİ, YÜKLEYİCİ, SOL BUCKET CYLINDER, LOADER, LH
G120.00.01 AÇILIR KEPÇE SİLİNDİRİ MULTIPURPOSE BUCKET CYLINDER
G130.00.01 AYAK SİLİNDİRİ, SAĞ STABILIZER CYLINDER, RH
G140.00.01 AYAK SİLİNDİRİ, SOL STABILIZER CYLINDER, LH
G150.00.01 DÖNÜŞ SİLİNDİRİ SWING CYLINDER
G160.00.01 BOM SİLİNDİRİ, KAZICI BOOM CYLINDER, BACKHOE
G170.00.01 ARM SİLİNDİRİ, KAZICI ARM CYLINDER, BACKHOE
G180.00.01 KEPÇE SİLİNDİRİ, KAZICI BUCKET CYLINDER, BACKHOE
G180.01.01 KEPÇE SİLİNDİRİ, KAZICI, TELESKOPİK (OP) BUCKET CYLINDER, BACKHOE, TELESCOPIC, (OP)
G190.00.01 TELESKOPİK SİLİNDİR, KAZICI (OP) TELESCOPIC CYLINDER, BACKHOE, (OP)
G200.00.01 ÇABUK SÖK- TAK SİLİNDİRİ, KAZICI (OP) QUICK COUPLER CYLINDER, BACKHOE (OP)
G210.00.01 TESVİYE KÜREĞİ SİLİNDİRİ (OP) LEVELLING BLADE CYLINDER, (OP)
G220.00.01 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ) SAĞ
(OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) RH (OP)
G220.00.02 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ) SOL
(OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH (OP)
G220.00.03 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ)
MERKEZ (OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER
(OP)
G230.00.01 TOMRUK YÜKLEYİCİ SİLİNDİRİ (OP) LOG GRAPPLE CYLINDER (OP)
G240.00.01 TOMRUK YÜKLEYİCİ SİLİNDİRİ (HAREKETLİ) (OP) LOG GRAPPLE CYLINDER (WITH VERTICAL
MOVEMENT) (OP)
G250.00.01 DÖNERLİ KANAL KEPÇESİ SİLİNDİRİ (OP) TILTING BUCKET CYLINDER (OP)
G265.01.01 ARM SİLİNDİRİ, KAZICI ARM CYLINDER, BACKHOE
G265.02.01 ARM SİLİNDİRİ, KAZICI ARM CYLINDER, BACKHOE
G270.00.01 TABLA KAYDIRMA SİLİNDİRİ, DIŞ (OP) POWER SLIDER CYLINDER, OUTER (OP)
G270.00.02 TABLA KAYDIRMA SİLİNDİRİ, İÇ (OP) POWER SLIDER CYLINDER, INNER (OP)
G280.00.01 ÇEKİCİ KANCA SİLİNDİRİ TOW HOOK CYLINDER
G290.00.01 PILOT BESLEME BLOĞU (ORANSAL VALFLİ) PILOT SUPPLY BLOCK (WITH PROPORTIONAL VALVE)
G300.00.01 SARSINTISIZ YÜRÜYÜŞ VALFİ, MSS MSS, VALVE
G310.00.01 VALF, KUMANDA DEĞİŞTİRİCİ VALVE, PATTERN SHIFTER
H DİREKSİYON SİSTEMİ STEERING SYSTEM
H010.00.01 HİDROLİK TESİSAT, DİREKSİYON (DİŞLİ POMPA)
JD
HYDRAULIC PIPING, STEERING (GEAR PUMP) JD
J FREN SİSTEMİ BRAKE SYSTEM
J010.10.01 HİDROLİK TESİSAT, FREN (DİŞLİ POMPA) HYDRAULIC PIPING, BRAKE (GEAR PUMP)
K ELEKTRİK SİSTEMİ ELECTRICAL SYSTEM
K010.08.01 KABİN ELEKTRİĞİ (1) CAB ELECTRIC (1)
K010.01.02 KABİN ELEKTRİĞİ (2) CAB ELECTRIC (2)
K010.01.03 KABİN ELEKTRİĞİ (3) CAB ELECTRIC (3)
K010.00.04 KABİN ELEKTRİĞİ (4) CAB ELECTRIC (4)
K010.02.06 KABİN ELEKTRİĞİ (6) CAB ELECTRIC (6)
K010.02.07 KABİN ELEKTRİĞİ (7) CAB ELECTRIC (7)
K010.00.08 KABİN ELEKTRİĞİ (8) CAB ELECTRIC (8)
K020.16.01 ELEKTRİK (1) ELECTRIC (1)
K030.00.01 TESVİYE KÜREĞİ (ÇİFT EKSENLİ) KABLO
TESİSATI (OP)
LEVELLING BLADE (WITH TWO AXIS TURN) HARNESS
(OP)
K050.03.01 SMARTLINK (DİŞLİ POMPA) (OP) SMARTLINK (GEAR PUMP) (OP)
Y DİĞERLERİ (ETİKET, AVADANLIK) OTHERS (DECAL, TOOLS)
İÇİNDEKİLER / CONTENTS
Y010.00.02 ETİKETLER, UYARI DECALS, WARNING
Y010.04.01 ETİKET VE LEVHALAR (1) DECAL AND PLATES (1)
Y020.66.01 ETİKET VE LEVHALAR (TÜRKÇE) (2) DECAL AND PLATES (TR) (2)
Y020.67.01 ETİKET VE LEVHALAR (İNGİLİZCE) (2) DECAL AND PLATES (EN) (2)
Y020.68.01 ETİKET VE LEVHALAR (FRANSIZCA) (2) DECAL AND PLATES (FR) (2)
Y020.69.01 ETİKET VE LEVHALAR (ES) (2) DECAL AND PLATES (ES) (2)
Y020.70.01 ETİKET VE LEVHALAR (RUSÇA) (2) DECAL AND PLATES (RU) (2)
Y020.71.01 ETİKET VE LEVHALAR (PORTEKİZCE) (2) DECAL AND PLATES (PT) (2)
Y020.72.01 ETİKET VE LEVHALAR (BULGARCA) (2) DECAL AND PLATES (BG) (2)
Y030.00.01 ETİKET VE LEVHALAR, KIRICI DECAL AND PLATES, BREAKER
Y040.00.03 AVADANLIK TAKIMI TOOL KIT
Z MOTOR PARÇALARI ENGINE PARTS
Z010.04.01 MOTOR (JD) ENGINE
Z020.04.01 KÜLBÜTÖR KAPAĞI VALVE COVER
Z020.04.02 SİLİNDİR KAPAĞI CYLINDER HEAD AND GASKET
Z020.04.03 CıVATA- SİLİNDİR KAPAĞI SCREW- CYLINDER HEAD
Z020.04.04 SİLİNDİR BLOĞU, KRANK MİLİ ANA YATAĞI VE
KAM MİLİ
CYLINDER BLOCK, MAIN BEARINGS CAPS AND
CAMSHAFT
Z020.04.05 KRANK MİLİ VE ANA YATAĞI CRANKSHAFT AND MAIN BEARINGS
Z020.04.06 PİSTON, BİYEL KOLU, SİLİNDİR GÖMLEĞİ PISTON, CONNECTING ROD, CYLINDER LINER
Z020.04.07 KÜLBÜTÖR KOLU, KÜLBÜTÖR MİLİ VE SUBAP
İTECEĞİ
ROCKER ARM, ROCKER ARM SHAFT AND CAM
FOLLOWER
Z020.04.08 ZAMANLAMA DİŞLİLERİ KAPAĞI, SU DEVİRDAİM
POMPASI VE ALT AVARE DİŞLİ
TIMING GEAR COVER, WATER PUMP AND
CRANKSHAFT LOWER IDLER GEAR
Z020.04.09 ÖN ROLANTİ DİŞLİ SİSTEMİ (ALT VE ÜST) FRONT PLATE AND IDLE GEARS (UPPER AND LOWER)
Z020.04.10 VOLAN MUHAFAZASI FLYWEEL HOUSING
Z020.04.11 VOLAN FLYWEEL
Z020.04.12 KRANK MİLİ KASNAĞI CRANKSHAFT PULLEY
Z020.04.13 YARDIMCI KASNAK CRANKSHAFT PULLEY
Z020.04.14 YARDIMCI KASNAK KAPAĞI CRANKSHAFT PULLEY
Z020.04.15 KAYIŞ GERDİRİCİ CRANKSHAFT PULLEY
Z020.04.16 DENGELEME ŞAFTI BALANCER SHAFT
Z020.04.17 MOTOR CONTA, KİTİ BALANCER SHAFT
Z020.04.18 CONTA KİTİ- SİLİNDİR KAPAĞI/ YAĞ KARTERİ BALANCER SHAFT
Z020.04.19 CONTA KİTİ- SİLİNDİR KAPAĞI BALANCER SHAFT
Z030.04.01 YAĞ KARTERİ OIL PAN
Z030.04.02 YAĞ DOLDURMA BORUSU- SAĞ TARAF OIL FILLER NECK- RIGHT HAND SIDE
Z030.04.03 YAĞ KONTROL ÇUBUĞU VE BORUSU ENGINE OIL DIPSTICK
Z030.04.04 YAĞ POMPASI OIL PUMP
Z030.04.05 YAĞ SOĞUTUCU OIL COOLER
Z030.04.06 HAVALANDIRMA SİSTEMİ VENTILATING SYSTEM
Z030.04.07 YAĞ FİLTRESİ VE FİLTRE KAFASI OIL FILTER AND FILTER HEAD
Z040.04.01 FAN KASNAĞI FAN PULLEY
Z040.04.02 FAN TAHRİKİ FAN DRIVE
Z040.04.03 FAN KAYIŞI FAN BELT
Z040.04.04 TERMOSTAT KAPAĞI THERMOSTAT COVER
Z040.04.05 TERMOSTAT THERMOSTAT
Z040.04.06 SU POMPASI EMİŞ BORUSU WATER PUMP INLET
Z040.04.07 SU POMPASI KASNAĞI WATER PUMP PULLEY
İÇİNDEKİLER / CONTENTS
Z050.04.01 YAKIT PÜSKÜRTME POMPASI FUEL INJECTION PUMP
Z050.04.02 ÖN YAKIT FİLTRESİ PRIMARY FUEL FILTER
Z050.04.03 ANA YAKIT FİLTRESİ FINAL FUEL FILTER
Z050.04.04 YAKIT TRANFER POMPASI FUEL TRANSFER PUMP
Z060.04.01 YAĞ BASINÇ MÜŞÜRÜ OIL PRESSURE SWITCH
Z060.04.02 SU HARARET MÜŞÜRÜ TEMPERATURE SWITCH
Z060.04.03 MARŞ MOTORU STARTING MOTOR
Z060.04.04 ALTERNATÖR ALTERNATOR
Z060.04.05 ALTERNATÖR BAĞLANTILARI ALTERNATOR BRACKETS
Z060.04.06 MOTOR SOĞUTMA SIVISI ISITICISI ENGINE COOLANT HEATER
Z060.04.07 HAVA ÖN ISITMA KİTİ COLD WEATHER STARTING AIDS
Z060.04.08 DEVİR SENSÖRÜ BAĞLANTISI ELECTRONIC TACH DRIVE
Z070.04.01 TÜRBOŞARJ VE YAĞ BORULARI TURBOCHARGER AND OIL LINES
Z070.04.02 EGSOZ MANİFOLDU EXHAUST MANIFOLD
Z070.04.03 EMME MANİFOLDU INTAKE MANIFOLD

DESCRIPTION:

Hidromek Backhoe Loader HMK 102B ALPHA Parts Catalog Manual EN_TR SN B150001- HUSCO – PDF DOWNLOAD

PREFACE:

• We would like to thank you for purchasing HMK 102 Series Construction Equipment.
• This catalog has been prepared for ordering spare parts for 102 series.
• For satisfactory service and selection of correct part. read and understand instructions as
  shown below.

No: This indicates the indicating number of part.
Part No: It shows the part number of the parts which are included in an illustration.
Description: It shows the name of the part.
Q’ty: It shows the quantitiy use of part for the group that was illustrated on page.

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
