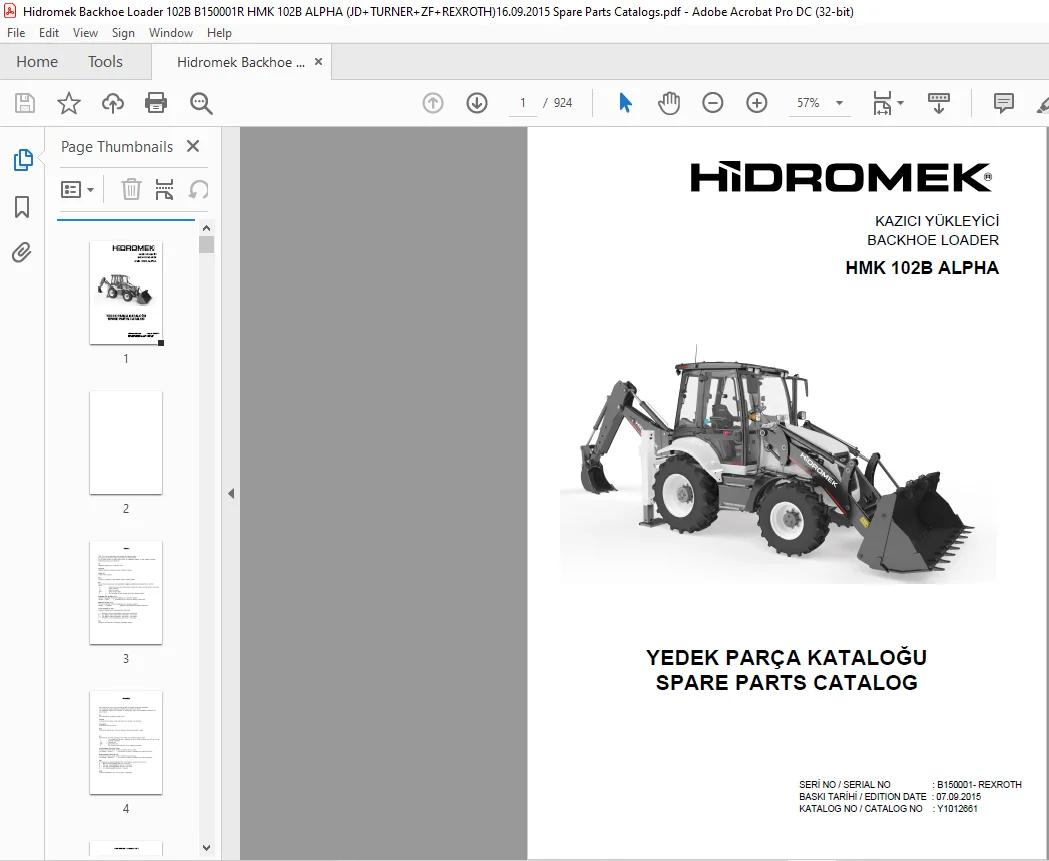

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR - PDF DOWNLOAD
Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR - PDF DOWNLOAD - Image 2
Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR - PDF DOWNLOAD - Image 3
Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR - PDF DOWNLOAD - Image 4

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

Original price was: $98.95.Current price is: $34.95.

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

Category: Tags: , , Vendor: HydraulicManuals
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

FILE DETAILS:

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

Language : English & Turkish
Pages : 924
Downloadable : Yes
File Type : PDF
Size: 56.7 MB

TABLE OF CONTENTS:

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

A MOTOR SฤฐSTEMฤฐ ENGINE SYSTEM

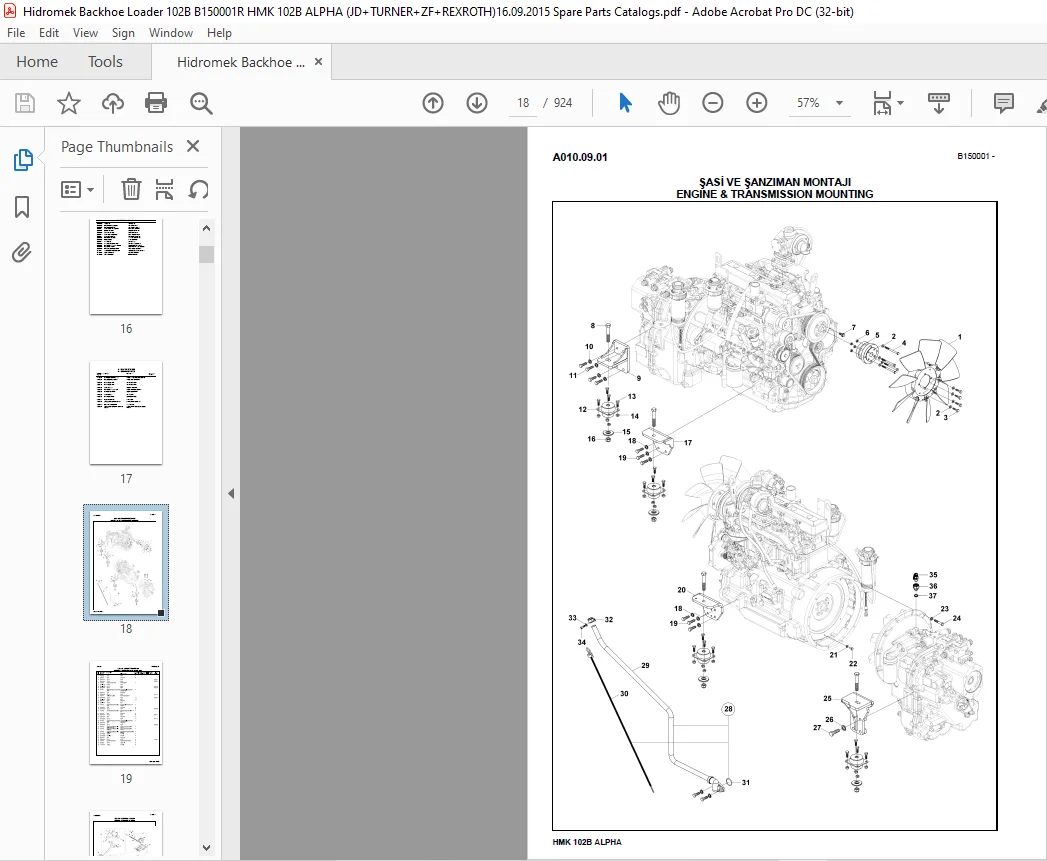

A010.09.01 ลžASฤฐ VE ลžANZIMAN MONTAJI ENGINE & TRANSMISSION MOUNTING
A020.06.01 MOTOR KONTROL SฤฐSTEMฤฐ ENGINE CONTROL SYSTEM
A030.00.01 HAVA EMฤฐลž SฤฐSTEMฤฐ AIR INTAKE SYSTEM
A030.01.01 HAVA EMฤฐลž SฤฐSTEMฤฐ AIR INTAKE SYSTEM
A040.00.01 EGZOZ MONTAJI EXHAUST ASSEMBLY

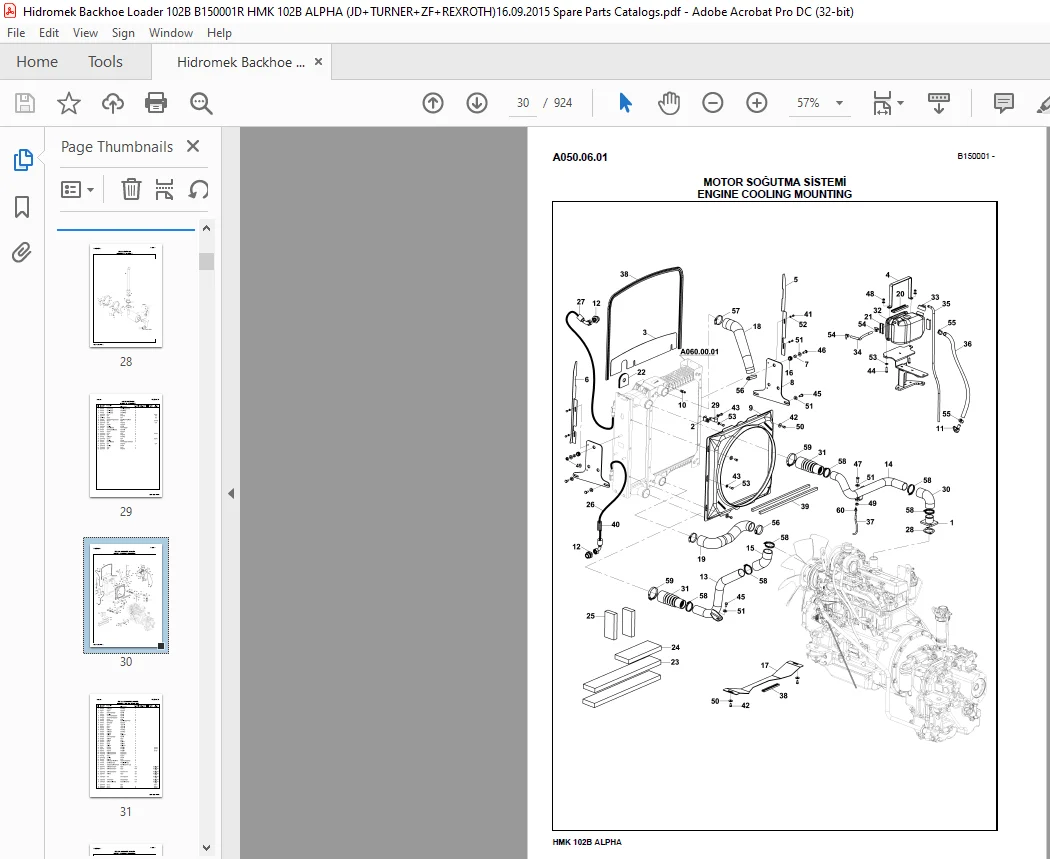

A050.06.01 MOTOR SOฤžUTMA SฤฐSTEMฤฐ ENGINE COOLING MOUNTING
A060.00.01 RADYATร–R KOMPLESฤฐ RADIATOR ASSEMBLY
A070.06.01 YAKIT SฤฐSTEMฤฐ FUEL SYSTEM
A080.02.01 KABฤฐN ฤฐร‡ฤฐ KOMPLESฤฐ INSIDE CABIN ASS’Y.
A080.02.02 KALORฤฐFER รœNฤฐTESฤฐ HEATER UNIT
A080.04.01 ISITMA, HAVALANDIRMA SฤฐSTEMฤฐ HEATING VENTING SYSTEM
A090.02.02 KLฤฐMA รœNฤฐTESฤฐ KOMPLESฤฐ A/C UNIT ASS’Y
A090.03.01 ISITMA, HAVALANDIRMA VE SOฤžUTMA SฤฐSTEMฤฐ HEATING VENTING AIR CONDITIONING SYSTEM
B ลžASฤฐ VE KAPORTA FRAME & COWLING
B010.14.01 ลžASฤฐ (KAZAYAK) (OP) MAIN FRAME (WING TYPE STABILIZER) (OP)
B020.01.01 AYAK, KAZAYAK STABILIZER, WING TYPE STABILIZER
B040.00.01 KIZAK PAPUCU STABILIZER PADS
B050.00.01 Dร–Nรœลž TABLASI KINGPOST CARRIAGE
B050.01.01 Dร–Nรœลž TABLASI (KAZAYAK) KINGPOST CARRIAGE (WING TYPE STABILIZER)
B060.00.01 Dร–Nรœลž KUTUSU KINGPOST
B070.01.01 BOM KฤฐLฤฐDฤฐ VE MEKANฤฐZMASI BOOM LOCK AND MECHANISM
B070.02.01 BOM KฤฐLฤฐDฤฐ VE MEKANฤฐZMASI (KAZAYAK) BOOM LOCK AND MECHANISM (WING TYPE
STABILIZER)
B080.01.01 KAPUT – PANEL – PANJUR – YAN KAPAK
MONTAJI
BONNET – PANEL – FRONT GRILL – SIDE COVER
MOUNTING
B090.03.01 ร–N TEKER VE ร‡AMURLUK FRONT WHELL AND FENDER
B090.04.01 ร‡AMURLUK, ร–N FENDER , FRONT
E030.01.01 TEKER VE LASTฤฐK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
C KABฤฐN OPERATOR CAB
C010.02.01 KABฤฐN VE BAฤžLANTI TAKOZLARI CAB & CAB MOUNTING
C020.01.01 KABฤฐN CABIN
C030.01.01 KAPI VE CAMLAR, SOL DOOR AND WINDOW, LH
C040.00.01 KABฤฐN CABIN
C060.01.01 KABฤฐN AKSESUAR KOMPLESฤฐ CABIN ACCESSORIES ASSEMBLY
C060.03.01 KABฤฐN (JOYSTฤฐK MEKANฤฐZMALI) (OP) CAB (JOYSTICK MECHANISM) (OP)
A080.02.01 KABฤฐN ฤฐร‡ฤฐ KOMPLESฤฐ INSIDE CABIN ASS’Y.
C080.01.01 KABฤฐN ฤฐร‡ฤฐ KOMPLE INSIDE CABIN ASS’Y.
C090.01.01 KABฤฐN ฤฐร‡ฤฐ KOMPLE INSIDE CABIN ASS’Y.
C110.01.01 JOYSTฤฐCK MEKANฤฐZMASI, SAฤž JOYSTICK MECHANISM, RH
C120.01.01 JOYSTฤฐCK MEKANฤฐZMASI, SOL JOYSTICK MECHANISM, LH
C130.01.01 DฤฐREKSฤฐYON KOMPLESฤฐ STEERING ASSEMBLY
C140.00.02 KOLTUK KOMPLESฤฐ SEAT ASSEMBLY
C140.01.02 KOLTUK KOMPLESฤฐ SAET ASSEMBLY
C140.02.01 KOLTUK MONTAJI SEAT MOUNTING
C140.03.01 KOLTUK MONTAJI, HAVA SรœSPANSฤฐYONLU SEAT MOUNTIMG, WITH AIR SUSPANSION
D ATAร‡MAN ATTACHMENT
D010.00.01 YรœKLEYฤฐCฤฐ KOL MONTAJI (1) LOADER ARM MOUNTING (1)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
D010.00.02 YรœKLEYฤฐCฤฐ KOL MONTAJI (2) LOADER ARM MOUNTING (2)
D010.00.03 YรœKLEYฤฐCฤฐ KOL MONTAJI (3) LOADER ARM MOUNTING (3)
D020.00.01 Aร‡ILIR KEPร‡E (1.1 m3) MULTIPORPUSE BUCKET, LOADER (1.1 m3)
D020.01.01 Aร‡ILIR KEPร‡E (1.3 m3) (OP) MULTIPURPOSE BUCKET, LOADER (1.3 m3) (OP)
D020.02.01 Aร‡ILIR KEPร‡E (ร‡ABUK Sร–K TAKLI) (OP) MULTIPURPOSE BUCKET, LOADER(WITH QUICK
COUPLER)(OP)
D020.03.01 Aร‡ILIR KEPร‡E (1 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1 m3) (OP)
D020.04.01 Aร‡ILIR KEPร‡E (1,2 m3) (OP) MULTIPORPUSE BUCKET, LOADER (1,2 m3) (OP)
D030.00.01 SABฤฐT KEPร‡E (1.2 m3) (OP) SHOVEL (1.2 m3) (OP)
D030.01.01 SABฤฐT KEPร‡E (1.5 m3) (OP) SHOVEL (1.5 m3) (OP)
D040.00.01 TESVฤฐYE KรœREฤžฤฐ (716×2800) (OP) LEVELLING BLADE (716×2800) (OP)
D040.01.01 TESVฤฐYE KรœREฤžฤฐ (900×2800) (OP) LEVELLING BLADE (900×2800) (OP)
D040.02.01 TESVฤฐYE KรœREฤžฤฐ (ร‡ABUK Sร–K TAKLI, 716x 2800)
(OP)
LEVELLING BLADE WITH QUICK COUPLER
(716×2800)(OP)
D040.03.01 TESVฤฐYE KรœREฤžฤฐ (ร‡ABUK Sร–K TAKLI, 900x 2800)
(OP)
LEVELLING BLADE WITH QUICK COUPLER(900x
2800)(OP)
D040.04.01 TESVฤฐYE KรœREฤžฤฐ (ร‡ฤฐFT EKSENLฤฐ) (OP) LEVELLING BLADE (DOUBLE AXIS) (OP)
D050.00.01 TOMRUK YรœKLEYฤฐCฤฐ (2+1 TIRNAKLI) (OP) LOG GRAPPLE (2+1 CLAMP) (OP)
D050.01.01 TOMRUK YรœKLEYฤฐCฤฐ, (HAREKETLฤฐ, ร˜200mm)
(OP)
LOG GRAPPLE, (WITH VERTICAL MOVEMENT ร˜200mm)
(OP)
D050.02.01 TOMRUK YรœKLEYฤฐCฤฐ, (HAREKETLฤฐ, ร˜500mm)
(OP)
LOG GRAPPLE, (WITH VERTICAL MOVEMENT ร˜500mm)
(OP)
D060.00.01 FORKLฤฐFT APARATI (Aร‡ILIR KEPร‡E) (OP) FORKLIFT (MULTIPURPOSE BUCKET) (OP)
D060.01.01 FORKLฤฐFT APARATI (SABฤฐT KEPร‡E 1.2 m3) (OP) FORKLIFT (SHOVEL 1.2 m3) (OP)
D060.02.01 FORKLฤฐFT APARATI (SABฤฐT KEPร‡E 1.5 m3) (OP) FORKLIFT (SHOVEL 1.5 m3) (OP)
D070.00.01 ร‡ABUK Sร–K TAK (YรœKLEYฤฐCฤฐ KEPร‡E) (OP) QUICK COUPLER (LOADER) (OP)
D080.00.01 BOM MONTAJI BOOM MOUNTING
D090.00.01 ARM MONTAJI ARM MOUNTING
D090.02.01 TELESKOPฤฐK ARM MONTAJI (OP) TELESCOPIC ARM MOUNTING (OP)
D100.00.01 KEPร‡E BAฤžLANTISI BUCKET LINKAGE
D110.00.01 KEPร‡E, KAZICI (300 mm) BUCKET, BACKHOE (300 mm)
D110.01.01 KEPร‡E, KAZICI (350 mm) BUCKET, BACKHOE (350 mm)
D110.02.01 KEPร‡E, KAZICI (400 mm) BUCKET, BACKHOE (400 mm)
D110.03.01 KEPร‡E, KAZICI (500 mm) BUCKET, BACKHOE (500 mm)
D110.04.01 KEPร‡E, KAZICI (600 mm) BUCKET, BACKHOE (600 mm)
D110.05.01 KEPร‡E, KAZICI (700 mm) BUCKET, BACKHOE (700 mm)
D110.06.01 KEPร‡E, KAZICI (800 mm) BUCKET, BACKHOE (800 mm)
D110.07.01 KEPร‡E, KAZICI (900 mm) BUCKET, BACKHOE (900 mm)
D120.00.01 Dร–NERLฤฐ KANAL KEPร‡ESฤฐ (OP) TILTING BUCKET (OP)
D140.00.01 ร‡ABUK Sร–K TAK, KAZICI (OP) QUICK COUPLER, BACKHOE (OP)
D150.00.01 KIRICI MONTAJI (MONTABERT- SC 36) (OP) BREAKER MOUNTING (MONTABERT- SC 36) (OP)
D150.00.02 KIRICI KOMPLESฤฐ (MONTABERT- SC 36) (OP) BREAKER ASSEMBLY (MONTABERT- SC 36) (OP)
D150.01.01 KIRICI MONTAJI (MONTABERT- SC 28) (OP) BREAKER MOUNTING (MONTABERT- SC 28) (OP)
D150.01.02 KIRICI KOMPLESฤฐ (MONTABERT- SC 28) (OP) BREAKER ASSEMBLY (MONTABERT- SC 28) (OP)
D150.04.01 KIRICI MONTAJI (DEMO DMB50) (OP) BREAKER MOUNTING (DEMO DMB50) (OP)
D150.04.02 KIRICI KOMPLESฤฐ (DEMO DMB50) (OP) BREAKER ASSEMBLY (DEMO DMB50) (OP)
D150.05.01 KIRICI MONTAJI (DEMO DMB70) (OP) BREAKER MOUNTING (DEMO DMB70) (OP)
D150.05.02 KIRICI KOMPLESฤฐ (DEMO DMB70) (OP) BREAKER ASSEMBLY (DEMO DMB70) (OP)
D150.06.01 KIRICI MONTAJI (LIFTON LH 360) (OP) BREAKER MOUNTING (LIFTON LH 360) (OP)
D150.06.02 KIRICI KOMPLESฤฐ (LIFTON LH 360) (OP) BREAKER ASSEMBLY (LIFTON LH 360) (OP)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
D150.07.01 KIRICI MONTAJI (TOKU) (OP) BREAKER MOUNTING (TOKU) (OP)
D150.07.02 KIRICI KOMPLESฤฐ (TOKU) (OP) BREAKER ASSEMBLY (TOKU) (OP)
D150.08.01 KIRICI MONTAJI (MONTABERT- HKR 140) (OP) BREAKER MOUNTING (MONTABERT-HKR 140) (OP)
D150.08.02 KIRICI KOMPLESฤฐ (MONTABERT- HKR 140) (OP) BREAKER ASSEMBLY (MONTABERT- HKR 140) (OP)
D150.09.01 KIRICI MONTAJI (MONTABERT- 95) (OP) BREAKER MOUNTING (MONTABERT- 95) (OP)
D150.09.02 KIRICI KOMPLESฤฐ (MONTABERT- 95) (OP) BREAKER ASSEMBLY (MONTABERT- 95) (OP)
D150.10.01 KIRICI MONTAJI (DEMO S700V) (OP) BREAKER MOUNTING (DEMO S700V) (OP)
D150.10.02 KIRICI KOMPLESฤฐ (DEMO S700V) (OP) BREAKER ASSEMBLY (DEMO S700V) (OP)
D160.00.01 BURGU (ร˜350×1000) (OP) AUGER (ร˜350×1000) (OP)
D160.01.01 BURGU (ร˜500×1300) (OP) AUGER (ร˜500×1300) (OP)
D160.02.01 BURGU (ร˜610×1600) (OP) AUGER (ร˜610×1600) (OP)
D170.00.01 RฤฐPER (OP) RIPPER (OP)
E Gรœร‡ AKTARMA SฤฐSTEMฤฐ POWER TRAIN SYSTEM
E010.06.01 Gรœร‡ AKTARMA MONTAJI POWER TRAIN MOUNTING
E020.00.01 TEKER VE LASTฤฐK GRUBU, ร–N WHELL & TIRE GROUP, FRONT
E020.01.01 TEKER VE LASTฤฐK GRUBU, ร–N WHELL & TIRE GROUP, FRONT
E030.01.01 TEKER VE LASTฤฐK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E030.02.01 TEKER VE LASTฤฐK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E030.03.01 TEKER VE LASTฤฐK GRUBU, ARKA WHEEL & TIRE GROUP, REAR
E040.04.01 ร–N AKS FRONT AXLE
E040.04.02 ร–N AKS, AYNA MAHRUTฤฐ FRONT AXLE, BEVER GEAR SET
E040.04.03 ร–N AKS, ลžAFT BAฤžLANTISI FRONT AXLE, INPUT FLANGE
E040.04.04 ร–N AKS, ลžAFT DฤฐFERANSฤฐYEL FRONT AXLE, DIFFERENTIAL
E040.04.05 ร–N AKS, KOVAN PARร‡ALARI FRONT AXLE, AXLE CASING PARTS
E040.04.06 ร–N AKS, POYRA FRONT AXLE, HUB
E040.04.07 ร–N AKS, PLANET DฤฐลžLฤฐ GRUBU FRONT AXLE, PLANETARY DRIVE
E040.04.08 ร–N AKS, DฤฐREKSฤฐYON SฤฐLฤฐNDฤฐRฤฐ FRONT AXLE, STEERING CYLINDER
E040.04.09 ร–N AKS, AKS KOVANLARI FRONT AXLE, AXLE CASING
E040.04.10 ร–N AKS, AKS BAลžI MONTAJI FRONT AXLE, JOINT HOUSING MOUNTING
E050.03.01 ARKA AKS REAR AKS
E050.03.02 ARKA AKS, AYNA MAHRUTฤฐ REAR AXLE, BEVEL GEAR SET
E050.03.03 ARKA AKS, ลžAFT BAฤžLANTISI REAR AXLE, INPUT FLANGE
E050.03.04 ARKA AKS, DฤฐFERANSฤฐYEL REAR AXLE, DIFFERENTIAL
E050.03.05 ARKA AKS, ร‡OKLU DฤฐSK FRENฤฐ REAR AXLE, M- DISC BRAKE
E050.03.06 ARKA AKS, AKS KOVANLARI REAR AXLE, AXLE CASING PARTS
E050.03.07 ARKA AKS, POYRA VE PLANET DฤฐลžLฤฐ GRUBU REAR AXLE, HUB AND PLANETARY DRIVE
E050.03.08 ARKA AKS, PARK FRENฤฐ REAR AXLE, PARK BRAKE
E050.03.09 ARKA AKS, AKS KOVAN PARร‡ALARI REAR AXLE, AXLE CASING PARTS
E060.01.01 ลžANZIMAN TRANSMISSION
E060.01.02 ลžANZIMAN, TORK KONVERTร–R (STANDART) TRANSMISSION, TORGUE CONVERTER ARRANGMENT
(STANDARD)
E060.01.03 ลžANZIMAN, POMPA GRUBU TRANSMISSION, PUMP GROUP
E060.01.04 ลžANZIMAN, TRANSMฤฐSYON Gร–VDESฤฐ, ร–N
(STANDART)
TRANSMISSION, FRONT CASING AND ANCILLIARIES
(STANDARD)
E060.01.05 ลžANZIMAN, VALF GRUBU TRANSMISSION, VALVE GROUP
E060.01.06 ลžANZIMAN, TRANSMฤฐSYON Gร–VDESฤฐ, ARKA
(STANDART)
TRANSMISSION, REAR CASING AND ANCILLIARIES
(STANDARD)
E060.01.07 ลžANZIMAN, KAVRAMA DฤฐSK GRUBU TRANSMISSION, CLUTCH GROUP
E060.01.08 ลžANZIMAN, KAVRAMA GRUBU, ANA (STANDART) TRANSMISSION, SHAFT GROUP – MAIN (STANDARD)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
E060.01.09 ลžANZIMAN, KAVRAMA GRUBU, AVARE DฤฐลžLฤฐ TRANSMISSION, SHAFT GROUP IDLER
E060.01.10 ลžANZIMAN, KAVRAMA GRUBU, GฤฐRฤฐลž
(STANDART)
TRANSMISSION, SHAFT GROUP INPUT (STANDARD)
E060.01.11 ลžANZIMAN, ลžAFT GRUBU, PTO (STANDART) TRANSMISSION, SHAFT GROUP PTO (STANDARD)
E060.01.12 ลžANZIMAN, KAVRAMA GRUBU, GERฤฐ
(STANDART)
TRANSMISSION, SHAFT GROUP COUNTER (STANDARD)
E060.02.01 ลžANZIMAN (LUCK-UP) TRANSMISSION (LUCK-UP)
E060.02.02 ลžANZIMAN, TORK KONVERTร–R (LUCK-UP) TRANSMISSION, TORGUE CONVERTER ARRANGMENT
(LUCK-UP)
E060.02.03 ลžANZIMAN, POMPA GRUBU TRANSMISSION, PUMP GROUP
E060.02.04 ลžANZIMAN, TRANSMฤฐSYON Gร–VDESฤฐ, ร–N
(LUCK-UP)
TRANSMISSION, FRONT CASING AND ANCILLIARIES
(LUCK-UP)
E060.02.05 ลžANZIMAN, VALF GRUBU TRANSMISSION, VALVE GROUP
E060.02.06 ลžANZIMAN, TRANSMฤฐSYON Gร–VDESฤฐ, ARKA
(LUCK-UP)
TRANSMISSION, REAR CASING AND ANCILLIARIES
(LUCK-UP)
E060.02.07 ลžANZIMAN, KAVRAMA DฤฐSK GRUBU TRANSMISSION, CLUTCH GROUP
E060.02.08 ลžANZIMAN, KAVRAMA GRUBU, ANA (LUCK-UP) TRANSMISSION, SHAFT GROUP – MAIN (LUCK-UP)
E060.02.09 ลžANZIMAN, KAVRAMA GRUBU, AVARE DฤฐลžLฤฐ TRANSMISSION, SHAFT GROUP IDLER
E060.02.10 ลžANZIMAN, KAVRAMA GRUBU, GฤฐRฤฐลž (LUCK-UP) TRANSMISSION, SHAFT GROUP INPUT (LUCK-UP)
E060.02.11 ลžANZIMAN, ลžAFT GRUBU, PTO (LUCK-UP) TRANSMISSION, SHAFT GROUP PTO (LUCK-UP)
E060.02.12 ลžANZIMAN, KAVRAMA GRUBU, GERฤฐ (LUCK-UP) TRANSMISSION, SHAFT GROUP COUNTER (LUCK-UP)
E070.00.01 PARK FRENฤฐ PARKING BRAKE
F HฤฐDROLฤฐK SฤฐSTEM HYDRAULIC SYSTEM
F010.02.01 HฤฐDROLฤฐK TANK MONTAJI HYDRAULIC TANK MOUNTING
F020.07.01 YรœKLEYฤฐCฤฐ KUMANDA MEKANฤฐZMASI (Aร‡ILIR
KEPร‡E & LEVYE & TฤฐP B)
LOADER CONTROL MECHANISM(MULTIPURPOSE
BUCKET & LEVERS & TYPE B)
F020.09.01 YรœKLEYฤฐCฤฐ KUMANDA MEKANฤฐZMASI (SABฤฐT
KEPร‡E & LEVYE & TฤฐP B)
LOADER CONTROL MECHANISM(SHOVEL & LEVERS &
TYPE B)
F020.10.01 ร–N KUMANDA MEKANฤฐZMASI (Aร‡ILIR KEPร‡E &
JOYSTฤฐCK)(TฤฐP B)
LOADER CONTROL MECHANISM(MULTIPURPOSE
BUCKET & JOYSTICK)(TYPE B)
F020.11.01 YรœKLEYฤฐCฤฐ KUMANDA MEKANฤฐZMASI (SABฤฐT
KEPร‡E & JOYSTฤฐCK) (TฤฐP B)
BACKHOE CONTROL MECHANISM (SHOVEL &
JOYSTICK) (TYPE B)
F030.06.01 KAZICI KUMANDA VE MEKANฤฐZMASI (PฤฐSTONLU
POMPA) (TฤฐP B) (OP)
BACKHOE CONTROL & MECHANISM (PISTON PUMP)
(TYPE B) (OP)
F030.07.01 KAZICI KUMANDA VE MEKANฤฐZMASI (DฤฐลžLฤฐ
POMPA) (TฤฐP B) (OP)
BACKHOE CONTROL & MECHANISM (GEAR PUMP)
(TYPE B) (OP)
F040.02.01 ฤฐLAVE ATAลžMAN PEDAL MONTAJI (JY) (TYPE B) ADDITIONAL ATTACHMENT PEDAL MOUNTING (JY)
(TYPE B)
F040.03.01 PEDAL MONTAJI, ฤฐLAVE ATAลžMAN (JY) (TฤฐP B) PEDAL MOUNTING, ADDITIONAL ATTACHMENT (JY)
(TYPE B)
F040.04.01 PEDAL MONTAJI, ฤฐLAVE ATAลžMAN (LV)(TฤฐP B) PEDAL MOUNTING, ADDITIONAL ATTACHMENT
(LV)(TYPE B)
F040.06.01 PEDAL MONTAJI, ฤฐLAVE ATAลžMAN (LV)(TฤฐP B) PEDAL MOUNTING, ADDITIONAL ATTACHMENT
(LV)(TYPE B)
F050.33.01 HฤฐDROLฤฐK TESฤฐSAT, ANA DAฤžITIM (PฤฐSTONLU
POMPA & TURNER &TฤฐP B)
HYDRAULIC PIPING, MAIN (PISTON PUMP & TURNER &
TYPE B)
F050.34.01 HฤฐDROLฤฐK TESฤฐSAT, ANA DAฤžITIM (DฤฐลžLฤฐ POMPA
& TURNER) (TฤฐP B)
HYDRAULIC PIPING, MAIN (GEAR PUMP & TURNER)
(TYPE B)
F060.07.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (STD ARM &
PฤฐSTONLU POMPA) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (STD ARM & PISTON PUMP)
(TYPE B) (OP)
F060.08.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (TELESKOPฤฐK ARM &
PฤฐSTONLU POMPA) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (TELESCOPIC ARM &
PISTON PUMP) (TYPE B) (OP)
F060.09.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (STD ARM &
PฤฐSTONLU POMPA & SOL EL) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (STD ARM & PISTON PUMP &
LEFT HAND) (TYPE B) (OP)
F060.10.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (TELESKOPฤฐK ARM &
PฤฐSTONLU POMPA & SOL EL) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (TELESCOPIC ARM &
PISTON PUMP & LEFT HAND) (TYPE B) (OP)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
F060.11.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (STD ARM & DฤฐลžLฤฐ
POMPA) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (STD ARM & GEAR PUMP)
(TYPE B) (OP)
F060.12.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (TELESKOPฤฐK ARM &
DฤฐลžLฤฐ POMPA) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (TELESCOPIC ARM & GEAR
PUMP) (TYPE B) (OP)
F060.13.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (STD ARM & DฤฐลžLฤฐ
POMPA & SOL EL) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (STD ARM & GEAR PUMP &
LEFT HAND) (TYPE B) (OP)
F060.14.01 HฤฐDROLฤฐK TESฤฐSAT, PฤฐLOT (TELESKOPฤฐK ARM &
DฤฐลžLฤฐ POMPA & SOL EL) (TฤฐP B) (OP)
HYDRAULIC PIPING, PILOT (TELESCOPIC ARM & GEAR
PUMP & LEFT HAND) (TYPE B) (OP)
F065.01.01 KUMANDA DEฤžฤฐลžTฤฐRฤฐCฤฐ (TฤฐP B) PATTERN SHIFTER (TYPE B)
F070.05.01 YรœKLEYฤฐCฤฐ HฤฐDROLฤฐK TESฤฐSATI, SABฤฐT KEPร‡E
(TฤฐP B & DฤฐลžLฤฐ POMPA) (OP)
LOADER HYD. PIPING, SHOVEL (TYPE B & GEAR PUMP)
(OP)
F070.07.01 YรœKLEYฤฐCฤฐ HฤฐDROLฤฐK TESฤฐSATI, Aร‡ILIR KEPร‡E
(TฤฐP B & DฤฐลžLฤฐ POMPA) (OP)
LOADER HYD. PIPING, MULTIPURPOSE BUCKET (TYPE
B & GEAR PUMP) (OP)
F070.10.01 YรœKLEYฤฐCฤฐ HฤฐDROLฤฐK TESฤฐSATI, MSS (TฤฐP A & TฤฐP
B)
LOADER HYDRAULIC PIPING, MSS (TYPE A & TYPE B)
F070.15.01 YรœKLEYฤฐCฤฐ HฤฐDROLฤฐK TESฤฐSATI, SABฤฐT KEPร‡E
(TฤฐP B & PฤฐSTONLU POMPA) (OP)
LOADER HYD. PIPING, SHOVEL (TYPE B & PISTON
PUMP) (OP)
F070.16.01 YรœKLEYฤฐCฤฐ HฤฐDROLฤฐK TESฤฐSATI, Aร‡ILIR KEPร‡E
(TฤฐP B & PฤฐSTONLU POMPA) (OP)
LOADER HYD. PIPING,MULTIPURPOSE BUCKET (TYPE
B & PISTON PUMP) (OP)
F080.00.01 HORTUM TUTUCU SETฤฐ (STD. ARM) HOSE HOLDER SET (STD. ARM)
F080.01.01 HORTUM TUTUCU SETฤฐ (TELESKOPฤฐK) (OP) HOSE HOLDER SET (TELESCOPIC ARM) (OP)
F080.02.01 HORTUM TUTUCU SETฤฐ (KAZ AYAK) HOSE HOLDER SET (WING TYPE STABILIZER)
F080.03.01 HORTUM TUTUCU SETฤฐ (KAZ AYAK) HOSE HOLDER SET (WING TYPE STABILIZER)
F090.00.01 HฤฐDROLฤฐK TESฤฐSAT, AYAK SฤฐLฤฐNDฤฐRฤฐ HYD. PIPING, STABILIZER CYLINDER
F090.01.01 HฤฐDROLฤฐK TESฤฐSAT, AYAK SฤฐLฤฐNDฤฐRฤฐ (KฤฐLฤฐT
VALFLฤฐ) (OP)
HYD. PIPING, STABILIZER CYLINDER (WITH SAFETY
LOCKING VALVE) (OP)
F090.02.01 HฤฐDROLฤฐK TESฤฐSATI, AYAK SฤฐLฤฐNDฤฐRฤฐ (KAZ AYAK) HYDRAULIC PIPING, RAM, STABILIZER (WING TYPE)
F090.03.01 HฤฐDROLฤฐK TESฤฐSATI, AYAK SฤฐLฤฐNDฤฐRฤฐ (KAZ AYAK) HYDRAULIC PIPING, RAM, STABILISER (WING TYPE)
F090.04.01 HฤฐDROLฤฐK TESฤฐSAT, AYAK SฤฐLฤฐNDฤฐRฤฐ (TฤฐP B) HYDRAULIC PIPING, STABILIZER CYLINDER (TYPE B)
F100.01.01 HฤฐDROLฤฐK TESฤฐSATI, SIKMA PฤฐSTONU HYDRAULIC PIPING, HYDROCLAMP
F110.01.01 HฤฐDROLฤฐK TESฤฐSAT, Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ (KAZ
AYAK)
HYD. PIPING, SWING CYLINDER (WING TYPE
STABILIZER)
F110.02.01 HฤฐDROLฤฐK TESฤฐSAT, Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ (TฤฐP B) HYDRAULIC PIPING, SWING CYLINDER (TYPE B)
F120.02.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, BOM SฤฐLฤฐNDฤฐRฤฐ (KAZ
AYAK)
BACKHOE HYDRAULIC PIPING, BOOM CYLINDER (WING
TYPE STABILIZER)
F120.03.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, BOM SฤฐLฤฐNDฤฐRฤฐ
(EMNฤฐYET VALFLฤฐ, KAZ AYAK)
BACKHOE HYD.PIPING,BOOM CYLINDER(WITH SAFETY
LOCK VALVE,WING TYPE STABILIZER)
F120.06.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, BOM SฤฐLฤฐNDฤฐRฤฐ (TฤฐP
B)
BACKHOE HYDRAULIC PIPING, BOOM CYLINDER (TYPE
B)
F130.02.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, ARM SฤฐLฤฐNDฤฐRฤฐ (KAZ
AYAK)
BACKHOE HYDRAULIC PIPING, ARM CYLINDER (WING
TYPE STABILIZER)
F140.02.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, KEPร‡E SฤฐLฤฐNDฤฐRฤฐ
(TELESKOPฤฐK) (TฤฐP B)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER
(TELESCOPIC) (TYPE B)
F140.03.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, KEPร‡E SฤฐLฤฐNDฤฐRฤฐ
(KAZ AYAK & TฤฐP B)
HYD. PIPING, BUCKET CYLINDER (WING TYPE
STABILIZER & TYPE B) (OP)
F140.04.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, KEPร‡E SฤฐLฤฐNDฤฐRฤฐ
(KAZ AYAK, TELESKOPฤฐK BOM) (TฤฐP B)
BACKHOE HYD.PIPING,BUCKET CYLINDER(WING TYPE
STABILIZER,TELESCOP.BOOM)(TYPE B)
F140.06.01 KAZICI HฤฐDROLฤฐK TESฤฐSATI, KEPร‡E SฤฐLฤฐNDฤฐRฤฐ
(TฤฐP B)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER
(TYPE B)
F150.03.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI &
STD.ARM ) (TฤฐP B)
SINGLE ACTING HYDRAULIC PIPING (BREAKER &
STD.ARM ) (TYPE B)
F150.04.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI & STD.
ARM & LEVYE & KAZAYAK) (TฤฐP B) (OP)
SINGLE ACTING HYD. PIPING(BREAKER & STD. ARM &
LEVERS & WING TYPE)(TYPE B)(OP)
F150.05.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI &
STD.ARM & JY) (TฤฐP B)
SINGLE ACTING HYDRAULIC PIPING (BREAKER &
STD.ARM & JY) (TYPE B)
F150.06.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI & STD.
ARM & JY & KAZAYAK) (TฤฐP B) (OP)
SINGLE ACTING HYD. PIPING(BREAKER & STD. ARM &
JY & WING TYPE)(TYPE B)(OP)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
F150.07.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI & STD.
ARM & JY & MAFSALLI BOM) (TฤฐP B)
SINGLE ACTING HYD. PIPING (BREAKER & STD.ARM &
JY & ARTICULATED BOOM)(TYPE B)
F150.08.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI &
TELESKOPฤฐK) (TฤฐP B) (OP)
SINGLE ACTING HYDRAULIC PIPING (BREAKER &
TELESCOPIC) (TYPE B) (OP)
F150.09.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI (KIRICI &
TELESKOPฤฐK & KAZAYAK) (TฤฐP B)
SINGLE ACTING HYDRAULIC PIPING (BREAKER &
TELESCOPIC & WING TYPE) (TYPE B)
F160.04.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐD.TESฤฐSATI,BURGU/Dร–NER
KEPร‡E & KIRICI(STD.ARM,LEVYE)(TฤฐP B)(OP)
DOUBLE ACTING HYD.PIPING,AUGER/TILTING BUCKET
& BREAKER(STD.ARM,LEVERS)(TYPE B)
F160.05.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDR.TESฤฐSATI(BURGU/Dร–NER
KEPร‡E&KIRICI&TELESKOPฤฐK ARM&LV&TฤฐP B)
DOUBLE ACTING HYD.PIPING(AUGER/TILTING
BUCKET&BREAKER&TEL.ARM&LEVERS&TYPE B)
F160.07.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDR.TESฤฐSATI,BURGU/Dร–NER
KEPร‡E&KIRICI(TEL.ARM&JOYSTฤฐK&TฤฐP B)
DOUBLE ACTING HYD.PIPING,AUGER/TILTING
BUCKET&BREAKER(TELESCOPIC ARM&JY&TYPE B)
F180.00.01 HฤฐDROLฤฐK, EL KIRICISI (OP) HYDRAULIC, HAND BREAKER (OP)
F190.02.01 HฤฐDROLฤฐK TESฤฐSAT, DฤฐFERANSฤฐYEL KฤฐLฤฐDฤฐ HYDRAULIC PIPING, DIFFERENTIAL LOCK
G HฤฐDROLฤฐK KOMPONENTLER HYDRAULIC COMPONENTS
G010.01.01 DฤฐลžLฤฐ POMPA GEAR PUMP
G020.00.01 PฤฐSTONLU POMPA PISTON PUMP
G030.01.01 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ (SABฤฐT KEPร‡E,
LS-TฤฐP B)
LOADER CONTROL VALVE (GP BUCKET, LS-TYPE B)
G030.01.02 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- GฤฐRฤฐลž BLOฤžU (TฤฐP
B)
LOADER CONTROL VALVE-INLET BLOCK (TYPE B)
G030.01.03 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- KALDIRICI
SฤฐLฤฐNDฤฐR, KONTROL BLOฤžU (TฤฐP B)
LOADER CONTROL VALVE- LIFT CYLINDER CONTROL
BLOCK (TYPE B)
G030.01.04 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- ARM SฤฐLฤฐNDฤฐR
KONTROL, BLOฤžU (TฤฐP B)
LOADER CONTROL VALVE- ARM CYLINDER CONTROL
BLOCK (TYPE B)
G030.01.05 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- Aร‡ILIR KEPร‡E
SฤฐLฤฐNDฤฐRฤฐ, KONTROL BLOฤžU(TฤฐP B)
LOADER CONTROL VALVE- CLAMSHOVEL RAM
CONTROL BLOCK (TYPE B)
G030.01.06 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- ร‡IKIลž BLOฤžU (TฤฐP
B)
LOADER CONTROL VALVE- OUTLET BLOCK (TYPE B)
G030.02.01 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ, SABฤฐT KEPร‡E
(PB-TฤฐP B)
LOADER CONTROL VALVE, MECHANIC (PB-TYPE B)
G030.02.02 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- ARM SฤฐLฤฐNDฤฐR
KONTROL, BLOฤžU (TฤฐP B)
LOADER CONTROL VALVE- ARM CYLINDER CONTROL
BLOCK (TYPE B)
G030.02.03 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- ร‡IKIลž BLOฤžU (TฤฐP
B)
LOADER CONTROL VALVE- OUTLET BLOCK (TYPE B)
G030.02.04 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- GฤฐRฤฐลž BLOฤžU (TฤฐP
B-PB)
LOADER CONTROL VALVE-INLET BLOCK (TYPE B-PB)
G030.02.05 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- KALDIRICI
SฤฐLฤฐNDฤฐR, KONTROL BLOฤžU (TฤฐP B)
LOADER CONTROL VALVE- LIFT CYLINDER CONTROL
BLOCK (TYPE B)
G030.02.06 YรœKLEYฤฐCฤฐ KUMANDA VALFฤฐ- Aร‡ILIR KEPร‡E
SฤฐLฤฐNDฤฐRฤฐ, KONTROL BLOฤžU(TฤฐP B)
LOADER CONTROL VALVE- CLAMSHOVEL RAM
CONTROL BLOCK (TYPE B)
G040.02.01 KAZICI KUMANDA VALFฤฐ, JOYSTฤฐCK (PฤฐSTONLU
POMPA & TฤฐP B, FS)
BACKHOE CONTROL VALVE, JOYSTICK (PISTON PUMP
& TYPE B, FS)
G040.02.02 KAZICI KUMANDA VALFฤฐ- GฤฐRฤฐลž BLOฤžU (TฤฐP B) BACKHOE CONTROL VALVE-INLET BLOCK (TYPE B)
G040.02.03 KAZICI KUMANDA VALFฤฐ- ร‡IKIลž BLOฤžU (TฤฐP B) BACKHOE CONTROL VALVE -OUTLET BLOCK (TYPE B)
G040.02.04 KAZICI KUMANDA VALFฤฐ ARM KONTROL BLOฤžU,
JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE ARM CONTROL BLOCKS,
JOYSTICK (TYPE B)
G040.02.05 KAZICI KUMANDA VALFฤฐ- Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE-SLEW SWING RAM
CONTROL BLOCK, JOYSTICK (TYPE B)
G040.02.06 KAZICI KUMANDA VALFฤฐ- AYAK SฤฐLฤฐNDฤฐRฤฐ
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE-STABILIZER RAM
CONTROL BLOCK, JOYSTICK (TYPE B)
G040.02.07 KAZICI KUMANDA VALFฤฐ- KIVIRICI SฤฐLฤฐNDฤฐR
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE BUCKET RAM CONTROL
BLOCK, JOYSTICK (TYPE B)
G040.02.08 KAZICI KUMANDA VALFฤฐ BOM KONTROL BLOฤžU,
JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE BOOM CONTROL BLOCKS,
JOYSTICK (TYPE B)
G040.02.09 KAZICI KUMANDA VALFฤฐ TELESKOPฤฐK KONTROL
BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE TELESCOPIC CONTROL
BLOCKS, JOYSTICK (TYPE B)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
G040.03.01 KAZICI KUMANDA VALFฤฐ, LEVYELฤฐ (DฤฐลžLฤฐ POMPA
& TฤฐP B)
BACKHOE CONTROL VALVE, LEVERS (GEAR PUMP &
TYPE B)
G040.03.02 TELESKOPฤฐK SฤฐLฤฐNDฤฐR KONTROL BLOฤžU,
LEVYELฤฐ (DฤฐลžLฤฐ POMPA & TฤฐP B)
TELESCOPIC RAM CONTROL BLOCK, LEVERS (GEAR
PUMP & TYPE B)
G040.03.03 AYAK SฤฐLฤฐNDฤฐRฤฐ KONTROL BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
STABILIZER RAM CONTROL BLOCK, LEVERS (GEAR
PUMP & TYPE B)
G040.03.04 KAZICI KUMANDA VALFฤฐ ร‡IKIลž BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
BACKHOE CONTROL VALVE OUTLET BLOCK, LEVERS
(GEAR PUMP & TYPE B)
G040.03.05 KAZICI KUMANDA VALFฤฐ GฤฐRฤฐลž BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
BACKHOE CONTROL VALVE INLET BLOCK, LEVERS
(GEAR PUMP & TYPE B)
G040.03.06 DEVฤฐRฤฐCฤฐ SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
DIPPER RAM CONTROL BLOCK, LEVERS (GEAR PUMP
& TYPE B)
G040.03.07 KALDIRICI SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
LIFT RAM CONTROL BLOCK, LEVERS (GEAR PUMP &
TYPE B)
G040.03.08 KIVIRICI SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
BUCKET RAM CONTROL BLOCK, LEVERS (GEAR PUMP
& TYPE B)
G040.03.09 Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ KONTROL BLOฤžU, LEVYELฤฐ
(DฤฐลžLฤฐ POMPA & TฤฐP B)
SLEW SWING RAM CONTROL BLOCK, LEVERS (GEAR
PUMP & TYPE B)
G040.06.01 KAZICI KUMANDA VALFฤฐ, JOYSTฤฐCK (DฤฐลžLฤฐ
POMPA & TฤฐP B, FS)
BACKHOE CONTROL VALVE, JOYSTICK (GEAR PUMP &
TYPE B, FS)
G040.06.02 KAZICI KUMANDA VALFฤฐ- GฤฐRฤฐลž BLOฤžU (TฤฐP B) BACKHOE CONTROL VALVE-INLET BLOCK (TYPE B)
G040.06.03 KAZICI KUMANDA VALFฤฐ- ร‡IKIลž BLOฤžU (TฤฐP B) BACKHOE CONTROL VALVE -OUTLET BLOCK (TYPE B)
G040.06.04 KAZICI KUMANDA VALFฤฐ-ARM KONTROL BLOฤžU,
JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE-ARM CONTROL BLOCKS,
JOYSTICK(TYPE B)
G040.06.05 KAZICI KUMANDA VALFฤฐ- Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE-SLEW SWING RAM
CONTROL BLOCK, JOYSTICK (TYPE B)
G040.06.06 KAZICI KUMANDA VALFฤฐ- AYAK SฤฐLฤฐNDฤฐRฤฐ
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE-STABILIZER RAM
CONTROL BLOCK, JOYSTICK (TYPE B)
G040.06.07 KAZICI KUMANDA VALFฤฐ- KIVIRICI SฤฐLฤฐNDฤฐR
KONTROL BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE BUCKET RAM CONTROL
BLOCK, JOYSTICK (TYPE B)
G040.06.08 KAZICI KUMANDA VALFฤฐ BOM KONTROL BLOฤžU,
JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE BOOM CONTROL BLOCKS,
JOYSTICK (TYPE B)
G040.06.09 KAZICI KUMANDA VALFฤฐ TELESKOPฤฐK KONTROL
BLOฤžU, JOYSTICK (TฤฐP B)
BACKHOE CONTROL VALVE TELESCOPIC CONTROL
BLOCKS, JOYSTICK (TYPE B)
G040.07.01 KAZICI KUMANDA VALFฤฐ, LEVYELฤฐ (PฤฐSTONLU
POMPA & TฤฐP B)
BACKHOE CONTROL VALVE, LEVERS (PISTON PUMP &
TYPE B)
G040.07.02 TELESKOPฤฐK SฤฐLฤฐNDฤฐR KONTROL BLOฤžU,
LEVYELฤฐ (PฤฐSTONLU POMPA & TฤฐP B)
TELESCOPIC RAM CONTROL BLOCK, LEVERS (PISTON
PUMP & TYPE B)
G040.07.03 AYAK SฤฐLฤฐNDฤฐRฤฐ KONTROL BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
STABILIZER RAM CONTROL BLOCK, LEVERS (PISTON
PUMP & TYPE B)
G040.07.04 KAZICI KUMANDA VALFฤฐ ร‡IKIลž BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
BACKHOE CONTROL VALVE OUTLET BLOCK, LEVERS
(PISTON PUMP & TYPE B)
G040.07.05 KAZICI KUMANDA VALFฤฐ GฤฐRฤฐลž BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
BACKHOE CONTROL VALVE INLET BLOCK, LEVERS
(PISTON PUMP & TYPE B)
G040.07.06 DEVฤฐRฤฐCฤฐ SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
DIPPER RAM CONTROL BLOCK, LEVERS (PISTON PUMP
& TYPE B)
G040.07.07 KALDIRICI SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
LIFT RAM CONTROL BLOCK, LEVERS (PISTON PUMP &
TYPE B)
G040.07.08 KIVIRICI SฤฐLฤฐNDฤฐR KONTROL BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
BUCKET RAM CONTROL BLOCK, LEVERS (PISTON
PUMP & TYPE B)
G040.07.09 Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ KONTROL BLOฤžU, LEVYELฤฐ
(PฤฐSTONLU POMPA & TฤฐP B)
SLEW SWING RAM CONTROL BLOCK, LEVERS (PISTON
PUMP & TYPE B)
G050.00.01 ฤฐLAVE ATAลžMAN KUMANDA VALFฤฐ ADDITIONAL ATTACHMENT CONTROL VALVE
G060.00.01 JOYSTฤฐCK KUMANDA, SAฤž (OP) REMOTE CONTROL VALVE, RIGHT (OP)
G070.00.01 JOYSTฤฐCK KUMANDA, SOL (OP) REMOTE CONTROL VALVE, LEFT (OP)
G080.00.01 KALDIRICI SฤฐLฤฐNDฤฐR, YรœKLEYฤฐCฤฐ, SAฤž LIFT CYLINDER, LOADER, RH
G100.00.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ, YรœKLEYฤฐCฤฐ, SAฤž BUCKET CYLINDER, LOADER, RH
G110.00.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ, YรœKLEYฤฐCฤฐ, SOL BUCKET CYLINDER, LOADER, LH
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
G120.00.01 Aร‡ILIR KEPร‡E SฤฐLฤฐNDฤฐRฤฐ MULTIPURPOSE BUCKET CYLINDER
G130.00.01 AYAK SฤฐLฤฐNDฤฐRฤฐ, SAฤž STABILIZER CYLINDER, RH
G130.01.01 AYAK SฤฐLฤฐNDฤฐRฤฐ, SAฤž (KAZ AYAK) STABILIZER CYLINDER, RH (WING TYPE)
G140.00.01 AYAK SฤฐLฤฐNDฤฐRฤฐ, SOL STABILIZER CYLINDER, LH
G140.01.01 AYAK SฤฐLฤฐNDฤฐRฤฐ, SOL (KAZ AYAK) STABILIZER CYLINDER, LH (WING TYPE)
G150.00.01 Dร–Nรœลž SฤฐLฤฐNDฤฐRฤฐ SWING CYLINDER
G160.00.01 BOM SฤฐLฤฐNDฤฐRฤฐ, KAZICI BOOM CYLINDER, BACKHOE
G170.00.01 ARM SฤฐLฤฐNDฤฐRฤฐ, KAZICI ARM CYLINDER, BACKHOE
G180.00.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ, KAZICI BUCKET CYLINDER, BACKHOE
G180.01.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ, KAZICI, TELESKOPฤฐK (OP) BUCKET CYLINDER, BACKHOE, TELESCOPIC, (OP)
G190.00.01 TELESKOPฤฐK SฤฐLฤฐNDฤฐR, KAZICI (OP) TELESCOPIC CYLINDER, BACKHOE, (OP)
G200.00.01 ร‡ABUK Sร–K- TAK SฤฐLฤฐNDฤฐRฤฐ, KAZICI (OP) QUICK COUPLER CYLINDER, BACKHOE (OP)
G220.00.02 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (ร‡ฤฐFT EKSENLฤฐ) SOL
(OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH (OP)
G220.00.03 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (ร‡ฤฐFT EKSENLฤฐ)
MERKEZ (OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER
(OP)
G210.00.01 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (OP) LEVELLING BLADE CYLINDER, (OP)
G220.00.01 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (ร‡ฤฐFT EKSENLฤฐ) SAฤž
(OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) RH (OP)
G220.00.02 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (ร‡ฤฐFT EKSENLฤฐ) SOL
(OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH (OP)
G220.00.03 TESVฤฐYE KรœREฤžฤฐ SฤฐLฤฐNDฤฐRฤฐ (ร‡ฤฐFT EKSENLฤฐ)
MERKEZ (OP)
LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER
(OP)
G230.00.01 TOMRUK YรœKLEYฤฐCฤฐ SฤฐLฤฐNDฤฐRฤฐ (OP) LOG GRAPPLE CYLINDER (OP)
G240.00.01 TOMRUK YรœKLEYฤฐCฤฐ SฤฐLฤฐNDฤฐRฤฐ (HAREKETLฤฐ) (OP) LOG GRAPPLE CYLINDER (WITH VERTICAL
MOVEMENT) (OP)
G250.00.01 Dร–NERLฤฐ KANAL KEPร‡ESฤฐ SฤฐLฤฐNDฤฐRฤฐ (OP) TILTING BUCKET CYLINDER (OP)
G265.01.01 ARM SฤฐLฤฐNDฤฐRฤฐ, KAZICI ARM CYLINDER, BACKHOE
G265.02.01 ARM SฤฐLฤฐNDฤฐRฤฐ, KAZICI ARM CYLINDER, BACKHOE
G290.00.01 PILOT BESLEME BLOฤžU (ORANSAL VALFLฤฐ) PILOT SUPPLY BLOCK (WITH PROPORTIONAL VALVE)
G300.00.01 SARSINTISIZ YรœRรœYรœลž VALFฤฐ, MSS MSS, VALVE
G310.00.01 VALF, KUMANDA DEฤžฤฐลžTฤฐRฤฐCฤฐ VALVE, PATTERN SHIFTER
H DฤฐREKSฤฐYON SฤฐSTEMฤฐ STEERING SYSTEM
H010.00.01 HฤฐDROLฤฐK TESฤฐSAT, DฤฐREKSฤฐYON (DฤฐลžLฤฐ POMPA)
JD
HYDRAULIC PIPING, STEERING (GEAR PUMP) JD
H010.03.01 HฤฐDROLฤฐK TESฤฐSAT, DฤฐREKSฤฐYON (TฤฐP B) HYDRAULIC PIPING, STEERING (TYPE B)
J FREN SฤฐSTEMฤฐ BRAKE SYSTEM
J010.07.01 HฤฐDROLฤฐK TESฤฐSAT, FREN HYDRAULIC PIPING, BRAKE
J010.08.01 HฤฐDROLฤฐK TESฤฐSAT, FREN HYDRAULIC PIPING, BRAKE
K ELEKTRฤฐK SฤฐSTEMฤฐ ELECTRICAL SYSTEM
K010.08.01 KABฤฐN ELEKTRฤฐฤžฤฐ (1) (KAZ AYAK) CAB ELECTRIC (1) (WING TYPE)
K010.09.01 KABฤฐN ELEKTRฤฐฤžฤฐ (1) (KAZ AYAK) CAB ELECTRIC (1) (WING TYPE)
K010.01.02 KABฤฐN ELEKTRฤฐฤžฤฐ (2) CAB ELECTRIC (2)
K010.01.03 KABฤฐN ELEKTRฤฐฤžฤฐ (3) CAB ELECTRIC (3)
K010.00.04 KABฤฐN ELEKTRฤฐฤžฤฐ (4) CAB ELECTRIC (4)
K010.02.06 KABฤฐN ELEKTRฤฐฤžฤฐ (6) CAB ELECTRIC (6)
K010.02.07 KABฤฐN ELEKTRฤฐฤžฤฐ (7) CAB ELECTRIC (7)
F160.01.01 KABฤฐN ELEKTRฤฐฤžฤฐ (8) CAB ELECTRIC (8)
K020.16.01 ELEKTRฤฐK (1) ELECTRIC (1)
K020.17.01 ELEKTRฤฐK (1) (KAZ AYAK) ELECTRIC (1) (WING TYPE STABILIZER)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
K030.00.01 TESVฤฐYE KรœREฤžฤฐ (ร‡ฤฐFT EKSENLฤฐ) KABLO
TESฤฐSATI (OP)
LEVELLING BLADE (WITH TWO AXIS TURN) HARNESS
(OP)
K050.02.01 SMARTLINK (REXROTH) (OP) SMARTLINK (REXROTH) (OP)
Y DฤฐฤžERLERฤฐ (ETฤฐKET, AVADANLIK) OTHERS (DECAL, TOOLS)
Y010.00.02 ETฤฐKETLER, UYARI DECALS, WARNING
Y010.04.01 ETฤฐKET VE LEVHALAR (1) DECAL AND PLATES (1)
Y020.66.01 ETฤฐKET VE LEVHALAR (TรœRKร‡E) (2) DECAL AND PLATES (TR) (2)
Y020.67.01 ETฤฐKET VE LEVHALAR (ฤฐNGฤฐLฤฐZCE) (2) DECAL AND PLATES (EN) (2)
Y020.68.01 ETฤฐKET VE LEVHALAR (FRANSIZCA) (2) DECAL AND PLATES (FR) (2)
Y020.69.01 ETฤฐKET VE LEVHALAR (ES) (2) DECAL AND PLATES (ES) (2)
Y020.70.01 ETฤฐKET VE LEVHALAR (RUSร‡A) (2) DECAL AND PLATES (RU) (2)
Y020.71.01 ETฤฐKET VE LEVHALAR (PORTEKฤฐZCE) (2) DECAL AND PLATES (PT) (2)
Y020.72.01 ETฤฐKET VE LEVHALAR (BULGARCA) (2) DECAL AND PLATES (BG) (2)
Y030.00.01 ETฤฐKET VE LEVHALAR, KIRICI DECAL AND PLATES, BREAKER
Z MOTOR PARร‡ALARI ENGINE PARTS
Z010.04.01 MOTOR (JD) ENGINE
Z020.04.01 KรœLBรœTร–R KAPAฤžI VALVE COVER
Z020.04.02 SฤฐLฤฐNDฤฐR KAPAฤžI CYLINDER HEAD AND GASKET
Z020.04.03 CฤฑVATA- SฤฐLฤฐNDฤฐR KAPAฤžI SCREW- CYLINDER HEAD
Z020.04.04 SฤฐLฤฐNDฤฐR BLOฤžU, KRANK MฤฐLฤฐ ANA YATAฤžI VE
KAM MฤฐLฤฐ
CYLINDER BLOCK, MAIN BEARINGS CAPS AND
CAMSHAFT
Z020.04.05 KRANK MฤฐLฤฐ VE ANA YATAฤžI CRANKSHAFT AND MAIN BEARINGS
Z020.04.06 PฤฐSTON, BฤฐYEL KOLU, SฤฐLฤฐNDฤฐR Gร–MLEฤžฤฐ PISTON, CONNECTING ROD, CYLINDER LINER
Z020.04.07 KรœLBรœTร–R KOLU, KรœLBรœTร–R MฤฐLฤฐ VE SUBAP
ฤฐTECEฤžฤฐ
ROCKER ARM, ROCKER ARM SHAFT AND CAM
FOLLOWER
Z020.04.08 ZAMANLAMA DฤฐลžLฤฐLERฤฐ KAPAฤžI, SU DEVฤฐRDAฤฐM
POMPASI VE ALT AVARE DฤฐลžLฤฐ
TIMING GEAR COVER, WATER PUMP AND
CRANKSHAFT LOWER IDLER GEAR
Z020.04.09 ร–N ROLANTฤฐ DฤฐลžLฤฐ SฤฐSTEMฤฐ (ALT VE รœST) FRONT PLATE AND IDLE GEARS (UPPER AND LOWER)
Z020.04.10 VOLAN MUHAFAZASI FLYWEEL HOUSING
Z020.04.11 VOLAN FLYWEEL
Z020.04.12 KRANK MฤฐLฤฐ KASNAฤžI CRANKSHAFT PULLEY
Z020.04.13 YARDIMCI KASNAK CRANKSHAFT PULLEY
Z020.04.14 YARDIMCI KASNAK KAPAฤžI CRANKSHAFT PULLEY
Z020.04.15 KAYIลž GERDฤฐRฤฐCฤฐ CRANKSHAFT PULLEY
Z020.04.16 DENGELEME ลžAFTI BALANCER SHAFT
Z020.04.17 MOTOR CONTA, KฤฐTฤฐ BALANCER SHAFT
Z020.04.18 CONTA KฤฐTฤฐ- SฤฐLฤฐNDฤฐR KAPAฤžI/ YAฤž KARTERฤฐ BALANCER SHAFT
Z020.04.19 CONTA KฤฐTฤฐ- SฤฐLฤฐNDฤฐR KAPAฤžI BALANCER SHAFT
Z030.04.01 YAฤž KARTERฤฐ OIL PAN
Z030.04.02 YAฤž DOLDURMA BORUSU- SAฤž TARAF OIL FILLER NECK- RIGHT HAND SIDE
Z030.04.03 YAฤž KONTROL ร‡UBUฤžU VE BORUSU ENGINE OIL DIPSTICK
Z030.04.04 YAฤž POMPASI OIL PUMP
Z030.04.05 YAฤž SOฤžUTUCU OIL COOLER
Z030.04.06 HAVALANDIRMA SฤฐSTEMฤฐ VENTILATING SYSTEM
Z030.04.07 YAฤž FฤฐLTRESฤฐ VE FฤฐLTRE KAFASI OIL FILTER AND FILTER HEAD
Z040.04.01 FAN KASNAฤžI FAN PULLEY
Z040.04.02 FAN TAHRฤฐKฤฐ FAN DRIVE
Z040.04.03 FAN KAYIลžI FAN BELT
Z040.04.04 TERMOSTAT KAPAฤžI THERMOSTAT COVER
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
Z040.04.05 TERMOSTAT THERMOSTAT
Z040.04.06 SU POMPASI EMฤฐลž BORUSU WATER PUMP INLET
Z040.04.07 SU POMPASI KASNAฤžI WATER PUMP PULLEY
Z050.04.01 YAKIT PรœSKรœRTME POMPASI FUEL INJECTION PUMP
Z050.04.02 ร–N YAKIT FฤฐLTRESฤฐ PRIMARY FUEL FILTER
Z050.04.03 ANA YAKIT FฤฐLTRESฤฐ FINAL FUEL FILTER
Z050.04.04 YAKIT TRANFER POMPASI FUEL TRANSFER PUMP
Z060.04.01 YAฤž BASINร‡ MรœลžรœRรœ OIL PRESSURE SWITCH
Z060.04.02 SU HARARET MรœลžรœRรœ TEMPERATURE SWITCH
Z060.04.03 MARลž MOTORU STARTING MOTOR
Z060.04.04 ALTERNATร–R ALTERNATOR
Z060.04.05 ALTERNATร–R BAฤžLANTILARI ALTERNATOR BRACKETS
Z060.04.06 MOTOR SOฤžUTMA SIVISI ISITICISI ENGINE COOLANT HEATER
Z060.04.07 HAVA ร–N ISITMA KฤฐTฤฐ COLD WEATHER STARTING AIDS
Z060.04.08 DEVฤฐR SENSร–Rรœ BAฤžLANTISI ELECTRONIC TACH DRIVE
Z070.04.01 TรœRBOลžARJ VE YAฤž BORULARI TURBOCHARGER AND OIL LINES
Z070.04.02 EGSOZ MANฤฐFOLDU EXHAUST MANIFOLD
Z070.04.03 EMME MANฤฐFOLDU INTAKE MANIFOLD

DESCRIPTION:

Hidromek Backhoe Loader HMK 102B ALPHA Spare Parts Catalog Manual SN B150001 EN_TR – PDF DOWNLOAD

PREFACE:

  • We would like to thank you for purchasing HMK 102 Series Construction Equipment.
  • This catalog has been prepared for ordering spare parts for 102 series.
  • For satisfactory service and selection of correct part. read and understand instructions as
    shown below.

No: This indicates the indicating number of part.
Part No: It shows the part number of the parts which are included in an illustration.
Description: It shows the name of the part.
Q’ty: It shows the quantitiy use of part for the group that was illustrated on page.

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

https://vimeo.com/807203154

PLEASE NOTE:

  • This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
  • The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
  • Need any other service / repair / parts manual, please feel free to contact us atย heydownloadss @gmail.comย . We may surprise you with a nice offer

S.Vย

What Our Customers Say

โ˜…โ˜…โ˜…โ˜…โ˜… Live reviews from customers
Loading customer reviews...

๐ŸŒŸ Related Products

Discover more professional manuals for your equipment

-63% OFF
Hidromek HMK 140LC SERVฤฐS EL KฤฐTABI H307322500 - PDF DOWNLOAD (Turkish)

Hidromek HMK 140LC SERVฤฐS EL KฤฐTABI H307322500 - PDF DOWNLOAD (Turkish)

โ˜…โ˜…โ˜…โ˜…โ˜… (116 reviews)
$86.95 $31.95
DOWNLOAD
-64% OFF
Hidromek HMK 220 LC-2, HMK 220 LC-2 LR, HMK 300 LC, HMK 300 NLC, HMK 300 LC LR TIER 2 Serisi Paletli Ekskavatorler Kullanim Ve Bakim El Kitabi - PDF DOWNLOAD (Turkish)
-63% OFF
Hidromek HMK 140 W-3 HMK 210 W-3 Tier 3 Stage III Wheeled Excavator Operation And Maintenance Manual - PDF DOWNLOAD
-80% OFF
Hidromek HMK 140 W-3 MH KULLANIM VE BAKIM KILAVUZU - PDF DOWNLOAD (Turkish)

Hidromek HMK 140 W-3 MH KULLANIM VE BAKIM KILAVUZU - PDF DOWNLOAD (Turkish)

โ˜…โ˜…โ˜…โ˜…โ˜… (126 reviews)
$78.00 $15.95
DOWNLOAD
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    ๐Ÿ›’
    Recently Purchased
    ๐Ÿ•’ verified order
