Hidromek Crawler Excavator HMK 200W-3 ISUZU YPK SPC 9123501 Parts Catalogue Manual H237303200 – PDF DOWNLOAD

Description

Hidromek Crawler Excavator HMK 200W-3 ISUZU YPK SPC 9123501 Parts Catalogue Manual H237303200 – PDF DOWNLOAD

FILE DETAILS:

Hidromek Crawler Excavator HMK 200W-3 ISUZU YPK SPC 9123501 Parts Catalogue Manual H237303200 – PDF DOWNLOAD

Language : English
Pages : 619
Downloadable : Yes
File Type : PDF
Size: 48.7 MB

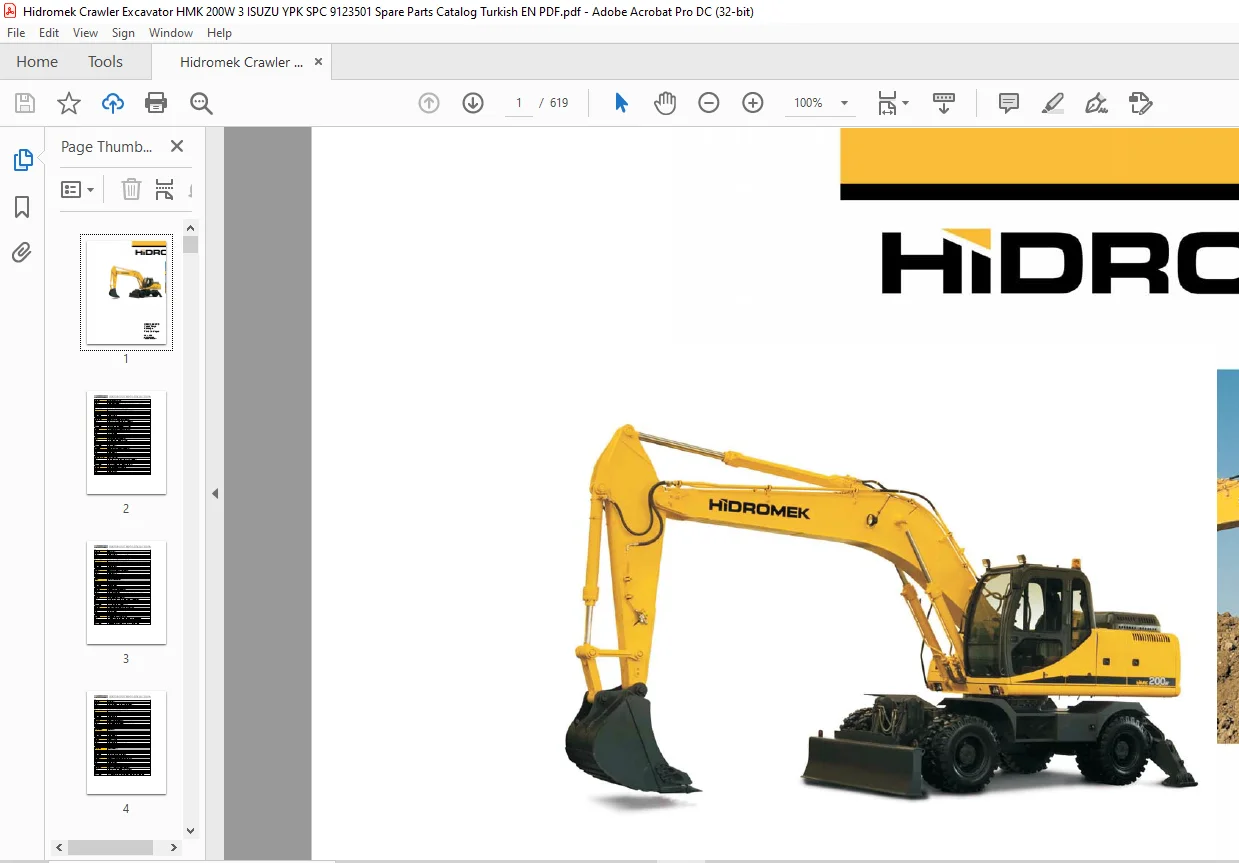

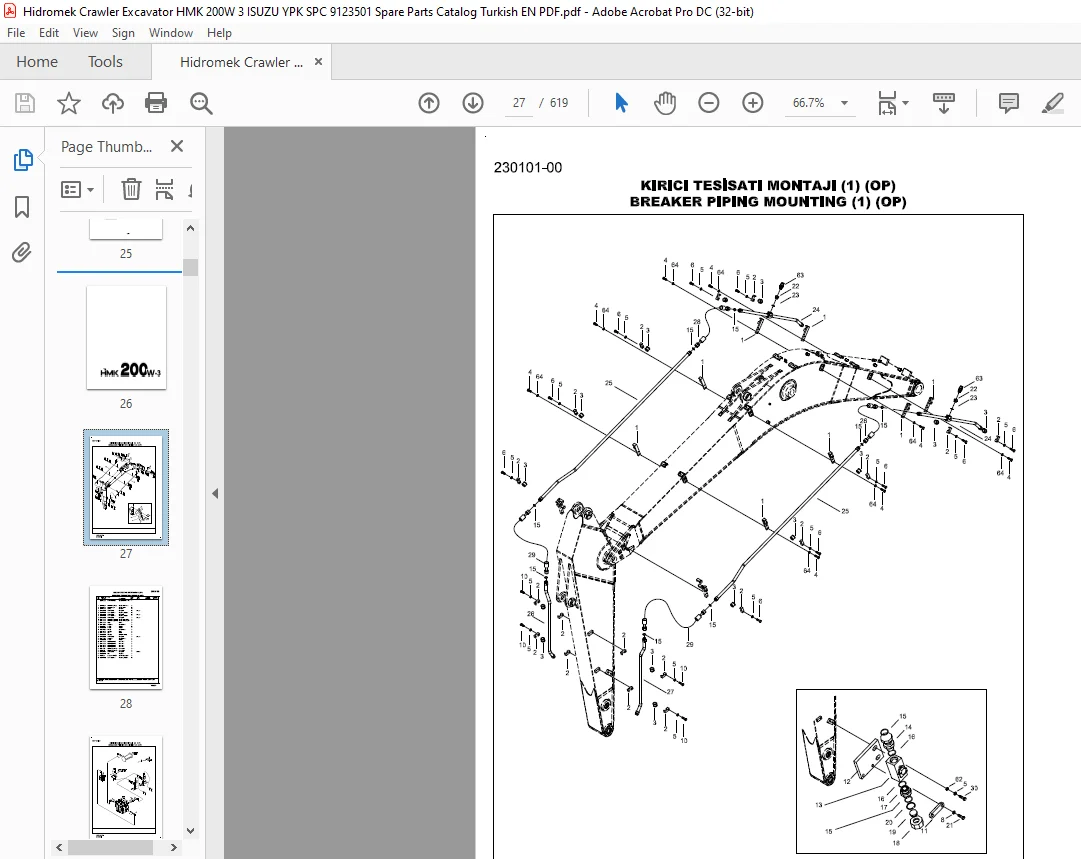

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hidromek Crawler Excavator HMK 200W-3 ISUZU YPK SPC 9123501 Parts Catalogue Manual H237303200 – PDF DOWNLOAD

PREFACE:

• We would like to thank you for purchasing HMK 200 W-3 Construction
  Equipment.
• This catalog has been prepared for ordering spare parts for HMK 200 W-3.
• For satisfactory service and selection of correct part, read and understand
  instructions as shown below.

No This indicates the indicating number of part.
Part No It shows the part number of the parts which are included in an illustration.
Description It shows the name of the part.
Q’ty It shows the quantitiy use of part for the group that was illustrated on page.
Note It shows explanations, which are not given in description.

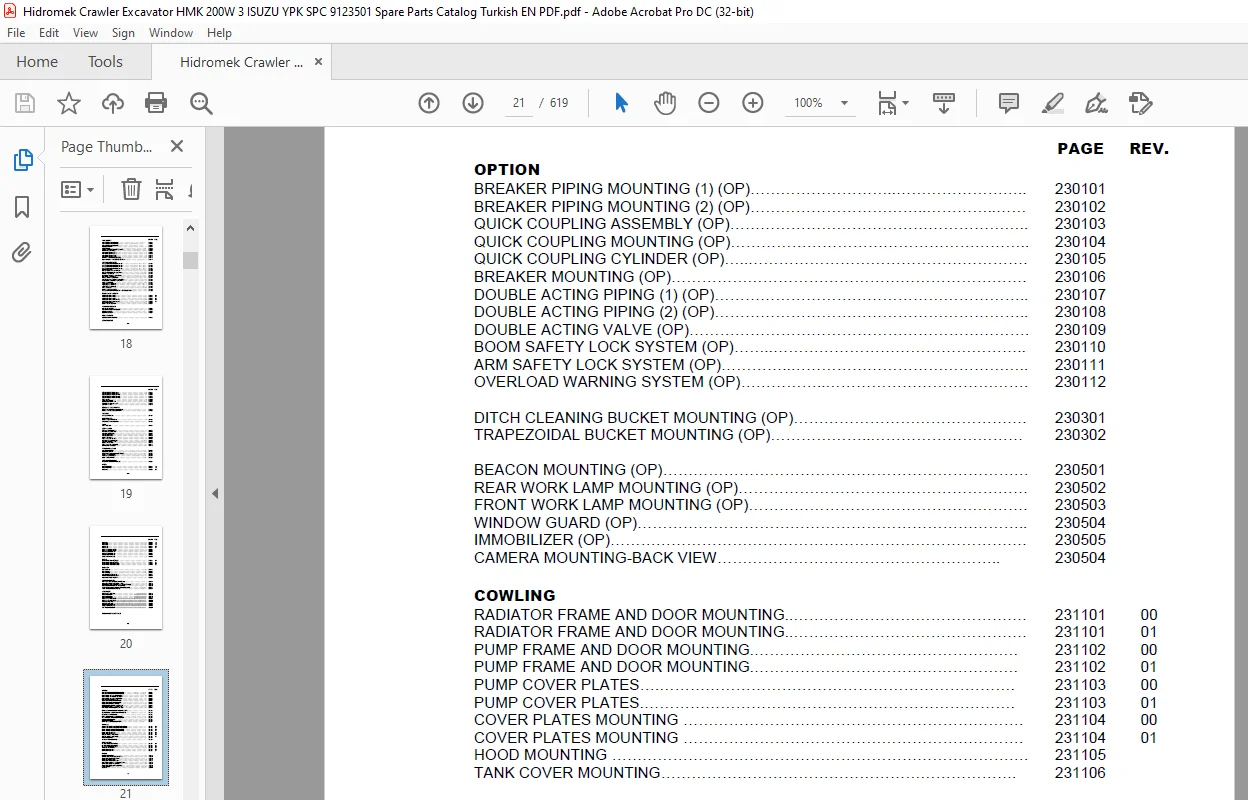

TABLE OF CONTENTS:

Hidromek Crawler Excavator HMK 200W-3 ISUZU YPK SPC 9123501 Parts Catalogue Manual H237303200 – PDF DOWNLOAD

OPSİYON
KIRICI TESİSATI MONTAJI (1) (OP) 230101
KIRICI TESİSATI MONTAJI (2) (OP) 230102
ÇABUK SÖK-TAK KOMPLESİ (OP) 230103
ÇABUK SÖK-TAK MONTAJI (OP) 230104
ÇABUK SÖK-TAK SİLİNDİRİ (OP) 230105
KIRICI MONTAJI (OP) 230106
ÇİFT TESİRLİ KIRICI TESİSATI MONTAJI (1) (OP 230107
ÇİFT TESİRLİ KIRICI TESİSATI MONTAJI (2) (OP) 230108
ÇİFT YÖNLÜ AYAK PEDALI (OP) 230109
BOM EMNİYET VALFİ MONTAJI (OP) 230110
UÇ BOM EMNİYET VALFİ MONTAJI (OP) 230111
AŞIRI YÜK UYARI SİSTEMİ (OP) 230112
TEMİZLEME KEPÇESİ MONTAJI (OP) 230301
TRAPEZ KEPÇE MONTAJI (OP) 230302
TEPE LAMBASI MONTAJI (OP) 230501
ARKA ÇALIŞMA LAMBASI MONTAJI (OP) 230502
ÖN ÇALIŞMA LAMBASI MONTAJI (OP) 230503
KORUYUCU KAFES (OP) 230504
IMMOBILIZER (OP) 230505
ARKA GÖRÜŞ KAMERASI (OP) 230506
KAPORTA
RADYATÖR ÇERÇEVE VE KAPI MONTAJI 231101 00
RADYATÖR ÇERÇEVE VE KAPI MONTAJI 231101 01
POMPA ÇERÇEVESİ VE KAPI MONTAJI 231102 00
POMPA ÇERÇEVESİ VE KAPI MONTAJI 231102 01
POMPA ARASACLARI 231103 00
POMPA ARASACLARI 231103 01
ARASAC MONTAJI 231104 00
ARASAC MONTAJI 231104 01
MOTOR KAPUT MONTAJI 231105
DEPO KAPAK MONTAJI 231106
ÜST ŞASİ
ÜST ŞASİ MONTAJI 231201 00
ÜST ŞASİ MONTAJI 231201 01
AKÜ SANDIĞI MONTAJI 231202 00
TAKIM SANDIĞI MONTAJI 231202 01
YÜRÜME SACLARI 231203 00
YÜRÜME SACLARI 231203 01
MOTOR
MOTOR MONTAJI 232001
MOTOR TAMİR TAKIMI 232002
SİLİNDİR KAFASI TAMİR TAKIMI 232003
KULBUTÖR KAPAĞI MONTAJI 232004
SİLİNDİR KAFASI MONTAJI 232005
ENJEKTOR TESİSAT DESTEĞİ MONTAJI 232006
SİLİNDİR BLOK MONTAJI 232007
SİLİNDİR BLOK AKSESUARLARI 232008
SEVİYE ÇUBUĞU 232009
KARTER 232010
xvi
SAYFA REV
KAM MİLİ SUBAPLAR 232011
ZAMANLAMA DİŞLİSİ 232012
PİSTON – VOLAN – KRANK MİLİ 232013
KASNAK 232014 
ÖN KAPAK MONTAJI 232015 
VOLAN MUHAFAZASI 232016 
EMME MANİFOLDU 232017 
EGSOZ MANİFOLDU 232018 
HAVALANDIRMA SİSTEMİ 232019
SU POMPASI 232020
TERMOSTAT 232021
EGR SOĞUTUCU TESİSATI 232022
FAN VE FAN KAYIŞI 232023
TURBOŞARJ SİSTEMİ 232024
YAKIT TESİSATI (1) 232025
YAKIT TESİSATI (2) 232026
YAKIT TESİSATI (3) 232027
BESLEME POMPASI VE ELEKTROMANYETİK POMPA 232028
YAKIT FİLTRESİ 232029
MOTOR YAĞI FİLTRESİ VE SOĞUTUCUSU 232030
YAĞ POMPASI 232031
YAĞLAMA TESİSATI 232032
EGR 232033
MOTOR ELEKTRİK KONT PARÇALARI (1) 232034
MOTOR ELEKTRİK KONT PARÇALARI (2) 232035
MARŞ MOTORU 232036
JENERATOR KOMPLESİ 232037
ENJEKSİYON POMPA CONTASI 232038
FAN MUHAFAZASI 232039
GÜÇ ÇIKIŞ KAPAĞI 232040
MOTOR ELEKTRİK TESİSATI 232041
ELEKTRİK TESİSATI ELEMANLARI 232042
ELEKTRİK KONTROL VE DİĞER PARÇALAR 232043
KAVRAMA MONTAJI 232101
HAVA FİLTRESİ
HAVA FİLTRESİ MONTAJI 232201
EGZOZ
EGZOZ MONTAJI 232301 00
EGZOZ MONTAJI 232301 01
MOTOR SOĞUTMA
SOĞUTMA DONANIMI 232401
RADYATÖR 232402
YAKIT DONANIMI
YAKIT DEPOSU MONTAJI VE YAKIT HATTI 232501
YAKIT TRANSFER POMPASI 232502
KLİMA – ISITICI
KLİMA MONTAJI 232701
ISITICI MONTAJI 232702 


xvii
SAYFA REV
ANA TESİSAT 
ANA HİDROLİK MONTAJI (1) 233001 
ANA HİDROLİK MONTAJI (2) 233002
ANA HİDROLİK MONTAJI (3) 233003
HİDROLİK POMPA 233004 
PİLOT POMPA 233005 
ORANSAL BASINÇ KONTROL VALFİ 233006 
POMPA REGÜLATÖRÜ 233007 
ANA KONTROL VALFİ (1) 233008
ANA KONTROL VALFİ (2) 233009
ANA KONTROL VALFİ (3) 233010
ANA KONTROL VALFİ (4) 233011
MOTOR – KULE DÖNÜŞ ÜNİTESİ 233012
DİŞLİ KUTUSU – KULE DÖNÜŞ ÜNİTESİ 233013

ALT ŞASE HİDROLİĞİ 
ALT ŞASE HİDROLİĞİ MONTAJI (1) 233101 
ALT ŞASE HİDROLİĞİ MONTAJI (2) 233102 
ALT ŞASE HİDROLİĞİ MONTAJI (3) 233103 
ALT ŞASE HİDROLİĞİ MONTAJI (4) 233104 
DÖNER DAĞITICI 233105 
TAHRİK GÖVDESİ – ŞANZIMAN 233106 
TAHRİK ELEMANLARI – ŞANZIMAN 233107 
GÖVDE – ŞANZIMAN 233108 
YAĞLAMA TESİSATI – ŞANZIMAN 233109 
KAVRAMA – ŞANZIMAN 233110 
M DİSK FRENİ – ŞANZIMAN 233111 
PLANET DİŞLİSİ TAHRİĞİ – ŞANZIMAN 233112 
VİTES KOLU SENSÖRÜ – ŞANZIMAN 233113 
ÇIKTI – ŞANZIMAN 233114 
YÜRÜYÜŞ MOTORU (1) 233115 
YÜRÜYÜŞ MOTORU (2) 233116 
YÜRÜYÜŞ MOTORU (3) 233117 
AYAK SİLİNDİRİ 233118 
DOZER BIÇAĞI SİLİNDİRİ 233119 
ALT ŞASE HİDROLİĞİ MONTAJI – OPSİYONEL AYAK 233120 
PİLOT DEVRE TESİSATI
PİLOT DEVRE MONTAJI 233201 00
PİLOT DEVRE MONTAJI 233201 01
PİLOT DEVRE MONTAJI 233201 02
PİLOT DEVRE MONTAJI (AKV) 233202 00
PİLOT DEVRE MONTAJI (AKV) 233202 01
JOİSTİK (SAĞ/SOL) 233203
DOZER-AYAK JOİSTİĞİ 233204

ATAÇMAN TESİSATI 
ATAÇMAN TESİSATI 233301
ANA BOM SİLİNDİRİ (SAĞ/SOL) 233302 
KEPÇE SİLİNDİRİ 233303 
UÇ BOM SİLİNDİRİ 233304 

HİDROLİK DEPO
HİDROLİK DEPO MONTAJI 233401 

GÜÇ HİDROLİĞİ
xviii
SAYFA REV

GÜÇ HİDROLİĞİ MONTAJI (1) 233501 
GÜÇ HİDROLİĞİ MONTAJI (2) 233502 
GÜÇ HİDROLİĞİ MONTAJI (3-1) 233503 
GÜÇ HİDROLİĞİ MONTAJI (3-2) 233504 
GÜÇ HİDROLİĞİ MONTAJI (3-3) 233505 
FREN VALFİ 233506 
YÜRÜYÜŞ PEDALI 233507 
DİREKSİYON POMPASI 233508 
PİLOT VE ŞANZIMAN VALFİ 233509 
ŞANZIMAN VALFİ 233510 

DÖNÜŞ VE SIZINTI HATTI
DÖNÜŞ VE SIZINTI HATTI MONTAJI 233601 
DRENAJ FİLTRESİ BAĞLANTILARI 233602 

ALT ŞASİ 
ALT ŞASİ MONTAJI 234101 
DOZER BIÇAĞI
DOZER BIÇAĞI MONTAJI 234301
OPSİYONEL AYAK MONTAJI 234302
AYAK
AYAK MONTAJI 234401
GÜÇ AKTARIM
GÜÇ AKTARIM MONTAJI 234501
DİFERANSİYEL-ÖN AKS 234502
AKS KOVANI-ÖN AKS 234503
AKS BAŞI-ÖN AKS 234504
AKS BAŞI-ÖN AKS 234505
KOVAN-ÖN AKS 234506
FREN PİSTONU-ÖN AKS 234507
DİFERANSİYEL-ARKA AKS 234508
AKS KOVANI-ARKA AKS 234509
KOVAN-ARKA AKS 234510
FREN PİSTONU-ARKA AKS 234511
DİREKSİYON SİLİNDİRİ 234512
ATAÇMAN MONTAJI
ANA BOM MONTAJI 235101
UÇ BOM MONTAJI 235201
ÇALIŞMA ATAÇMANLARI KONTROLÜ 235301
GENEL AMAÇLI KEPÇE 235302
AĞIR HİZMET KEPÇESİ 235303
DUAL RADÜS KEPÇE 235304
YAĞLAMA DONANIMI
YAĞLAMA DONANIMI MONTAJI 235801
KABİN
KABİN MONTAJI 236001 00
KABİN MONTAJI 236001 01
KABİN (1) 236002 00
xix
SAYFA REV
KABİN (1) 236002 01
KABİN (2) 236003 00
KABİN (2) 236003 01
KABİN (3) 236004 00
KABİN (3) 236004 01
KONSOL KUTUSU (SAĞ) 236101 
KONSOL KUTUSU (SOL) 236102 
KABİN İÇİ MONTAJI (1) 236103 
KABİN İÇİ MONTAJI (2) 236104 
DİREKSİYON KOLONU 236105 
OPERATÖR KOLTUĞU 236106 

ETİKET 
ETİKET MONTAJI (TÜRKÇE) 237001 00
ETİKET MONTAJI (TÜRKÇE) 237001 01
ETİKET MONTAJI (İNGİLİZCE) 237002 00
ETİKET MONTAJI (İNGİLİZCE) 237002 01
ELEKTRİK
ELEKTRİK (1) 238001
ELEKTRİK (2) 238002
ELEKTRİK (3) 238003 
ANA ELEKTRİK TESİSATI 238004 
MOTOR ELEKTRİK TESİSATI 238005 
KABİN ELEKTRİK TESİSATI 238006 

ORTAK PARÇALAR 
YAKIT FİLTRESİ ÖN MONTAJI (ORTAK) 900401 
KABİN ÜST MUHAFAZA-FOPS II (OP) 900501 
CAM KORUYUCU KAFES-TAŞ VE MICIR İÇİN (OP) 900502 
KABİN KORUMA MONTAJI – FOGS (OP) 900503 
İKİ PARÇALI CAM KORUYUCU CAM KAFES (OP) 900504 
TEPE LAMBASI MONTAJI (OP) 900505 

YENİ KABİN 
KABİN ŞASE MONTAJI 906001 
KABİN MONTAJI-1 906002 
KABİN MONTAJI-2 906003 
KABİN MONTAJI-3 906004 
KONSOL MONTAJI-SAĞ 906101 
KONSOL MONTAJI-SOL 906102 
KABİNİÇİ MONTAJI-1 906103 
KABİNİÇİ MONTAJI-2 906104 
DİREKSİYON KOLONU 906105 
OPERATÖR KOLTUĞU 906106 
PLATFORM MONTAJI 906107 



PARÇA NUMARASI İNDEKSİ 
xx
PAGE REV
OPTION
BREAKER PIPING MOUNTING (1) (OP) 230101
BREAKER PIPING MOUNTING (2) (OP) 230102
QUICK COUPLING ASSEMBLY (OP) 230103
QUICK COUPLING MOUNTING (OP) 230104
QUICK COUPLING CYLINDER (OP) 230105
BREAKER MOUNTING (OP) 230106
DOUBLE ACTING PIPING (1) (OP) 230107
DOUBLE ACTING PIPING (2) (OP) 230108
DOUBLE ACTING VALVE (OP) 230109
BOOM SAFETY LOCK SYSTEM (OP) 230110
ARM SAFETY LOCK SYSTEM (OP) 230111
OVERLOAD WARNING SYSTEM (OP) 230112
DITCH CLEANING BUCKET MOUNTING (OP) 230301
TRAPEZOIDAL BUCKET MOUNTING (OP) 230302
BEACON MOUNTING (OP) 230501
REAR WORK LAMP MOUNTING (OP) 230502
FRONT WORK LAMP MOUNTING (OP) 230503
WINDOW GUARD (OP) 230504
IMMOBILIZER (OP) 230505
CAMERA MOUNTING-BACK VIEW 230504
COWLING
RADIATOR FRAME AND DOOR MOUNTING 231101 00
RADIATOR FRAME AND DOOR MOUNTING 231101 01
PUMP FRAME AND DOOR MOUNTING 231102 00
PUMP FRAME AND DOOR MOUNTING 231102 01
PUMP COVER PLATES 231103 00
PUMP COVER PLATES 231103 01
COVER PLATES MOUNTING 231104 00
COVER PLATES MOUNTING 231104 01
HOOD MOUNTING 231105
TANK COVER MOUNTING 231106
UPPER FRAME
UPPER FRAME MOUNTING 231201 00
UPPER FRAME MOUNTING 231201 01
BATTERY BOX MOUNTING 231202 00
TOOL BOX MOINTING 231202 01
ANTI-SLIP WALKWAY 231203 00
ANTI-SLIP WALKWAY 231203 01

ENGINE 
ENGINE MOUNTING 232001 
ENGINE OVERHAUL GASKET KIT 232002 
CYLINDER HEAD GASKET KIT 232003 
ROCKER ARM COVER 232004 
CYLINDER HEAD ASSEMBLY 232005 
INJECTOR HARNESS CASE ASSEMBLY 232006 
CYLINDER BLOCK ASSEMBLY 232007 
CYLINDER BLOCK ACCESSORIES 232008 
LEVEL GAUGE 232009 
OİL PAN 232010 
xxi
PAGE REV
CAMSHAFT & VALVE 232011 
TIMING GEAR 232012 
CRANKSHAFT, PISTON & FLYWHEEL 232013 
PULLEY 232014 
FRONT COVER ASEMBLY 232015 
FLYWHEEL HOUSING 232016 
INLET MANIFOLD 232017 
EXHAUST MANIFOLD 232018 
VENTILATION SYSTEM 232019 
WATER PUMP 232020 
THERMOSTAT 232021 
EGR WATER PIPING 232022 
FAN & FAN BELT 232023 
TURBOCHARGER SYSTEM 232024 
FUEL INJECTION SYSTEM 1 232025 
FUEL INJECTION SYSTEM-2 232026 
FUEL INJECTION SYSTEM-3 232027 
FUEL FEED PUMP & ELECTROMAGNETIC PUMP 232028 
FUEL FİLTER 232029 
ENGINE OIL FILTER & COOLER 232030 
OIL PUMP 232031
OIL PIPING 232032
EGR 232033
ENGİNE ELECTRIC CONTROL PARTS-1 232034
ENGINE ELECTRIC CONTROL PARTS-2 232035
STARTER 232036
GENARATOR ASSEMBLY 232037
INJECTION PUMP GASKET 232038
FAN GUARD 232039
POWER TAKE OFF COVER 232040
WIRING HARNESS 232041
HARNESS ELEMENTS 232042
ELECTRICAL CONTROL & OTHER PARTS 232043
COUPLING ASSEMBLY 342101
AIR INTAKE
AIR INTAKE MOUNTING 232201
EXHAUST
EXHAUST MOUNTING 232301 00
EXHAUST MOUNTING 232301 01
COOLING SYSTEM
COOLING SYSTEM 232401
RADIATOR 232402
FUEL TANK AND LINE
FUEL TANK MOUNTING AND FUEL LINE 232501
FUEL FEED PUMP 232502
AIRCONDITION – HEATER
AIRCONDITION MOUNTING 232701
AIRCONDITION UNIT 232702 

xxii
PAGE REV
MAIN PIPING 
MAIN PIPING MOUNTING (1) 233001 
MAIN PIPING MOUNTING (2) 233002
MAIN PIPING MOUNTING (3) 233003
HYDRAULIC PUMP 233004 
GEAR PUMP 233005 
PROPORTIONAL REDUCING VALVE 233006 
PUMP REGULATOR 233007 
MAIN CONTROL VALVE (1) 233008
MAIN CONTROL VALVE (2) 233009
MAIN CONTROL VALVE (3) 233010
MAIN CONTROL VALVE (4) 233011
SWING MOTOR – SWING UNIT 233012
REDUCTION GEAR – SWING UNIT 233013

LOWER PIPING 
LOWER FRAME HYDROLIC MOUNTING (1) 233101 
LOWER FRAME HYDROLIC MOUNTING (2) 233102 
LOWER FRAME HYDROLIC MOUNTING (3) 233103 
LOWER FRAME HYDROLIC MOUNTING (4) 233104 
TURNING JOINT 233105 
INPUT HOUSING-TRANSMISSION 233106 
INPUT-TRANSMISSION 233107 
HOUSING-TRANSMISSION 233108 
OIL PIPE-TRANSMISSION 233109 
COUPLING-TRANSMISSION 213110 
M-DISK BRAKE-TRANSMISSION 233111 
PLANETARY DRIVE-TRANSMISSION 233112 
GEAR SHIFT SENSOR-TRANSMISSION 233113 
OUTPUT-TRANSMISSION 233114 
REGULATING MOTOR (1) 233115 
REGULATING MOTOR (2) 233116 
REGULATING MOTOR (3) 233117 
OUTRIGGER CYLINDER 233118 
DOZER BLADE CYLINDER 233119 
LOWER FRAME PIPING MOUNTING – OPTIONAL OUTRIGGER 233120 

PILOT PIPING 
PILOT PIPING MOUNTING 233201 00
PILOT PIPING MOUNTING 233201 01
PILOT PIPING MOUNTING 233201 02
PILOT PIPING MOUNTING (MCV) 233202 00
PILOT PIPING MOUNTING (MCV) 233202 01
REMOTE CONTROL VALVE (RH/LH) 233203 
DOZER-OUTRIGGER JOISTIC 233204 

ATTACHMENT PIPING 
ATTACHMENT PIPING 233301 
BOOM CYLINDER (R/L) 233302 
BUCKET CYLINDER 233303 
ARM CYLINDER 233304 

HYDRAULIC TANK 
HYDRAULIC TANK MOUNTING 233401 
xxiii
PAGE REV
POWER TRAIN HYDRAULIC 
POWER TRAIN HYDRAULIC MOUNTING (1) 233501 
POWER TRAIN HYDRAULIC MOUNTING (2) 233502 
POWER TRAIN HYDRAULIC MOUNTING (3-1) 233503 
POWER TRAIN HYDRAULIC MOUNTING (3-2) 233504 
POWER TRAIN HYDRAULIC MOUNTING (3-3) 233505 
FOOT BRAKE VALVE 233506 
PILOT VALVE ASSEMBLY 233507 
STEERING PUMP 233508 
PILOT AND TRANSMISSION VALVE 233509 
TRANSMISSION VALVE 233510 

UPPER DRAIN PIPING
UPPER DRAIN PIPING MOUNTING 233601 
DRAIN FILTER CONNECTIONS 233602 

LOWER FRAME 
LOWER FRAME MOUNTING 234101 
DOZER BLADE
DOZER BLADE MOUNTING 234301
OPTIONAL OUTRIGGER MOUNTING 234302
OUTRIGGER
OUTRIGGER MOUNTING 234401
POWER TRAINING
POWER TRAINING MOUNTING 234501
DIFFERENTIAL-FRONT AXLE 234502
AXLE CASING-FRONT AXLE 234503
KNUCKLE-FRONT AXLE 234504
KNUCKLE-FRONT AXLE 234505
DRIVE ASSEMBLY-FRONT AXLE 234506
BRAKE PISTON-FRONT AXLE 234507
DIFFERENTIAL-REAR AXLE 234508
AXLE CASING-REAR AXLE 234509
DRIVE ASSEMBLY-REAR AXLE 234510
BRAKE PISTON-REAR AXLE 234511
STEERING CYLINDER 234512
ATTACHMENT MOUNTING
BOOM MOUNTING 235101
ARM MOUNTING 235201
WORKING ATTACHMENT CONTROL 235301
GENERAL PURPOSE BUCKET 235302
HEAVY DUTY BUCKET 235303
DUAL RADIUS BUCKET 235304
LUBRICATION PIPING
LUBRICATION PIPING MOUNTING 235801
CAB
CAB MOUNTING 236001
CAB (1) 236002 00
CAB (1) 236002 01
xxiv
PAGE REV
CAB (2) 236003 00
CAB (2) 236003 01
CAB (3) 236004 00
CAB (3) 236004 01
CONSOLE BOX (R/H) 236101
CONSOLE BOX (L/H) 236102
CAB INTERIOR MOUNTING (1) 236103
CAB INTERIOR MOUNTING (2) 236104
STEERING COLUMN 236105
OPERATOR SEAT 236106
DECAL
DECAL MOUNTING (TURKISH) 237001 00
DECAL MOUNTING (TURKISH) 237001 01
DECAL MOUNTING (ENGLISH) 237002 00
DECAL MOUNTING (ENGLISH) 237002 01
ELECTRIC
ELECTRIC (1) 238001
ELECTRIC (2) 238002
ELECTRIC (3) 238003
MAIN HARNESS 238004
ENGINE HARNESS 238005
CAB HARNESS 238006
COMMON PARTS
PRE-FUEL FILTER MOUNTING (COMMON) 900401
ROOF GUARD ASS’Y-FOPS II (OP) 900501
WINDOW GUARD-FOR STONES & DEBRIS (OP) 900502
FOGS GUARD ASS’Y (OP) 900503
TWO PIECES WINDOW GUARD (OP) 900504
BEACON LAMP MOUNTING (OP) 900505
NEW CAB
CAB-FRAME MOUNTING 906001
CAB ASS’Y -1 906002
CAB ASS’Y -2 906003
CAB ASS’Y -3 906004
CONSOLE ASS’Y- R/H 906101
CONSOLE ASS’Y- L/H 906102
CAB INTERIOR MOUNTING-1 906103
CAB INTERIOR MOUNTING-2 906104
STEERING COLUMN ASS’Y 906105
OPERATOR SEAT 906106
PART NUMBER INDEX

Customer Support: [email protected]

https://vimeo.com/812687651

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
