Hidromek Excavator HMK 140 W-3 Mitsubishi Engine Spare Parts Catalogue Manual H207312300 EN_TR – PDF DOWNLOAD

Description

Hidromek Excavator HMK 140 W-3 Mitsubishi Engine Spare Parts Catalogue Manual H207312300 EN_TR – PDF DOWNLOAD

FILE DETAILS:

Hidromek Excavator HMK 140 W-3 Mitsubishi Engine Spare Parts Catalogue Manual H207312300 EN_TR – PDF DOWNLOAD

Language : Turkish & English
Pages : 565
Downloadable : Yes
File Type : PDF
Size: 38.9 MB

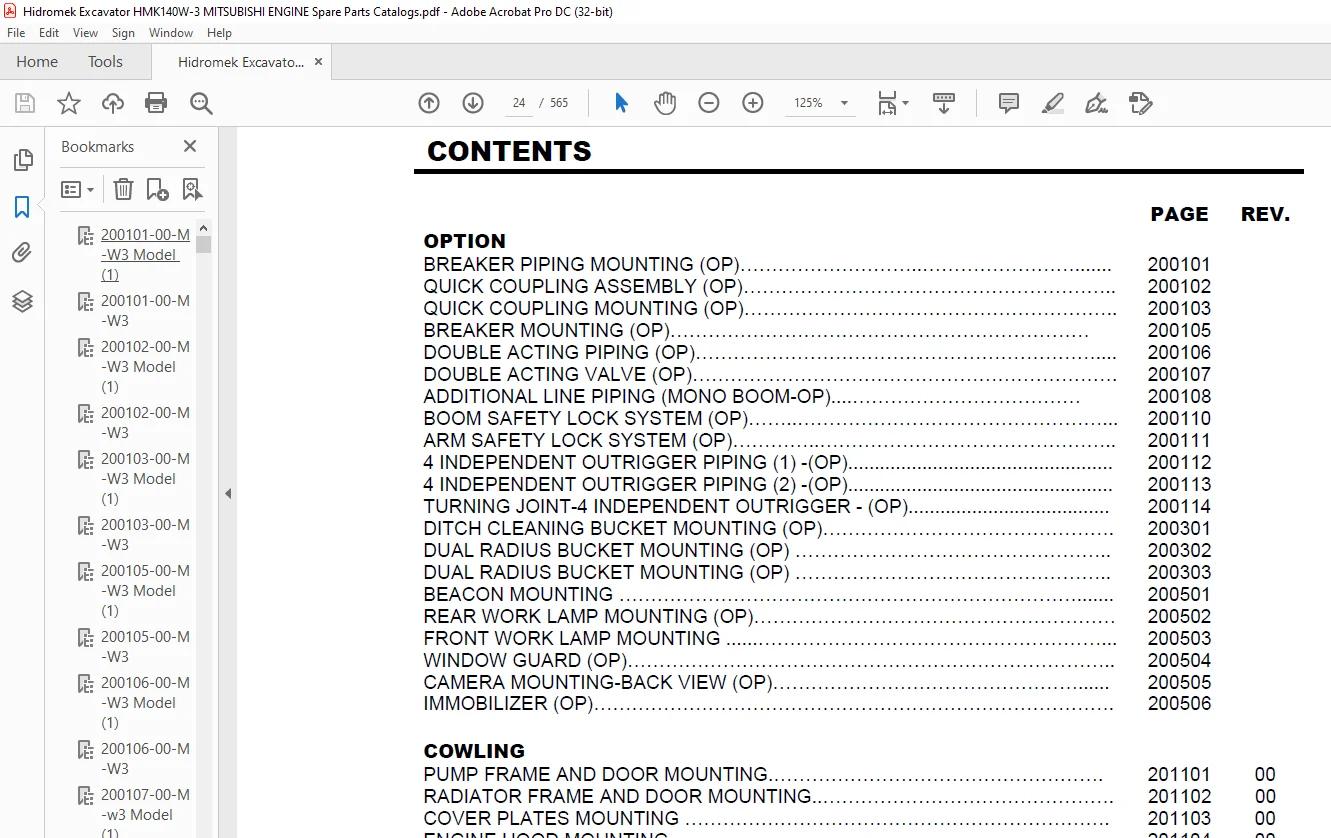

TABLE OF CONTENTS:

Hidromek Excavator HMK 140 W-3 Mitsubishi Engine Spare Parts Catalogue Manual H207312300 EN_TR – PDF DOWNLOAD

OPTION
BREAKER PIPING MOUNTING (OP) 200101

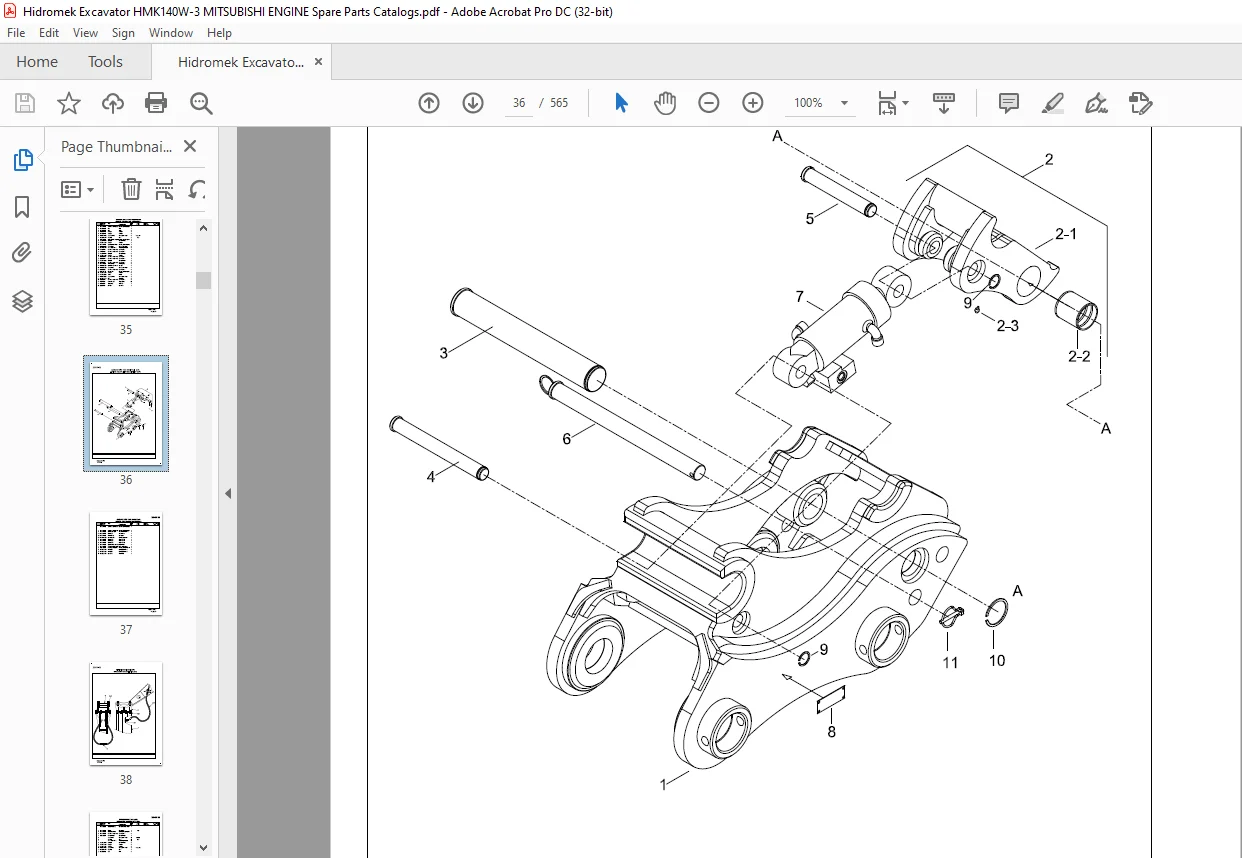

QUICK COUPLING ASSEMBLY (OP) 200102
QUICK COUPLING MOUNTING (OP) 200103
BREAKER MOUNTING (OP) 200105
DOUBLE ACTING PIPING (OP) 200106
DOUBLE ACTING VALVE (OP) 200107
ADDITIONAL LINE PIPING (MONO BOOM-OP) 200108
BOOM SAFETY LOCK SYSTEM (OP) 200110
ARM SAFETY LOCK SYSTEM (OP) 200111
4 INDEPENDENT OUTRIGGER PIPING (1) -(OP) 200112
4 INDEPENDENT OUTRIGGER PIPING (2) -(OP) 200113
TURNING JOINT-4 INDEPENDENT OUTRIGGER – (OP) 200114
DITCH CLEANING BUCKET MOUNTING (OP) 200301
DUAL RADIUS BUCKET MOUNTING (OP) 200302
DUAL RADIUS BUCKET MOUNTING (OP) 200303
BEACON MOUNTING 200501
REAR WORK LAMP MOUNTING (OP) 200502
FRONT WORK LAMP MOUNTING 200503
WINDOW GUARD (OP) 200504
CAMERA MOUNTING-BACK VIEW (OP) 200505
IMMOBILIZER (OP) 200506
COWLING
PUMP FRAME AND DOOR MOUNTING 201101 00
RADIATOR FRAME AND DOOR MOUNTING 201102 00
COVER PLATES MOUNTING 201103 00
ENGINE HOOD MOUNTING 201104 00
TANK COVER MOUNTING 201105 00
UPPER FRAME
UPPER FRAME MOUNTING 201201 00
TOOL BOX MOINTING 201202 00
ANTI-SLIP WALKWAY 201203 00
ENGINE
ENGINE MOUNTING 202001 
SERVICE CYLINDER HEAD ASS’Y 202002 
SERVICE CYLINDER BLOCK ASS’Y 202003 
LINER & PISTON KIT 202004 
SERVICE CRANKSHAFT ASSEMBLY 202005 
ENGINE OVERHAUL GASKET KIT 202006 
ROCKER COVER 202007 
BREATHER 202008 
PCV VALVE 202009 
CYLINDER HEAD 202010 
CYLINDER BLOCK 202011 
OIL PAN, FILLER & GAUGE 202012 
FLYWHEEL HOUSING 202013 
FLYWHEEL 202014 
PISTON, ROD & CRANKSHAFT 202015 
CAMSHAFT & VALVE 202016 
TIMING GEAR 202017 
ATTACHING PARTS 202018 
OIL PUMP & STRAINER 202019 
CONTENTS
xx
PAGE REV
OIL FILTER 202020 
OIL COOLER 202021 
OIL LINE 202022 
FUEL LINE & WATER SEPERATOR 202023 
FUEL FILTER & HOSE 202024 
FUEL INJECTION PUMP 202025 
INJECTION PIPE & NOZZLE 202026 
FUEL RETURN HOSE 202027 
WATER PUMP & FAN 202028 
WATER PIPE & THERMOSTAT 202029 
INTERCOOLER 202030
INLET MANIFOLD 202031
EXHAUST MANIFOLD 202032
TURBOCHARGER 202033
EXHAUST PIPE 202034
EXHAUST RECIRCULATION CONTROL 202035
STARTER 202036
ALTERNATOR & REGULATOR 202037
ENGINE HARNESS 202038
POWER STEERING OIL PUMP 202039
PLATE & LABEL 202040
FUSE & RELAY BOX 202041
CHASSIS HARNESS ELEMENTS 202042
DRIVE COMPUTER 202043
A/C COMPRESSOR 202044
COUPLING ASSEMBLY 202101
AIR INTAKE
AIR INTAKE MOUNTING 202201
EXHAUST
EXHAUST MOUNTING 202301 00
EXHAUST MOUNTING 202301 01
ENGINE COOLING
ENGINE COOLING 202401
RADIATOR 202402
FUEL TANK AND LINE
FUEL TANK MOUNTING AND FUEL LINE 202501
AIR CONDITION MOUNTING
AIR CONDITION MOUNTING 202701
AIR CONDITION U 202702
MAIN PIPING
MAIN PIPING MOUNTING (1) 203001
MAIN PIPING MOUNTING (2) 203002
MAIN PIPING MOUNTING (3) 203003
HYDRAULIC PUMP 203004
GEAR PUMP 203005
PROPORTIONAL REDUCING VALVE 203006
PUMP REGULATOR(FRONT) 203007
PUMP REGULATOR(REAR) 203008
CONTENTS
xxi
PAGE REV
MAIN CONTROL VALVE (1) 203009
MAIN CONTROL VALVE (2) 203010
MAIN CONTROL VALVE (3) 203011
MAIN CONTROL VALVE (4) 203012
SWING MOTOR – SWING UNIT 203013
REDUCTION GEAR – SWING UNIT 203014
LOWER PIPING
LOWER FRAME HYDROLIC MOUNTING – STEER & CHOCKING 203101
LOWER FRAME HYDROLIC MOUNTING – BRAKE 203102
LOWER FRAME HYDROLIC MOUNTING – OUTRIGGER 203103
LOWER FRAME HYDROLIC MOUNTING – DOZER BLADE 203104
LOWER FRAME HYDROLIC MOUNTING – PROPELLING(T JOINT/PROP MOTOR) 203105
LOWER FRAME HYDROLIC MOUNTING – PROPELLING 203106
TURNING JOINT 203107
INPUT HOUSING-TRANSMISSION 203108
INPUT-TRANSMISSION 203109
HOUSING-TRANSMISSION 203110
OIL PIPE-TRANSMISSION 203111
COUPLING-TRANSMISSION 203112
M-DISK BRAKE-TRANSMISSION 203113
PLANETARY DRIVE-TRANSMISSION 203114
GEAR SHIFT SENSOR-TRANSMISSION 203115
OUTPUT-TRANSMISSION 203116
REGULATING MOTOR (1) 203117
REGULATING MOTOR (2) 203118
REGULATING MOTOR (3) 203119
OUTRIGGER CYLINDER 203120
DOZER BLADE CYLINDER 203121
PILOT PIPING
PILOT PIPING MOUNTING – ATTACHMENT CONTROL 203201
PILOT PIPING MOUNTING – DOZER CONTROL 203202
PILOT PIPING MOUNTING (MCV) 203203
REMOTE CONTROL VALVE (RH/LH) 203204
DOZER-OUTRIGGER JOISTIC 203205
ATTACHMENT PIPING
ATTACHMENT PIPING 203301
BOOM CYLINDER (R/L) 203302
BUCKET CYLINDER 203303
ARM CYLINDER 203304
ARTICULATED BOOM ATTACHMENT PIPING 203305
HYDRAULIC TANK
HYDRAULIC TANK MOUNTING 203401
POWER TRAIN HYDRAULIC
POWER TRAIN HYDRAULIC MOUNTING – STEERING 203501
POWER TRAIN HYDRAULIC MOUNTING – BRAKE 203502
PILOT PIPING FOR POWER TRAIN, UPPER -1 203503
PILOT PIPING FOR POWER TRAIN, UPPER -2 203504
PILOT PIPING FOR POWER TRAIN, UPPER -3 203505
FOOT BRAKE VALVE 203506
PILOT VALVE ASSEMBLY 203507
CONTENTS
xxii
PAGE REV
STEERING PUMP 203508 
PILOT AND TRANSMISSION VALVE 203509 
TRANSMISSION VALVE 203510 

UPPER DRAIN PIPING
UPPER DRAIN PIPING MOUNTING 203601 
DRAIN FILTER CONNECTIONS 203602 

LOWER FRAME 
LOWER FRAME MOUNTING 204101 
DOZER BLADE
DOZER BLADE MOUNTING 204301
OUTRIGGER
OUTRIGGER MOUNTING 204401
POWER TRAINING
POWER TRAINING MOUNTING 204501
FRONT AXLE-1 204502
FRONT AXLE-2 204503
FRONT AXLE-3 204504
FRONT AXLE-4 204505
FRONT AXLE-5 204506
FRONT AXLE-6 204507
FRONT AXLE-7 204508
FRONT AXLE-8 204509
REAR AXLE-1 204510
REAR AXLE-2 204511
REAR AXLE-3 204512
REAR AXLE-4 204513
REAR AXLE-5 204514
REAR AXLE-6 204515
REAR AXLE-7 204516
ATTACHMENT MOUNTING
BOOM MOUNTING 205101
ARM MOUNTING 205201
WORKING ATTACHMENT CONTROL 205301
DUAL RADIUS BUCKET 205302
LUBRICATION PIPING
LUBRICATION PIPING MOUNTING 205801
ARTICULATED BOOM
ARTICULATED BOOM MOUNTING-1 205901
ARTICULATED BOOM MOUNTING-2 205902
CAB
CAB MOUNTING 206001
CAB (1) 206002
CAB (2) 206003
CAB (3) 206004
CONSOLE BOX (R/H) 206101
CONTENTS
xx
PAGE REV
CONSOLE BOX (L/H) 206102
CAB INTERIOR MOUNTING (1) 206103
CAB INTERIOR MOUNTING (2) 206104
STEERING COLUMN 206105
OPERATOR SEAT 206106
DECAL
DECAL MOUNTING (TURKISH) 207001
DECAL MOUNTING (ENGLISH) 207002
DECAL MOUNTING (2P BOOM TURKISH) 207003
DECAL MOUNTING (2P BOOM ENGLISH) 207004
ELECTRIC
ELECTRIC (1) 208001
ELECTRIC (2) 208002
ELECTRIC (3) 208003
MAIN HARNESS 208004
ENGINE HARNESS 208005
CAB HARNESS 208006
COMMON PARTS
PRE-FUEL FILTER MOUNTING (COMMON) 900401
ROOF GUARD ASS’Y-FOPS II (OP) 900501
WINDOW GUARD-FOR STONES & DEBRIS (OP) 900502
FOGS GUARD ASS’Y (OP) 900503
NEW CAB
CAB-FRAME MOUNTING 906001
CAB ASS’Y -1 906002
CAB ASS’Y -2 906003
CAB ASS’Y -3 906004
CONSOLE ASS’Y- R/H 906101
CONSOLE ASS’Y- L/H 906102
CAB INTERIOR MOUNTING-1 906103
CAB INTERIOR MOUNTING-2 906104
STEERING COLUMN ASS’Y 906105
OPERATOR SEAT 906106
PLATFORM ASS’Y
PART NUMBER INDEX

DESCRIPTION:

Hidromek Excavator HMK 140 W-3 Mitsubishi Engine Spare Parts Catalogue Manual H207312300 EN_TR – PDF DOWNLOAD

PREFACE:

• We would like to thank you for purchasing HMK 140W-3 Construction Equipment.
• This catalog has been prepared for ordering spare parts for HMK 140 W-3.
• For satisfactory service and selection of correct part, read and understand instructions as shown below.

No: This indicates the indicating number of part.
Part No: It shows the part number of the parts which are included in an illustration.
Description: It shows the name of the part.
Q’ty: It shows the quantitiy use of part for the group that was illustrated on page.
