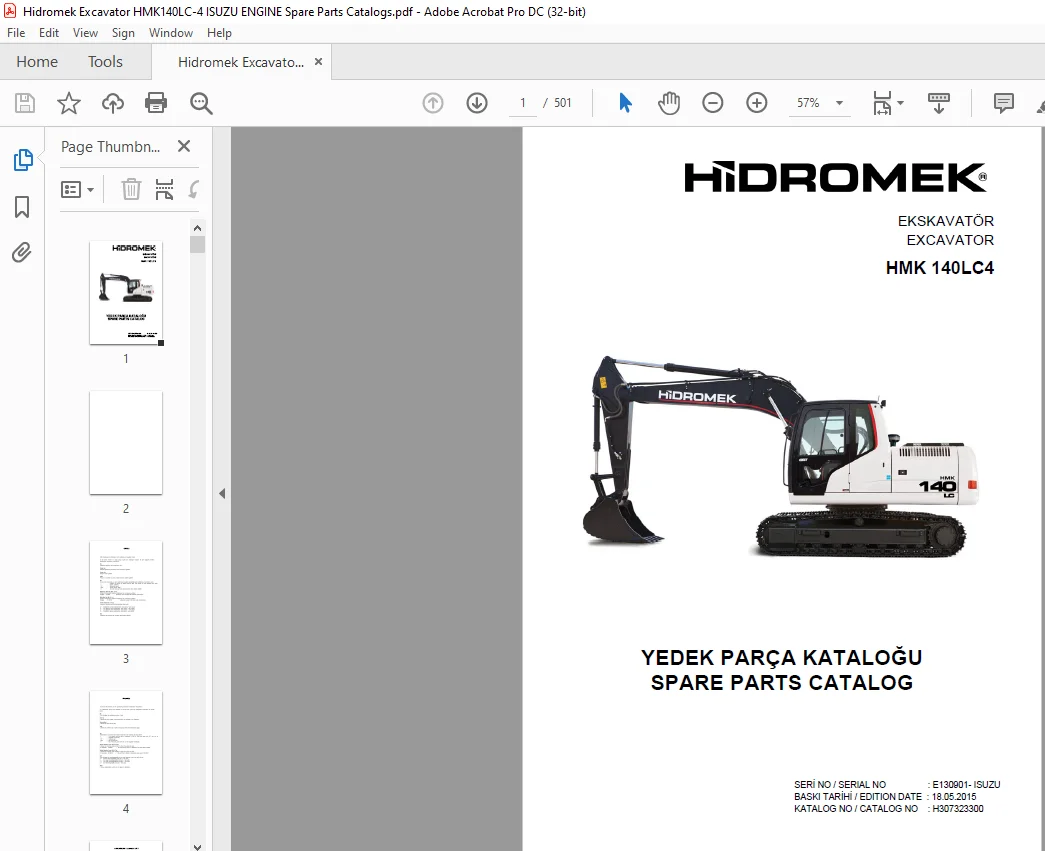

Hidromek Excavator HMK 140LC4 Isuzu Engine Parts Catalog Manual E130901 EN_TR – PDF DOWNLOAD

Description

Hidromek Excavator HMK 140LC4 Isuzu Engine Parts Catalog Manual E130901 EN_TR – PDF DOWNLOAD

FILE DETAILS:

Hidromek Excavator HMK 140LC4 Isuzu Engine Parts Catalog Manual E130901 EN_TR – PDF DOWNLOAD

Language : Turkish & English
Pages : 501
Downloadable : Yes
File Type : PDF
Size: 18.5 MB

TABLE OF CONTENTS: (English & Turkish – Both languages present)

Hidromek Excavator HMK 140LC4 Isuzu Engine Parts Catalog Manual E130901 EN_TR – PDF DOWNLOAD

A MOTOR SİSTEMİ ENGINE SYSTEM
A010.00.01 MOTOR MONTAJI ENGINE MOUNTING

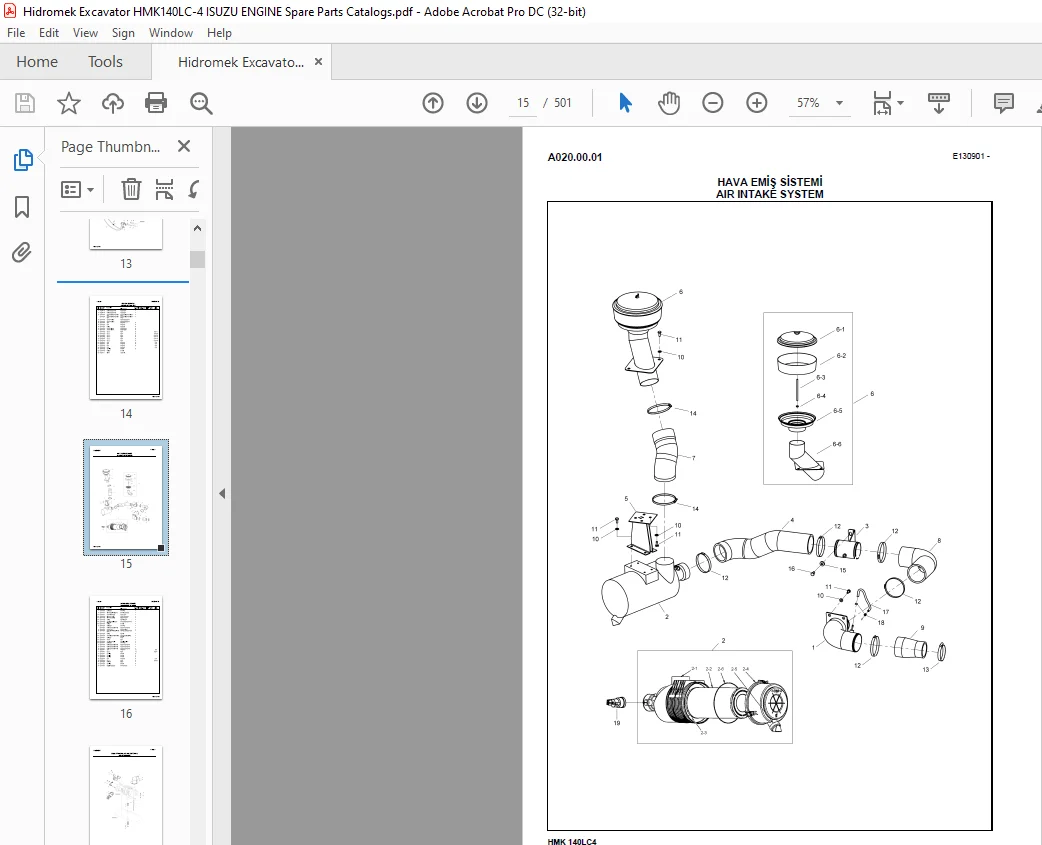

A020.00.01 HAVA EMİŞ SİSTEMİ AIR INTAKE SYSTEM
A035.00.01 DİZEL PARTİKÜL FİLTRESİ MONTAJI DPF MOUNTING

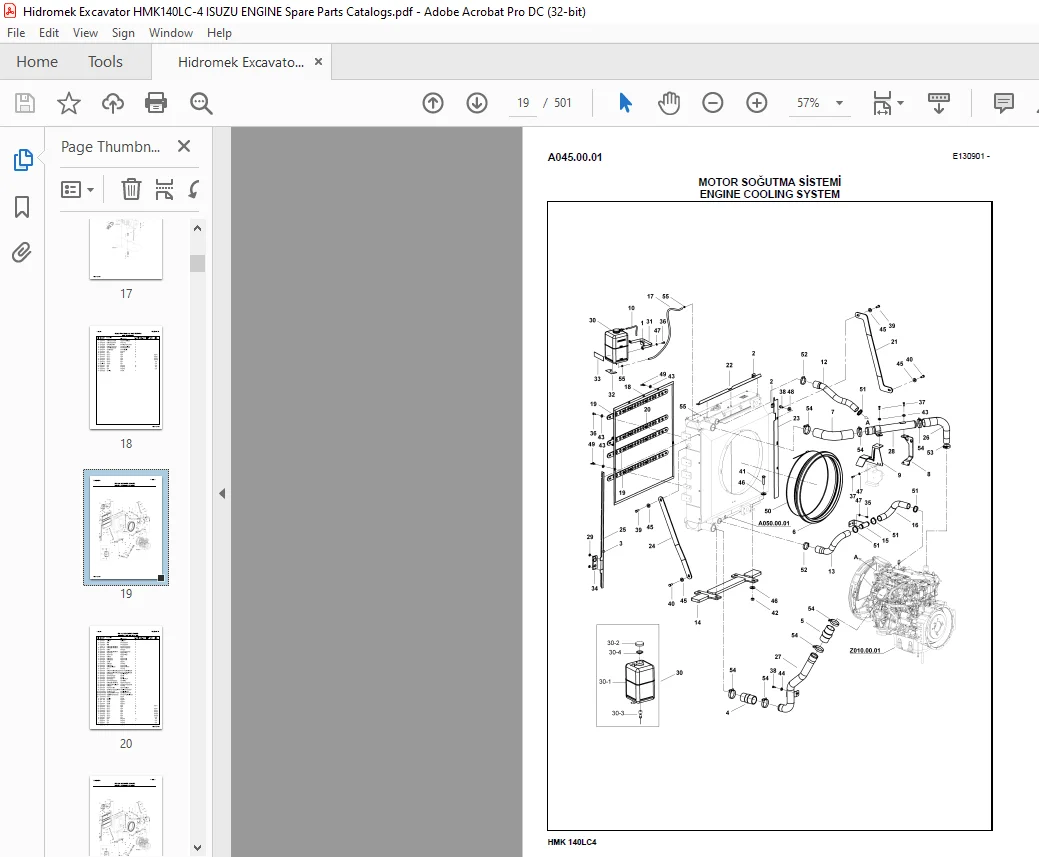

A045.00.01 MOTOR SOĞUTMA SİSTEMİ ENGINE COOLING SYSTEM
A050.00.01 RADYATÖR KOMPLESİ RADIATOR ASS’Y
A060.00.01 YAKIT SİSTEMİ FUEL SYSTEM
A070.00.01 ÖN YAKIT FİLTRESİ MONTAJI (OP) PRE-FUEL FILTER ASS’Y (OP)
A080.00.01 YAKIT TRANSFER POMPASI MONTAJI FUEL FEED PUMP ASS’Y
A090.00.01 KLİMA VE KALORİFER MONTAJI AIRCONDITION AND HEATER MOUNTING
A100.00.01 KLİMA VE KALORİFER ÜNİTESİ AIRCONDITION AND HEATER UNIT
B ŞASİ VE KAPORTA FRAME & COWLING
B010.00.01 ÜST ŞASİ VE ALT KAPAK MONTAJI UPPER FRAME AND UNDER COVER MOUNTING
B015.00.01 ARKA AĞIRLIK MONTAJI COUNTER WEIGHT MOUNTING
B020.00.01 TAKIM SANDIĞI MONTAJI TOOL BOX MOUNTING
B040.00.01 YÜRÜME SACLARI ANTI-SLIP WALKWAY
B050.00.01 KAPORTA MONTAJI, SAĞ COWLING ASS’Y, RH
B060.00.01 KAPI MONTAJI, SAĞ DOOR MOUNTING, RH
B070.00.01 KAPORTA MONTAJI, SOL COWLING ASS’Y, LEFT
B080.00.01 KAPI MONTAJI, SOL DOOR MOUNTING, LH
B090.00.01 KAPORTA MONTAJI, A.K.V. COWLING ASS’Y, M.C.V.
B100.00.01 MOTOR KAPUT MONTAJI ENGINE HOOD MOUNTING
B110.00.01 DEPO KAPAK MONTAJI TANK COVER MOUNTING
B120.00.01 ALT ŞASİ MONTAJI LOWER FRAME MOUNTING
B120.01.01 ALT ŞASİ MONTAJI, DOZER BIÇAKLI LOWER FRAME MOUNTING, WITH DOZER BLADE
B130.00.01 TAŞIYICI MAKARA KOMPLESİ UPPER ROLLER ASS’Y
B140.00.01 YÜRÜYÜŞ MAKARASI KOMPLESİ LOWER ROLLER ASS’Y
B150.00.01 İSTİKAMET TEKERİ KOMPLESİ IDLER ASS’Y
B160.00.01 GERDİRME MEKANİZMASI ADJUSTER ASSEMBLY
B170.00.01 PALET KOMPLESİ (500mm) TRACK CHAIN ASS’Y (500mm)
B170.01.01 PALET KOMPLESİ (600mm) TRACK CHAIN ASS’Y (600mm)
B170.02.01 PALET KOMPLESİ (700mm) TRACK CHAIN ASS’Y (700mm)
B180.00.01 DOZER BIÇAĞI MONTAJI DOZER BLADE MOUNTING
B190.00.01 DOZER BIÇAĞI KOMPLESİ (500mm) DOZER BLADE ASS’Y (500mm)
B190.01.01 DOZER BIÇAĞI KOMPLESİ (600mm) DOZER BLADE ASS’Y (600mm)
C KABİN OPERATOR CAB
C010.00.01 KABİN VE BAĞLANTI TAKOZLARI CAB AND CAB MOUNTING
C010.00.01 KABİN VE BAĞLANTI TAKOZLARI CAB AND CAB MOUNTING
C020.00.01 KAPILAR DOORS
C020.00.01 KAPILAR DOORS
C030.00.01 CAMLAR WINDOWS
C030.00.01 CAMLAR WINDOWS
C040.00.01 KABİN DONANIMI CAB ACCESSORIES
C040.00.01 KABİN DONANIMI CAB ACCESSORIES
C050.00.01 KONSOL MONTAJI, ÖN CONSOLE ASS’Y, FRONT
C050.00.01 KONSOL MONTAJI, ÖN CONSOLE ASS’Y, FRONT
C060.00.01 KONSOL MONTAJI, ARKA CONSOLE ASS’Y, REAR
İÇİNDEKİLER / CONTENTS
C060.00.01 KONSOL MONTAJI, ARKA CONSOLE ASS’Y, REAR
C070.00.01 KONSOL MONTAJI, SAĞ CONSOLE ASS’Y, RH
C080.00.01 KONSOL MONTAJI, SOL CONSOLE ASS’Y, LH
C090.00.01 OPERATÖR KOLTUK MONTAJI OPERATOR SEAT MOUNTING
C100.00.01 OPERATÖR KOLTUK KOMPLESİ OPERATOR SEAT ASS’Y
C110.00.01 PLATFORM MONTAJI PLATFORM ASS’Y
C110.00.01 PLATFORM MONTAJI PLATFORM ASS’Y
C120.00.01 KABİN ÜST KORUMA MONTAJI, FOPS II (OP) ROOF GUARD MOUNTING, FOPS II (OP)
C120.00.01 KABİN ÜST KORUMA MONTAJI, FOPS II (OP) ROOF GUARD MOUNTING, FOPS II (OP)
C130.00.01 KABİN KORUMA MONTAJI, FOGS (OP) GUARD MOUNTING, FOGS (OP)
C130.00.01 KABİN KORUMA MONTAJI, FOGS (OP) GUARD MOUNTING, FOGS (OP)
C130.01.01 ÖN CAM KORUYUCU MONTAJI ,TAŞ VE MICIR
İÇİN (OP)
FRONT GUARD MOUNTING, FOR STONES & DEBRIS
(OP)
C130.01.01 ÖN CAM KORUYUCU MONTAJI ,TAŞ VE MICIR
İÇİN (OP)
FRONT GUARD MOUNTING, FOR STONES & DEBRIS
(OP)
C130.02.01 ÖN CAM KORUYUCU MONTAJI, İKİ PARÇALI (OP) FRONT GUARD MOUNTING, TWO PIECES (OP)
D ATAŞMAN ATTACHMENT
D010.00.01 BOM MONTAJI BOOM MOUNTING
D010.01.01 BOM MONTAJI, 2 PARÇALI (OP) BOOM MOUNTING, 2 PIECES (OP)
D020.00.01 BOM KOMPLESİ (4.6m) BOOM ASS’Y (4.6m)
D020.01.01 BOM KOMPLESİ, 2 PARÇALI (5.08m) BOOM ASS’Y, 2 PIECES (5.08m)
D030.00.01 ARM MONTAJI ARM MOUNTING
D040.00.01 ARM KOMPLESİ (2.3m) ARM ASS’Y (2.3m)
D040.01.01 ARM KOMPLESİ (2.9m) ARM ASS’Y (2.9m)
D040.02.01 ARM KOMPLESİ (2.6m) ARM ASS’Y (2.6m)
D050.00.01 KEPÇE BAĞLANTISI BUCKET LINKAGE
D060.00.01 KEPÇE, DUAL RADÜS (0.60m³) BUCKET, DUAL RADIUS (0.60m³)
D060.01.01 KEPÇE, DUAL RADÜS (0.75m³) BUCKET, DUAL RADIUS (0.75m³)
D060.02.01 KEPÇE, DUAL RADÜS (0.52m³) BUCKET, DUAL RADIUS (0.52m³)
D060.03.01 KEPÇE, DUAL RADÜS (0.45m³) BUCKET, DUAL RADIUS (0.45m³)
D060.04.01 KEPÇE, DUAL RADÜS (0.35m³) BUCKET, DUAL RADIUS (0.35m³)
D060.05.01 KEPÇE, TEMİZLİK (0.6m³) BUCKET, DITCH CLEANING (0.6m³)
D070.00.01 ÇABUK SÖK-TAK KOMPLESİ (OP) QUICK COUPLER ASS’Y (OP)
D080.00.01 KIRICI MONTAJI (B140, OP) BREAKER MOUNTING (B140, OP)
D080.00.02 KIRICI KOMPLESİ (B140, OP) BREAKER ASS’Y (B140, OP)
F HİDROLİK SİSTEM HYDRAULIC SYSTEM
F010.00.01 HİDROLİK POMPA MONTAJI HYDRAULIC PUMP MOUNTING
F020.00.01 HİDROLİK TANK MONTAJI HYDRAULIC TANK ASS’Y
F030.00.01 ÜST ŞASİ HİDROLİK TESİSATI, ANA UPPER FRAME HYD. PIPING, BASE
F030.00.02 ÜST ŞASİ HİDROLİK TESİSATI, ATAÇMAN UPPER FRAME HYD. PIPING, ATTACHMENT
F030.00.03 ÜST ŞASİ HİDROLİK TESİSATI, YÜRÜYÜŞ VE
DÖNÜŞ
UPPER FRAME HYD. PIPING, TRAVEL&SWING
F030.01.03 ÜST ŞASİ HİDROLİK TESİSATI, YÜRÜYÜŞ VE
DÖNÜŞ (DOZER BIÇAKLI)
UPPER FRAME HYD. PIPING, TRAVEL&SWING (WITH
DOZER BLADE)
F040.00.01 ÜST ŞASİ DÖNÜŞ VE SIZINTI HATTI HİDROLİK
TESİSATI
UPPER FRAME DRAIN AND RETURN HYD. PIPING
F050.00.01 ALT ŞASİ HİDROLİK TESİSATI LOWER FRAME HYDRAULIC PIPING
F050.01.01 ALT ŞASİ HİDROLİK TESİSATI, DOZER BIÇAKLI LOWER FRAME HYDRAULIC PIPING, WITH DOZER
BLADE
F060.00.01 PİLOT HİDROLİK TESİSATI, ANA (1) PILOT HYD. PIPING, BASE (1)
İÇİNDEKİLER / CONTENTS
F060.00.02 PİLOT HİDROLİK TESİSATI, ANA (2) PILOT HYD. PIPING, BASE (2)
F060.00.03 PİLOT HİDROLİK TESİSATI, ATAÇMAN (1) PILOT HYD. PIPING, ATTACHMENT (1)
F060.00.04 PİLOT HİDROLİK TESİSATI, ATAÇMAN (2) PILOT HYD. PIPING, ATTACHMENT (2)
F060.00.05 PİLOT HİDROLİK TESİSATI, AKV PILOT HYD. PIPING, M.C.V.
F060.00.06 PİLOT HİDROLİK TESİSATI, DOZER BIÇAKLI PILOT HYD. PIPING, WITH DOZER BLADE
F070.00.01 ATAÇMAN TESİSATI (2.3m) ATTACHMENT PIPING (2.3m)
F070.01.01 ATAÇMAN TESİSATI (2.9m) ATTACHMENT PIPING (2.9m)
F070.02.01 ATAÇMAN TESİSATI (2.6m) ATTACHMENT PIPING (2.6m)
F070.03.01 ATAÇMAN TESİSATI (2 PARÇALI BOM, 2.3m) ATTACHMENT PIPING (TWO PIECES BOOM, 2.3m)
F070.04.01 ATAÇMAN TESİSATI (2 PARÇALI BOM, 2.9m) ATTACHMENT PIPING (TWO PIECES BOOM, 2.9m)
F080.00.01 TEK ETKİLİ HİDROLİK TESİSATI (2.3m) SINGLE ACTING HYD. PIPING (2.3m)
F080.01.01 TEK ETKİLİ HİDROLİK TESİSATI (2.6m) SINGLE ACTING HYD. PIPING (2.6m)
F080.02.01 TEK ETKİLİ HİDROLİK TESİSATI (2.9m) SINGLE ACTING HYD. PIPING (2.9m)
F080.03.01 TEK ETKİLİ HİDROLİK TESİSATI (2 PARÇALI BOM,
2.9m)
SINGLE ACTING HYD. PIPING (TWO PIECES BOOM,
2.9m)
F090.00.01 ÇİFT ETKİLİ HİDROLİK TESİSATI (2.3m) DOUBLE ACTING HYD. PIPING (2.3m)
F090.01.01 ÇİFT ETKİLİ HİDROLİK TESİSATI (2.9m) DOUBLE ACTING HYD. PIPING (2.9m)
F090.02.01 ÇİFT ETKİLİ HİDROLİK TESİSATI (2 PARÇALI
BOM, 2.9m)
DOUBLE ACTING HYD. PIPING (TWO PIECES BOOM,
2.9m)
F100.00.01 ÇABUK SÖK-TAK HİDROLİK TESİSATI, 40 BAR
(OP)
QUICK COUPLER HYD. PIPING, 40 BAR (OP)
F110.00.01 İLAVE HAT HİDROLİK TESİSATI, 190 BAR (OP) ADDITIONAL LINE HYD. PIPING, 190 BAR (OP)
F120.00.01 ATAÇMAN GRESLEME SİSTEMİ ATTACHMENT GREASE LUB SYSTEM
F120.01.01 ATAÇMAN GRESLEME SİSTEMİ (2 PARÇALI
BOM)
ATTACHMENT GREASE LUB SYSTEM (TWO PIECES
BOOM)
F140.00.01 BOM EMNİYET VALFİ SİSTEMİ (OP) BOOM SAFETY LOCK SYSTEM (OP)
F140.01.01 BOM EMNİYET VALFİ SİSTEMİ (2 PARÇALI BOM,
OP)
BOOM SAFETY LOCK SYSTEM (TWO PIECES BOOM,
OP)
F150.00.01 BOM EMNİYET VALFİ SİSTEMİ (OP) BOOM SAFETY LOCK SYSTEM (OP)
F150.01.01 ARM EMNİYET VALFİ SİSTEMİ (2 PARÇALI BOM,
OP)
ARM SAFETY LOCK SYSTEM (TWO PIECES BOOM, OP)
F160.00.01 AŞIRI YÜK UYARI SİSTEMİ (EMNİYET VALFLİ, OP) OVERLOAD WARNING SYSTEM (WITH RELIEF VALVE,
OP)
F160.01.01 AŞIRI YÜK UYARI SİSTEMİ (EMNİYET VALFSİZ,
OP)
OVERLOAD WARNING SYSTEM (WITHOUT RELIEF
VALVE, OP)
G HİDROLİK KOMPONENTLER HYDRAULIC COMPONENTS
G010.00.01 HİDROLİK POMPA HYDRAULIC PUMP
G010.00.02 DİŞLİ POMPA GEAR PUMP
G010.00.03 ORANSAL BASINÇ VALFİ PROPORTIONAL REDUCING VALVE
G010.00.04 POMPA REGÜLATÖRÜ, ÖN PUMP REGULATOR, FRONT
G010.00.05 POMPA REGÜLATÖRÜ, ARKA PUMP REGULATOR, REAR
G020.00.01 ANA KUMANDA VALFİ (1) MAIN CONTROL VALVE (1)
G020.00.02 ANA KUMANDA VALFİ (2) MAIN CONTROL VALVE (2)
G020.00.03 ANA KUMANDA VALFİ (3) MAIN CONTROL VALVE (3)
G020.00.04 ANA KUMANDA VALFİ (4) MAIN CONTROL VALVE (4)
G030.00.01 KULE DÖNÜŞ ÜNİTESİ, MOTOR SWING UNIT, MOTOR
G040.00.01 KULE DÖNÜŞ ÜNİTESİ, DİŞLİ KUTUSU SWING UNIT, REDUCTION GEAR
G050.00.01 YÜRÜYÜŞ ÜNİTESİ, MOTOR TRAVEL UNIT, MOTOR
G060.00.01 YÜRÜYÜŞ ÜNİTESİ, DİŞLİ KUTUSU TRAVEL UNIT, REDUCTION GEAR
G070.00.01 DÖNER DAĞITICI TURNING JOINT
G070.01.01 DÖNER DAĞITICI, DOZER BIÇAKLI TURNING JOINT, WITH DOZER BLADE
İÇİNDEKİLER / CONTENTS
G080.00.01 JOYSTİK, SAĞ JOYSTICK, RH
G080.00.02 JOYSTİK, SOL JOYSTICK, LH
G090.00.01 JOYSTİK, DOZER VE AYAK (OP) JOYSTICK, DOZER & OUTRIGGER (OP)
G100.00.01 YÜRÜYÜŞ PEDAL VALFİ TRAVEL PEDAL VALVE
G140.00.01 ÇİFT ETKİLİ AYAK PEDALI VE VALFİ (OP) DOUBLE ACTING PEDAL AND VALVE (OP)
G150.00.01 1’Lİ SOLENOİD VALF SOLENOID VALVE, 1 SECTION
G170.00.01 4’LÜ SOLENOİD VALF SOLENOID VALVE, 4 SECTION
G180.00.01 BOM SİLİNDİRİ, SAĞ BOOM CYLINDER, RH
G180.00.02 BOM SİLİNDİRİ, SOL BOOM CYLINDER, LH
G180.01.01 BOM SİLİNDİRİ, SAĞ (2 PARÇALI BOM 1, OP) BOOM CYLINDER, RH (2-PIECE BOOM 1, OP)
G180.01.02 BOM SİLİNDİRİ, SOL (2 PARÇALI BOM 1, OP) BOOM CYLINDER, LH (2-PIECE BOOM 1, OP)
G180.01.03 BOM SİLİNDİRİ, (2 PARÇALI BOM 2, OP) BOOM CYLINDER, (2-PIECE BOOM 2, OP)
G190.00.01 ARM SİLİNDİRİ ARM CYLINDER
G200.00.01 KEPÇE SİLİNDİRİ BUCKET CYLINDER
G210.00.01 ÇABUK SÖK TAK SİLİNDİRİ (OP) QUICK COUPLER CYLINDER (OP)
G230.00.01 DOZER SİLİNDİRİ, SAĞ (OP) DOZER CYLINDER, RH (OP)
G230.00.02 DOZER SİLİNDİRİ, SOL (OP) DOZER CYLINDER, LH (OP)
K ELEKTRİK SİSTEMİ ELECTRICAL SYSTEM
K010.00.01 ELEKTRİK PARÇALARI (1) ELECTRIC PARTS (1)
K010.00.01 ELEKTRİK PARÇALARI (1) ELECTRIC PARTS (1)
K010.00.02 ELEKTRİK PARÇALARI (2) ELECTRIC PARTS (2)
K020.00.01 ANA ELEKTRİK TESİSATI MAIN HARNESS
K030.00.01 MOTOR ELEKTRİK TESİSATI, ŞASİ ENGINE HARNESS, FRAME
K040.00.01 KABİN ELEKTRİK TESİSATI OPERATOR CAB HARNESS
K050.00.01 KABİN İÇİ ELEKTRİK TESİSATI OPERATOR CAB INTERIROR HARNESS
K060.00.01 TEPE LAMBASI (OP) BEACON LAMP MOUNTING (OP)
K070.00.01 ÖN ÇALIŞMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, FRONT (OP)
K080.00.01 ARKA ÇALIŞMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, REAR (OP)
K090.00.01 ARKA AĞIRLIK ÇALIŞMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, COUNTER WEIGHT (OP)
K100.00.01 SMARTLİNK (OP) SMARTLINK (OP)
K110.00.01 IMMOBILIZER (OP) IMMOBILIZER (OP)
K120.00.01 KAMERA MONTAJI, ARKA GÖRÜŞ (OP) CAMERA MOUNTING, REAR VIEW (OP)
Y DİĞERLERİ (ETİKET, AVADANLIK) OTHERS (DECAL, TOOLS)
Y010.00.01 ETİKETLER (TÜRKÇE) DECALS (TURKISH)
Y010.01.01 ETİKETLER (İNGİLİZCE) DECALS (ENGLISH)
Z MOTOR PARÇALARI ENGINE PARTS
Z010.00.01 MOTOR ENGINE
Z020.00.01 KÜLBÜTÖR KAPAĞI ROCKER ARM COVER
Z020.00.02 SİLİNDİR KAPAĞI 1 CYLINDER HEAD 1
Z020.00.03 SİLİNDİR KAPAĞI 2 CYLINDER HEAD 2
Z020.00.04 SİLİNDİR BLOĞU CYLINDER BLOCK
Z020.00.05 KAM MİLİ VE SUPAPLAR CAM SHAFT & VALVE
Z020.00.06 ZAMANLAMA DİŞLİSİ VE VOLAN YUVASI TIMING GEAR CASE & FLYWHEEL HOUSING
Z020.00.07 DİŞLİ KUTUSU KAPAĞI GEAR CASE COVER
Z020.00.08 VOLAN MUHAFAZASI FLYWHEEL HOUSING
Z020.00.09 KRANK MİLİ, PİSTON VE VOLAN CRANKSHAFT, PISTON & FLYWHEEL
Z020.00.10 MOTOR TAMİR TAKIMI ENGINE OVERHAUL GASKET KIT
İÇİNDEKİLER / CONTENTS
Z020.00.11 SİLİNDİR KAPAĞI TAMİR TAKIMI CYLINDER HEAD GASKET KIT
Z030.00.01 YAĞ KARTERİ VE YAĞ SEVİYE ÇUBUĞU OIL PAN & OIL LEVEL GAUGE
Z030.00.02 YAĞ FİLTRESİ VE SOĞUTUCUSU OIL FILTER & COOLER
Z030.00.03 YAĞ POMPASI VE YAĞ SÜZGECİ OIL PUMP & STRAINER
Z030.00.04 YAĞ VE VAKUM TESİSATI OIL & VACUUM PIPING
Z030.00.05 HAVALANDIRMA SİSTEMİ VENTILATION SYSTEM
Z040.00.01 SU POMPASI VE KOROZYON ÖNLEYİCİ WATER PUMP & CORROSION RESISTOR
Z040.00.02 TERMOSTAT THERMOSTAT
Z040.00.03 SOĞUTMA SUYU TESİSATI WATER PIPING
Z040.00.04 FAN VE FAN KAYIŞI FAN & FAN BELT
Z040.00.05 FAN MUHAFAZASI FAN GUARD
Z050.00.01 YAKIT BESLEME POMPASI FUEL PUMP
Z050.00.02 YAKIT ENJEKSİYON SİSTEMİ 1 FUEL INJECTION SYSTEM 1
Z050.00.03 YAKIT ENJEKSİYON SİSTEMİ 2 FUEL INJECTION SYSTEM 2
Z050.00.04 YAKIT FİLTRESİ FUEL FILTER
Z060.00.01 MARŞ MOTORU STARTER
Z060.00.02 ALTERNATÖR GENARATOR
Z060.00.03 MOTOR ELEKTRİK TESİSATI ENGINE WIRING HARNESS
Z060.00.04 ELEKTRİK TESİSATI SABİTLEME ELEMANLARI HARNESS FIXING PARTS
Z060.00.05 ELEKTRİK KONTROL PARÇALARI 1 ELECTRIC CONTROL PARTS 1
Z060.00.06 ELEKTRİK KONTROL PARÇALARI 2 ELECTRIC CONTROL PARTS 2
Z060.00.07 ELEKTRİK KONTROL VE DİĞER PARÇALAR ELECTRIC CONTROL & OTHER PARTS
Z070.00.01 EMME MANİFOLDU INLET MANIFOLD
Z070.00.02 EGZOZ MANİFOLDU EXHAUST MANIFOLD
Z070.00.03 TURBOŞARJ SİSTEMİ TURBOCHARGER SYSTEM
Z070.00.04 DİZEL PARTİKÜL FİLTRESİ DPF
Z070.00.05 EGR EGR
Z070.00.06 EGR SOĞUK SU GİRİŞ – ÇIKIŞ EGR COOLING INLET – OUTLET

DESCRIPTION:

Hidromek Excavator HMK 140LC4 Isuzu Engine Parts Catalog Manual E130901 EN_TR – PDF DOWNLOAD

PREFACE:

• We would like to thank you tor purchasing Excavator Construction Equipment.
• For satisfactory service and selection of correct part. read and understand instructions as shown below.

No: This indicates the indicating number of part.
Part No: It shows the part number of the parts which are included in an illustration.
Description: It shows the name of the part.
Q’ty: It shows the quantitiy use of part for the group that was illustrated on page.

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/807064977

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.V
