Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR - PDF DOWNLOAD
Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR - PDF DOWNLOAD - Image 2
Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR - PDF DOWNLOAD - Image 3
Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR - PDF DOWNLOAD - Image 4

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

Original price was: $89.95.Current price is: $30.95.

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

Category: Tags: , , Vendor: Combine Manuals
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

FILE DETAILS:

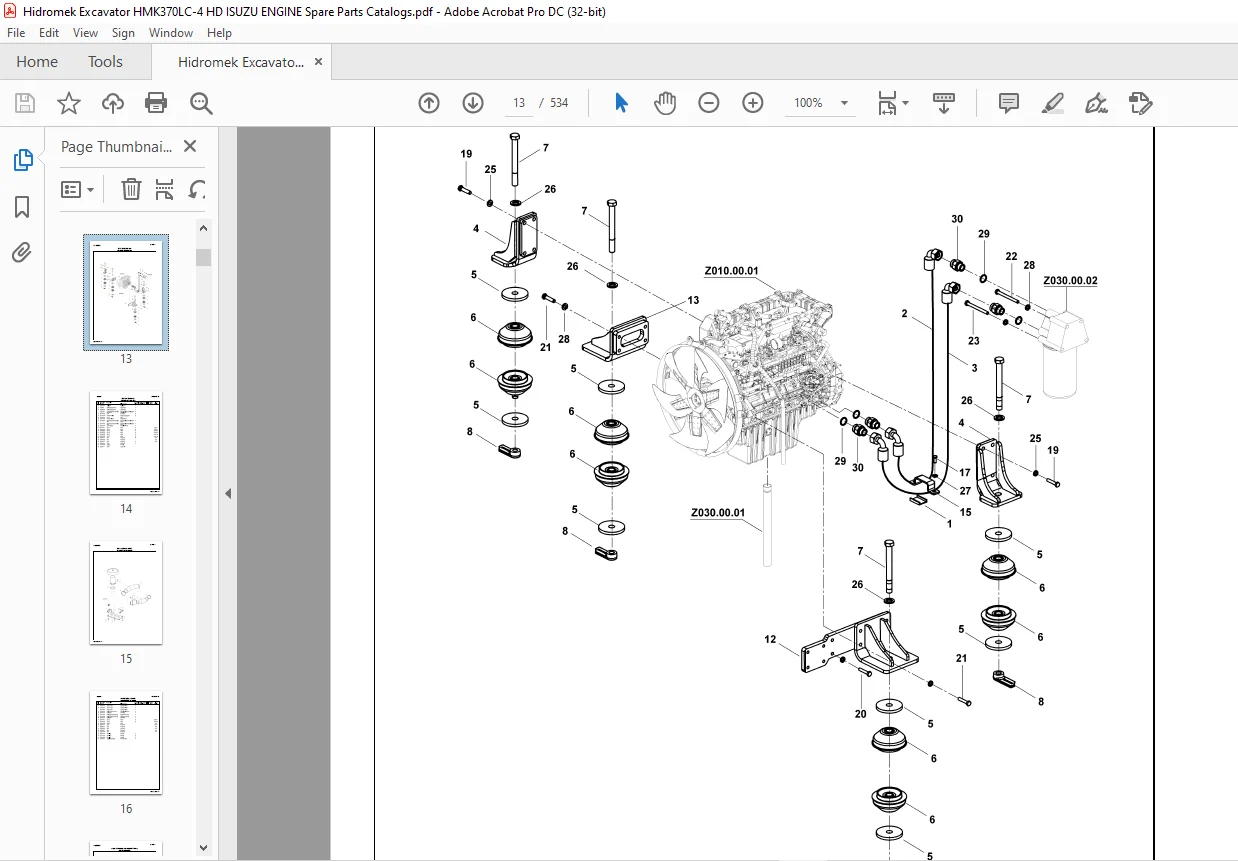

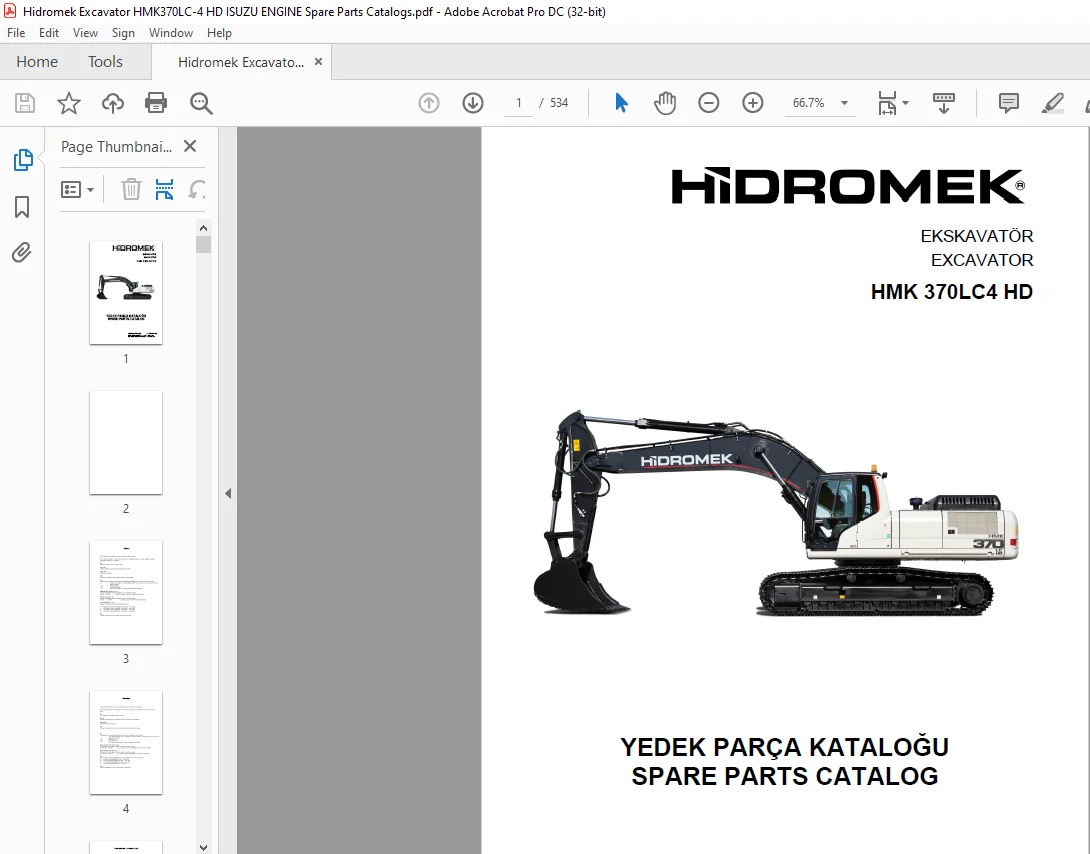

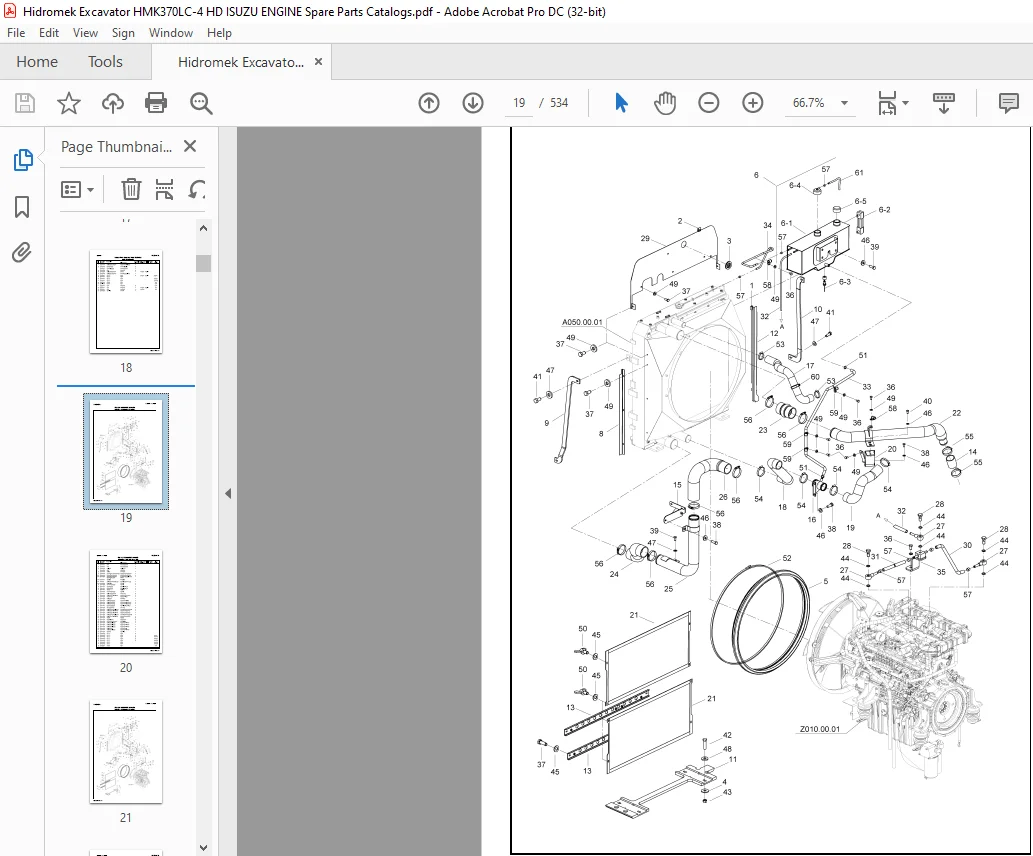

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

Language : Turkish & English
Pages : 534
Downloadable : Yes
File Type : PDF
Size: 32.5 MB

TABLE OF CONTENTS: (English & Turkish – Both languages present)

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

A MOTOR SฤฐSTEMฤฐ ENGINE SYSTEM
A010.00.01 MOTOR MONTAJI ENGINE MOUNTING
A020.00.01 HAVA EMฤฐลž SฤฐSTEMฤฐ AIR INTAKE SYSTEM
A035.00.01 DฤฐZEL PARTฤฐKรœL FฤฐLTRESฤฐ MONTAJI DPF MOUNTING
A045.00.01 MOTOR SOฤžUTMA SฤฐSTEMฤฐ ENGINE COOLING SYSTEM
A045.00.01 MOTOR SOฤžUTMA SฤฐSTEMฤฐ ENGINE COOLING SYSTEM
A050.00.01 RADYATร–R KOMPLESฤฐ RADIATOR ASS’Y
A060.00.01 YAKIT SฤฐSTEMฤฐ FUEL SYSTEM
A070.00.01 ร–N YAKIT FฤฐLTRESฤฐ MONTAJI (OP) PRE-FUEL FILTER ASS’Y (OP)
A080.00.01 YAKIT TRANSFER POMPASI MONTAJI FUEL FEED PUMP ASS’Y
A090.00.01 KLฤฐMA VE KALORฤฐFER MONTAJI AIRCONDITION AND HEATER MOUNTING
A100.00.01 KLฤฐMA VE KALORฤฐFER รœNฤฐTESฤฐ AIRCONDITION AND HEATER UNIT
B ลžASฤฐ VE KAPORTA FRAME & COWLING
B010.00.01 รœST ลžASฤฐ VE ALT KAPAK MONTAJI UPPER FRAME AND UNDER COVER MOUNTING
B015.00.01 ARKA AฤžIRLIK MONTAJI COUNTERWEIGHT MOUNTING
B015.01.01 ARKA AฤžIRLIK MONTAJI (LR) COUNTERWEIGHT MOUNTING (LR)
B015.02.01 ARKA AฤžIRLIK MONTAJI (OP) COUNTERWEIGHT MOUNTING (OP)
B020.00.01 TAKIM SANDIฤžI MONTAJI TOOL BOX MOUNTING
B040.00.01 YรœRรœME SACLARI ANTI-SLIP WALKWAY
B050.00.01 KAPORTA MONTAJI, SAฤž COWLING ASS’Y, RH
B060.00.01 KAPI MONTAJI, SAฤž DOOR MOUNTING, RH
B070.00.01 KAPORTA MONTAJI, SOL COWLING ASS’Y, LH
B080.00.01 KAPI MONTAJI, SOL DOOR MOUNTING, LH
B090.00.01 KAPORTA MONTAJI, A.K.V. COWLING MOUNTING, M.C.V.
B100.00.01 MOTOR KAPUT MONTAJI ENGINE HOOD MOUNTING
B110.00.01 DEPO KAPAK MONTAJI TANK COVER MOUNTING
B120.00.01 ALT ลžASฤฐ MONTAJI (TฤฐP A) LOWER FRAME MOUNTING (TYPE A)
B120.01.01 ALT ลžASฤฐ MONTAJI (TฤฐP B) LOWER FRAME MOUNTING (TYPE B)
B130.00.01 TAลžIYICI MAKARA KOMPLESฤฐ UPPER ROLLER ASS’Y
B140.00.01 YรœRรœYรœลž MAKARASI KOMPLESฤฐ LOWER ROLLER ASS’Y
B150.00.01 ฤฐSTฤฐKAMET TEKERฤฐ KOMPLESฤฐ IDLER ASS’Y
B160.00.01 GERDฤฐRME MEKANฤฐZMASI KOMPLESฤฐ ADJUSTER ASS’Y
B170.00.01 PALET KOMPLESฤฐ (600mm) TRACK CHAIN ASS’Y (600mm)
B170.01.01 PALET KOMPLESฤฐ (800mm) TRACK CHAIN ASS’Y (800mm)
B170.02.01 PALET KOMPLESฤฐ (900mm) TRACK CHAIN ASS’Y(900mm)
C KABฤฐN OPERATOR CAB
C010.00.01 KABฤฐN VE BAฤžLANTI TAKOZLARI CAB AND CAB MOUNTING
C020.00.01 KAPILAR DOORS
C030.00.01 CAMLAR WINDOWS
C040.00.01 KABฤฐN DONANIMI CAB ACCESSORIES
C050.00.01 KONSOL MONTAJI, ร–N CONSOLE ASS’Y, FRONT
C060.00.01 KONSOL MONTAJI, ARKA CONSOLE ASS’Y, REAR
C070.00.01 KONSOL MONTAJI, SAฤž CONSOLE ASS’Y, RH
C080.00.01 KONSOL MONTAJI, SOL CONSOLE ASS’Y, LH
C090.00.01 OPERATร–R KOLTUK MONTAJI OPERATOR SEAT MOUNTING
C100.00.01 OPERATร–R KOLTUK KOMPLESฤฐ OPERATOR SEAT ASS’Y
C110.00.01 PLATFORM MONTAJI PLATFORM ASS’Y
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
C120.00.01 KABฤฐN รœST KORUMA MONTAJI, FOPS II (OP) ROOF GUARD MOUNTING, FOPS II (OP)
C130.00.01 KABฤฐN KORUMA MONTAJI, FOGS (OP) GUARD MOUNTING, FOGS (OP)
C130.01.01 ร–N CAM KORUYUCU MONTAJI ,TAลž VE MICIR
ฤฐร‡ฤฐN (OP)
FRONT GUARD MOUNTING, FOR STONES & DEBRIS
(OP)
C130.02.01 ร–N CAM KORUYUCU MONTAJI, ฤฐKฤฐ PARร‡ALI (OP) FRONT GUARD MOUNTING, TWO PIECES (OP)
D ATAลžMAN ATTACHMENT
D010.00.01 BOM MONTAJI BOOM MOUNTING
D010.01.01 BOM MONTAJI (LR) BOOM MOUNTING (LR)
D020.00.01 BOM KOMPLESฤฐ (6.1m) BOOM ASS’Y (6.1m)
D020.01.01 BOM KOMPLESฤฐ (10.0m, LR) BOOM ASS’Y (10.0m, LR)
D020.02.01 BOM KOMPLESฤฐ (6.5m) BOOM ASS’Y (6.5m)
D030.00.01 ARM MONTAJI ARM MOUNTING
D030.01.01 ARM MONTAJI (LR) ARM MOUNTING (LR)
D040.00.01 ARM KOMPLESฤฐ (2.6m) ARM ASS’Y (2.6m)
D040.01.01 ARM KOMPLESฤฐ (6.0m, LR) ARM ASS’Y (6.0m, LR)
D040.02.01 ARM KOMPLESฤฐ (3.2m) ARM ASS’Y (3.2m)
D040.03.01 ARM KOMPLESฤฐ (2.2m) ARM ASS’Y (2.2m)
D050.00.01 KEPร‡E BAฤžLANTISI BUCKET LINKAGE
D050.01.01 KEPร‡E BAฤžLANTISI (LR) BUCKET LINKAGE (LR)
D060.00.01 KEPร‡E, DUAL RADรœS (2.0mยณ) BUCKET, DUAL RADIUS (2.0mยณ)
D060.01.01 KEPร‡E, DUAL RADรœS (1.22mยณ) BUCKET, DUAL RADIUS (1.22mยณ)
D060.02.01 KEPร‡E, DUAL RADรœS (1.6mยณ) BUCKET, DUAL RADIUS (1.6mยณ)
D060.03.01 KEPร‡E, DUAL RADรœS (1.8mยณ) BUCKET, DUAL RADIUS (1.8mยณ)
D060.04.01 KEPร‡E, DUAL RADรœS (2.15mยณ) BUCKET, DUAL RADIUS (2.15mยณ)
D060.05.01 KEPร‡E, DUAL RADรœS (0.75mยณ, LR) BUCKET, DUAL RADIUS (0.75mยณ, LR)
D060.06.01 KEPร‡E, DUAL RADรœS (1.0mยณ, LR) BUCKET, DUAL RADIUS (1.0mยณ, LR)
D060.07.01 KEPร‡E, TEMฤฐZLฤฐK (0.6mยณ, LR) BUCKET, DITCH CLEANING (0.6mยณ, LR)
D060.08.01 KEPร‡E, KAYA TฤฐPฤฐ (1.8mยณ) BUCKET, ROCK TYPE (1.8mยณ)
D060.09.01 KEPร‡E, KAYA TฤฐPฤฐ (2.0mยณ) BUCKET, ROCK TYPE (2.0mยณ)
D070.00.01 ร‡ABUK Sร–K-TAK KOMPLESฤฐ (OP) QUICK COUPLER ASS’Y (OP)
D080.00.01 KIRICI MONTAJI (B300, OP) BREAKER MOUNTING (B300, OP)
D080.00.02 KIRICI KOMPLESฤฐ (B300, OP) BREAKERASS’Y (B300, OP)
D090.00.01 RฤฐPER (OP) RIPPER (OP)
F HฤฐDROLฤฐK SฤฐSTEM HYDRAULIC SYSTEM
F010.00.01 HฤฐDROLฤฐK POMPA MONTAJI HYDRAULIC PUMP MOUNTING
F020.00.01 HฤฐDROLฤฐK TANK MONTAJI HYDRAULIC TANK ASS’Y
F025.00.01 HฤฐDROLฤฐK FAN TAHRฤฐK VE SOฤžUTMA SฤฐSTEMฤฐ HYDRAULIC FAN DRIVE AND COOLING SYSTEM
F030.00.01 รœST ลžASฤฐ HฤฐDROLฤฐK TESฤฐSATI, ANA UPPER FRAME HYD. PIPING, BASE
F030.00.02 รœST ลžASฤฐ HฤฐDROLฤฐK TESฤฐSATI, ATAลžMAN UPPER FRAME HYD. PIPING, ATTACHMENT
F030.00.03 รœST ลžASฤฐ HฤฐDROLฤฐK TESฤฐSATI, YรœRรœYรœลž VE
Dร–Nรœลž
UPPER FRAME HYD. PIPING, TRAVEL&SWING
F040.00.01 Dร–Nรœลž VE SIZINTI HATTI HฤฐDROLฤฐK TESฤฐSATI DRAIN AND RETURN HYD. PIPING
F050.00.01 ALT ลžASฤฐ HฤฐDROLฤฐK TESฤฐSATI LOWER FRAME HYD. PIPING
F060.00.01 PฤฐLOT HฤฐDROLฤฐK TESฤฐSATI, ANA (1) PILOT HYD. PIPING, BASE (1)
F060.00.02 PฤฐLOT HฤฐDROLฤฐK TESฤฐSATI, ANA (2) PILOT HYD. PIPING, BASE (2)
F060.00.03 PฤฐLOT HฤฐDROLฤฐK TESฤฐSATI, ATAลžMAN (1) PILOT HYD. PIPING, ATTACHMENT (1)
F060.00.04 PฤฐLOT HฤฐDROLฤฐK TESฤฐSATI, ATAลžMAN (2) PILOT HYD. PIPING, ATTACHMENT (2)
F060.00.05 PฤฐLOT HฤฐDROLฤฐK TESฤฐSATI, A.K.V. PILOT HYD. PIPING, M.C.V.
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
F070.00.01 ATAลžMAN TESฤฐSATI (2.6m & 2.2m – 6.1m) ATTACHMENT PIPING (2.6m & 2.2m – 6.1m)
F070.01.01 ATAลžMAN TESฤฐSATI (3.2m – 6.1m) ATTACHMENT PIPING (3.2m – 6.1m)
F070.02.01 ATAลžMAN TESฤฐSATI (2.6m & 2.2m – 6.5m) ATTACHMENT PIPING (2.6m & 2.2m – 6.5m)
F070.03.01 ATAลžMAN TESฤฐSATI (3.2m – 6.5m) ATTACHMENT PIPING (3.2m – 6.5m)
F070.04.01 ATAลžMAN TESฤฐSATI (LR) ATTACHMENT PIPING (LR)
F080.00.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (2.6m & 2.2m –
6.1m , OP)
SINGLE ACTING HYD. PIPING 1 (2.6m & 2.2m – 6.1m , OP)
F080.00.02 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (2.6m & 2.2m –
6.1m , OP)
SINGLE ACTING HYD. PIPING 2 (2.6m & 2.2m – 6.1m , OP)
F080.01.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (3.2m – 6.1m ,
OP)
SINGLE ACTING HYD. PIPING 1 (3.2m – 6.1m , OP)
F080.01.02 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (3.2m – 6.1m ,
OP)
SINGLE ACTING HYD. PIPING 2 (3.2m – 6.1m , OP)
F080.02.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (2.6m & 2.2m –
6.5m , OP)
SINGLE ACTING HYD. PIPING 1 (2.6m & 2.2m – 6.5m , OP)
F080.02.02 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (2.6m & 2.2m –
6.5m , OP)
SINGLE ACTING HYD. PIPING 2 (2.6m & 2.2m – 6.5m , OP)
F080.03.01 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (3.2m – 6.5m ,
OP)
SINGLE ACTING HYD. PIPING 1 (3.2m – 6.5m , OP)
F080.03.02 TEK ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (3.2m – 6.5m ,
OP)
SINGLE ACTING HYD. PIPING 2 (3.2m – 6.5m , OP)
F090.00.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (2.6m & 2.2m –
6.1m , OP)
DOUBLE ACTING HYD. PIPING 1 (2.6m & 2.2m – 6.1m ,
OP)
F090.00.02 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (2.6m & 2.2m –
6.1m , OP)
DOUBLE ACTING HYD. PIPING 2 (2.6m & 2.2m – 6.1m ,
OP)
F090.01.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (3.2m – 6.1m ,
OP)
DOUBLE ACTING HYD. PIPING 1 (3.2m – 6.1m , OP)
F090.01.02 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (3.2m – 6.1m ,
OP)
DOUBLE ACTING HYD. PIPING 2 (3.2m – 6.1m , OP)
F090.02.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (2.6m & 2.2m –
6.5m , OP)
DOUBLE ACTING HYD. PIPING 1 (2.6m & 2.2m – 6.5m ,
OP)
F090.02.02 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (2.6m & 2.2m –
6.5m , OP)
DOUBLE ACTING HYD. PIPING 2 (2.6m & 2.2m – 6.5m ,
OP)
F090.03.01 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 1 (3.2m – 6.5m ,
OP)
DOUBLE ACTING HYD. PIPING 1 (3.2m – 6.5m , OP)
F090.03.02 ร‡ฤฐFT ETKฤฐLฤฐ HฤฐDROLฤฐK TESฤฐSATI 2 (3.2m – 6.5m ,
OP)
DOUBLE ACTING HYD. PIPING 2 (3.2m – 6.5m , OP)
F100.00.01 ร‡ABUK Sร–K-TAK HฤฐDROLฤฐK TESฤฐSATI, 40 BAR
(OP)
QUICK COUPLER HYD. PIPING, 40 BAR (OP)
F120.00.01 ATAลžMAN GRESLEME SฤฐSTEMฤฐ (2.6m) ATTACHMENT GREASE LUB SYSTEM (2.6m)
F120.01.01 ATAลžMAN GRESLEME SฤฐSTEMฤฐ (2.2m) ATTACHMENT GREASE LUB SYSTEM (2.2m)
F120.02.01 ATAลžMAN GRESLEME SฤฐSTEMฤฐ (3.2m) ATTACHMENT GREASE LUB SYSTEM (3.2m)
F120.03.01 ATAลžMAN GRESLEME SฤฐSTEMฤฐ (LR) ATTACHMENT GREASE LUB SYSTEM (LR)
F140.00.01 BOM EMNฤฐYET VALFฤฐ SฤฐSTEMฤฐ (OP) BOOM SAFETY LOCK SYSTEM (OP)
F150.00.01 ARM EMNฤฐYET VALFฤฐ SฤฐSTEMฤฐ (OP) ARM SAFETY LOCK SYSTEM (OP)
F160.00.01 AลžIRI YรœK UYARI SฤฐSTEMฤฐ (EMNฤฐYET VALFLฤฐ, OP) OVERLOAD WARNING SYSTEM (WITH RELIEF VALVE,
OP)
F160.01.01 AลžIRI YรœK UYARI SฤฐSTEMฤฐ (EMNฤฐYET VALFSฤฐZ,
OP)
OVERLOAD WARNING SYSTEM (WITHOUT RELIEF
VALVE, OP)
G HฤฐDROLฤฐK KOMPONENTLER HYDRAULIC COMPONENTS
G010.00.01 HฤฐDROLฤฐK POMPA HYDRAULIC PUMP
G010.00.02 DฤฐลžLฤฐ POMPA GEAR PUMP
G010.00.03 ORANSAL BASINร‡ VALFฤฐ PROPORTIONAL REDUCING VALVE
G010.00.04 POMPA REGรœLATร–Rรœ PUMP REGULATOR
G015.00.01 FAN POMPASI FAN PUMP
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
G016.00.01 FAN MOTORU FAN MOTOR
G020.00.01 ANA KUMANDA VALFฤฐ (1) MAIN CONTROL VALVE (1)
G020.00.02 ANA KUMANDA VALFฤฐ (2) MAIN CONTROL VALVE (2)
G020.00.03 ANA KUMANDA VALFฤฐ (3) MAIN CONTROL VALVE (3)
G020.00.04 ANA KUMANDA VALFฤฐ (4) MAIN CONTROL VALVE (4)
G020.00.05 ANA KUMANDA VALFฤฐ (5) MAIN CONTROL VALVE (5)
G020.00.06 ANA KUMANDA VALFฤฐ (6) MAIN CONTROL VALVE (6)
G020.00.07 ANA KUMANDA VALFฤฐ (7) MAIN CONTROL VALVE (7)
G020.00.08 ANA KUMANDA VALFฤฐ (8) MAIN CONTROL VALVE (8)
G025.00.01 KULE Dร–Nรœลž รœNฤฐTESฤฐ SWING UNIT
G025.00.01 KULE Dร–Nรœลž รœNฤฐTESฤฐ SWING UNIT
G030.00.01 KULE Dร–Nรœลž รœNฤฐTESฤฐ, MOTOR SWING UNIT, MOTOR
G040.00.01 KULE Dร–Nรœลž รœNฤฐTESฤฐ, DฤฐลžLฤฐ KUTUSU SWING UNIT, REDUCTION GEAR
G040.00.01 KULE Dร–Nรœลž รœNฤฐTESฤฐ, DฤฐลžLฤฐ KUTUSU SWING UNIT, REDUCTION GEAR
G045.00.01 YรœRรœYรœลž รœNฤฐTESฤฐ TRAVEL UNIT
G050.00.01 YรœRรœYรœลž รœNฤฐTESฤฐ, MOTOR TRAVEL UNIT, MOTOR
G060.00.01 YรœRรœYรœลž รœNฤฐTESฤฐ, DฤฐลžLฤฐ KUTUSU TRAVEL UNIT, REDUCTION GEAR
G070.00.01 Dร–NER DAฤžITICI TURNING JOINT
G080.00.01 JOYSTฤฐK, SAฤž JOYSTICK, RH
G080.00.02 JOYSTฤฐK, SOL JOYSTICK, LH
G100.00.01 YรœRรœYรœลž PEDAL VALFฤฐ TRAVEL PEDAL VALVE
G140.00.01 ร‡ฤฐFT ETKฤฐLฤฐ AYAK PEDALI VE VALFฤฐ (OP) DOUBLE ACTING PEDAL AND VALVE (OP)
G150.00.01 1’Lฤฐ SOLENOฤฐD VALF SOLENOID VALVE, 1 SECTION
G170.00.01 4’Lรœ SOLENOฤฐD VALF SOLENOID VALVE, 4 SECTION
G180.00.01 BOM SฤฐLฤฐNDฤฐRฤฐ, SAฤž BOOM CYLINDER, RH
G180.00.02 BOM SฤฐLฤฐNDฤฐRฤฐ, SOL BOOM CYLINDER, LH
G190.00.01 ARM SฤฐLฤฐNDฤฐRฤฐ ARM CYLINDER
G200.00.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ BUCKET CYLINDER
G200.01.01 KEPร‡E SฤฐLฤฐNDฤฐRฤฐ (LR) BUCKET CYLINDER (LR)
G210.00.01 ร‡ABUK Sร–K-TAK SฤฐLฤฐNDฤฐRฤฐ (OP) QUICK COUPLER CYLINDER (OP)
K ELEKTRฤฐK SฤฐSTEMฤฐ ELECTRICAL SYSTEM
K010.00.01 ELEKTRฤฐK PARร‡ALARI (1) ELECTRIC PARTS (1)
K010.00.02 ELEKTRฤฐK PARร‡ALARI (2) ELECTRIC PARTS (2)
K020.00.01 ANA ELEKTRฤฐK TESฤฐSATI MAIN HARNESS
K030.00.01 MOTOR ELEKTRฤฐK TESฤฐSATI ENGINE HARNESS
K040.00.01 KABฤฐN ELEKTRฤฐK TESฤฐSATI OPERATOR CAB HARNESS
K050.00.01 KABฤฐN ฤฐร‡ฤฐ ELEKTRฤฐK TESฤฐSATI OPERATOR CAB INTERIOR HARNESS
K060.00.01 TEPE LAMBASI MONTAJI (OP) BEACON LAMP MOUNTING (OP)
K070.00.01 ร–N ร‡ALIลžMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, FRONT (OP)
K080.00.01 ARKA ร‡ALIลžMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, REAR (OP)
K090.00.01 ARKA AฤžIRLIK ร‡ALIลžMA LAMBASI MONTAJI (OP) WORK LAMP MOUNTING, COUNTER WEIGHT (OP)
K100.00.01 SMARTLฤฐNK (OP) SMARTLINK (OP)
K110.00.01 IMMOBILIZER (OP) IMMOBILIZER (OP)
K120.00.01 KAMERA MONTAJI, ARKA Gร–Rรœลž (OP) CAMERA MOUNTING, REAR VIEW (OP)
Y DฤฐฤžERLERฤฐ (ETฤฐKET, AVADANLIK) OTHERS (DECAL, TOOLS)
Y010.00.01 ETฤฐKETLER (TรœRKร‡E) DECALS (TURKISH)
Y010.02.01 ETฤฐKETLER (ฤฐSPANYOLCA) DECALS (SPANISH)
ฤฐร‡ฤฐNDEKฤฐLER / CONTENTS
Y010.04.01 ETฤฐKETLER (FRANSIZCA) DECALS (FRENCH)
Y020.01.01 ETฤฐKETLER (LR, ฤฐNGฤฐLฤฐZCE) DECALS (LR, ENGLISH)
Z MOTOR PARร‡ALARI ENGINE PARTS
Z010.00.01 MOTOR ENGINE
Z020.00.01 KรœLBรœTร–R KAPAฤžI ROCKER ARM COVER
Z020.00.02 SฤฐLฤฐNDฤฐR KAPAฤžI 1 CYLINDER HEAD 1
Z020.00.03 SฤฐLฤฐNDฤฐR KAPAฤžI 2 CYLINDER HEAD 2
Z020.00.04 SฤฐLฤฐNDฤฐR BLOฤžU CYLINDER BLOCK
Z020.00.05 KAM MฤฐLฤฐ VE SUPAPLAR CAM SHAFT & VALVE
Z020.00.06 ZAMANLAMA DฤฐลžLฤฐSฤฐ VE VOLAN YUVASI TIMING GEAR CASE & FLYWHEEL HOUSING
Z020.00.07 KRANK MฤฐLฤฐ, PฤฐSTON VE VOLAN CRANKSHAFT, PISTON & FLYWHEEL
Z020.00.08 DฤฐลžLฤฐ KUTUSU KAPAฤžI GEAR CASE COVER
Z020.00.09 MOTOR TAMฤฐR TAKIMI ENGINE OVERHAUL GASKET KIT
Z020.00.10 SฤฐLฤฐNDฤฐR KAPAฤžI TAMฤฐR TAKIMI CYLINDER HEAD GASKET KIT
Z030.00.01 YAฤž KARTERฤฐ VE YAฤž SEVฤฐYE ร‡UBUฤžU OIL PAN & OIL LEVEL GAUGE
Z030.00.02 YAฤž FฤฐLTRESฤฐ VE SOฤžUTUCUSU OIL FILTER & COOLER
Z030.00.03 YAฤž POMPASI VE YAฤž SรœZGECฤฐ OIL PUMP & STRAINER
Z030.00.04 YAฤž VE VAKUM TESฤฐSATI OIL & VACUUM PIPING
Z030.00.05 HAVALANDIRMA SฤฐSTEMฤฐ VENTILATION SYSTEM
Z040.00.01 SU POMPASI VE KOROZYON ร–NLEYฤฐCฤฐ WATER PUMP & CORROSION RESISTOR
Z040.00.02 TERMOSTAT VE YUVASI THERMOSTAT & HOUSING
Z040.00.03 SOฤžUTMA SUYU TESฤฐSATI WATER PIPING
Z040.00.04 FAN VE FAN KAYIลžI FAN & FAN BELT
Z040.00.05 FAN MUHAFAZASI FAN GUARD
Z050.00.01 YAKIT BESLEME POMPASI FUEL PUMP
Z050.00.02 YAKIT ENJEKSฤฐYON SฤฐSTEMฤฐ 1 FUEL INJECTION SYSTEM 1
Z050.00.03 YAKIT ENJEKSฤฐYON SฤฐSTEMฤฐ 2 FUEL INJECTION SYSTEM 2
Z050.00.04 YAKIT FฤฐLTRESฤฐ FUEL FILTER
Z060.00.01 MARลž MOTORU STARTER
Z060.00.02 ALTERNATร–R GENARATOR
Z060.00.03 MOTOR ELEKTRฤฐK TESฤฐSATI ENGINE WIRING HARNESS
Z060.00.04 ELEKTRฤฐK TESฤฐSATI SABฤฐTLEME ELEMANLARI HARNESS FIXING PARTS
Z060.00.05 ELEKTRฤฐK KONTROL PARร‡ALARI 1 ELECTRIC CONTROL PARTS 1
Z060.00.06 ELEKTRฤฐK KONTROL PARร‡ALARI 2 ELECTRIC CONTROL PARTS 2
Z060.00.07 ELEKTRฤฐK KONTROL VE DฤฐฤžER PARร‡ALAR ELECTRIC CONTROL & OTHER PARTS
Z070.00.01 EMME MANฤฐFOLDU INLET MANIFOLD
Z070.00.02 EGZOZ MANฤฐFOLDU EXHAUST MANIFOLD
Z070.00.03 TURBOลžARJ SฤฐSTEMฤฐ TURBOCHARGER SYSTEM
Z070.00.04 DฤฐZEL PARTฤฐKรœL FฤฐLTRESฤฐ DPF
Z070.00.05 EGR EGR
Z070.00.06 EGR SOฤžUK SU GฤฐRฤฐลž – ร‡IKIลž EGR COOLING INLET – OUTLET
Z070.00.07 HAVA FฤฐLTRESฤฐ AIR CLEANER
A – MOTOR SฤฐSTEMฤฐ
A – ENGINE SYSTEM
Sayfa No /
Page No
Sayfa Adฤฑ Page Name Revizyon /
Revision
A010.00.01 MOTOR MONTAJI ENGINE MOUNTING
A020.00.01 HAVA EMฤฐลž SฤฐSTEMฤฐ AIR INTAKE SYSTEM
A035.00.01 DฤฐZEL PARTฤฐKรœL FฤฐLTRESฤฐ MONTAJI DPF MOUNTING
A045.00.01 MOTOR SOฤžUTMA SฤฐSTEMฤฐ ENGINE COOLING SYSTEM
A045.00.01 MOTOR SOฤžUTMA SฤฐSTEMฤฐ ENGINE COOLING SYSTEM R1
A050.00.01 RADYATร–R KOMPLESฤฐ RADIATOR ASS’Y
A060.00.01 YAKIT SฤฐSTEMฤฐ FUEL SYSTEM
A070.00.01 ร–N YAKIT FฤฐLTRESฤฐ MONTAJI (OP) PRE-FUEL FILTER ASS’Y (OP)
A080.00.01 YAKIT TRANSFER POMPASI MONTAJI FUEL FEED PUMP ASS’Y
A090.00.01 KLฤฐMA VE KALORฤฐFER MONTAJI AIRCONDITION AND HEATER MOUNTING
A100.00.01 KLฤฐMA VE KALORฤฐFER รœNฤฐTESฤฐ AIRCONDITION AND HEATER UNIT

DESCRIPTION:

Hidromek Excavator HMK 370LC4 HD Isuzu Engine Spare Parts Catalog Manual C137901 EN_TR – PDF DOWNLOAD

PREFACE:

  • We would like to thank you for purchasing Excavator Construction Equipment.
  • For satisfactory service and selection of correct part, read and understand instructions as shown
    below.

No: This indicates the indicating number of part.
Part No: It shows the part number of the parts which are included in an illustration.
Description: It shows the name of the part.
Q’ty: It shows the quantitiy use of part for the group that was illustrated on page.

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

https://vimeo.com/807028010

PLEASE NOTE:

  • This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
  • Contact us atย [email protected]ย should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.Vย

What Our Customers Say

โ˜…โ˜…โ˜…โ˜…โ˜… Live reviews from customers
Loading customer reviews...

๐ŸŒŸ Related Products

Discover more professional manuals for your equipment

-63% OFF
Hidromek HMK 640 WL LASTฤฐK TEKERLEKLฤฐ YรœKLEYฤฐCฤฐ KULLANIM VE BAKIM EL KฤฐTABI - PDF DOWNLOAD (Turkish)
-62% OFF
Hidromek HMK 102B Alpha SERVฤฐS EL KฤฐTABI Y1012401 - PDF DOWNLOAD (Turkish)

Hidromek HMK 102B Alpha SERVฤฐS EL KฤฐTABI Y1012401 - PDF DOWNLOAD (Turkish)

โ˜…โ˜…โ˜…โ˜…โ˜… (108 reviews)
$86.95 $32.95
DOWNLOAD
-64% OFF
Hidromek HMK 220 LC-2, HMK 220 LC-2 LR, HMK 300 LC, HMK 300 NLC, HMK 300 LC LR TIER 2 SERฤฐSฤฐ PALETLฤฐ EKSKAVATร–RLER KULLANIM VE BAKIM EL KฤฐTABI - PDF DOWNLOAD
-67% OFF
Hidromek HMK 102B HMK 102S John Deere Motor SERVฤฐS EL KฤฐTABI - PDF DOWNLOAD (Turkish)
0
    0
    Your Cart
    Your cart is emptyReturn to Shop
    Start Downloading your Manual immediately by proceeding to checkout page
    Continue Shopping
    ๐Ÿ›’
    Recently Purchased
    ๐Ÿ•’ verified order
