Hidromek HMK 102B Backhoe Loader Parts List Manual SN 50070 PDF

Description

Hidromek HMK 102B Backhoe Loader Parts Catalog Manual SN 50070 – PDF DOWNLOAD

FILE DETAILS:

Hidromek HMK 102B Backhoe Loader Parts Catalog Manual SN 50070 – PDF DOWNLOAD

Language : English
Pages : 867
Downloadable : Yes
File Type : PDF
Size: 29.4 MB

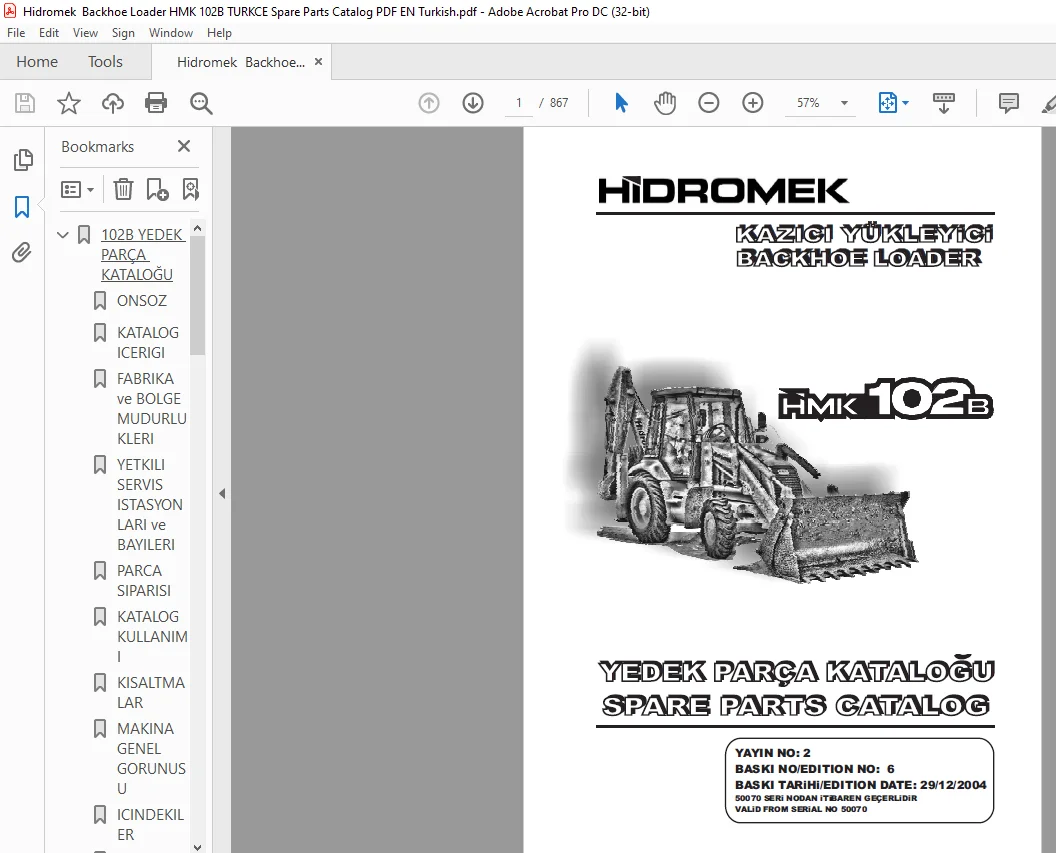

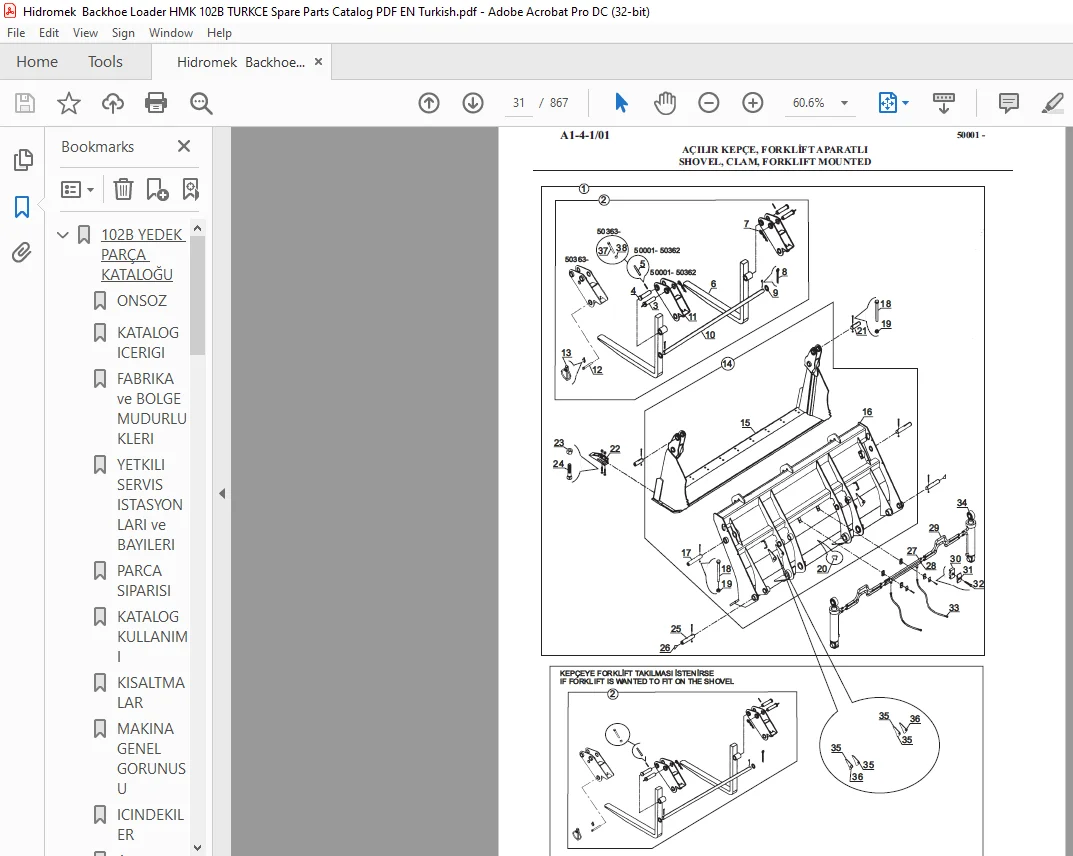

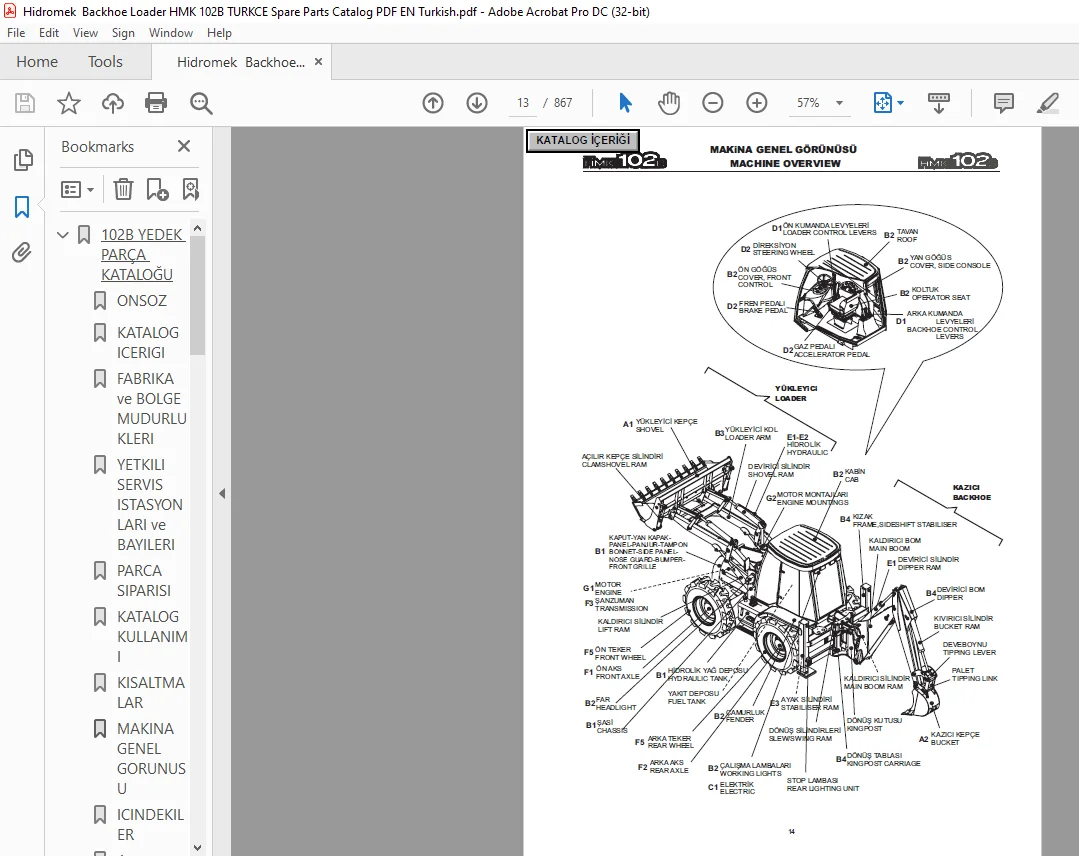

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hidromek HMK 102B Backhoe Loader Parts Catalog Manual SN 50070 – PDF DOWNLOAD

FOREWORD:

• This manual has been prepared for ordering spare parts for Hidromek Backhoe Loaders. Spare parts catalogs are
  updated with modifications made on machines according to the developments.
• Due to some reasons this spare part catalog may not contain some of the final revisions. Please contact with authorized services or distributors for spare parts order and updated information.

Customer Support: [email protected]

TABLE OF CONTENTS:

Hidromek HMK 102B Backhoe Loader Parts Catalog Manual SN 50070 – PDF DOWNLOAD

102B YEDEK PARÇA KATALOĞU 1
ONSOZ 2
KATALOG ICERIGI 3
FABRIKA ve BOLGE MUDURLUKLERI 4
YETKILI SERVIS ISTASYONLARI ve BAYILERI 5
PARCA SIPARISI 9
KATALOG KULLANIMI 10
KISALTMALAR 12
MAKINA GENEL GORUNUSU 13
ICINDEKILER 14
A – ATASMANLAR 22
A1 – YUKLEYICI ATASMANLAR 22
A2 – KAZICI ATASMANLAR 37
B – GOVDE 70
B1 – GOVDE MONTAJLARI 70
B2 – KABIN 95
B3 – YUKLEYICI 142
B4 – KAZICI 149
B5 – ARKA AGIRLIK, YUKLEYICI MAKINA 196
C – ELEKTRIK 199
C1 – ELEKTRIK DONANIMLARI 199
D – KONTROL 218
D1 – KONTROL MEKANIZMALARI 218
D2 – MOTOR KONTROL 233
E – HIDROLIK 244
E1 – HIDROLIK SISTEM 244
E2 – VALF ve NIPEL BAGLANTILARI 321
E3 – SILINDIRLER 366
F – TAHRIK ELEMANLARI 397
F1 – ON AKS 397
F2 – ARKA AKS 410
F3 – SANZUMAN 419
F4 – SANZUMAN ELEMANLARI 438
F5 – TEKER VE SAFTLAR 447
G – MOTOR 456
G1 MOTOR 456
G1-1 MOTOR, 1004-4T, AB50458 456
G1-2 MOTOR, 1004-40T, AK50691 541
G1-3 MOTOR, 114C-44T, RG38101 648
G2 MOTOR MONTAJLARI 781
H – ISITMA VE SOGUTMA 808
H1 – ISITMA ve SOGUTMA 808
K – ETIKET VE LEVHALAR 827
K1 – ETIKET ve LEVHALAR 827
PARCA NUMARASINA GORE ICINDEKILER 834
MOTOR PARCA NUMARASINA GORE ICINDEKILER 859
