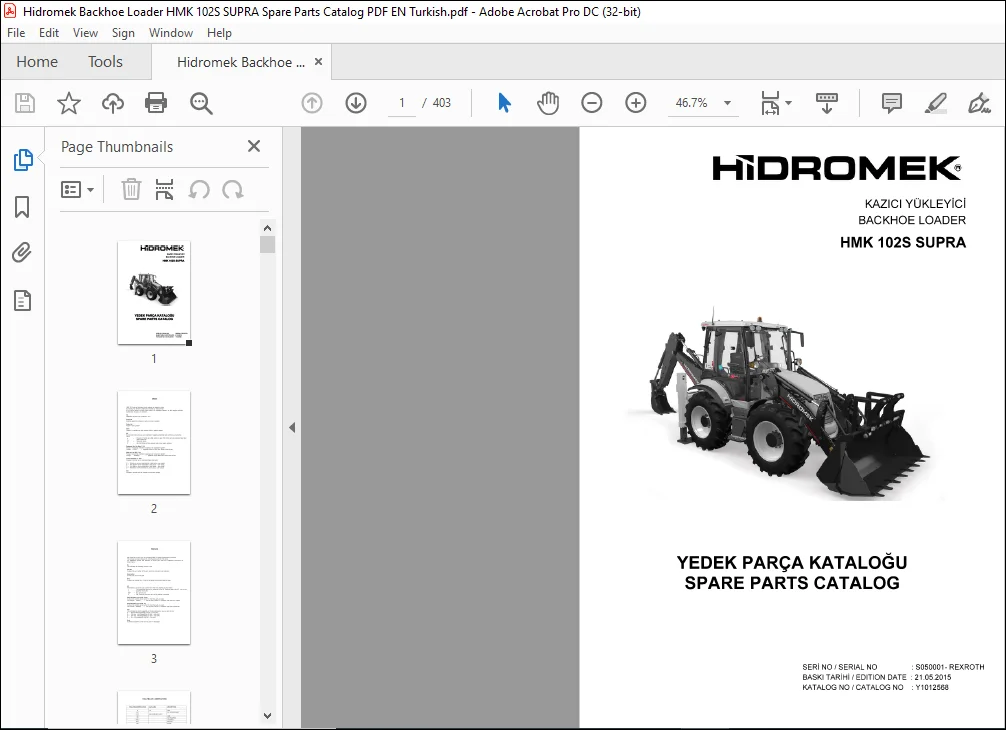

Hidromek HMK 102S SUPRA Backhoe Loader Parts Catalog Manual SN S050001- REXROTH – PDF DOWNLOAD

Description

Hidromek HMK 102S SUPRA Backhoe Loader Parts Catalog Manual SN S050001- REXROTH – PDF DOWNLOAD

FILE DETAILS:

Hidromek HMK 102S SUPRA Backhoe Loader Parts Catalog Manual SN S050001- REXROTH – PDF DOWNLOAD

Language : English & Turkish
Pages : 403
Downloadable : Yes
File Type : PDF
Size: 23.3 MB

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hidromek HMK 102S SUPRA Backhoe Loader Parts Catalog Manual SN S050001- REXROTH – PDF DOWNLOAD

PREFACE:

• We would like to thank you for purchasing HMK 102 Series Construction Equipment.
• This catalog has been prepared for ordering spare parts for 102 series.
• For satisfactory service and selection of correct part, read and understand instructions as shown below.

No This indicates the indicating number of part.
Part No It shows the part number of the parts which are included in an illustration.
Description It shows the name of the part.
Q’ty It shows the quantitiy use of part for the group that was illustrated on page.
Note It shows explanations, which are not given in description.

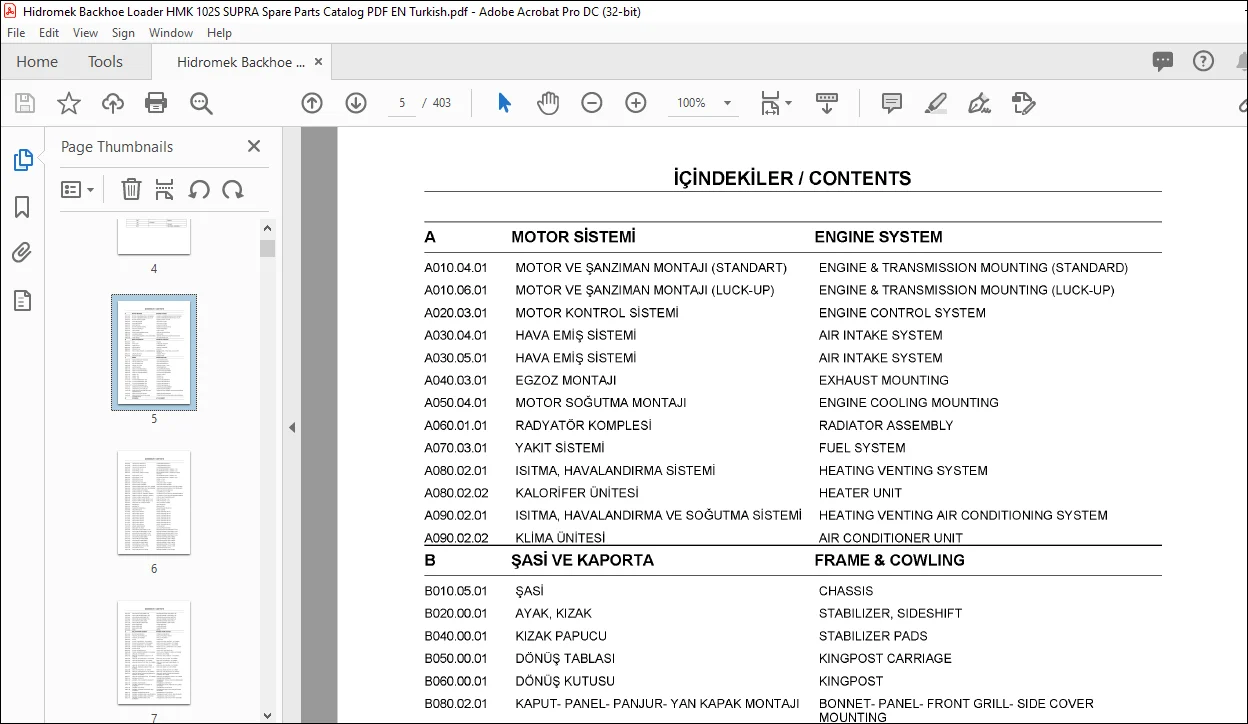

TABLE OF CONTENTS: (English & Turkish – Both languages present)

Hidromek HMK 102S SUPRA Backhoe Loader Parts Catalog Manual SN S050001- REXROTH – PDF DOWNLOAD

A
MOTOR SİSTEMİ
ENGINE SYSTEM

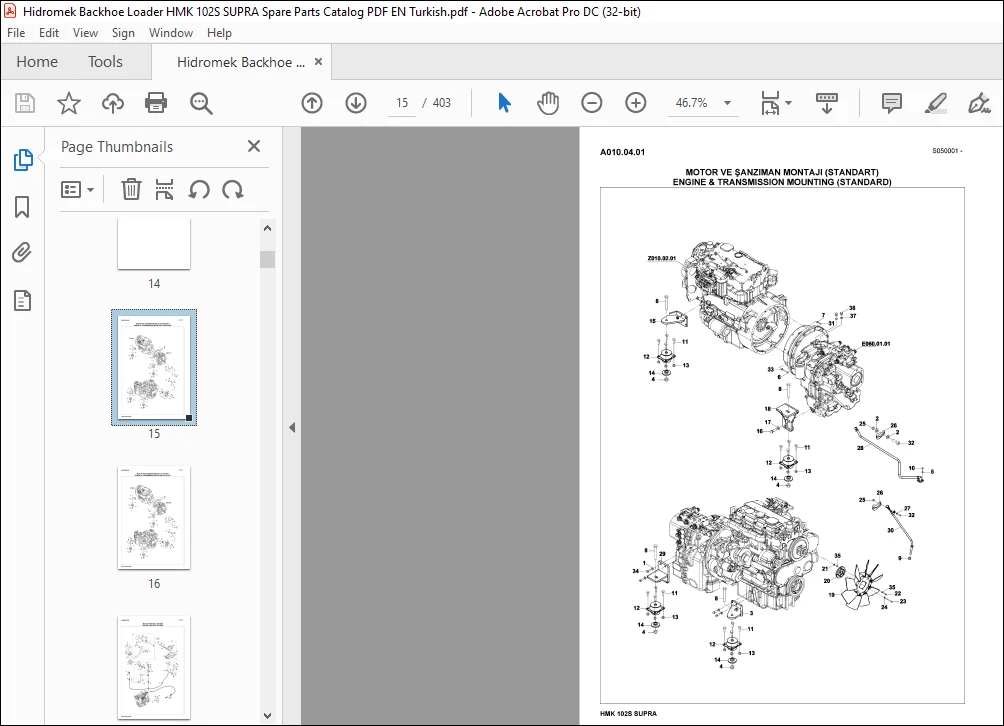

A010.04.01
MOTOR VE ŞANZIMAN MONTAJI (STANDART)
ENGINE & TRANSMISSION MOUNTING (STANDARD)
A010.06.01
MOTOR VE ŞANZIMAN MONTAJI (LUCK-UP)
ENGINE & TRANSMISSION MOUNTING (LUCK-UP)
A020.03.01
MOTOR KONTROL SİSTEMİ
ENGINE CONTROL SYSTEM
A030.04.01
HAVA EMİŞ SİSTEMİ
AIR INTAKE SYSTEM
A030.05.01
HAVA EMİŞ SİSTEMİ
AIR INTAKE SYSTEM
A040.03.01
EGZOZ MONTAJI
EXHAUST MOUNTING
A050.04.01
MOTOR SOĞUTMA MONTAJI
ENGINE COOLING MOUNTING
A060.01.01
RADYATÖR KOMPLESİ
RADIATOR ASSEMBLY
A070.03.01
YAKIT SİSTEMİ
FUEL SYSTEM
A080.02.01
ISITMA, HAVALANDIRMA SİSTEMİ
HEATING VENTING SYSTEM
A080.02.02
KALORİFER ÜNİTESİ
HEATER UNIT
A090.02.01
ISITMA, HAVALANDIRMA VE SOĞUTMA SİSTEMİ
HEATING VENTING AIR CONDITIONING SYSTEM
A090.02.02
KLİMA ÜNİTESİ
AIR CONDITIONER UNIT
B
ŞASİ VE KAPORTA
FRAME & COWLING
B010.05.01
ŞASİ
CHASSIS
B020.00.01
AYAK, KIZAK
STABILIZER, SIDESHIFT
B040.00.01
KIZAK PAPUCU
STABILIZER PADS
B050.00.01
DÖNÜŞ TABLASI
KINGPOST CARRIAGE
B060.00.01
DÖNÜŞ KUTUSU
KINGPOST
B080.02.01
KAPUT- PANEL- PANJUR- YAN KAPAK MONTAJI
BONNET- PANEL- FRONT GRILL- SIDE COVER MOUNTING
B090.01.01
ÇAMURLUKLAR, ÖN
FENDERS, FRONT
B100.05.01
ÇAMURLUK, ARKA
FENDER,REAR
C
KABİN
OPERATOR CAB
C010.01.01
KABİN VE BAĞLANTI TAKOZLARI
CAB & CAB MOUNTING
C020.01.01
KAPI VE CAMLAR, SAĞ
DOOR AND WINDOW, RH
C030.01.01
KAPI VE CAMLAR, SOL
DOOR AND WINDOW, LH
C040.00.01
CAMLAR, ÖN – ARKA
WINDOWS, FRONT – REAR
C050.01.01
KABİN DONANIMI
CAB ACCESSORIES
C060.01.01
KABİN (LEVYE MEKANİZMALI)
CAB (LEVERS MECHANISM)
C060.03.01
KABİN (JOYSTİK MEKANİZMALI)
CAB (JOYSTICK MECHANISM)
C060.03.01
KABİN (JOYSTİK MEKANİZMALI)
CAB (JOYSTICK MECHANISM)
C070.01.01
KONSOL, ÖN
CONSOLE, FRONT
C080.01.01
KONSOL, SOL
CONSOLE, LH
C090.01.01
KONSOL, SAĞ
CONSOLE, RH
C110.01.01
JOYSTİCK MEKANİZMASI, SAĞ
JOYSTICK MECHANISM, RH
C110.01.01R1
JOYSTİCK MEKANİZMASI, SAĞ
JOYSTICK MECHANISM, RH
C120.01.01
JOYSTİCK MEKANİZMASI, SOL
JOYSTICK MECHANISM, LH
C120.01.01R1
JOYSTİCK MEKANİZMASI, SOL
JOYSTICK MECHANISM, LH
C130.01.01
DİREKSİYON KOLONU KOMPLESİ
STEERING COLUMN ASSEMBLY
C140.00.02
OPERATOR KOLTUK KOMPLESİ
OPERATOR SEAT ASSEMBLY
C140.01.02
OPERATOR KOLTUK KOMPLESİ (HAVA SÜSPANSİYONLU)
OPERATOR SEAT ASSEMBLY (WITH AIR SUSPENSION)
C140.02.01
OPERATOR KOLTUK MONTAJI
OPERATOR SEAT MOUNTING
C140.03.01
OPERATOR KOLTUK MONTAJI (HAVA SÜSPANSİYONLU)
OPERATOR SEAT MOUNTING (WITH AIR SUSPENSION
D
ATAÇMAN
ATTACHMENT
İÇİNDEKİLER / CONTENTS
D010.00.01
YÜKLEYİCİ KOL MONTAJI (1)
D010.00.02
YÜKLEYİCİ KOL MONTAJI (2)
D010.00.03
YÜKLEYİCİ KOL MONTAJI (3)
D020.00.01
AÇILIR KEPÇE (1.1 m3)
D020.01.01
AÇILIR KEPÇE (1,3 m3)
D020.02.01
AÇILIR KEPÇE (ÇABUK SÖK TAKLI)
D020.03.01
AÇILIR KEPÇE (1 m3)
D020.04.01
AÇILIR KEPÇE (1,2 m3)
D030.00.01
SABİT KEPÇE (1.2 m3)
D030.01.01
SABİT KEPÇE (1,5 m3)
D040.00.01
TESVİYE KÜREĞİ (716×2800)
D040.01.01
TESVİYE KÜREĞİ (900×2800)
D040.02.01
TESVİYE KÜREĞİ (ÇABUK SÖK TAKLI 716×2800)
D040.03.01
TESVİYE KÜREĞİ (ÇABUK SÖK TAKLI 900×2800)
D040.04.01
TESVİYE KÜREĞİ, ÇİFT EKSENLİ
D050.00.01
TOMRUK YÜKLEYİCİ, (2+1 TIRNAKLI)
D050.01.01
TOMRUK YÜKLEYİCİ, (HAREKETLİ, 0200mm)
D050.02.01
TOMRUK YÜKLEYİCİ, (HAREKETLİ, 0500mm)
D060.00.01
FORKLİFT APARATI (AÇILIR KEPÇE)
D060.01.01
FORKLİFT APARATLI (SABİT KEPÇE 1.2 m3)
D060.02.01
FORKLİFT APARATLI (SABİT KEPÇE 1.5 m3)
D070.00.01
ÇABUK SÖK TAK (YÜKLEYİCİ KEPÇE)
D080.00.01
BOM MONTAJI
D090.00.01
ARM MONTAJI
D090.02.01
TELESKOPİK ARM MONTAJI
D100.00.01
KEPÇE BAĞLANTISI
D110.00.01
KEPÇE, KAZICI (300 mm)
D110.01.01
KEPÇE, KAZICI (350 mm)
D110.02.01
KEPÇE, KAZICI (400 mm)
D110.03.01
KEPÇE, KAZICI (500 mm)
D110.04.01
KEPÇE, KAZICI (600 mm)
D110.05.01
KEPÇE, KAZICI (700 mm)
D110.06.01
KEPÇE, KAZICI (800 mm)
D110.07.01
KEPÇE, KAZICI (900 mm)
D120.00.01
DÖNERLİ KANAL KEPÇESİ
D140.00.01
ÇABUK SÖK TAK, KAZICI
D150.00.01
KIRICI MONTAJI (MONTABERT- SC 36)
D150.00.02
KIRICI KOMPLESİ (MONTABERT- SC 36)
D150.01.01
KIRICI MONTAJI (MONTABERT- SC 28)
D150.01.02
KIRICI KOMPLESİ (MONTABERT- SC 28)
D150.04.01
KIRICI MONTAJI (DEMO DMB50)
D150.04.02
KIRICI KOMPLESİ (DEMO DMB50)
D150.05.01
KIRICI MONTAJI (DEMO DMB70)
D150.05.02
KIRICI KOMPLESİ (DEMO DMB70)
D150.06.01
KIRICI MONTAJI (LİFTON LH 360)
D150.06.02
KIRICI KOMPLESİ (LIFTON LH 360)
D150.07.01
KIRICI MONTAJI (TOKU)
D150.07.02
KIRICI KOMPLESİ (TOKU TNB 6M)
LOADER ARM MOUNTING (1)
LOADER ARM MOUNTING (2)
LOADER ARM MOUNTING (3)
MULTIPURPOSE BUCKET, LOADER (1.1 m3)
MULTIPORPUSE BUCKET, LOADER (1,3 m3)
MULTIPURPOSE BUCKET, LOADER (WITH QUICK COUPLER
MULTIPORPUSE BUCKET, LOADER (1 m3) MULTIPORPUSE BUCKET, LOADER (1,2 m3)
SHOVEL (1.2 m3)
SHOVEL (1,5 m3)
LEVELLING, BLADE (716×2800)
LEVELLING, BLADE (900×2800)
LEVELLING BLADE (WITH QUICK COUPLER 716×2800) LEVELLING BLADE (WITH QUICK COUPLER 900×2800) LEVELLING BLADE, DOUBLE AXIS LOG GRAPPLE, (2+1 CLAMP)
LOG GRAPPLE, (WITH VERTICAL MOVEMENT 0200mm) LOG GRAPPLE, (WITH VERTICAL MOVEMENT 0500mm) FORKLIFT (MULTIPURPOSE BUCKET)
FORKLIFT (SHOVEL 1.2 m3 FORKLIFT (SHOVEL 1.5 m3)
QUICK COUPLER (LOADER)
BOOM MOUNTING ARM MOUNTING TELESCOPIC ARM MOUNTING BUCKET LINKAGE BUCKET, BACKHOE (300 mm)
BUCKET, BACKHOE (350 mm)
BUCKET, BACKHOE (400 mm)
BUCKET, BACKHOE (500 mm)
BUCKET, BACKHOE (600 mm)
BUCKET, BACKHOE (700 mm)
BUCKET, BACKHOE (800 mm)
BUCKET, BACKHOE (900 mm)
TILTING BUCKET
QUICK COUPLER, BACKHOE
BREAKER MOUNTING (MONTABERT- SC 36)
BREAKER ASSEMBLY (MONTABERT- SC 36)
BREAKER MOUNTING (MONTABERT- SC 28)
BREAKER ASSEMBLY (MONTABERT- SC 28)
BREAKER MOUNTING (DEMO DMB50)
BREAKER ASSEMBLY (DEMO DMB50)
BREAKER MOUNTING (DEMO DMB70)
BREAKER ASSEMBLY (DEMO DMB70)
BREAKER MOUNTING (LIFTON LH 360)
BREAKER ASSEMBLY (LIFTON LH 360)
BREAKER MOUNTING (TOKU)
BREAKER ASSEMBLY (TOKU TNB 6M)
İÇİNDEKİLER / CONTENTS
D150.08.01
KIRICI MONTAJI (MONTABERT-140)
BREAKER MOUNTING
(MONTABERT-140)
D150.08.02
KIRICI KOMPLESİ (MONTABERT-140)
BREAKER ASSEMBLY
(MONTABERT-140)
D150.09.01
KIRICI MONTAJI (MONTABERT-95)
BREAKER MOUNTING
(MONTABERT-95)
D150.09.02
KIRICI KOMPLESİ (MONTABERT- 95)
BREAKER ASSEMBLY
(MONTABERT- 95)
D150.10.01
KIRICI MONTAJI (DEMO S700V)
BREAKER MOUNTING
(DEMO S700V)
D150.10.02
KIRICI KOMPLESİ (DEMO S700V)
BREAKER ASSEMBLY
(DEMO S700V)
D160.00.01
BURGU (0350×1000)
AUGER (0350×1000)
D160.01.01
BURGU (0500×1300)
AUGER (0500×1300)
D160.02.01
BURGU (0610×1600)
AUGER (0610×1600)
D170.00.01
RİPER
RIPPER
E GÜÇ AKTARMA SİSTEMİ POWER TRAIN SYSTEM
E010.04.01
E020.02.01
E030.05.01
E040.02.01
E040.02.02
E040.02.03
E040.02.04
E040.02.05
E040.02.06
E040.02.07
E040.02.08
E050.02.01
E050.02.02
E050.02.03
E050.02.04
E050.02.05
E050.02.06
E050.02.07
E050.02.08
E050.02.09
E050.02.10
E050.02.11
E060.01.01
E060.01.02
E060.01.03
E060.01.04
E060.01.05
E060.01.06
E060.01.07
E060.01.08
E060.01.09
E060.01.10
GÜÇ AKTARMA MONTAJI TEKER VE LASTİK GRUBU, ÖN TEKER VE LASTİK GRUBU ÖN AKS
ÖN AKS, AYNA MAHRUTİ – CR (TURNER)
ÖN AKS, ŞAFT BAĞLANTISI – CR (TURNER)
ÖN AKS, DİFERANSİYEL – CR (TURNER)
ÖN AKS, KOVAN PARÇALARI – CR (TURNER)
ÖN AKS, POYRA
ÖN AKS, SON REDÜKSİYON
ÖN AKS, DİREKSİYON SİLİNDİRİ – CR (TURNER)
ARKA AKS – CR (TURNER)
ARKA AKS, AYNA MAHRUTİ DİŞLİ SETİ – CR (TURNER)
ARKA AKS, ŞAFT BAĞLANTISI – CR (TURNER) ARKA AKS, DİFERANSİYEL – CR (TURNER)
ARKA AKS, DİŞLİ ŞAFTI VE FREN – CR (TURNER)
ARKA AKS, AKS GÖVDESİ – CR (TURNER)
ARKA AKS, TEKERLEK GÖBEĞİ (POYRA) – CR (TURNER)
ARKA AKS, PARK FRENİ – CR (TURNER)
ARKA AKS, SON REDÜKSİYON – CR (TURNER)
ARKA AKS, MAFSAL GÖVDESİ VE DİREKSİYON SİLİNDİRİ – CR (TURNER)
ARKA AKS, DİFERANSİYEL KİLİDİ – CR (TURNER) ŞANZIMAN (STANDART)
ŞANZIMAN, TORK KONVERTÖR (STANDART)
ŞANZIMAN, POMPA GRUBU
ŞANZIMAN, TRANSMİSYON GÖVDESİ, ÖN (STANDART)
ŞANZIMAN, VALF GRUBU
ŞANZIMAN, TRANSMİSYON GÖVDESİ, ARKA (STANDART)
ŞANZIMAN, KAVRAMA DİSK GRUBU
ŞANZIMAN, KAVRAMA GRUBU, ANA (STANDART)
ŞANZIMAN, KAVRAMA GRUBU, AVARE DİŞLİ
ŞANZIMAN, KAVRAMA GRUBU, GİRİŞ (STANDART)
POWER TRAIN MOUNTING WHELL & TIRE GROUP, FRONT WHELL & TIRE GROUP FRONT AXLE
FRONT AXLE, BEVEL GEAR SET – CR (TURNER)
FRONT AXLE, INPUT FLANGE – CR (TURNER)
FRONT AXLE, DIFFERENTIAL – CR (TURNER)
FRONT AXLE, AXLE CASING PARTS – CR (TURNER)
FRONT AXLE, HUB
FRONT AXLE, FINAL REDUCTION
FRONT AXLE, STEERING CYLINDER- CR (TURNER)
REAR AKS – CR (TURNER)
REAR AXLE, BEVEL GEAR SET – CR (TURNER)
REAR AXLE, INPUT FLANGE – CR (TURNER)
REAR AXLE, DIFFERENTIAL – CR (TURNER)
REAR AXLE, HALF-SHAFTS AND BRAKES – CR (TURNER)
REAR AXLE, AXLE HOUSING – CR (TURNER)
REAR AXLE, WHEEL HUB – CR (TURNER)
REAR AXLE, BRAKE CALIPER – CR (TURNER)
REAR AXLE, FINAL REDUCTION – CR (TURNER)
REAR AXLE, SWIVEL HOUSING AND STEERING CYLINDER – CR (TURNER)
REAR AXLE, DIFFERENTIAL LOCKING – CR (TURNER) TRANSMISSION (STANDARD)
TRANSMISSION, TORGUE CONVERTER ARRANGMENT (STANDARD)
TRANSMISSION, PUMP GROUP
TRANSMISSION, FRONT CASING AND ANCILLIARIES (STANDARD)
TRANSMISSION, VALVE GROUP
TRANSMISSION, REAR CASING AND ANCILLIARIES (STANDARD)
TRANSMISSION, CLUTCH GROUP TRANSMISSION, SHAFT GROUP – MAIN (STANDARD) TRANSMISSION, SHAFT GROUP IDLER TRANSMISSION, SHAFT GROUP INPUT (STANDARD)
İÇİNDEKİLER / CONTENTS
E060.01.11
E060.01.12
E060.02.01
E060.02.02
E060.02.03
E060.02.04
E060.02.05
E060.02.06
E060.02.07
E060.02.08
E060.02.09
E060.02.10
E060.02.11
E060.02.12
E070.00.01
F
TRANSMISSION, SHAFT GROUP PTO (STANDARD) TRANSMISSION, SHAFT GROUP COUNTER (STANDARD)
ŞANZIMAN, ŞAFT GRUBU, PTO (STANDART)
ŞANZIMAN, KAVRAMA GRUBU, GERİ (STANDART)
ŞANZIMAN (LUCK-UP)
ŞANZIMAN, TORK KONVERTÖR (LUCK-UP)
ŞANZIMAN, POMPA GRUBU (LUCK- UP)
ŞANZIMAN, TRANSMİSYON GÖVDESİ, ÖN (LUCK-UP)
ŞANZIMAN, VALF GRUBU (LUCK- UP)
ŞANZIMAN, TRANSMİSYON GÖVDESİ, ARKA (LUCK-UP)
ŞANZIMAN, KAVRAMA DİSK GRUBU (LUCK- UP) ŞANZIMAN, KAVRAMA GRUBU, ANA (LUCK-UP) ŞANZIMAN, KAVRAMA GRUBU, AVARE DİŞLİ ŞANZIMAN, KAVRAMA GRUBU, GİRİŞ (LUCK-UP) ŞANZIMAN, ŞAFT GRUBU, PTO (LUCK-UP) ŞANZIMAN, KAVRAMA GRUBU, GERİ (LUCK-UP)
PARK FRENİ________________________________
HİDROLİK SİSTEM
TRANSMISSION (LUCK-UP)
TRANSMISSION, TORGUE CONVERTER ARRANGMENT (LUCK-UP)
TRANSMISSION, PUMP GROUP (LUCK- UP)
TRANSMISSION, FRONT CASING AND ANCILLIARIES (LUCK-UP)
TRANSMISSION, VALVE GROUP (LUCK- UP)
TRANSMISSION, REAR CASING AND ANCILLIARIES (LUCK-UP)
TRANSMISSION, CLUTCH GROUP (LUCK- UP) TRANSMISSION, SHAFT GROUP – MAIN (LUCK-UP) TRANSMISSION, SHAFT GROUP IDLER TRANSMISSION, SHAFT GROUP INPUT (LUCK-UP) TRANSMISSION, SHAFT GROUP PTO (LUCK-UP) TRANSMISSION, SHAFT GROUP COUNTER (LUCK-UP) PARKING BRAKE
HYDRAULIC SYSTEM
F010.01.01
HİDROLİK TANK MONTAJI (VERSİYON 2)
HYDRAULIC TANK MOUNTING (VERSION 2)
F020.07.01
YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR KEPÇE & LEVYE)(TİP B)
LOADER CONTROL MECHANISM(MULTIPURPOSE BUCKET & LEVERS)(TYPE B)
F020.09.01
YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR KEPÇE & LEVYE)(TİP B)
LOADER CONTROL MECHANISM(MULTIPURPOSE BUCKET & LEVERS)(TYPE B)
F020.10.01
YÜKLEYİCİ KUMANDA MEKANİZMASI (AÇILIR KEPÇE & JOYSTİCK)(TİP B)
LOADER CONTROL MECHANISM (MULTIPURPOSE BUCKET & JOYSTICK) (TYPE B)
F020.11.01
YÜKLEYİCİ KUMANDA MEKANİZMASI (SABİT KEPÇE & JOYSTİCK) (TİP B)
BACKHOE CONTROL MECHANISM (SHOVEL & JOYSTICK) (TYPE B)
F030.06.01
ARKA KUMANDA MEKANİZMASI (TİP B) (OP)
BACKHOE CONTROL MECHANISM (TYPE B) (OP)
F030.06.01
ARKA KUMANDA MEKANİZMASI (TİP B) (OP)
BACKHOE CONTROL MECHANISM (TYPE B) (OP)
F040.02.01
İLAVE ATAŞMAN PEDAL MONTAJI (TİPB+TB+JY)
ADDITIONAL ATTACHMENT PEDAL MOUNTING (TYPEB+TB+JY)
F040.03.01
PEDAL MONTAJI, İLAVE ATAŞMAN (TİPB+TB+LV)
PEDAL MOUNTING, ADDITIONAL ATTACHMENT (TYPEB+TB+LV)
F040.04.01
PEDAL MONTAJI, İLAVE ATAŞMAN (TİPB+NB+LV)
PEDAL MOUNTING, ADDITIONAL ATTACHMENT (TYPEB+NB+LV)
F050.27.01
HİDROLİK TESİSAT, ANA DAĞITIM (DİŞLİ POMPA & TURNER &TİP B)
HYDRAULIC PIPING, MAIN (GEAR PUMP & TURNER & TYPE B)
F050.27.01
HİDROLİK TESİSAT, ANA DAĞITIM (DİŞLİ POMPA & TURNER &TİP B)
HYDRAULIC PIPING, MAIN (GEAR PUMP & TURNER & TYPE B)
F050.29.01
HİDROLİK TESİSAT, ANA DAĞITIM (PİSTONLU POMPA & TURNER & TİP B)
HYDRAULIC PIPING, MAIN (PISTON PUMP & TURNER & TYPE B)
F060.04.01
HİDROLİK TESİSAT, PİLOT (TİP B)
HYDRAULIC PIPING, PILOT (TYPE B)
F065.01.01
KUMANDA DEĞİŞTİRİCİ
PATTERN SHIFTER
F070.05.01
YÜKLEYİCİ HİDROLİK TESİSATI, SABİT KEPÇE (TİP B & DİŞLİ POMPA) (OP)
LOADER HYD. PIPING, SHOVEL (TYPE B & GEAR PUMP) (OP)
F070.05.01
YÜKLEYİCİ HİDROLİK TESİSATI, SABİT KEPÇE (TİP B & DİŞLİ POMPA) (OP)
LOADER HYD. PIPING, SHOVEL (TYPE B & GEAR PUMP) (OP)
F070.07.01
YÜKLEYİCİ HİDROLİK TESİSATI, AÇILIR KEPÇE (TİP B & DİŞLİ POMPA) (OP)
LOADER HYD. PIPING, MULTIPURPOSE BUCKET (TYPE B & GEAR PUMP) (OP)
F070.07.01
YÜKLEYİCİ HİDROLİK TESİSATI, AÇILIR KEPÇE (TİP B & DİŞLİ POMPA) (OP)
LOADER HYD. PIPING, MULTIPURPOSE BUCKET (TYPE B & GEAR PUMP) (OP)
F070.08.01
YÜKLEYİCİ HİDROLİK TESİSATI, KALDIRICI SİLİNDİR, EMNİYET VALFİ
LOADER HYDRAULIC PIPING, LIFT CYLINDER, WITH PROTECTION VALVE
İÇİNDEKİLER / CONTENTS
F070.09.01
F070.10.01
F070.15.01
F070.15.01
F070.16.01
F070.16.01
F080.00.01
F080.01.01
F080.04.01
F090.01.01
F090.04.01
F100.01.01
F110.02.01
F120.01.01
F120.04.01
F120.05.01
F120.06.01
F130.00.01
F130.01.01
F130.03.01
F130.04.01
F140.02.01
F140.04.01
F140.05.01
F140.06.01
F150.03.01
F150.05.01
F150.07.01
F150.08.01
F160.05.01
F160.07.01
F190.03.01
F200.00.01
F200.02.01
YÜKLEYİCİ HİDROLİK TESİSATI, KEPÇE SİLİNDİR, EMNİYET VALFİ
YÜKLEYİCİ HİDROLİK TESİSATI, MSS
YÜKLEYİCİ HİDROLİK TESİSATI, SABİT KEPÇE (TİP B & PİSTONLU POMPA) (OP)
YÜKLEYİCİ HİDROLİK TESİSATI, SABİT KEPÇE (TİP B & PİSTONLU POMPA) (OP)
YÜKLEYİCİ HİDROLİK TESİSATI, AÇILIR KEPÇE (TİP B & PİSTONLU POMPA) (OP)
YÜKLEYİCİ HİDROLİK TESİSATI, AÇILIR KEPÇE (TİP B & PİSTONLU POMPA) (OP)
HORTUM TUTUCU SETİ (STD. ARM)
HORTUM TUTUCU SETİ (TELESKOPİK ARM
HORTUM TUTUCU SETİ (STD. ARM & MAFSALLI BOM)
HİDROLİK TESİSAT, AYAK SİLİNDİRİ (KİLİT VALFLİ)
HİDROLİK TESİSAT, AYAK SİLİNDİRİ (TİP B)
HİDROLİK TESİSATI, SIKMA PİSTONU
HİDROLİK TESİSAT, DÖNÜŞ SİLİNDİRİ (TİP B)
KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ (EMNİYET VALFLİ)
KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ (MAFSALLI BOM, MUZ BOM )
KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ (MAFSALLI BOM)
KAZICI HİDROLİK TESİSATI, BOM SİLİNDİRİ (TİP B)
KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ
KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ (EMNİYET VALFLİ)
KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ (MAFSALLI BOM)
KAZICI HİDROLİK TESİSATI, ARM SİLİNDİRİ (EMNİYET VALFLİ, MAFSALLI BOM)
KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ (TELESKOPİK BOM & REXROTH)
KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ (TELESKOPİK BOM) (TİP B)
KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ (MAFSALLI BOM &TİP B)
KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ (TİP B)
KIRICI HİDROLİK TESİSATI (STD. ARM & TİP B)
TEK ETKİLİ HİDROLİK TESİSATI (KIRICI & STD. ARM & LEVYE & JOYİSTİK) (TİP B)
TEK ETKİLİ HİDROLİK TESİSATI (KIRICI & STD. ARM & JOYİSTİK & MAFSALLI BOM) (TİP
KIRICI HİDROLİK TESİSATI (TELESKOPİK & TİP B)
İLAVE HAT HİDROLİK TESİSATI, BURGU/DÖNER KEPÇE (TELESKOPİK&TİP B)
ÇİFT ETKİLİ HİDROLİK TESİSATI, BURGU/DÖNER KEPÇE & KIRICI (TELESKOPİK ARM & JOYS
HİDROLİK TESİSAT, DİFERANSİYEL KİLİDİ
HİDROLİK, BOM KİLİDİ (MAFSALLI BOM) (OP)
HİDROLİK, BOM KİLİDİ
LOADER HYDRAULIC PIPING, SHOVEL CYLINDER, WITH PROTECTION VALVE
LOADER HYDRAULIC PIPING, MSS
LOADER HYD. PIPING, SHOVEL (TYPE B & PISTON PUMP) (OP)
LOADER HYD. PIPING, SHOVEL (TYPE B & PISTON PUMP) (OP)
LOADER HYD. PIPING, MULTIPURPOSE BUCKET (TYPE B & PISTON PUMP) (OP)
LOADER HYD. PIPING, MULTIPURPOSE BUCKET (TYPE B & PISTON PUMP) (OP)
HOSE HOLDER SET (STD. ARM)
HOSE HOLDER SET (TELESCOPIC ARM)
HOSE HOLDER SET (STD. ARM & ARTICULATED BOOM)
HYD. PIPING, STABILIZER CYLINDER (WITH SAFETY LOCKING VALVE)
HYDRAULIC PIPING, STABILIZER CYLINDER (TYPE B)
HYDRAULIC PIPING, HYDROCLAMP
HYDRAULIC PIPING, SWING CYLINDER (TYPE B)
BACKHOE HYD. PIPING, BOOM CYLINDER (WITH SAFETY LOCK VALVE)
BACKHOE HYD. PIPING, BOOM CYLINDER (ARTICULATED BOOM )
BACKHOE HYD. PIPING, BOOM CYLINDER (ARTICULATED BOOM)
BACKHOE HYDRAULIC PIPING, BOOM CYLINDER (TYPE B)
BACKHOE HYDRAULIC PIPING, ARM CYLINDER
BACKHOE HYD. PIPING, ARM CYLINDER (WITH SAFETY LOCK VALVE)
BACKHOE HYDRAULIC PIPING, ARM CYLINDER (ARTICULATED BOOM)
BACKHOE HYDRAULIC PIPING, ARM CYLINDER (SAFETY VALVE, ARTICULATED BOM)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TELESCOPIC BOOM & REXROTH)
KAZICI HİDROLİK TESİSATI, KEPÇE SİLİNDİRİ (TELESKOPİK BOM) (TİP B)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (ARTICULATED BOOM & TİP B)
BACKHOE HYDRAULIC PIPING, BUCKET CYLINDER (TYPE B)
BREAKER HYDRAULIC PIPING (STD. ARM & TYPE B)
SINGLE ACTING HYD. PIPING (BREAKER & STD.ARM & LEVERS & JOYSTICK) (TYPE B)
SINGLE ACTING HYD. PIPING (BREAKER & STD.ARM & JOYSTICK&ARTICULATED BOOM)(TYPE B
BREAKER HYDRAULIC PIPING (TELESCOPIC BOOM & TYPE B)
ADDITIONAL LINE HYDRAULIC PIPING,AUGER/TILTING BUCKET(TELESCOPIC & TYPE B)
DOUBLE ACTING HYD.PIPING, AUGER/TILTING BUCKE &BREAKER(TELESCOPIC ARM & JY) (TYP
HYDRAULIC PIPING, DIFFERENTIAL LOCK
HYDRAULIC, BOOM LOCKING (KNUCKLE BOOM) (OP)
HYDRAULIC, BOOM LOCKING
İÇİNDEKİLER / CONTENTS
F200.03.01
HİDROLİK, BOM KİLİDİ (KAZ AYAK) (OP)
HYDRAULIC, BOOM LOCKING (WING TYPE) (OP)
G
HİDROLİK KOMPONENTLER
HYDRAULIC COMPONENTS
G010.01.01
DİŞLİ POMPA
GEAR PUMP
G020.00.01
PİSTONLU POMPA
PISTON PUMP
G030.01.01
YÜKLEYİCİ KUMANDA VALFİ (TİP B-LS)
LOADER CONTROL VALVE, MECHANIC (TİP B-LS)
G030.01.02
YÜKLEYİCİ KUMANDA VALFİ- GİRİŞ BLOĞU (TİP B)
LOADER CONTROL VALVE-INLET BLOCK (TYPE B)
G030.01.03
YÜKLEYİCİ KUMANDA VALFİ- KALDIRICI SİLİNDİR, KONTROL BLOĞU (TİP B)
LOADER CONTROL VALVE- LIFT CYLINDER CONTROL BLOCK (TYPE B)
G030.01.04
YÜKLEYİCİ KUMANDA VALFİ- ARM SİLİNDİR KONTROL, BLOĞU (TİP B)
LOADER CONTROL VALVE- ARM CYLINDER CONTROL BLOCK (TYPE B)
G030.01.05
YÜKLEYİCİ KUMANDA VALFİ- AÇILIR KEPÇE SİLİNDİRİ, KONTROL BLOĞU(TİP B)
LOADER CONTROL VALVE- CLAMSHOVEL RAM CONTROL BLOCK (TYPE B)
G030.01.06
YÜKLEYİCİ KUMANDA VALFİ- ÇIKIŞ BLOĞU (TİP B)
LOADER CONTROL VALVE- OUTLET BLOCK (TYPE B)
G030.02.01
YÜKLEYİCİ KUMANDA VALFİ, AÇILIR KEPÇE (TİP B – PB)
LOADER CONTROL VALVE, MULTIPURPOSE BUCKET (TYPE B – PB)
G030.02.02
YÜKLEYİCİ KUMANDA VALFİ- ARM SİLİNDİR KONTROL, BLOĞU (TİP B)
LOADER CONTROL VALVE- ARM CYLINDER CONTROL BLOCK (TYPE B)
G030.02.03
YÜKLEYİCİ KUMANDA VALFİ- ÇIKIŞ BLOĞU (TİP B)
LOADER CONTROL VALVE- OUTLET BLOCK (TYPE B)
G030.02.04
YÜKLEYİCİ KUMANDA VALFİ- GİRİŞ BLOĞU (TİP B-PB)
LOADER CONTROL VALVE-INLET BLOCK (TYPE B-PB)
G030.02.05
YÜKLEYİCİ KUMANDA VALFİ- KALDIRICI SİLİNDİR, KONTROL BLOĞU (TİP B)
LOADER CONTROL VALVE- LIFT CYLINDER CONTROL BLOCK (TYPE B)
G030.02.06
YÜKLEYİCİ KUMANDA VALFİ-AÇILIR KEPÇE SİLİNDİRİ,KONTROL BLOĞU(TİP B)
LOADER CONTROL VALVE- CLAMSHOVEL RAM CONTROL BLOCK (TYPE B)
G040.02.01
KAZICI KUMANDA VALFİ, JOYSTİCK (PİSTONLU POMPA & TİP B, FS)
BACKHOE CONTROL VALVE, JOYSTICK (PISTON PUMP & TYPE B, FS)
G040.02.02
KAZICI KUMANDA VALFİ- GİRİŞ BLOĞU (TİP B)
BACKHOE CONTROL VALVE-INLET BLOCK (TYPE B)
G040.02.03
KAZICI KUMANDA VALFİ- ÇIKIŞ BLOĞU (TİP B)
BACKHOE CONTROL VALVE -OUTLET BLOCK (TYPE B)
G040.02.04
KAZICI KUMANDA VALFİ ARM KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE ARM CONTROL BLOCKS, JOYSTICK (TYPE B)
G040.02.05
KAZICI KUMANDA VALFİ- DÖNÜŞ SİLİNDİRİ KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE-SLEW SWING RAM CONTROL BLOCK, JOYSTICK (TYPE B)
G040.02.06
KAZICI KUMANDA VALFİ- AYAK SİLİNDİRİ KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE-STABILIZER RAM CONTROL BLOCK, JOYSTICK (TYPE B)
G040.02.07
KAZICI KUMANDA VALFİ- KIVIRICI SİLİNDİR KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE BUCKET RAM CONTROL BLOCK, JOYSTICK (TYPE B)
G040.02.08
KAZICI KUMANDA VALFİ BOM KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE BOOM CONTROL BLOCKS, JOYSTICK (TYPE B)
G040.02.09
KAZICI KUMANDA VALFİ TELESKOPİK KONTROL BLOĞU, JOYSTICK (TİP B)
BACKHOE CONTROL VALVE TELESCOPIC CONTROL BLOCKS, JOYSTICK (TYPE B)
G040.07.01
KAZICI KUMANDA VALFİ, LEVYELİ (PİSTONLU POMPA &TİP B, FS)
BACKHOE CONTROL VALVE, LEVERS (PISTON PUMP & TYPE B, FS)
G040.07.02
KAZICI KUMANDA VALFİ- GİRİŞ BLOĞU (TİP B)
BACKHOE CONTROL VALVE-INLET BLOCK (TYPE B)
G040.07.03
KAZICI KUMANDA VALF ARM KONTROL BLOKLARI,LEVYE (TİP B)
BACKHOE CONTROL VALVE ARM CONTROL BLOCKS, LEVERS (TYPE B)
G040.07.04
KAZICI KUMANDA VALFİ- DÖNÜŞ SİLİNDİRİ KONTROL BLOĞU, LEVYE (TİP B)
BACKHOE CONTROL VALVE-SLEW SWING RAM CONTROL BLOCK LEVERS (TYPE B)
G040.07.05
KAZICI KUMANDA VALFİ- AYAK SİLİNDİRİ KONTROL BLOĞU, LEVYE (TİP B)
BACKHOE CONTROL VALVE-STABILIZER RAM CONTROL BLOCK, LEVERS (TYPE B)
G040.07.06
KAZICI KUMANDA VALFİ- KIVIRICI SİLİNDİR KONTROL BLOĞU, LEVYE (TİP B)
BACKHOE CONTROL VALVE BUCKET RAM CONTROL BLOCK, LEVERS (TYPE B)
G040.07.07
KAZICI KUMANDA VALFİ BOM KONTROL BLOKLARI,LEVYE (TİP B)
BACKHOE CONTROL VALVE BOOM CONTROL BLOCKS, LEVERS (TYPE B)
İÇİNDEKİLER / CONTENTS
G040.07.08 KAZICI KUMANDA VALFI TELESKOPIK KONTROL BLOKLARI,LEVYE (TİP B)
G040.07.09 KAZICI KUMANDA VALFİ- ÇIKIŞ BLOĞU (TİP B)
G050.00.01 İLAVE ATAŞMAN KUMANDA VALFİ
G060.00.01 JOYSTİCK KUMANDA, SAĞ
G070.00.01 JOYSTİCK KUMANDA, SOL
G080.00.01 KALDIRICI SİLİNDİR, YÜKLEYİCİ, SAĞ
G100.00.01 KEPÇE SİLİNDİRİ, YÜKLEYİCİ, SAĞ
G110.00.01 KEPÇE SİLİNDİRİ, YÜKLEYİCİ, SOL
G120.00.01 AÇILIR KEPÇE SİLİNDİRİ
G130.00.01 AYAK SİLİNDİRİ, SAĞ
G140.00.01 AYAK SİLİNDİRİ, SOL
G150.00.01 DÖNÜŞ SİLİNDİRİ
G160.00.01 BOM SİLİNDİRİ, KAZICI
G170.00.01 ARM SİLİNDİRİ, KAZICI
G170.00.01 ARM SİLİNDİRİ, KAZICI
G180.00.01 KEPÇE SİLİNDİRİ, KAZICI
G180.01.01 KEPÇE SİLİNDİRİ, KAZICI, TELESKOPİK
G190.00.01 TELESKOPİK SİLİNDİR, KAZICI
G200.00.01 ÇABUK SÖK-TAK SİLİNDİRİ, YÜKLEYİCİ
G210.00.01 TESVİYE KÜREĞİ SİLİNDİRİ
G220.00.01 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ) SAĞ
G220.00.02 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ) SOL
G220.00.03 TESVİYE KÜREĞİ SİLİNDİRİ (ÇİFT EKSENLİ)
MERKEZ
G230.00.01 TOMRUK YÜKLEYİCİ SİLİNDİRİ
G240.00.01 TOMRUK YÜKLEYİCİ SİLİNDİRİ (HAREKETLİ)
G250.00.01 DÖNERLİ KANAL KEPÇESİ SİLİNDİRİ
G260.00.01 BOM KİLİT SİLİNDİRİ
G260.01.01 BOM KİLİT SİLİNDİRİ (MAFSALLI BOM)
G265.01.01 ARM SİLİNDİRİ, KAZICI
G265.02.01 ARM SİLİNDİRİ, KAZICI
G280.00.01 ÇEKİCİ KANCA SİLİNDİRİ
G290.00.01 PİLOT BESLEME BLOĞU (ORANSAL VALFLİ)
G300.00.01 SARSINTISIZ YÜRÜYÜŞ VALFİ, MSS
G310.00.01 VALF, KUMANDA DEĞİŞTİRİCİ
BACKHOE CONTROL VALVE TELESCOPIC CONTROL BLOCKS,LEVERS (TYPE B)
BACKHOE CONTROL VALVE -OUTLET BLOCK (TYPE B)
ADDITIONAL ATTACHMENT CONTROL VALVE
REMOTE CONTROL VALVE, RH
REMOTE CONTROL VALVE, LEFT
LIFT CYLINDER, LOADER, RH
BUCKET CYLINDER, LOADER, RH
BUCKET CYLINDER, LOADER, LH
MULTIPURPOSE BUCKET CYLINDER
STABILIZER CYLINDER, RH
STABILIZER CYLINDER, LH
SWING CYLINDER
BOOM CYLINDER, BACKHOE
ARM CYLINDER, BACKHOE
ARM CYLINDER, BACKHOE
BUCKET CYLINDER, BACKHOE
BUCKET CYLINDER, BACKHOE, TELESCOPIC
TELESCOPIC CYLINDER, BACKHOE
QUICK COUPLER CYLINDER, LOADER
LEVELLING BLADE CYLINDER
LEVELLING BLADE CYLINDER (DOUBLE AXIS) RH
LEVELLING BLADE CYLINDER (DOUBLE AXIS) LH
LEVELLING BLADE CYLINDER (DOUBLE AXIS) CENTER
LOG GRAPPLE CYLINDER
LOG GRAPPLE CYLINDER (WITH VERTICAL MOVEMENT)
TILTING BUCKET CYLINDER
BOOM LOCKING CYLINDER
BOOM LOCKING CYLINDER )KNUCKLE BOOM)
ARM CYLINDER, BACKHOE ARM CYLINDER, BACKHOE TOW HOOK CYLINDER
PILOT SUPPLY BLOCK (WITH PROPORTIONAL VALVE) MSS, VALVE
VALVE, PATTERN SHIFTER
H
DİREKSİYON SİSTEMİ
STEERING SYSTEM
H010.05.01
HİDROLİK TESİSAT, DİREKSİYON (TİP B)
HYDRAULIC PIPING, STEERING (TYPE B)
H020.00.01
KOMBİNASYON VALFİ
COMBINATION VALVE
J
FREN SİSTEMİ
BRAKE SYSTEM
J010.06.01
HİDROLİK TESİSAT, FREN
HYDRAULIC PIPING, BRAKE
K
ELEKTRİK SİSTEMİ
ELECTRICAL SYSTEM
K010.00.04
KABİN ELEKTRİĞİ (4)
CAB ELECTRIC (4)
K010.00.05
KABİN ELEKTRİĞİ (5)
CAB ELECTRIC (5)
K010.00.08
KABİN ELEKTRİĞİ (8)
CAB ELECTRIC (8)
K010.01.02
KABİN ELEKTRİĞİ (2)
CAB ELECTRIC (2)
K010.01.06
KABİN ELEKTRİĞİ (6)
CAB ELECTRIC (6)
İÇİNDEKİLER / CONTENTS
K010.01.07
KABİN ELEKTRİĞİ (7)
CAB ELECTRIC (7)
K010.02.01
KABİN ELEKTRİĞİ (1)
CAB ELECTRIC (1)
K020.10.01
ELEKTRİK (1)
ELECTRIC (1)
K040.00.01
KOMPRESÖR VE ELEKTRİK TESİSATI
COMPRESSOR & HARNESS
K050.02.01
SMARTLINK (TİP B)
SMARTLINK (TYPE B)
K050.03.01
SMARTLINK
SMARTLINK
Y
DİĞERLERİ (ETİKET, AVADANLIK)
OTHERS (DECAL, TOOLS)
Y010.07.01
ETİKET VE LEVHALAR (1)
DECAL AND PLATES (1)
Y020.06.01
ETİKET VE LEVHALAR, TR (2)
DECAL AND PLATES, TR (2)
Y020.17.01
ETİKET VE LEVHALAR, EN (2)
DECAL AND PLATES, EN (2)
Y020.26.01
ETİKET VE LEVHALAR, FR (2)
DECAL AND PLATES, FR (2)
Y020.37.01
ETİKET VE LEVHALAR, ISP (2)
DECAL AND PLATES (2)
Y020.45.01
ETİKET VE LEVHALAR, RUS (2)
DECAL AND PLATES, RUS (2)
Y020.54.01
ETİKET VE LEVHALAR, POR (2)
DECAL AND PLATES, POR (2)
Y020.62.01
ETİKET VE LEVHALAR, BUL (2)
DECAL AND PLATES, BUL (2)
Y030.00.01
ETİKET VE LEVHALAR, KIRICI
DECAL AND PLATES, BREAKER
Y040.00.01
AVADANLIK TAKIMI
TOOL KIT
Z
MOTOR PARÇALARI
ENGINE PARTS
Z010.02.01
MOTOR, PERKINS 1104D-44TA
ENGINE, PERKINS 1104D-44TA
Z020.02.01
KÜLBÜTÖR KAPAĞI
CYLINDER HEAD COVER
Z020.02.02
KAM MİLİ
CAM SHAFT
Z020.02.03
KÜLBÜTÖR
ROCKER ASSEMBLY
Z020.02.04
PİSTON VE SEGMANLAR
PISTONS & RINGS
Z020.02.05
VOLAN
FLYWHEEL
Z020.02.06
VOLAN MUHAFAZASI
FLYWHEEL HOUSING
Z020.02.07
KRANKMİLİ & ANA VE GEZİNTİ YATAKLARI
CRANKSHAFT MAIN & BIG END BEARINGS
Z020.02.08
SİLİNDİR KAPAĞI
CYLINDER HEAD ASSY
Z020.02.09
SİLİNDİR BLOĞU VE GÖMLEĞİ
CYLINDER BLOCK &LINERS
Z020.02.10
BİYEL KOLU
CONNECTING RODS
Z020.02.11
KRANK ARKA KEÇE YUVASI
REAR END OIL SEAL
Z020.02.12
KÖR KAPAK
BLANKING PLATES
Z020.02.13
KRANK KASNAĞI
FRONT END DRIVE INPUT
Z020.02.14
ZAMANLAMA DİŞLİSİ KAPAĞI (1)
TIMING CASE (1)
Z020.02.15
ZAMANLAMA DİŞLİSİ KAPAĞI (2)
TIMING CASE (2)
Z020.02.16
ZAMANLAMA DİŞLİSİ KAPAĞI (3)
TIMING COVER (3)
Z020.02.17
ADAPTÖR
DRIVE ADAPTOR
Z020.02.18
TAPA
BLANKING PLUGS
Z020.02.19
KÖR KAPAK
BLANKING PLATES
Z020.02.20
MOTOR KALDIRMA KULAKLARI
ENGINE LIFTING EYES
Z020.02.21
YARDIMCI DONANIMLAR
MISCALLANEOUS & AUXILIARIES
Z020.02.22
KÖR KAPAK
BLANKING PLATES
Z030.02.01
KARTER
SUMP
Z030.02.02
YAĞ KONTROL ÇUBUĞU BORUSU
DIPSTICK & FILLER TUBE
Z030.02.03
YAĞ EMİŞ BORUSU
OIL STRAINER
Z030.02.04
YAĞ DOLDURMA BORUSU
FILLER
Z030.02.05
YAĞ SOĞUTUCU
OIL COOLER
Z030.02.06
YAĞ FİLTRESİ
OIL FILTER
İÇİNDEKİLER / CONTENTS
Z030.02.07
YAG FİLTRESİ
Z030.02.08
YAĞ POMPASI
Z030.02.09
BESLEME BORUSU
Z030.02.10
SIZINTI BORUSU
Z030.02.11
HAVALANDIRMA SİSTEMİ
Z040.02.01
FAN KASNAĞI
Z040.02.02
SU DEVİRDAİM POMPASI
Z040.02.03
BAĞLANTI BORULARI
Z040.02.04
TERMOSTAT VE KAPAĞI
Z050.02.01
YAKIT PÜSKÜRTME POMPASI
Z050.02.02
YAKIT BORULARI
Z050.02.03
ENJEKTÖRLER
Z050.02.04
YAKIT SIZINTI BORUSU
Z050.02.05
YAKIT TRANSFER POMPASI
Z050.02.06
PÜSKÜRTME POMPASI BORUSU
Z050.02.07
YAKIT BESLEME KONTROL BORUSU
Z060.02.01
SOĞUK ÇALIŞTIRMA MÜŞÜRÜ
Z060.02.02
İLK HAREKET MÜŞÜRÜ
Z060.02.03
MARŞ MOTORU
Z060.02.04
ALTERNATÖR
Z060.02.05
ALTERNATÖR BAĞLANTILARI
Z060.02.06
ALTERNATÖR KASNAĞI
Z060.02.07
ISITMA BUJİSİ
Z060.02.08
YAĞ BASINÇ MÜŞÜRÜ
Z060.02.09
SU HARARET MÜŞÜRÜ
Z070.02.01
TÜRBOŞARJ
Z070.02.02
EGSOZ DİRSEĞİ VE BAĞLANTILARI
Z070.02.03
EGSOZ MANİFOLDU
Z070.02.04
BAĞLANTILAR
Z070.02.05
EMME MANİFOLDU
REMOTE LUBRICATING OIL FILTER
LUBRICATING OIL PUMP & DELIVERY HOUSING
FEED PIPES
LEAK-OFF PIPES
BREATHER
FAN DRIVE
WATER PUMP
PIPES
WATER OUTLET HOUSING FUEL INJECTION PUMP HIGH PRESSURE FUEL PIPES ATOMISERS FUEL LEAK-OFF PIPE LIFT PUMP
INJECTION PUMP TO FILTER PIPE BOOST CONTROL PIPE PICK-UP SENSOR PICK-UP SENSOR STARTER MOTOR ALTERNATOR
ALTERNATOR BRACKET & FIXINGS
PULLEYS
HEATER PLUGS
LUBRICATION OIL PRESSURE SWITCHGAUGE
TEMPERATURE GAUGE & SENDER
TURBOCHARGER
PIPEWORK & CONNECTIONS
EXHAUST MANIFOLD
PIPEWORK & CONNECTION
INDUCTION MANIFOLD

Contact us: [email protected]

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
