Hidromek HMK 300 LC Crawler Excavator MITSUBISHI 5125001 Parts Catalogue Manual H257303000 – PDF DOWNLOAD

Description

Hidromek HMK 300 LC Crawler Excavator MITSUBISHI 5125001 Parts Catalogue Manual H257303000 – PDF DOWNLOAD

FILE DETAILS:

Hidromek HMK 300 LC Crawler Excavator MITSUBISHI 5125001 Parts Catalogue Manual H257303000 – PDF DOWNLOAD

Language : English & Turkish
Pages : 416
Downloadable : Yes
File Type : PDF
Size: 19.6 MB

IMAGES PREVIEW OF THE MANUAL:

Need help? Contact: [email protected]

DESCRIPTION:

Hidromek HMK 300 LC Crawler Excavator MITSUBISHI 5125001 Parts Catalogue Manual H257303000 – PDF DOWNLOAD

PREFACE:

• We would like to thank you for purchasing HMK 300 LC Construction
  Equipment.
• This catalog has been prepared for ordering spare parts for HMK 300 LC.
• For satisfactory service and selection of correct part, read and understand
  instructions as shown below.

No This indicates the indicating number of part.
Part No It shows the part number of the parts which are included in an illustration.
Description It shows the name of the part.
Q’ty It shows the quantitiy use of part for the group that was illustrated on page.
Note It shows explanations, which are not given in description.

TABLE OF CONTENTS:

Hidromek HMK 300 LC Crawler Excavator MITSUBISHI 5125001 Parts Catalogue Manual H257303000 – PDF DOWNLOAD

OPSİYON

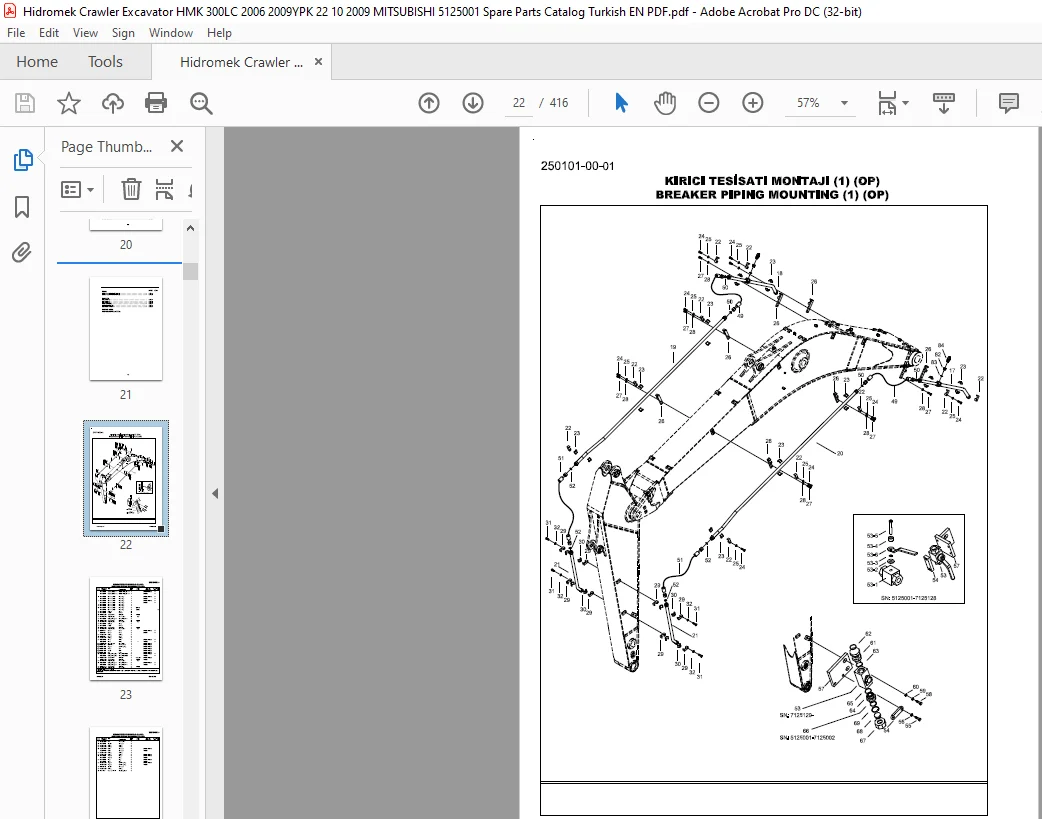

KIRICI TESİSATI MONTAJI (1) (OP) 250101

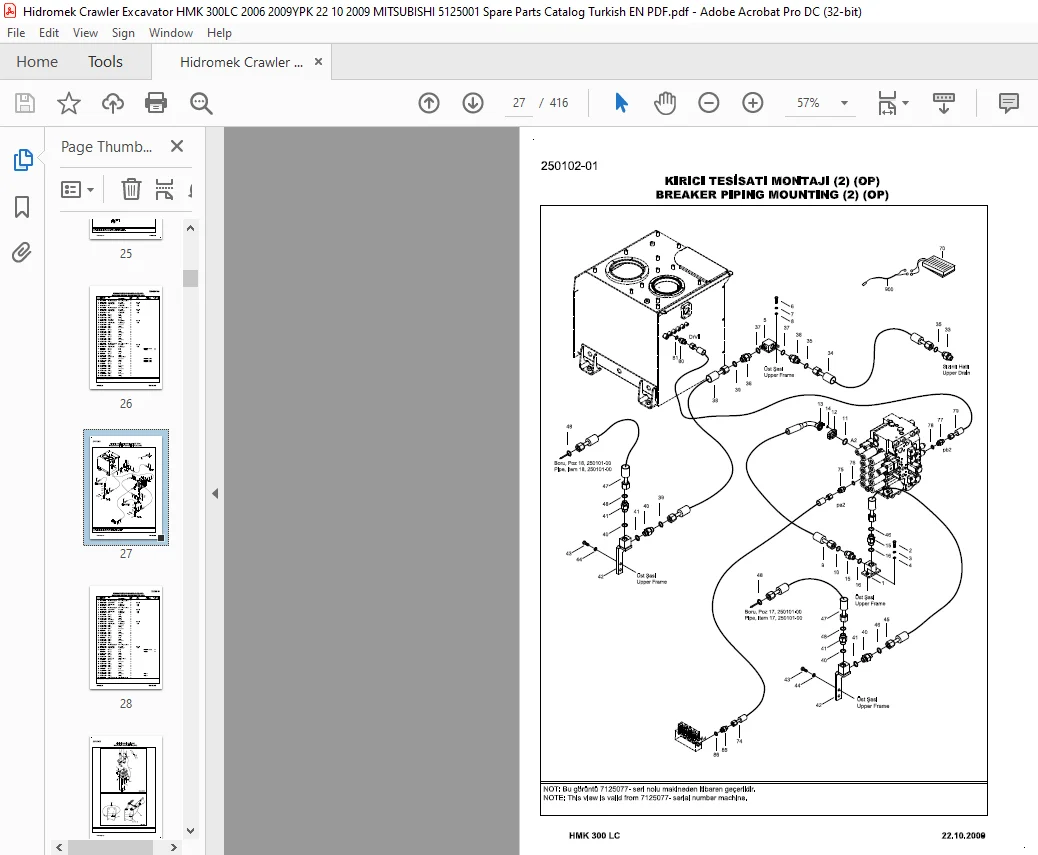

KIRICI TESİSATI MONTAJI (2) (OP) 250102
KIRICI MONTAJI (OP) 250103
RİPER (OP) 250301
TEPE LAMBASI MONTAJI (OP) 250501
ARKA ÇALIŞMA LAMBASI MONTAJI (OP) 250502
ÖN ÇALIŞMA LAMBASI MONTAJI (OP) 250503
KORYUCU KAFES (OP) 250504
KAPORTA
KAPORTA MONTAJI (1) 251101
KAPORTA MONTAJI (2) 251102
KAPORTA MONTAJI (3) 251103
KAPORTA MONTAJI (4) 251104
KAPORTA MONTAJI (5) 251105
KAPORTA MONTAJI (6) 251106
ÜST ŞASE
ÜST ŞASİ MONTAJI 251201
AKÜ SANDIĞI MONTAJI 251202
YÜRÜME SACLARI 251203
MOTOR
MOTOR MONTAJI 252001
YARIM MOTOR (REVİZYON İÇİN) 252002
SİLİNDİR KAFASI KOMPLESİ 252003
SİLİNDİR BLOĞU KOMPLESİ 252004
GÖMLEK VE PİSTON KİTİ 252005
KAM MİLİ KOMPLESİ 252006
MOTOR TAMİR TAKIMI 252007
KÜLBÜTÖR KAPAĞI VE NEFESLİK 252008
SİLİNDİR KAFASI 252009
SİLİNDİR BLOĞU 252010
KARTER – DOLDURMA KAPAĞI – YAĞ SEVİYE ÇUBUĞU 252011
VOLAN VE MUHAFAZASI 252012
PİSTON – BİYEL KOLU – KRANK MİLİ 252013
KAM MİLİ – SUBAP 252014
ZAMANLAMA DİŞLİSİ 252015
AKSESUARLAR 252016
YAĞ POMPASI VE YAĞ SÜZGECİ 252017
YAĞ FİLTRESİ 252018
YAĞ SOĞUTUCU 252019
YAĞLAMA TESİSATI 252020
YAKIT TESİSATI VE SU AYIRICI 252021
YAKIT FİLTRESİ VE TESİSATI 252022
YAKIT ENJEKSİYON POMPASI MONTAJI 252023
YAKIT ENJEKSİYON POMPASI 252024
REGÜLATÖR (1/2) 252025
REGÜLATÖR (2/2) 252026
OTOMATİK ZAMANLAYICI 252027
YAKIT BESLEME POMPASI 252028
ENJEKSİYON POMPASI BAĞLANTISI 252029
xiv
SAYFA REV
YAKIT ENJEKSİYON TESİSATI VE NOZULU 252030
YAKIT DÖNÜŞ HORTUMU 252031
SU POMPASI VE FAN MONTAJI 252032
TERMOSTAT VE BAĞLANTISI 252033
GİRİŞ MANİFOLDU 252034
EGZOZ MANİFOLDU 252035
TURBOŞARJ 252036
MARŞ MOTORU 252037
ALTERNATÖR VE REGÜLATÖR 252038
ETİKET 252039
MOTOR ELEKTRİK TESİSATI ELEMANLARI 252040
KAVRAMA MONTAJI 252101
HAVA FİLTRESİ
HAVA FİLTRESİ MONTAJI 252201
EGZOZ
EGZOZ MONTAJI 252301
MOTOR SOĞUTMA
SOĞUTMA DONANIMI 252401
RADYATÖR 252402
YAKIT DONANIMI
YAKIT DEPOSU MONTAJI VE YAKIT HATTI 252501
MOTOR KONTROL
MOTOR KONTROL MONTAJI 252601
KLİMA – ISITICI
KLİMA MONTAJI 252701
ISITICI MONTAJI 252702
ANA TESİSAT
ANA HİDROLİK MONTAJI (1/3) 253001
ANA HİDROLİK MONTAJI (2/3) 253002
ANA HİDROLİK MONTAJI (3/3) 253003
ANA KUMANDA VALFİ (1) 253004
ANA KUMANDA VALFİ (2) 253005
ANA KUMANDA VALFİ (3) 253006
ANA KUMANDA VALFİ (4) 253007
ANA KUMANDA VALFİ (5) 253008
ANA KUMANDA VALFİ (6) 253009
ANA KUMANDA VALFİ (7) 253010
ANA KUMANDA VALFİ (8) 253011
HİDROLİK POMPA 253012
PİLOT POMPA 253013
ORANSAL BASINÇ KONTROL VALFİ 253014
POMPA REGÜLATÖRÜ 253015
DİŞLİ KUTUSU – KULE DÖNÜŞ ÜNİTESİ 253016
MOTOR – KULE DÖNÜŞ ÜNİTESİ 253017
ALT ŞASE HİDROLİĞİ
ALT ŞASE HİDROLİK AKSAM MONTAJI 253101
xv
SAYFA REV
DİŞLİ KUTUSU – YÜRÜYÜŞ ÜNİTESİ 253102
MOTOR – YÜRÜYÜŞ ÜNİTESİ 253103
DÖNER DAĞITICI 253104
PİLOT DEVRE TESİSATI
PİLOT DEVRE MONTAJI 1 (1/2) 253201
PİLOT DEVRE MONTAJI 1 (2/2) 253202
PİLOT DEVRE MONTAJI 2 (1/2) 253203
PİLOT DEVRE MONTAJI 2 (2/2) 253204
PİLOT DEVRE MONTAJI 3 253205
JOİSTİK (SAĞ/SOL) 253206
PEDAL 253207
3’LÜ ÖNCELIK SELENOİD VALFİ 253208
3’LÜ SELENOİD VALF 253209
ATAÇMAN TESİSATI
ATAÇMAN TESİSATI 253301
ANA BOM SİLİNDİRİ (SAĞ/SOL) 253302
KEPÇE SİLİNDİRİ 253303
UÇ BOM SİLİNDİRİ 253304
HİDROLİK DEPO
HİDROLİK DEPO MONTAJI 253401
DÖNÜŞ VE SIZINTI HATTI
DÖNÜŞ VE SIZINTI HATTI MONTAJI 253601 ?
ALT ŞASE
ALT ŞASİ MONTAJI 254101
TAŞIYICI MAKARA 254102
YÜRÜYÜŞ MAKARASI 254103
İSTİKAMET TEKERİ 254104
GERDİRME MEKANİZMASI 254105
PALET KOMPLESİ 254201
ATAÇMAN MONTAJI
ANA BOM MONTAJI 255101
UÇ BOM MONTAJI 255201
GENEL AMAÇLI KEPÇE 255301
ÇALIŞMA ATAÇMANLARI KONTROLÜ 255401
YAĞLAMA DONANIMI
YAĞLAMA DONANIMI MONTAJI 255801
KABİN MONTAJI
KABİN MONTAJI 256001
KABİN (1) 256002 ?
KABİN (2) 256003
KABİN (3) 256004
KONSOL KUTUSU (SAĞ) 256101
KONSOL KUTUSU (SOL) 256102
KABİN İÇİ MONTAJI (1) 256103
KABİN İÇİ MONTAJI (2) 256104
OPERATÖR KOLTUĞU 256105
xvi
SAYFA REV
ETİKET
ETİKET MONTAJI (TÜRKÇE) 257001
ETİKET MONTAJI (İNGİLİZCE) 257002
ELEKTRİK
ELEKTRİK (1) 258001
ELEKTRİK (2) 258002
ELEKTRİK (3) 258003
ANA ELEKTRİK TESİSATI 258004
MOTOR ELEKTRİK TESİSATI 258005
KABİN ELEKTRİK TESİSATI 258006
PARÇA NUMARASI İNDEKSİ
PARÇA ADI İNDEKSİ
