Hitachi 870LC- 890LCH-7 890LCR-7 Hydraulic Excavator Parts Manual PN:PJBR40-1-1  – PDF

Description

Hitachi 870LC- 890LCH-7 890LCR-7 Hydraulic Excavator Parts Manual PN:PJBR40-1-1  – PDF DOWNLOAD

FILE DETAILS:

Hitachi 870LC- 890LCH-7 890LCR-7 Hydraulic Excavator Parts Manual PN:PJBR40-1-1  – PDF DOWNLOAD

Language :Language:English_Dutch_German_French_Italian_Spanish_Danish_Portuguese(Brazil),Norwegian, Romanian, Finnish-Russian Chinese(Simplified)
Pages :500
Downloadable : Yes
File Type : PDF

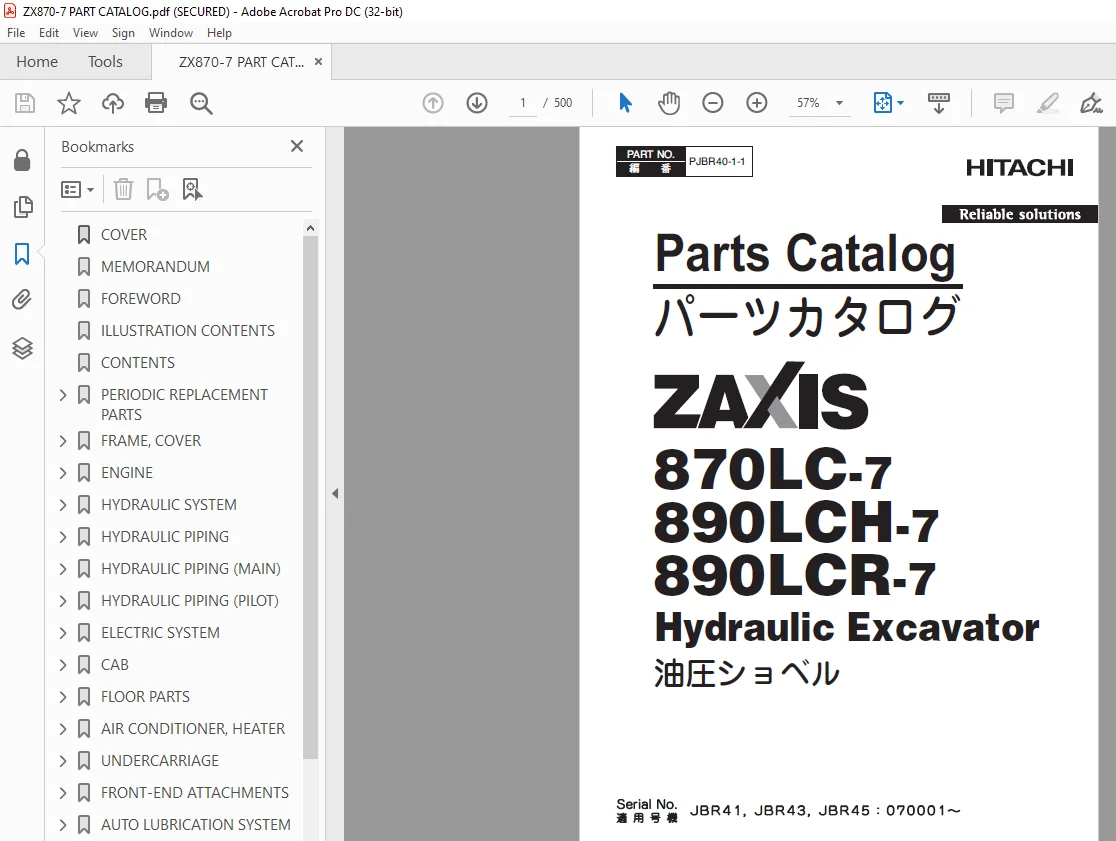

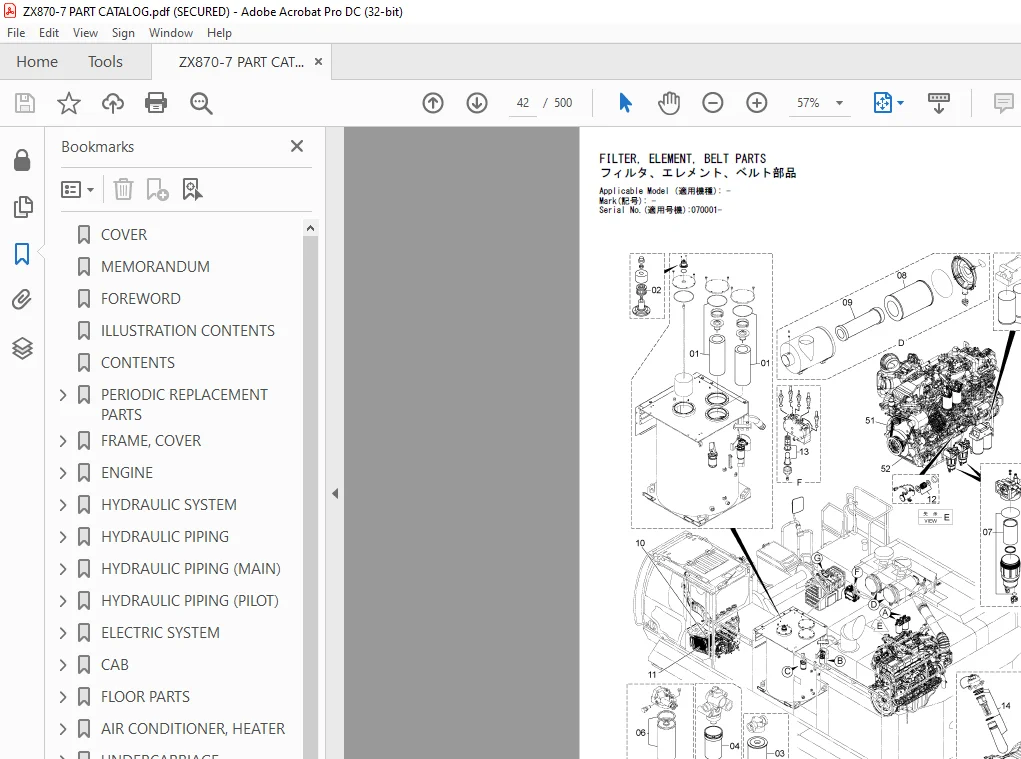

IMAGES PREVIEW OF THE MANUAL:

DESCRIPRION:

Hitachi 870LC- 890LCH-7 890LCR-7 Hydraulic Excavator Parts Manual PN:PJBR40-1-1  – PDF DOWNLOAD

Serial No. JBR41, JBR43, JBR45：070001～

F O R E W O R D
According to Hitachi’s continuous effort to improve the product quality, descriptions in the Parts Catalog may
be slightly different from your machine. If any questionable points are found, feel free to contact your
nearest Hitachi dealer.
1. HOW TO ORDER PARTS
When ordering parts, please specify the following
items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG
PART NAME: When the part is used as an inner part
of an assembly part, the mark ”‡” is
shown in front of the part name.
Q’TY: Q’ty shows the quantity used for a
particular single hydraulic unit,
however quantity of components
shows the quantity for one assembly
part.
SYMBOLS USED IN THIS BOOK:
The symbols shown in the service code and
interchangeability columns are used to indicate
the following information.
W: Requires additional processing at the job
site. Ask your nearest Hitachi dealer.
D: Impossible to replace as a single part.
Replace the part in an assembly unit.
K: Contained in the service part kit.
R: Indicate that the quantity of the part like
shims differs depending on the machine
serial No.
S: To be supplied as repair or service parts.
OS: Over-sized parts
US: Undersized parts
(Part with mark “OS, or US” is described in
the next column under the standard size
part column.)
#: Indicates newly added parts to the
equipment or component.
Y: Interchangeable part without any
constraint.
I: Used to indicate the part No. and quantity
of the part to be used for the part
concerned in the replacement part column.
However, the part concerned is not used
for the part shown with mark I.
T: Becomes interchangeable when
combined.
P: Indicate the part prohibited to use. Use the
part shown in the replacement part
column.
SERIAL No.: The serial number corresponds to the last
six-digit figure of the PIN (Product Identification
Number) on the name-plate.
D: Represents the date of modification.
(Example: D03/09: New modification part
has been applied to the products
manufactured in and after Sept 2003.)
H: Indicates the component manufacturing No.
F: Indicates the front attachment manufacturing No

TABLE OF CONTENTS:

Hitachi 870LC- 890LCH-7 890LCR-7 Hydraulic Excavator Parts Manual PN:PJBR40-1-1  – PDF DOWNLOAD

Serial No. JBR41, JBR43, JBR45：070001～

COVER 1
MEMORANDUM 3
FOREWORD 5
ILLUSTRATION CONTENTS 19
CONTENTS 35
FILTER, ELEMENT, BELT PARTS 40
CAB RELATED PARTS 44
FRAME, COVER 0
FRAME 45
FRAME PARTS 46
FRAME 48
COUNTERWEIGHT 49
COUNTERWEIGHT SUPPORT 50
BATTERY COVER 52
DOOR LOCK (1) 56
COVER (DOOR) 58
DOOR (FRONT VIEW OF PUMP) 60
DOOR LOCK (PUMP) 61
ANTI-SLIP COVER 62
COVER FRAME (CENTER) 63
COVER (CENTER) 64
MUFFLER COVER 65
COVER FRAME 66
ENGINE COVER 68
DOOR LOCK (2) 72
DOOR LOCK (ENGINE COVER) 73
RADIATOR COVER 74
DUCT (FOR RADIATOR) 78
OIL COOLER COVER (1) 80
OIL COOLER COVER (2) 84
DUCT (FOR OIL COOLER) 88
HEAT SHIELD 90
CENTER WALK (1) 92
CENTER WALK (2) 94
DOOR LOCK (3) 96
CATWALK 97
HANDRAIL PARTS 98
HANDRAIL (CAB)100
UNDER COVER (REINFORCED TYPE)101
UREA WATER TANK COVER102
DOOR LOCK (4)108
ENGINE 0
ENGINE SUPPORT110
ENGINE112
ENGINE OIL FILTER PIPING114
RADIATOR SUPPORT115
RADIATOR116
RADIATOR STAY PARTS118
AIR CLEANER PARTS119
AIR CLEANER120
PRE-CLEANER122
CAP123
MUFFLER124
MUFFLER SUPPORT126
MUFFLER PARTS128
EXPANSION TANK130
AIR COOLER PIPING132
OIL COOLER SUPPORT134
OIL COOLER136
FUEL COOLER137
FUEL TANK SUPPORT138
FUEL TANK140
FUEL CHARGING UNIT142
FUEL PIPING146
FUEL MAIN FILTER SUPPORT150
FUEL PRE-FILTER152
UREA WATER TANK PARTS154
UREA WATER TANK156
UREA WATER TANK PIPING158
HYDRAULIC SYSTEM 0
FAN DRIVE (FOR RADIATOR)162
FAN DRIVE (FOR OIL COOLER)164
FAN VALVE (FOR RADIATOR)(REVERSE TYPE)166
FAN VALVE (FOR OIL COOLER)(REVERSE TYPE)168
OIL TANK PARTS170
OIL TANK172
SWING DEVICE178
CONTROL VALVE 180
CONTROL VALVE SUPPORT181
PUMP DEVICE182
HYDRAULIC PIPING 0
DRAIN PIPING (FOR PUMPMISSION)183
TAIL HOSE PARTS184
SUCTION PIPING (FOR PUMP)186
SUCTION PIPING (FOR OIL TANK)188
DELIVERY PIPING189
RETURN PIPING (FOR OIL COOLER)190
RETURN PIPING (FOR CONTROL VALVE)192
DRAIN PIPING193
FAN DRIVE PIPING194
HYDRAULIC PIPING (MAIN) 0
MAIN PIPING (1)195
MAIN PIPING (2)196
MAIN PIPING (3)(FOR FRONT)198
MAIN PIPING (3)200
HYDRAULIC PIPING (PILOT) 0
PILOT PIPING (1)201
PILOT PIPING (2-1)202
PILOT PIPING (2-2)206
PILOT PIPING (3)210
PILOT PIPING (4)214
PILOT PIPING (5)218
PILOT PIPING (6)220
PILOT PIPING (7)222
PILOT PIPING (8)224
PILOT PIPING (9)226
PILOT PIPING (10)228
ELECTRIC SYSTEM 0
ELECTRIC PARTS (1)230
RELAY PARTS232
ELECTRIC PARTS (3)233
ELECTRIC PARTS (4)234
ELECTRIC PARTS (5)236
ELECTRIC PARTS (6)240
ELECTRIC PARTS (7-1)242
SWITCH BOX244
ELECTRIC PARTS (7-2)246
ELECTRIC PARTS (7-3)248
ELECTRIC PARTS (8)250
ELECTRIC PARTS (9)251
START SWITCH252
ENGINE CONTROLLER SUPPORT253
ENGINE STOP SWITCH254
AERIAL ANGLE CONTROL UNIT255
AERIAL ANGLE PARTS256
MOBILE COMMUNICATIONS TERMINAL257
CONTROLLER (MC)258
MONITOR CONTROLLER259
SIDE CAMERA (R)260
SIDE CAMERA (L)261
REAR CAMERA262
ELECTRIC CONTROL PARTS (CAB)264
FRONT HEAD LAMP (2 LAMP)(OPG TOPGUARD)265
FRONT HEAD LAMP (4 LAMP)(OPG TOPGUARD)266
REAR HEAD LAMP (FLOOR)267
REAR HEAD LAMP (CAB)268
ROTATING BEACON (FLOOR)269
ROTATING BEACON SUPPORT SOCKET270
ROTATING BEACON271
PERIPHERAL BEACON PARTS272
WINDOW WASHER273
MICROPHONE274
PARALLEL LINK WIPER (PLANE GLASS)276
PARALLEL LINK WIPER HARNESS278
CAB 0
HD-CAB (MOBILE COMMUNICATIONS)280
CAB (1)282
HD-CAB (2)284
DOOR286
HD-CAB (3)290
HD-CAB (4)292
HD-CAB (5)294
CAB (6)(POLYCARBONATE ROOF)296
CAB (7)298
LAMP HARNESS299
SUNSCREEN ROLLER TYPE PARTS300
ROTATING BEACON PARTS301
CAB GUARD (OPG LEVELⅡ FRONT)302
CAB GUARD (OPG LEVELⅡ TOP)304
CAB GROUP (1)306
CAB GROUP (2)307
WITHOUT ANCHOR BOLT PARTS308
CAB MIRROR309
SUNSCREEN ROLLER TYPE (FRONT WINDOW, RIGHT WINDOW)310
SUNSCREEN ROLLER TYPE (REAR WINDOW)312
RAIN GUARD313
FLOOR PARTS 0
CONTROL LEVER (FRONT, SWING)(TRIPLE SWITCH, THICK GRIP)314
PILOT VALVE (FRONT, SWING)315
CONTROL LEVER (TRAVEL)316
PILOT VALVE (TRAVEL)317
PEDAL (L)318
PEDAL (R)319
LOCK LEVER320
CONSOLE322
CONSOLE COVER324
RIGHT COVER (1)326
RIGHT COVER (2)327
RADIO (AM/FM/AUX/BT/DAB)328
REAR BOX (12V POWER SUPPLY)330
POWER UNIT (12V)332
FLOOR PARTS (1)333
FLOOR PLATE334
AIR SUSPENSION SEAT PARTS (WITH HEATER)(GRAMMER)336
AIR SUSPENSION SEAT (WITH HEATER)(GRAMMER)(1)338
AIR SUSPENSION SEAT (WITH HEATER)(GRAMMER)(2)340
AIR SUSPENSION PARTS (CONSOLE)342
HEATER SEAT PARTS343
SEAT STAND344
ANCHOR CAP345
FLOOR MAT346
AIR CONDITIONER, HEATER 0
AIR CONDITIONER (1)348
AIR CONDITIONER UNIT350
AIR CONDITIONER (2)352
AIR CONDITIONER (3)353
COMPRESSOR354
AIR CONDITIONER (4-1)355
AIR CONDITIONER (4-2)356
CONDENSER UNIT357
DUCT358
DUCT (WITH AIR CONDITIONER)359
UNDERCARRIAGE 0
TRACK CENTER FRAME360
SWING BEARING362
LUBRICATE PIPING (SWING BEARING)364
CENTER JOINT365
TRAVEL PIPING PARTS (1)366
TRACK UNDER COVER367
TRACK SIDE FRAME (1)368
TRAVEL DEVICE370
TRAVEL PIPING PARTS (2)371
FRONT IDLER372
ADJUSTER373
UPPER ROLLER374
TRACK SIDE FRAME (1)376
LOWER ROLLER380
LOWER ROLLER (SINGLE FLANGE)381
LOWER ROLLER382
LOWER ROLLER (DOUBLE FLANGE)383
TRACK SIDE FRAME (2)384
TRAVEL PIPING COVER386
TRACK SIDE FRAME (2)388
TRAVEL PIPING COVER390
TRAVEL PIPING392
TRACK-LINK394
FULL-LENGTH TRACK GUARD396
FRONT-END ATTACHMENTS 0
H-BOOM 84m398
R-BOOM 84m400
BE-BOOM 71m402
BER-BOOM 71m404
BOOM LIGHT (L, R)(LED)406
BOOM LIGHT COVER (L, R)(FOR LED)408
H-ARM 37m410
R-ARM 37m414
BE-ARM 295m418
BER-ARM 295m422
FRONT PIPING (H-BOOM 84m, R-BOOM 84m)426
FRONT PIPING (BE-BOOM 71m, BER-BOOM 71m)428
BOOM CYLINDER432
ARM CYLINDER433
BUCKET CYLINDER434
BUCKET CYLINDER (FOR BE)435
LUBRICATE PIPING (H-BOOM 84m, R-BOOM 84m)436
LUBRICATE PIPING (BE-BOOM 71m, BER-BOOM 71m)438
LUBRICATE PIPING (H-ARM 37m, R-ARM 37m)440
LUBRICATE PIPING (BE-ARM 295m, BER-ARM 295m)442
AUTO LUBRICATION SYSTEM 0
LUBRICATOR PARTS (AUTO-LUB)444
LUBRICATOR446
COMMON PARTS FOR AUTO LUBRICATION450
AUTO LUBRICATE SYSTEM (3 POSITION)452
AUTO LUBRICATE SYSTEM (FLOOR)(3 POSITION)454
AUTO LUBRICATE PIPING (H-BOOM 84m, R-BOOM 84m)456
AUTO LUBRICATE PIPING (BE-BOOM 71m, BER-BOOM 71m)458
AUTO LUBRICATE PIPING (H-ARM 37m, R-ARM 37m)460
AUTO LUBRICATE PIPING (BE-ARM 295m, BER-ARM 295m)462
TOOLS 0
TOOLS464
NAME PLATE 0
NAME PLATE (1)468
NAME PLATE (2)472
NAME PLATE (3)476
PARTS INDEX 0
PARTS INDEX480

S.M 31/1/25
