Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle + Ciruit & Harness Manual – PDF Download

Description

Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle + Ciruit & Harness Manual

FILE DETAILS:

Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle + Ciruit & Harness Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop Manual
2. Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Troubleshooting / Operational Principle Manual
3. Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Circuit Diagram & Harness Manual

HITACHI EX100-5 100M-5 110-5 110M-5 HYDRAULIC EXCAVATOR WORKSHOP + TROUBLESHOOTING + OPERATIONAL PRINCIPLE + CIRUIT & HARNESS MANUAL – PDF DOWNLOAD:

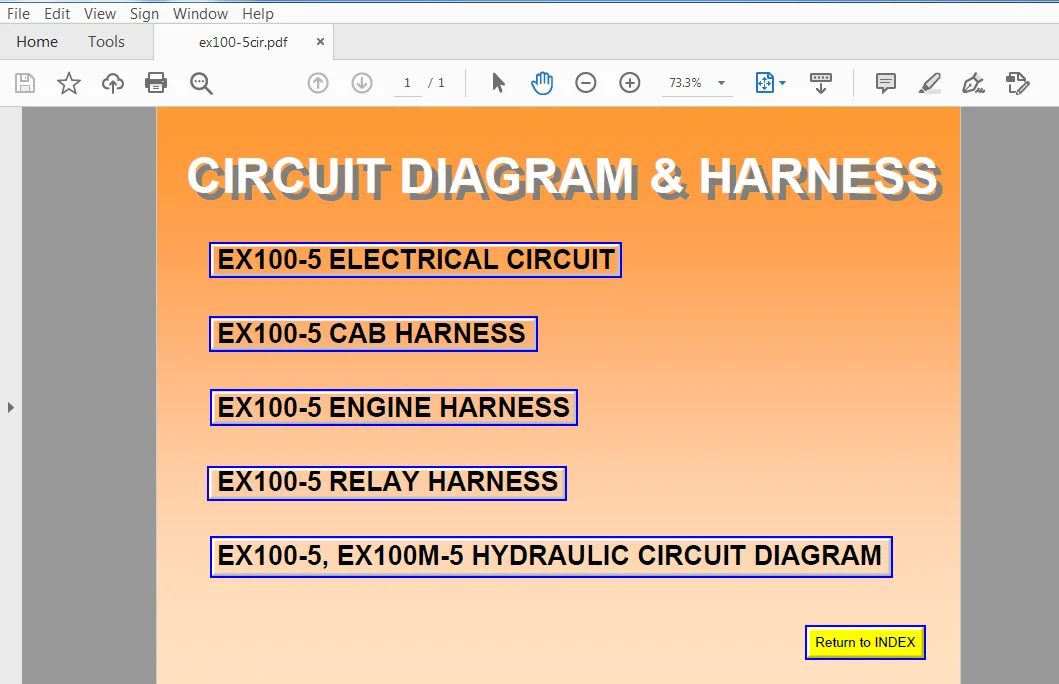

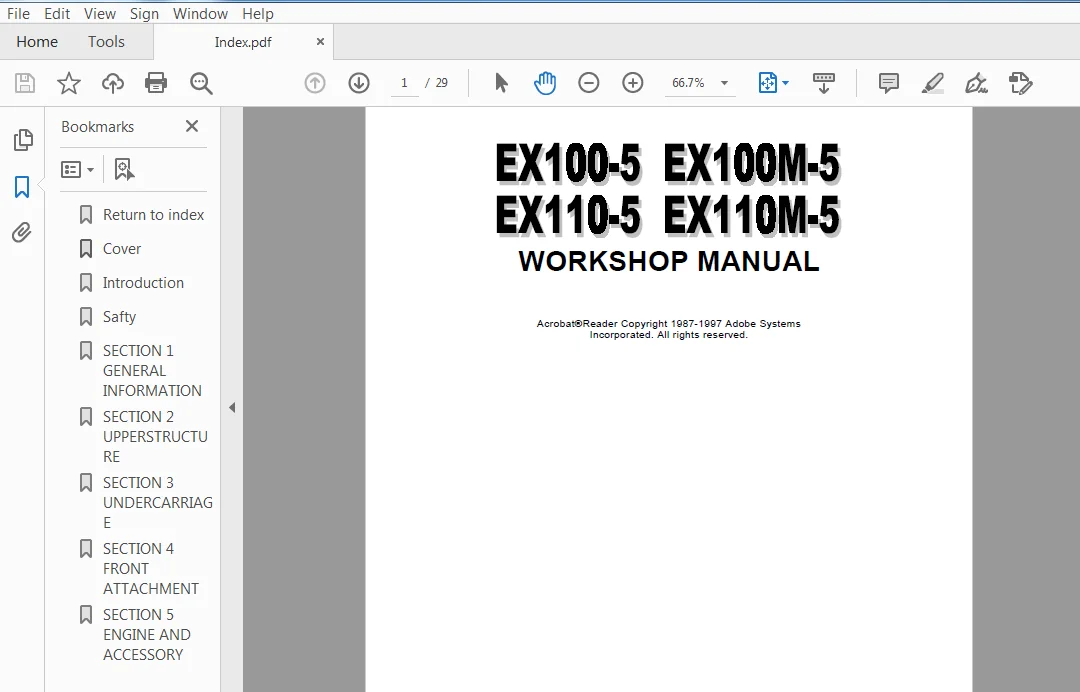

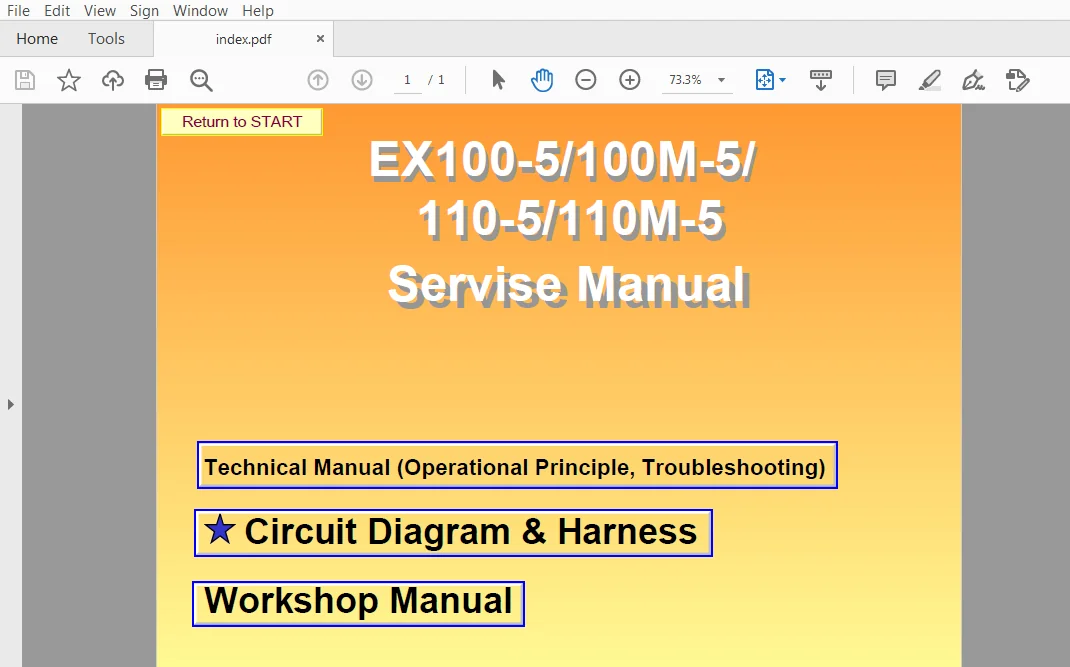

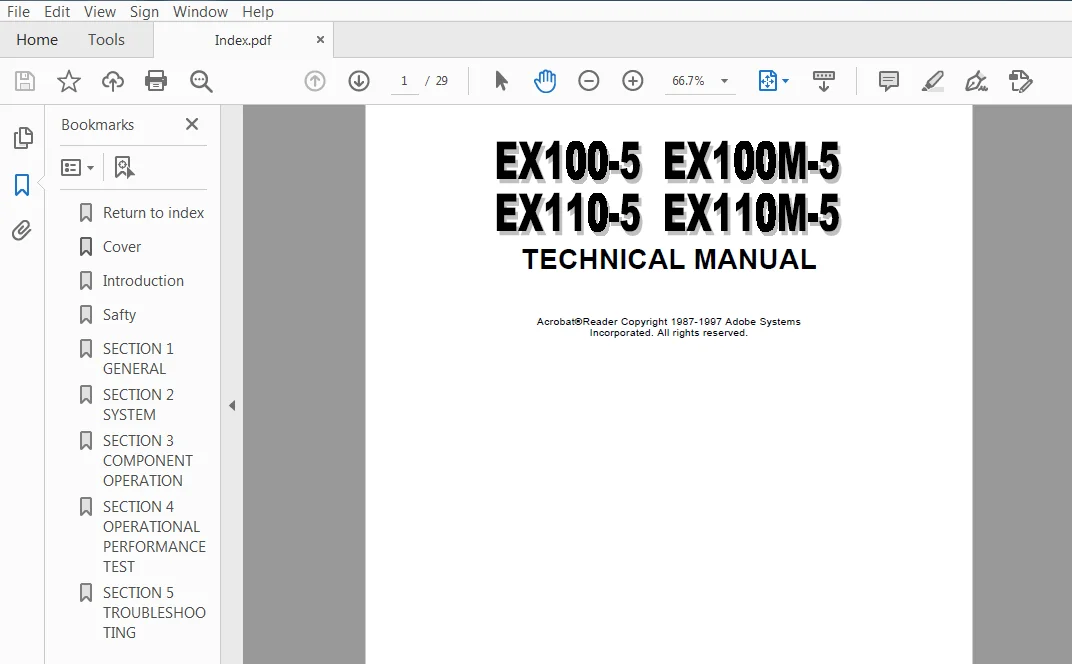

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle + Ciruit & Harness Manual

• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine. • Be sure to thoroughly read this manual for correct product information and service procedures. This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redeliver and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Clean the Machine Thoroughly wash the machine before bringing it into the shop. Bringing a dirty machine into the shop may cause machine components to be contaminated during disassembling/assembling, resulting in damage to machine components, as well as decreased efficiency in service work.
• Inspect the Machine Be sure to thoroughly understand all disassembling/ assembling procedures beforehand, to help avoid incorrect disassembling of components as well as personal injury. Check and record the items listed below to prevent problems from occurring in the future.
• The machine model, machine serial number, and hour meter reading.  Reason for disassembly (symptoms, failed parts, and causes).
• Clogging of filters and oil, water or air leaks, if any.  Capacities and condition of lubricants.
• Loose or damaged parts. Prepare and Clean Tools and Disassembly Area Prepare the necessary tools to be used and the area for disassembling work.

TABLE OF CONTENTS:

Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Workshop  Manual

Return to index
Cover 1
Introduction 2
Safty 4
SECTION 1 GENERAL INFORMATION
SECTION 2 UPPERSTRUCTURE
SECTION 3 UNDERCARRIAGE
SECTION 4 FRONT ATTACHMENT
SECTION 5 ENGINE AND ACCESSORY

Hitachi EX100-5 100M-5 110-5 110M-5 Hydraulic Excavator Troubleshooting/Operational Principle Manual

Return to index
Cover 1
Introduction 2
Safty 4
SECTION 1 GENERAL
SECTION 2 SYSTEM
SECTION 3 COMPONENT OPERATION
SECTION 4 OPERATIONAL PERFORMANCE TEST
SECTION 5 TROUBLESHOOTING
