Hitachi EX1200-5 Equipment Components Parts Hydraulic Excavator Parts Catalog Manual (PI7F-E2-3) – PDF Download

Description

Hitachi EX1200-5 Equipment Components Parts Hydraulic Excavator Parts Catalog Manual (PI7F-E2-3)

File Details:

Hitachi EX1200-5 Equipment Components Parts Hydraulic Excavator Parts Catalog Manual (PI7F-E2-3)

• Manual Language:English
• Pages: 216
• Size: 6.82 MB
• Downloadable:Yes
• Format:PDF

HITACHI EX1200-5 EQUIPMENT COMPONENTS PARTS HYDRAULIC EXCAVATOR PARTS CATALOG MANUAL (PI7F-E2-3) – PDF DOWNLOAD:

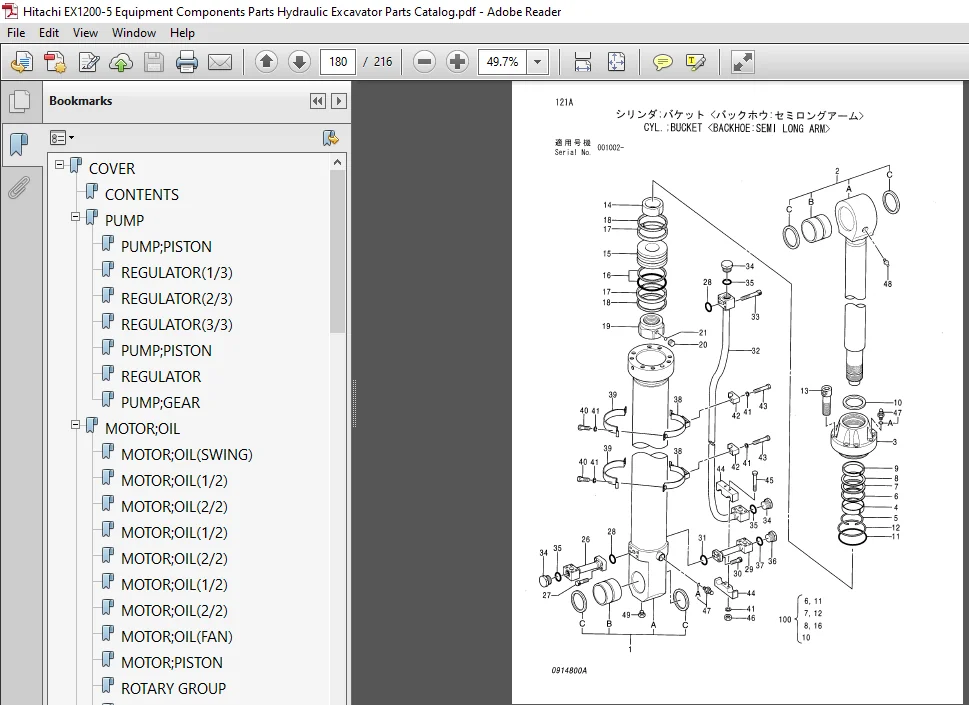

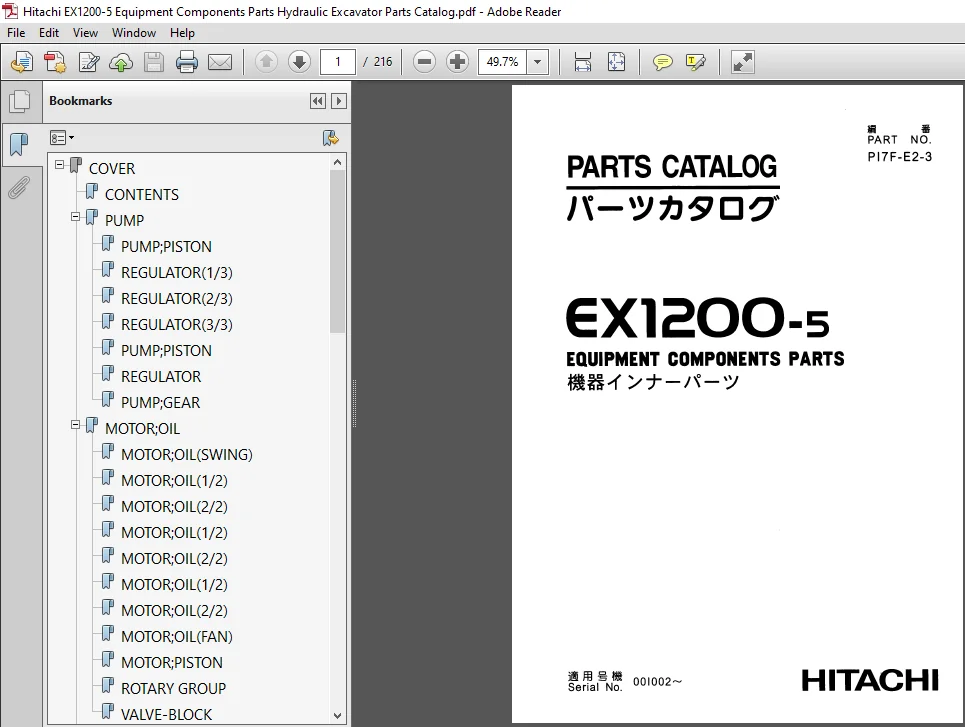

Image Preview:

Description:

Hitachi EX1200-5 Equipment Components Parts Hydraulic Excavator Parts Catalog Manual (PI7F-E2-3)

@ According to Hitachi’s continuous effort to improve the product quality. descriptions to the Parts Catalog may be slightly different from your machine. It any questionable points are found. feel free to contact your nearest Hitachi dealer.
1. HOW TO ORDER PARTS
When ordering parts. please specify the following items.
(1) Model/type
(2) Product identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchasers Name and Address
2. HOW TO USE THIS PARTS CATALOG
PART NAME: When the part is used as an inner part of an assembly part, the mark ‘.’ is shown in front of the part name.
Q’TY:Q’ty shows the quantity used for a particular single hydraulic unit. however quantity of components shows the quantity for one assembly part

Table Of Contents:

Hitachi EX1200-5 Equipment Components Parts Hydraulic Excavator Parts Catalog Manual (PI7F-E2-3)

COVER............................................  1
	CONTENTS.....................................  7
	PUMP......................................... 10
		PUMP;PISTON.............................. 10
		REGULATOR(1/3)........................... 14
		REGULATOR(2/3)........................... 18
		REGULATOR(3/3)........................... 20
		PUMP;PISTON.............................. 22
		REGULATOR................................ 26
		PUMP;GEAR................................ 30
	MOTOR;OIL.................................... 36
		MOTOR;OIL(SWING)......................... 36
		MOTOR;OIL(1/2)........................... 40
		MOTOR;OIL(2/2)........................... 42
		MOTOR;OIL(1/2)........................... 46
		MOTOR;OIL(2/2)........................... 48
		MOTOR;OIL(1/2)........................... 52
		MOTOR;OIL(2/2)........................... 54
		MOTOR;OIL(FAN)........................... 58
		MOTOR;PISTON............................. 60
		ROTARY GROUP............................. 62
		VALVE-BLOCK.............................. 64
	VALVE........................................ 66
		VALVE;CONTROL(1/5)....................... 66
		VALVE;CONTROL(2/5)....................... 72
		VALVE;CONTROL(3/5)....................... 76
		VALVE;CONTROL(4/5)....................... 78
		VALVE;CONTROL(5/5)....................... 84
		VALVE;CONTROL(1/5)....................... 86
		VALVE;CONTROL(2/5)....................... 92
		VALVE;CONTROL(3/5)....................... 96
		VALVE;CONTROL(4/5)....................... 98
		VALVE;CONTROL(5/5).......................104
		VALVE;CONTROL(1/2).......................106
		VALVE;CONTROL(2/2).......................110
		VALVE;CONTROL(1/2).......................112
		VALVE;CONTROL(2/2).......................116
		VALVE;PILOT(FRONT & SWING)...............118
		VALVE;PILOT(TRAVEL)......................120
		VALVE;PILOT(BUCKET OPENING & CLOSING)....124
		VALVE;SHUTTLE............................126
		VALVE;SHUTTLE(1/5).......................130
		VALVE;SHUTTLE(2/5).......................132
		VALVE;SHUTTLE(3/5).......................134
		VALVE;SHUTTLE(4/5).......................136
		VALVE;SHUTTLE(5/5).......................138
		VALVE;SOLENOID...........................140
		VALVE;LOCK...............................148
		VALVE;CHECK..............................150
		VALVE;FC.................................152
		VALVE....................................154
	CYLINDER.....................................156
		CYL.;BOOM <BACKHOE , LOADER>.............156
		CYL.;BOOM <LONG ARM>.....................160
		VALVE;SLOWRETURN.........................162
		CYL.;ARM <BACKHOE>.......................164
		CYL.;ARM <LOADER>........................168
		CYL.;BUCKET <BACKHOE : STD. ARM>.........172
		CYL.;BUCKET <BACKHOE : BE ARM>...........176
		CYL.;BUCKET <BACKHOE : SEMI LONG ARM>....180
		CYL.;BUCKET <LONG ARM>...................184
		CYL.;BUCKET (R) <LOADER>.................188
		CYL.;BUCKET (L) <LOADER>.................192
		CYL.;LEVEL <LOADER>......................196
		CYL.;DUMP <LOADER>.......................198
	PARTS INDEX..................................201
