Hitachi EX2500 & EX3600 Hydraulic Excavator Technical Operations Manual (MNCO1027A) – PDF Download

Description

Hitachi EX2500 & EX3600 Hydraulic Excavator Technical Operations Manual (MNCO1027A)

File Details:

Hitachi EX2500 & EX3600 Hydraulic Excavator Technical Operations Manual (MNCO1027A)

• Manual Language:English
• Pages: 82
• Size: 4.86 MB
• Downloadable:Yes
• Format:PDF

HITACHI EX2500 & EX3600 HYDRAULIC EXCAVATOR TECHNICAL OPERATIONS MANUAL (MNCO1027A) – PDF DOWNLOAD:

Image Preview:

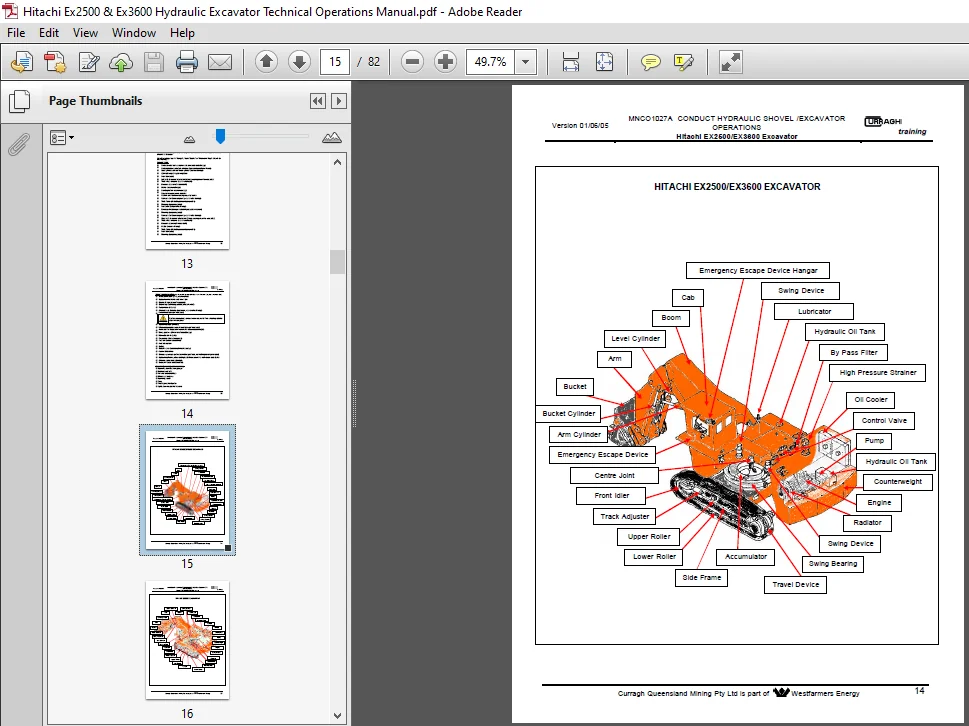

Sample Page From The Manual:

Hitachi EX2500 & EX3600 Hydraulic Excavator Technical Operations Manual (MNCO1027A)

• Before moving the bucket into the face it should be levelled and lowered to the floor. The bucket can be levelled by pulling/pushing the bucket control lever to the left or to the right.
• Once the bucket has reached a point where the floor of the bucket is of a similar angle to that of the material being excavated, lower the bucket to the floor and check the bucket level, adjust the level if required. With the bucket levelled and lowered to the floor, move the bucket arm towards the face to the point where the excavator has started to labour, at this stage pull the bucket control back towards the operator seat to start to roll (tilt) the bucket slowly until it’s full whilst  slowly raising the boom(hoist).
• Always keep the bucket floor parallel to the face when digging. When the bucket is full, continue to hoist to the required level while also slewing towards the loading position.

Table of Contents:

Hitachi EX2500 & EX3600 Hydraulic Excavator Technical Operations Manual (MNCO1027A)

Section Page
Competency Elements & Performance Criteria – Flow Chart 7
Element 1027.1 PLAN & PREPARE FOR OPERATIONS (Refer Mining Department Area Specific Induction) 9
Element 1027.2 OPERATE HYDRAULIC SHOVEL/EXCAVATOR
CT 2.1 Resolve Coordination Activities with Others (Refer Mining Department Area Specific Induction) 11
Walk-around Inspection Checklist 12
EX25/36 2.2 Carry Out Pre-start, Start Up , park-up and Shutdown Procedures 16
EX25/36 2.3 Select Loading Method for Excavator 46
EX25/36 2.4 Conduct, Control and Monitor Dig Procedures 29
EX25/36 2.5 Act on or Report Monitoring Systems & Alarms 53
EX25/36 2.6 Recognise & Respond to Hazardous & Emergency Situations 59
CT 2.7 Complete Work to Planned Outcomes (Refer Mining Department Area Specific Induction) 69
Formative Assessment
Element 1027.3 RELOCATE EXCAVATOR
CT 3.1 Receive & Confirm Route & Location Plan (Refer Mining Department Area Specific Induction) 71
EX25/36 3.2 Complete and/or Follow Ground Preparation 72
CT 3.3 Resolve Co-ordination Issues, Support Equipment & Personnel (Refer Mining Department Area Specific Induction) 72
EX25/36 3.4 Relocate Excavator 73
Element 1027.4 CARRY OUT OPERATOR MAINTENANCE
EX25/36 4.1 Carry Out Inspections & Fault Finding 75
EX25/36 4.2 Carry Out Routine Operational Servicing, Lubrication, Maintenance & Housekeeping 76
EX25/36 4.3 Carry Out Minor Maintenance 78
EX25/36 4.4 Provide Support for Major Maintenance 81
CT 4.5 Process Maintenance Records (Refer Mining Department Area Specific Induction) 81
