Hitachi EX3600-6 Hydraulic Excavator Parts Catalog Manual (P18M-1-1) – PDF Download

Description

Hitachi EX3600-6 Hydraulic Excavator Parts Catalog Manual (P18M-1-1)

File Details:

Hitachi EX3600-6 Hydraulic Excavator Parts Catalog Manual (P18M-1-1)

• Manual Language:English
• Pages: 638
• Size: 12.4 MB
• Downloadable:Yes
• Format:PDF

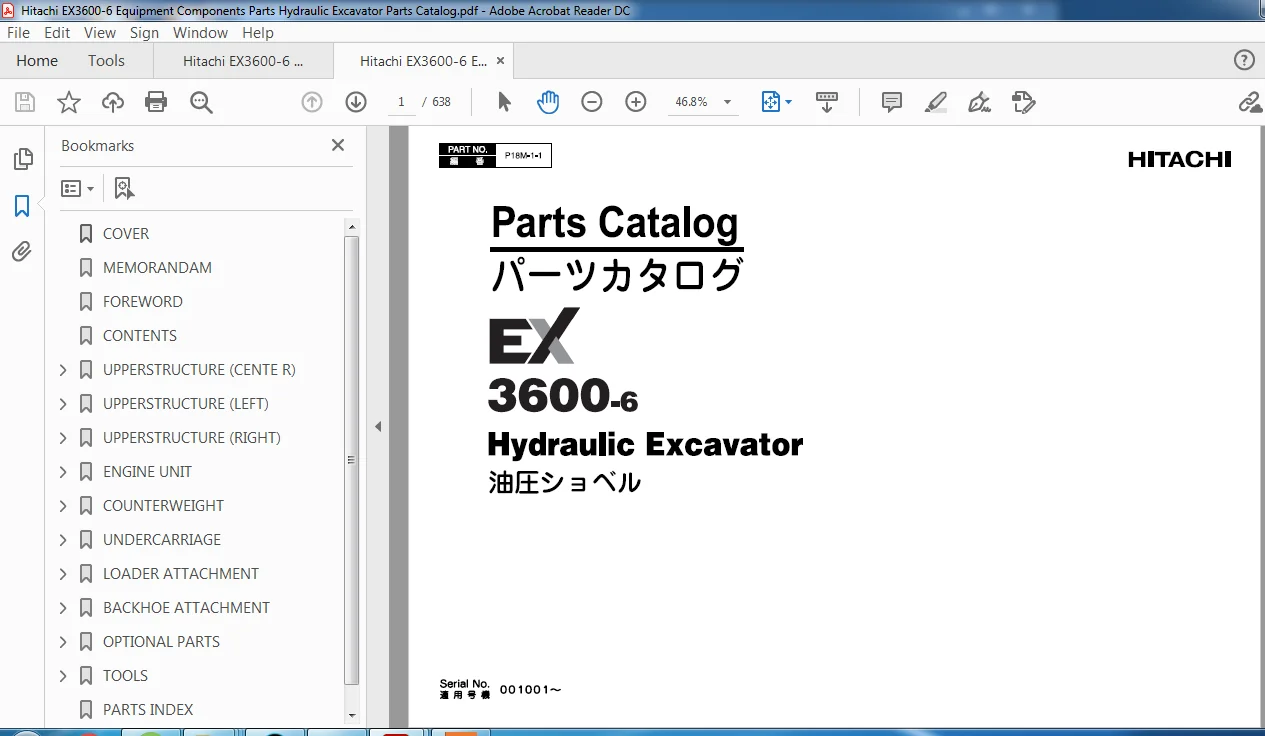

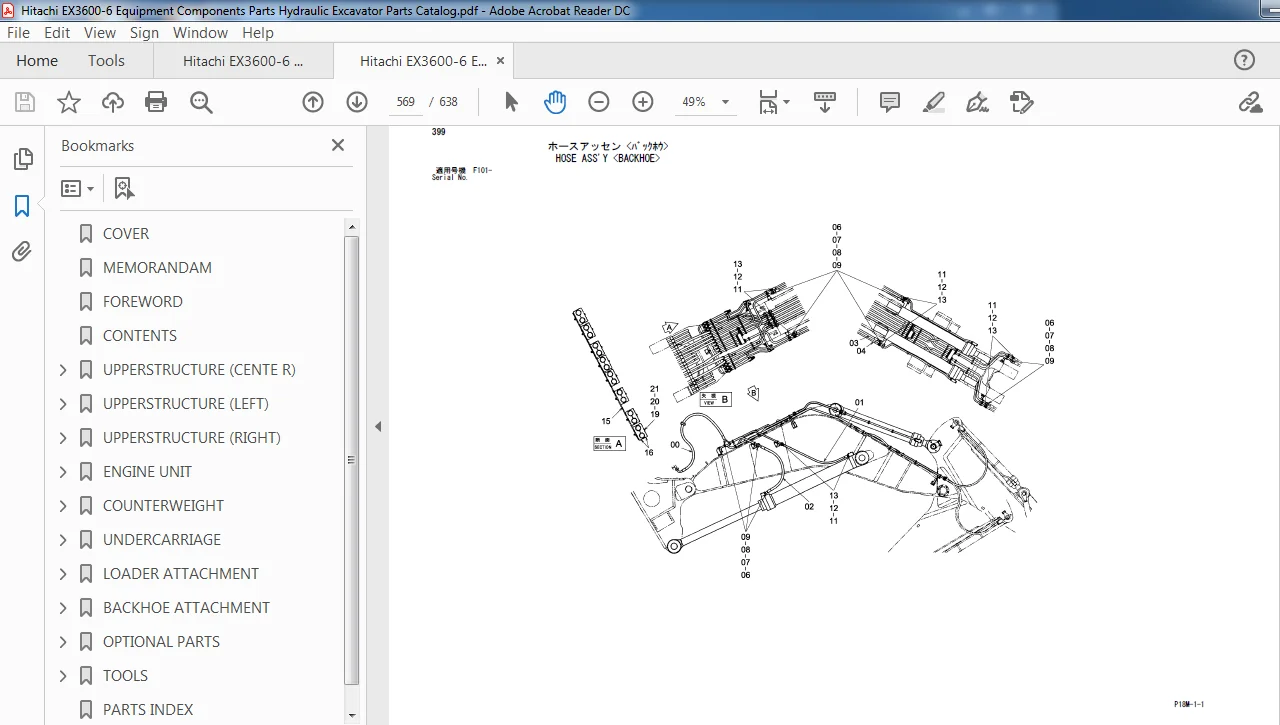

HITACHI EX3600-6 HYDRAULIC EXCAVATOR PARTS CATALOG MANUAL (P18M-1-1) – PDF DOWNLOAD:

Image Preview:

Description:

Hitachi EX3600-6 Hydraulic Excavator Parts Catalog Manual (P18M-1-1)

◎ According to Hitachi’s continuous effort to improve the product quality, descriptions in the Parts Catalog may be slightly different from your machine. If any questionable points are found, feel free to contact your nearest Hitachi dealer.
◎ For the engine parts, please refer to the parts catalog of diesel engine issued separately.
1. HOW TO ORDER PARTS
When ordering parts, please specify the following items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG
PART NAME: When the part is used as an inner part of an assembly part, the mark ”*” is shown in front of the part name.
Q’TY: Indicates the number of the part used per machine. The quantity of an inner part is the number of the inner part necessary to organize one assembly part.

Table of Contents:

Hitachi EX3600-6 Hydraulic Excavator Parts Catalog Manual (P18M-1-1)

COVER..........................................................  1
MEMORANDAM.....................................................  2
FOREWORD.......................................................  3
CONTENTS.......................................................  9
UPPERSTRUCTURE (CENTE R)....................................... 13
	FRAME (CENTER)............................................. 13
	SWING DEVICE GROUP......................................... 15
	SWING DEVIDE
............................................. 17
	TRANSMISSION (
SWING)
................................... 19
	CENTER JOINT GROUP......................................... 23
	CENTER JOINT............................................... 25

CONTROL VALVE SUPPORT.................................... 27
	CONTROL VALVE.............................................. 29
	PILOT PIPING (CENTER)(1)................................... 31
	PILOT PIPING (CENTER)(2)................................... 35
	PILOT PIPING (CENTER)(3)................................... 43
	PILOT PIPING (CENTER)(4)................................... 47
	PILOT PANEL................................................ 49
	PILOT HOSE ASS'Y........................................... 53
	RETURN PIPING (
CONTROL VALVE)
.......................... 55
	MAIN PIPING (
CONTROL VALVE)(1)
......................... 57
	MAIN PIPING (
CONTROL VALVE)(2)
......................... 59
	MAIN PIPING (
CONTROL VALVE)(3)........................... 61
	MAIN PIPING (
CONTROL VALVE)(4)
......................... 63
	SWING PIPING (
CONTROL VALVE)
........................... 65
	TRAVEL PIPING (
CONTROL VALVE)
.......................... 67
	DELIVERY PIPING (
CENTER)
............................... 69
	SWING PIPING (
CENTER)
.................................. 71
	TRAVEL PIPING (
CENTER)
................................. 73
	DRAIN,MAKE-UP PIPING
..................................... 75
	LUBRICATE PIPING (
CENTER)
.............................. 79
	INJECTOR VALVE
........................................... 85
	LUBRICATE PIPING (
FRAME)
............................... 87
	FAST FILLING SYSTEM
...................................... 89
	FAST FILLING PIPING (
CENTER)(1)
........................ 97
	FAST FILLING PIPING (
CENTER)(2)
........................101
	SWING-MISSION OIL INLET
..................................103
	STEP (
CENTER)
..........................................105
	FUEL PIPING (
CENTER).....................................107
UPPERSTRUCTURE (LEFT)..........................................111
	FRAME (
L)................................................111
	CAB BED....................................................113
	AIR HORN...................................................119
	CONTROL BOX................................................121
	AIR-CONDITIONER
..........................................123
	AIR-CON. UNIT
............................................127
	CONPRESSOR GROUP
.........................................131
	COMPRESSOR.................................................135
	FLOOR......................................................137
	REAR BOX...................................................141
	CONSOLE (R)................................................143
	CONSOLE....................................................145
	SEAT.......................................................149
	CAB GROUP (
1)............................................151
	CAB GROUP (
2)............................................153
	CAB........................................................155
	CAB (1)....................................................157
	CAB (2)....................................................159
	CAB (3)....................................................161
	AUX. SEAT..................................................163
	CONSOLE (
L)..............................................165
	CONSOLE....................................................167
	DISPLAY UNIT...............................................169
	MIRROR ASS'Y...............................................171
	FUEL TANK..................................................173
	HANDRAIL (
FUEL TANK).....................................177
	FUEL PIPING (
FUEL TANK)
.................................179
	AIR-CON. HYDRAULIC, HEATER PIPING
........................181
	FENDER (
L)
.............................................187
	STAIR WAY SUPPORT
.........................................189
	STAIR WAY GROUP............................................191
	FRAME (
STAIR WAY)
.......................................193
	STAIR WAY..................................................199
	STAIR WAY PIPING...........................................203
	VALVE ASS'Y
...............................................209
	STEP (L)...................................................211
UPPERSTRUCTURE (RIGHT).........................................217
	FRAME (R)..................................................217
	OIL TANK GROUP.............................................219
	OIL TANK...................................................221
	BYPASS FILTER..............................................225
	OIL TANK SENSOR............................................227
	BUTTERFLY VALVE............................................229
	AIR OPEN VALVE.............................................231
	RETURN PIPING (
R):1......................................233
	RETURN PIPING (
R):2......................................237
	RETURN PIPING (
R):3......................................239
	RETURN PIPING (
R):4......................................241
	SUCTION PIPING (
R):1.....................................245
	SUCTION PIPING (
R):2.....................................247
	OIL COOLER SUPPORT.........................................249
	OIL COLLER.................................................251
	FAN DRIVE (
OIL COOLER)...................................253
	LUBRICATE PIPING (
R).....................................255
	LUBRICATOR.................................................257
	LUBRICATOR UNIT............................................259
	LUBRICATOR PUMP............................................261
	LUBRICATOR PANEL...........................................265
	HOSE RELL GROUP............................................269
	HOSE REEL..................................................271
	FAST FILLING PIPING (
R)..................................273
	STEP (R)...................................................279
	HANDRAIL (
OIL COOLER)....................................283
	OIL COOLER COVER (
1).....................................285
	OIL COOLER COVER (2).......................................289
	OIL COOLER COVER (3).......................................291
	FENDER (R).................................................293
	COOLER PIPING..............................................297
ENGINE UNIT....................................................301
	ENGINE BED.................................................301
	ENGINE, PUMP GROUP.........................................303
	ENGINE.....................................................305
	PUMP DRIVE.................................................309
	PUMP MISSION...............................................311
	T.MISSION (
PUMP).........................................313
	LUBRICATION  (
PUMP)......................................317
	SUCTION PIPING (
PUMP)....................................321
	PUMP, DRAIN PIPING.........................................323
	PUMP PILOT.................................................325
	PUMP PILOT PIPING (1)......................................327
	PUMP PILOT PIPING (2)......................................331
	SUCTION MANIFOLD...........................................333
	ENGINE OIL RESERVE TANK....................................335
	ENGINE OIL RESERVE TANK PIPING.............................337
	RADIATOR GROUP.............................................341
	RADIATOR (
FRONT).........................................343
	RADIATOR (REAR)............................................347
	RADIATOR (1/2).............................................351
	RADIATOR (2/2).............................................355
	MOTOR ASS'Y (
RADIATTOR)(FRONT)...........................359
	MOTOR ASS'Y (
RADIATOR)(REAR).............................361
	RADIATOR PIPING............................................363
	WATER TANK.................................................369
	MISSION COOLER PIPING......................................373
	FAN DRIVE (
ENGINE ROOM)..................................377
	MOTOR PIPING...............................................379
	INTAKE, EXHAUST DEVICE.....................................381
	INTAKE, EXHAUST PIPING.....................................385
	DELIVERY PIPING (
ENGINE):1...............................387
	DELIVERY PIPING (
ENGINE):2...............................391
	DELIVERY FILTER............................................393
	STRAINER...................................................395
	FAN MOTER, STAIR WAY PIPING................................397
	AIR-CON. DRAIN PIPING......................................401
	PILOT PIPING (
ENGINE)....................................405
	PILOT FILTER...............................................409
	PILOT PANEL (
ENGINE).....................................411
	FAST FILLING PIPING (
ENGINE).............................415
	ENGINE COVER (1)...........................................417
	ENGINE COVER (2)...........................................421
	DOOR (1)...................................................425
	DOOR (2)...................................................427
	ENGINE COVER (3)...........................................429
	HEAT SHIELD (
1)..........................................431
	HEAT SHIELD (
2)..........................................433
	COVER......................................................435
	HANDRAIL (
ENGINE)........................................437
	STEP (ENGINE)..............................................441
	BATTERY....................................................443
	RELAY BOX..................................................447
	SWITCH BOX (
STAIR WAY)...................................449
COUNTERWEIGHT..................................................451
	COUNTERWEIGHT ASS'Y........................................451
	COUNTERWEIGHT..............................................453
	SUB COUNTERWEIGHT..........................................455
	COUNTERWEIGHT PARTS........................................457
	HANDRAIL (COUNTERWEIGHT)...................................459
UNDERCARRIAGE..................................................461
	TRACK FRAME................................................461
	SWING BEARING..............................................463
	LUBRICATE PIPING (
SWING BEARING).........................465
	LUBRICATE PIPING (
FRAME)
適LUBRICATE PIPING (
FRAME)....469
	TRAVEL DEVICE ASS'Y........................................471
	TRAVEL DEVICE..............................................473
	DRIVE TUMBLER..............................................477
	FRONT IDLER ASS'Y..........................................479
	FRONT IDLER................................................481
	ADJUSTER...................................................483

ADJUSTER CYLINDER........................................485
	ADJUSTER PIPING (
TRACK:INNER)............................487
	ACCUMULATOR PIPING.........................................489
	ACCUMULATOR................................................493
	ADJUSTER PIPING (
TRACK:OUTER)............................495
	UPPER ROLLER...............................................497
	UPPER ROLLER SUPPORT.......................................499
	LOWER ROLLER
..............................................501
	TRACK-LINK
................................................503
	TRAVEL PIPING (
1)
.......................................505
	TRAVEL PIPING (2)..........................................509
	PILOT, DRAIN PIPING (
TRACK:INNER)........................513
	PILOT, DRAIN PIPING (
TRACK:OUTER)........................517
	COVER......................................................519
LOADER ATTACHMENT..............................................521
	LINKAGE <LOADER>...........................................521
	BOOM  <LOADER>.............................................523
	ARM <LOADER>...............................................525
	FRONT PIPING (
BOOM)<LOADER>..............................527
	FRONT PIPING (
ARM)<LOADER>...............................533
	LUBRICATE PIPING (
BOOM)<LOADER>..........................537
	LUBRICATE PIPING (
ARM)<LOADER>...........................541
	HANDRAIL<LOADER>...........................................545
	LOADER BUCKET 21.0m3.......................................547
	FRONT BUCKET ASS'Y (
LOADER BUCKET 21.0m3)................549
	REAR BUCKET ASS'Y (
LOADER BUCKET 21.0m3).................551
	BUCKET OPENING/CLOSING PIPING (
LOADER BUCKET 21.0m3)
....553
	BUCKET LUBRICATE PIPING (
LOADER BUCKET 21.0m3)
..........555
	COVER ASS'Y................................................559
BACKHOE ATTACHMENT.............................................561
	BOOM ASS'Y 9.6m............................................561
	BOOM 9.6m..................................................563
	FRONT PIPING (BOOM)<BACKHOE>...............................565
	HOSE ASS'Y <BACKHOE>.......................................569
	LUBRICATE PIPING (
BOOM) <BACKHOE>........................571
	PIPE ASS'Y <BACKHOE>.......................................575
	FRONT GUARD................................................579
	ARM ASS'Y 4.5m.............................................581
	LINK；A
(
R)..............................................585
	LINK；A
(
L)..............................................587
	LINK；B.....................................................589
	LINK；B
(
R)..............................................591
	LINK；B
(L)................................................593
	ARM 4.5m...................................................595
	LUBRICATE PIPING (
ARM):1 <BACKHOE>.......................597
	LUBRICATE PIPING (
ARM):2 <BACKHOE>.......................599
	COVER PARTS................................................603
	BUCKET 22.0m3 <JIS 94>.....................................605
OPTIONAL PARTS.................................................607
	DISCHARGE LIGHT............................................607
	HYDRAULIC-OIL SUCTION DEVICE...............................609
	TRAVEL MOTOR GUARD.........................................613
	TRAVEL TRANSMISSION GUARD
.................................615
TOOLS..........................................................617
	TOOLS......................................................617
PARTS INDEX....................................................621

Please Note:

⦁ This is the SAME MANUAL used by the dealerships to diagnose your vehicle
⦁ No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
⦁ Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
⦁ So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
