Hitachi EX5600-7 EX-5600-7B Hydraulic Excavator Parts Manual PN:PKGB91-E1-3 – PDF DOWNLOAD

Description

Hitachi EX5600-7 EX-5600-7B Hydraulic Excavator Parts Manual PN:PKGB91-E1-3 – PDF DOWNLOAD

FILE DETAILS:

Hitachi EX5600-7 EX-5600-7B Hydraulic Excavator Parts Manual PN:PKGB91-E1-3 – PDF DOWNLOAD

Language :English_Dutch_German_French_Italian_Spanish_Danish_Portuguese(Brazil),Norwegian, Romanian, Finnish-Russian Chinese(Simplified)
Pages :194
Downloadable : Yes
File Type : PDF

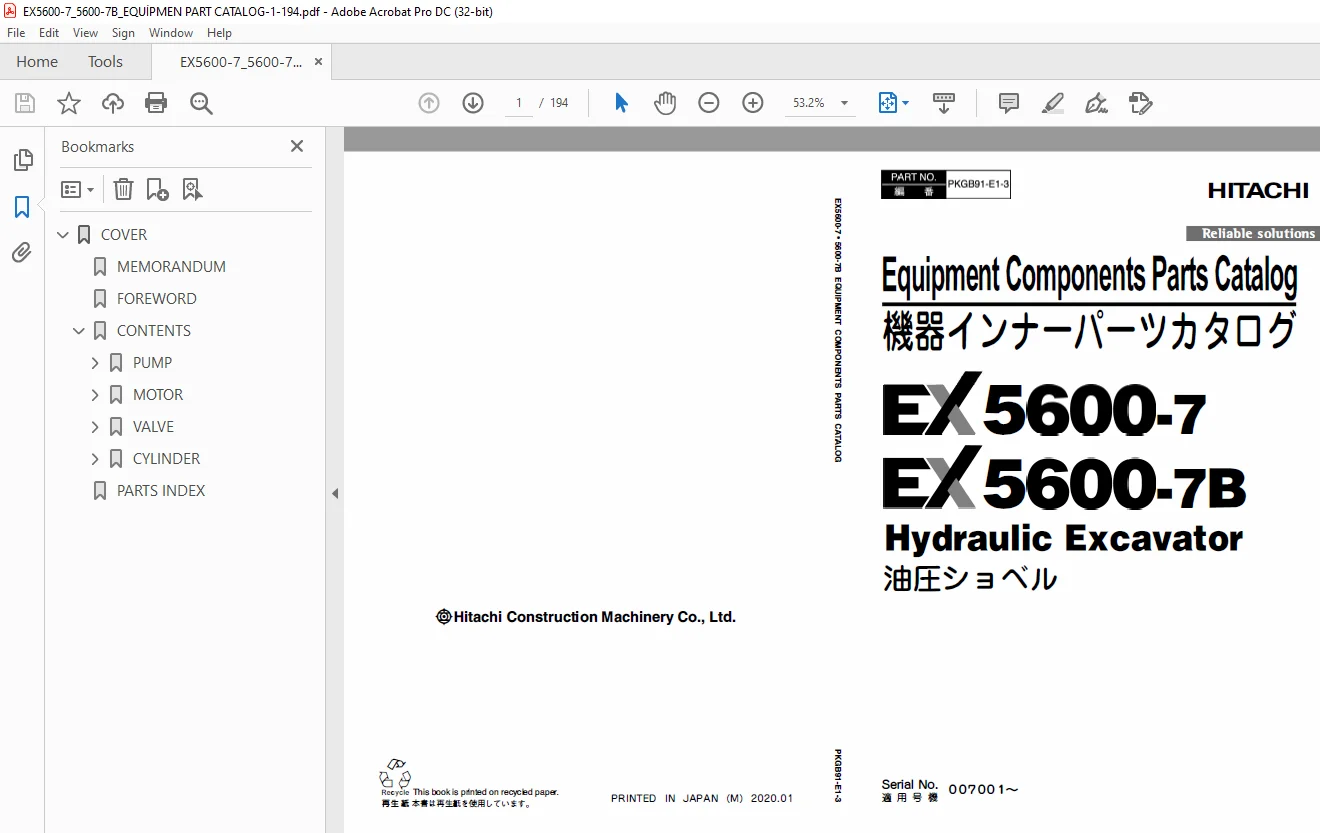

IMAGES PREVIEW OF THE MANUAL:

DESCRIPRION:

Hitachi EX5600-7 EX-5600-7B Hydraulic Excavator Parts Manual PN:PKGB91-E1-3 – PDF DOWNLOAD

􀀎 Serial No. 00700 1-..

F O R E W O R D
According to Hitachi’s continuous effort to improve the product quality, descriptions in the Parts Catalog may
be slightly different from your machine. If any questionable points are found, feel free to contact your
nearest Hitachi dealer.
1. HOW TO ORDER PARTS
When ordering parts, please specify the following
items.
(1) Model/type
(2) Product Identification Number
(3) Part No.
(4) Part Name
(5) Q’ty
(6) Purchaser’s Name and Address
2. HOW TO USE THIS PARTS CATALOG
PART NAME: When the part is used as an inner part
of an assembly part, the mark ”‡” is
shown in front of the part name.
Q’TY: Q’ty shows the quantity used for a
particular single hydraulic unit,
however quantity of components
shows the quantity for one assembly
part.
SYMBOLS USED IN THIS BOOK:
The symbols shown in the service code and
interchangeability columns are used to indicate
the following information.
W: Requires additional processing at the job
site. Ask your nearest Hitachi dealer.
D: Impossible to replace as a single part.
Replace the part in an assembly unit.
K: Contained in the service part kit.
R: Indicate that the quantity of the part like
shims differs depending on the machine
serial No.
S: To be supplied as repair or service parts.
OS: Over-sized parts
US: Undersized parts
(Part with mark “OS, or US” is described in
the next column under the standard size
part column.)
#: Indicates newly added parts to the
equipment or component.
Y: Interchangeable part without any
constraint.
I: Used to indicate the part No. and quantity
of the part to be used for the part
concerned in the replacement part column.
However, the part concerned is not used
for the part shown with mark I.
T: Becomes interchangeable when
combined.
P: Indicate the part prohibited to use. Use the
part shown in the replacement part
column.
SERIAL No.: The serial number corresponds to the last
six-digit figure of the PIN (Product Identification
Number) on the name-plate.
D: Represents the date of modification.
(Example: D03/09: New modification part
has been applied to the products
manufactured in and after Sept 2003.)
H: Indicates the component manufacturing No.
F: Indicates the front attachment manufacturing No

TABLE OF CONTENTS:

Hitachi EX5600-7 EX-5600-7B Hydraulic Excavator Parts Manual PN:PKGB91-E1-3 – PDF DOWNLOAD

􀀎 Serial No. 00700 1-..

COVER 1
MEMORANDUM 2
FOREWORD 4
CONTENTS 18
PUMP 20
PUMP;GEAR 20
PUMP;PISTON 24
REGULATOR 28
VALVE;REDUCING 32
ASSY;PUMP;PISTON 34
PUMP;PISTON 36
PUMP;PISTON 38
REGULATOR 42
ASSY;PUMP;PISTON 44
PUMP;PISTON 46
ASSY;PUMP;PISTON 48
PUMP;PISTON 50
REGULATOR 52
ASSY;PUMP;PISTON 54
PUMP;PISTON 56
PUMP 58
MOTOR 60
MOTOR;OIL 60
VALVE;RELIEF 64
MOTOR;OIL (TRAVEL) 66
VALVE 70
MOTOR;OIL (OIL-COOLER FAN) 72
VALVE-BLOCK 74
MOTOR;PISTON 76
ROTARY GROUP 78
HYDRAULIC PARTS 80
MOTOR;OIL (FAN DRIVE) 82
VALVE 84

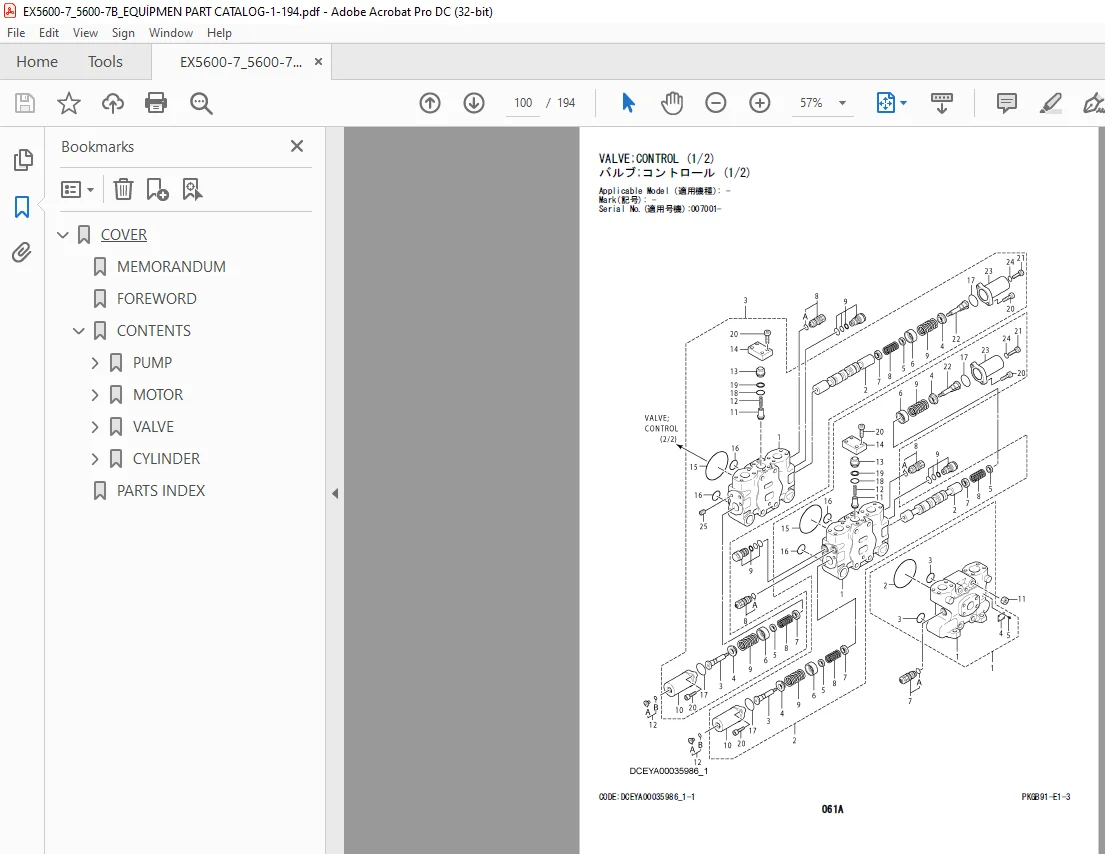

VALVE;CONTROL (1/2) 84
VALVE;CONTROL (2/2) 88
VALVE;CONTROL (1/2) 92
VALVE;CONTROL (2/2) 96
VALVE;CONTROL (1/2)100
VALVE;CONTROL (2/2)104
VALVE;SELECTOR108
VALVE;CHECK110
VALVE;RELIEF112
VALVE;RELIEF114
VALVE116
VALVE;CHECK118
VALVE120
VALVE;RELIEF122
VALVE;BRAKE124
VALVE;RELIEF126
VALVE128
VALVE;SOLENOID (3 SECTION)130
VALVE;SOLENOID132
VALVE;SLOW-RETURN (LOADER)134
VALVE (BACKHOE)136
VALVE (ADJUSTER CYLINDER)138
VALVE (ADJUSTER CYLINDER PILOT CIRCUIT)140
CYLINDER142
CYL;LIFT (STAIRWAY PIPING)142
CYL;BOOM (LOADER)144
CYL;BOOM (BACKHOE)148
CYL;ARM (LOADER)152
CYL;ARM (R)(BACKHOE)156
CYL;ARM (L)(BACKHOE)160
CYL;LEVEL (LOADER)164
CYL;BUCKET (R)(LOADER)166
CYL;BUCKET (R)(BACKHOE)170
CYL;BUCKET (L)(LOADER)174
CYL;BUCKET (L)(BACKHOE)178
CYL;LIFT (FAST FILLING SYSTEM)182
CYL;DUMP (LOADER)184
PARTS INDEX186
