Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle Manual

FILE DETAILS:

Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Workshop Manual
2. Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Troubleshooting Manual
3. Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Operational Principle Manual
4. Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Circuit & Harness

HITACHI EX75UR-5 75UPLC-5 HYDRAULIC EXCAVATOR WORKSHOP + TROUBLESHOOTING + OPERATIONAL PRINCIPLE MANUAL – PDF DOWNLOAD:

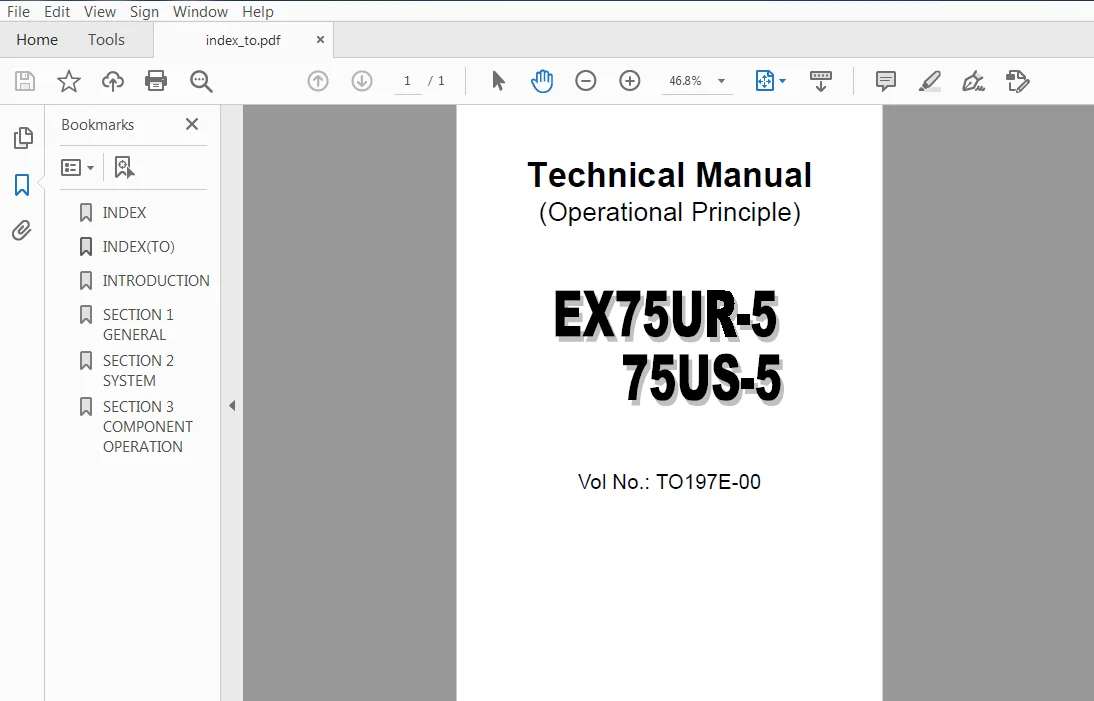

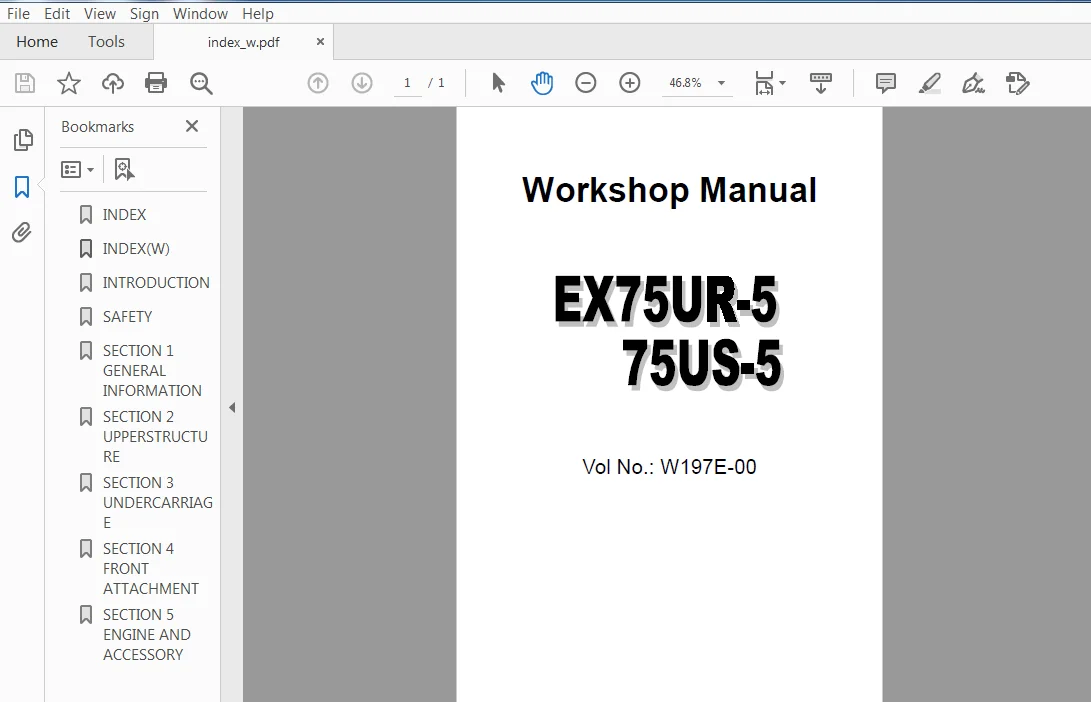

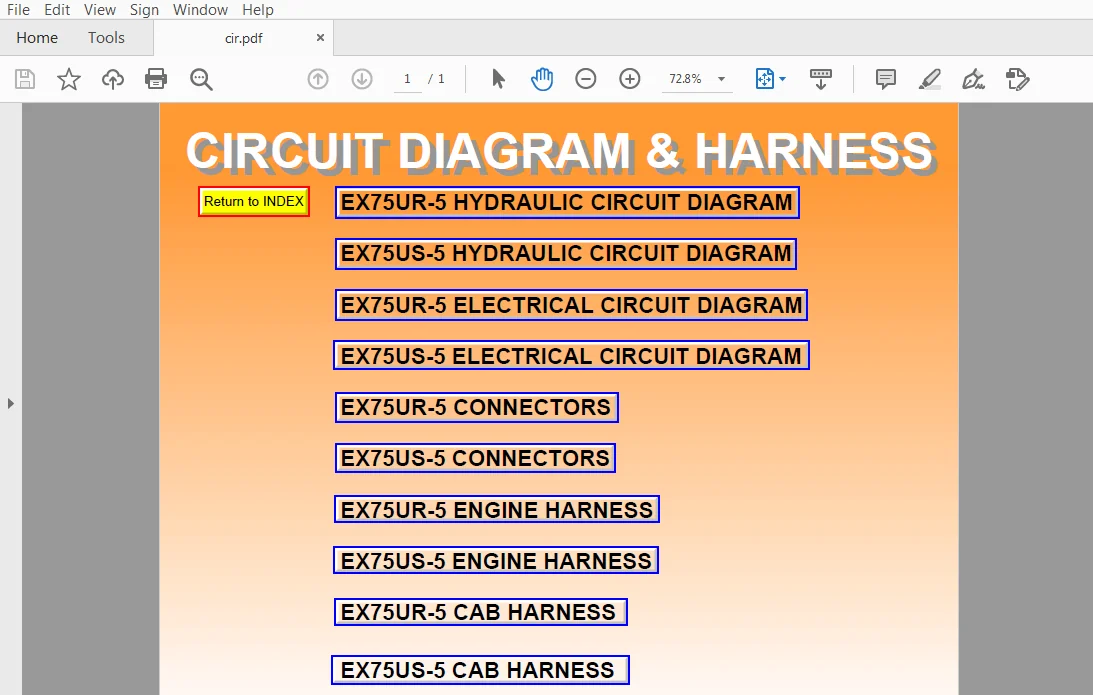

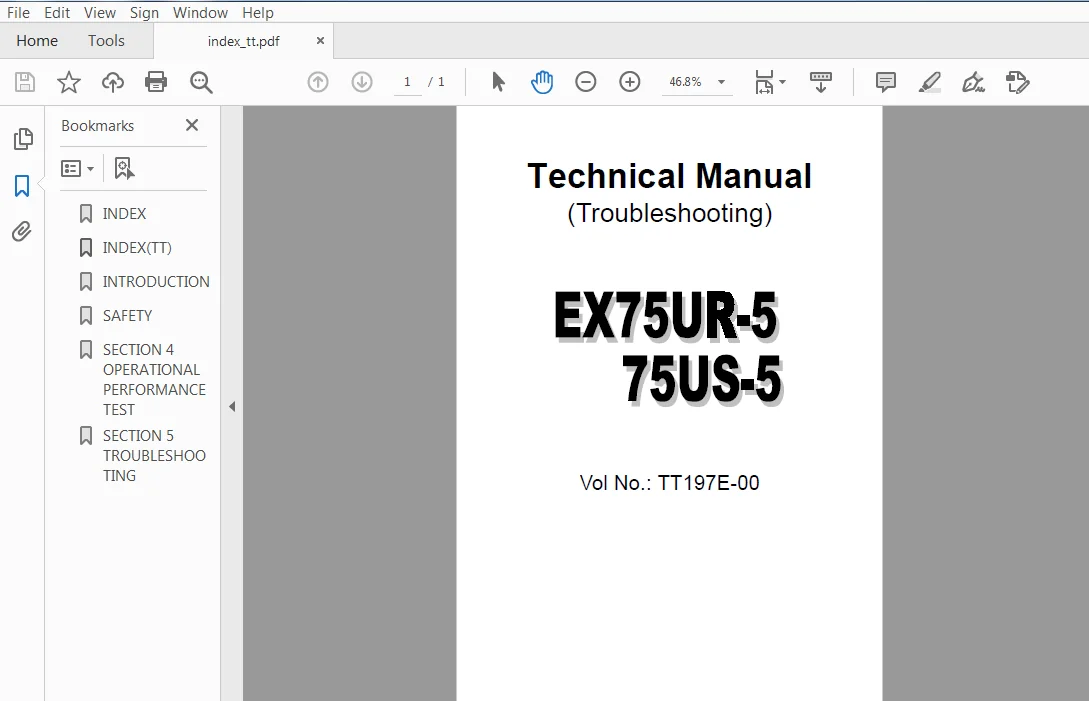

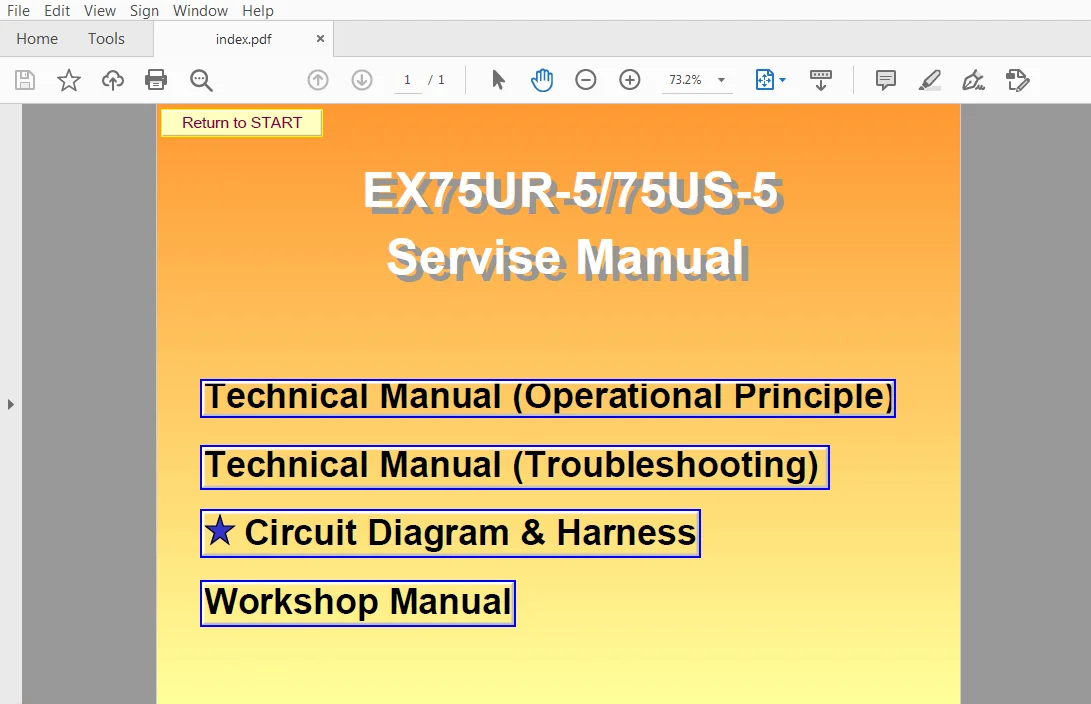

SCREENSHOTS OF THE MANUAL:

DESCRIPTION:

Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Workshop + Troubleshooting + Operational Principle Manual

• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.  Be sure to thoroughly read this manual for correct product information and service procedures. This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redeliver and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures. Precautions for Disassembling and Assembling
• Clean the Machine Thoroughly wash the machine before bringing it into the shop. Bringing a dirty machine into the shop may cause machine components to be contaminated during disassembling/assembling, resulting in damage to machine components, as well as decreased efficiency in service work.
• Inspect the Machine Be sure to thoroughly understand all disassembling/ assembling procedures beforehand, to help avoid incorrect disassembling of components as well as personal injury. Check and record the items listed below to prevent problems from occurring in the future.
• The machine model, machine serial number, and hour meter reading.  Reason for disassembly (symptoms, failed parts, and causes).
• Clogging of filters and oil, water or air leaks, if any.  Capacities and condition of lubricants.
• Loose or damaged parts. Prepare and Clean Tools and Disassembly Area Prepare the necessary tools to be used and the area for disassembling work.

TABLE OF CONTENTS:

Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Workshop Manual

INDEX
INDEX(W)1
INTRODUCTION
SAFETY
SECTION 1 GENERAL INFORMATION
SECTION 2 UPPERSTRUCTURE
SECTION 3 UNDERCARRIAGE
SECTION 4 FRONT ATTACHMENT
SECTION 5 ENGINE AND ACCESSORY

Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Troubleshooting Manual

INDEX
INDEX(TT)1
INTRODUCTION
SAFETY
SECTION 4 OPERATIONAL PERFORMANCE TEST
SECTION 5 TROUBLESHOOTING

Hitachi EX75UR-5 75UPLC-5 Hydraulic Excavator Operational Principle Manual

INDEX
INDEX(TO)1
INTRODUCTION
SECTION 1 GENERAL
SECTION 2 SYSTEM
SECTION 3 COMPONENT OPERATION
