Hitachi Hydraulic Excavator UH052 Parts List Manual(EMP155-7-1) – PDF DOWNLOAD

Description

Hitachi Hydraulic Excavator UH052 Parts List Manual(EMP155-7-1) – PDF DOWNLOAD

FILE DETAILS:

Hitachi Hydraulic Excavator UH052 Parts List Manual(EMP155-7-1) – PDF DOWNLOAD

Language : English
Pages :148
Downloadable : Yes
File Type : PDF
Size:9.12 MB

DESCRIPTION

Hitachi Hydraulic Excavator UH052 Parts List Manual(EMP155-7-1) – PDF DOWNLOAD

• In this parts list, illustrations are shown on odd pages and “Item” “Part No.  “Part Name” and “O’ty” on even pages. The shown parts are not only the current parts but also the previous ones for UH052.
• And the index of part numbers is given at the end of this parts list. The direction described in this parts list such as  Left  “Right” “Front” 1’Rear II are provided as follows.
• Where the operator’s seat is positioned is left side, and the opposite side is right. Where the front attachment is equipped is front and in the rear side the prime mover is mounted. As to the track, where the travelling motors are equipped is the rear side and the opposite is front side.
• As to the engine parts, refer to the “Engine Parts List “

1. HOW TO ORDER PARTS

When you order parts, you are requested to mention clearly “Part Name, “Part No.  and O 1ty  of parts together with the “Model of Machine” and “Machine Serial No.

(Examples)
(1) Model of Machine ( UH052)  These are shown on Name Plate in front of revolving frame.
(2) Machine Serial no:    (153-10001)
(3) Part No.                     A810165               Ordering,parts
(4) Part Name                     0-Ririg
(5) Ordering Q’ty                      2                    Ordering Q’ty
(6) Pur.chaser’ s Name and Addres

TABLE OF CONTENTS:

Hitachi Hydraulic Excavator UH052 Parts List Manual(EMP155-7-1) – PDF DOWNLOAD

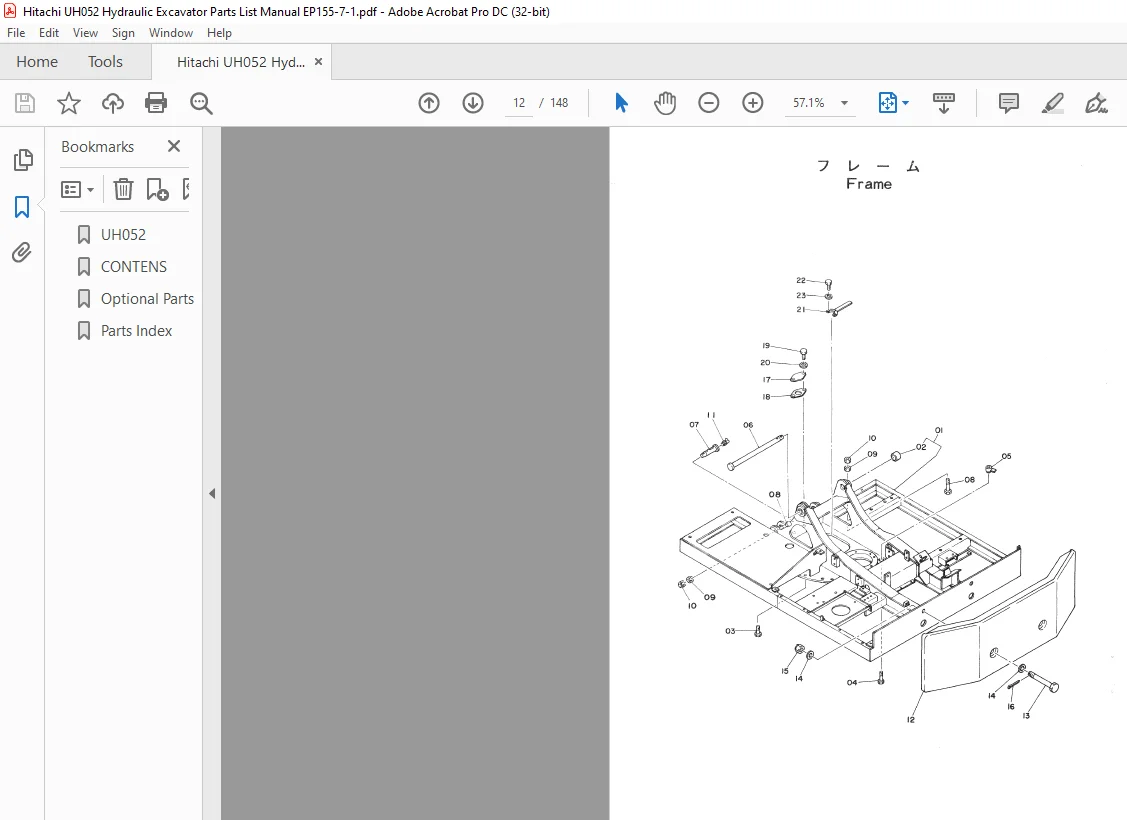

Frame

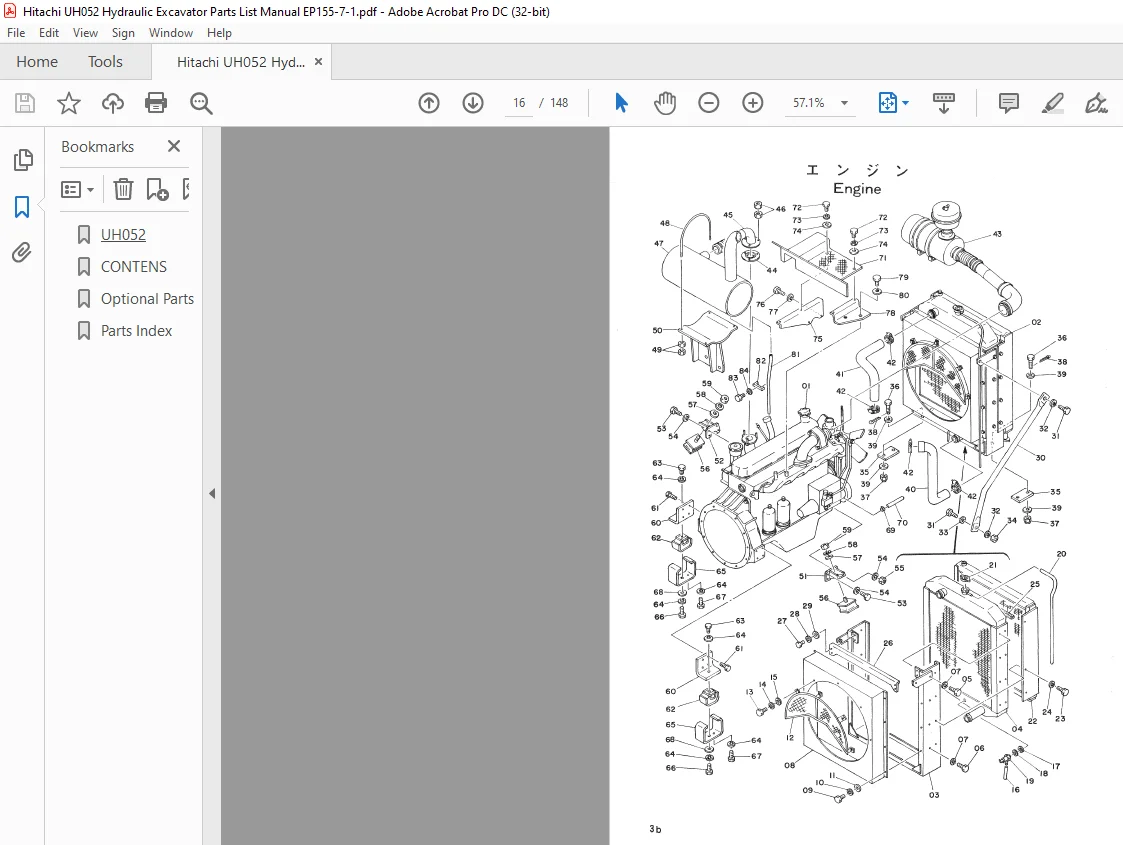

engine
Air Cleaner
Tank
Swing Motor
Main Piping (1) ”
Main Piping (2)
Oil Cooler Piping
Gear Pump ”
Control Lever (2 Lever Type)
Engine Control Lever
Electric Parts
Electric Wiring
Heater Piping
Cab
Cab Ass’y
Cover Track
Lower Roller Upper Roller
Idler
Track Spring
Adjuster
Propelling Device
Center Joint
Propelling Piping
Track- Link 510
Front
Front Piping
Name
Spare Parts Name-Plate
Optional s
Control Lever ( 4 Lever ) Fe
Device ” 00
Track-Link 51OF
Track- Link 710
Track- Link 710A
Bucket 0 15
Bucket 0 25
Bucket 0 30
Bucket 0 50
Type Bucket 0 30
Ejector Bucket 0 20
Slope-Finishing Blade
Clamshell Bucket
Semi-Long Arm

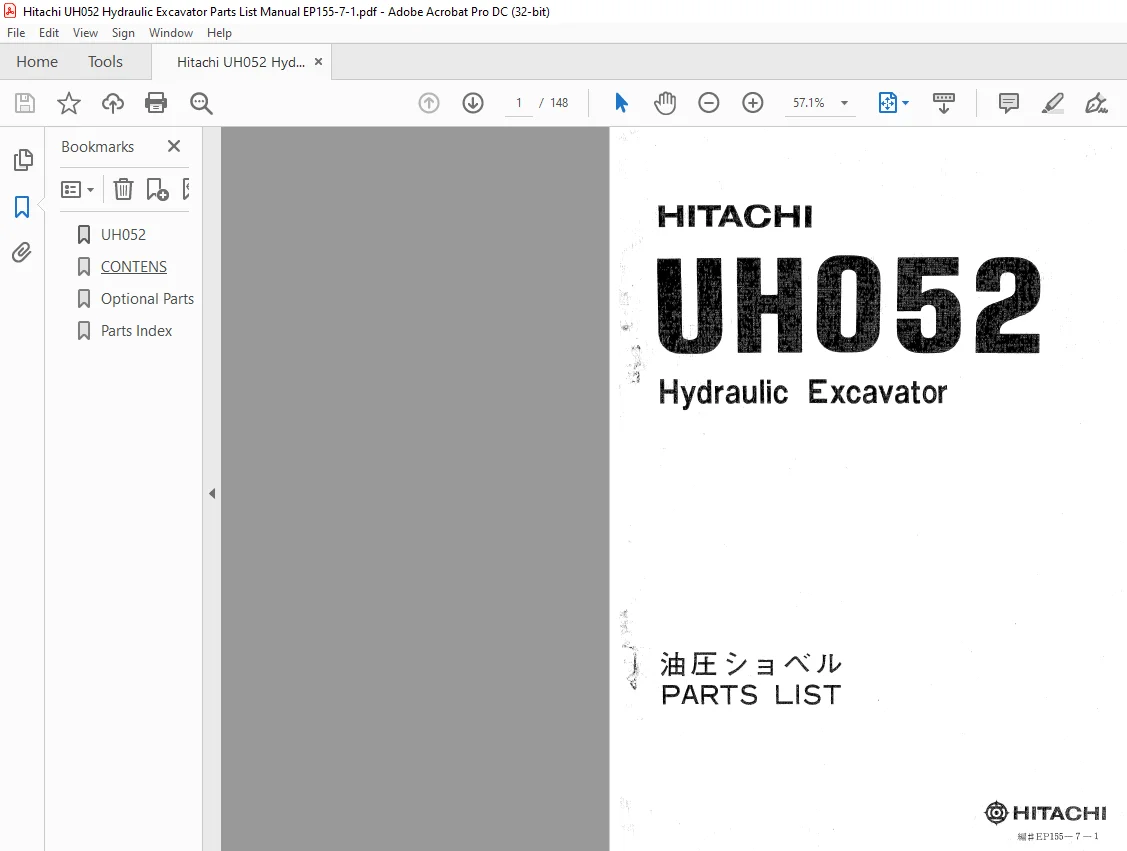

IMAGES PREVIEW OF THE MANUAL:
