DESCRIPTION

Hitachi Hydraulic excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

Instructions for Ordering Parts and the Parts Number

• In this parts list, drawings of assembly are shown on odd pages, and “Item” “Parts No.” “Name of parts” and “Q’ty” on even. The relation of positions on the machine body should be understood as follow;
• Where the driver’s seat is positioned is the left side, the right being on the opposite side, and where the boom is equipped is the front, in the Rear being installed the prime mover the driving sprocket, which is drawn under the side of engine room in the catalogue is also termed the Rear driving sprocket which ever position may take in actual operation.

1. HOW TO ORDER PARTS

When ordering machine parts you are requested to mention clearly the name, the number, and the quantity of parts in demand together with the Type- Form of machine for which the parts are in need the machine number

For example
UH081 H,4-11001 3008679 Filter Element 2
Lordering
quantity
Name of parts
Number of parts
Number of Body parts
Being carved on the
name-plate in cab

It is requested to use part which are supplied from the reliable source, and it is most advisable to use Hitachi genuine part, As for the engine parts, refer to the Parts List of HINO ELlO0 Diesel Engine, Figures shown in remarks column indicate serial number of the machines this parts list is applied for,

TABLE OF CONTENTS:

Hitachi Hydraulic excavator UH081 Parts List Manual(EP164-4-4) – PDF DOWNLOAD

Name
Frame
Engine
Radiator
Transmission
Center Joint
Tank
Swing Device • •
Oil Cooler Piping •
Oil Cooler Piping
Oil Cooler Piping
Full-Flow
Filter Pilot
Piping • 11 oo
Pilot Piping • 1125
Main Piping 1100
Main Piping • • • 11 o2
Main Piping 1102
Control Lever 1105
(2-lever type)
Control Lever (4-lever type)
Engine Control Lever
Pump Control Lever
Compressor Piping
Electric Parts (No 1)
Electric Parts (No 2) Electric Wiring
Cab
Cab Body
Cover
Lubricator (Swing Bod Track
Propelling Piping Piping Cover Propelling Device Idler
Track Spring Oil Cylinder Lower Roller Upper Roller
Track Link (610G) Track Link (610G) Boom
Arm Front
Front Piping
Lubricator (Front) Tools (No 1)
Tools (No 2)
Spare Parts
Name Plate
Optional Parts
Track Link (810G)
Track Link (810G)
Track Link (910A)
Track Link (910A)
Track Link (61OF)
Track Link (61OF)
Hoe Bucket O 45 Ass’y
Hoe Bucket O8 Ass’y
Hoe Bucket O 9 Ass’y
Hoe Bucket 1 0 Ass ‘y
Hoe Bucket 1 2 Ass 1y
Ripper Backet 0 5 Ass’y
V-Shaped Bucket 04 Ass’y
Slope-Finishing Blade
One-Point Ripper

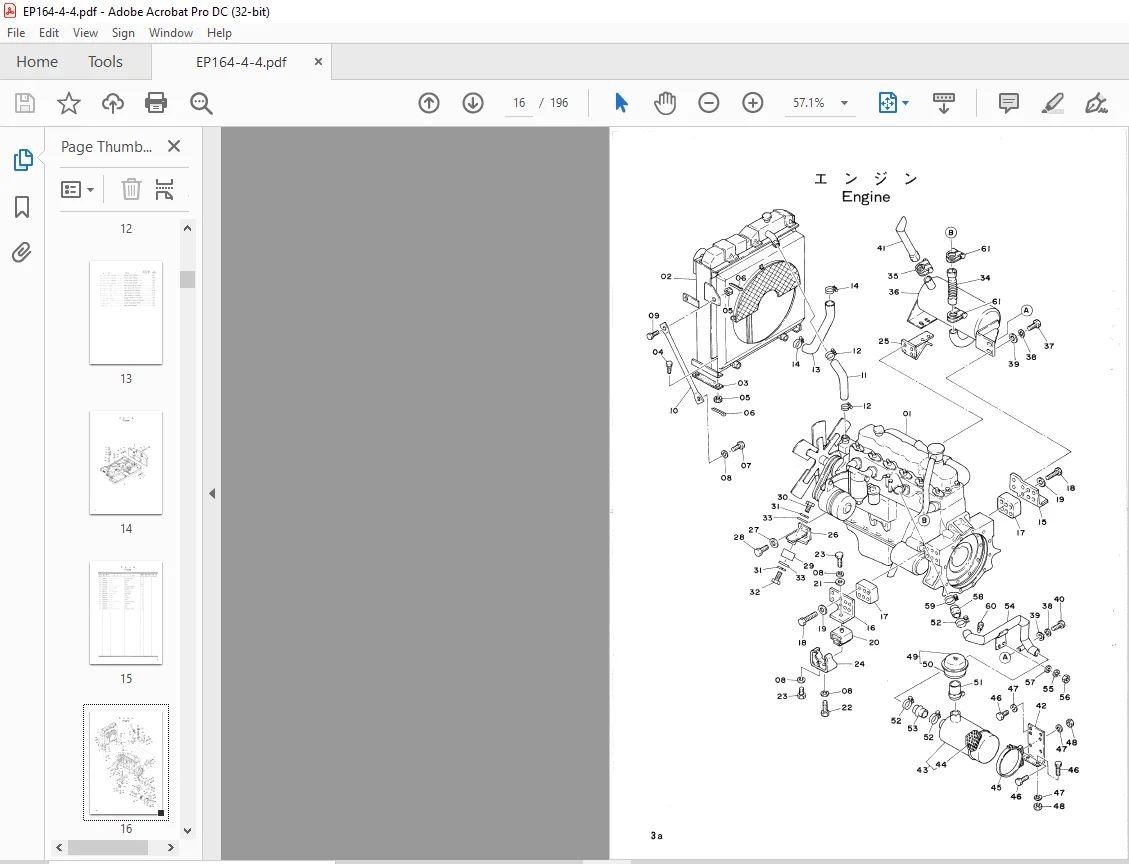

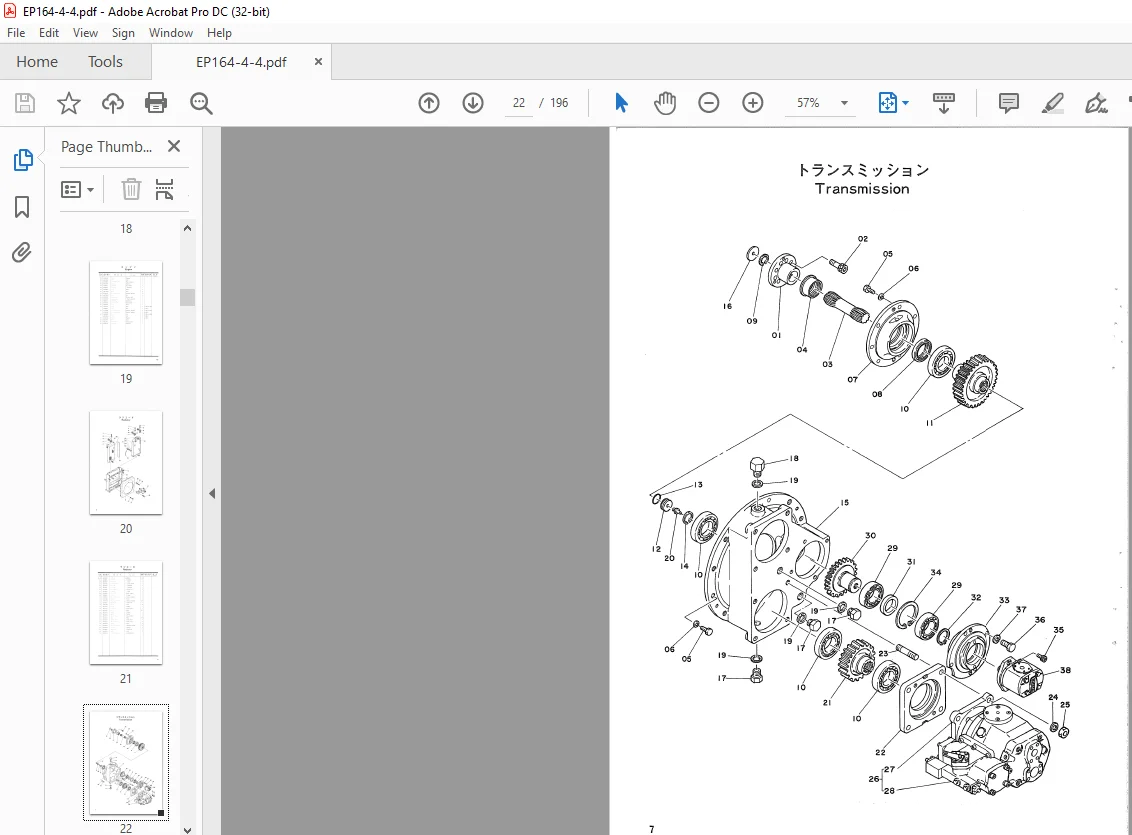

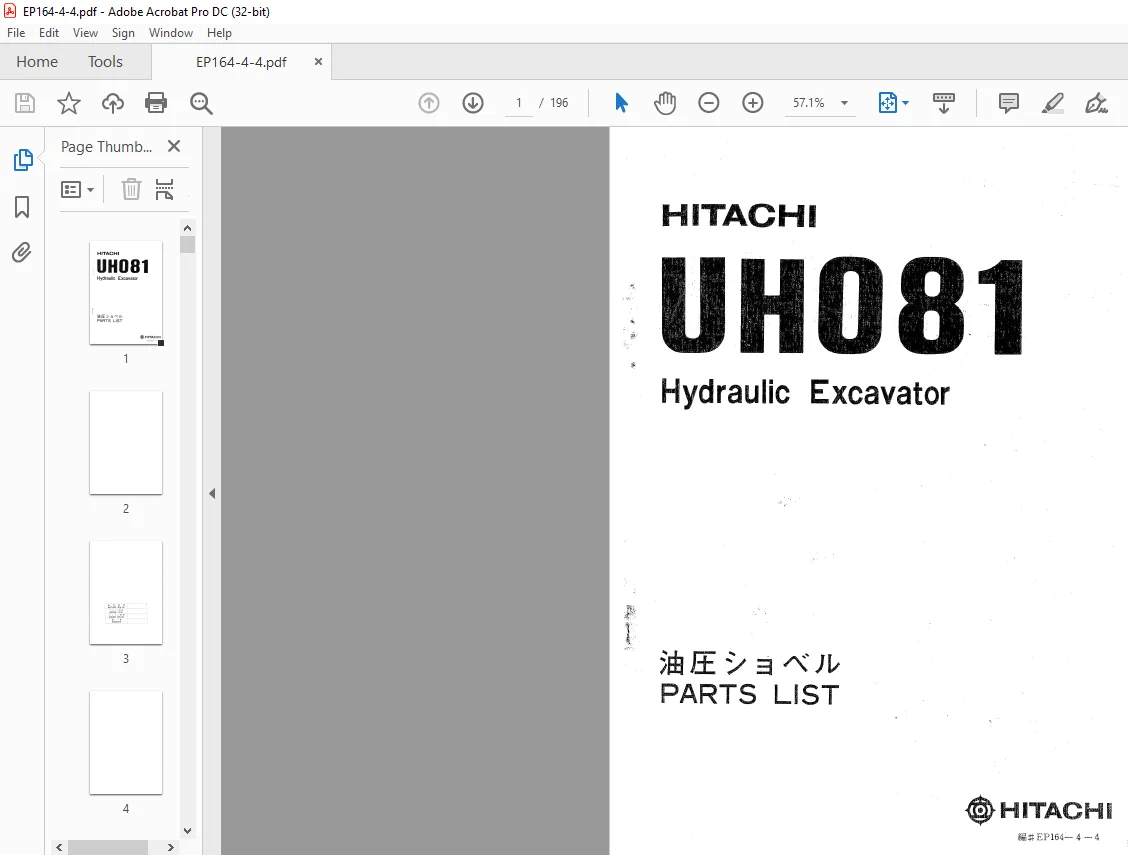

IMAGES PREVIEW OF THE MANUAL:
